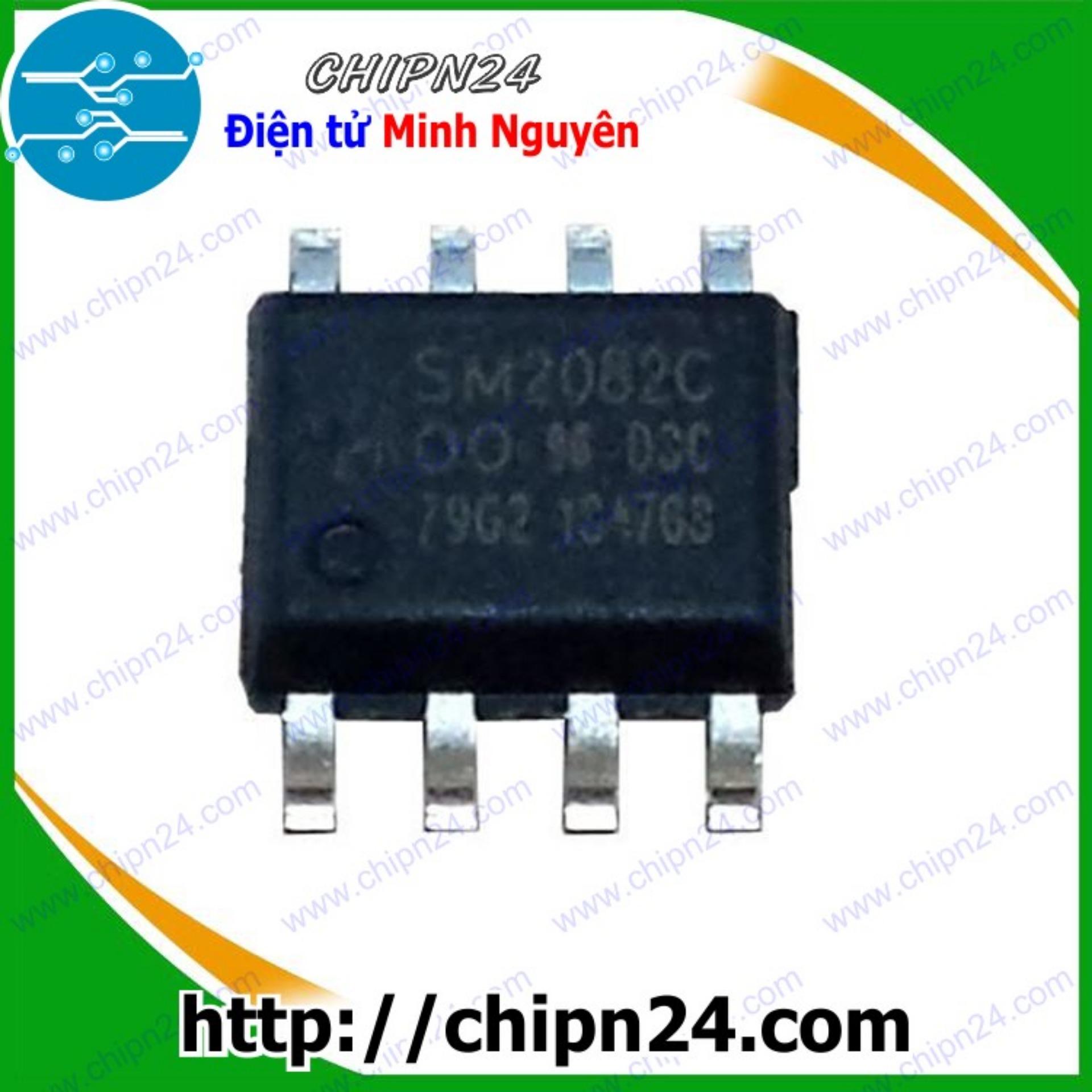

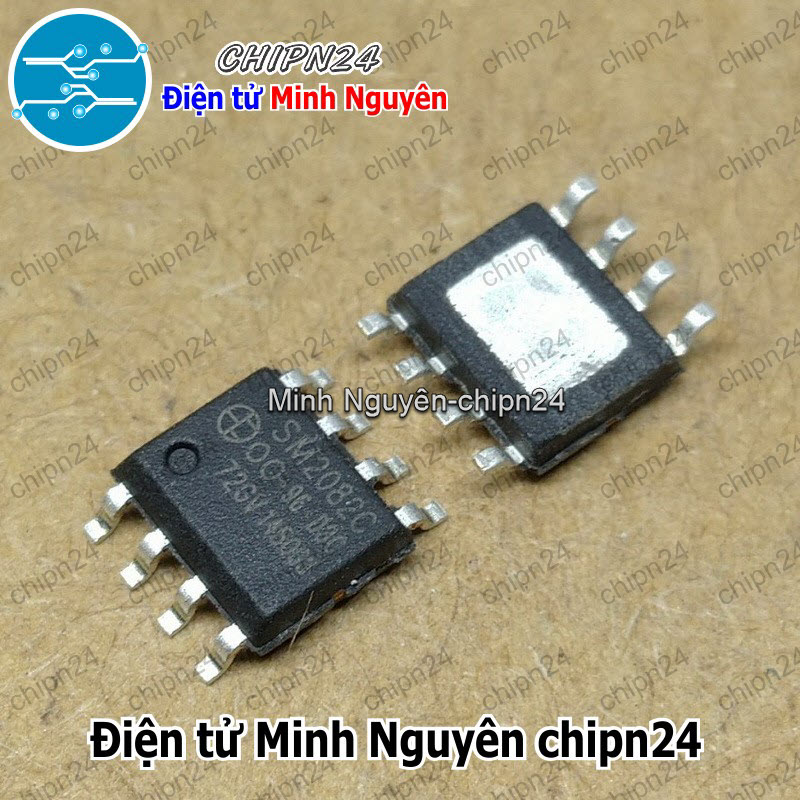

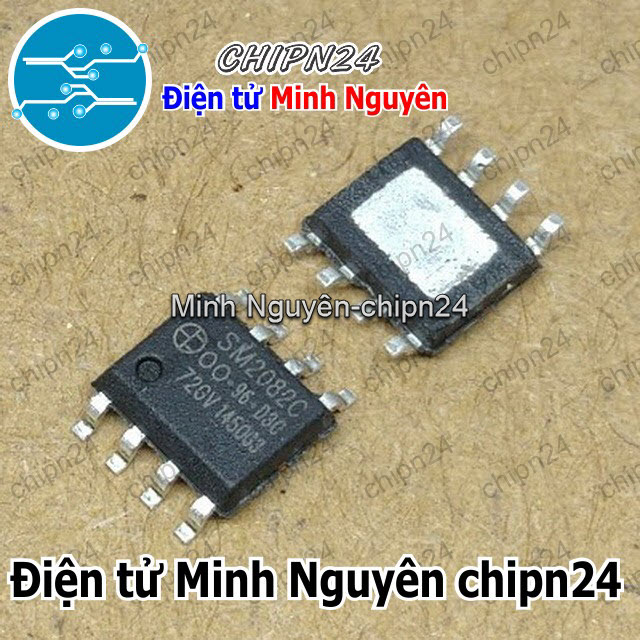

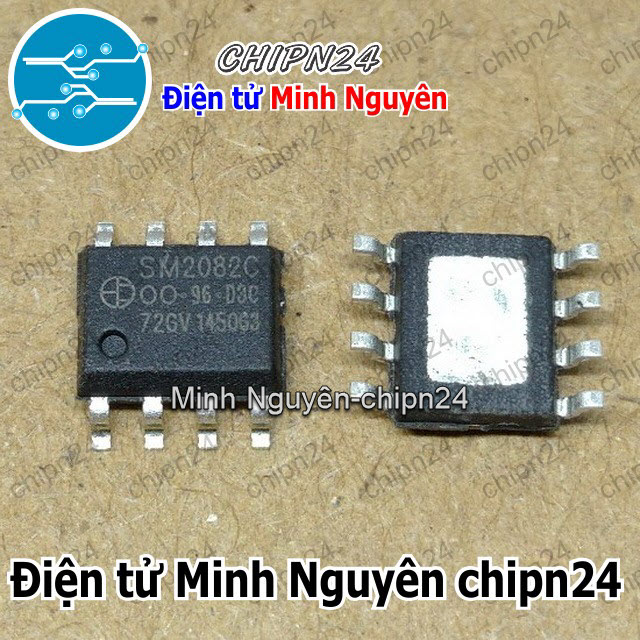

IC SM2082 SOP-8 (SMD Dán) (SM2082C 2082)

_x000D_ IC SM2082 SM2082C SOP-8 (SMD Dán)

Overview:
SM2082C is a single-channnel LED constant current drive control chip, the chip uses the patent
The constant current setting and control technology, the output current is set by the external Rext resistor 5mA ~ 60mA, and the output current does not change with the chip OUT port voltage, better constant current performance. The system structure is simple, few external components, low cost program.

Features:
Patented constant current control technology;
A) OUT port output current external adjustable, Fan Around 5mA ~ 60mA;
B) the output current deviation between the chip <± 4%;
With overheat protection;
Chip can be shared with the PCB PCB;
Chip application system without EMI problems;
Line is simple, low cost;
Package: ESOP8, TO252-2

Applications:
T5 / T8 series of LED fluorescent tubes;
LED street lighting applications;
LED Bulb, LED Ceiling Light
