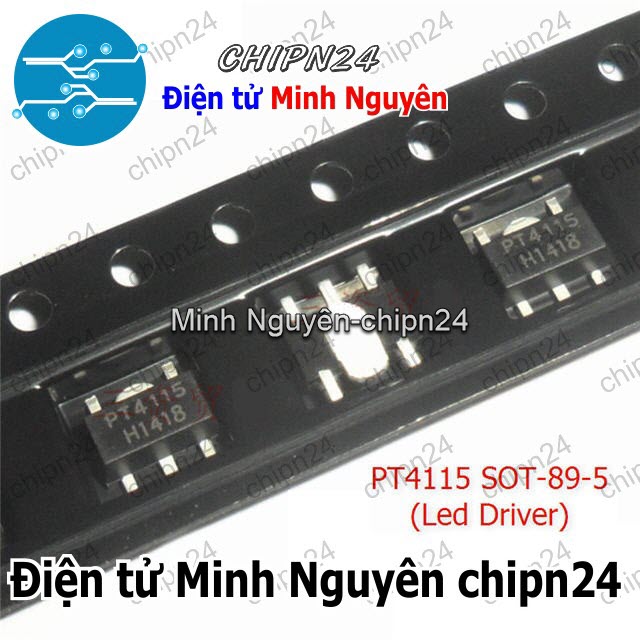

IC PT4115 SOT-89-5 (SMD Dán) (4115 Led Driver)

_x000D_ IC Dán PT4115 SOT-89-5 (Led Driver)

Mô tả:
The PT4115 is a continuous conduction mode inductive step-down converter, designed for driving single or multiple series connected LED efficiently from a voltage source higher than the total LED chain voltage. The device operates from an input supply between 6V and 30V and provides an externally adjustable output current of up to 1.2A. Depending upon the supply voltage and external components, the PT4115can provide more than 30 watts of output power. The PT4115 includes the power switch and a high-side output current sensing circuit, which uses an external resistor to set the nominal average output current, and a dedicated DIM input accepts either a DC voltage or a wide range of pulsed dimming. Applying a voltage of 0.3V or lower to the DIM pin turns the output off and switches the device into a low current standby state. The PT4115 is available in SOT89-5 and ESOP8 packages.

Thông số kỹ thuật:
Simple low parts count
Wide input voltage range: 6V to 30V
Up to 1.2A output current
Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current
ESOP8 package for large output power application
RoHS compliant
Datasheet:
https://people.xiph.org/~xiphmont/thinkpad/PT4115E.pdf
