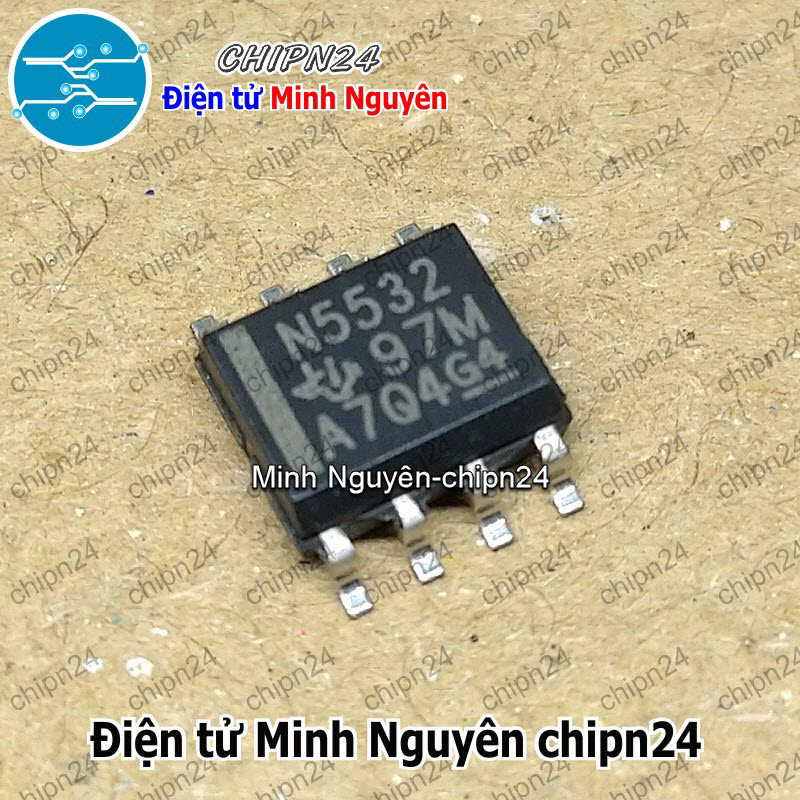

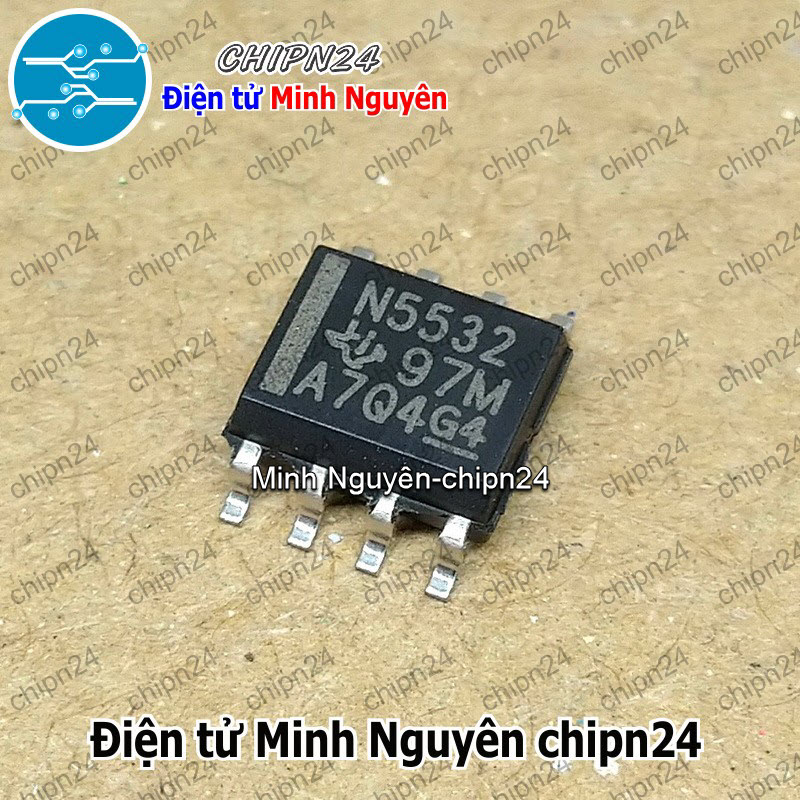

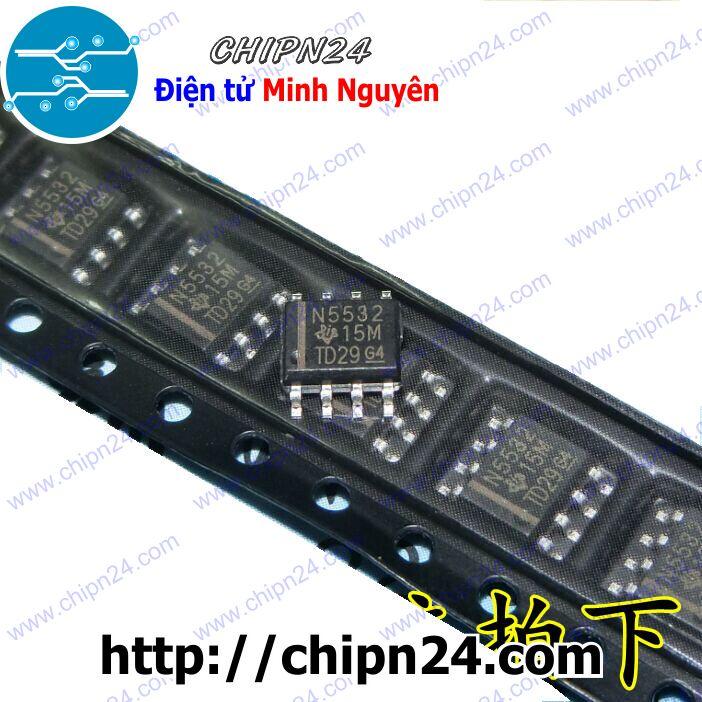

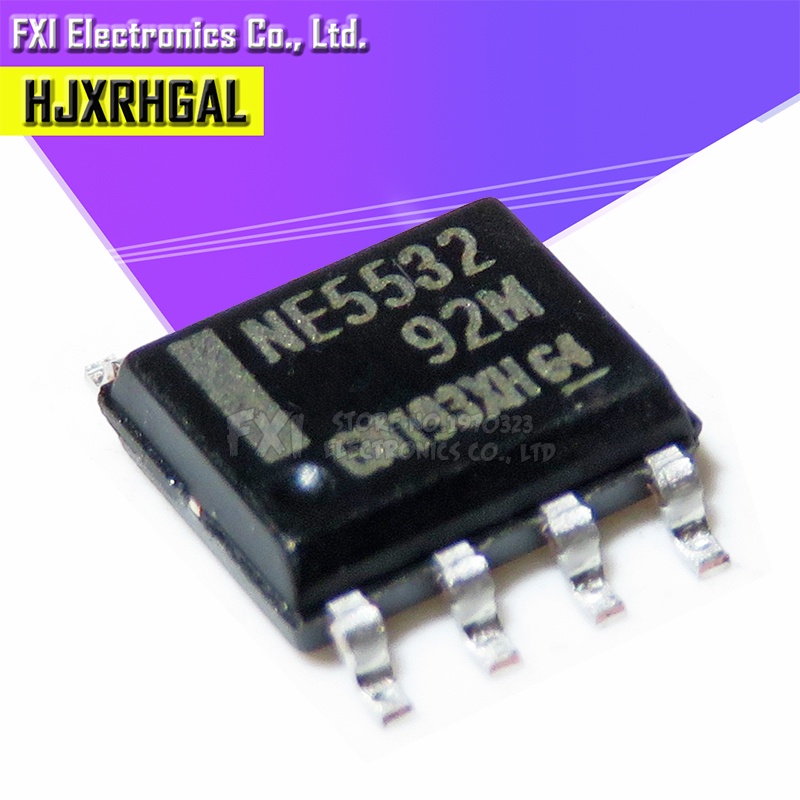

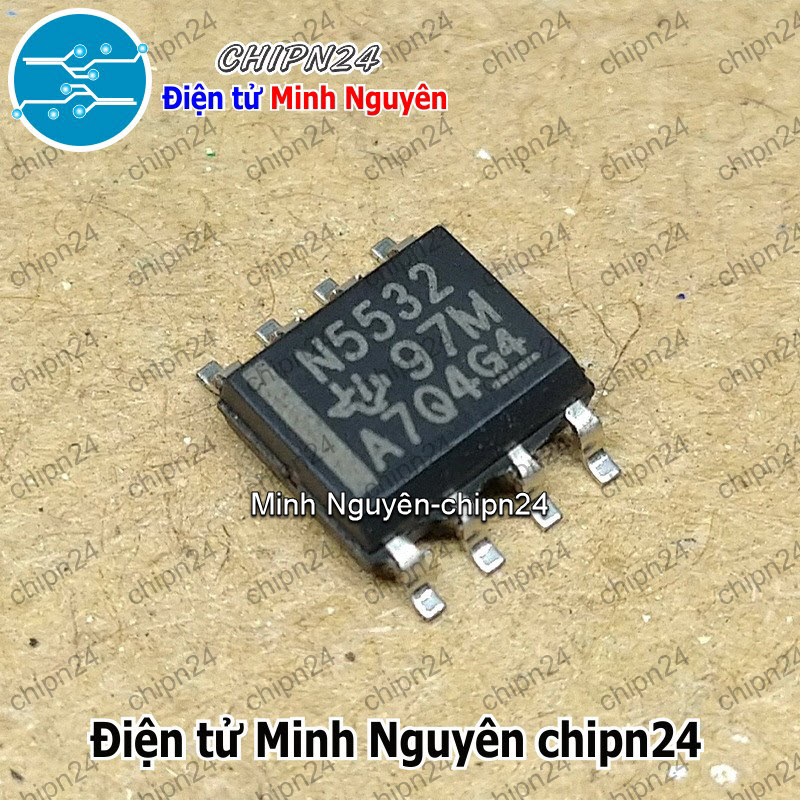

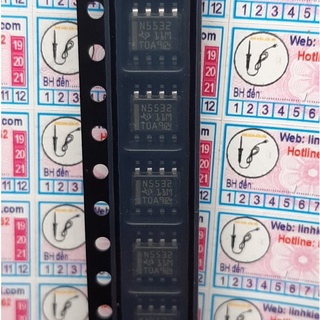

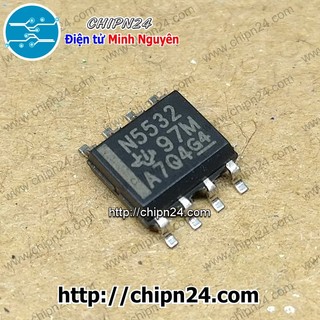

IC NE5532 SOP-8 (SMD Dán) (Hàng Tốt) (5532)

_x000D_ IC NE5532 SOP-8 (SMD Dán) (Hàng Tốt) (5532)

Mô tả sản phẩm:
Description:
Operational Amplifiers - Op Amps Dual Low Noise

Thông số kỹ thuật:
- Package / Case:PSOP-8
- Output Current per Channnel:38 mA
- Vos - Input Offset Voltage:4 mV
- Minimum Operating Temperature:0 C
- Maximum Operating Temperature:+ 70 C
- Ib - Input Bias Current:800 nA
- Operating Supply Current:8 mA
- CMRR - Common Mode Rejection Ratio:100 dB
- Series:NE5532A
- Packaging:Tube
- Amplifier Type:Low Noise Amplifier
- Height:4.57 mm
- Length:9.81 mm
- Product:Operational Amplifiers
- Supply Type:Single, Dual
- Technology:Bipolar
- Width:6.35 mm
- Brand:Texas Instruments
- Dual Supply Voltage:+/- 9 V, +/- 12 V
- In - Input Noise Current Density:2.7 pA/sqrt Hz
- Maximum Dual Supply Voltage:+/- 15 V
- Minimum Dual Supply Voltage:+/- 5 V
- Operating Supply Voltage:10 V to 30 V, +/- 5 V to +/- 15 V
- Product Type:Op Amps - Operational Amplifiers
- Factory Pack Quantity:50
- Subcategory:Amplifier ICs
- Voltage Gain dB:100 dB
- Unit Weight:440.400 mg

Datasheet:
http://www.ti.com/general/docs/suppproductinfo.tsp?distId=26&gotoUrl=http%3A%2F%2Fwww.ti.com%2Flit%2Fgpn%2Fne5532a
