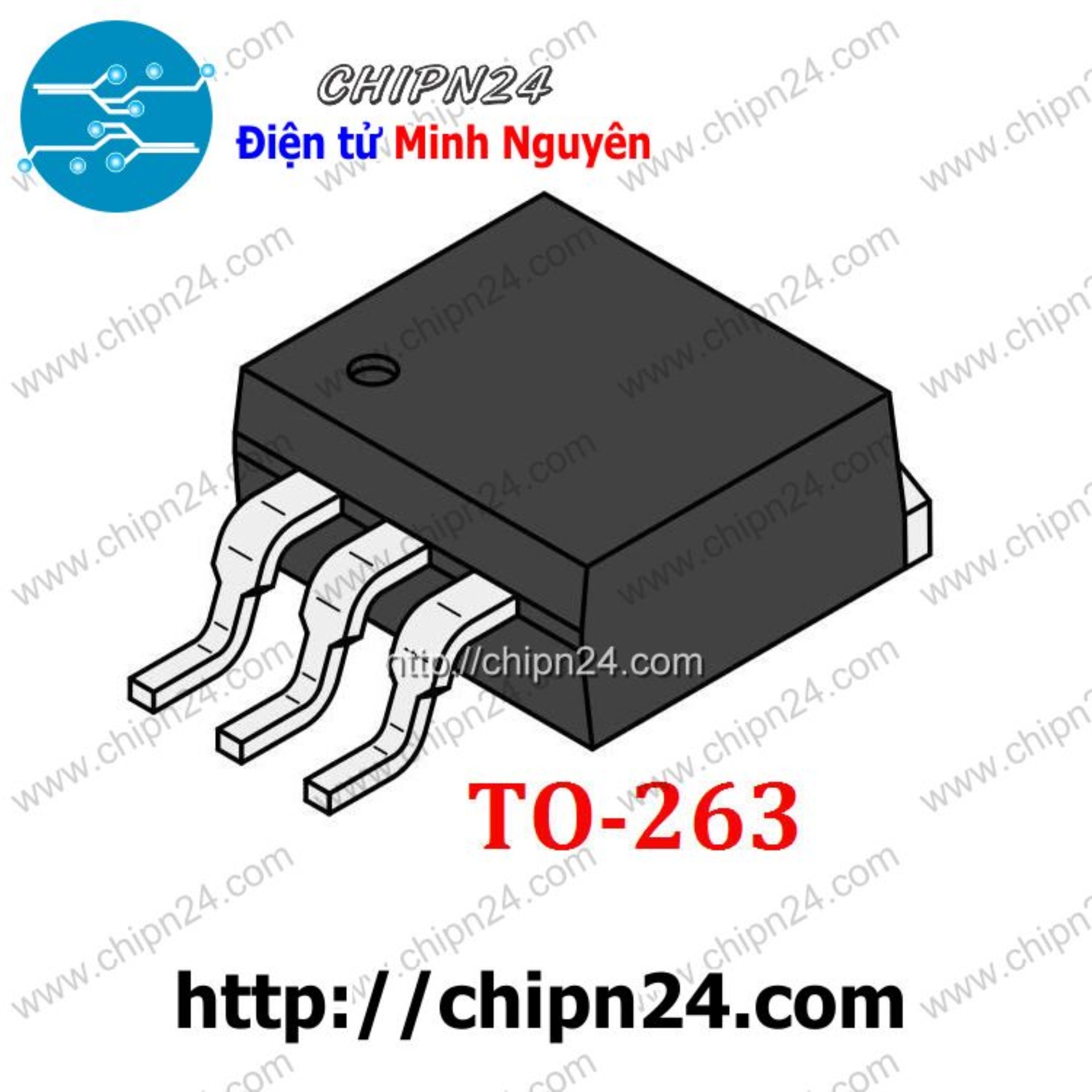

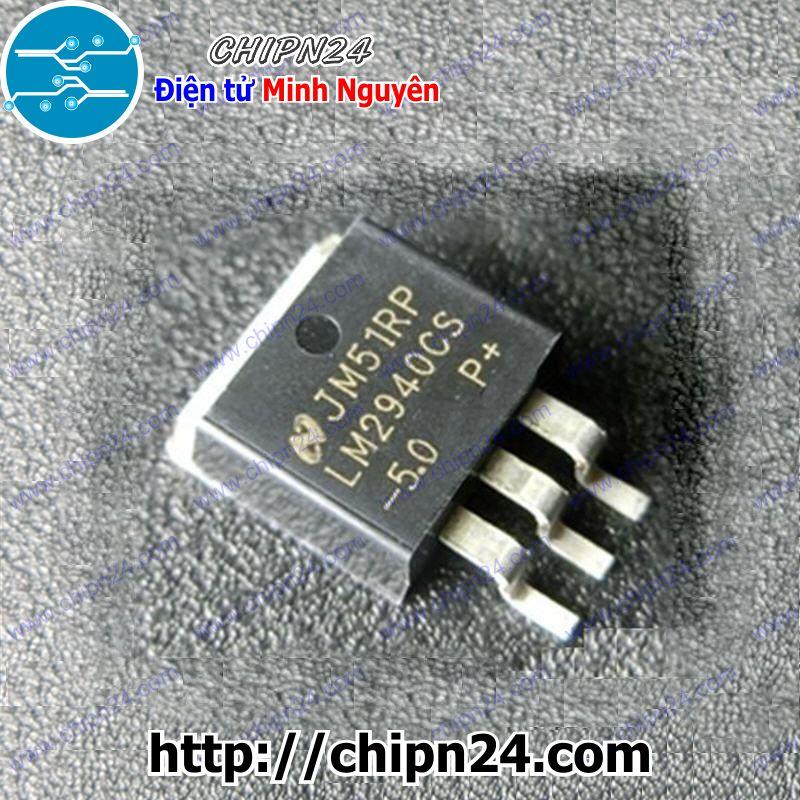

IC LM2940-5V TO-263 (SMD Dán) (LM2940CS-5.0 LM2940 5V 2940)

_x000D_ IC LM2940-5V TO-263 (SMD Dán) (LM2940CS-5.0 LM2940 5V 2940)

Mô tả sản phẩm:
Description
IC REG LIN 5V 1A DDPAK/TO263-3
Detailed Description
Linear Voltage Regulator IC Output 1A DDPAK/TO-263-3

Thông số kỹ thuật:
- Package: Tube
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Voltage - Input (Max): 26V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.8V @ 1A
- Current - Output: 1A
- PSRR: 64dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature: 0°C ~ 125°C
- Mounting Type: Surface Mount

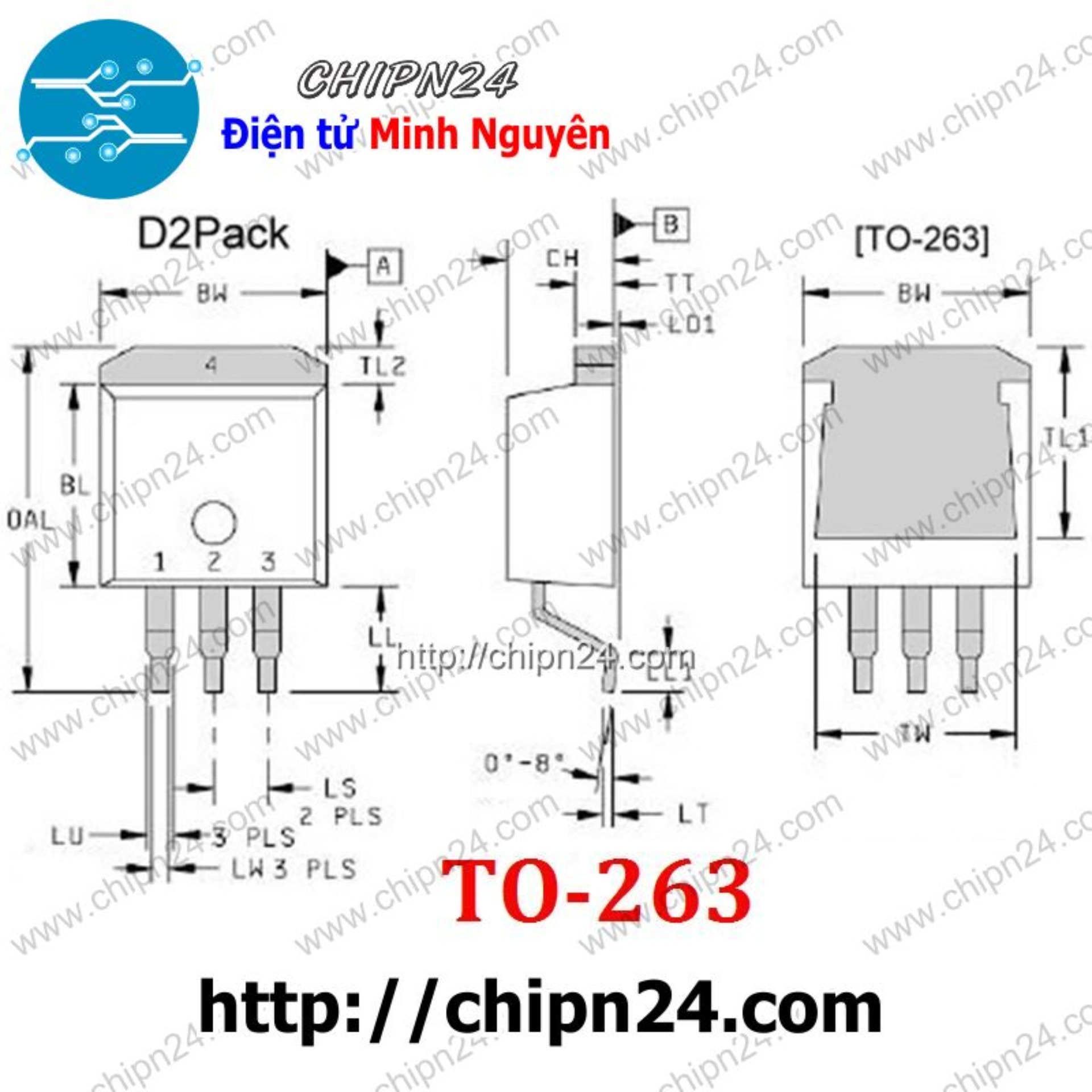

- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
- Supplier Device Package: DDPAK/TO-263-3
- Number of Regulators: 1
- Current - Quiescent (Iq): 10 mA
- Current - Supply (Max): 15 mA

Datasheet:
http://www.ti.com/general/docs/suppproductinfo.tsp?distId=10&gotoUrl=http%3A%2F%2Fwww.ti.com%2Flit%2Fgpn%2Flm2940-n
