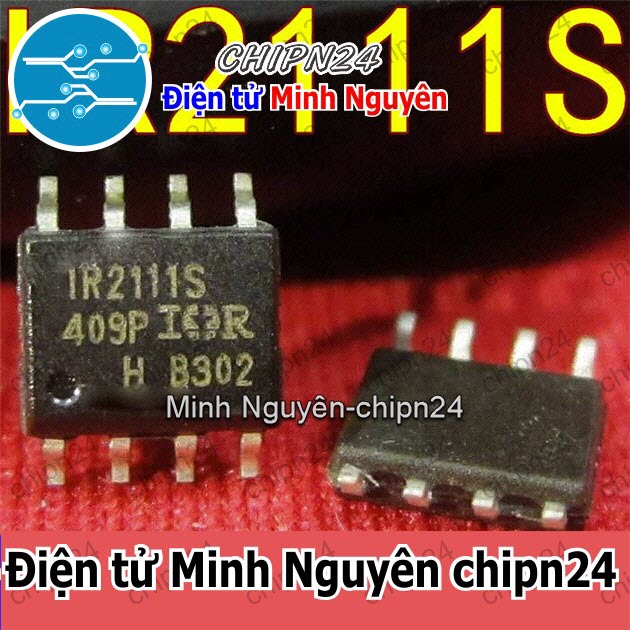

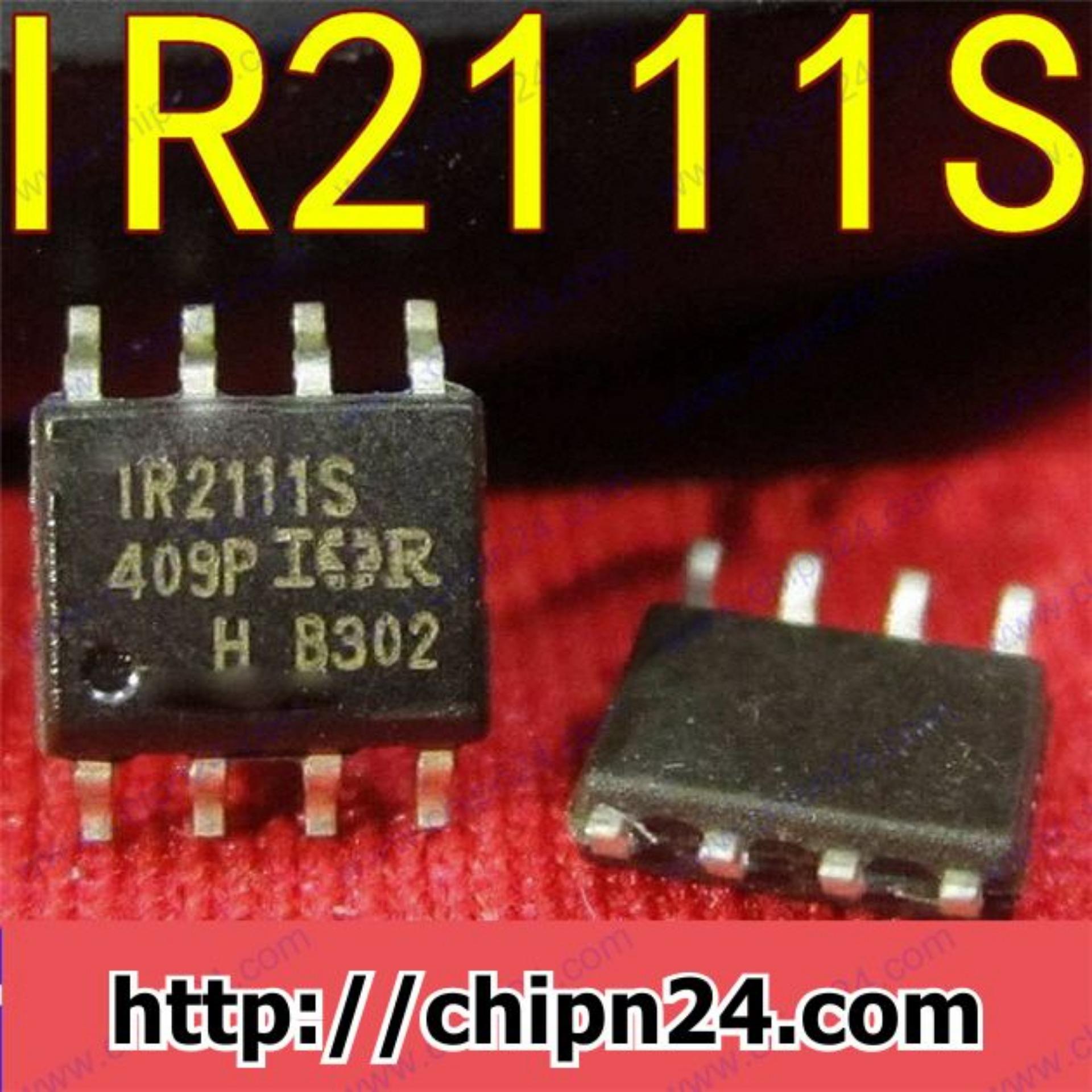

IC IR2111 SOP-8 (SMD Dán) (IR2111S 2111)

_x000D_ IC IR2111 SOP-8 (SMD Dán) (IR2111S 2111)

Mô tả sản phẩm:
Description:
Gate Drivers HALF BRDG DRVR 600V 650ns 200mA

Thông số kỹ thuật:
- Package / Case: SOP-8
- Number of Drivers: 2 Driver
- Number of Outputs: 2 Output
- Output Current: 200 mA
- Supply Voltage - Min: 10 V
- Supply Voltage - Max: 20 V
- Rise Time: 130 ns
- Fall Time: 65 ns
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 125 C
- Packaging: Tube
- Features: Synchronous
- Height: 5.33 mm
- Length: 10.92 mm
- Technology: Si
- Width: 7.11 mm
- Brand: Infineon / IR
- Logic Type: CMOS
- Propagation Delay - Max: 950 ns
- Maximum Turn-Off Delay Time: 150 ns
- Maximum Turn-On Delay Time: 750 ns
- Operating Supply Current: 180 uA
- Operating Supply Voltage: 10 V to 20 V
- Pd - Power Dissipation: 1000 mW
- Product Type: Gate Drivers
- Factory Pack Quantity: 3000
- Subcategory: PMIC - Power Management ICs
- Unit Weight: 1 g

Datasheet:
https://www.mouser.vn/datasheet/2/196/Infineon_IR2111_DS_v01_00_EN-1228107.pdf
