IC HT7136 SOT-89 (SMD Dán) (7136 3.6V 30mA)

_x000D_ IC 7136 HT7136 SOT-89 3.6V 30mA (SMD Dán)

Mô tả:
- HT7136 là bộ điều chỉnh điện áp sử dụng công nghệ CMOS.
- Ứng dụng trong các thiết bị sử dụng PIN, thiết bị thông tin liên lạc.

Thông số kỹ thuật:
- Điện áp đầu vào lớn lên đến 24V
- Dòng 30mA
- Điện áp đầu ra cố định : 3V6

Features
Low power consumption Low voltage drop Low temperature coefficient
Applications
The HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

Chip size: (mm)2 * The IC substrate should be connected to VDD in the PCB layout artwork.
Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.

HT7130, +3.0V output type Symbol VOUT IOUT DVOUT VDIF ISS DVOUT DVIN ´ VOUT VIN DVOUT DTa Parameter Output Voltage Output Current Load Regulation Voltage Drop Current Consumption Line Regulation Input Voltage Temperature Coefficient Test Conditions VIN ¾ 5V Conditions IOUT=1mA No load IOUT=10mA 0°C<70°C Min. Typ. Max. Ta=25°C Unit mV mA %/V V mV/°C Ta=25°C Test Conditions VIN 5.5V ¾ Conditions 5.5V No load ¾ 5.5V Min. Typ. Max. Unit mV mA %/V V mV/°C

HT7133, +3.3V output type Symbol VOUT IOUT DVOUT VDIF ISS DVOUT DVIN ´ VOUT VIN DVOUT DTa Parameter Output Voltage Output Current Load Regulation Voltage Drop Current Consumption Line Regulation Input Voltage Temperature Coefficient

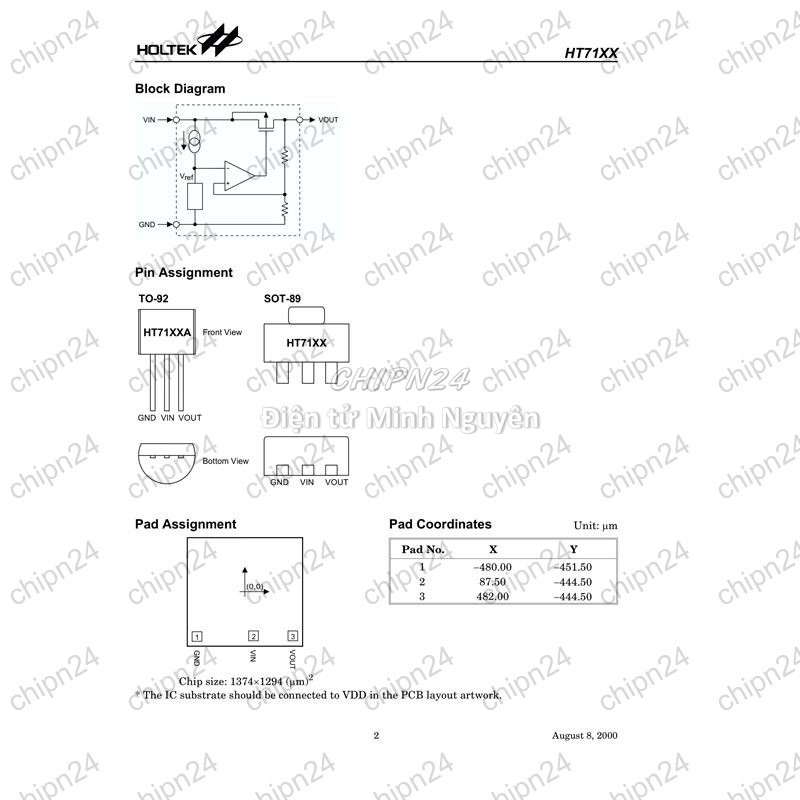

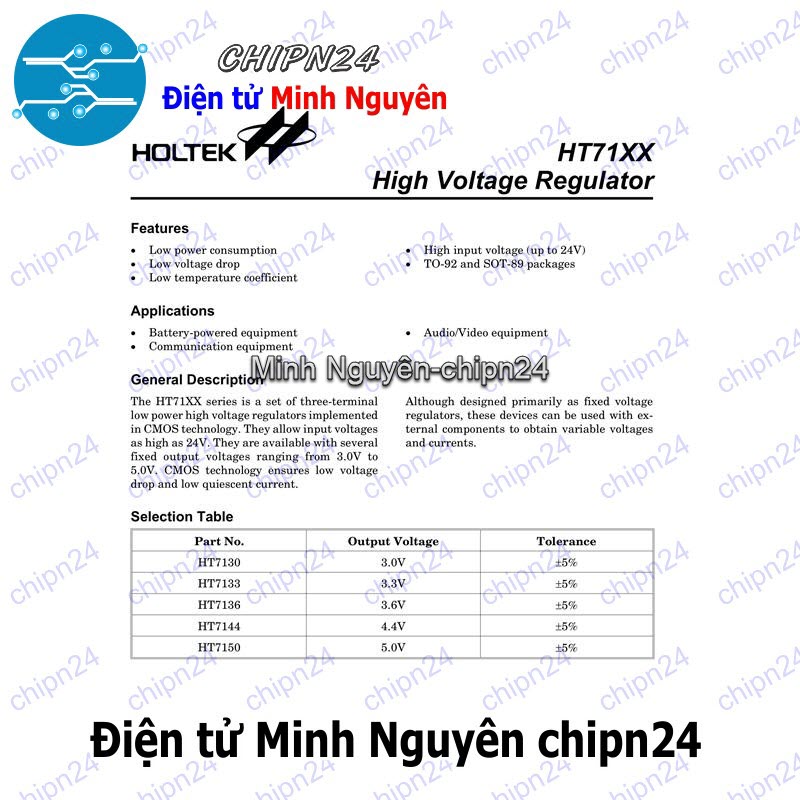

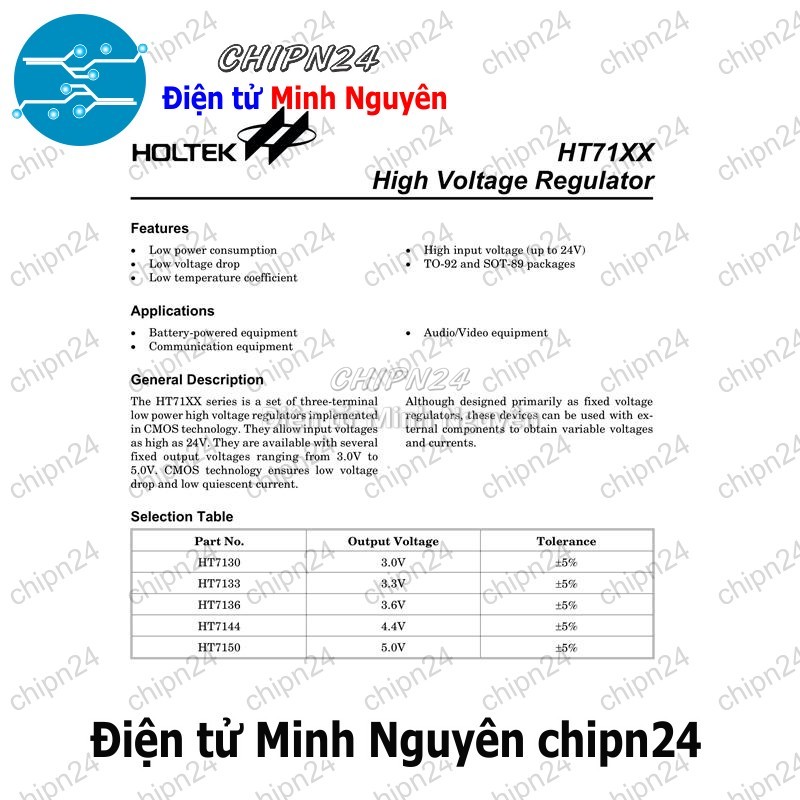

Datasheet:
http://img.ozdisan.com/ETicaret_Dosya/354460_2643812.pdf
