IC CD4011 DIP-14 (CD4011BE 4011)

IC CD4011 DIP-14 (CD4011BE 4011)

Mô tả:

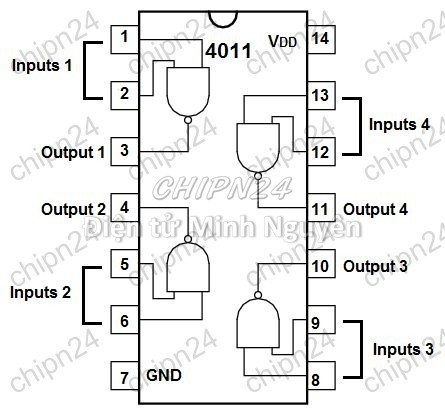

CD4011 NAND Gate IC 4 Channel - 14-PDIP

Thông số kỹ thuật:

- Package: Tube

- Part Status: Active

- Logic Type: NAND Gate

- Number of Circuits: 4

- Number of Inputs: 2

- Features: -

- Voltage - Supply: 3V ~ 18V

- Current - Quiescent (Max): 1 µA

- Current - Output High, Low: 3.4mA, 3.4mA

- Logic Level - Low: 1.5V ~ 4V

- Logic Level - High: 3.5V ~ 11V

- Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF

- Operating Temperature: -55°C ~ 125°C

- Mounting Type: Through Hole

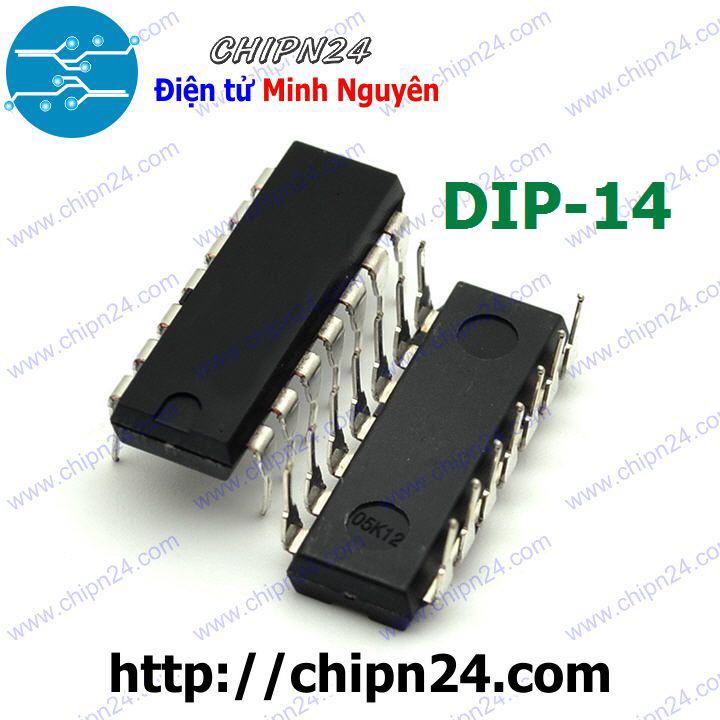

- Supplier Device Package: 14-PDIP

- Package / Case: 14-DIP (0.300"", 7.62mm)

Datasheet:

https://www.ti.com/lit/ds/symlink/cd4011b.pdf
