HP Thunderbolt G4 Dock 120W (4J0A2AA#ABA) 4J0A2AA

Key Features

• Integrated USB Type-C Cable (2.6')
• 1 x Thunderbolt 4 Port
• 2 x USB Type-C | 4 x USB Type-A
• 2 x DisplayPort 1.4 | 1 x HDMI 2.0
• 1 x 2.5 Gigabit Ethernet Port
• Supports Four Simultaneous Displays
• Supports Resolutions up to 8K at 60 Hz
• Supports Power Delivery 3.0 up to 20V/5A
• Notebook Power via USB Type-C up to 100W
• Windows, Mac, and Chrome Compatible

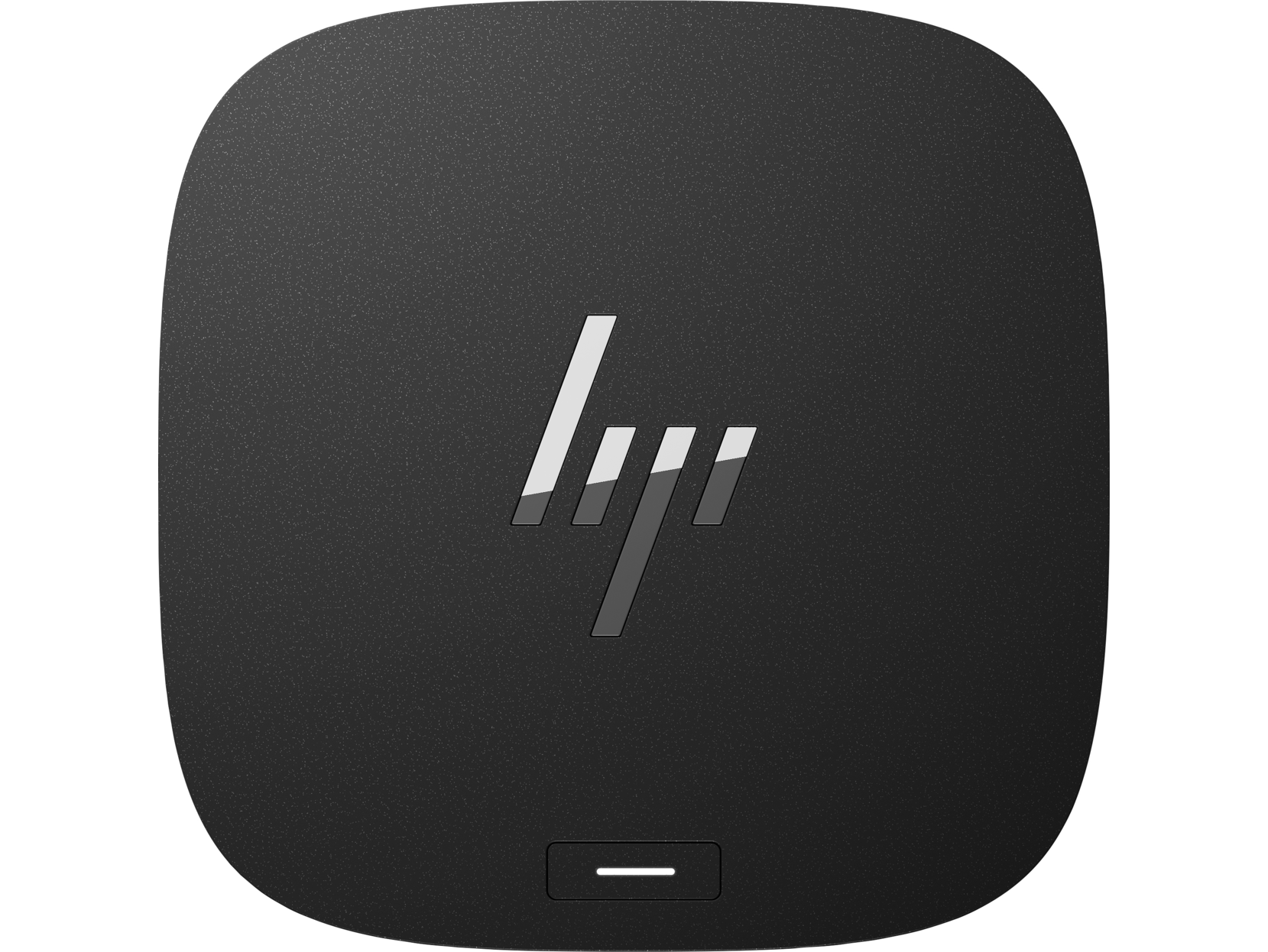

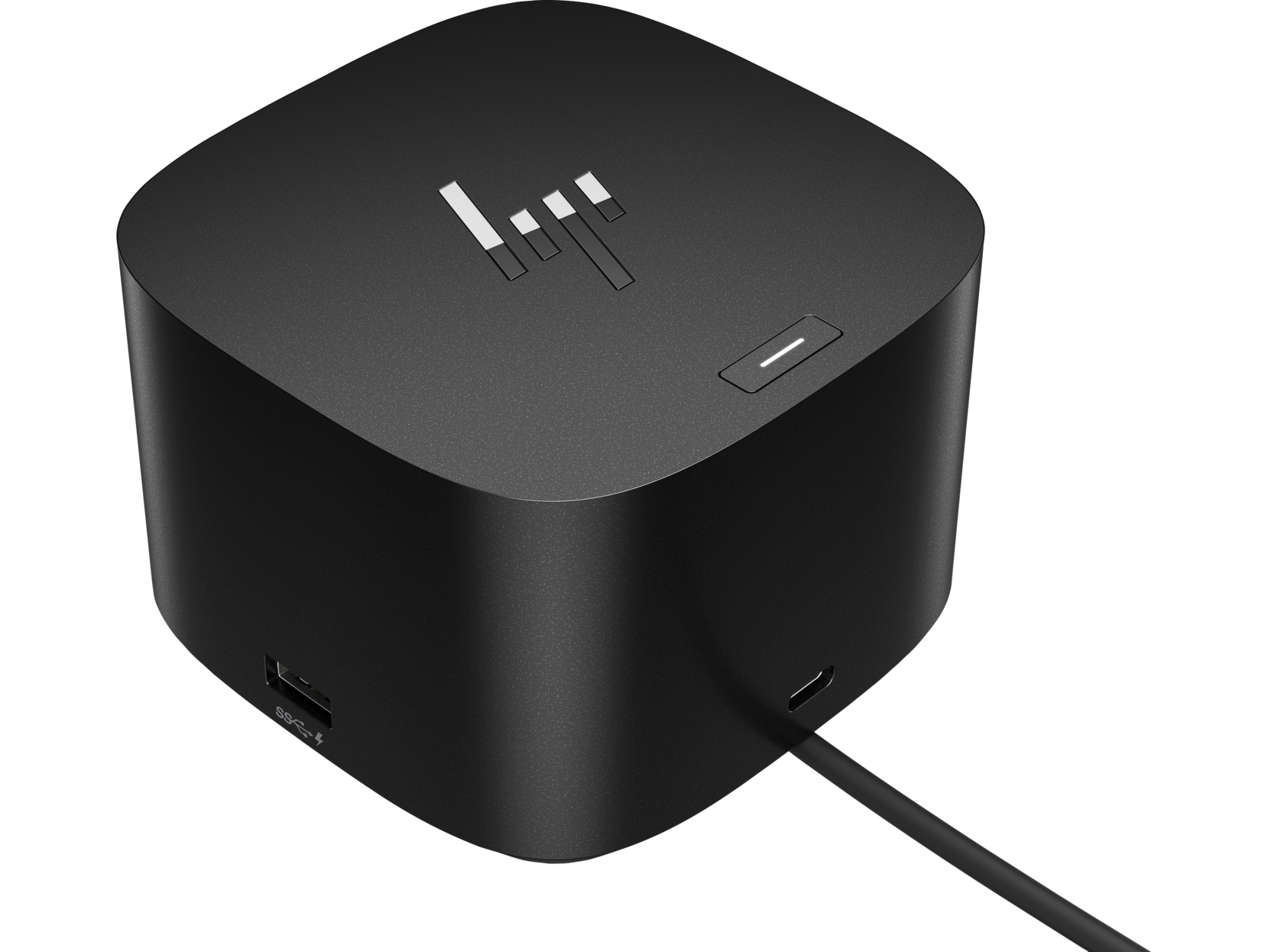

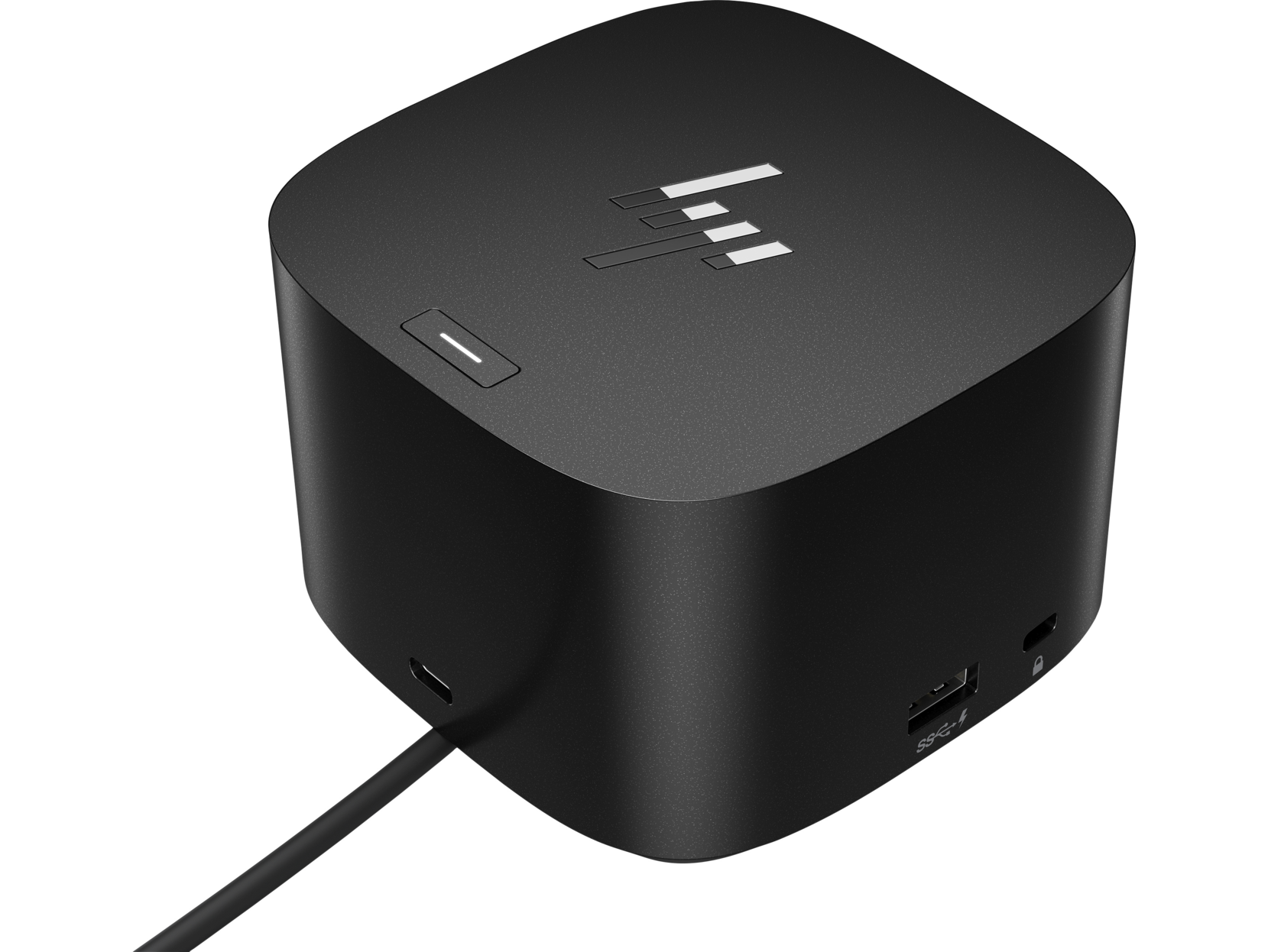

HP Thunderbolt Dock G4 Overview

The Thunderbolt Dock G4 from HP
brings Thunderbolt 4, USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 Type-C, USB
3.2 Gen 1 Type-A, DisplayPort 1.4, HDMI 2.0, and 2.5Gb and 1Gb Ethernet
to HP and non-HP Thunderbolt notebooks. It also supports USB Type-C
notebook charging up to 100W and is compatible with systems running
Windows 11 and 10, macOS, and Google Chrome.

HP's Thunderbolt Dock G4 is equipped with two USB Type-C ports, both of
which support data and power up to 15W, and one of which also supports
DisplayPort video output. There is also one Thunderbolt 4 port, which
delivers bi-directional transfer speeds of up to 40 Gb/s. Additional
ports include one USB 3.2 Gen 2 Type-C port, which supports up to 15W of
power, one USB 3.2 Gen 1 Type-C port, which supports DisplayPort, and
four USB 3.2 Gen 1 Type-A ports, two of which support up to 7.5W of
power, while additional video can be output using two DisplayPort 1.4
ports and one HDMI 2.0 port. Up to four simultaneous displays are
supported at DCI 4K (4096 x 2160) at 60 Hz, while the maximum supported
resolution is one 8K display at 60 Hz. Network connectivity is achieved
using the RJ45 port, which supports 2.5Gb and 1Gb Ethernet.

System power is provided using an included 120W AC adapter. Power
Delivery 3.0 is also supported and outputs 5V/5A, 9V/5A, 12V/5A, 15V/5A,
and 20V/5A to compatible devices, with HP devices receiving up to 100W
and non-HP devices receiving up to 75W. Protection is provided by a
limited 1-year warranty.

A Secure Dock

Feel safe and secure from the moment you log in. The HP Thunderbolt G4 Dock with HP Sure
Start prevents hackers from using the dock to attack the network and the attached notebook.
Everything connected to this dock is protected and meets full NIST 800-193 requirements.

Expanded Compatibility, Easy Connectivity

Focus
on your work and not your compatibility with a dock that works
seamlessly with most
notebooks and operating systems. Whether you use Windows, Mac, or Chrome
OS, rigorous testing and certifications ensure that one USB Type-C
cable connects your device and peripherals
without issue.

The Power to Be Productive

Multitask,
create, and collaborate faster with a dock that supports up to four 4K
displays
through Thunderbolt 4 technology and has double the Ethernet speed for
faster downloads. This dock also delivers up to 100W of power, which is
enough to charge most notebooks.

Device Management Made Easy

Manage
your mixed fleet more efficiently with wired Intel vPro support that
allows authorized
administrators to remotely access and manage vPro-enabled notebooks
using wired connections to make updates. IT Managers can also plan dock
firmware updates anytime, even after the user disconnects through HP's
One Click Installer.

Modern Device Manageability

With
Intel vPro Active Management Technology, authorized administrators can
remotely access notebooks using wired connections, even if turned off,
to make updates.

Electronic Asset Management for Your Docks

Empower your IT to manage and track your docks by product name, serial number, and
MAC Address from anywhere with the time-saving, user-friendly Electronic Tag (eTag) asset
management tool.

One Cable

With 120W from one cable, you can power mainstream systems.

HP Tests So You Can Rest

Rigorous testing helps assure dock compatibility across select HP notebooks and select Apple,
Dell, and Lenovo notebooks with USB Type-C power ports.

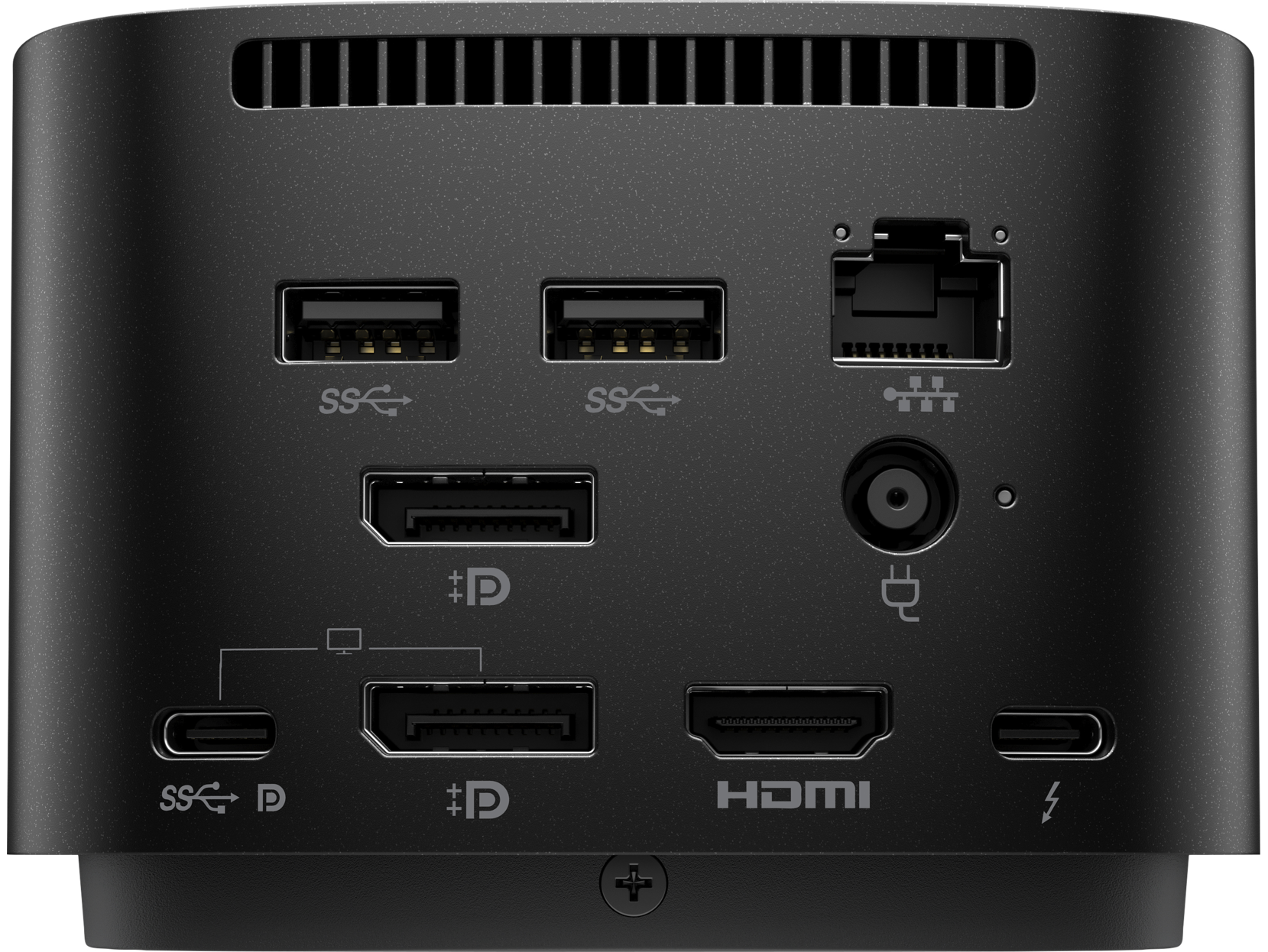

More Ports, More Flexibility

More
ports means more capabilities. With a Thunderbolt 4, HDMI, two USB
Type-C, two DisplayPorts, four USB Type-A ports, and an RJ45 port, you
can connect multiple devices like a keyboard and mouse.

Limited 1-Year Warranty

Get added peace of mind with a limited 1-year warranty that includes technical support,
diagnostic services, and hardware replacement.

HP Thunderbolt Dock G4 Specs

Connections

USB	1 x 1 x 2 x 2 x
Thunderbolt	1 x
Ethernet	1 x
FireWire	None
Display	2 x 1 x
Audio	None
Media Card Reader	None

Host Connections

System Connection	1 x
Connection Type	Integrated Cable
Powered Connection	100 W

General

Number of Displays Supported	4
Maximum Resolution Supported	7680 x 4320 at 60 Hz
OS Compatibility	Chrome OS Windows macOS
UASP Support	No

Power

Power Source	AC Adapter
Power Port	Barrel Connector (Unspecified Diameter) (Input)
Total Current Output	19.5 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.7 A

Environmental

Operating Temperature	32 to 95°F / 0 to 35°C
Operating Humidity	10 to 90% (Non-Condensing)
Operating Altitude	-50 to 10,000' / -15.2 to 3048 m

Physical

Cable Length	2.6' / 0.8 m
LED Indicator	Power
Lock Slot	Yes, Kensington
Dimensions	3.9 x 3.9 x 2.7" / 99.1 x 99.1 x 68.6 mm
Weight	1.68 lb / 0.76 kg

In the Box

• HP Thunderbolt G4 Dock (120W)
• Power Supply & Cord
• Limited 1-Year Warranty
