Features:

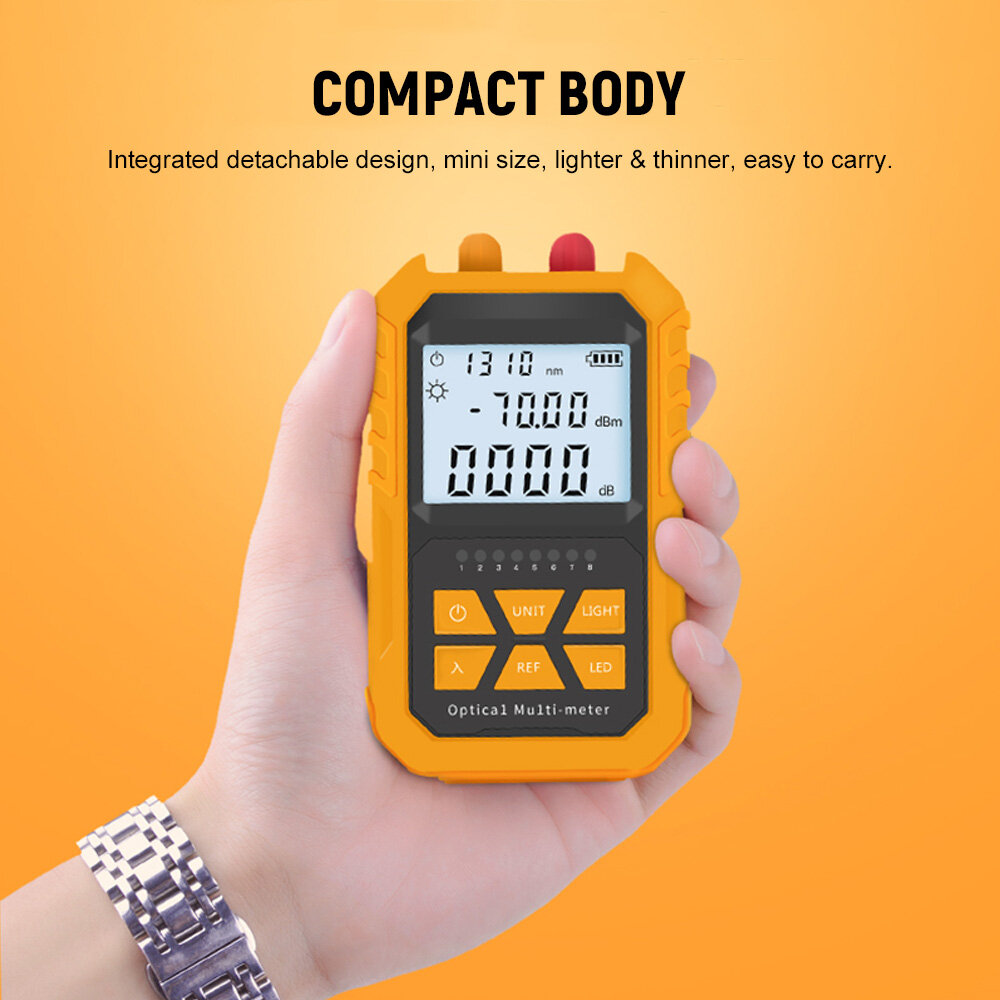

- Compact Body: Integrated detachable design, mini size, lighter & thinner, easy to carry.
- High-precision Sensor: High sensitivity & high precision & high response speed.

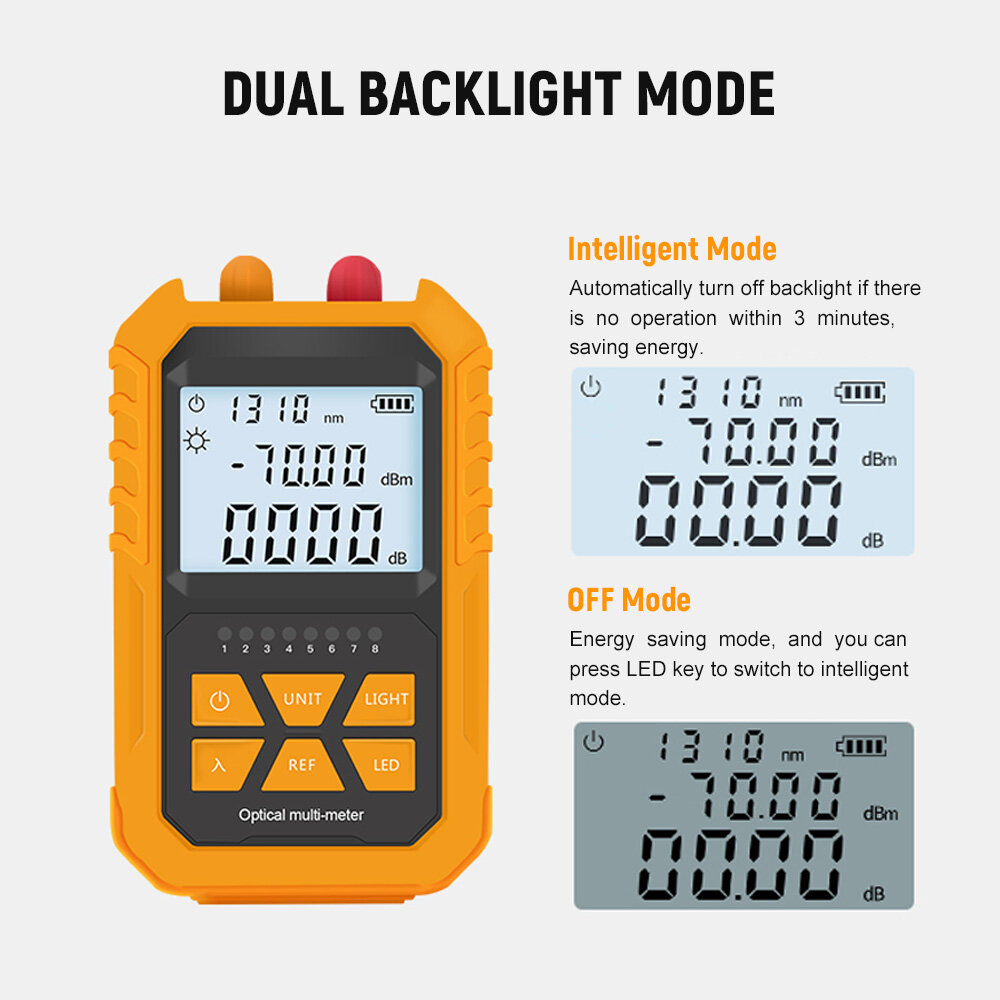

- High-definition LCD Screen: The clear LCD display with backlight enables you to read values clearly even in the dark environment.
- L-ED Lighting Function: Equipped with a small bright L-ED lamp, capable of playing a role as a flashlight for simple inspection in the dark.
- 3 Types of Interface Supported: FC interface, SC interface and ST interface.

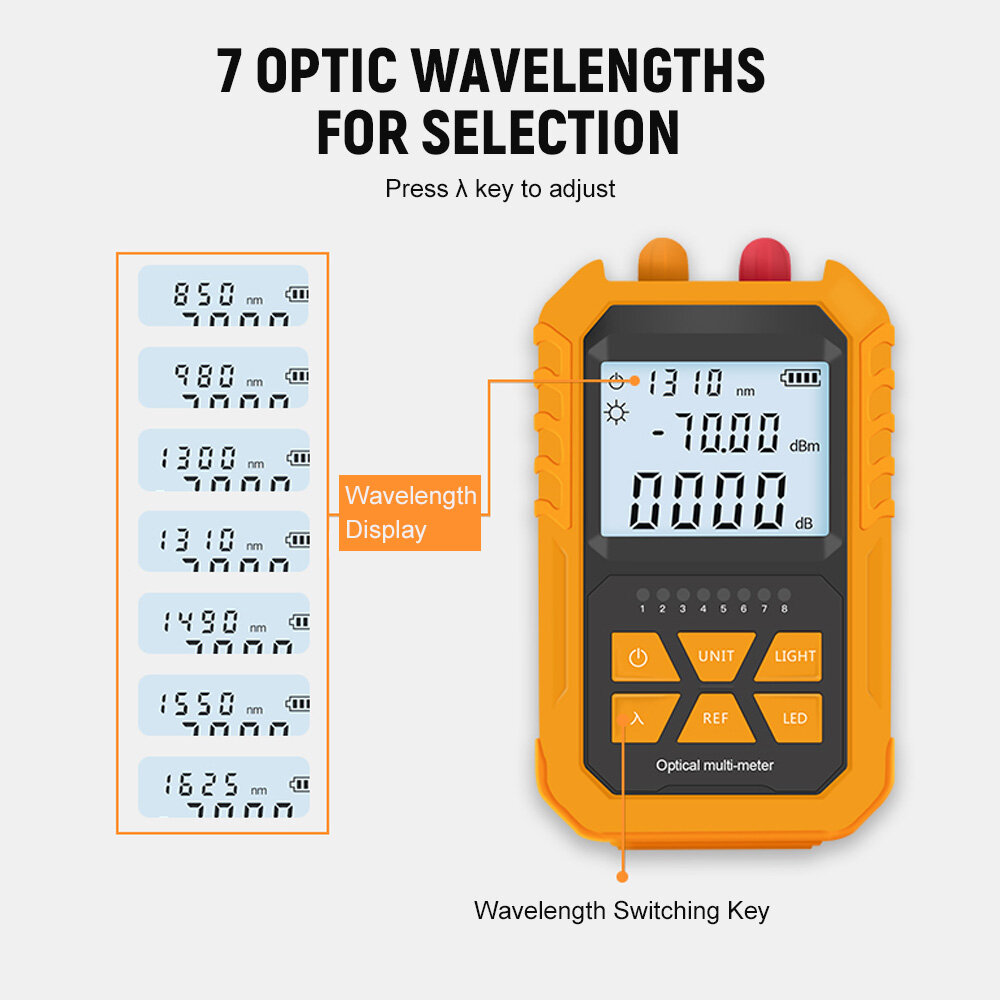

- 7 Optic Wavelengths for Selection: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
- DIY Self Calibration: Adjust test parameters at will according to the actual test.
- Automatic Shutdown: No operation within 10 minutes, saving energy.

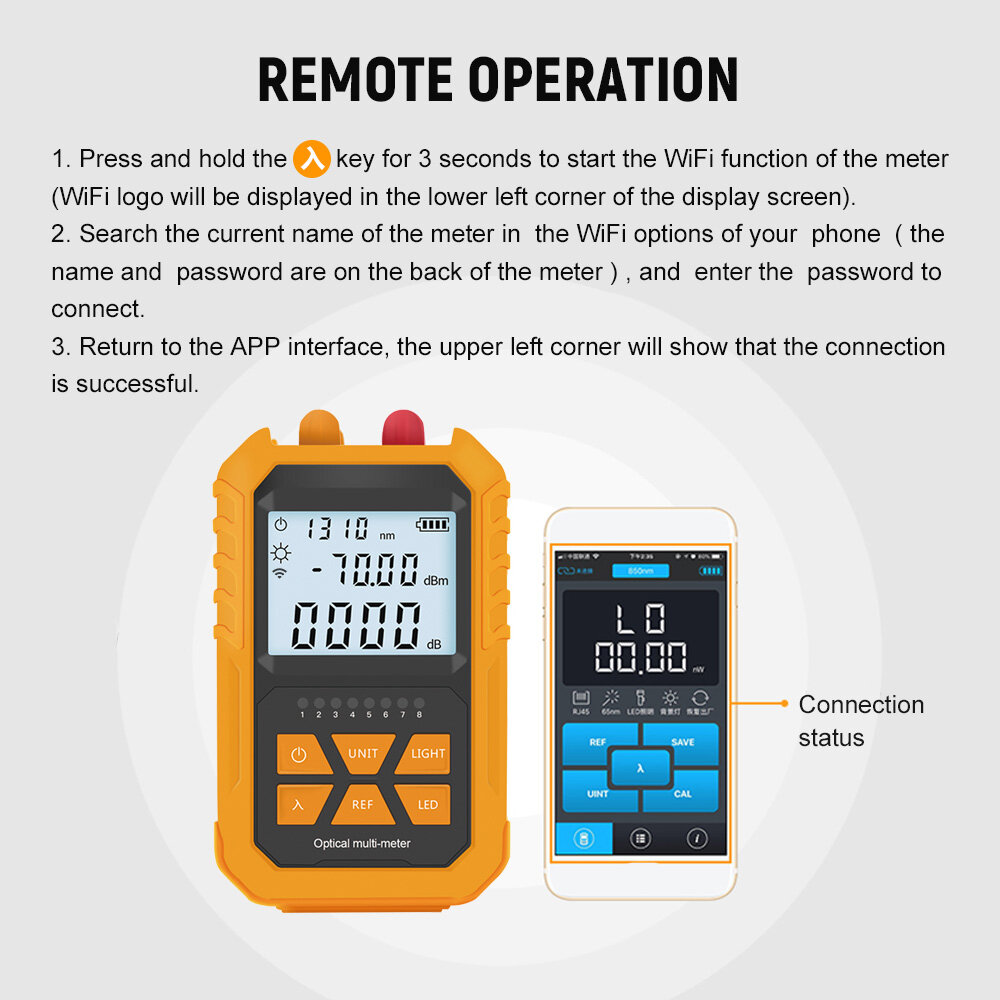

- Additional Features: 5km high-definition red light, replaceable ceramic core, selectable intelligent standby mode, energy-saving design, dual mode of power supply, switchable units, network cable test, Wi-Fi test, result storage, wavelength data memory, frequency identification, overcharge protection, over current protection, over voltage protection, over power protection, short circuit protection and temperature protection.
- Wide Application: Applied in optic fiber engineering, optic fiber sensor research, optic elements production, optic elements research, etc.
Specifications:
Material: ABS
Color: Yellow
Power Supply: 2 * 1.5V AAA ba-ttery(NOT included) / USB Connection(use without ba-ttery)
Connector: FC / SC / ST
Power Measuring Range: -70~+3dBm
Accuracy: ±0.2dBm
Logarithmic Display Resolution: 0.01dBm
Linear Display Resolution: 0.1%
Wavelength Range: 800~1700nm
Wavelength Reference: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Wavelength of Working Red Light: 650nm
Operating Temperature: -10~60°C
Storage Temperature: -25~70°C
Automatic Shutdown: No operation within 10 minutes
Item Size: Approx. 118*65*30mm / 4.65*2.56*1.18in
Item Weight: Approx. 140g / 4.94oz
Package Size: Approx. 130*77*60mm / 5.12*3.03*2.36in
Package Weight: Approx. 300g / 10.58oz
Note:
Please read the Users Manual before use.
