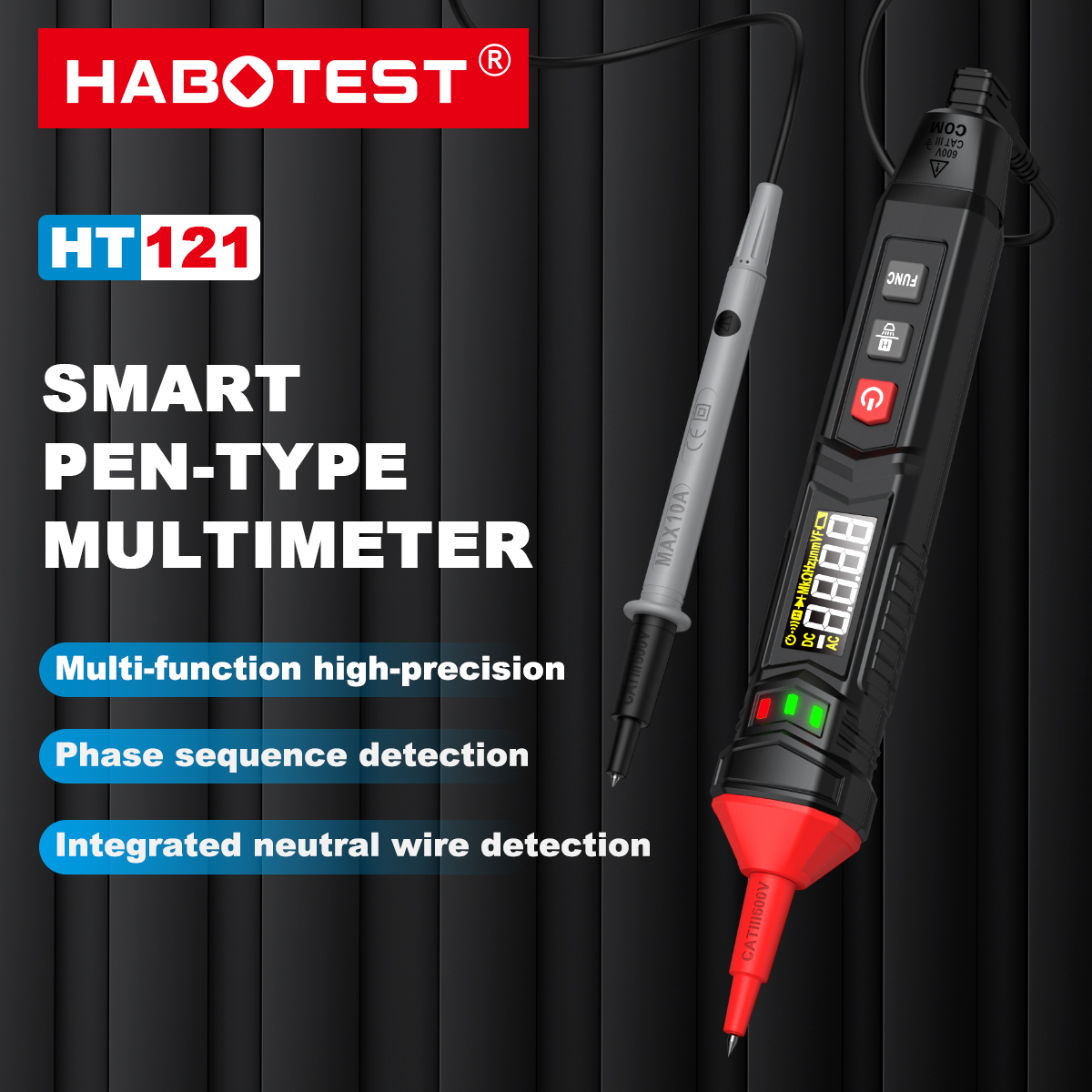

HABOTEST HT121 Kiểu bút Đa đo kỹ thuật số 600V DC / AC Máy kiểm tra điện áp True RMS 4000 Đếm Voltmeter NCV Dây trực tiếp & Phát hiện chuỗi pha

Overview:

• This instrument is a smart digital multimeter with effective true RMS testing capabilities.

Features:

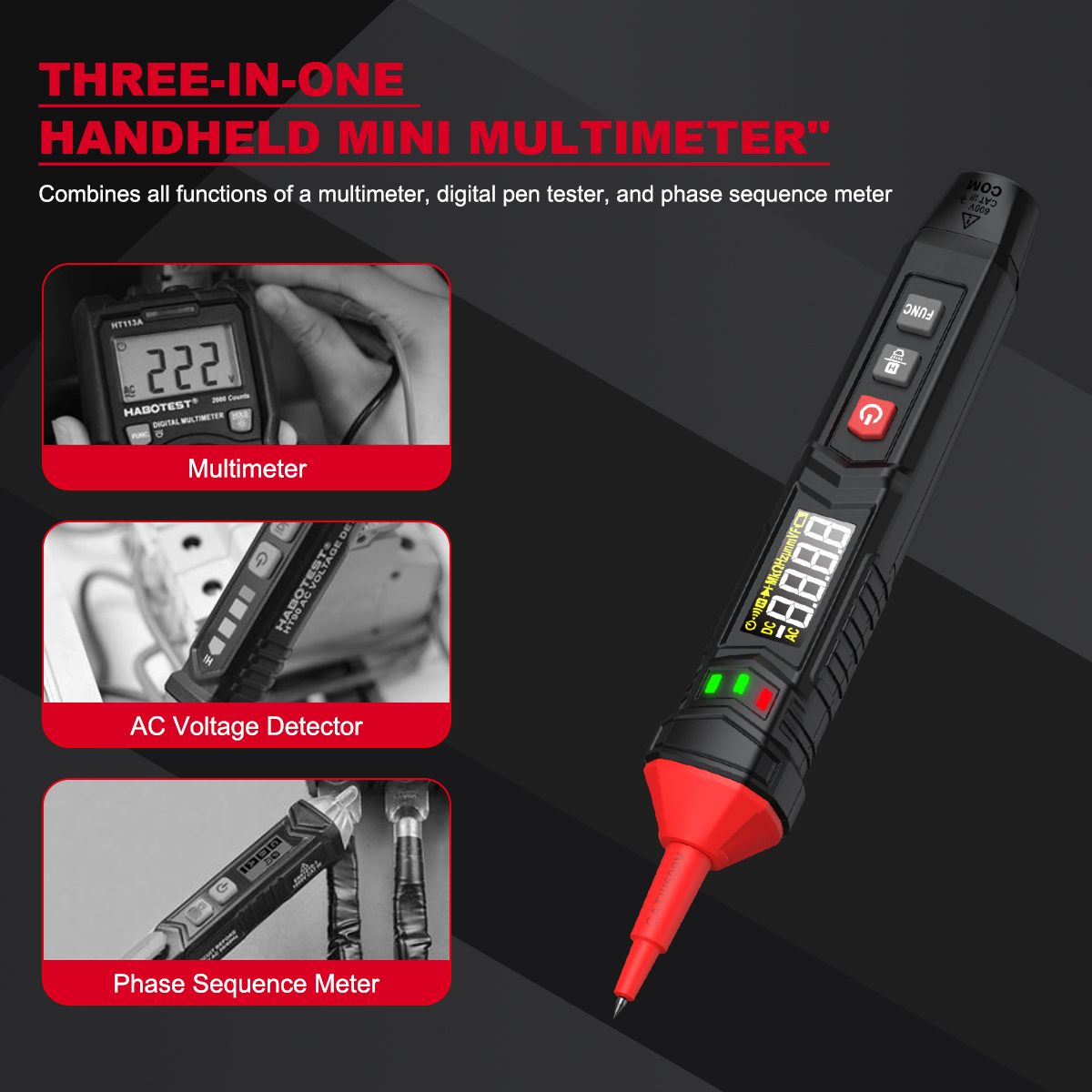

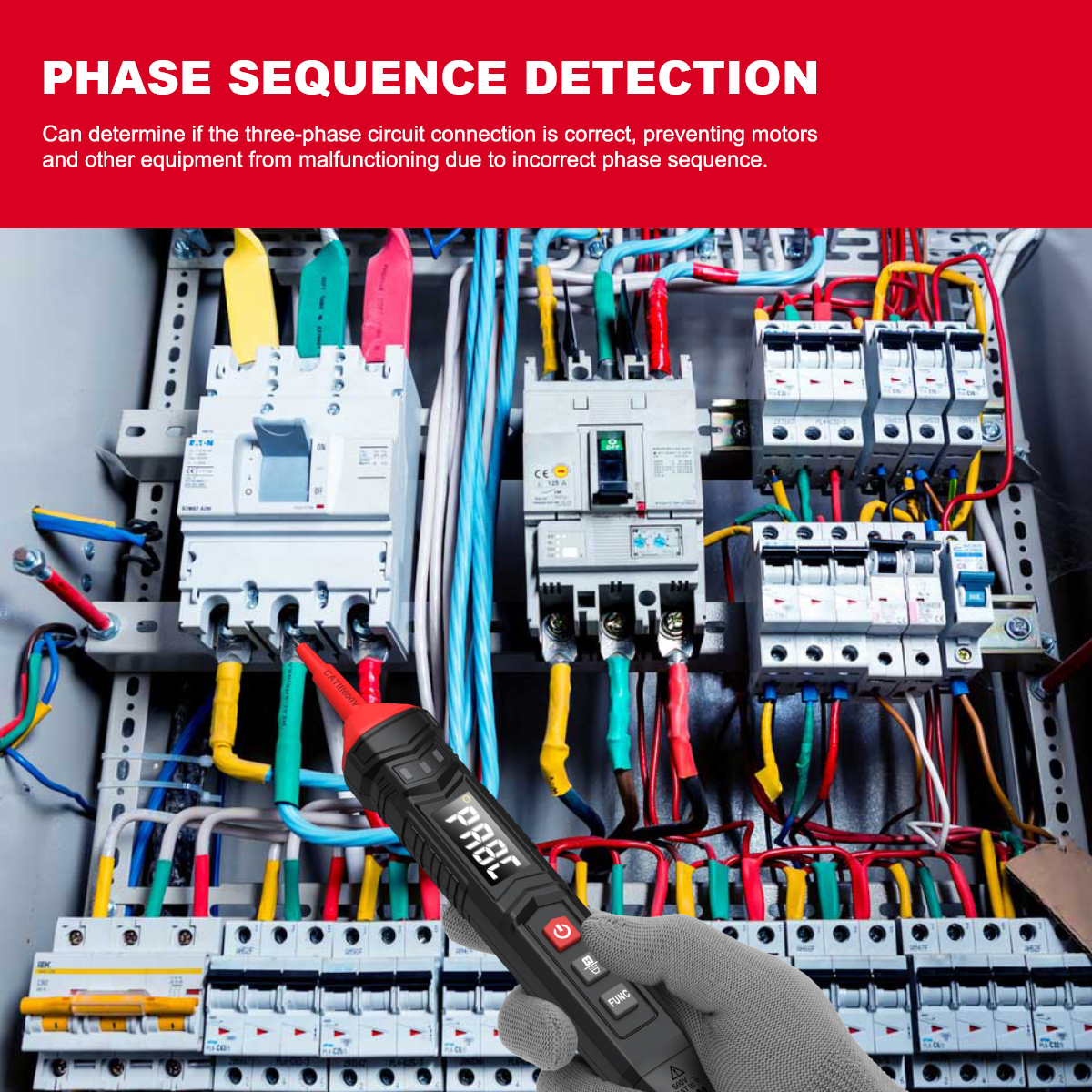

• Multi-function digital tester: Can measure DC/AC voltage, resistance, capacitance, diodes, frequency, continuity, live wire detection, and phase sequence detection.

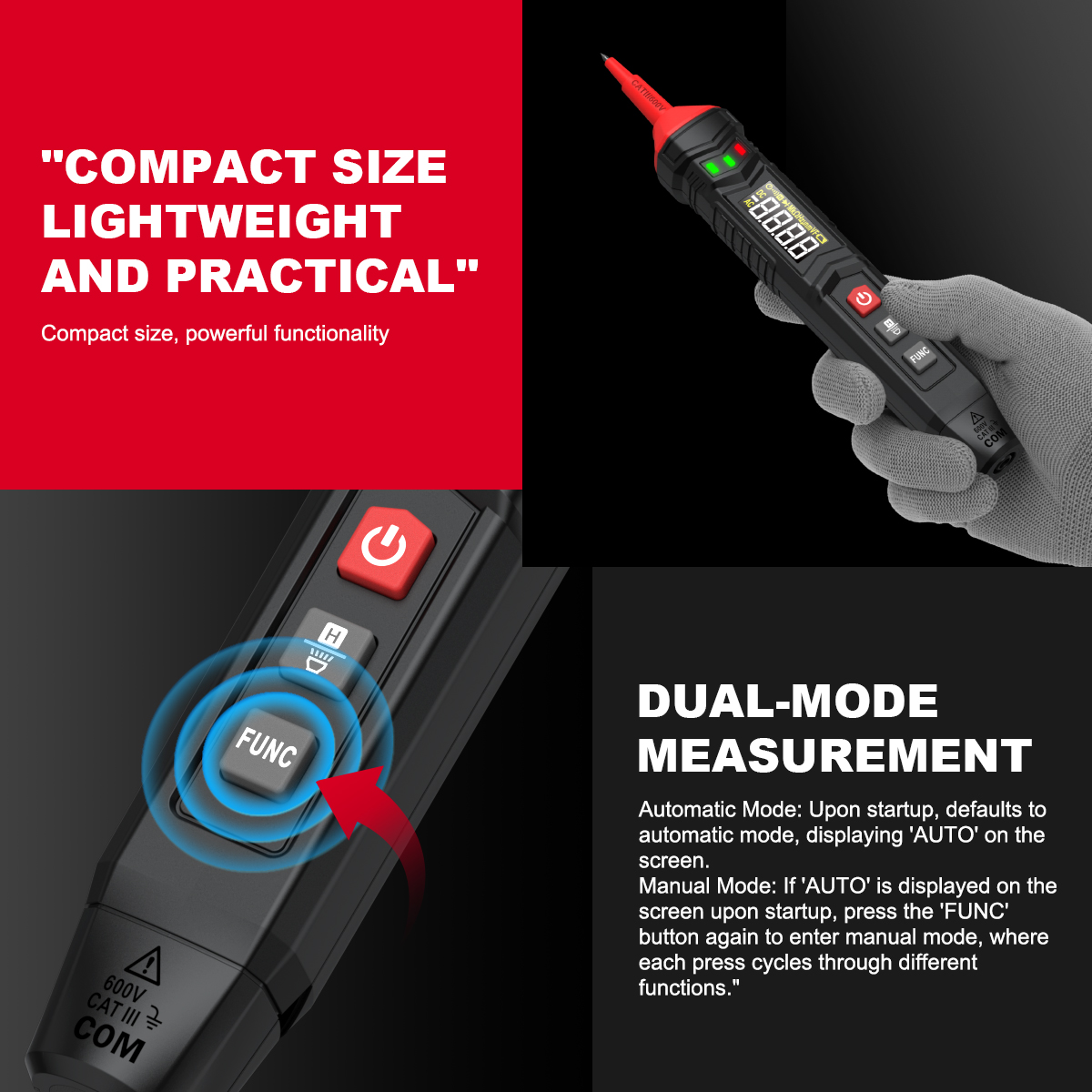

• Smart (automatic) measurement: Can measure DC/AC voltage, resistance, and continuity automatically recognizes measurement signals.

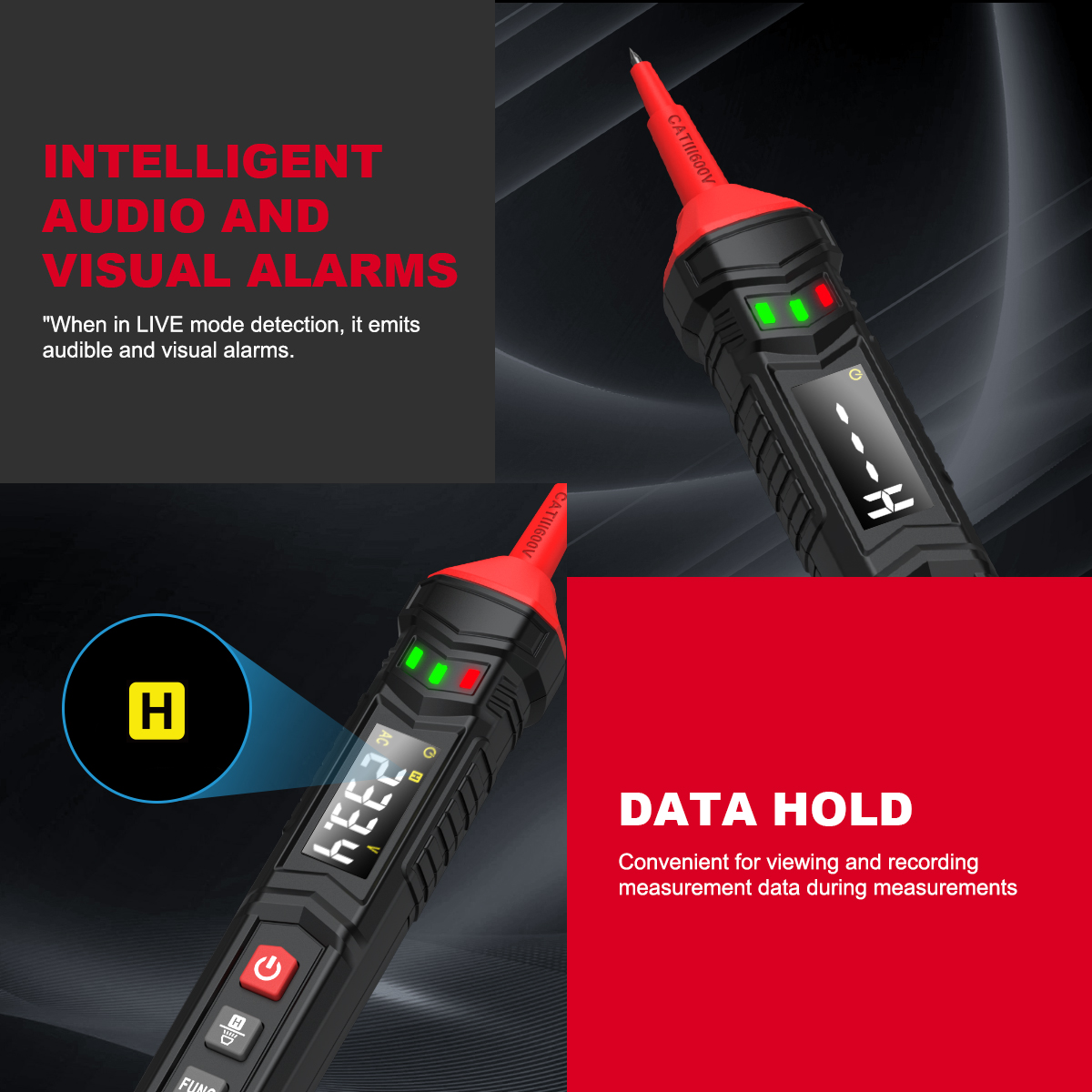

• VA display screen: Displays signal strength in a bar graph and has data hold function for locking measurement data.
• Low power consumption: Powered by 2 AAA batteries, with a 15-minute auto-shutdown feature for power saving.

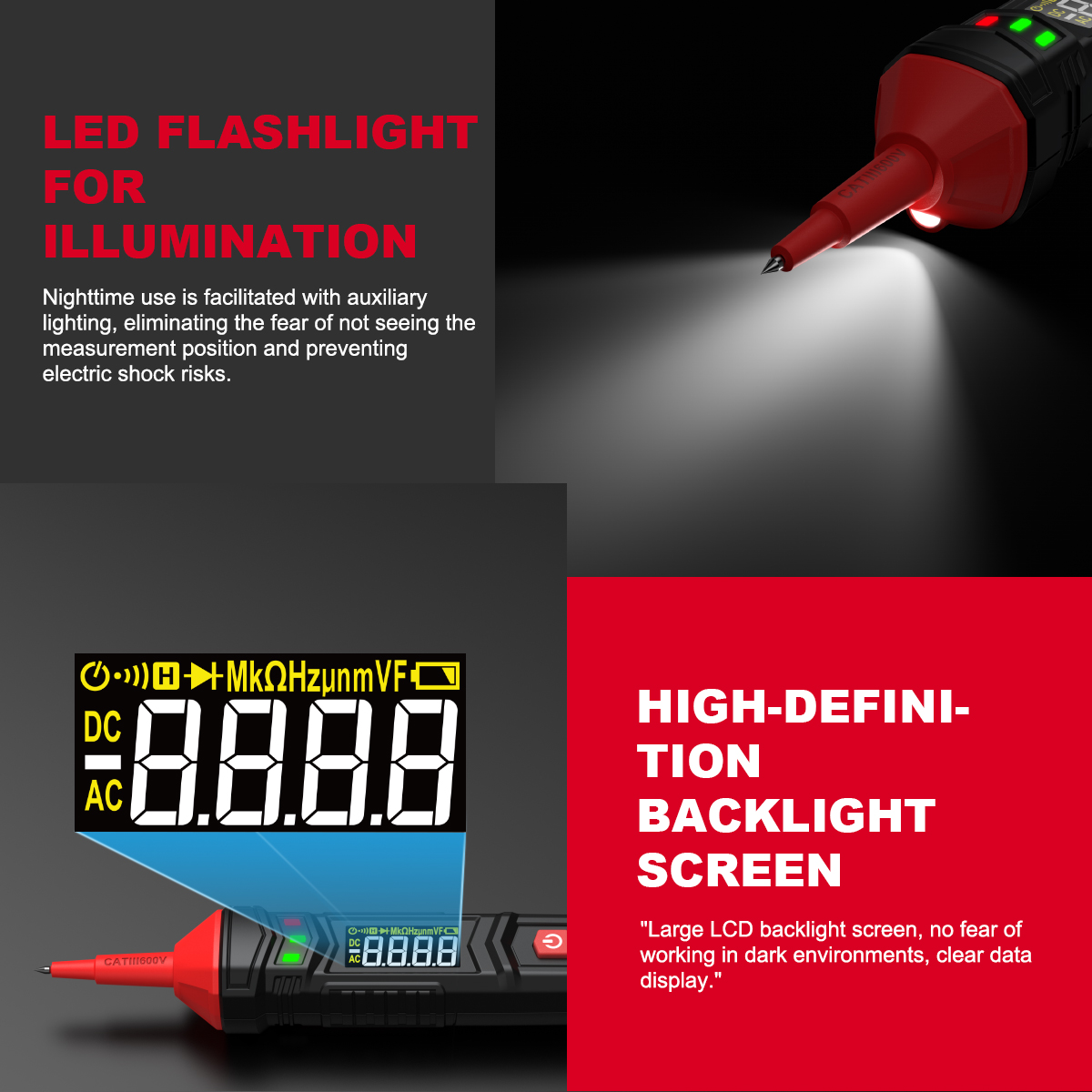

• LED illumination: Built-in LED light for illumination in dark working spaces.
• Safety operations: Complies with IEC61010-1 CAT.III 600V overvoltage safety standards and pollution level 2.

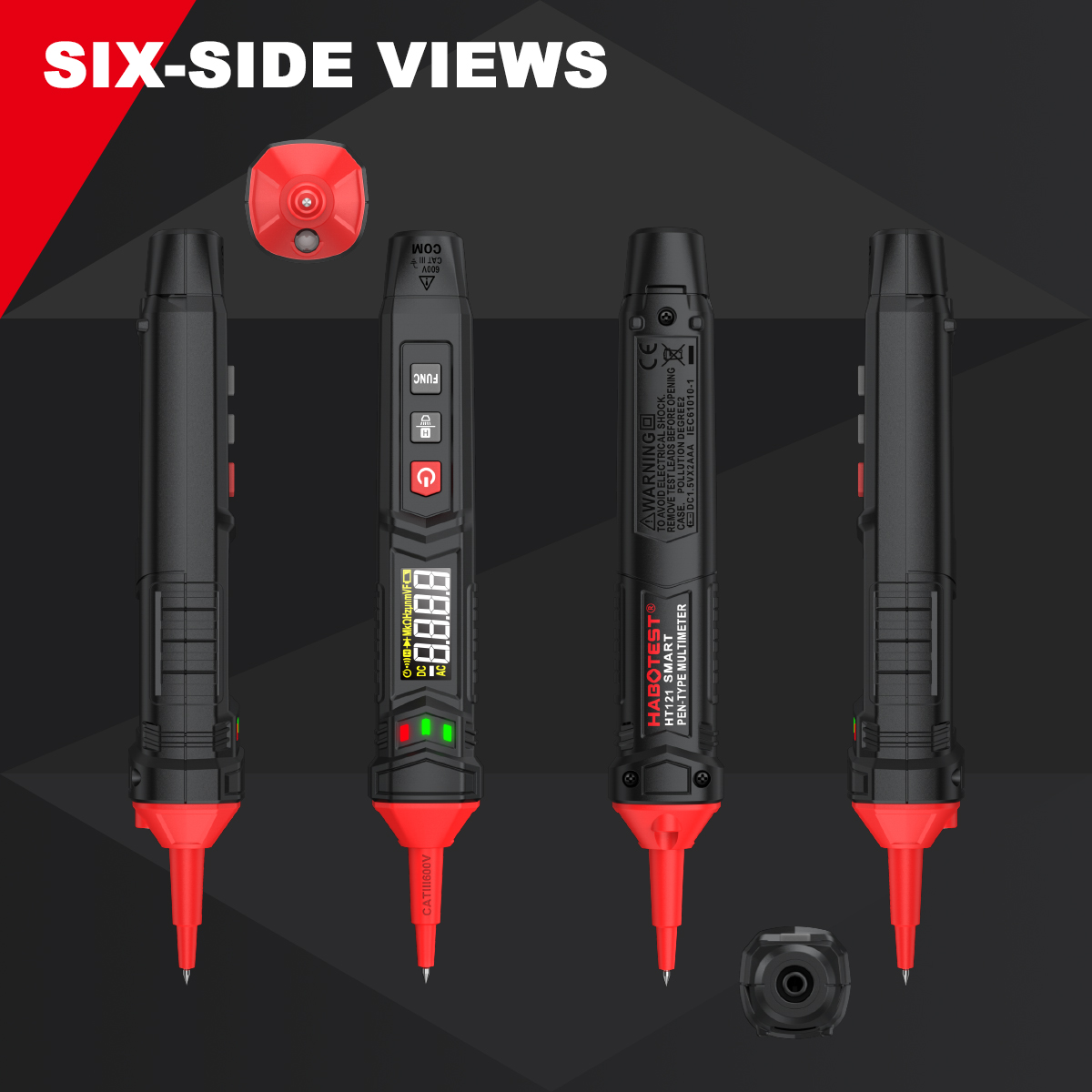

• Compact and portable: The pen-type digital multimeter is lightweight, small in size, and easy to carry.

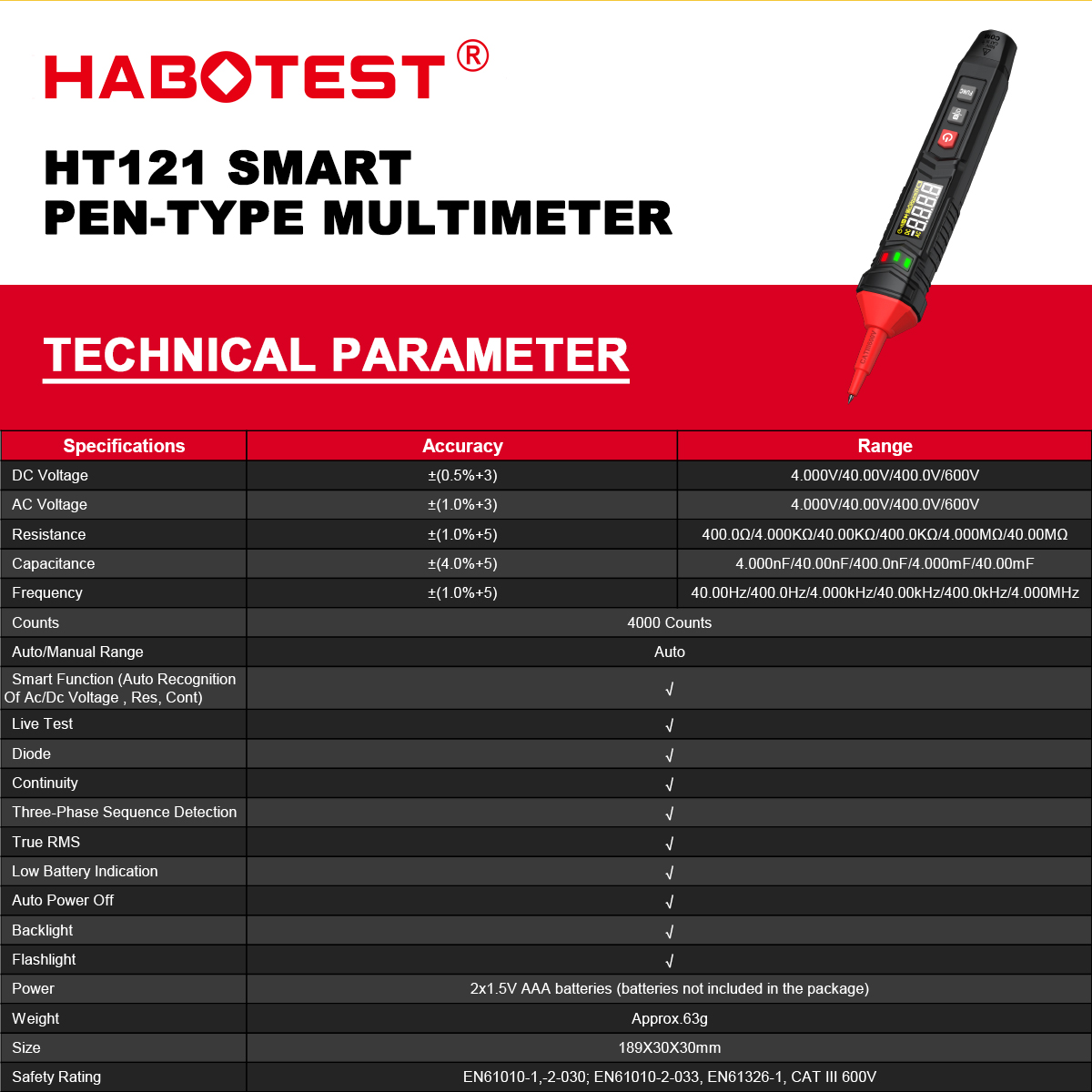

Specifications:

• Brand: HABOTEST
• Model: HT121
• Product Name: Smart Pen-Type Multimeter
• Color: Black and red
• DC Voltage: 4V / 40V / 400V / 600V
• AC Voltage: 4V / 40V / 400V / 600V
• Resistance: 4000Ω / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance: 40 nF / 400 nF / 4uF/ 40uF/ 400uF / 4 mF

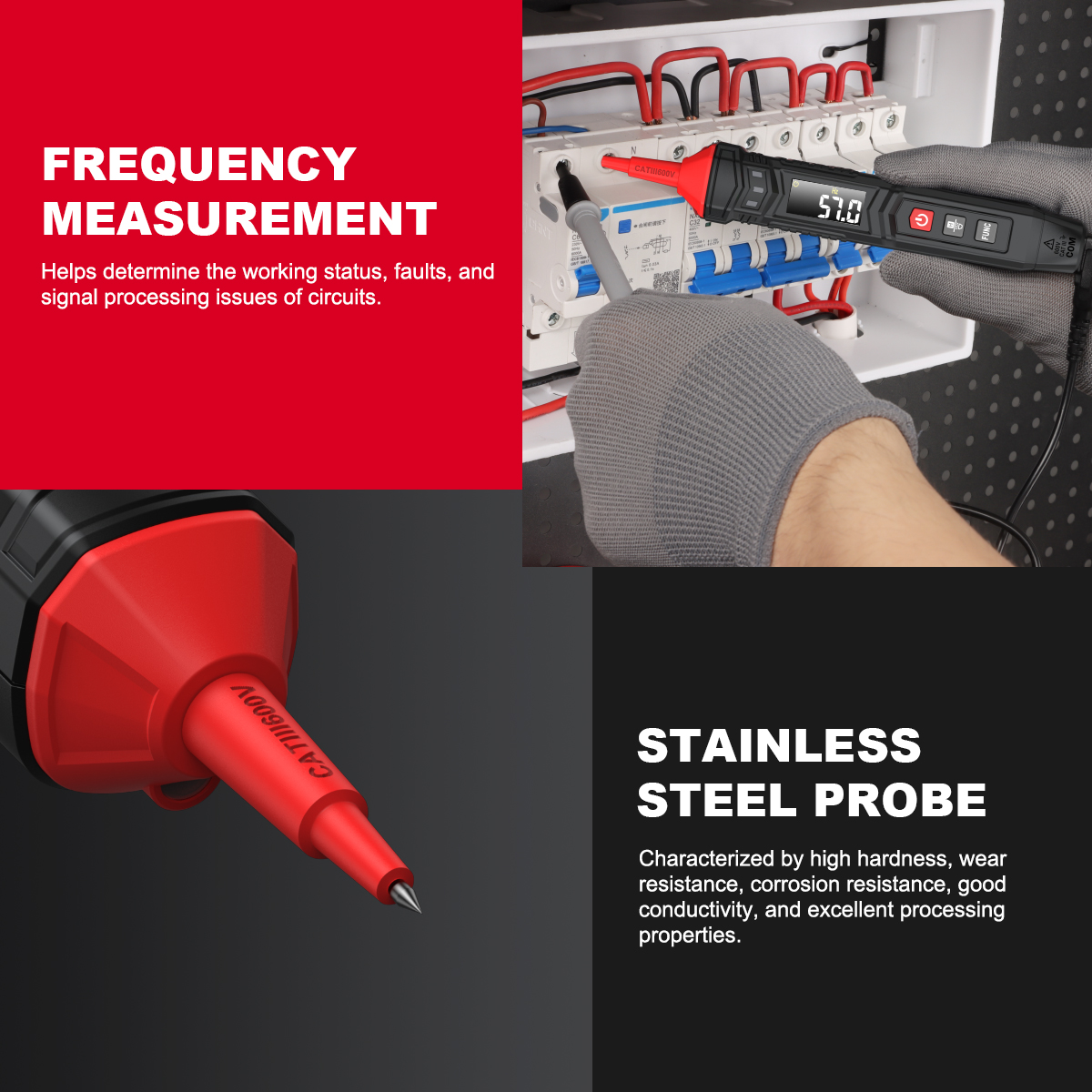

• Frequency: 40 Hz / 400 Hz / 4KHz/ 40KHz / 400KHz / 4 MHz
• Material: ABS
• Display: 4000 counts
• Sampling rate: Approximately 3 times/second
• Overrange indication: "OL"
• Temperature coefficient: 0.1 x accuracy / ℃ (<18℃ or >28℃)
• Operating environment conditions: CAT.III 600V, pollution level 2, altitude <2000m
• Operating temperature and humidity: 0~40°C (<80% RH,<10°C non-condensing)
• Storage environment: -10~60℃, <70%RH

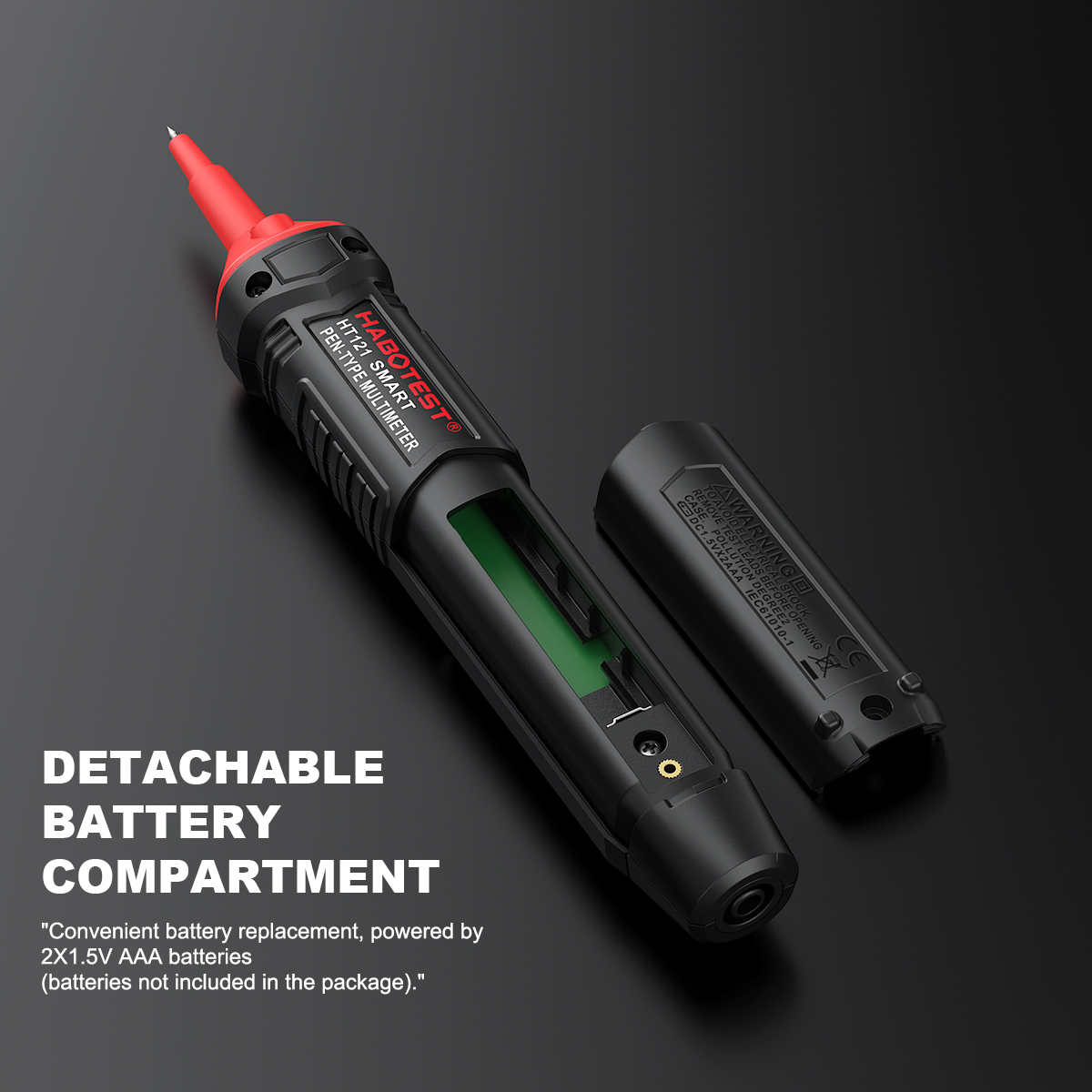

• Power supply: 2 * 1.5V AAA batteries

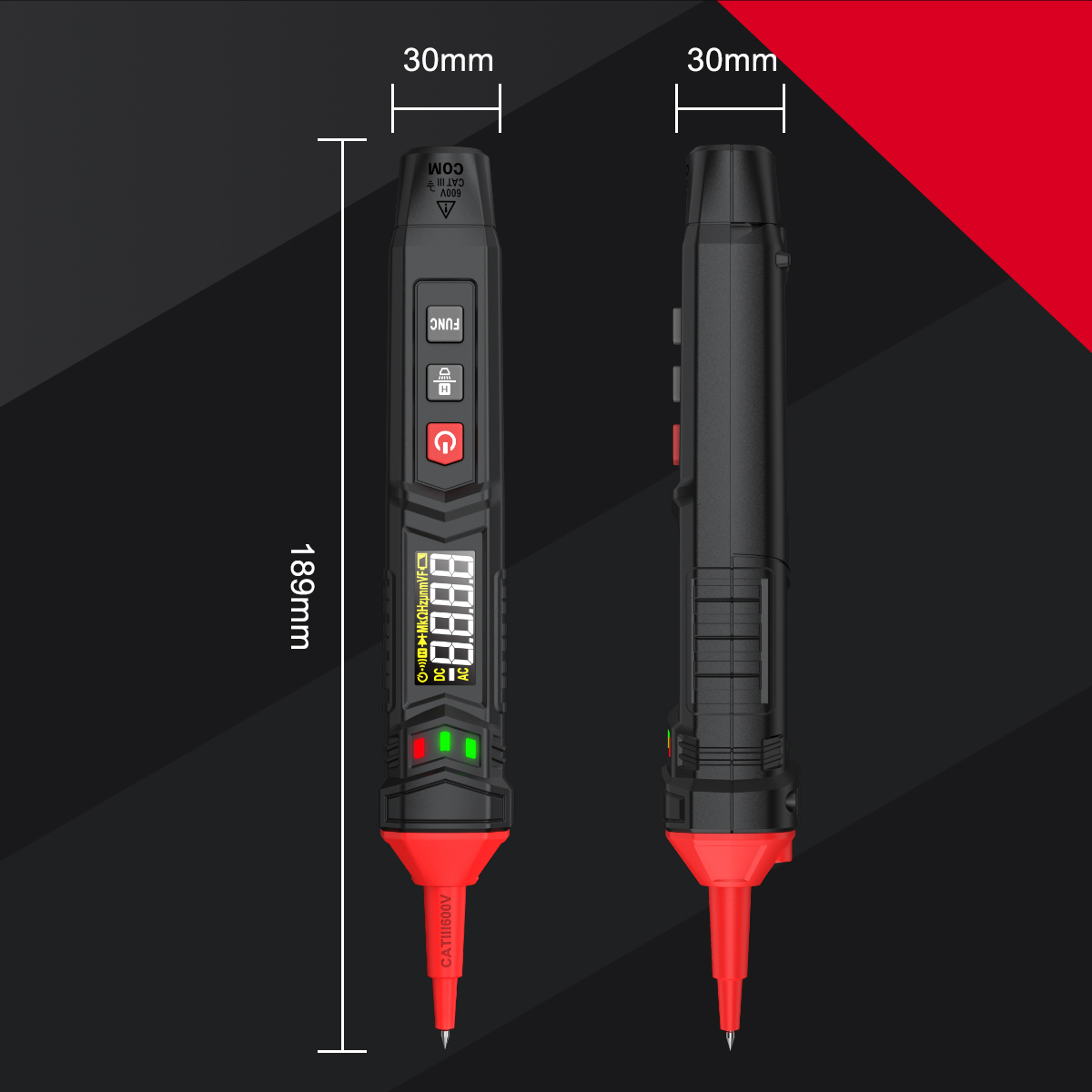

• Item size: 206 * 30 * 30mm / 8.11 * 1.18 * 1.18in
• Item weight: 65g / 2.29oz
• Package weight: 128g / 4.52 oz
• Package size: 21 * 5 * 3.5cm / 8.27 * 1.97 * 1.38in

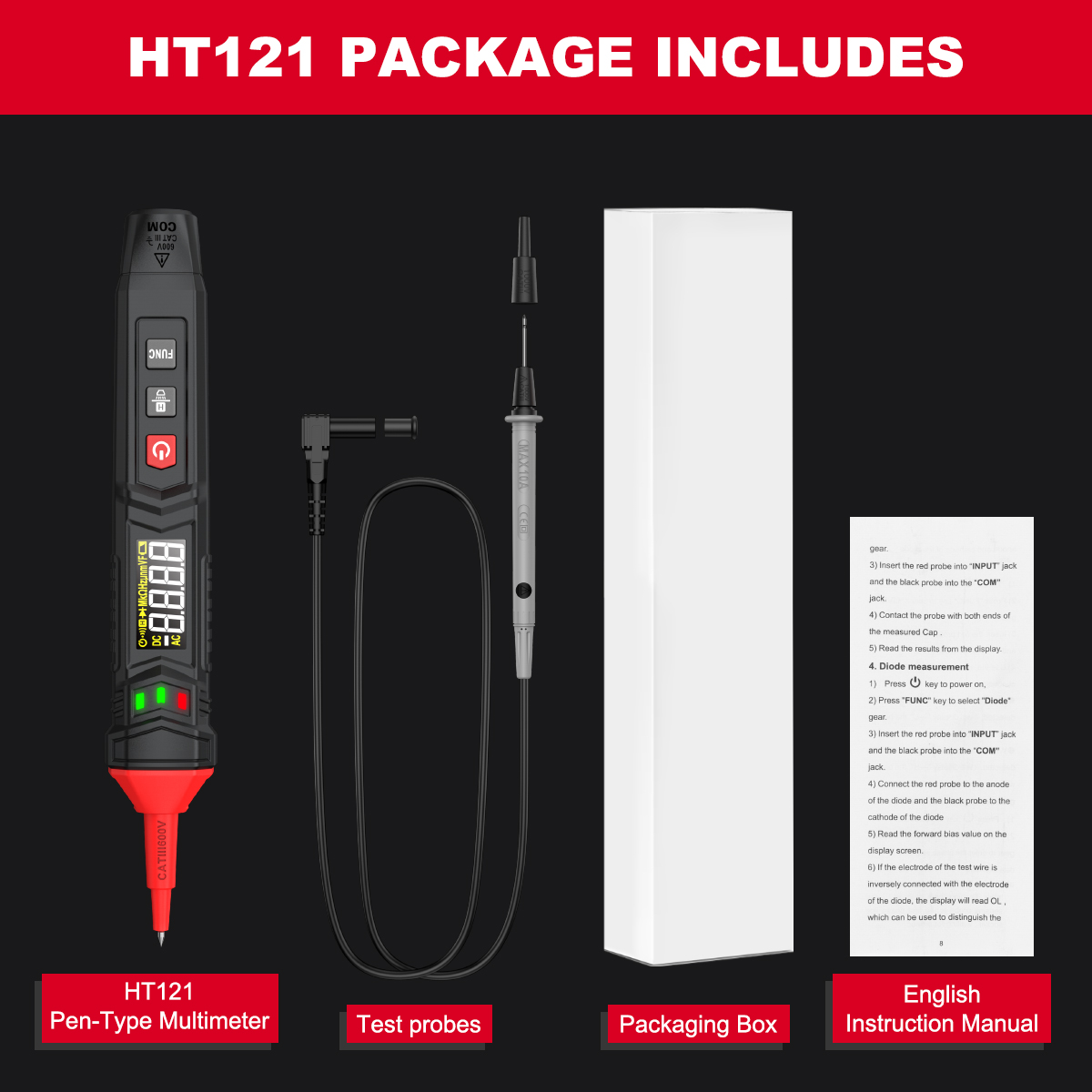

Package Contents:

• 1 * Pen-Type Multimeter
• 1 * Test Leads
• 1 * Manual (English)
• 1 * Packaging Box
