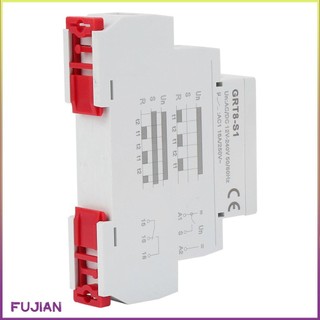

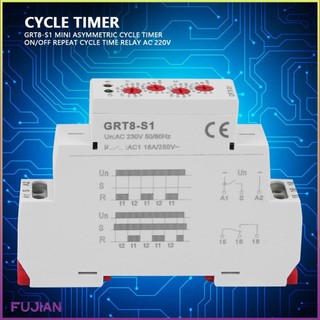

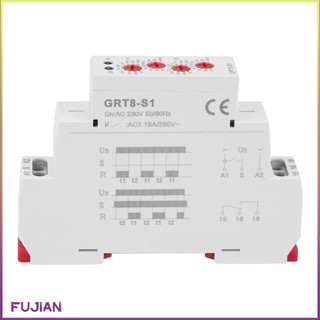

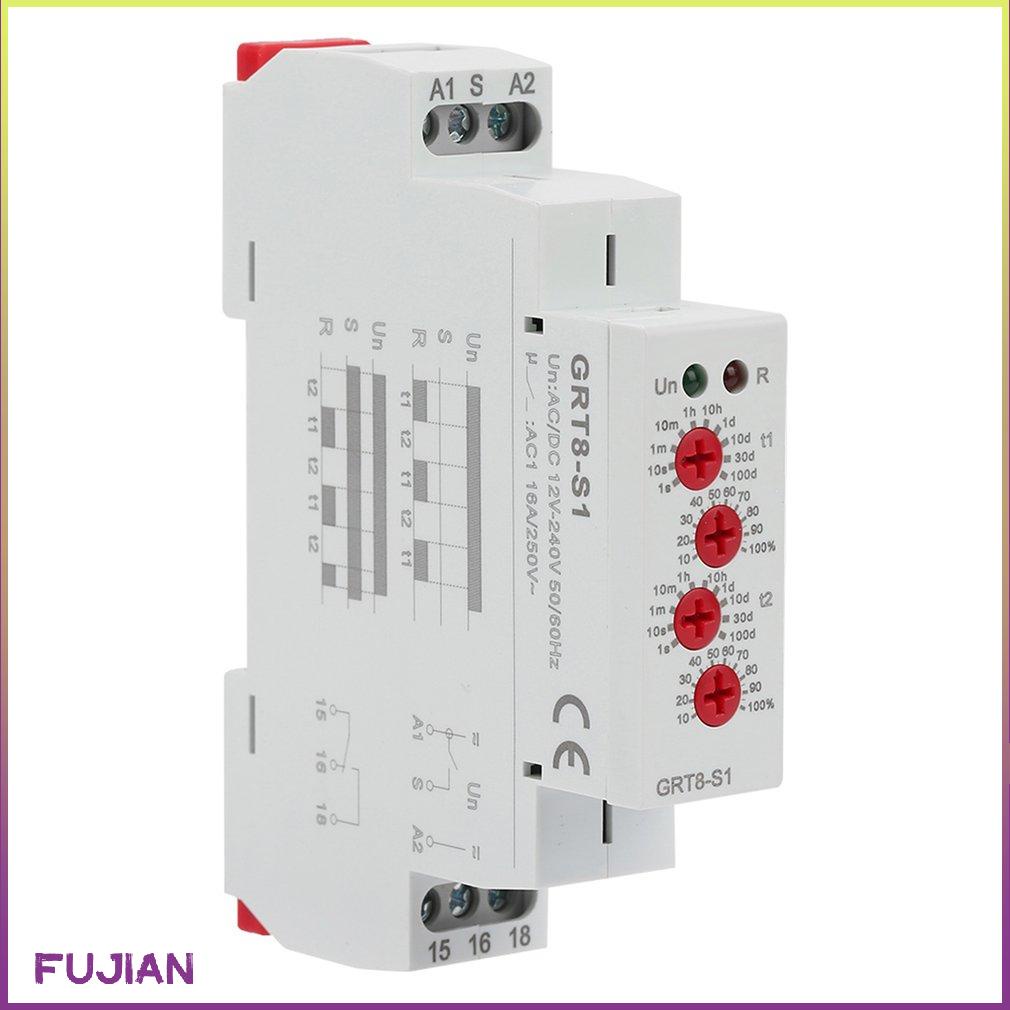

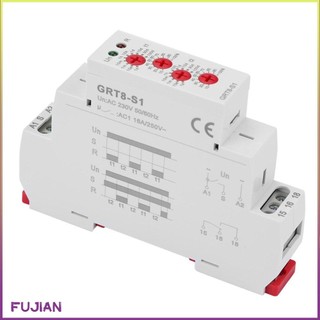

Grt8-S1 Mini Asymmetric Cycle Timer On/Off Repeat Time Relay Ac 240V Wide Delay Range [B/9]

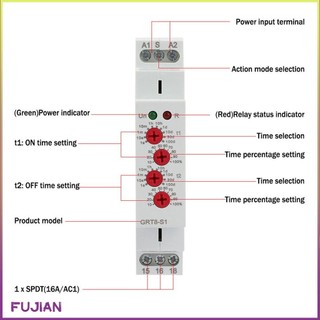

[{"t":"Features:\n"},{"t":"1. Time setting for delay ON and OFF is separated so you can set different delay time.\n"},{"t":"2. Super wide delay time range, 0.1 second-100 days settable (10 selections).\n"},{"t":"3. Switch different working modes by short-circuiting S-A1.\n"},{"t":"4. Relay working status is indicated by LED indicators.\n"},{"t":"5. With small volume, this relay can be mounted on 35mm DIN rail.\n"},{"t":"\n"},{"t":"\n"},{"t":"\n"},{"t":"Description:\n"},{"t":"It is used for cycle delay control, providing periodic energizing, lighting control and heating control for electric circuit.\n"},{"t":"\n"},{"t":"Specifications:\n"},{"t":"Model: GRT8-S1\n"},{"t":"Rated power supply voltage: AC / DC 12V 240V (50-60Hz)\n"},{"t":"Power consumption: AC 0.09-3VA / DC 0.05-1.7W\n"},{"t":"Delay time range: 0.1s-100 days, NO, NC\n"},{"t":"Setting method: knob\n"},{"t":"Setting accuracy: 10%\n"},{"t":"Repeatability: 0.2%\n"},{"t":"Temperature fluctuation error: 0.05%/℃, at= 20℃\n"},{"t":"Output contact: 1 x SPDT, 16A / AC1\n"},{"t":"Minimum switching power: 500mW\n"},{"t":"Power indicator: green LED\n"},{"t":"Output relay indication: red LED\n"},{"t":"Mechanical life: 1x10^7\n"},{"t":"Electrical life: 1x10^6\n"},{"t":"Reset time: up to 200ms\n"},{"t":"Working temperature: -20℃~55℃\n"},{"t":"Storage temperature: -35℃~75℃\n"},{"t":"Installation method: 35mm DIN rail\n"},{"t":"Protection level: IP20\n"},{"t":"Wiring capacity: 1x2.5mm² / 2x1.5mm²\n"},{"t":"Size: 90 * 18 * 64mm / 3.54 * 0.71 * 2.52in\n"},{"t":"\n"},{"t":"Package Included:\n"},{"t":"1 * Cycle Timer Relay\n"},{"t":"\n"},{"t":"\n"},{"t":"\n"},{"t":"Notes:\n"},{"t":"1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.\n"},{"t":"2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.\n"},{"t":"\n"}]
