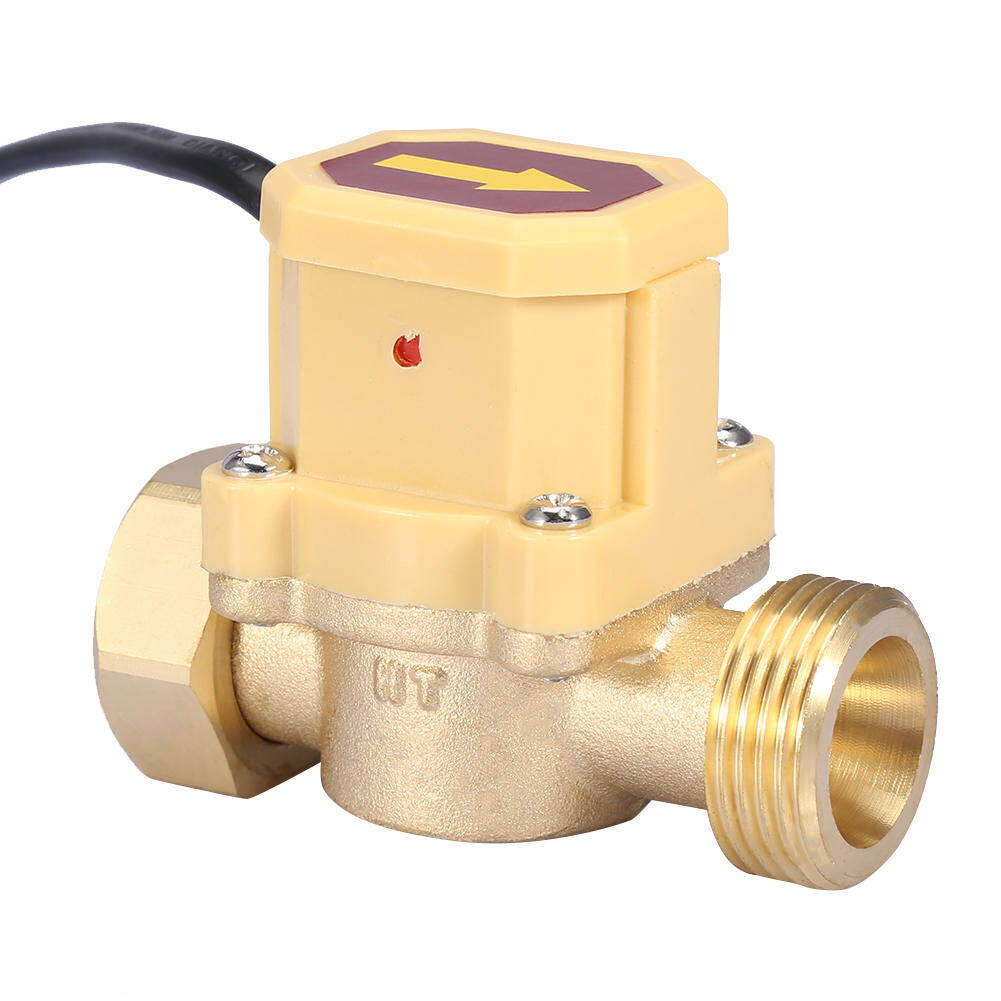

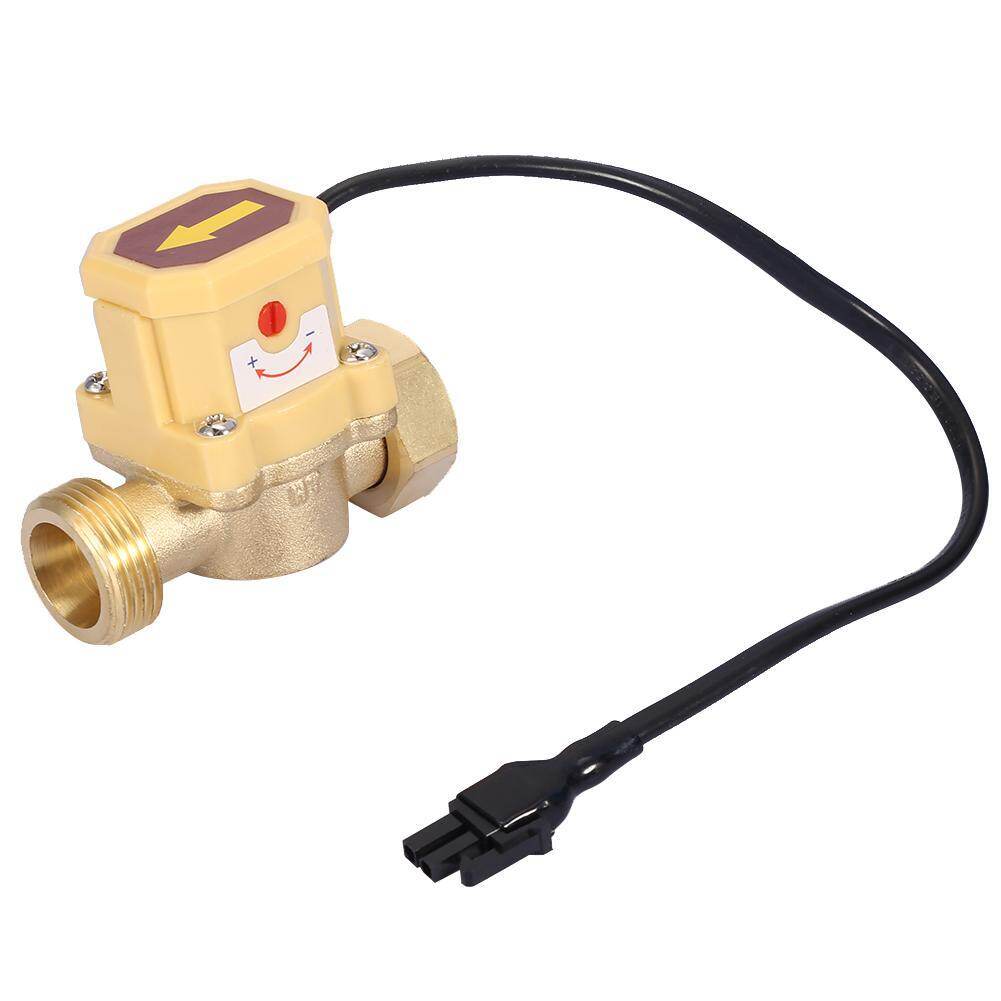

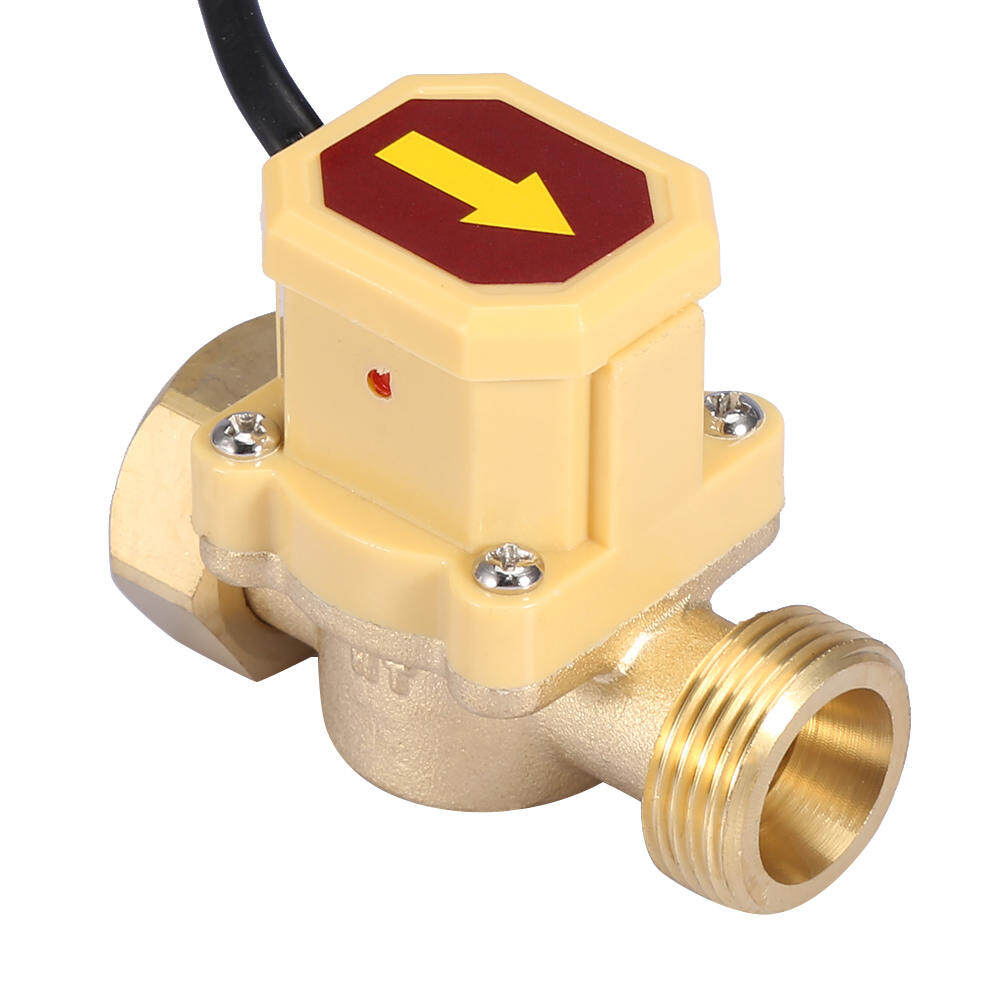

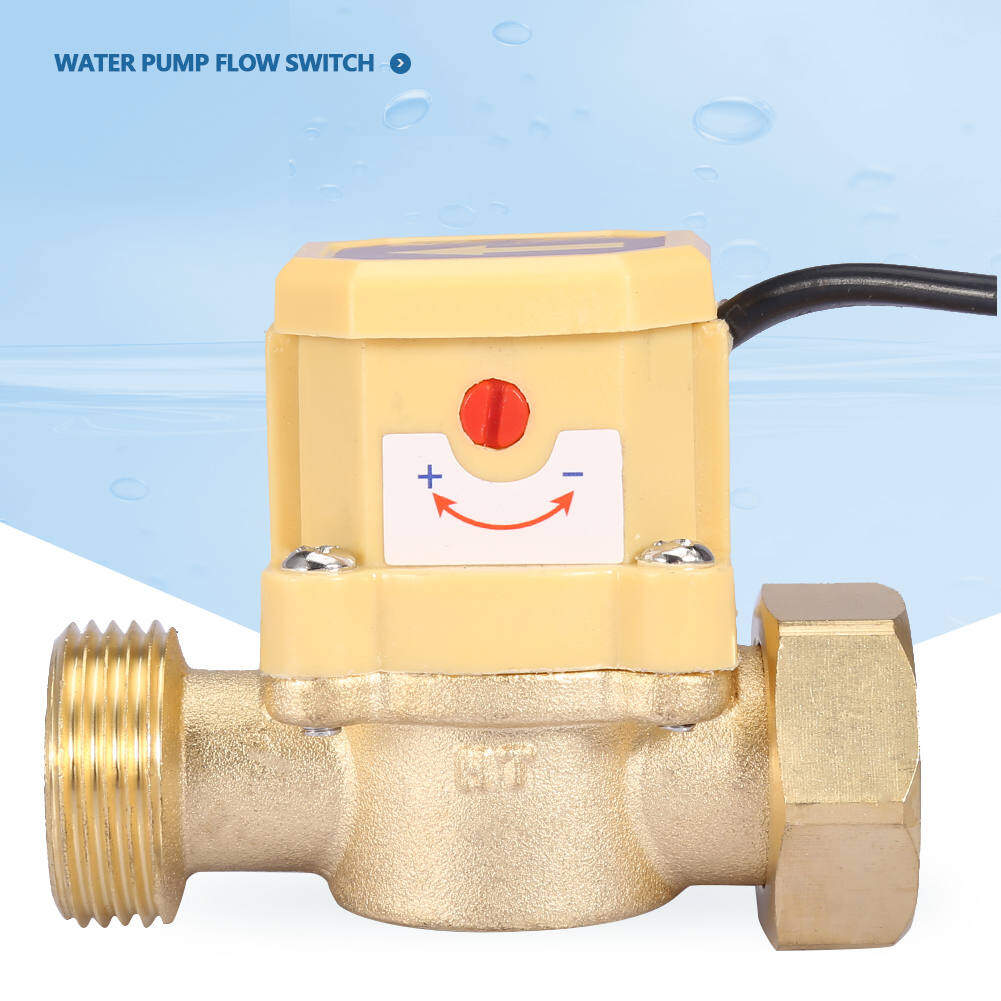

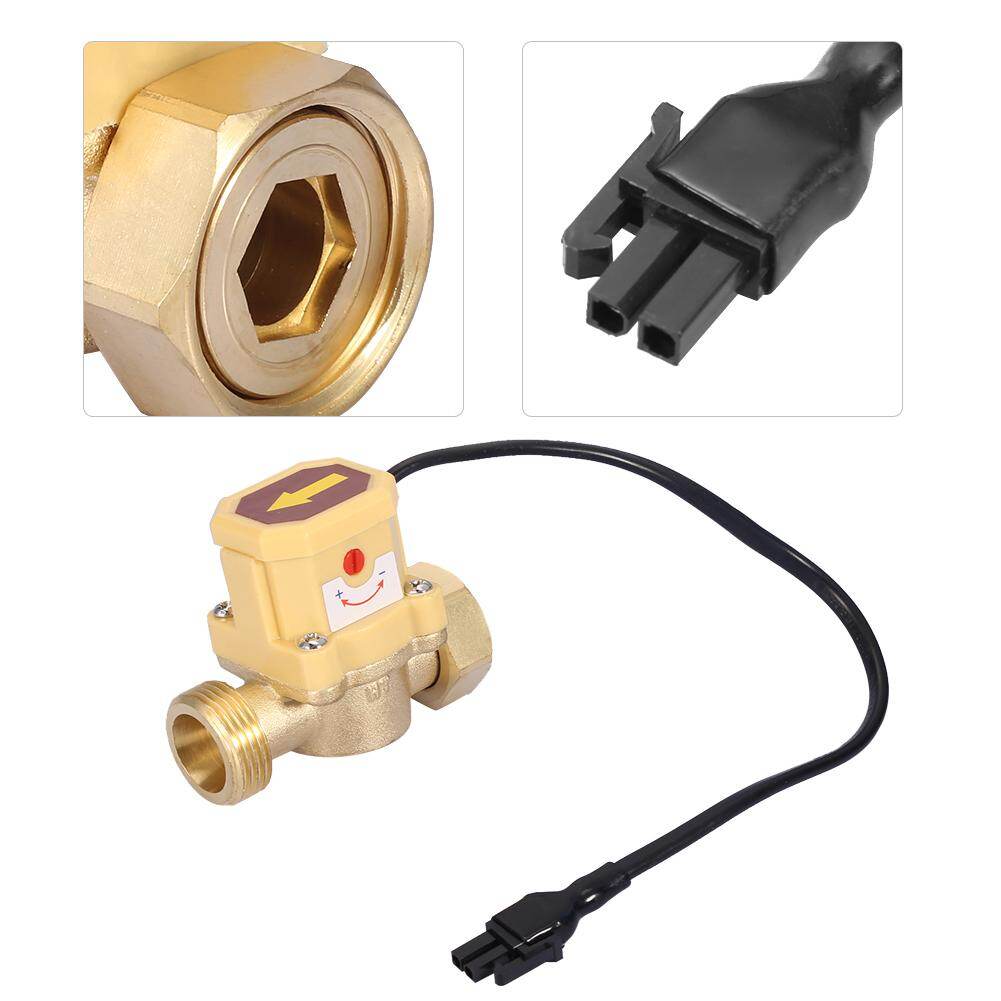

Zonejoy Công Tắc Bơm Nước Tự Động G3/4-G3/4, Công Tắc Điều Khiển Áp Suất Cảm Biến Lưu Lượng Có Thể Điều Chỉnh 220V

Turn on the water equipment and water will flow in pipeline. Water impulse induction door to rotates towards the direction of water, and magnetic control device rotates together, which will trigger the sensing elements when it reaches a certain position, to switch on the household pipeline boost pump. When water flow is turned off, induction door drives magnetic control device to a certain position under the action of the reset spring, to switch off pump.

Features:

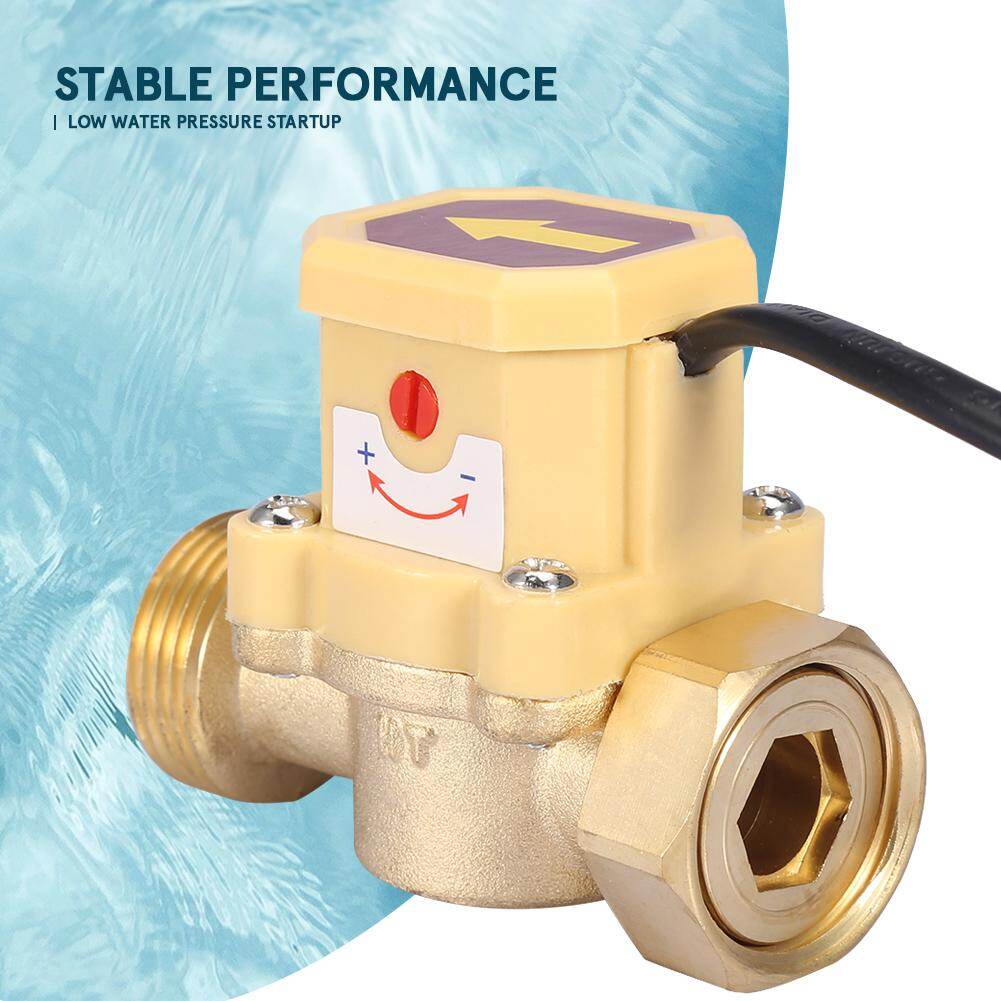

• Stable performance; induction chamber, magnetic control chamber and electronic components are designed separately in order to avoid switch failure caused by iron matter in pipeline is magnetic adsorbed.
• High temperature resistant materials allows the product to be used for both hot(up to 70℃) and cold water.
• Low water pressure startup; reset spring is made of high quality stainless steel; it can start up pump when water pressure is >0.03KG.
• The electronic components as control device will not cause spark during work which is quite safe.
• This product is widely used for low pressure area family, especially important for low water pressure ignition start-up of water heater, automatic water cycle of solar water heater.

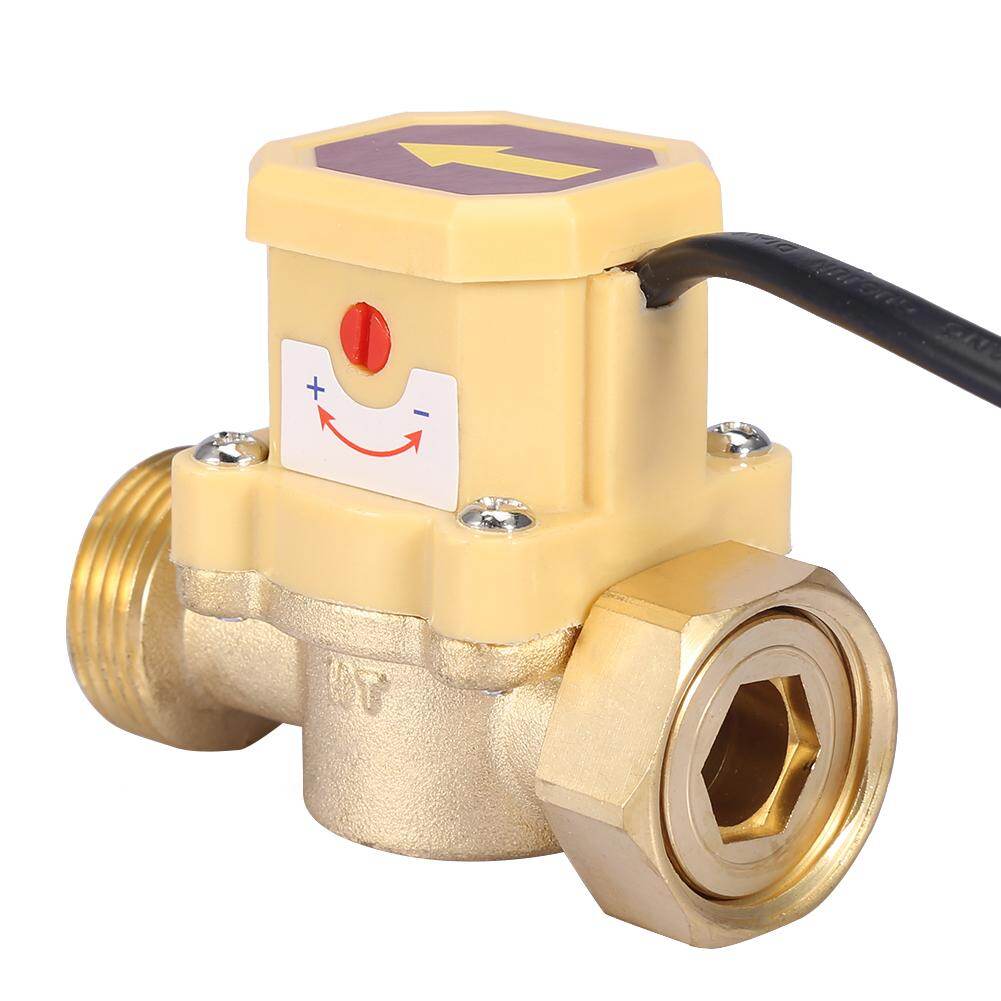

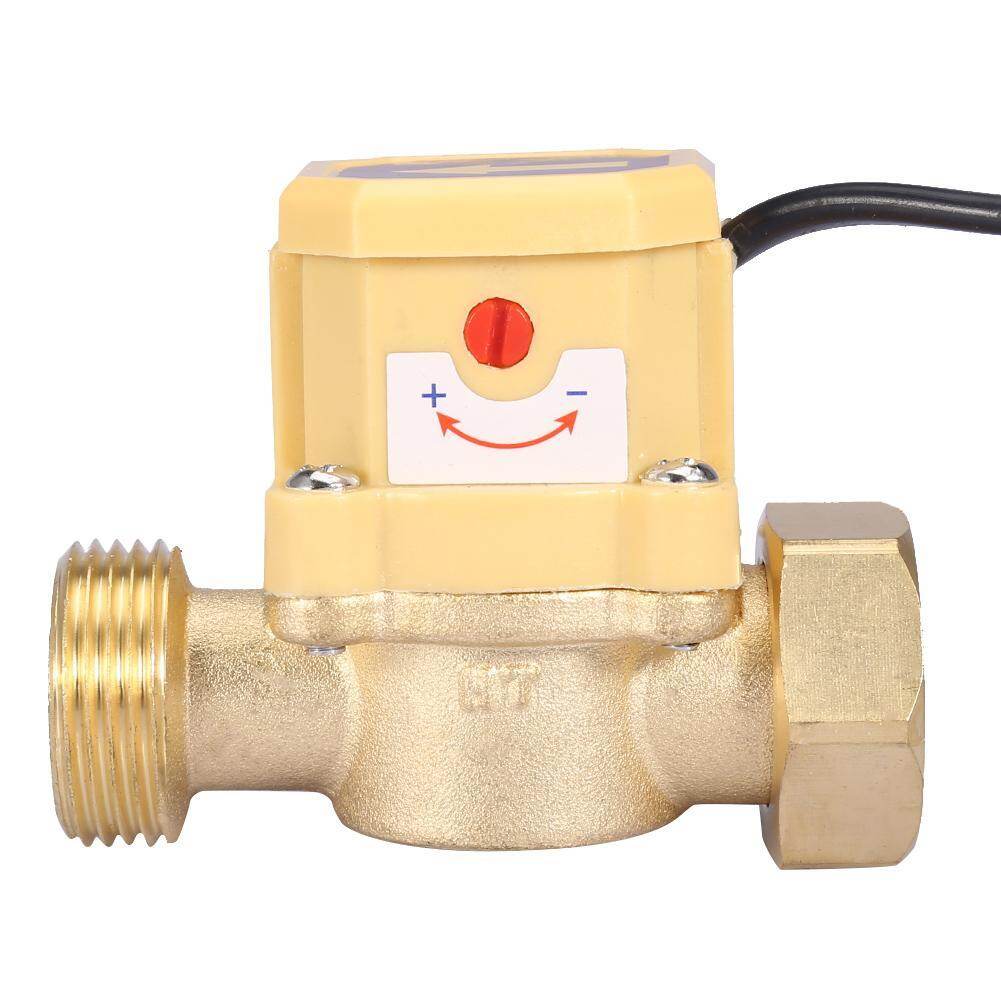

• The sensitivity of this flow switch is adjustable.

Specification:

Model: HT-200
Rated Voltage: 220V

Overload Current: 1.5A

Connection Thread: G3/4-G3/4

Suitable Liquid: Water or other liquid of similar physical and chemical property

Liquid Pressure: <0.6Mpa
Liquid Temperature: <70℃

Weight: 194g / 6.8oz (approx.)

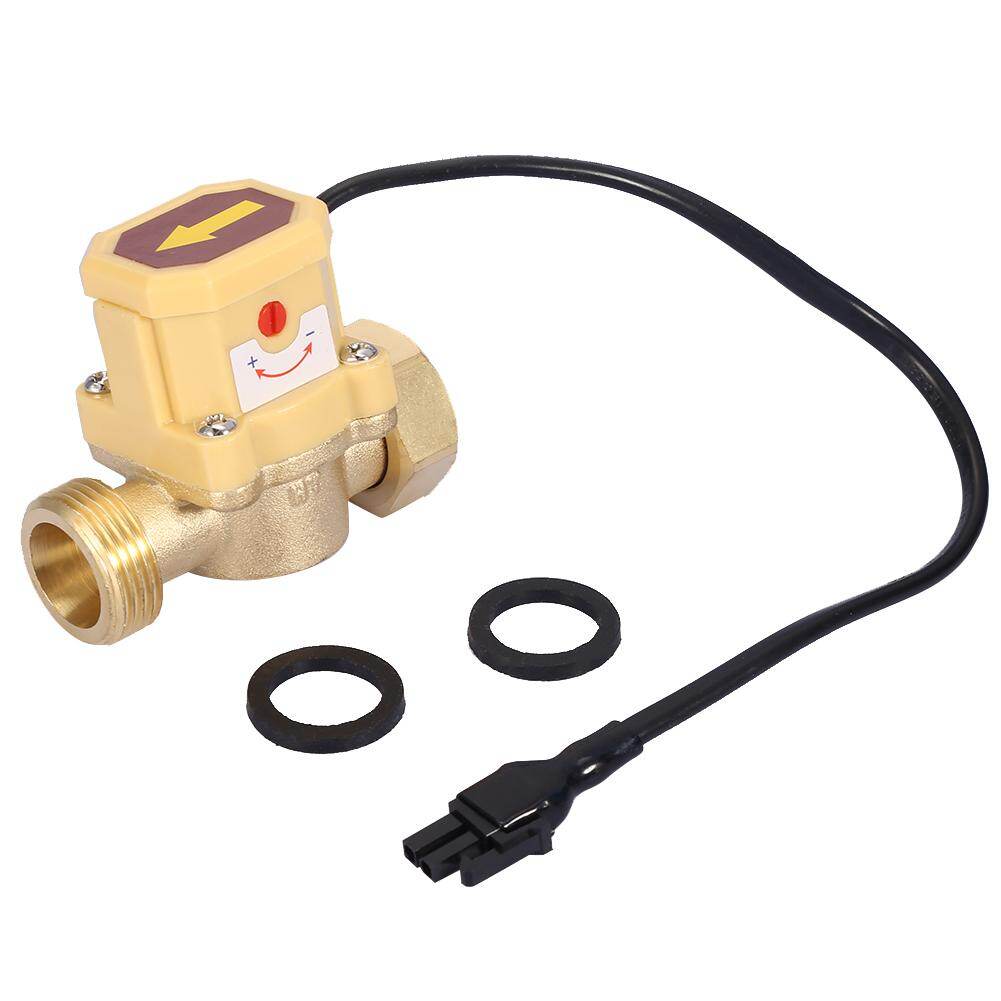

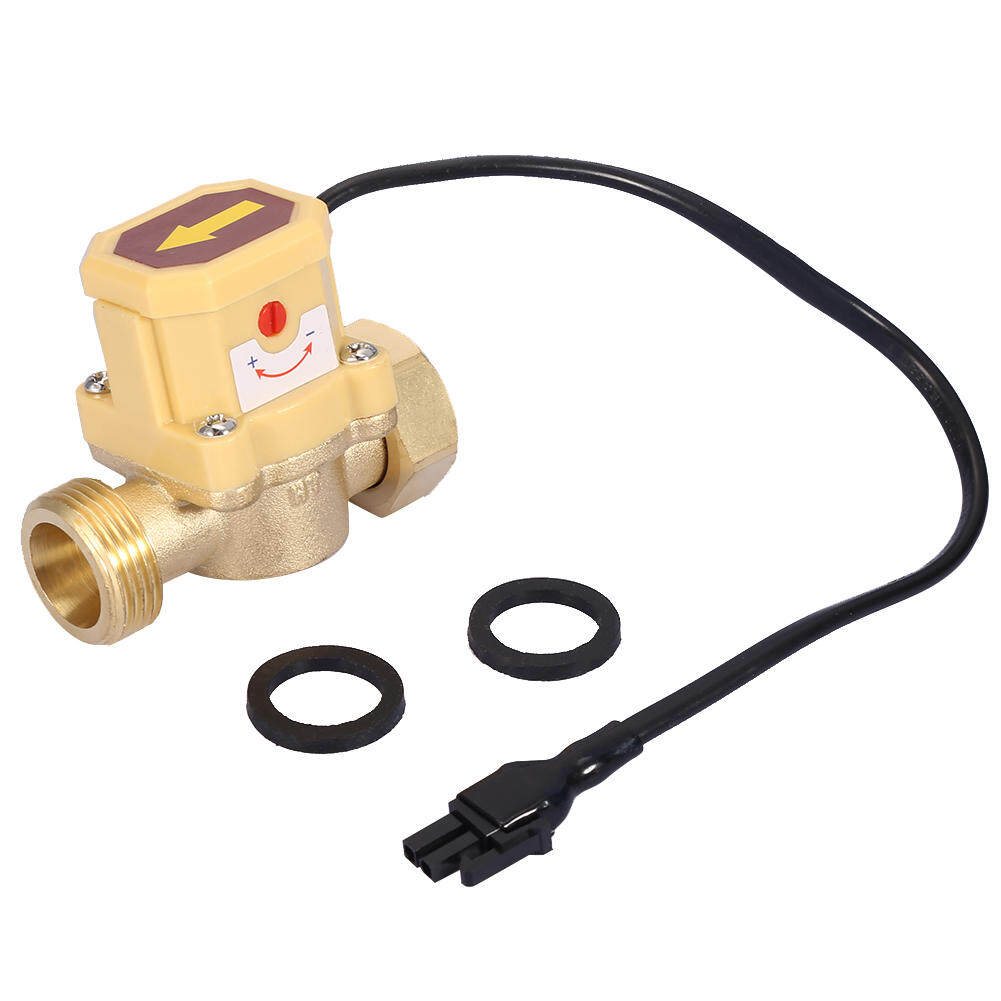

Package list:

1 * Flow Switch (with gasket)
