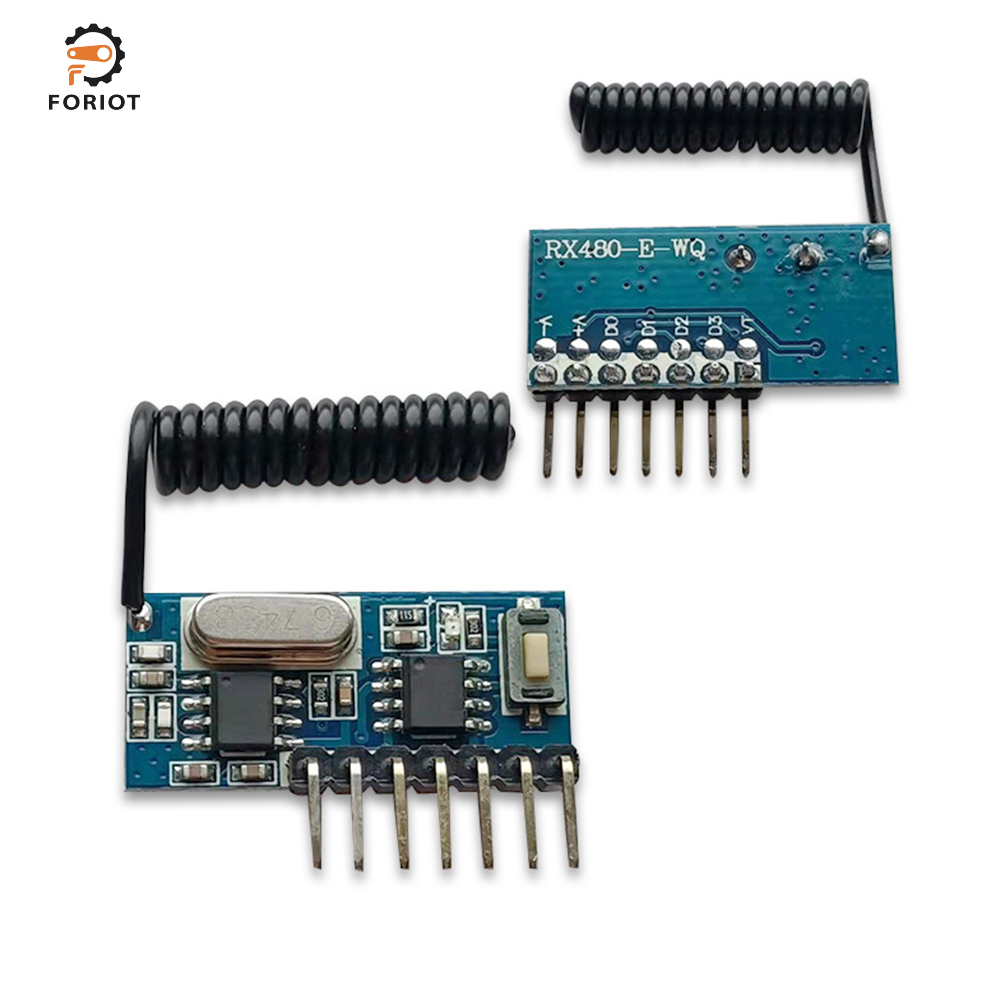

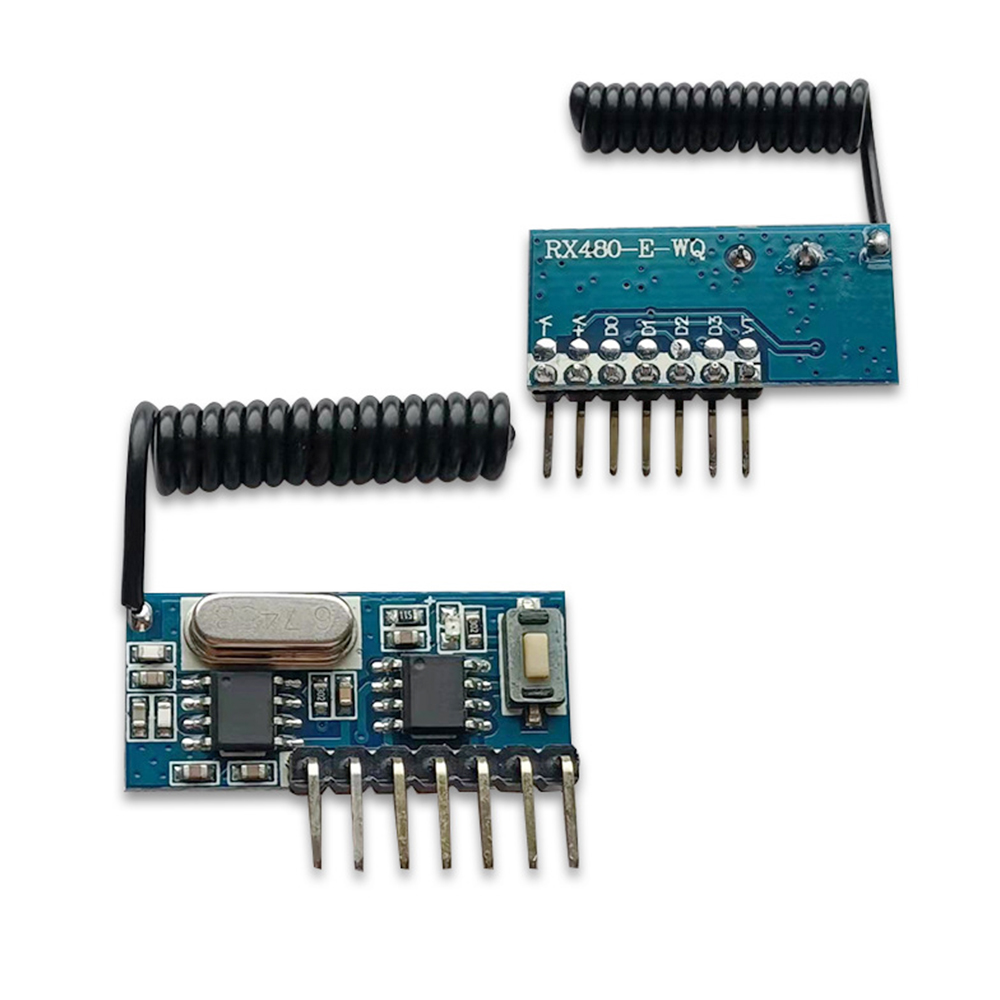

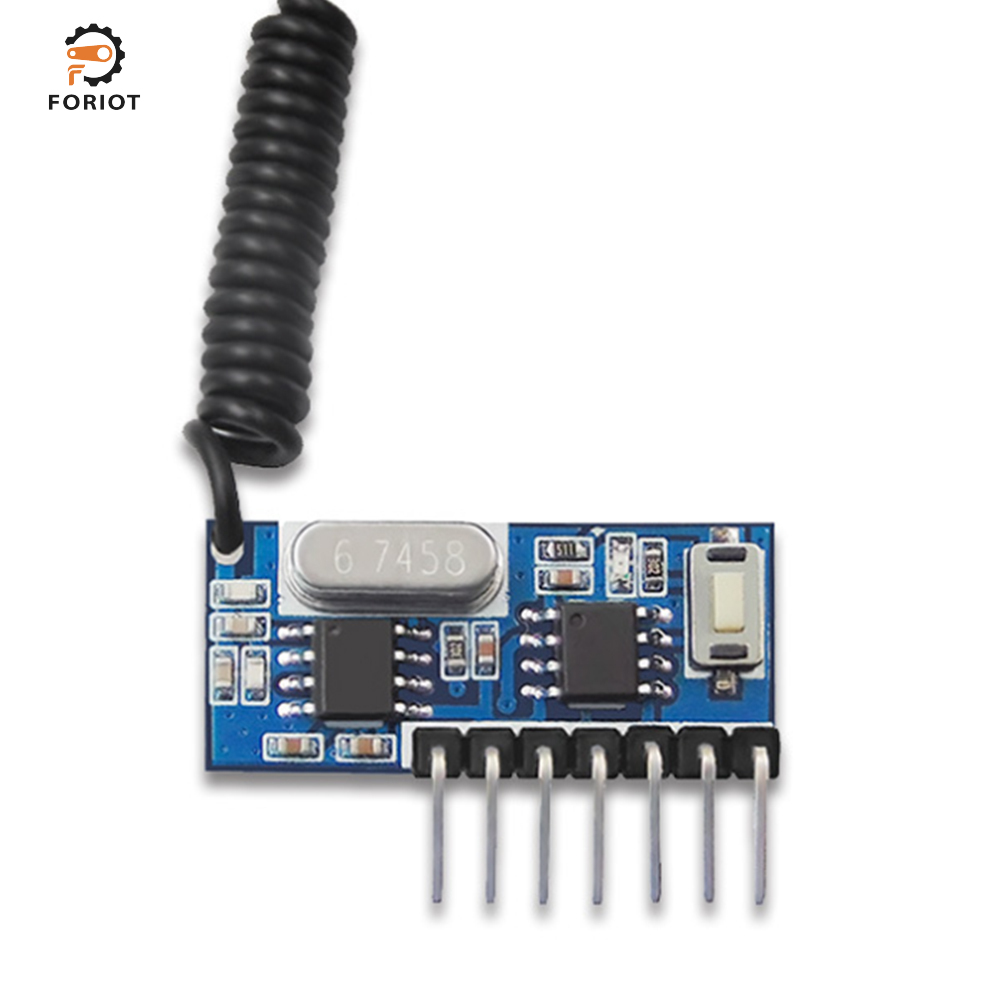

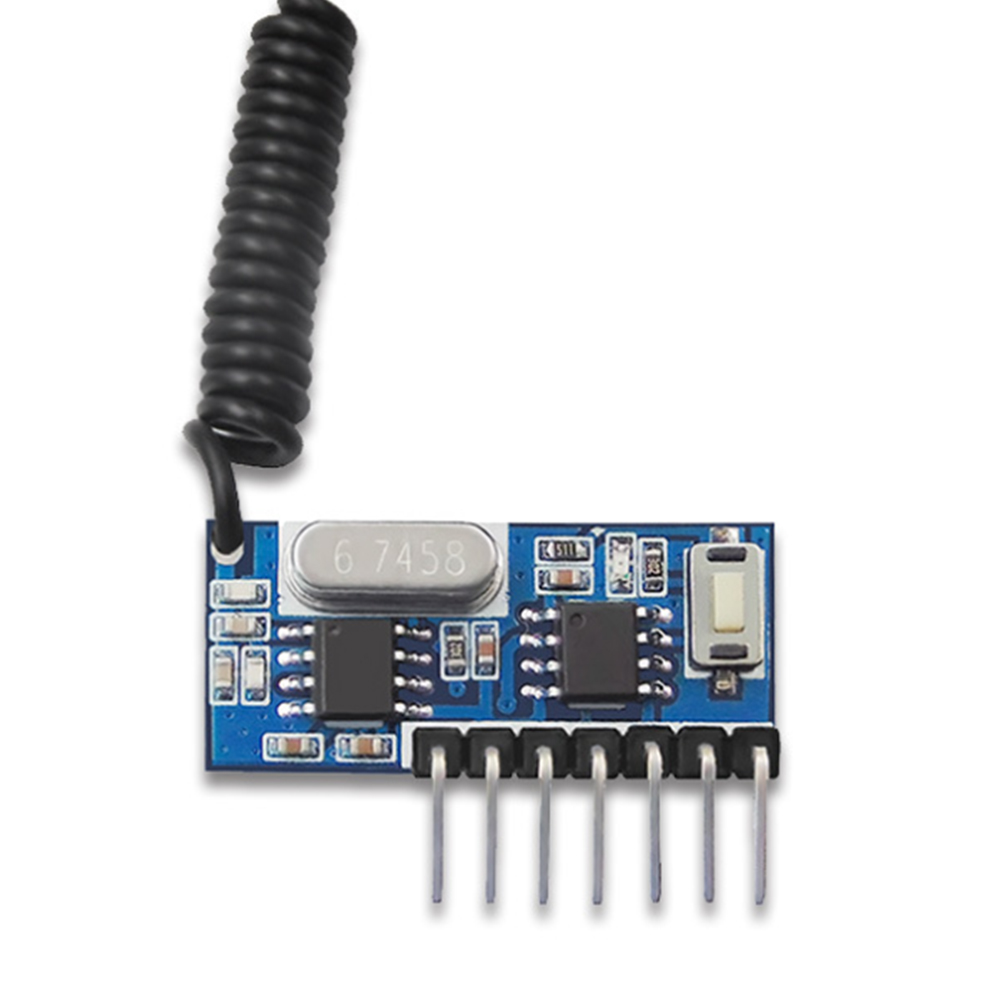

Foriot không dây 433MHz mô-đun RF Máy thu và máy phát Đầu thu điều khiển từ xa mô-đun

Features:
1.Use high-quality materials, durable

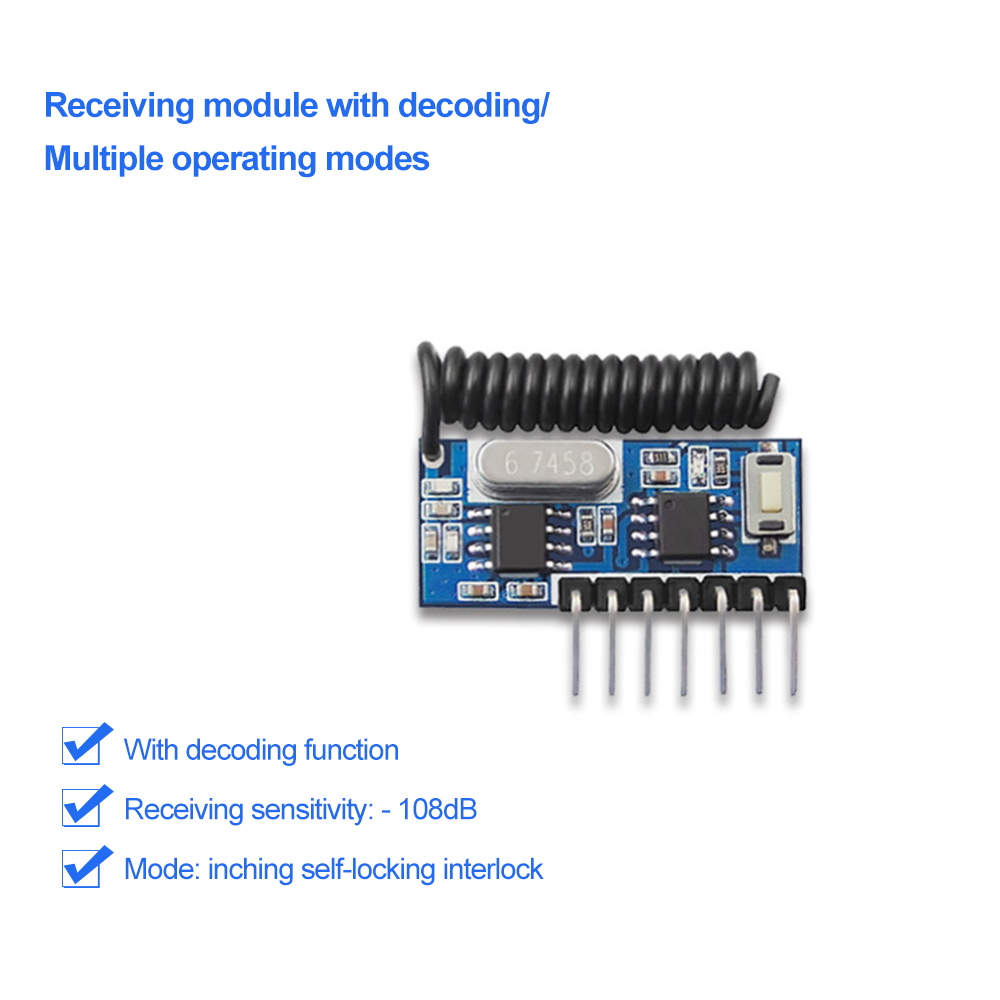

2.The receiving module includes a decoding chip, which can support EV1527, PT2262, etc

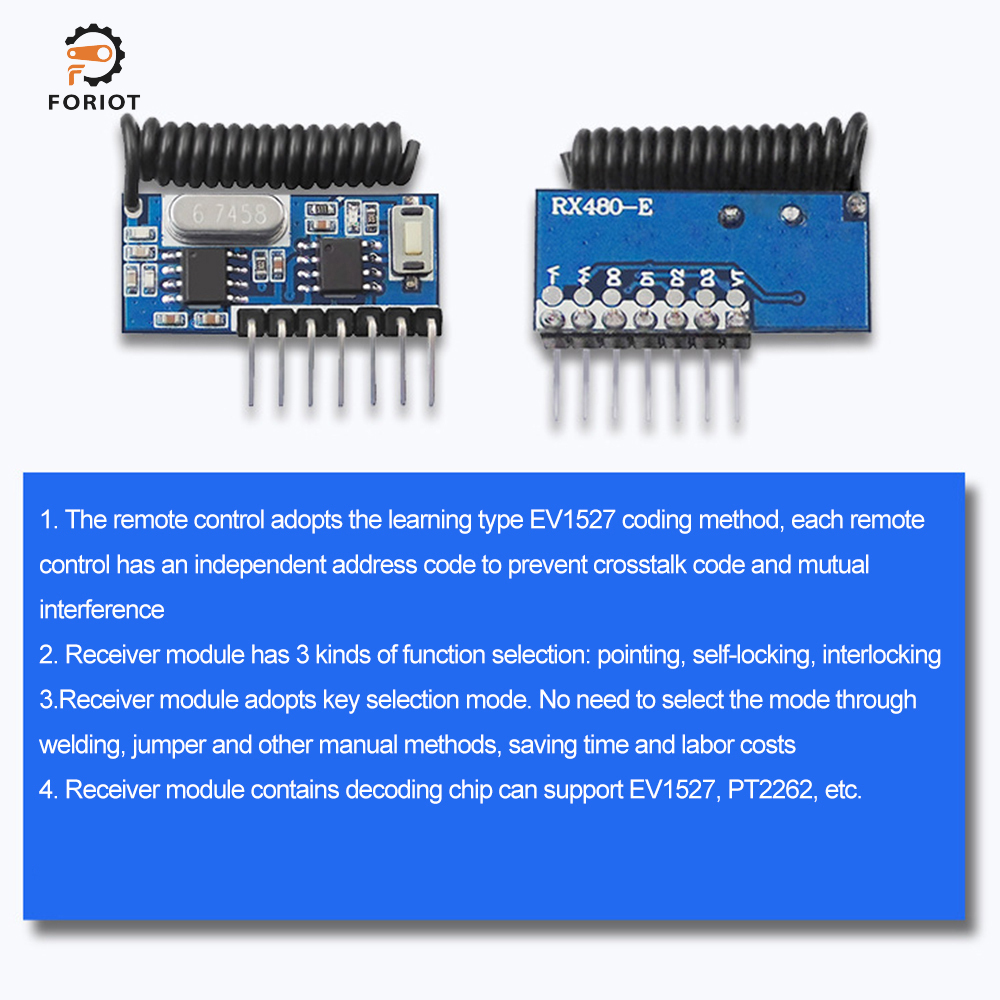

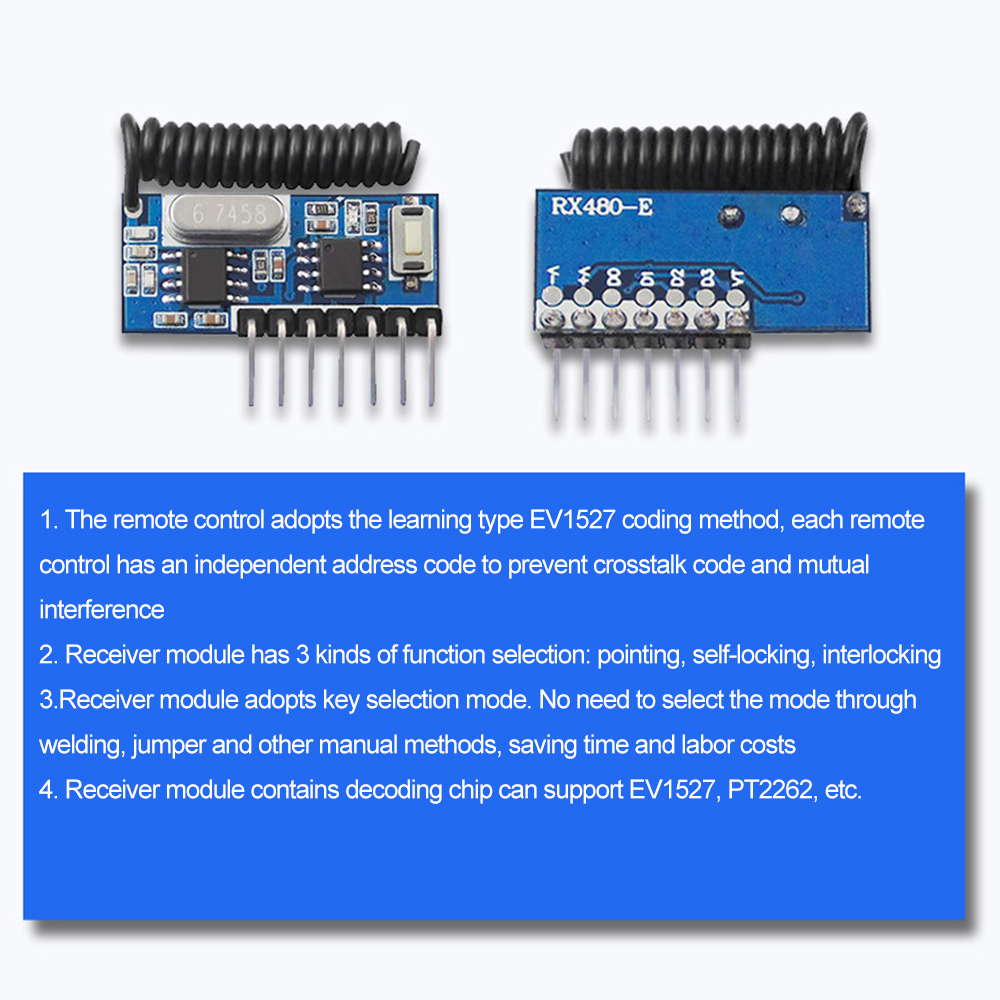

3.The remote controller adopts the learning EV1527 encoding mode, and each remote controller
There are independent address codes to prevent serial codes and mutual interference
4.The receiving module has three function options: inching self-locking interlock
5.The receiving module adopts the key selection mode. There is no need to select the mode manually such as welding and jumper, saving time and labor costs
6.Wide range of use

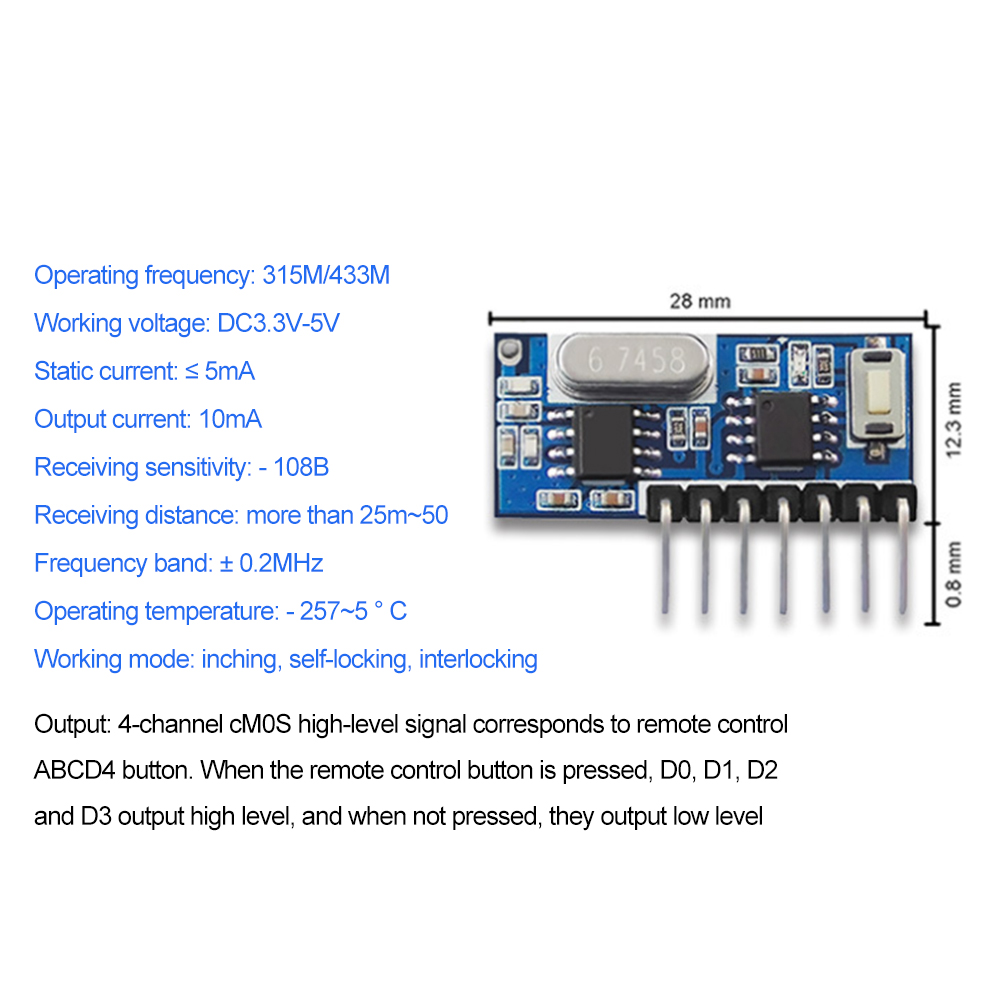

Parameters:
Operating frequency: 315M/433M
Working voltage: DC3. 3V - 5V
Static current: ≤ 5mA
Output current: 10 mA
Receiving sensitivity: - 108dB
Receiving distance: more than 25m~50
Frequency band: ± 0.2 MHz
Operating temperature: - 25~75 ° C

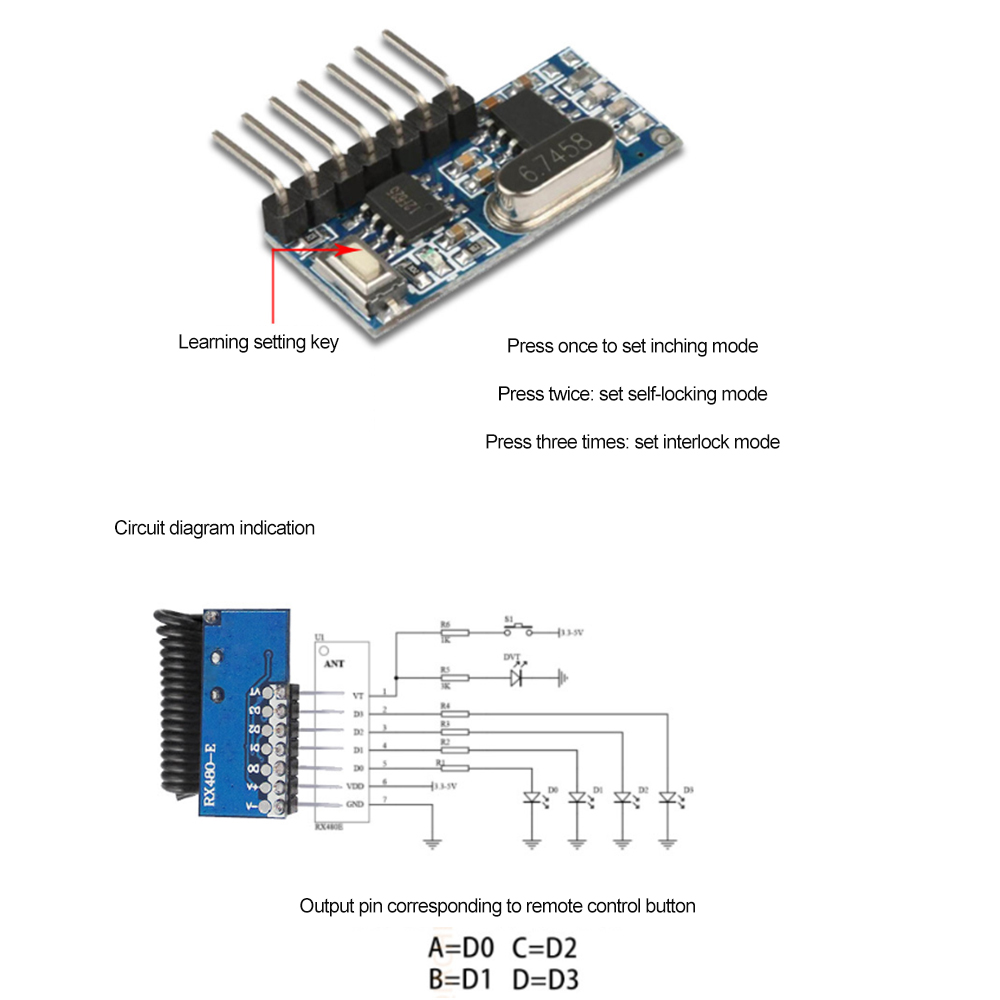

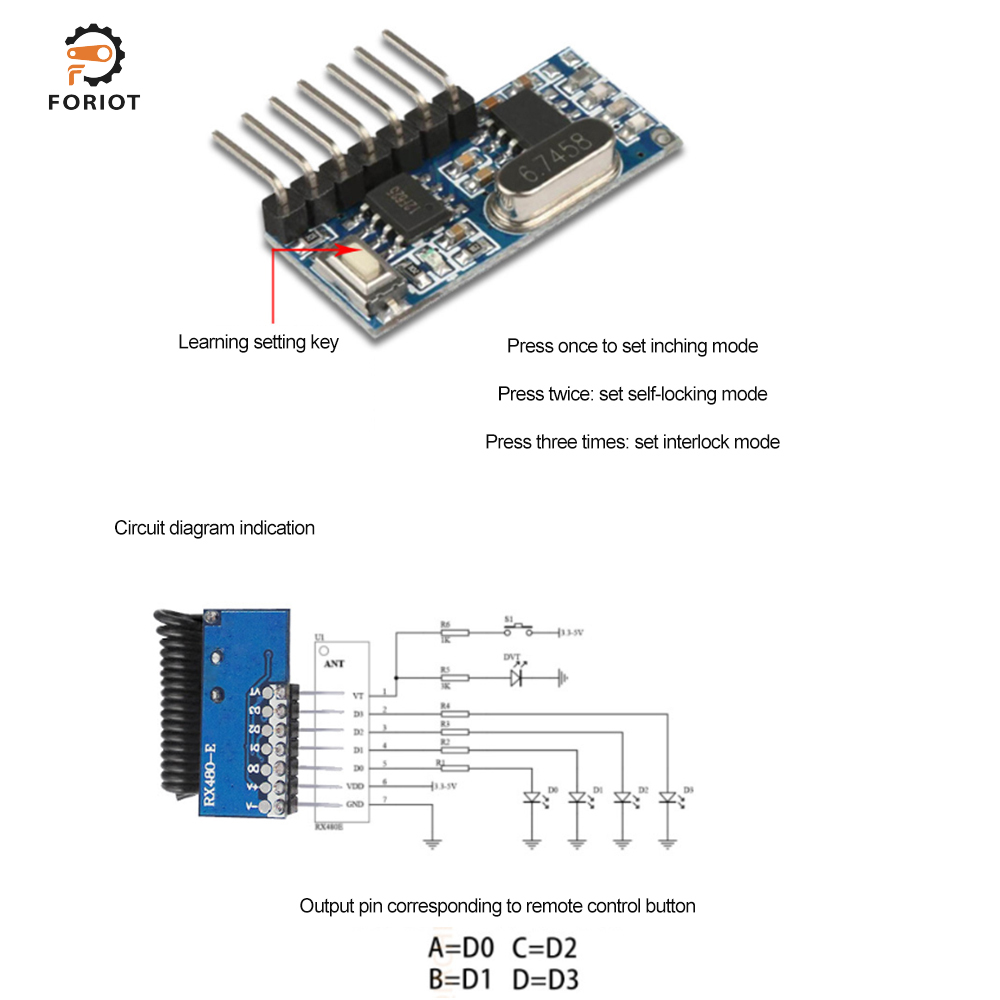

Working mode: inching, self-locking, interlocking

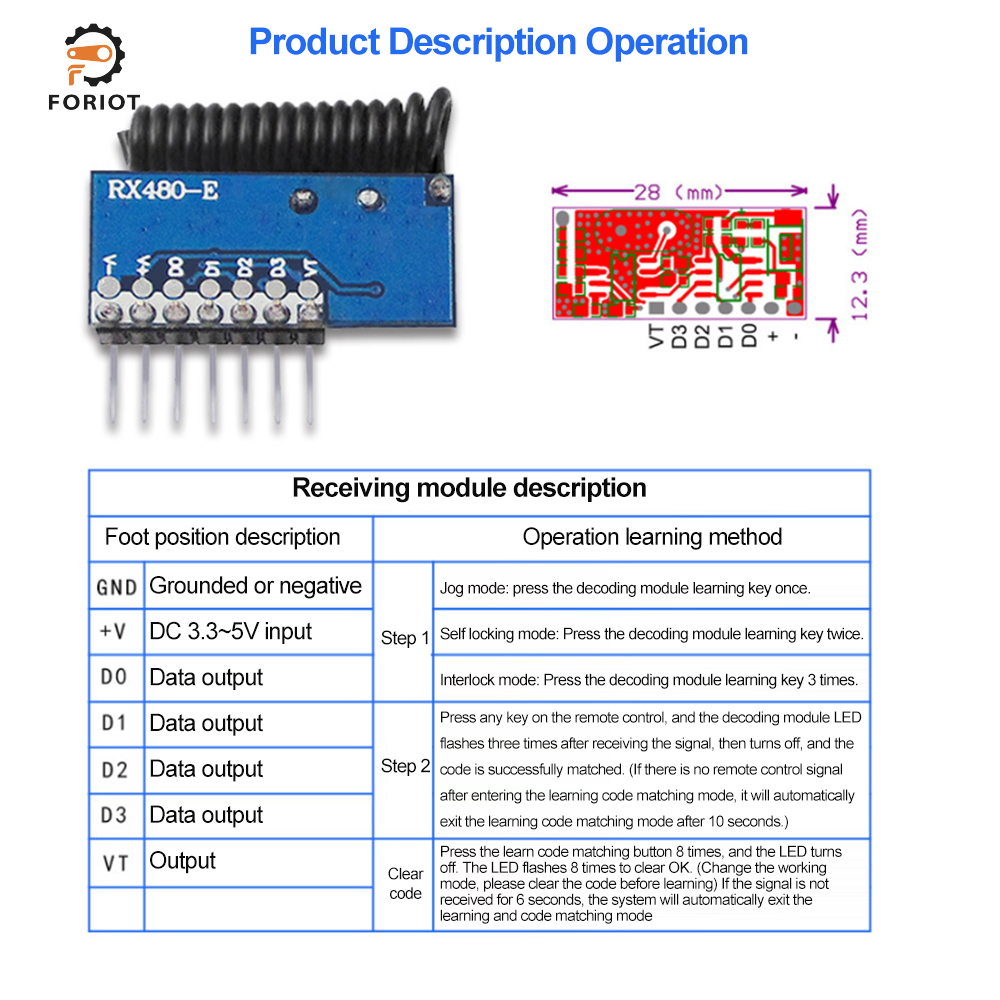

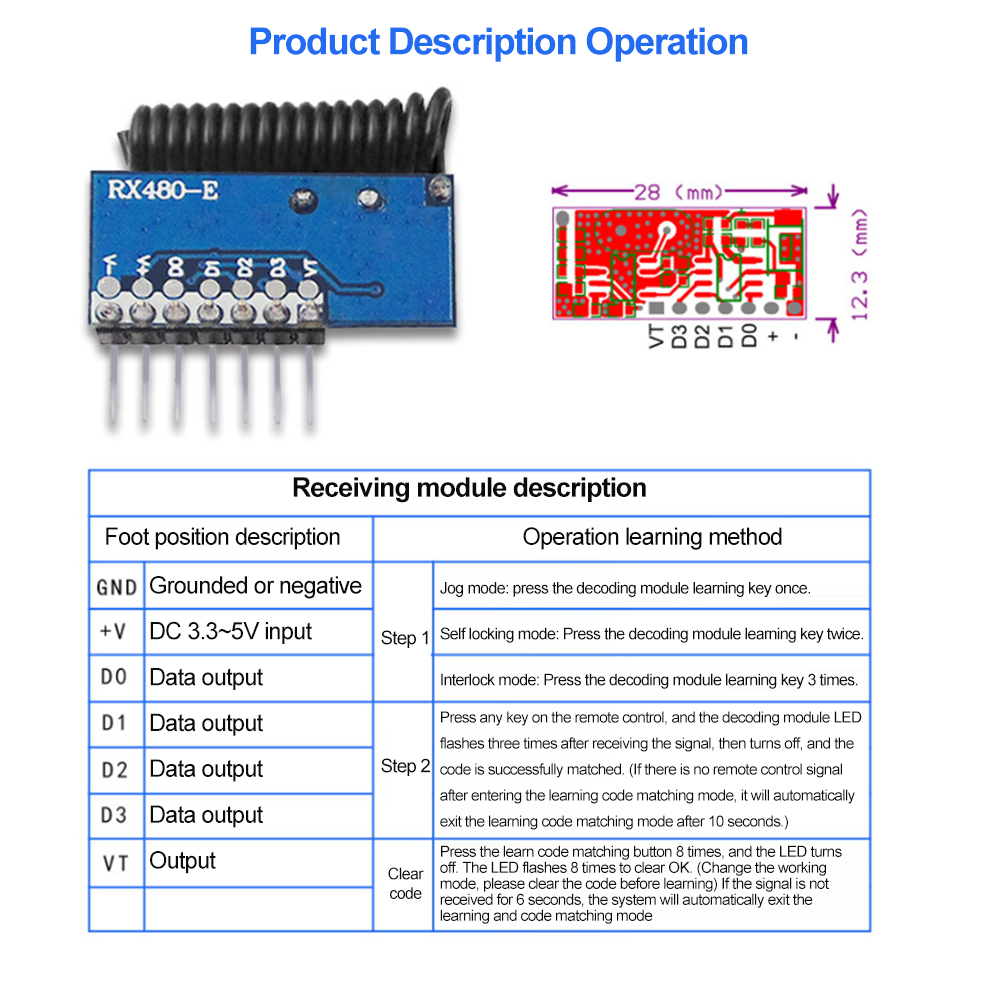

Output: 4-channel CMOS high level signal corresponds to remote control ABCD 4 button.
When the remote control button is pressed, D0, D1, D2 and D3 output high level,
Low level when not pressed

Package include：
Receiving module * 1
