Foriot Bộ Điều Chỉnh DC DC Buck Bộ Chuyển Đổi Tăng Áp Điện Áp Biến Bộ Nguồn Phòng Thí Nghiệm Điều Chỉnh Điện Áp Điều Chỉnh Được 0.5-30V 4A

Features:

1.Use high-quality materials, durable

2.CNC DC voltage rise and fall power supply

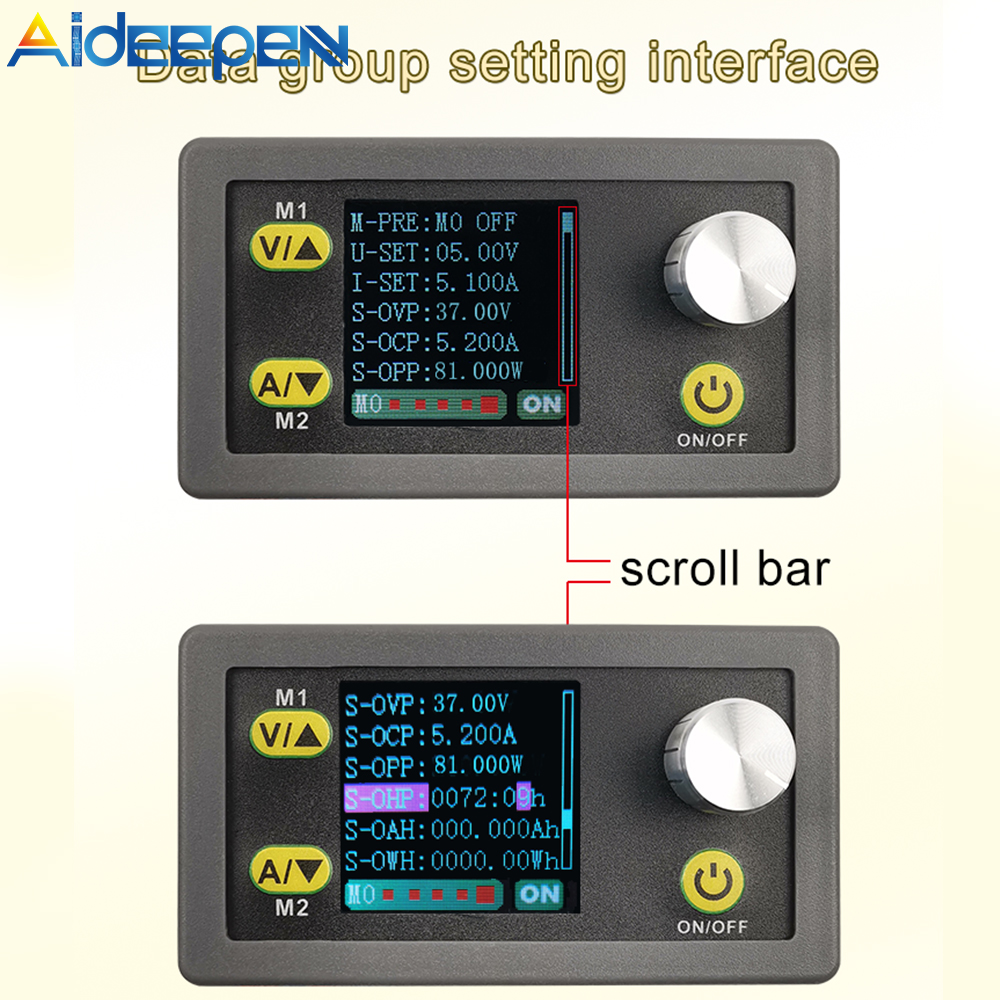

3.Large-screen display, full-view dedicated power LCD, all states are clear at a glance

4.One-piece frosted panel, high-quality aluminum alloy knob cap, good feel

5.Wide application range

Parameters:

SK35H：

Input voltage: 5.0~30V

Output current: 0~4.0A

Output power: 35W

Output voltage: 0.6~30V

SK80H：

Input voltage: 6.0~36V

Output current: 0~5.0A

Output power: 80W

Output voltage: 0.6~36V

Voltage resolution: 0.01V

Conversion efficiency: about 88%

Voltage accuracy: ± 0.5%+1 word

Current accuracy: ± 0.5%+3 words

Current resolution: 0.001A

Soft start: Yes

Input anti-reverse connection: Yes

Output anti-backflow: yes

Input undervoltage protection: (4.7-30V adjustable, default 4.7V)

Output overvoltage protection: (0-37V adjustable, 37V by default)

Output overcurrent protection: (0 - 5.2A adjustable, 5.2A by default)

Output over-power protection: (0 - 82W adjustable, 82W by default)

Over-temperature protection: yes, default 100 ° C

Timeout protection: (0 - 100H adjustable, off by default)

Overcapacity protection: (0~9999AH adjustable, closed by default)

Over-energy protection: (0~9999WH adjustable, closed by default)

Rich input interfaces are added, but two or more interfaces are not allowed to access at the same time

The front of the shell is equipped with invisible air inlet. The reasonable air outlet and heat dissipation structure can effectively take away the heat inside the shell and make the power supply operate efficiently and reliably

Package include：

Adjustable regulated power supply * 1
