【Original】For Arduino Nano 3.0 Atmega328 WAVGAT Module CH340 Serial Port Module PCB Development Board Simple Expansion Board

For Arduino Nano 3.0 Atmega328 Controller Compatible Board CH340 Serial Port Module PCB Development Board Simple Expansion Board
Feature:
1. Versatile for Arduino Controller Board: Wide range of applications and compatibility with various devices and modules. Supports Atmega328 MCU and CH340 USB-to-serial communication chip for seamless integration.
2. Convenient Interface Compatibility: Easy to connect and operate with multiple devices through the MICRO data cable. Provides clear instructions on identifying interface differences and accessory variations before purchase.
3. Reliable ATMEGA328P Development Board: High-performance Atmega328P microcontroller for efficient and accurate processing. Offers stable and reliable performance, ensuring smooth operation of your projects.
4. Enhanced Serial Communication: CH340 serial module for effortless data transmission and communication between devices. Enables seamless connectivity and efficient data exchange.
5. Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.


Specification:
Origin: Mainland China
Model A: 1 * MICRO DUE data cable
USB printer blue data cable for Aarduno 2560 due por micro mini
Interface: MICRO
Line length: 30cm/11.81inch

Model B: 1 * (interface NANO) nano V3.0 ATMEGA328P development board+1 * NANO data cable
Compatible with the 2014 version nano V3.0 ATMEGA328P development board
1. On the premise that the performance of NANO remains unchanged and the main control chip ATMEGA328P-AU remains unchanged,
Replaced USB chip and USB interface, improved download speed, and increased stability in Win7 and Win8.
2. Support USB download and power supply.
3. CH340G replaces FT232RL
4. Use Atmel Atmega328P-AU MCU
5. External 5V~12V DC power supply; 9V battery powered
6. Support ISP download
USB printer blue data cable for Aarduno 2560 due por micro mini
Line length: 30cm/11.81inch

Model C-I: Except for different interfaces, all other parameters are identical to ModelB
Model C: 1 * (interface NANO) nano V3.0 ATMEGA328P development board
Model D: 1 * (Interface: MICRO) nano V3.0 ATMEGA328P development board
Model E: 1 * (Interface: MICRO) nano V3.0 ATMEGA328P development board+1 * MICRO DUE data cable
Model F: 1 * (Interface: TYPE-C) nano V3.0 ATMEGA328P development board
Model G: 1 * (interface: TYPE-C) nano V3.0 ATMEGA328P development board+1 * TYPE-C data cable
Model H: 1 * (interface: NANO welded) nano V3.0 ATMEGA328P development board
Model I: 1 * (interface: NANO welded) nano V3.0 ATMEGA328P development board+1 * NANO data cable

Model J: 1 * RF Nano compatible ATMEGA328P Nano integrated NRF24L01 wireless CH340 serial port module
RF Nano compatible ATMEGA328P Nano integrated NRF24L01 wireless CH340 serial port module
1. The board of RF-NANO is integrated with NRF24L01+chip, making it have unlimited transceiver function
2. It is equivalent to combining a regular Nano board with an NRF24L01 module, making it more convenient to use and smaller in size.
3. The pins of RF-NANO are exactly the same as those of common Nano boards, making it easy to transplant.

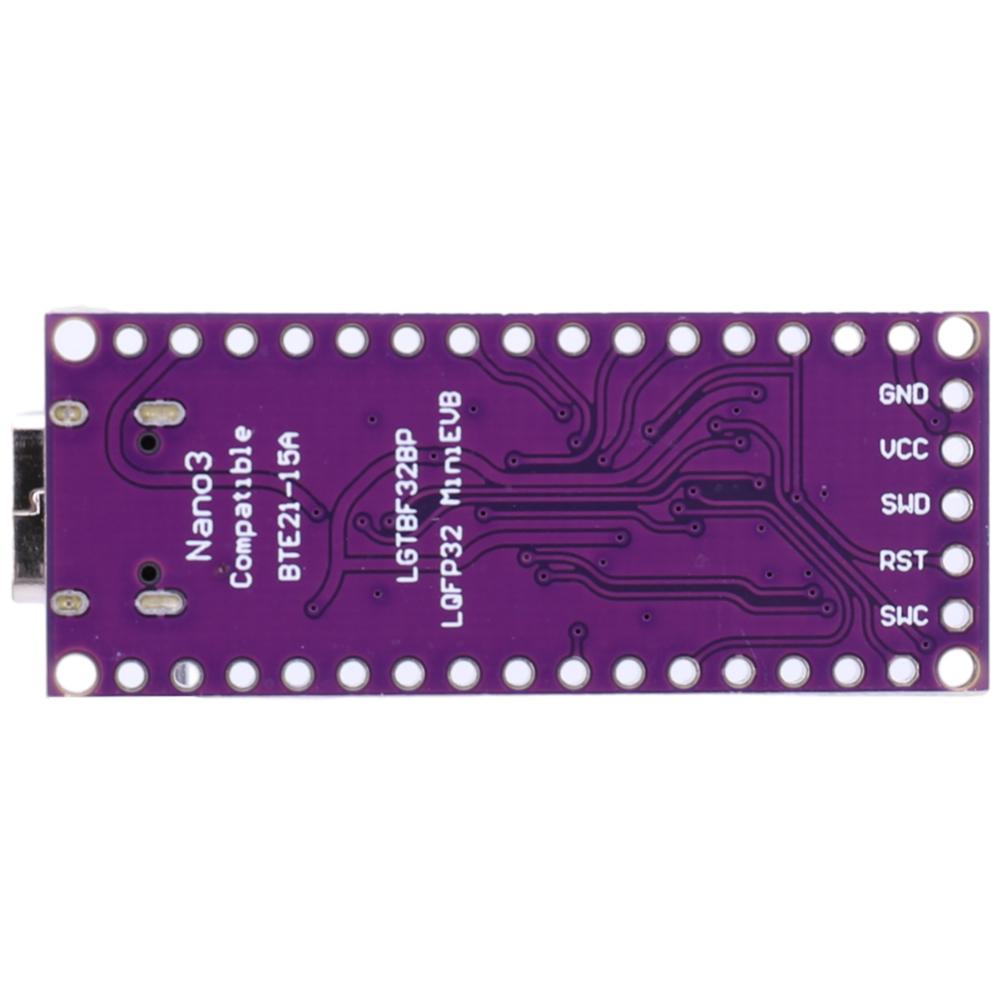

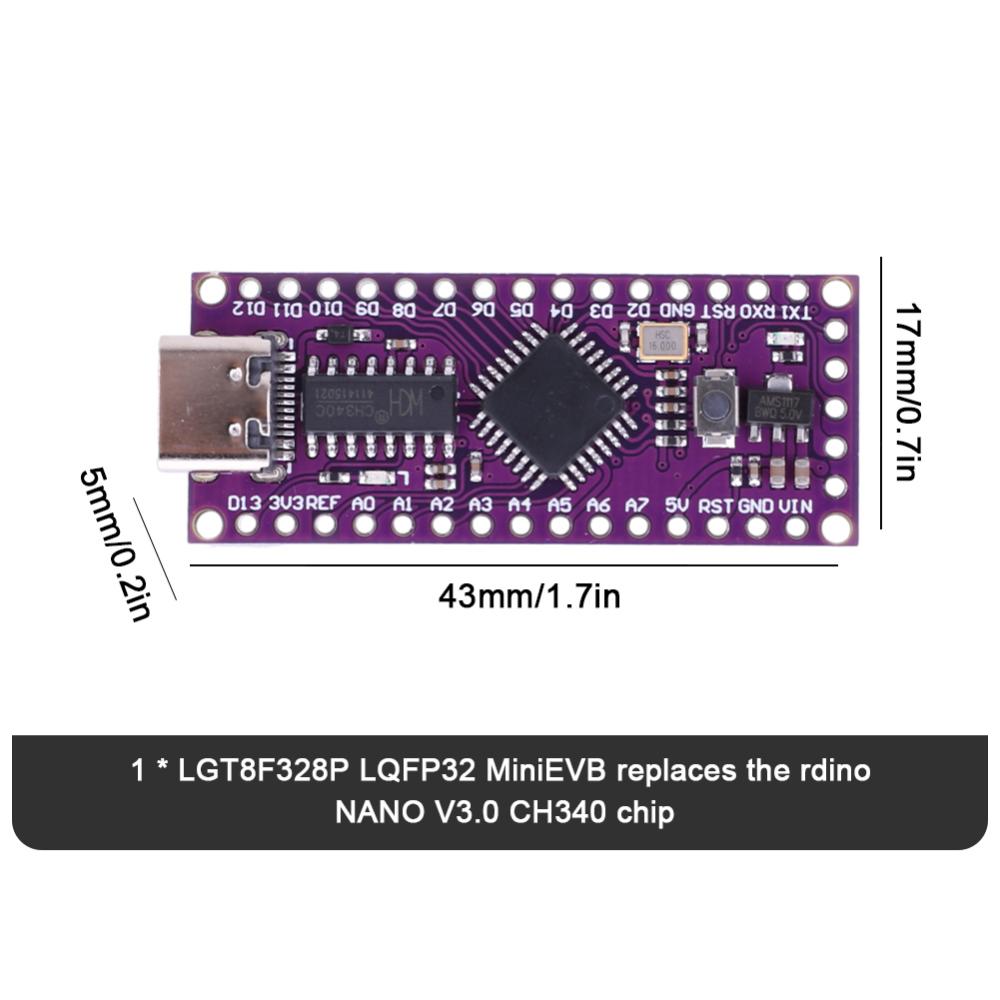

Model K: 1 * LGT8F328P LQFP32 MiniEVB replaces the rdino NANO V3.0 CH340 chip
LGT8F328P LQFP32 MiniEVB replaces the rdino NANO V3.0 CH340 chip
1. It can operate at 16M frequency using 3V3 and 5V power supplies, with excellent level compatibility
2. Built in high-precision RC, it can operate stably without the need for external crystal oscillators.
Attention: This model uses a CH340C serial port chip and an LGT8F328P external 16M crystal oscillator version!!!
The driver chip needs to be installed with a driver, WIN10 or higher comes with a driver!!!

Model L: 1 * compatible with NANO UNO multi-purpose expansion board (blue)
The UNO NANO Multipurpose Expansion Board is a sensor expansion board tailored for DUINO NANO,
Solved the problem of disorderly wiring when connecting multiple sensors with NANO, becoming a powerful tool for driving DUINO products
1. Lead out all digital IO ports and analog IO ports, each with a standard positive and negative power supply interface
2. Lead out the I2C interface on the motherboard to facilitate connection with I2C devices
3. Add DC power supply interface and provide external power supply to ensure stable equipment operation
Model M: 1 * compatible with NANO UNO multi-purpose expansion board (red)
Same function as Model L, except for color and needle arrangement

Model N: 1 * Nano expansion board NANO IO Shield V1. O simple expansion board
Nano Expansion Board NANO IO Shield V1.O Simple Expansion Board
It is a label for arduino Nano version 3.0,
But you can still use this adapter with older versions
(Just remember that the order of A0-A7 is opposite).
You can easily connect the for Arduino Nano to the external world through a cable using this adapter.
Plate size: 54 * 36 * 13mm

Size:

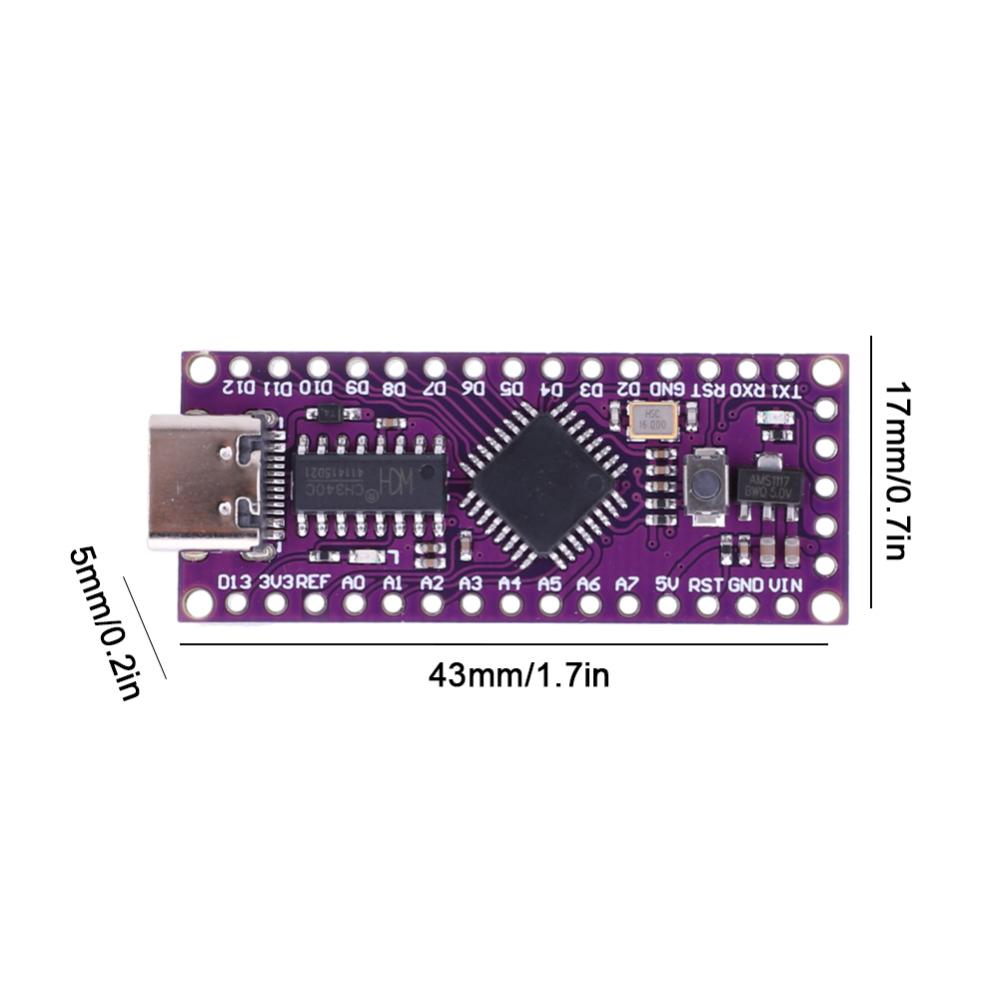

Nano V3.0 ATMEGA328P development board: 43 * 17 * 5mm/1.69 * 0.66 * 0.19inch, welded: 43 * 17 * 18mm/1.69 * 0.66 * 0.70inch
Data cable: Line length 30cm/11.81inch
CH340 serial port module: 48 * 20 * 12mm/1.88 * 0.78 * 0.47inch
CH340 chip: 43 * 17 * 5mm/1.69 * 0.66 * 0.19inch
Expansion board: 57 * 53 * 13mm/2.24 * 2.08 * 0.51inch
Simple expansion board: 54 * 36 * 13mm/2.12 * 1.47 * 0.51inch
