FocusAi Bảng mạch điều chỉnh thời gian led kỹ thuật số kích hoạt chu kỳ hẹn giờ chuyển mạch DC 6-30V-INTL Giao diện MicroType-C

Features:

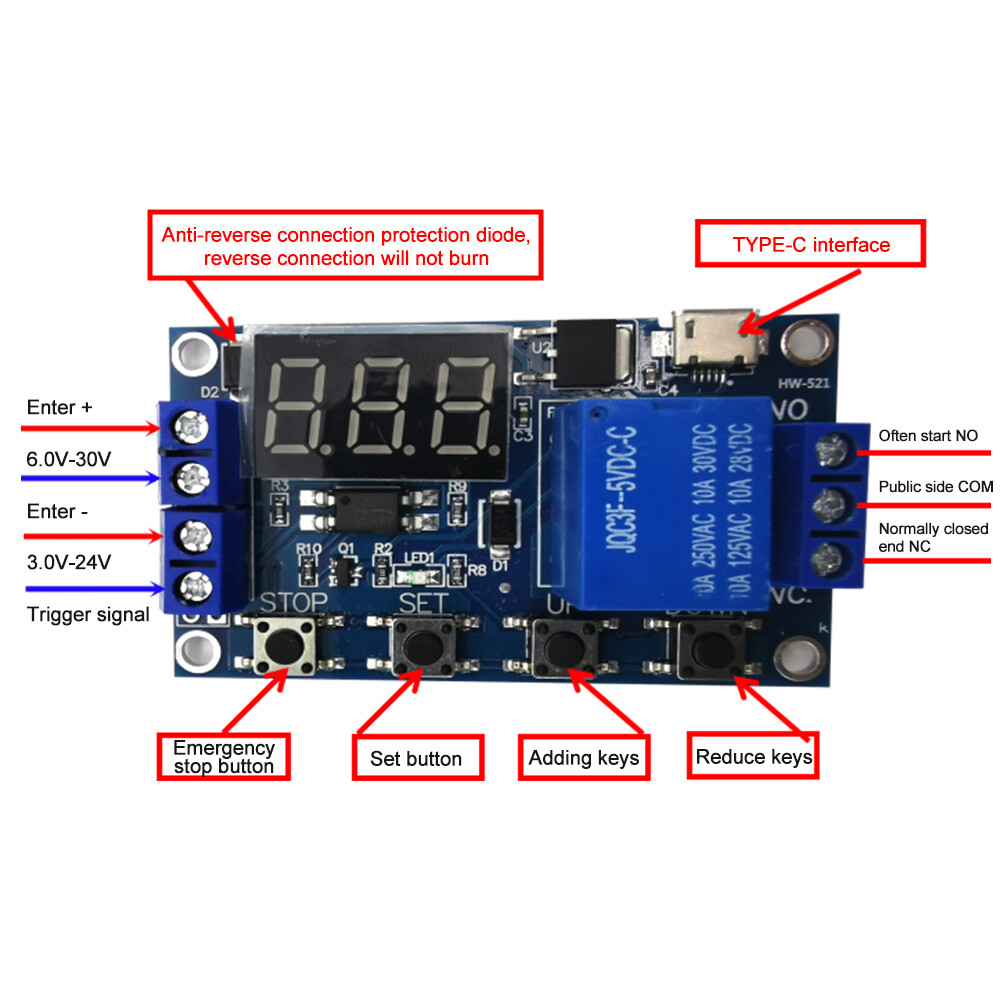

1.Wide voltage power supply (6~30V) supports micro USB 5.0V power supply or TYPE-C interface power supply. Two interfaces can be selected；

2.The interface is clear and simple, with powerful functions；

3.With one button emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn；

4.You can set different OP, CL, and LOP parameters, which are independent of each other and saved separately；

5.All set parameters are automatically saved after power down

Parameters:

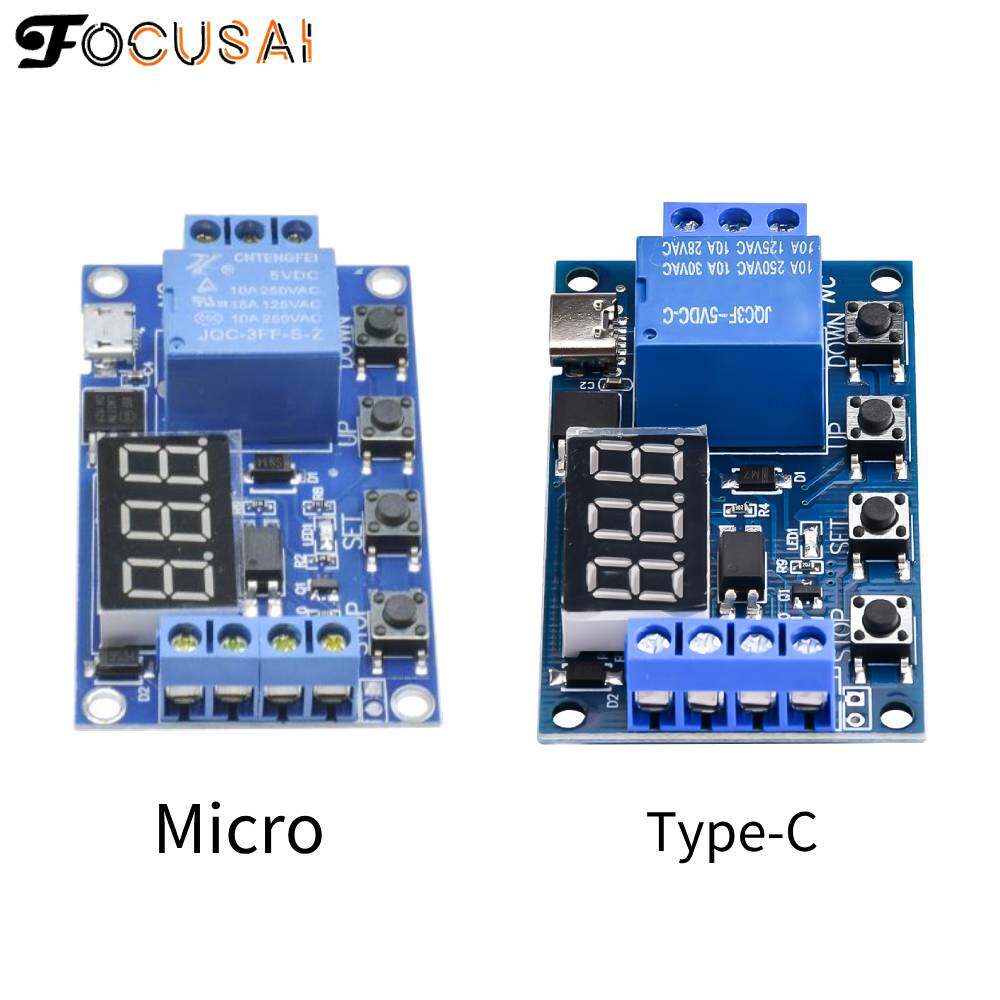

Style 1:

USB interface:

1: Working voltage: 6-30V, supporting microUSB data 5.0V power supply

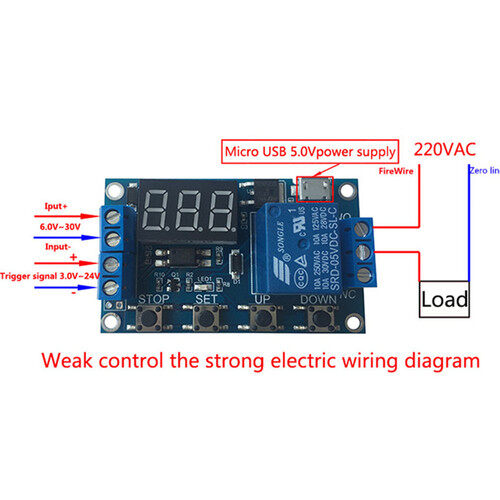

Trigger source: High level (3.0V-24V), with optocoupler isolation, which can improve the anti-interference ability of the system (customers can also short common points).

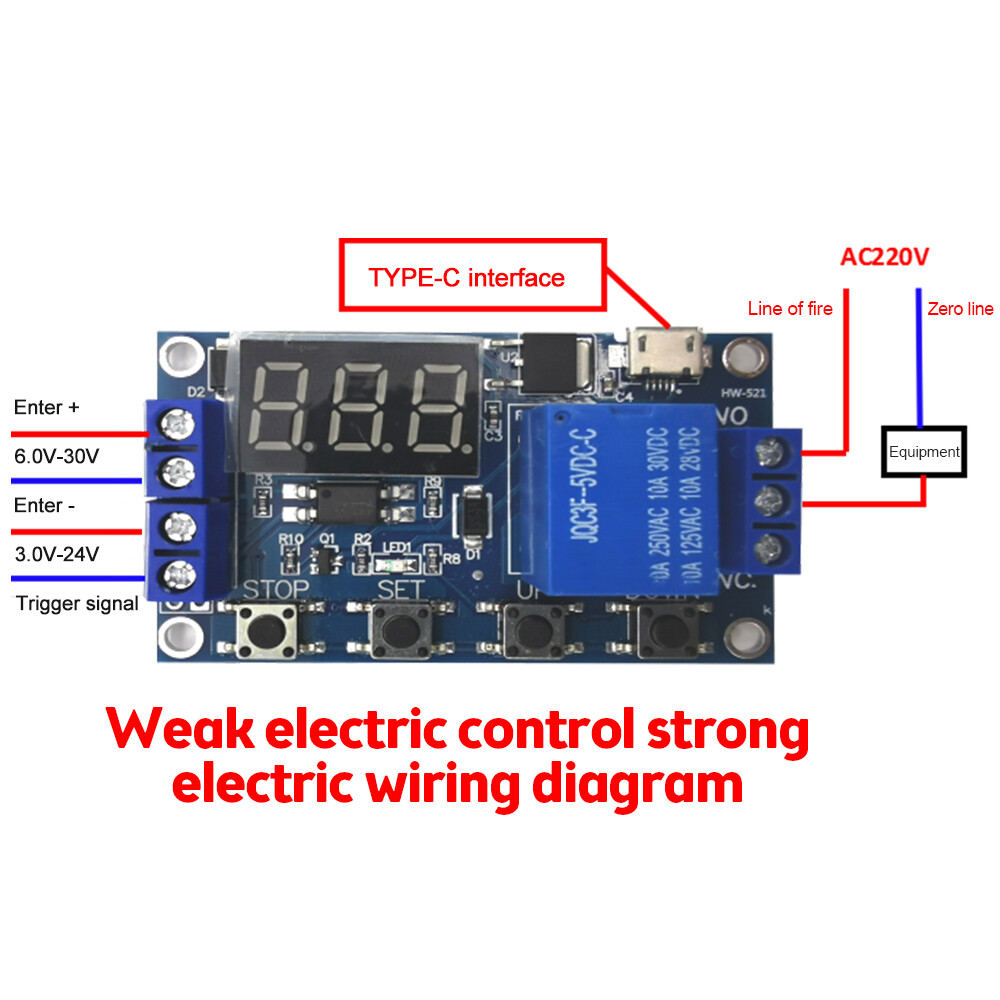

Output function: It can control DC 30VDC 5A or 5A 220VAC equipment.

4: Static current: 20 mA； Working current: 50mA

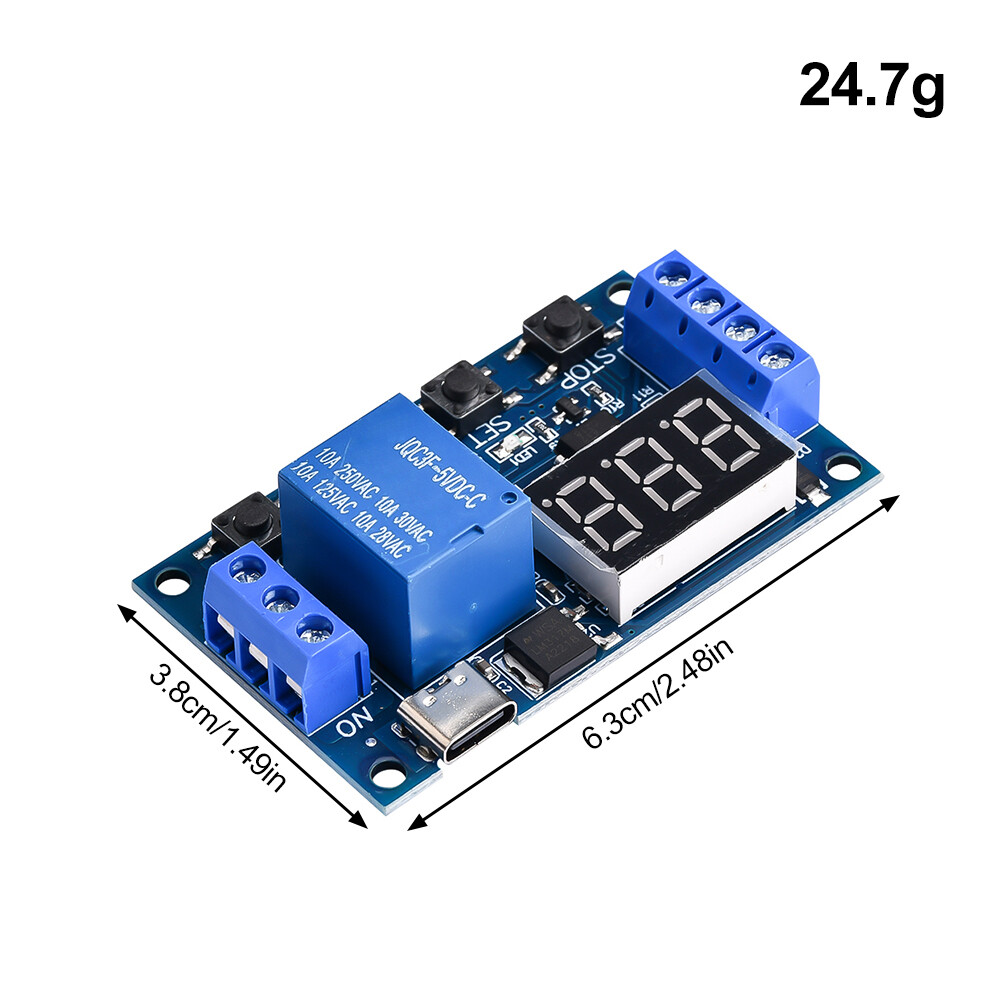

5. Service life: over 100000 times； Working temperature: - 40-85 ℃； Dimensions:

6: Optocoupler isolation, enhanced anti-interference ability, industrial grade motherboard.

Special note: The relay output is a passive contact, just a switch.

Style 2:

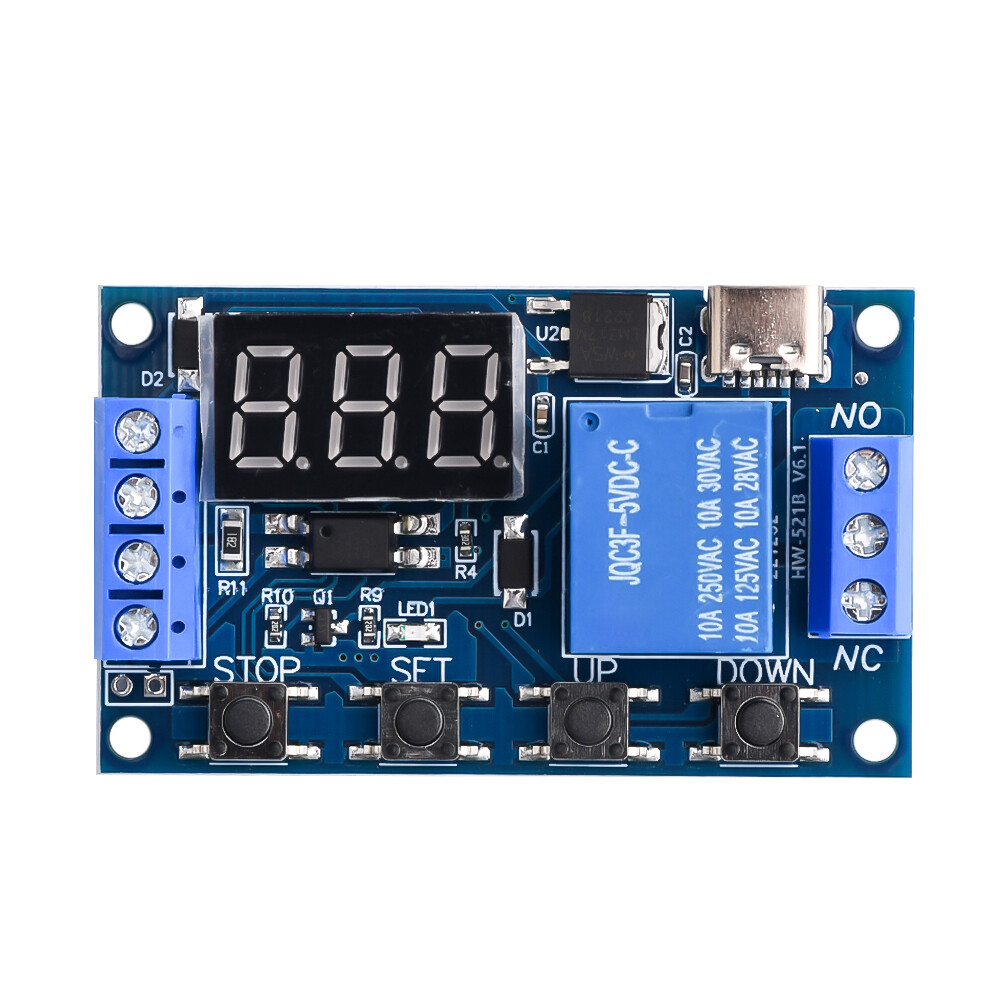

TYPE-C interface:

Working voltage: 6-30V

Support: TYPE-C 5.0V power supply

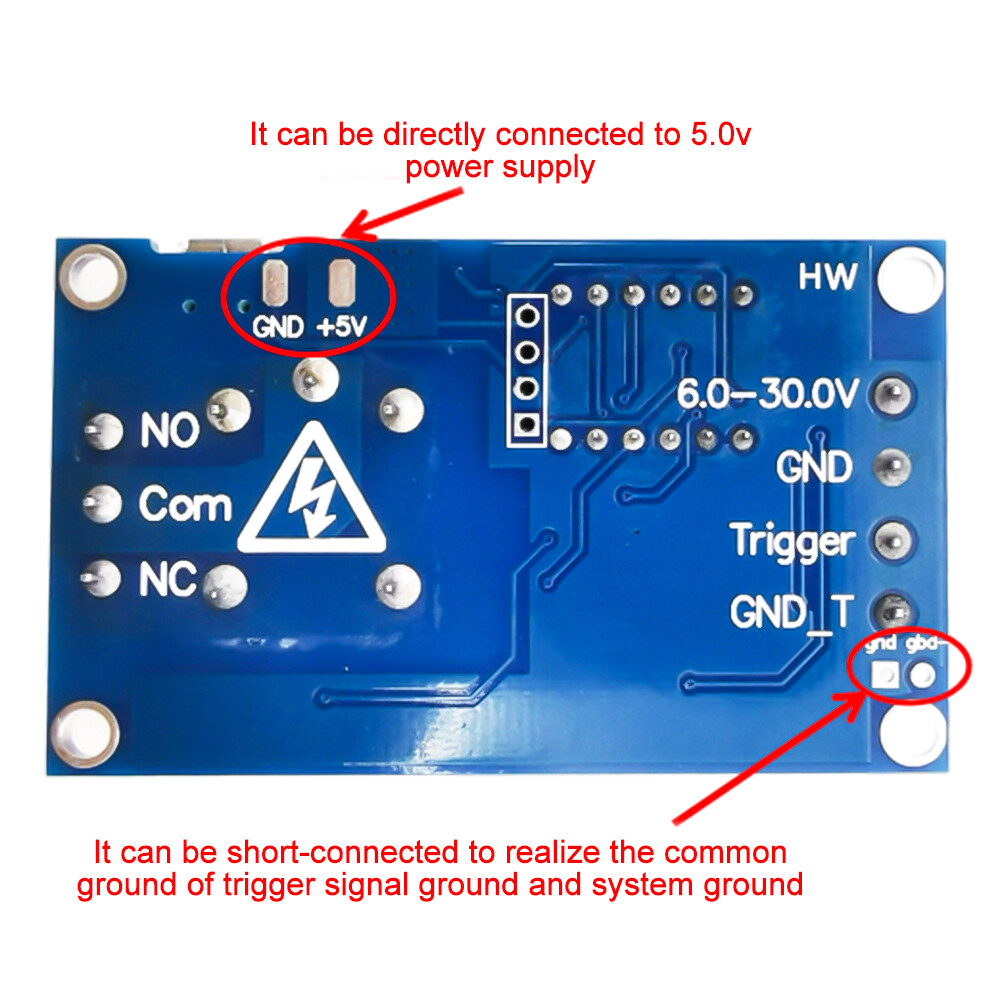

Trigger signal source: High level trigger (3.0V-24V) signal ground and system ground are not in common to improve the anti-interference ability of the system (it can also be shorted to common ground by itself)

Output capacity: It can control equipment within 30V5A DC or 220V5A AC

Static current: 20mA Working current: 50mA

Service life: more than 100000 times；

Working temperature: - 40-85 ℃；

With optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent power failure

Memory.

Package include:

1X relay switch module
