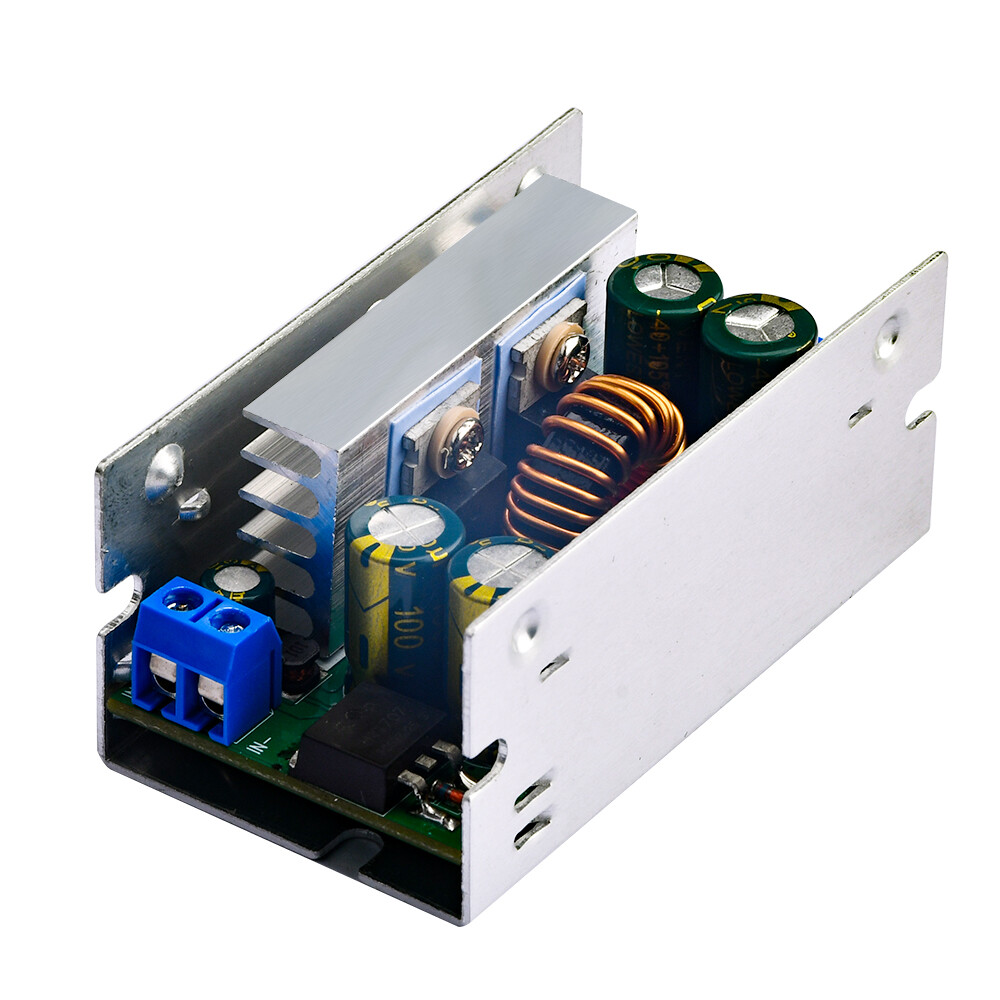

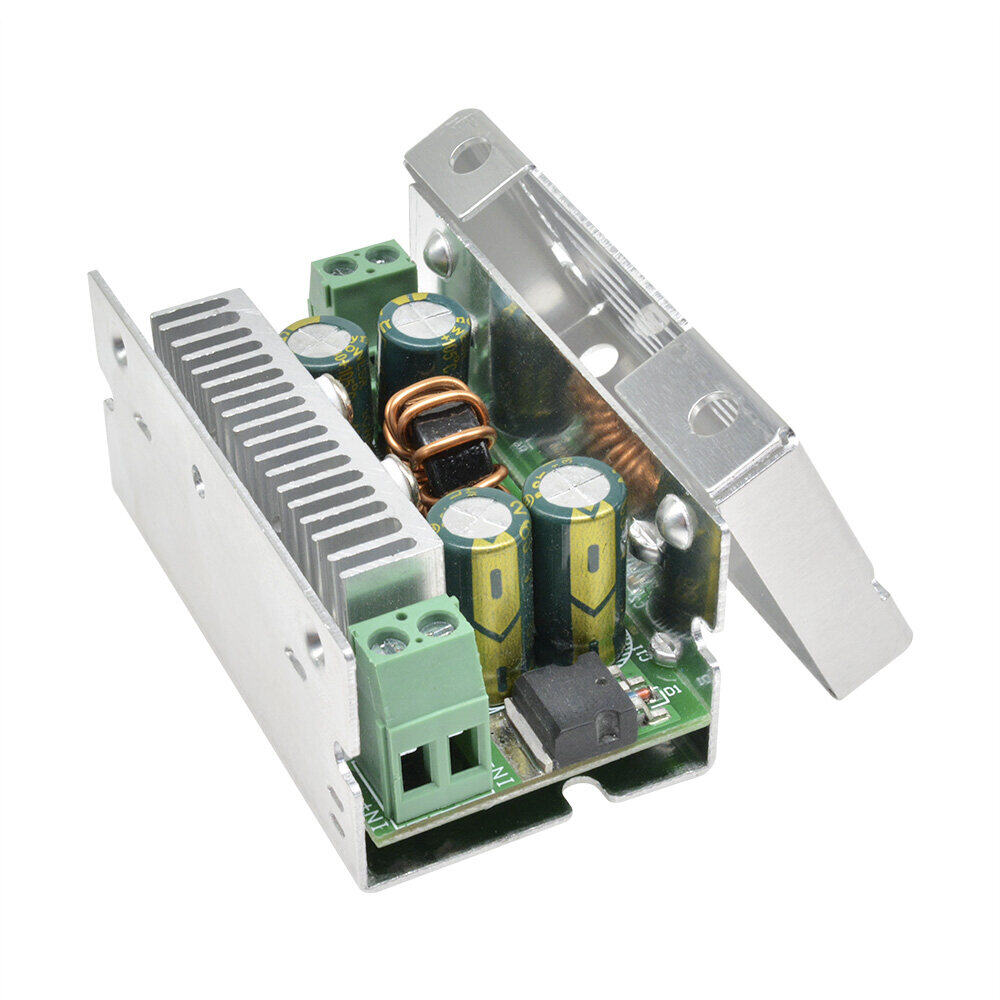

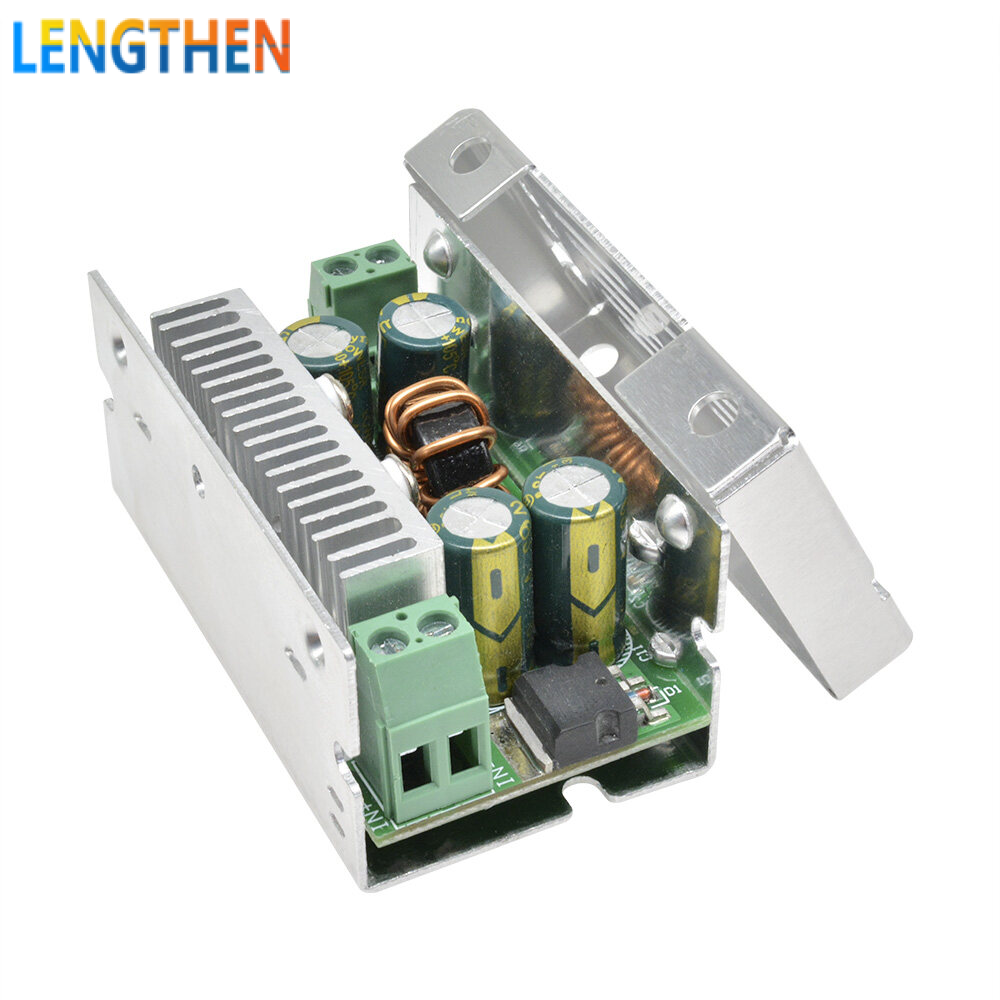

FocusAi Mô-đun Chỉnh Lưu Đồng Bộ Ổn Định Điện Áp Có Thể Điều Chỉnh 200W 15A Chính Hãng Thiết Bị Giảm Điện Áp Mô-đun Giảm Áp 60V

Feature:

• 200W DC-DC high voltage power synchronous buck module
• 8-60V wide voltage input, 1-36V stepless adjustable output
• The maximum peak output current 15A
• Perfect ultra-efficient circuit design up to 94% Low Ripple

Parameter:

• Name: 200W adjustable synchronous buck module
• Type: Non-isolated step-down module (BUCK)

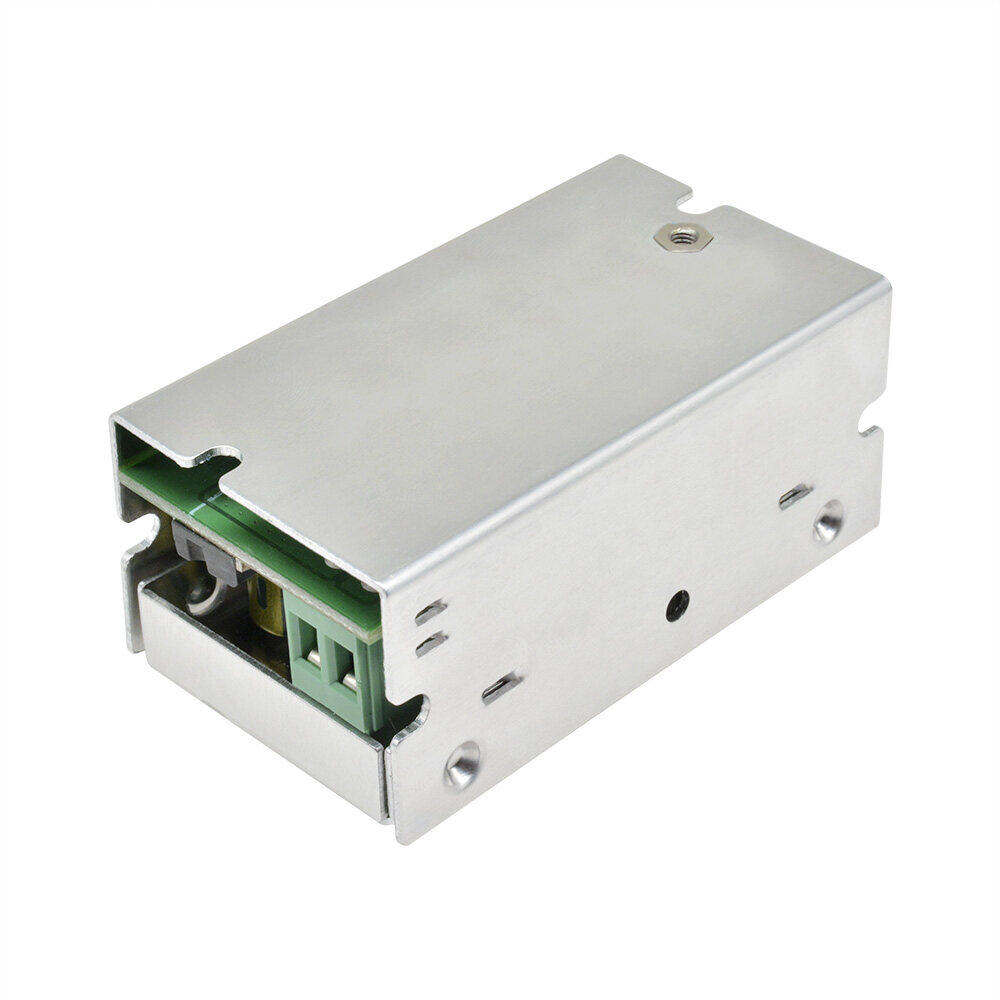

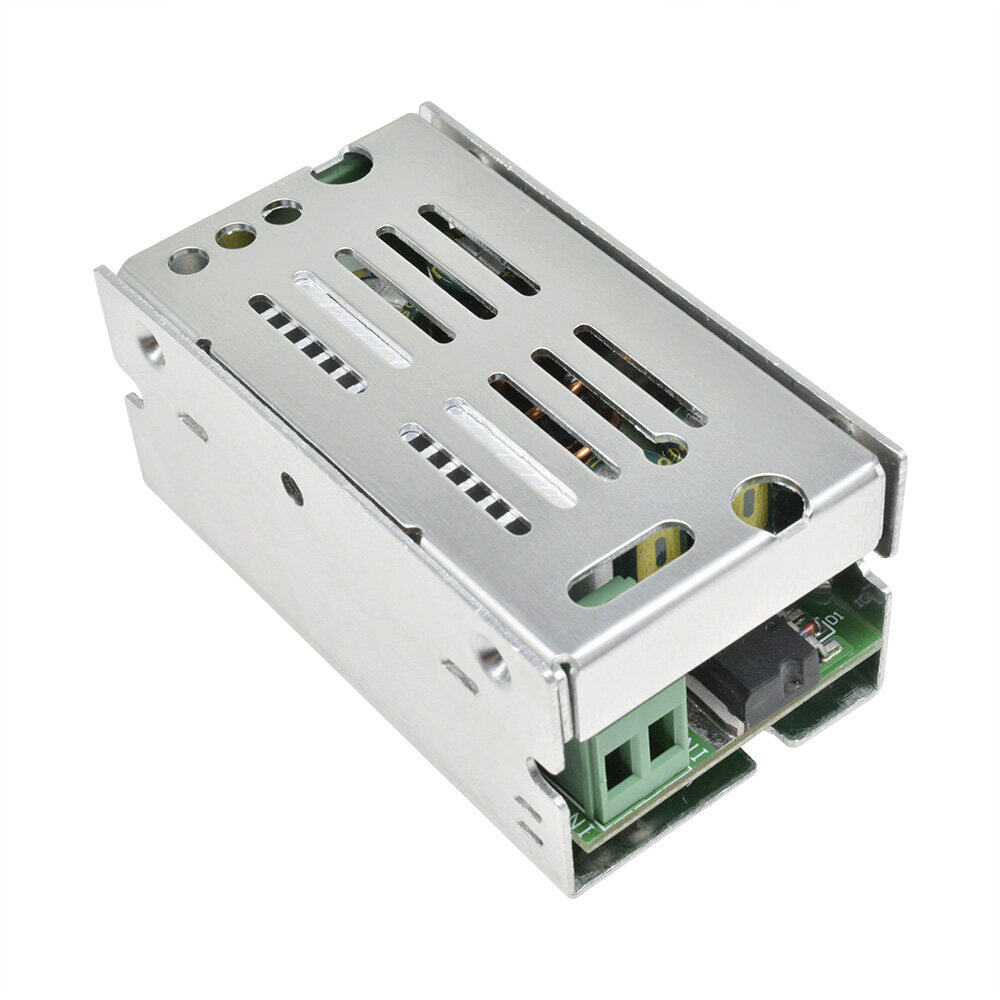

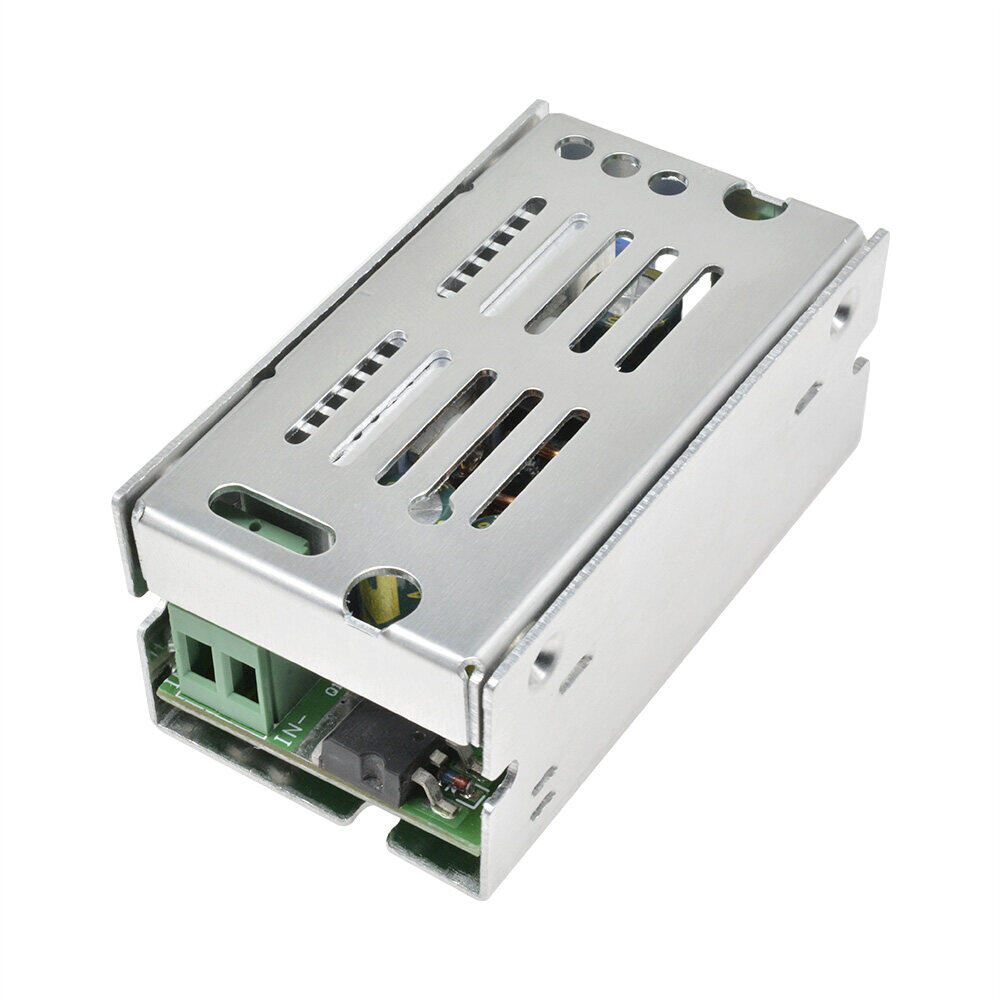

• Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
• Input voltage: 8-55V (limit 60V, please leave allowance)
• Output voltage: 1-36V continuously adjustable (the default output 12V)
• Output Current: Normal 10A , MAX15A
• Output power: natural cooling ventilated long-term power 100W
• To enhance heat dissipation up to 200W
• Such as long working hours, please note left margin and make the heat rise
• Operating temperature: -10 to +85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: up to 94%
• Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
• Reverse polarity protection: (reverse does not burn)

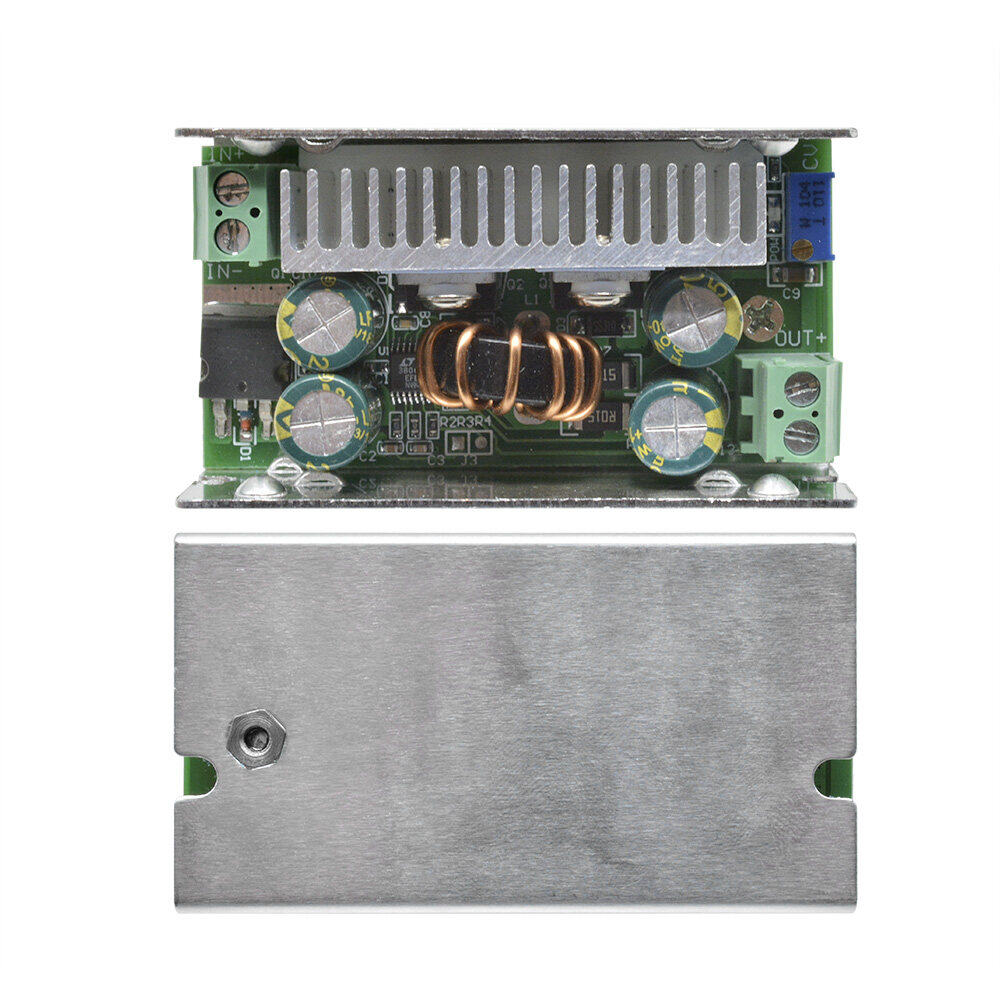

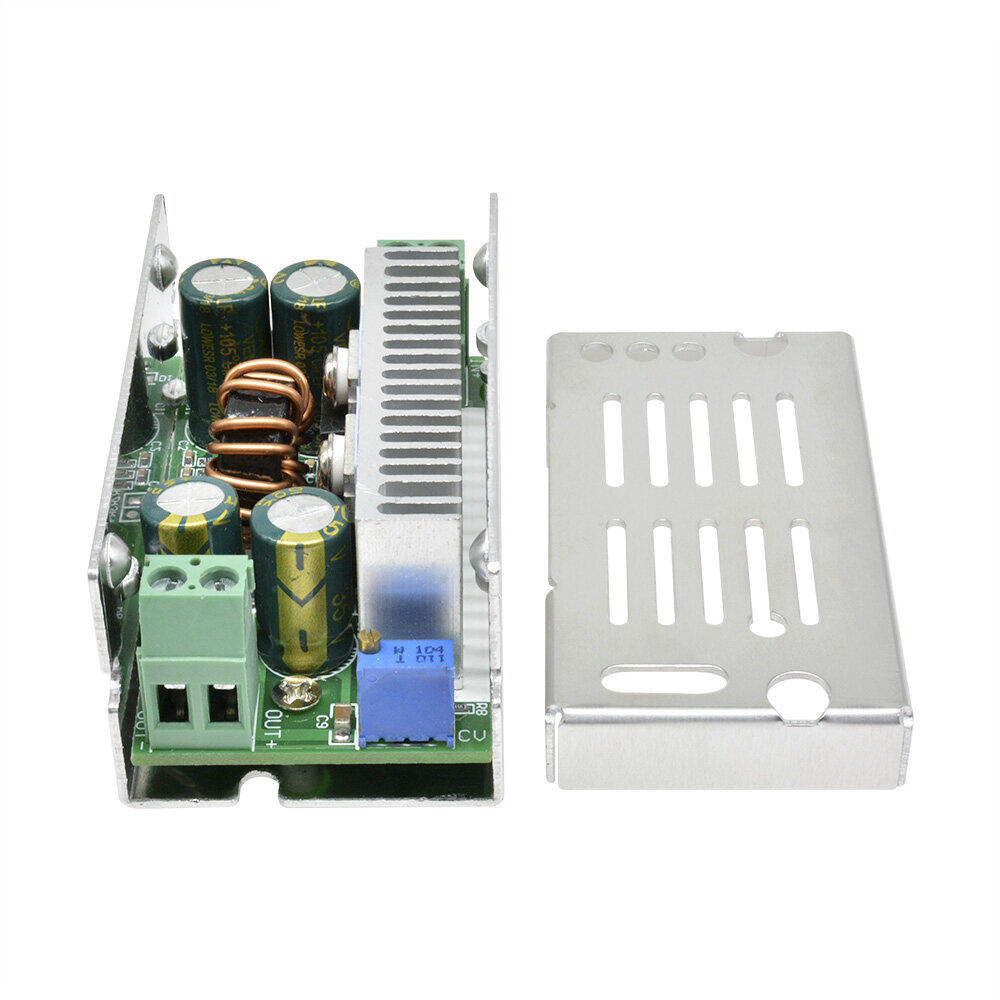

• Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative

Package:

• 1 x 15A 200W Adjustable DC-DC Step Down Converter Buck Module 60V adjustable voltage stabilized synchronous rectification module
