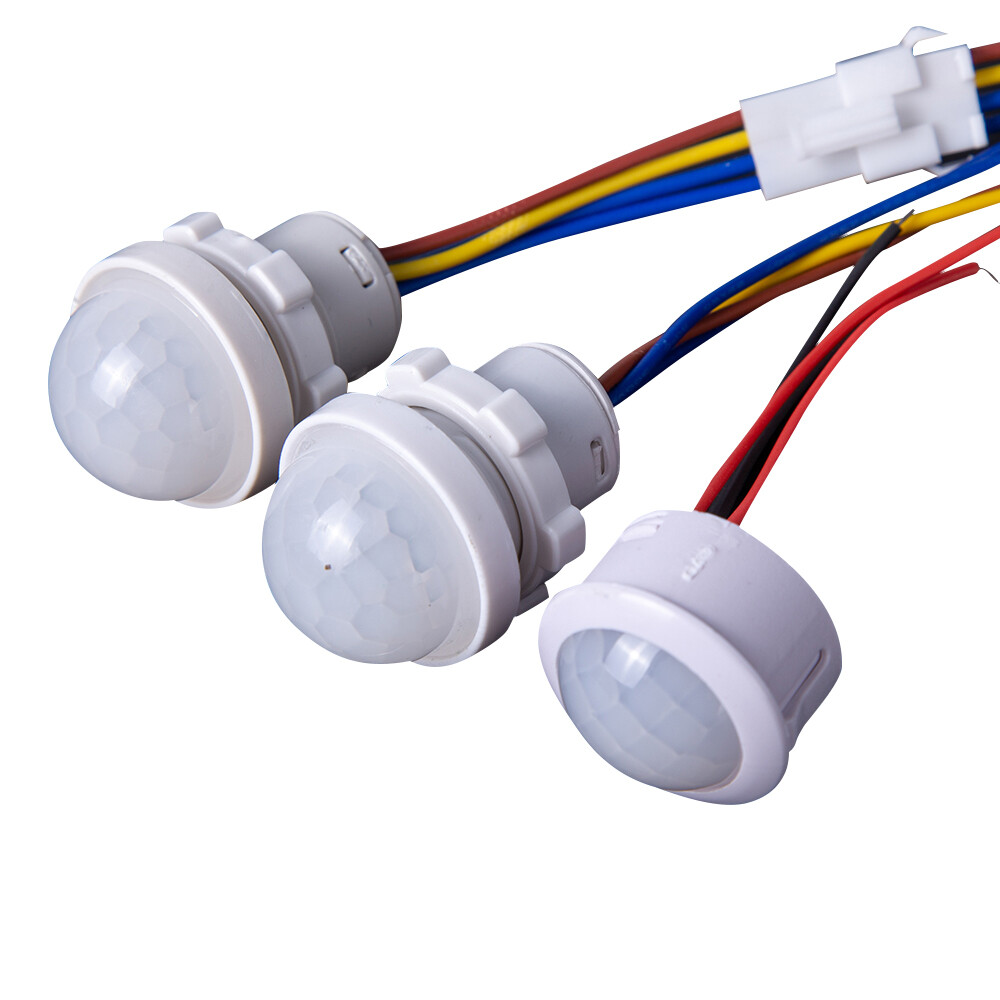

Kéo Dài Cảm Biến Tự Động Công Tắc Đèn LED Cảm Biến Chuyển Động Của Con Người Cảm Biến Chuyển Động Hồng Ngoại Phát Hiện PIR Hồng Ngoại Đầu Dò LED Bộ Cảm Biến Chuyển Động Cơ Thể

Features:

1. When people come, the light is on, and when people leave, the light is off.

2. The product is small in size and convenient for wiring

3. Small and easy to install

4. High safety performance

5. Scope of application: energy-saving lamps, incandescent lamps, LED suction lamps

Product Specifications:

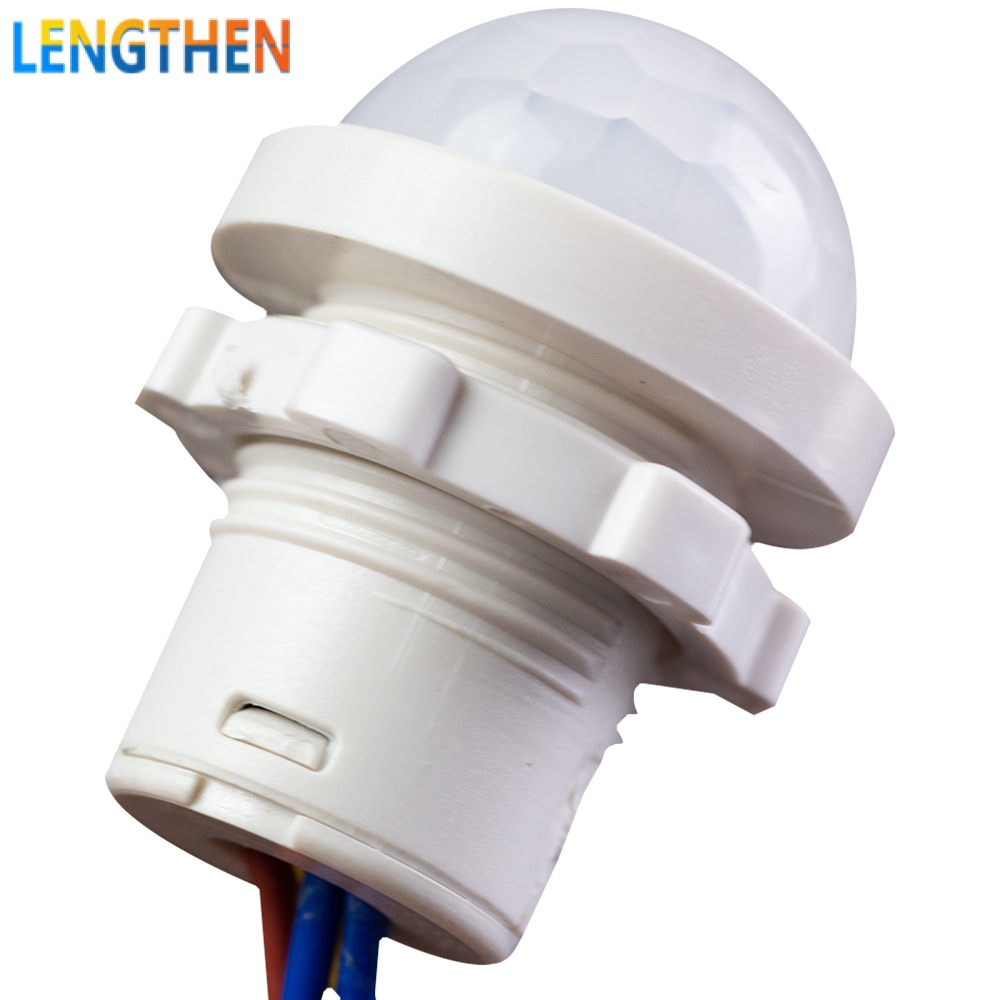

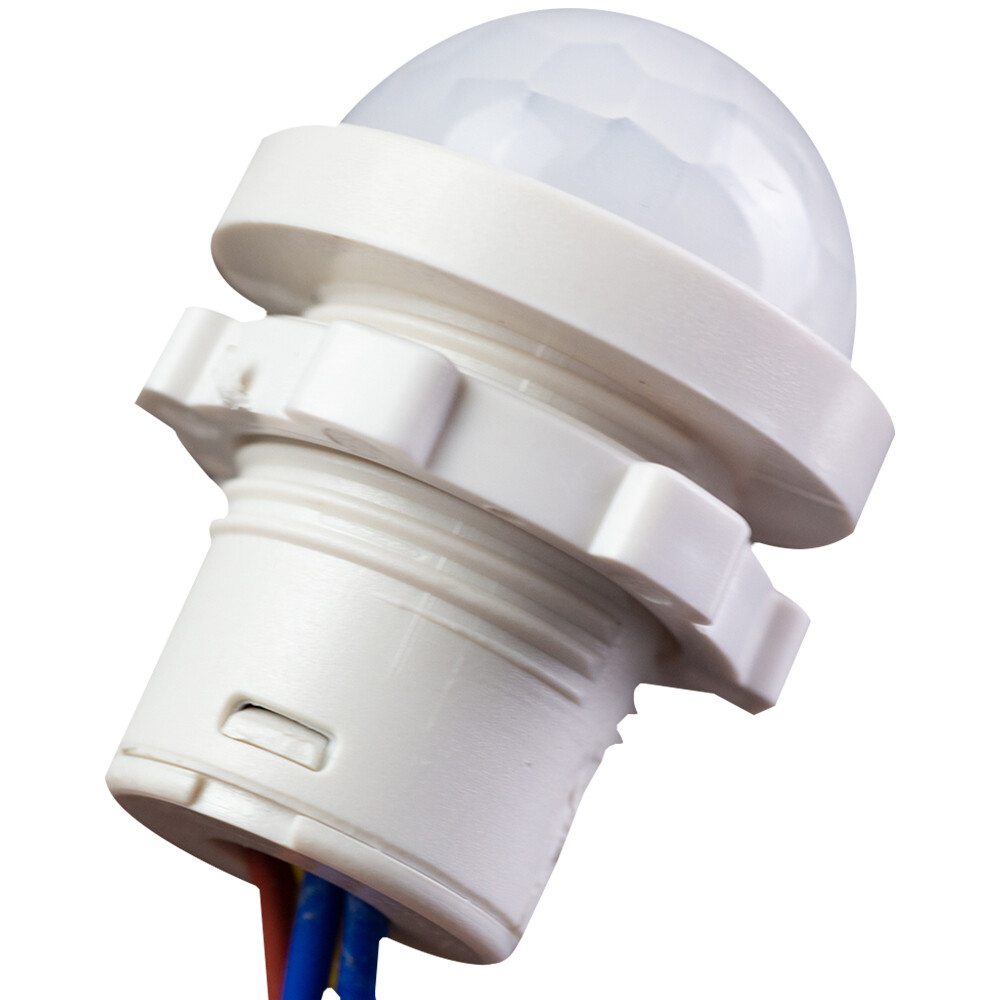

Name: Human infrared sensor head

(AB high voltage version)

Working voltage: AC110-240V

Shell size: height 37.2* diameter 27.5mm

Load power: ≤40w

Induction distance: 3-5m

Sensing angle: 120°

Delay time: 30S

Working temperature: -20℃-40℃

Hole size: 20mm recommended

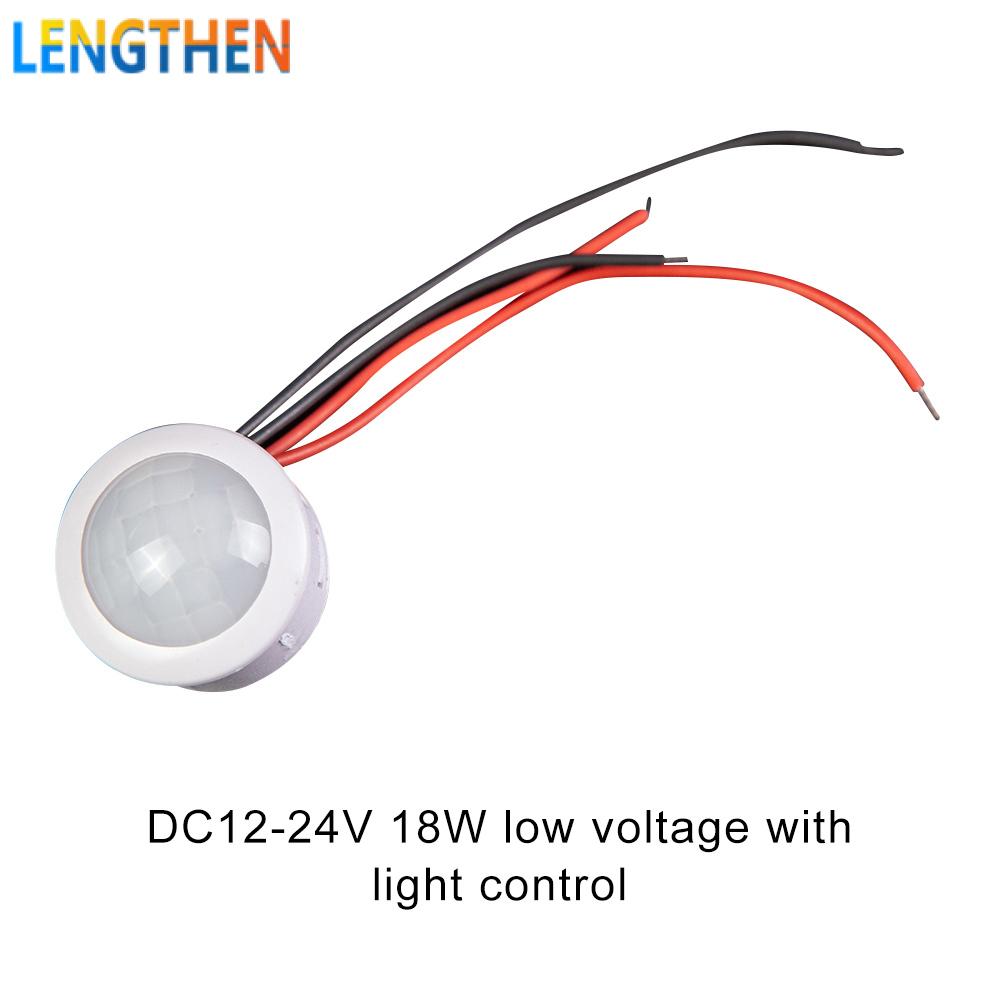

(C section low voltage section)

Working voltage: DC12-24V

Loadable: 18W 180-260mA

Product specification: 25*19mm

Recommended opening: 24.9mm

Optional function: light control model/without light control all-day induction model

Packing list:

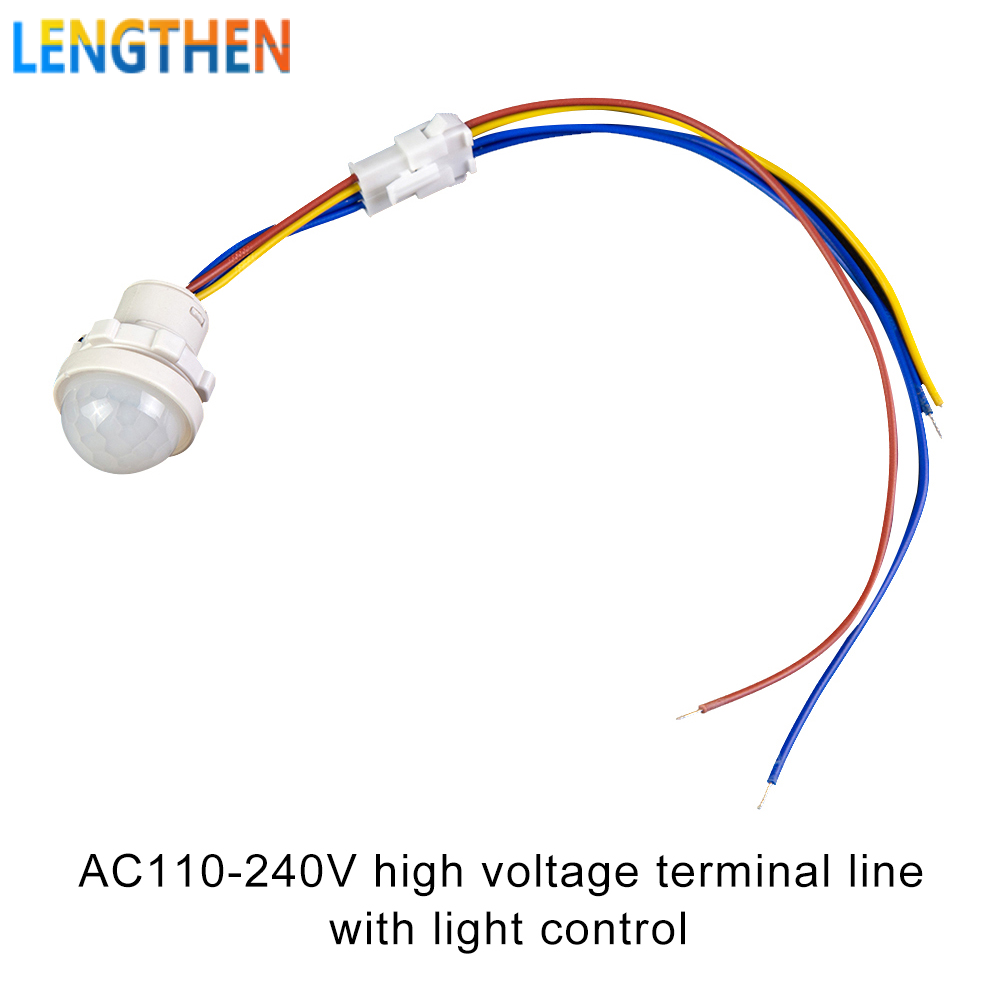

Type A line type human body sensor switch with light control terminal *1

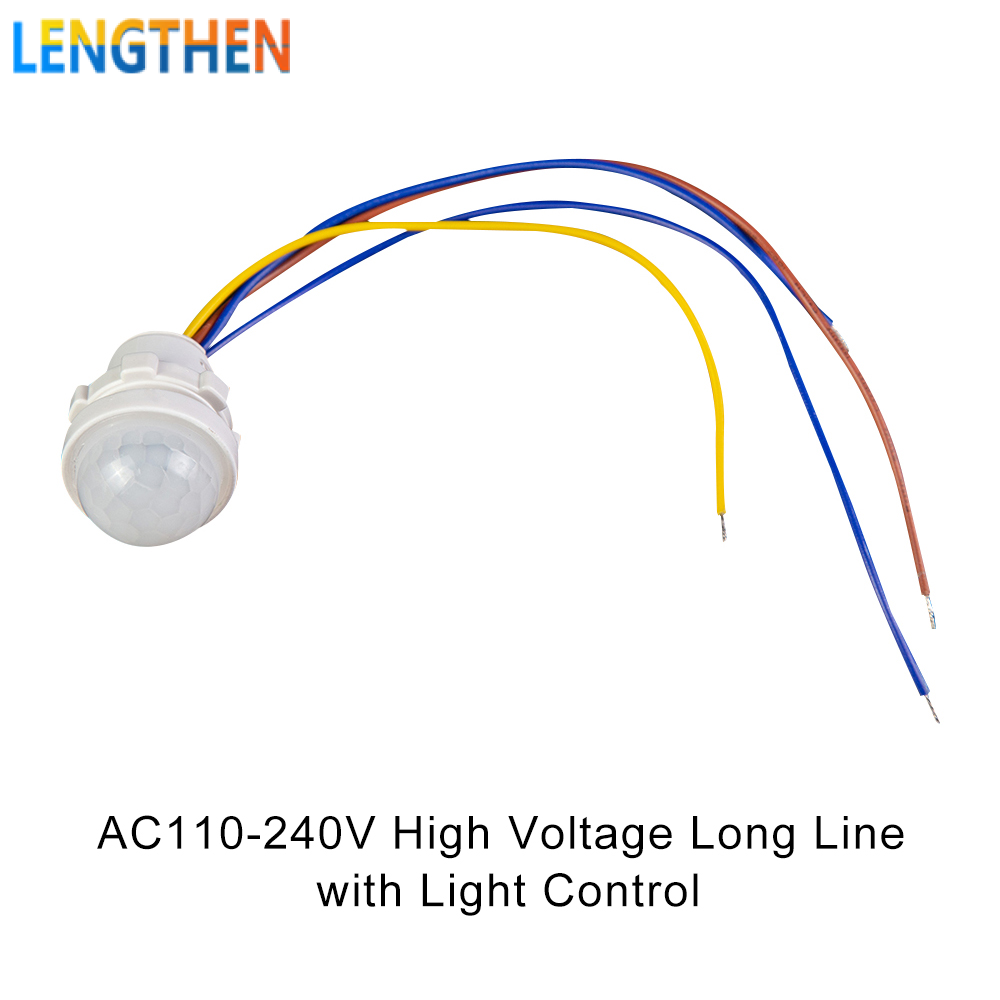

Type B long-line human body sensor switch with light control terminal*1

Type C low-voltage human body sensor switch with light control terminal*1

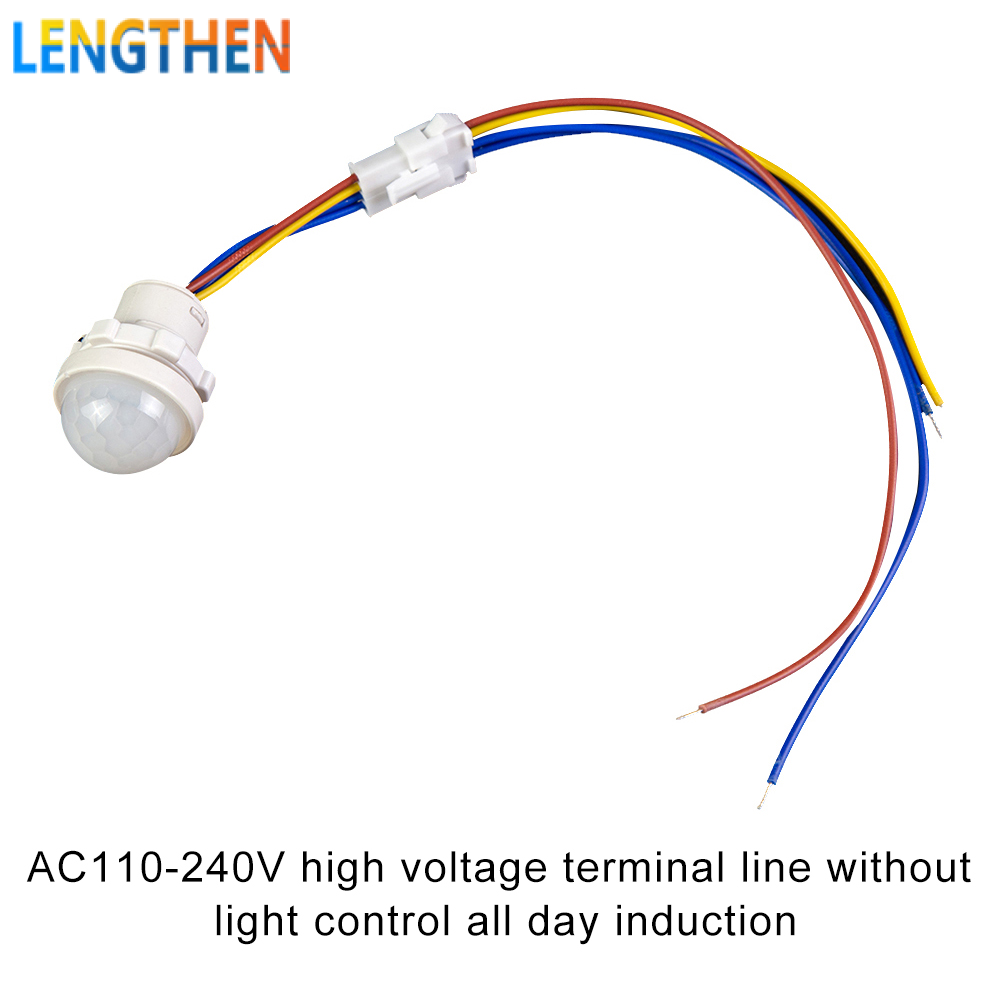

Type D all-day induction terminal line body induction switch without light control*1

Type E all-day induction long-line body sensor switch without light control*1

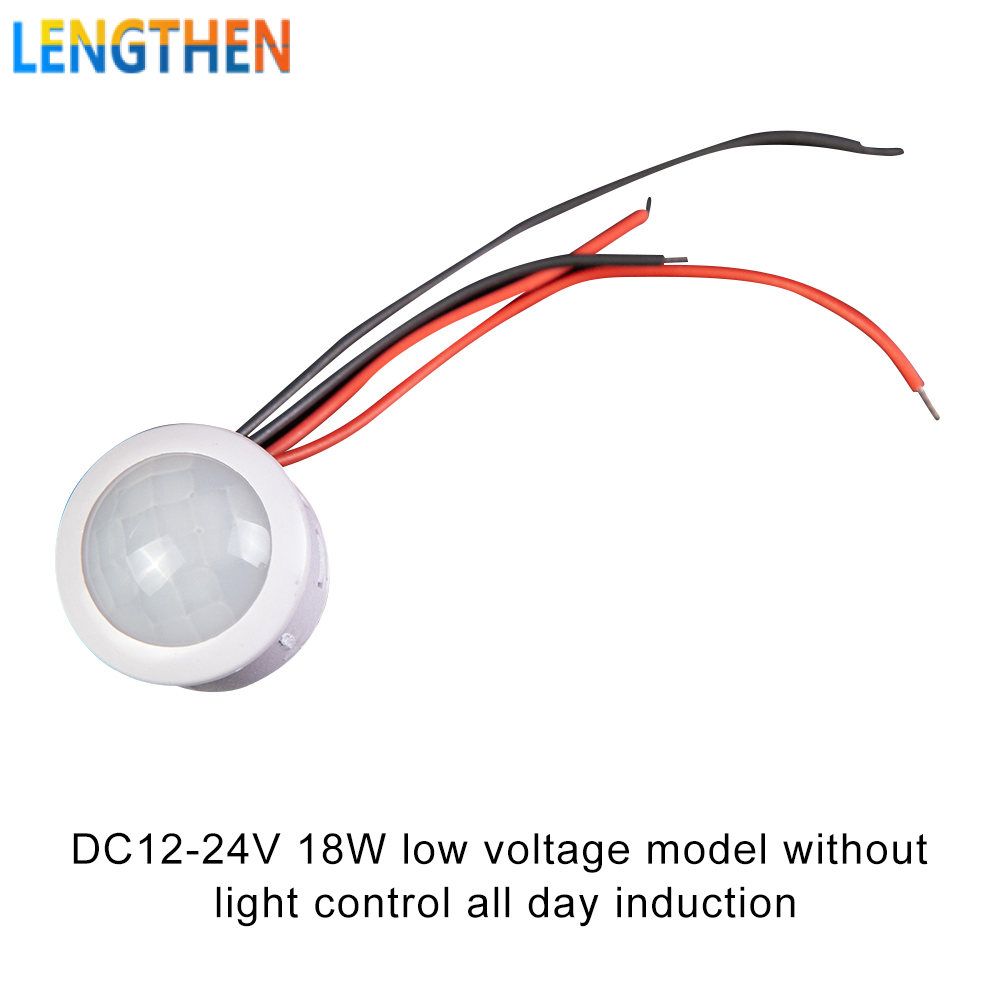

Type F all-day induction low-voltage model Human body induction switch without light control*1
