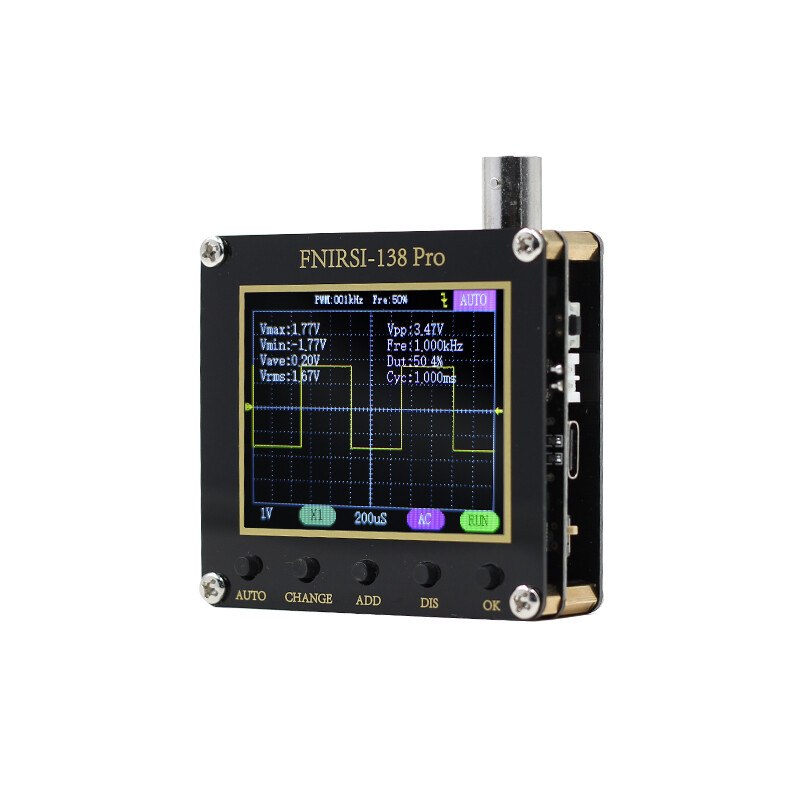

FNIRSI 138pro 800VPP Mini Cầm Tay Máy Hiện Sóng Kỹ Thuật Số Điện Tử Bộ Dụng Cụ Học Tập Mét Với Đầu Dò P6100

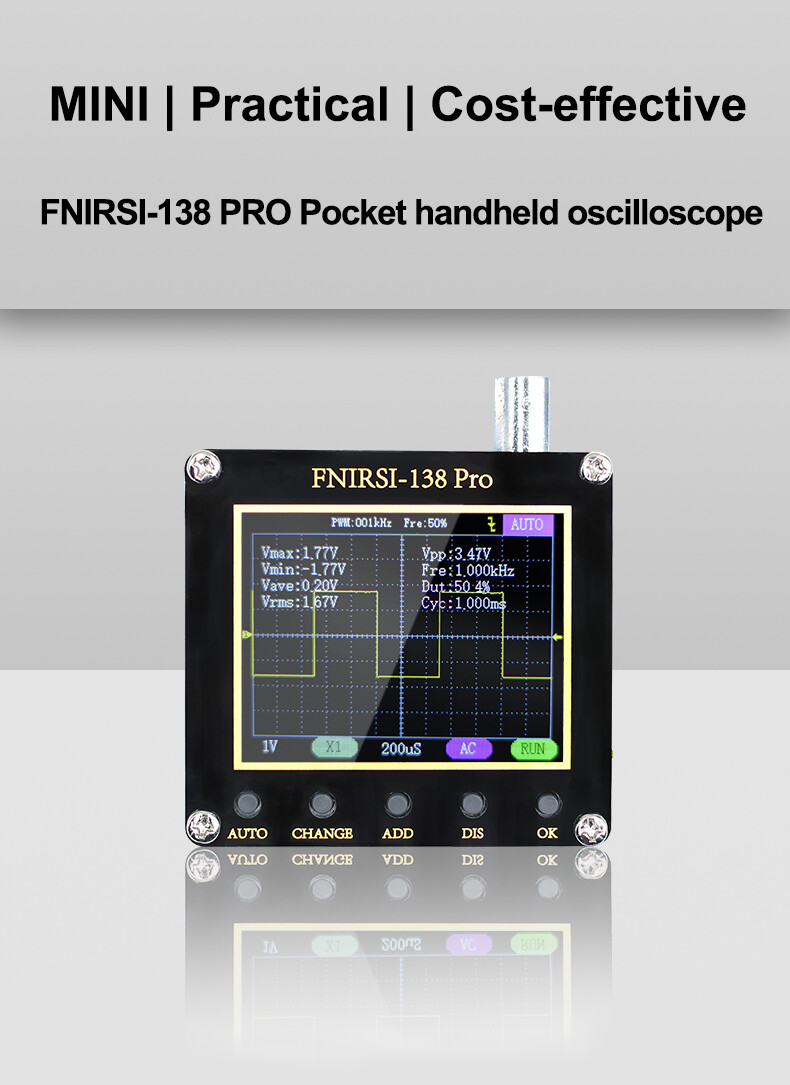

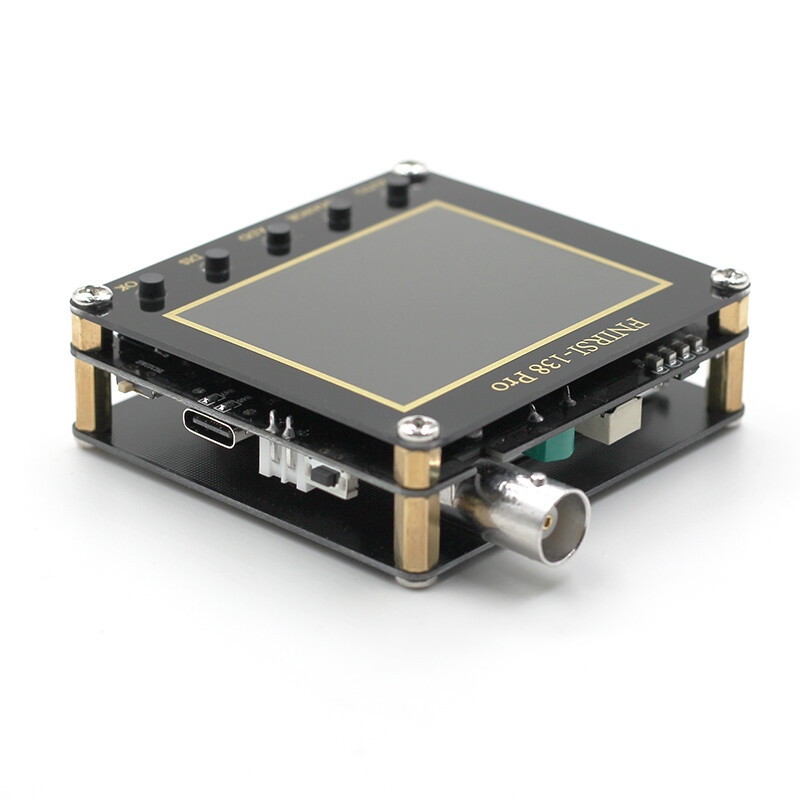

This FNIRSI 138pro portable oscilloscope with small size, the size of this oscilloscope only 65*60*18mm, compared with traditional oscilloscopes, it is more suitable for carrying around. If you are looking for a new oscilloscope, come and try this product, it will not let you down.

Features:

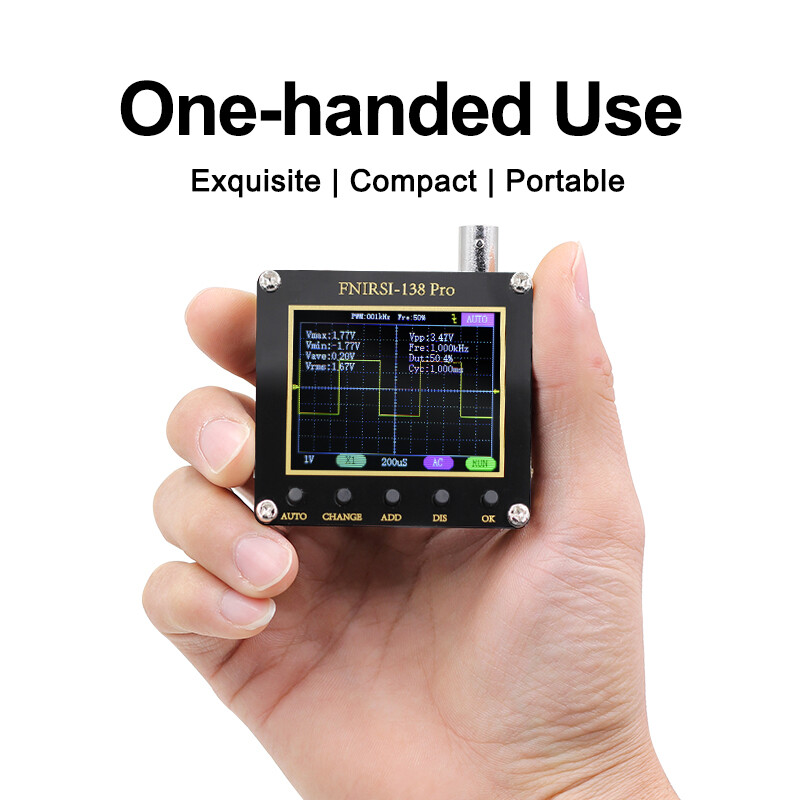

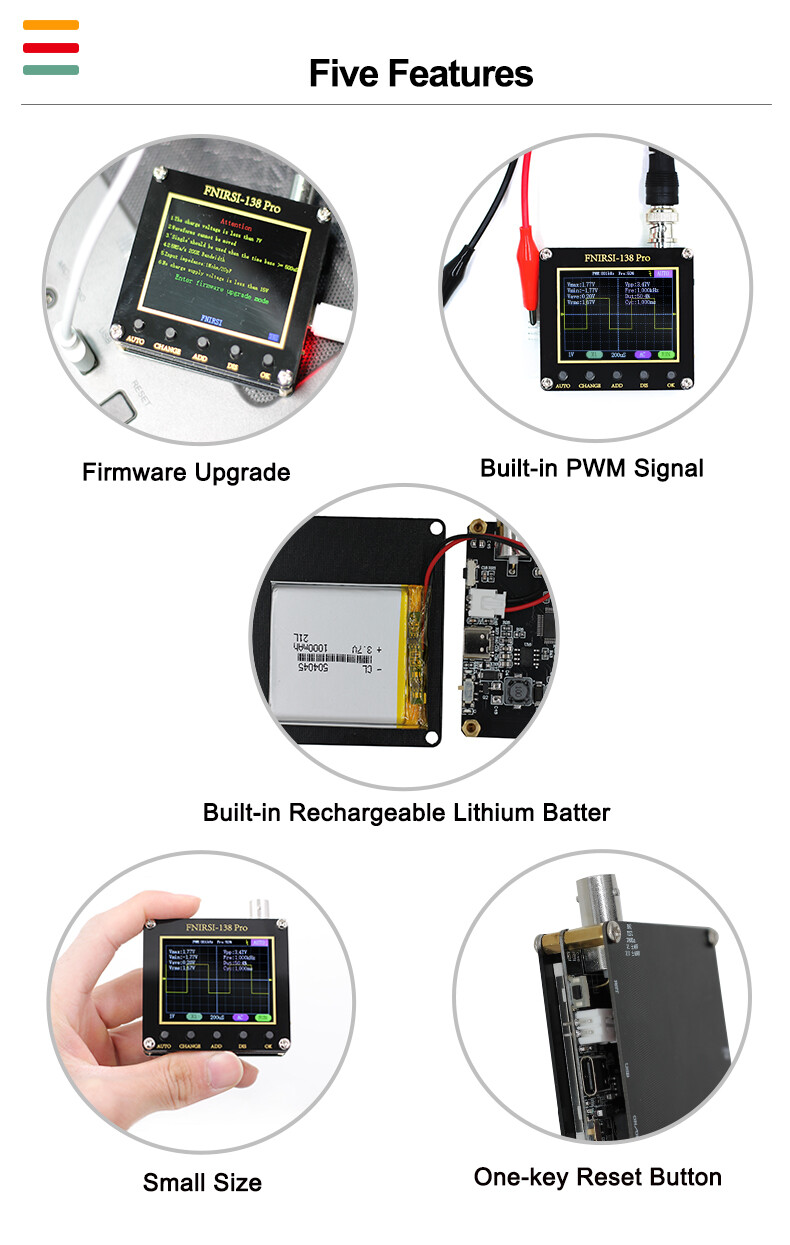

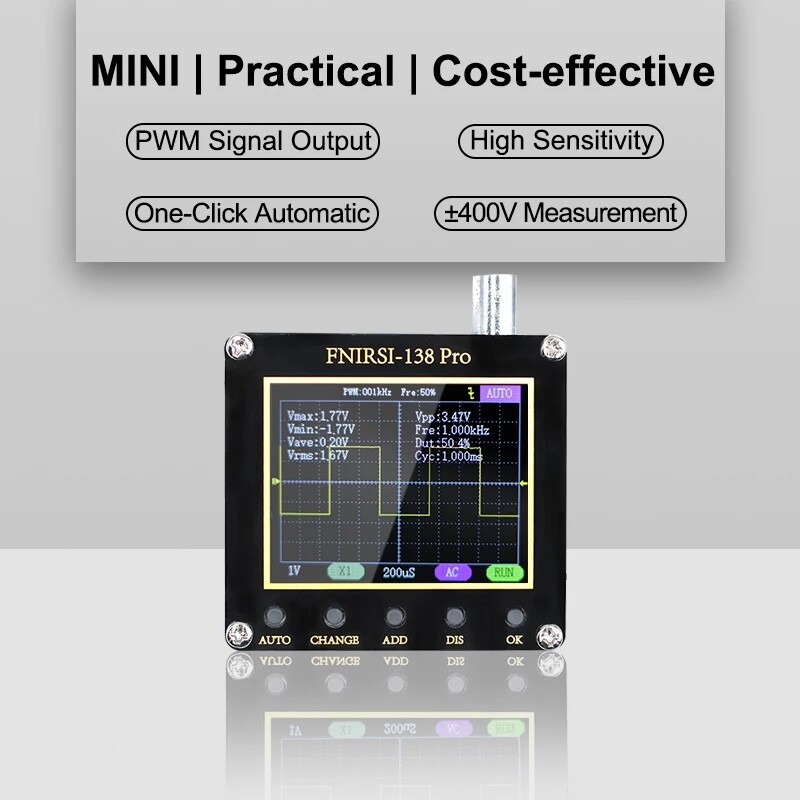

Portable Oscilloscope: Compared with traditional oscilloscopes,this oscilloscope with smaller size and more suitable for carrying around.

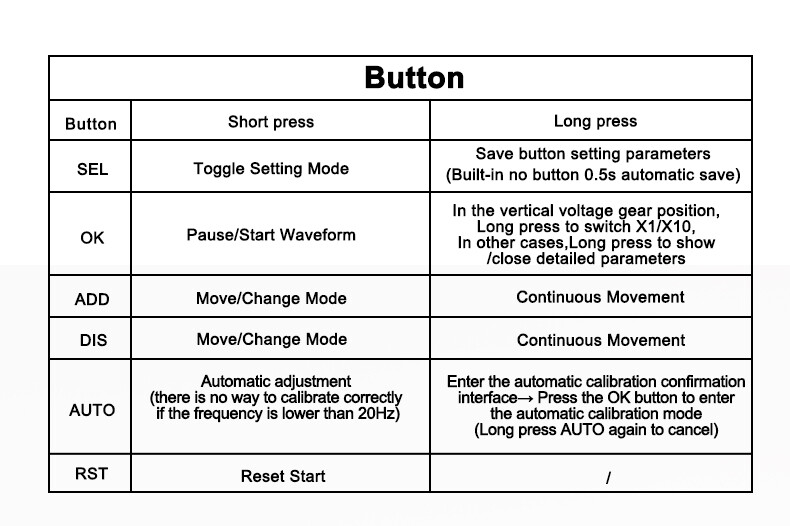

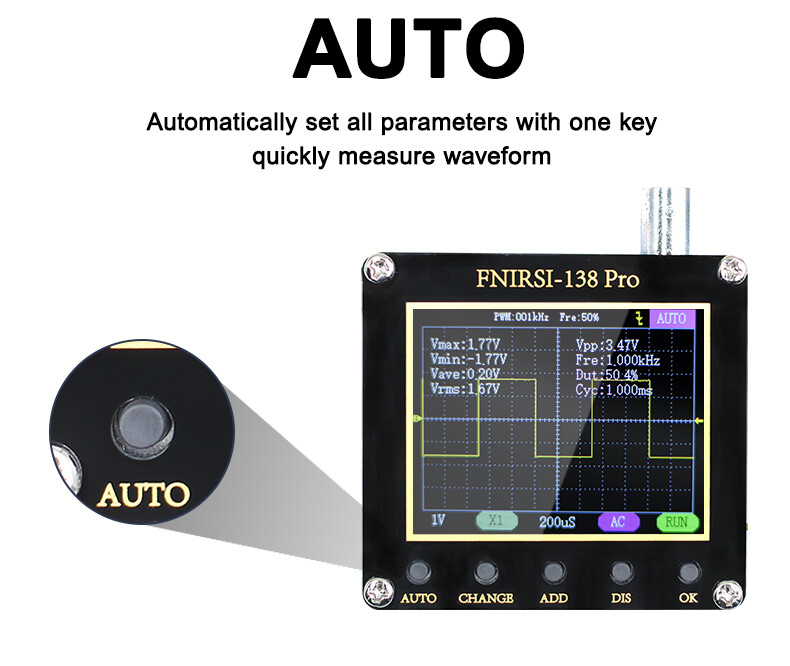

One Button Auto Adjust: One button AUTO setting all parameters and quick waveform measurement. Long press AUTO button to quick calibration baseline.

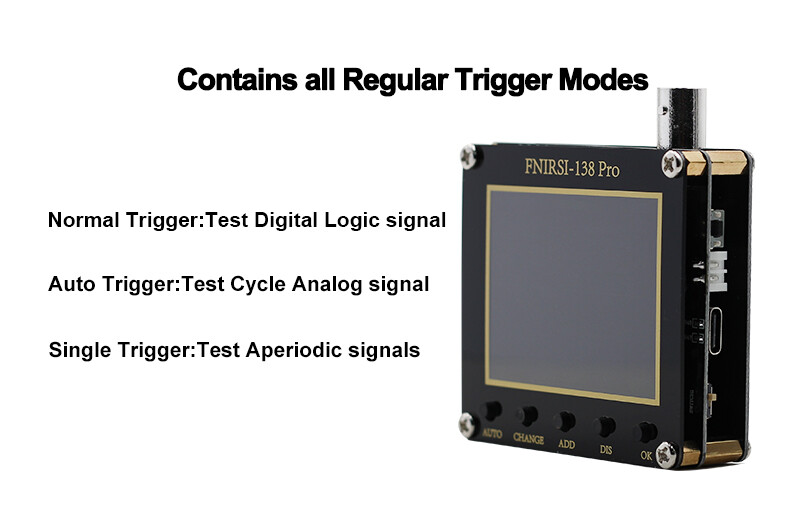

3 Trigger Modes: The singles trigger mode for tests unexpected non-periodic signals, the automatic trigger modes for test period analogs signals and normal trigger is for tests digital logic signals.

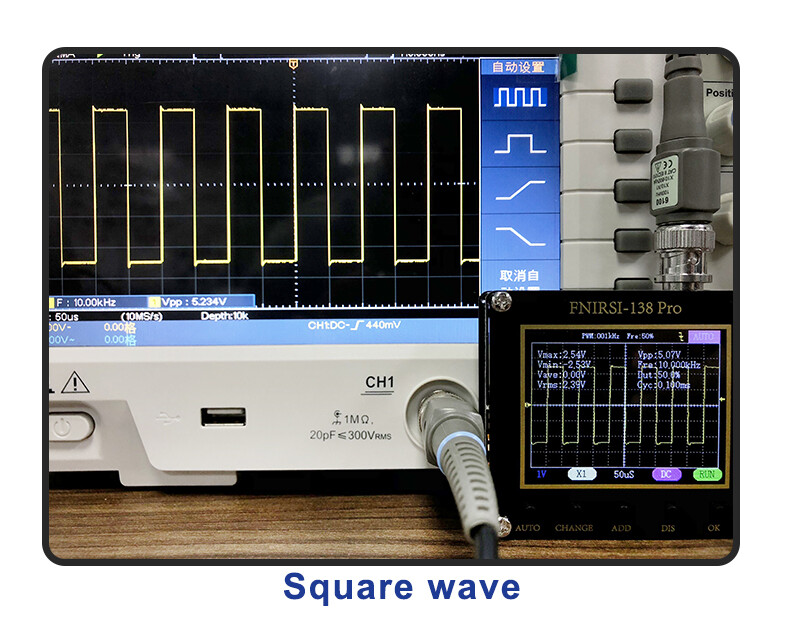

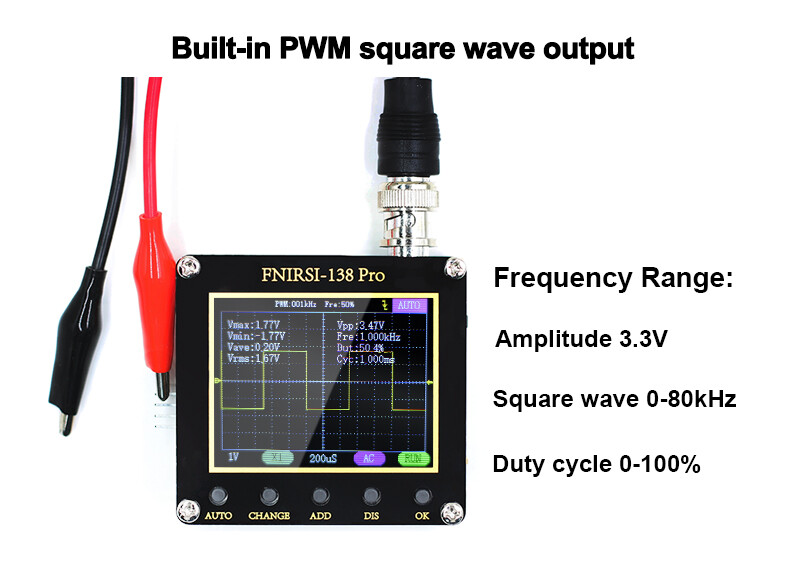

PWM Square Waves Output: This oscilloscope with the PWM square waves output function, 0-80kHz frequency ranges and 0-100% duty cycle.

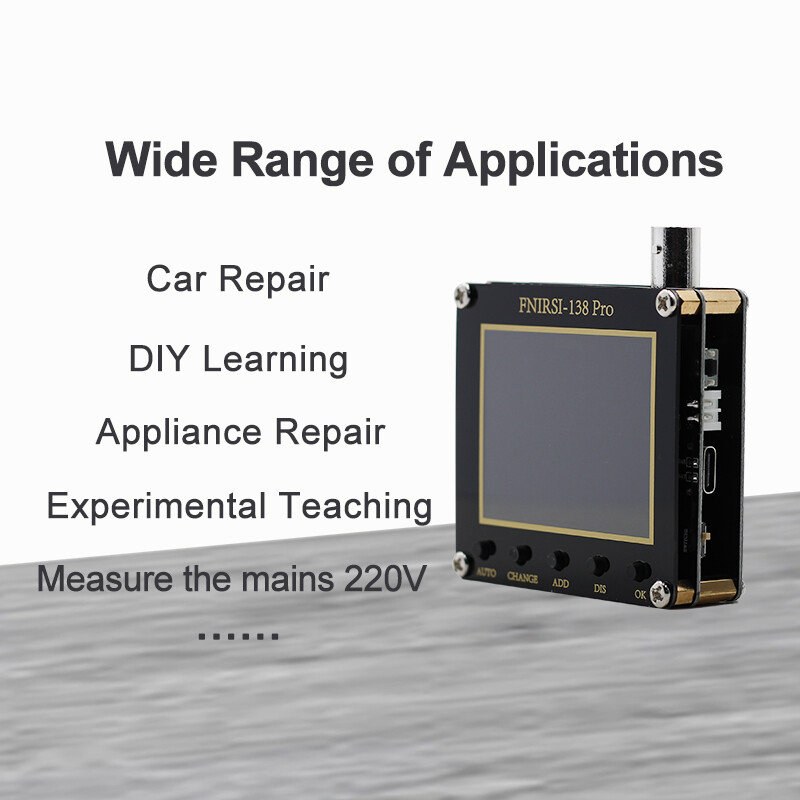

Wide Applications: This oscilloscope is suitable for car repairing, DIY, home appliance maintenance, experiment teaching, etc.

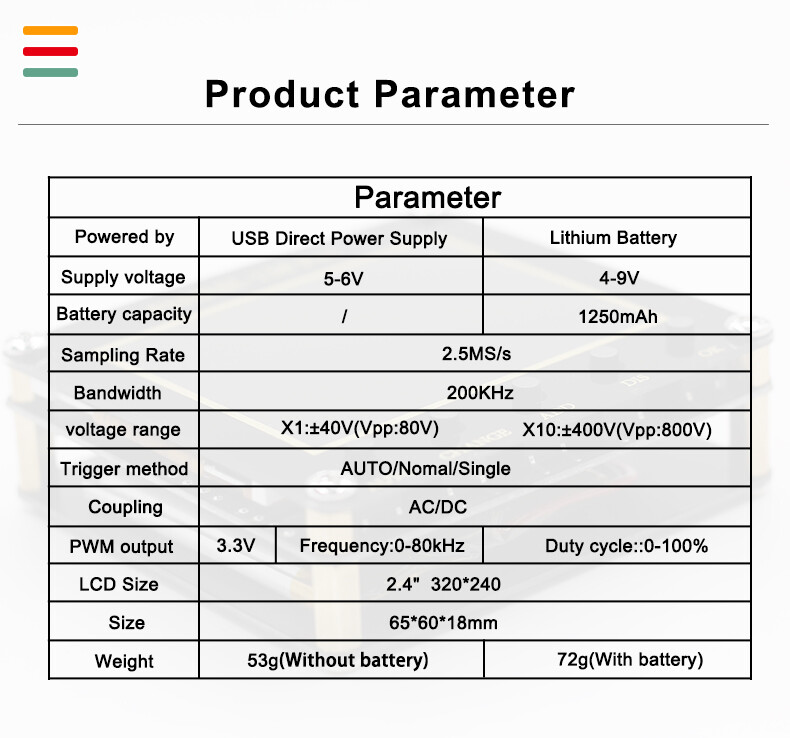

Specifications:

Material: PCB

Type:(optional)

138pro with Battery: with P6100, with battery

138pro no Battery: with P6100, without battery

Battery: 1 * lithium battery, 1250mAh

Sampling rate: 2.5MS/s

bandwidth: 200KHz

Voltage ranges:

X1: ±40V(Vpp:80V)

X10: ±400V(Vpp:800V) (only with P6100)

Trigger modes: Single, Automatic, Normal

Coupled mode: AC/Direct current

PWM output: 3.3V

Frequency: 0-80kHz

Duty cycle: 0-100%

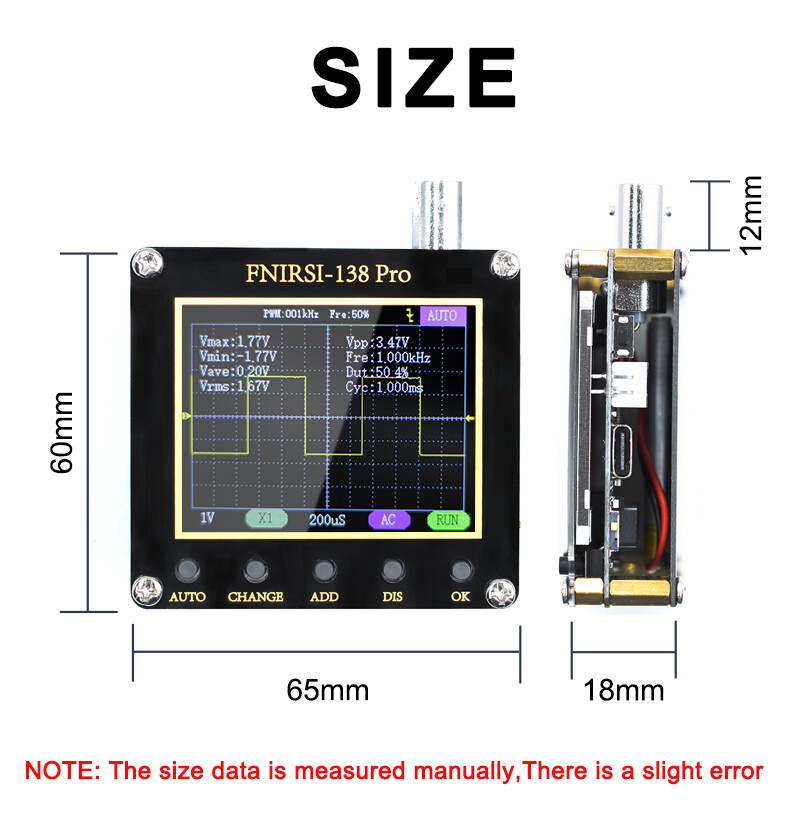

Package size: 65 * 60 * 18mm / 2.6 * 2.4 * 0.8in

Package weight:

Type1&3: 53g / 1.9ounce

Type2&4: 72g / 2.5ounce

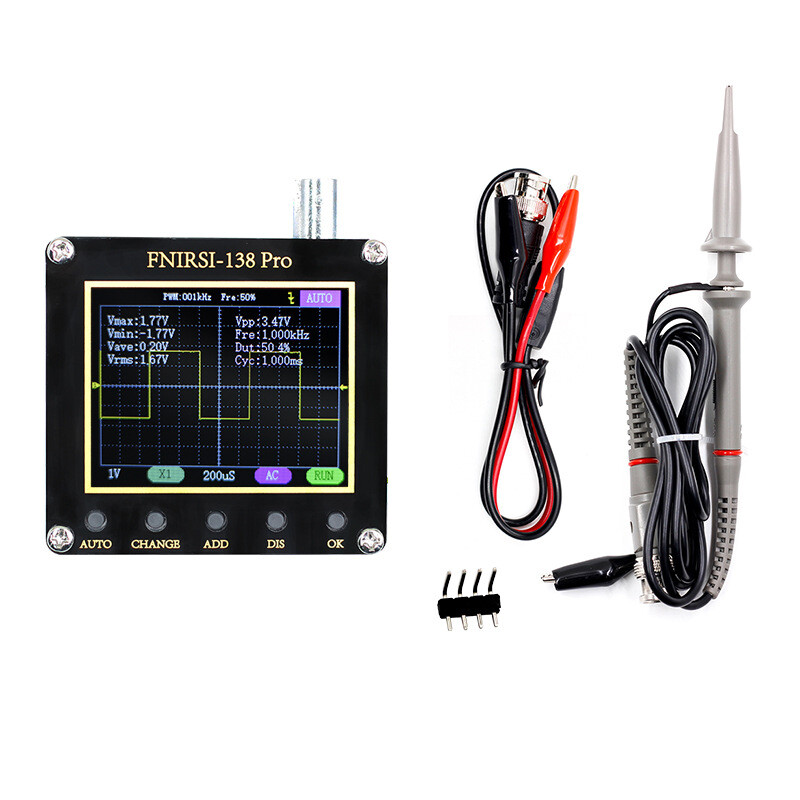

Packing list:

1 * Oscilloscope

1 * recharageable battery (Optional)

1 * P6100
