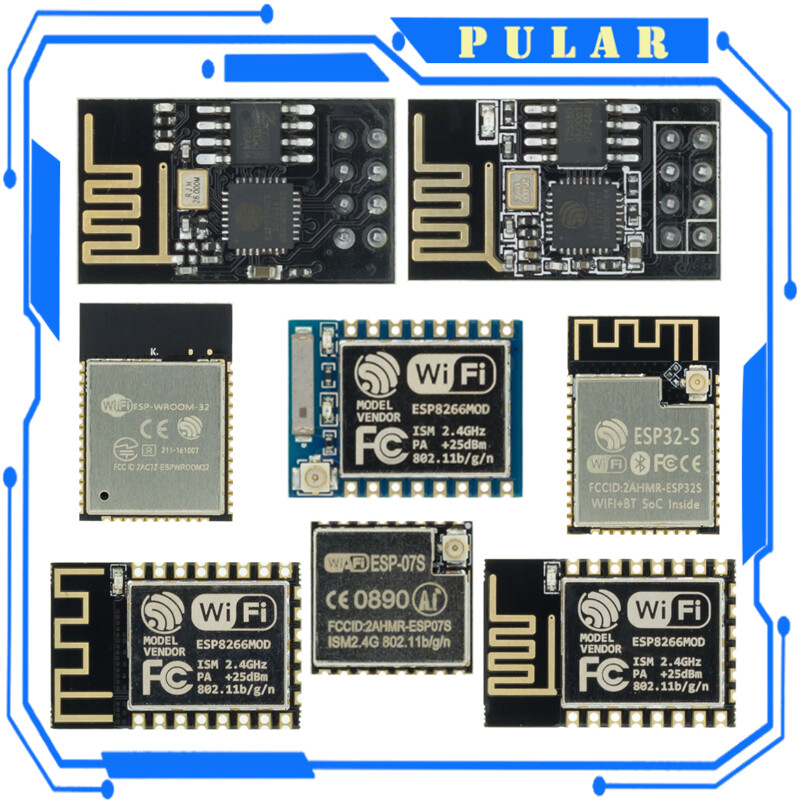

ESP8266 ESP-01 ESP-01S ESP-07 ESP-07S ESP-12 ESP-12E ESP-12F ESP-32S nối tiếp Wifi mô-đun không dây máy thu phát không dây

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

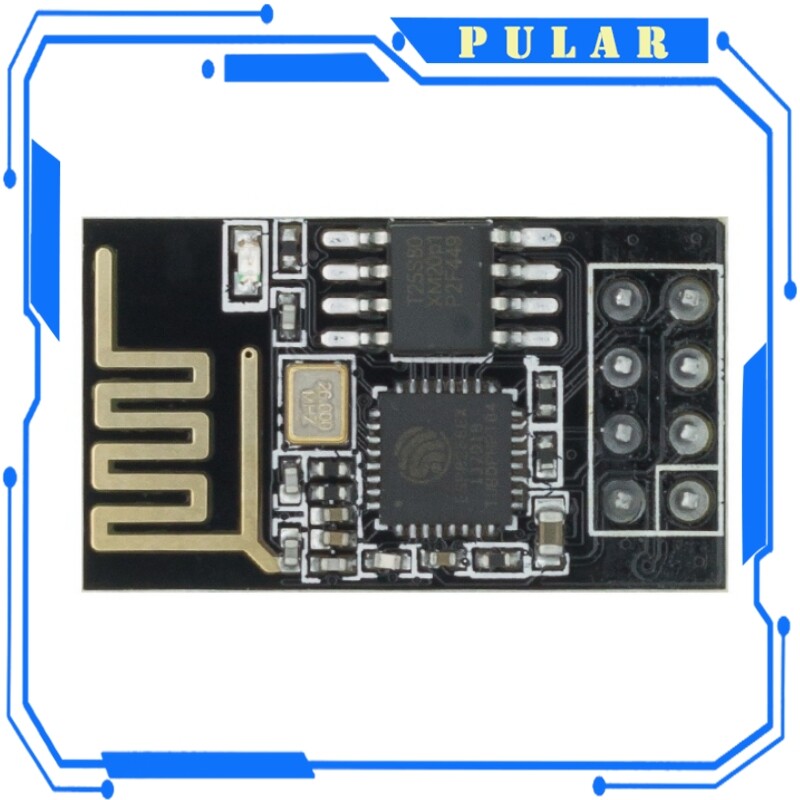

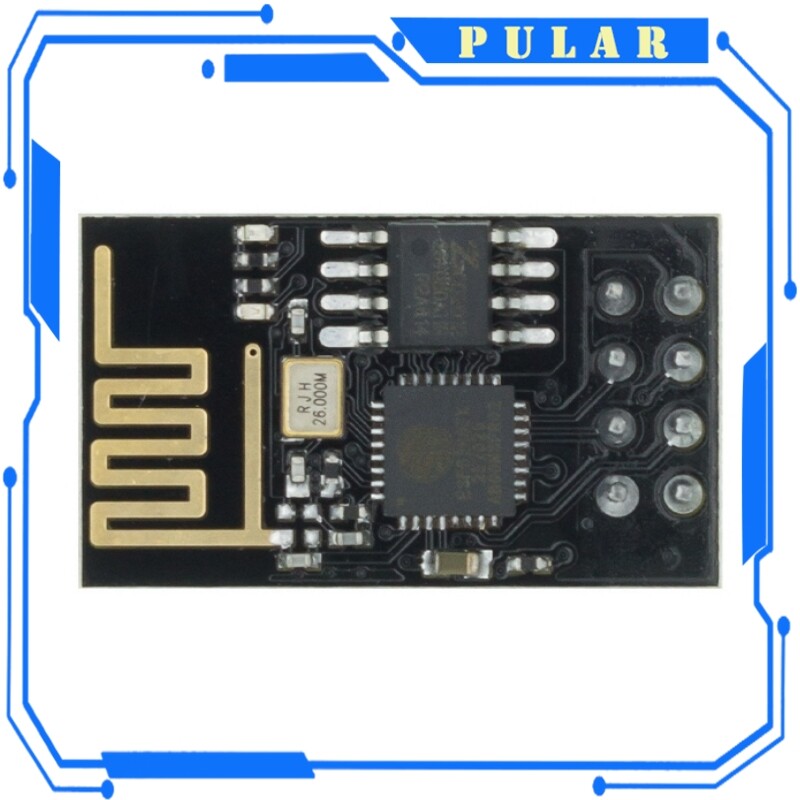

ESP01

SDIO 2.0, SPI, UART

32-pin QFN package

Integrated RF switch, balun, 24dBm PA, DCXO, and PMU

Integrated RISC processor, on-chip memory and external memory interfaces

Integrated /baseband processors

Quality of Service management

I2S interface for high fidelity audio applications

On-chip low-dropout linear regulators for all internal supplies

Proprietary spurious-free clock generation architecture

Integrated WEP, TKIP, AES, and WAPI engines

Solutions

Supports APSD for optimal VoIP applications

Patented spurious noise cancellation algorithm for integration in SOC applications

Supports Bluetooth co-existence interface

Self-calibrated RF to ensure optimal performance under all operating conditions

Zero factory tuning

No external RF components

Specifications

802.11 b/g/n

Wi-Fi Direct (P2P), soft-AP

Integrated TCP/IP protocol stack

Integrated TR switch, balun, LNA, power amplifier and matching network

Integrated PLLs, regulators, DCXO and power management units

+19.5dBm output power in 802.11b mode

Power down leakage current of <10uA

Integrated low power 32-bit CPU could be used as application processor

SDIO 1.1/2.0, SPI, UART

STBC, 1×1 MIMO, 2×1 MIMO

A-MPDU & A-MSDU aggregation & 0.4ms guard interval

Wake up and transmit packets in < 2ms

Standby power consumption of < 1.0mW (DTIM3)

1. High quality & low price

2. LWIP agreement

3. Support 3 modes: AP, STA, AP+STA

4. Perfect and simple AT commands

Now for Arduino can get on WiFI without braking the bank.

Use this module for your next Interet of Things project, home automation, Or remote sensor project.

This module adats the ESP8226 IC for use over a serial connection using simple AT commands.

No SPI interface or Know-How is required.

Warnings:

This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V for Arduino will destroy this module. You must use a logic level converter, or a 3.3V for Arduino The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module. You must provide a separate, higher 3.3V supply(about 300mA or better)

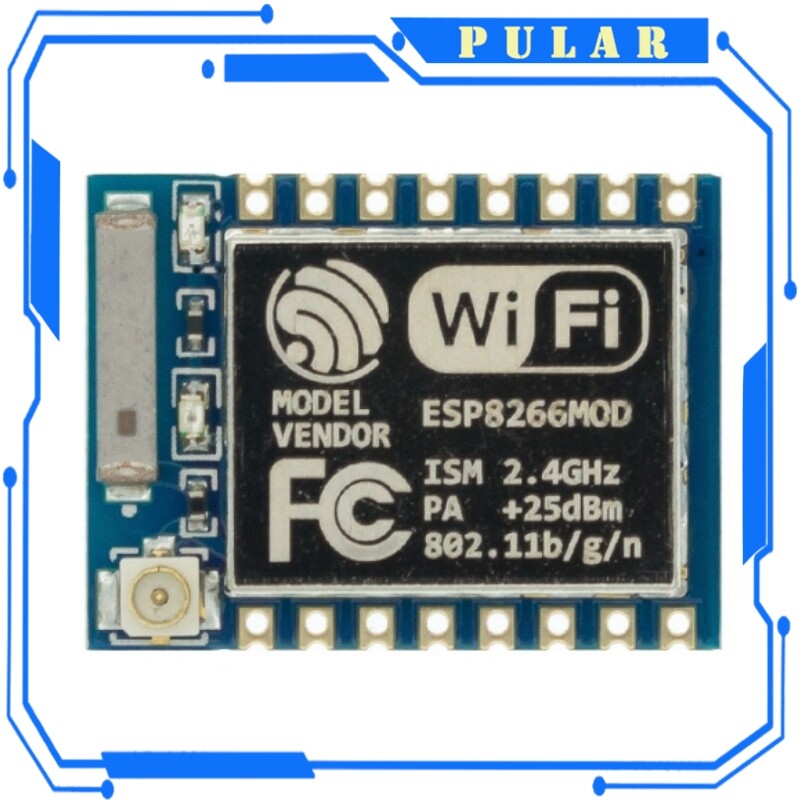

ESP-07

Model:ESP8266 ISM 2.4GHz PA +25dBm 802.11b/g/n Warnings:3.3V logic.Connect RX or TX on 5V FOR Arduino will destroy this module.or a 3.3V FOR Arduino module.higher 3.3V supply(about 300mA or better)

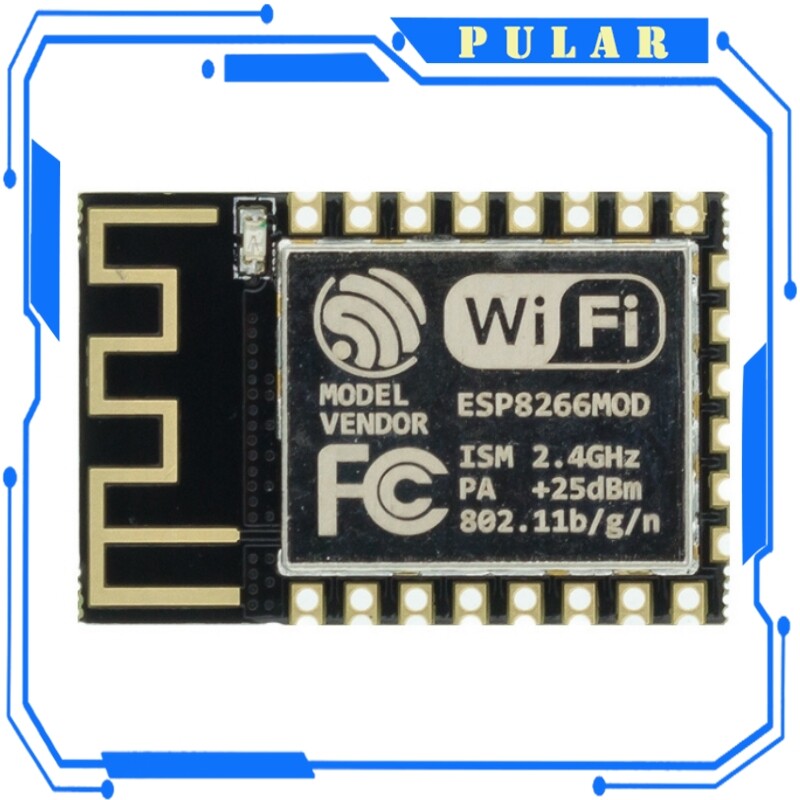

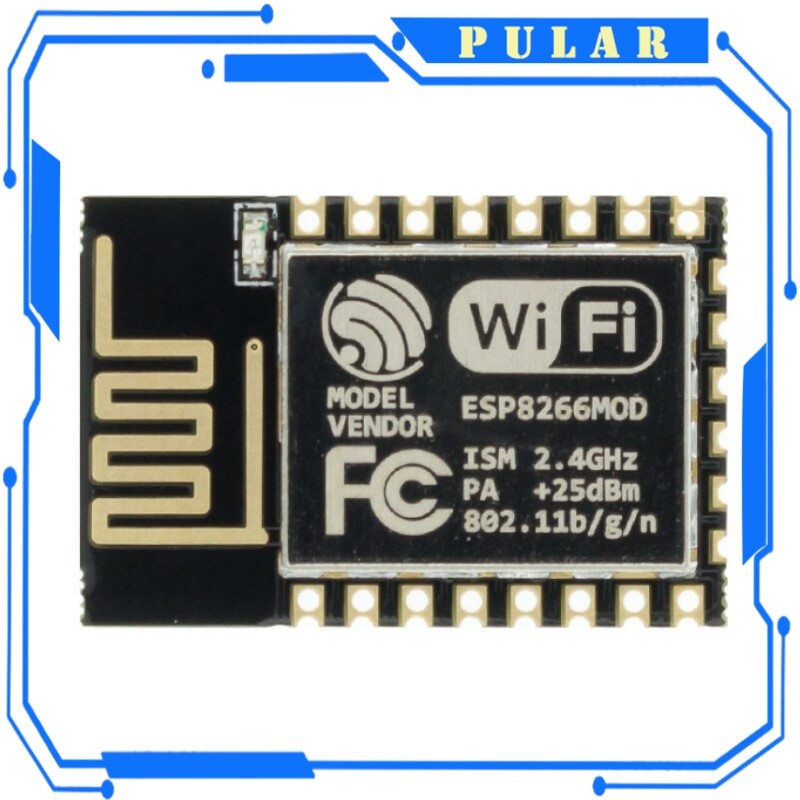

ESP-12F

ESP8266-12F is an enhanced version of ESP8266-12, perfect peripheral circuit, four-layer board technology, enhanced impedance matching, better signal output, whether it is stability or anti-jamming capability, PCB antenna through professional laboratory testing, ROHS certification, Have been greatly improved!For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient,More extensive!

Standards Certification: FCC / CE / EC

Wireless standards: 802.11 b / g / n

Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM

Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)

Working Current: Average: 80mA

Operating temperature: -40 ° ~ 125 °

Storage temperature: Nomal temperature

ESP-12E

Model:ESP8266-12 ISM 2.4GHz PA +25dBm 802.11b/g/n Warnings: and 3.3V logic. Connect RX or TX on 5V FOR Arduino will destroy this module.or a 3.3V FOR Arduino

module.higher 3.3V supply(about 300mA or better)

ESP32

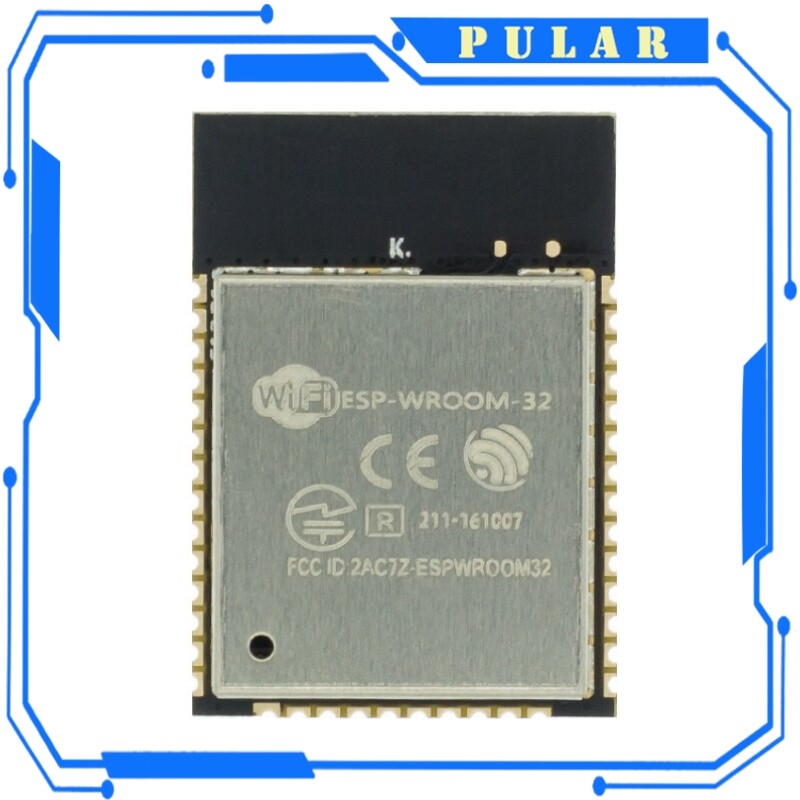

ESP32 is a complete,small form factor(SFF)802.11 b/g/n/e/i(2.4GHz)WLAN plus BT4.2combo solution optimized for low-power,mobile consumer electronics,wearable andInternet of Things(IOT) ,layout-friendly implementation whileallowing flexibility for platform specific customization.

   ESP32 is a highly integrated solution withless than 10 external components.

   ESp32 integrates the transmit /receive RFfunctionality including the antenna swiches,RF balun,power amplifier,low noisereceive amplifier,filters,power management,and advanced calibratiom ciacuitriesthat allow the solution to dynamically adjust itself to adapt to externalcircuit implefections.

   The entire solution reduces Printed CircuitBoard (PCB) area,time-to-market,and bill-of-material(BOM)costs while addingcapablities and processing

   ESP32's uitra low power consumption radioarchiteature and proprietary power save technologies extend batter life inreal-world applications,using the following features:

   Fine granularity clock-gating

   Multiple low-power modes,and

   Dynamic voltage scaling

   For instance,in a low-power IoT sensor hubapplication scenario,ESP32 is woken up periodically and only when a specifiedcondition is detected;low duty cycle is used to minimize the amount of energythat the chip ,so that an optimal trade off between the communication range,data rateand power consumption is achieved.
