Bo Mạch Phát Triển ESP32 Bo Mạch Lõi LCD ESP32 C3 Ăng Ten 2.4G Gắn Trên Bo Mạch 32Pin IDF + Bluetooth CH343P Cho Arduino Microprython

• Origin:Mainland
• Condition:New
• Type:Logic ICs
• Model Number:ESP32 Development Board TYPE-C USB CH340C
• Supply :ESP32 Core
• Dissipation Power:CORE-ESP32C3
• is_customized:Yes
• Operating Temperature:ESP32C3-CORE
• Application:Computer
• Package:SMD

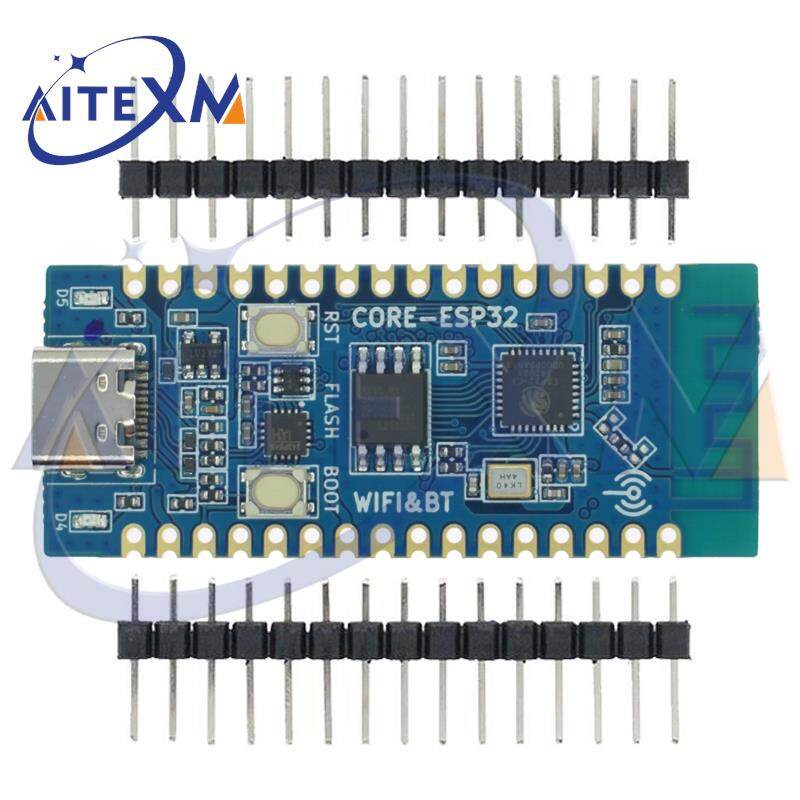

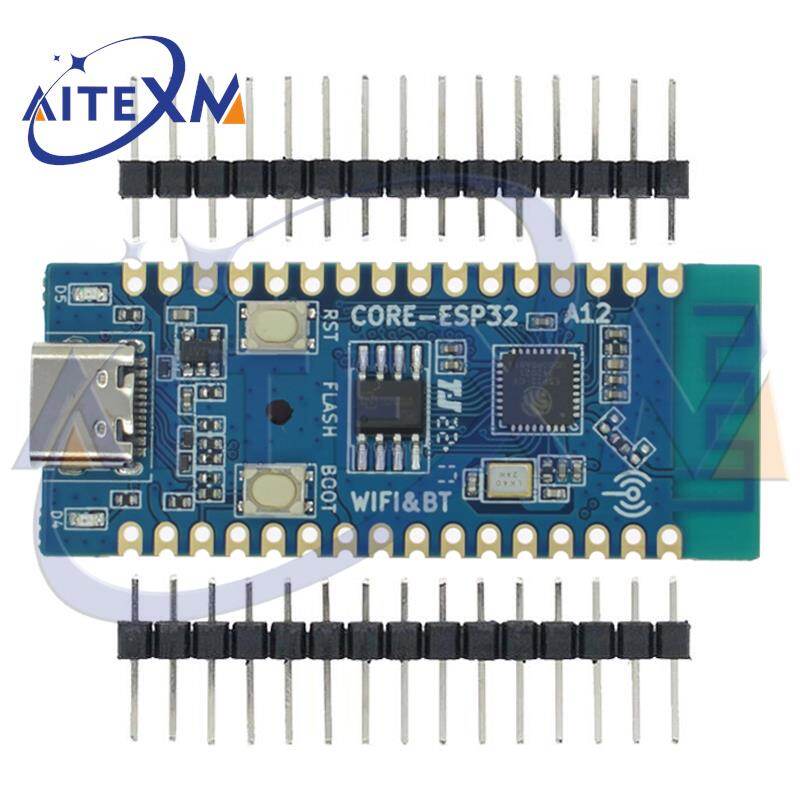

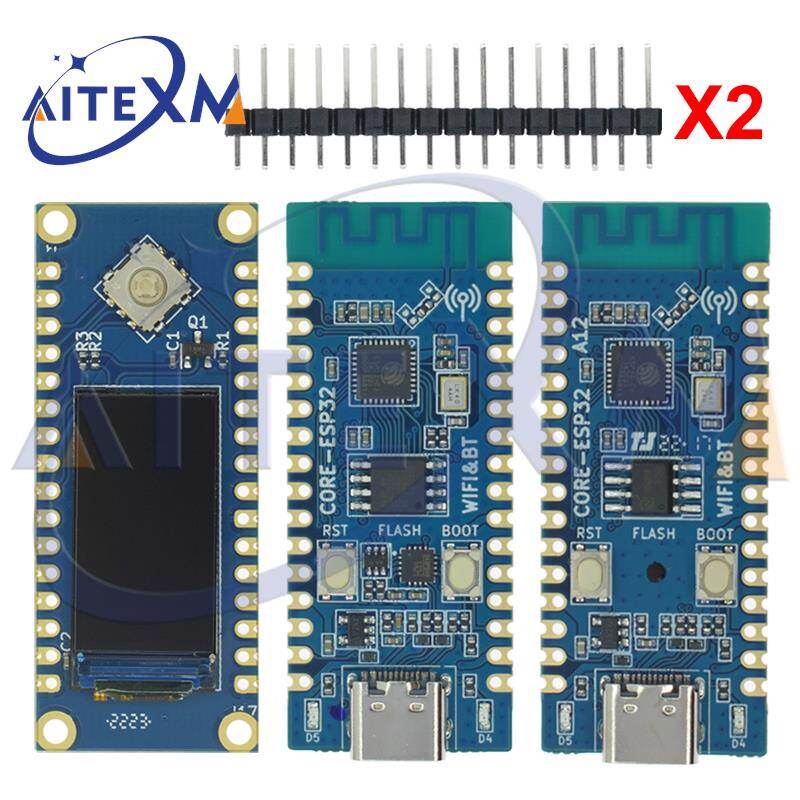

ESP32C3-CORE Development Board
pay attention:

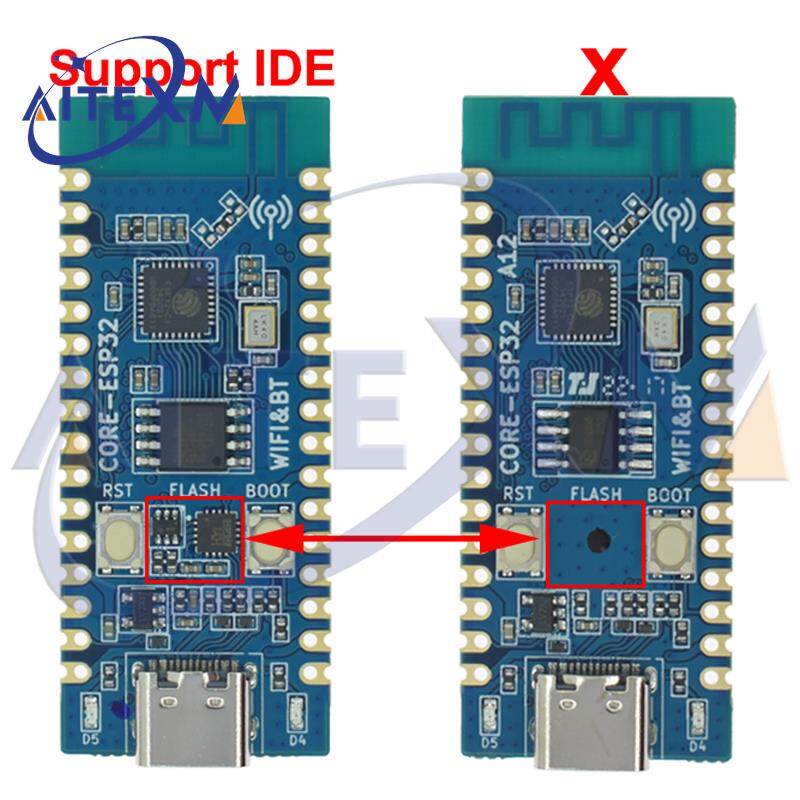

The classic model (version with TTL serial port to USB) must install the CH343 driver to download the firmware normally. The default CDC driver can only print the log, but the download will fail if the speed is too slow. drive portal

The new model (USB direct connection) can be burned directly without installing the driver. You can use Luatools to burn normally, but cannot use LuatIDE. There is no difference except that the firmware with the word USB needs to be selected when burning.

1. Product description
The CORE ESP32 core board is a core board designed based on Espressif ESP32-C3. The size is only 21mm*51mm. The edge of the board is designed with stamp holes, which is convenient for developers to use in different scenarios. The core board supports UART, GPIO, SPI, I2C, ADC, PWM and other inters, which can be selected ording to actual needs.

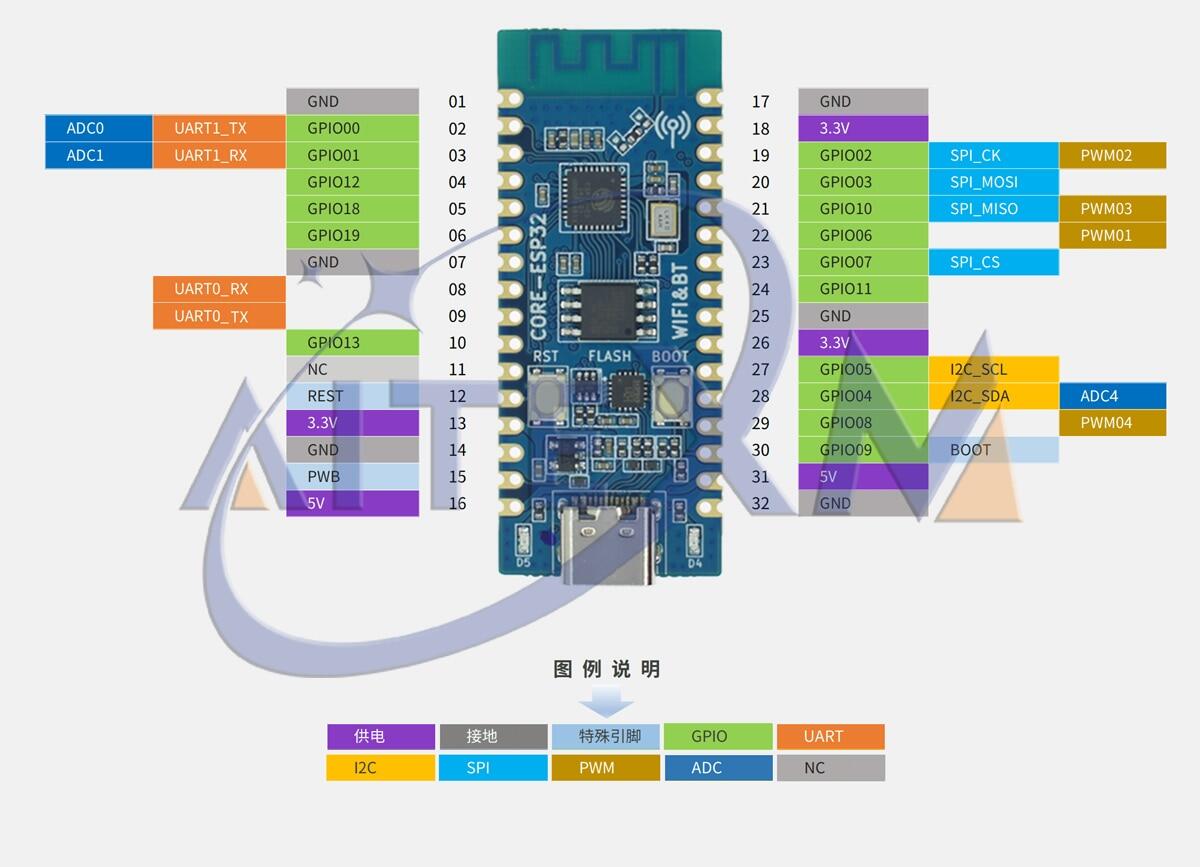

2. Hardware resources
Dimensions length and width 21mm*51mm

1 channel SPI FLASH, onboard 4MB, support up to 16MB

2-way UART inter, UART0~UART1, among which the download port is UART0

6-channel 12-bit ADC, maximum sampling rate 100KSPS

1 low-speed SPI inter, support master mode

1 channel IIC controller

4-way PWM inter

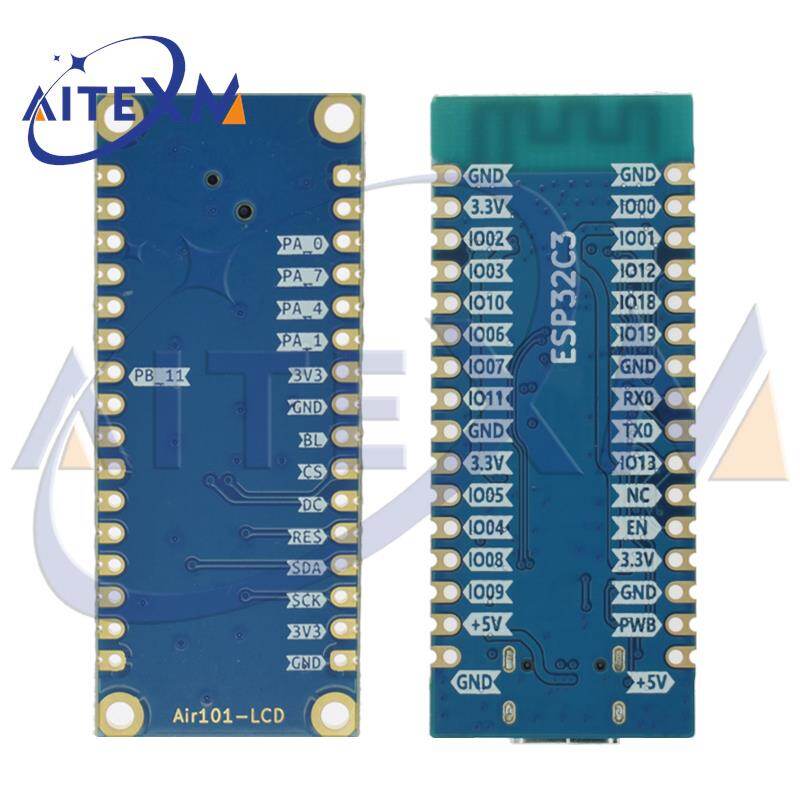

15 external GPIO pins, which can be reused

2 way SMD LED indicator

1 channel reset button + 1 channel BOOT button

1-way USB to TTL download debugging port

2.4G PCB Onboard Antenna
