[Nhanh hơn YG] ELM327 V1.5 Wifi Bluetooth 4.0 V1.5 OBD2 Đầu đọc mã Máy Quét Chẩn đoán xe

Description:
The diagnostic scanner supports all self-diagnostic O-BD-II systems and their compatible communication protocol detection. Through the link with the car, the relevant data of the car such as: engine speed, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, throttle opening, fault code of the car, etc. They can be reflected on the mobile phone via BT. It is a very strong and practical diagnostic tool for mobile devices such as computers.


The program allows you to perform the following operations:
1. Read diagnostic trouble codes, generic and manufacturer specific, and show their meaning (more than 3000 generic code definitions in the database).
2. Clear the trouble codes and turn off the MIL ( Check engine light)
3. Shows the current sensor data, including:
4. Engine RPM
5. Calculated load value
6. coolant temperature
7. Status of the fuel system
8. Vehicle speed
9. Short term fuel adjustment
10. Long term fuel adjustment
11. Pressure intake manifold
12. Timing Advance
13. Intake air temperature
14. Air flow rate
15. Absolute throttle position
16. Oxygen sensor voltages associated short-term fuel fittings
17. The State fuel system
18. Fuel pressure

Software compatible with:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, dashcombat, EO-BD;
IOS version: O-BD car doctor, dashcommon, EO-BD;
Symbian version: o-bdscope.
Support system: for Windows XP Windows 7 8 Android IOS symbian!

Support O-BD-II Protocol:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO9141-2 (5 baud init 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init 10.4 Kbaud)
5. ISO14230-4 KWP (quick start, 10.4 kbamd)
6. ISO15765-4 can (11bit I-D 500 Kbaud)
7. ISO15765-4 can (29bit I-D 500 Kbaud)
8. ISO15765-4 can (11bit I-D 250 Kbaud)
9. ISO15765-4 can (29bit I-D 250 Kbaud)


Features:
1.Supports all O-BD-II self-diagnosis systems and their compatible communication protocol detection.
2.Read the general and specific manufacturer's diagnostic trouble codes and display their definitions (The software contains more than 3,000 fault codes).
3.Clear the fault code and turn off the engine fault alarm indicator.
4.Read the dynamic flow of motor data in real time.
5.Compatible with IOS Android system.

Specifications:
Type: WIFI
Colour:Black
Material: automotive grade plastic
Operating temperature: -40 to 85 degrees Celsius
SSID: WiFi_OBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 feet (line of sight)
Antenna: internal
Power consumption: 0.75 watts (with power switch)
Standard wifi: 802.11a b g
Item size: about 45 x 27 x 22mm 1.77 x 1.06 x 0.87in
Package weight: about 50g 1.76oz
Package size: about 80 x 65 x 35mm 3.15 x 2.56 x 1.18in

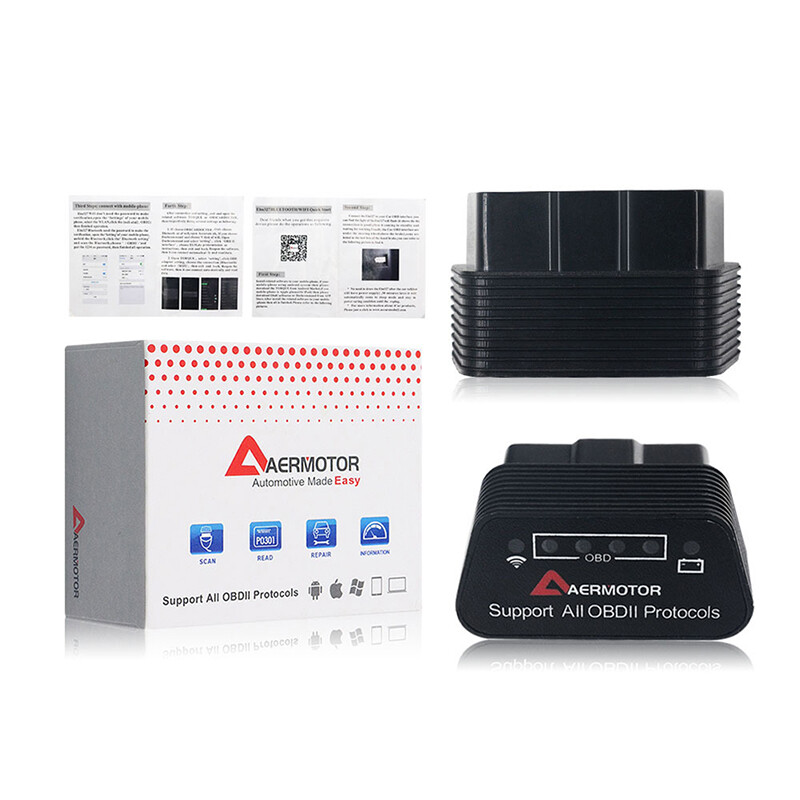

Packing List:
1 x Diagnostic Scanner

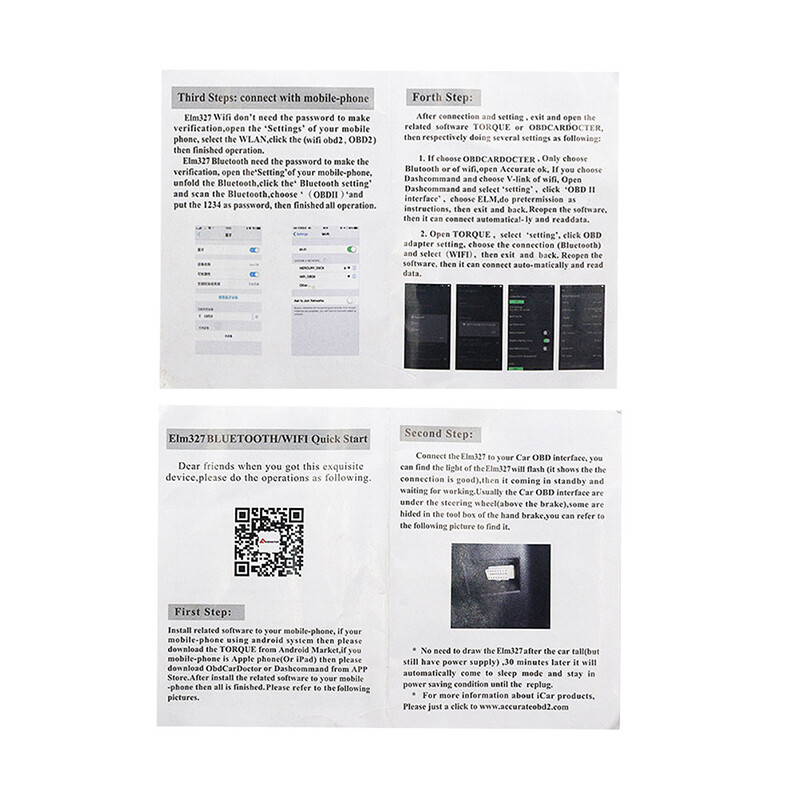

1 x User Manual
