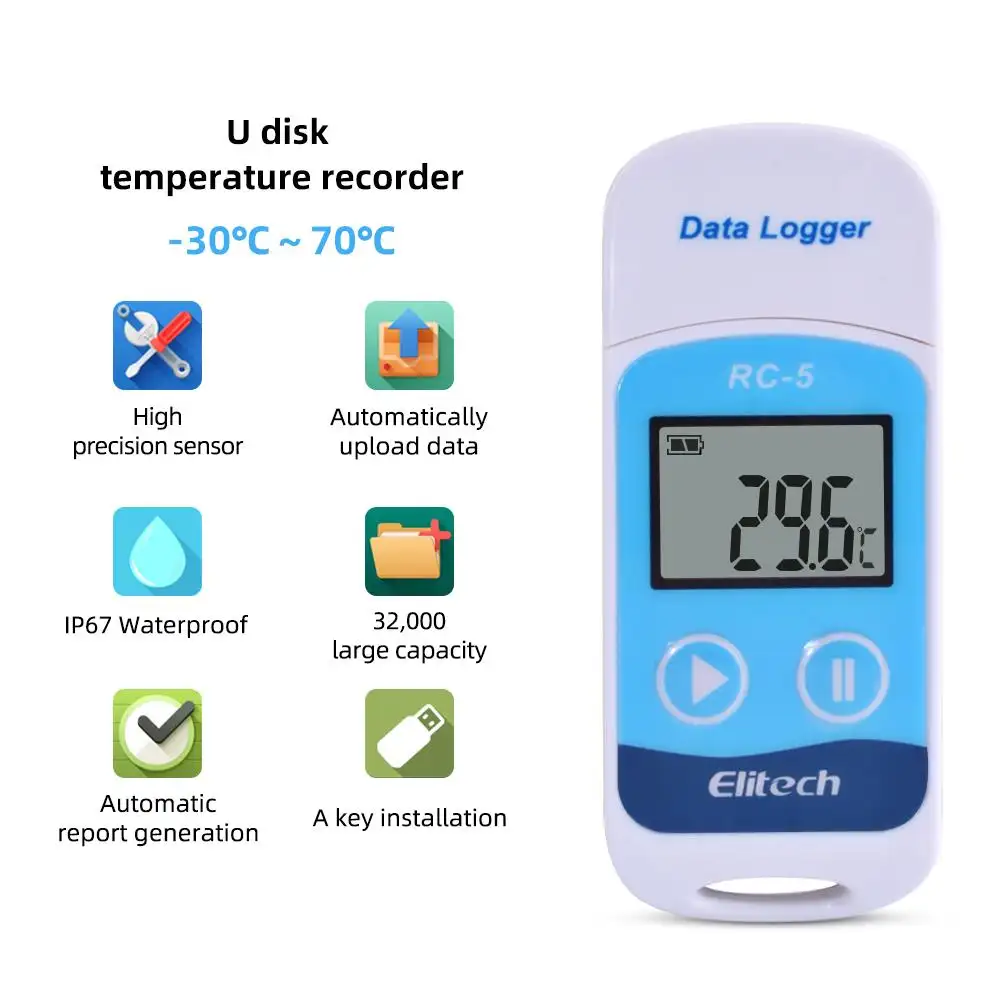

Portable U Disk Temperature Recorder RC-5 Mini Temperature Recorder Meets GSP Standards Digital Display

Specifications:

• Model:RC-5
• Type: Digital Hygrometer
• Power supply: Built-in wide temperature CR2032 button battery or USB interface
• Temperature range: -30°C ~ 70°C
• Temperature measurement accuracy: -20 °C ~ 40 °C Within the temperature range, the accuracy is ± 0.5 °C; the remaining ± 1 °C
• Recording capacity: 32000 sets
• Record interval: 10 seconds to 24 hours can be set as needed
• Resolution: 0.1 °C
• Sensor: Built-in NTC thermistor
• Data Interface: USB Interface
• Data output: USB socket directly connected to the computer

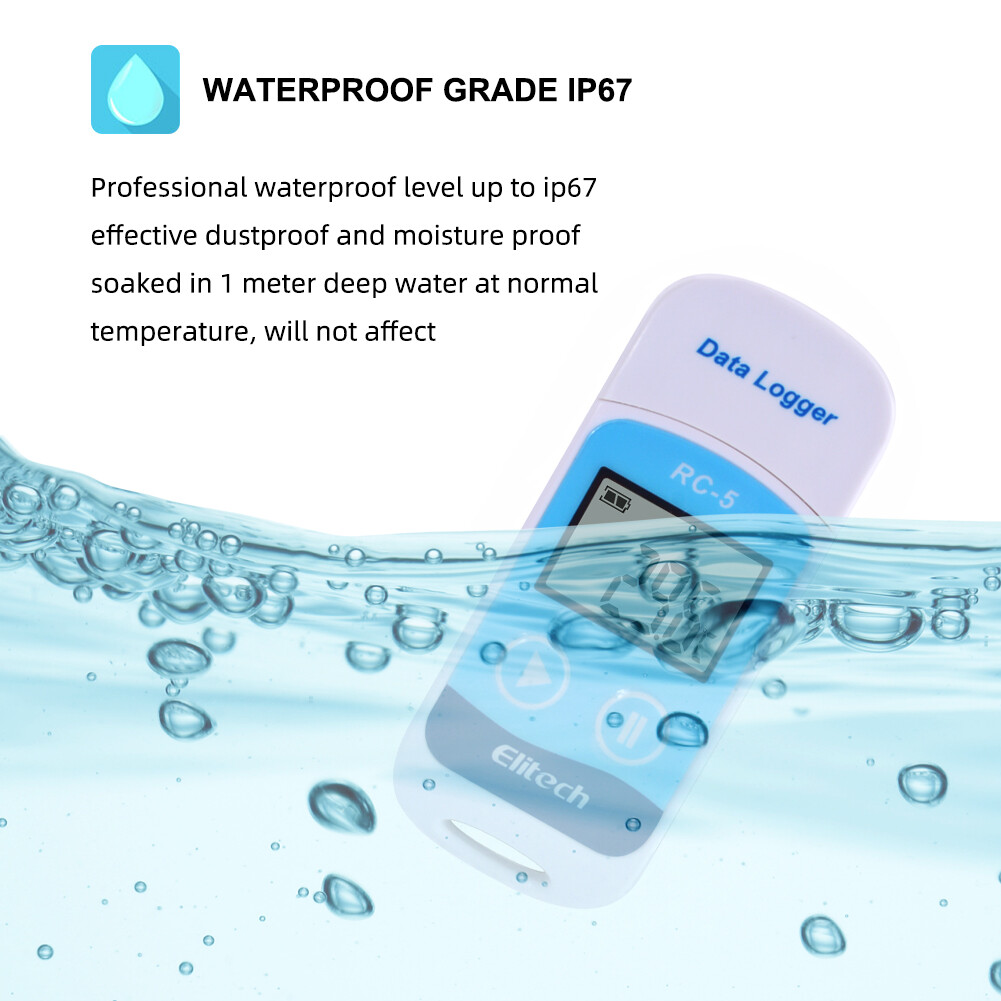

• Protection class: IP67
• Product Size: 75 x 33 x 13 (mm)
• Use battery: CR2032 button battery
• Instructions for use: long press the key for more than 4 seconds, after the interface shows ▶ sign, it means the instrument yi8jing start recording.
• Application: It is mainly used to monitor and record the temperature data of foods, drugs, chemicals, etc. during storage and transportation. It is widely used in all aspects of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, Laboratory etc.

Package list:

• 1 x Digital Hygrometer
• 1 x English Instruction Manual

•

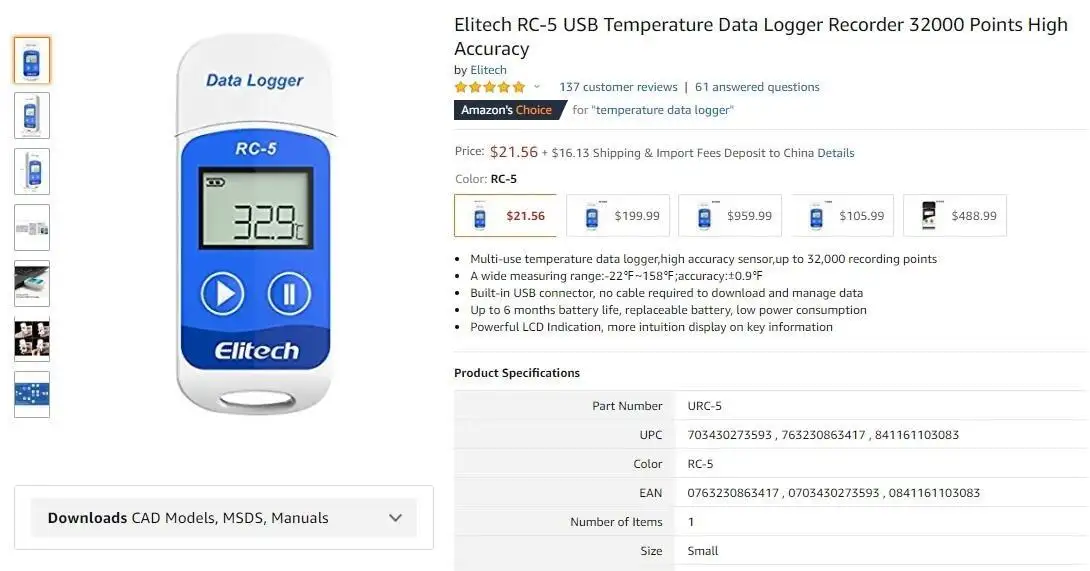

  Best Seller on Amazon - Elitech Only



  About RC-5

  Multi-use temperature data logger,high accuracy sensor,up to 32,000 recording points

  A wide measuring range:-22℉~158℉;accuracy:±0.9℉

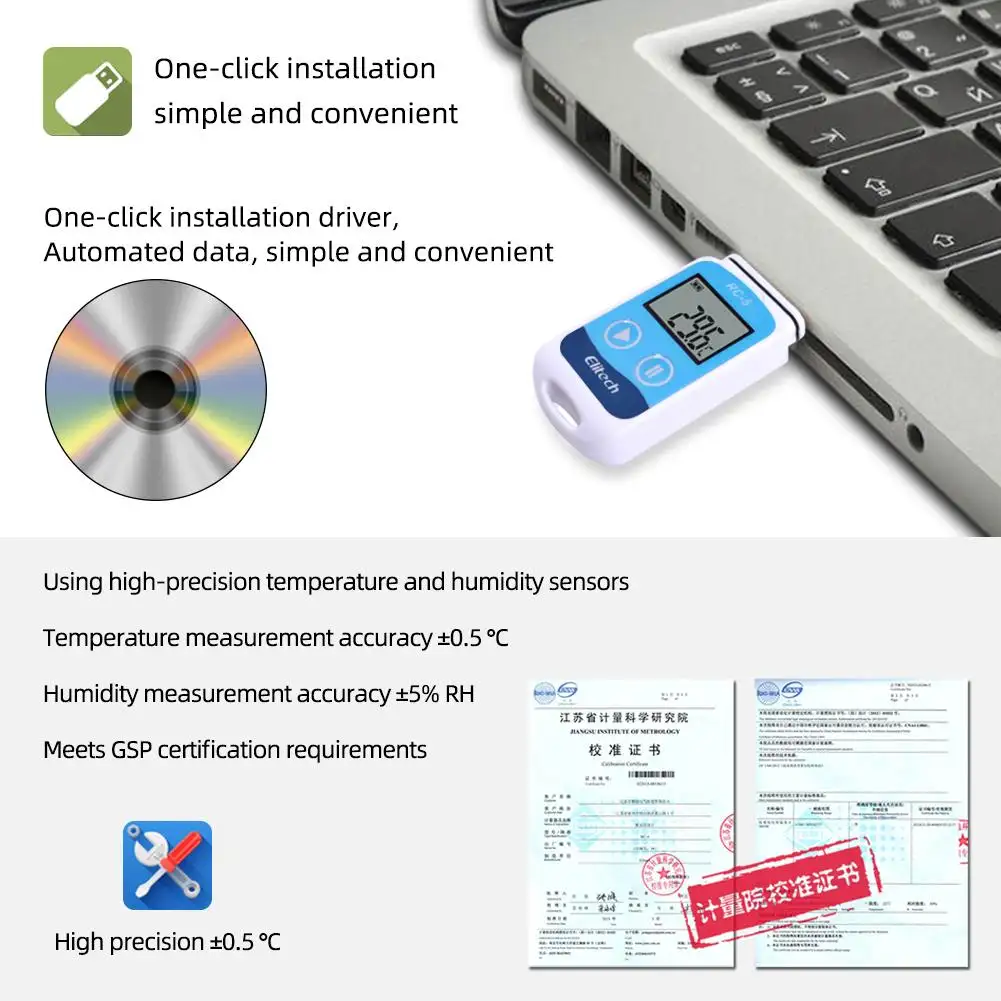

  Built-in USB connector, no cable required to download and manage data

  Up to 6 months battery life, replaceable battery, low power consumption

  Powerful LCD Indication, more intuition display on key information



  Technical Parameters

  1. Sensor: Internal NTC thermal resistor, no external sensor supported

  2. Communication interface: USB

  3. Power supply: CR2032 battery

  4. CE certificate

  5. IP67 protection grade

  6. Multiple use: data can be removed and start a new round by our software

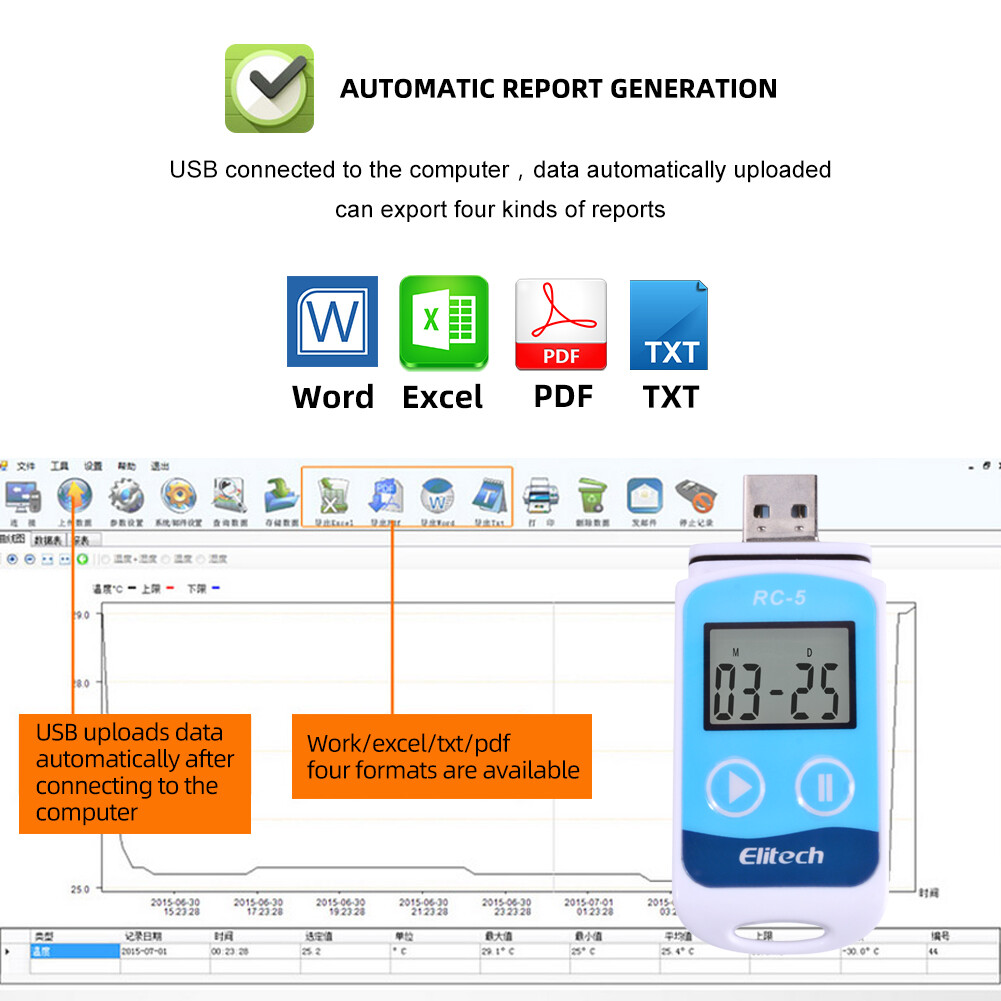

  7. Data could be queried, saved, printed and exported in Excel/PDF format.



  Package Included:

  1 x Elitech RC-5 Data Logger;

  1 x CR2032 Battery;

  1 x User Manua

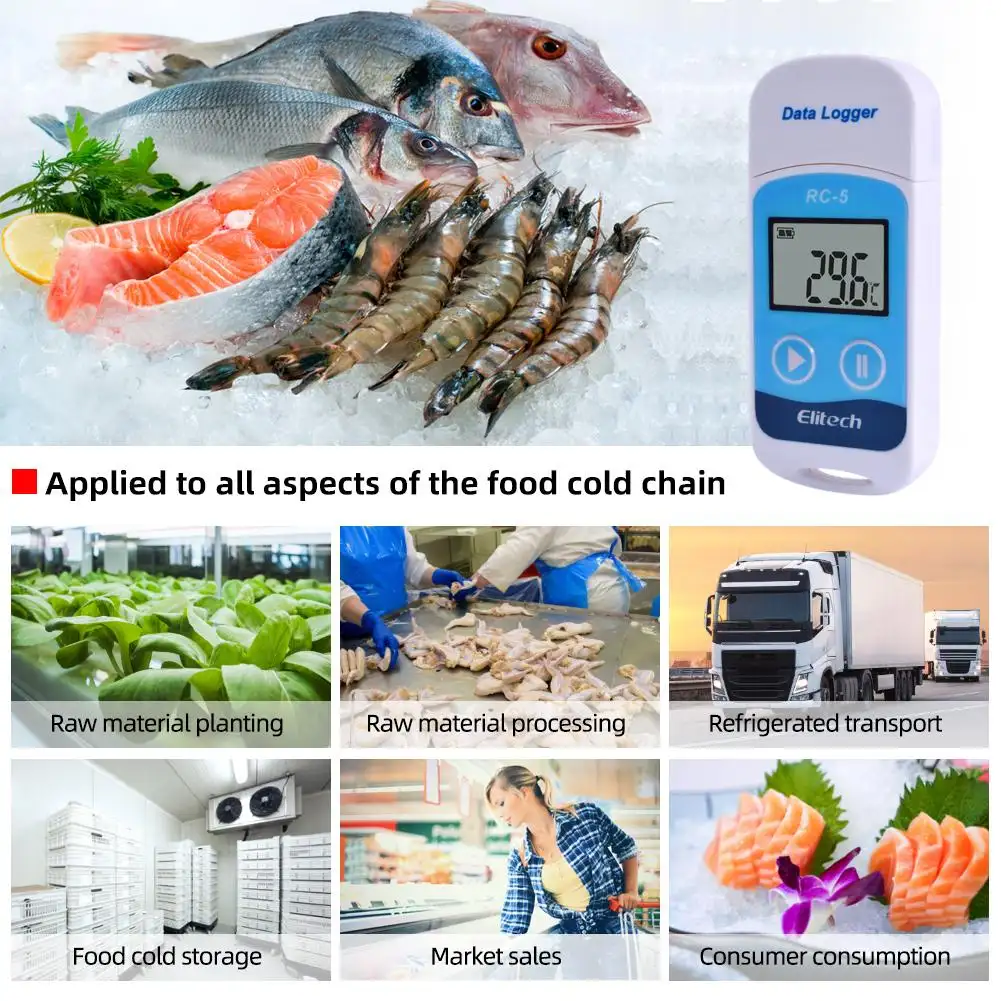

  This USB temperature data logger is mainly used for temperature recording during storage and ocean/air/highway transportation of foodstuff, medicine, chemicals and other products, especially widely used in all kinds of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks refrigerated package, cold storage, laboratory, etc. or in large-sized global supply chain businesses.

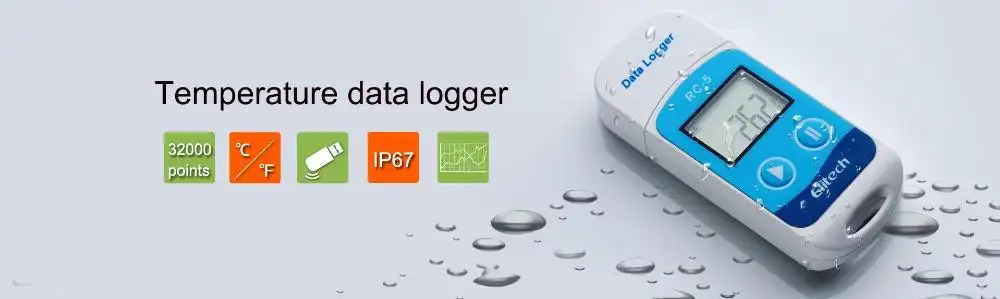

  Multi-use Data Logger

  Built-in high-precision temperature sensor

  Up to 32,000 recording points

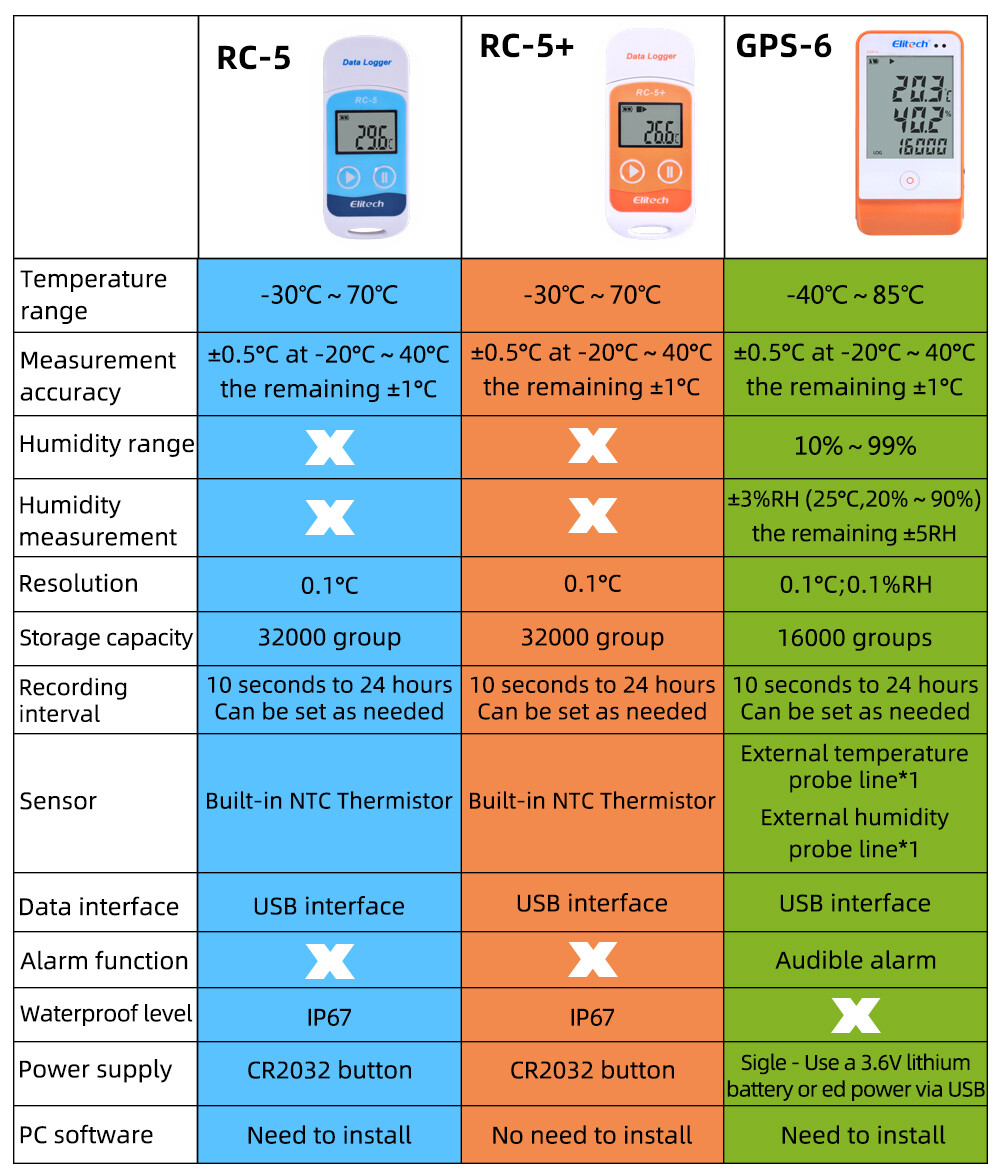

  RC-5 only supports restart via Elitech software

  RC-5+ supports restart by press button or software

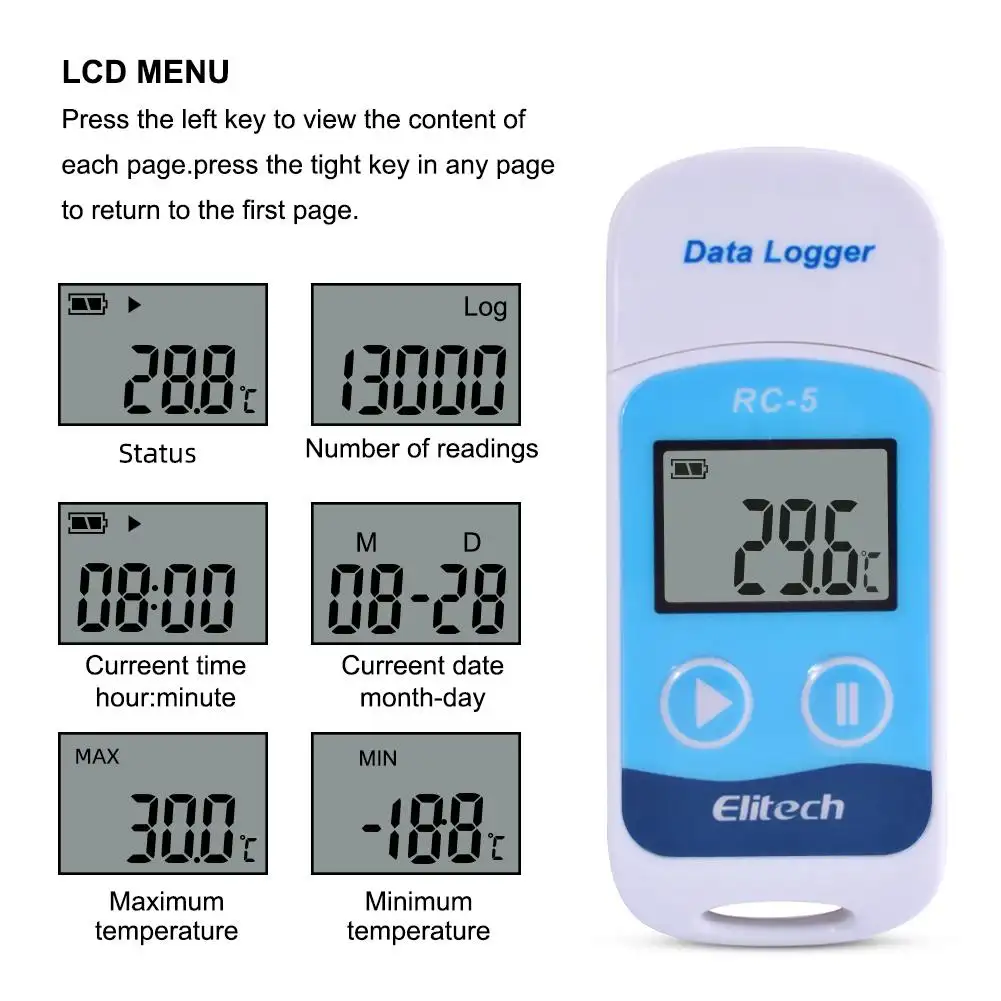

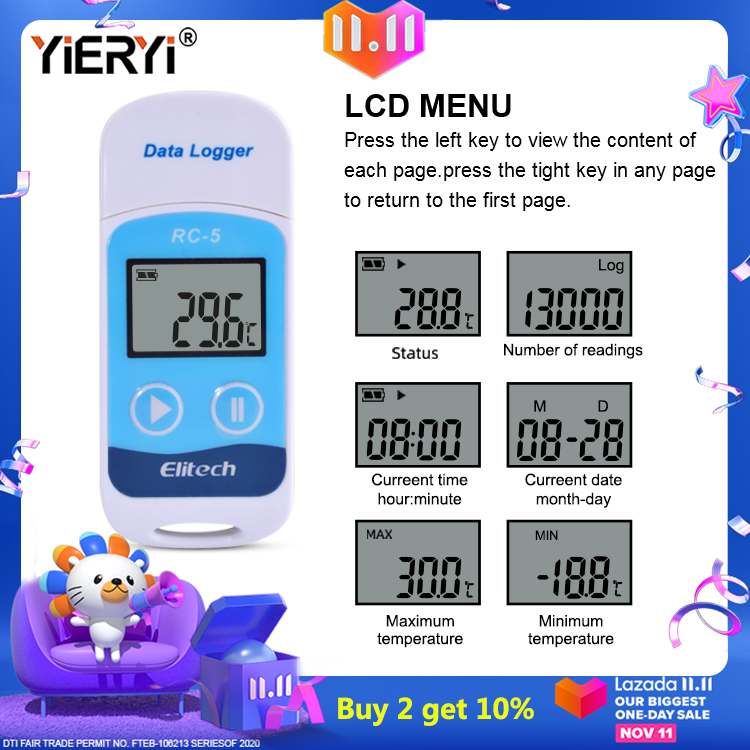

  LCD Visual Display

  LCD visual display, interface is simple and easy to use, easy to operate, convenient to check your data at any time.

  1. Over temperature alarm & upper/lower limits can be set

  2. MAX/MIN values available

  3. Record interval: 10s~24h adjustable



  Wide Temperature Range

  Fast Response time

  Temperature Range:-22℉~158℉

  Accuracy:±0.9℉



  USB Design

  Plug and play,cable-free

  Set and manage data logger via Elitech Software

  Mac: driver is required to install manually.

  Window: driver is automatically installed.

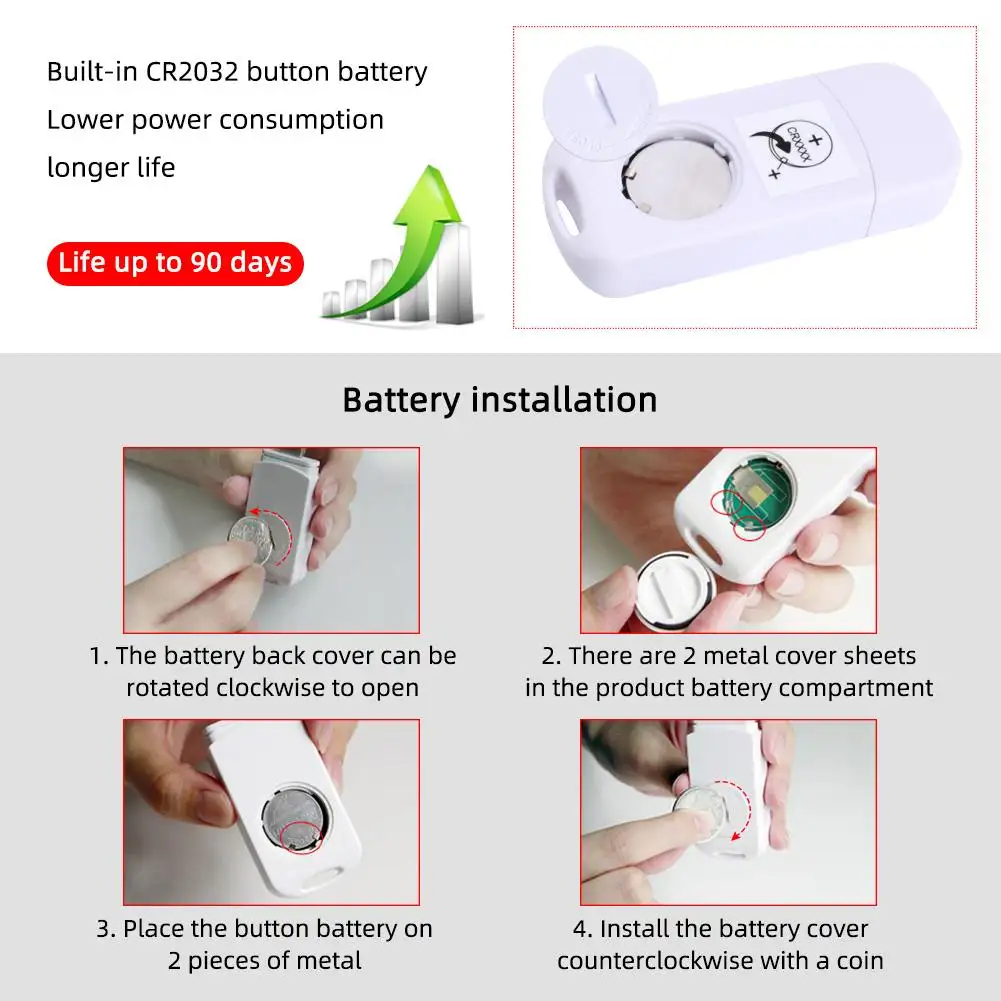

  6-month Battery Life

  Up to 6-month battery life

  Adopting replaceable CR2032 Lithium battery

  Depending on optimal storage conditions of 15℃~23℃ / 45%RH to 74%RH







  Free Elitechlog Software for Windows&macOS

  Firstly, please download and install the software instructed on the user manual.

  Meanings of the Setting Parameters:

  Log Clock: Not configurable. But the time will sync with that on the computer after our user click the Save Parameter button under the Parameter tab.

  S/N: Not configurable.

  Trip Description: Configurable. The info entered here will be shown on the report, it can be used to differentiate one logger from another.

  Log interval: Configurable. Means how often our user want the logger to perform a reading, it can be 10S, 1minute or 1day.

  Start Delay(H): Configurable. Means after you press the button on the logger, how long it would wait to officially start logging.

  Press button: Configurable. Means after we press the triangle button for 4 seconds on the logger to start logging, we can still press this very button to stop the logger.

  Temperature Unit: Configurable.Celsius or Fahrenheit.

  High/Low limit: Configurable.The upper and lower alarming point you want to set.
