Bộ Điều Chỉnh Điện Tử Động Cơ Điều Khiển Bộ Điều Khiển Tốc Độ SCR Công Suất Cao AC220V 8000W

Features:

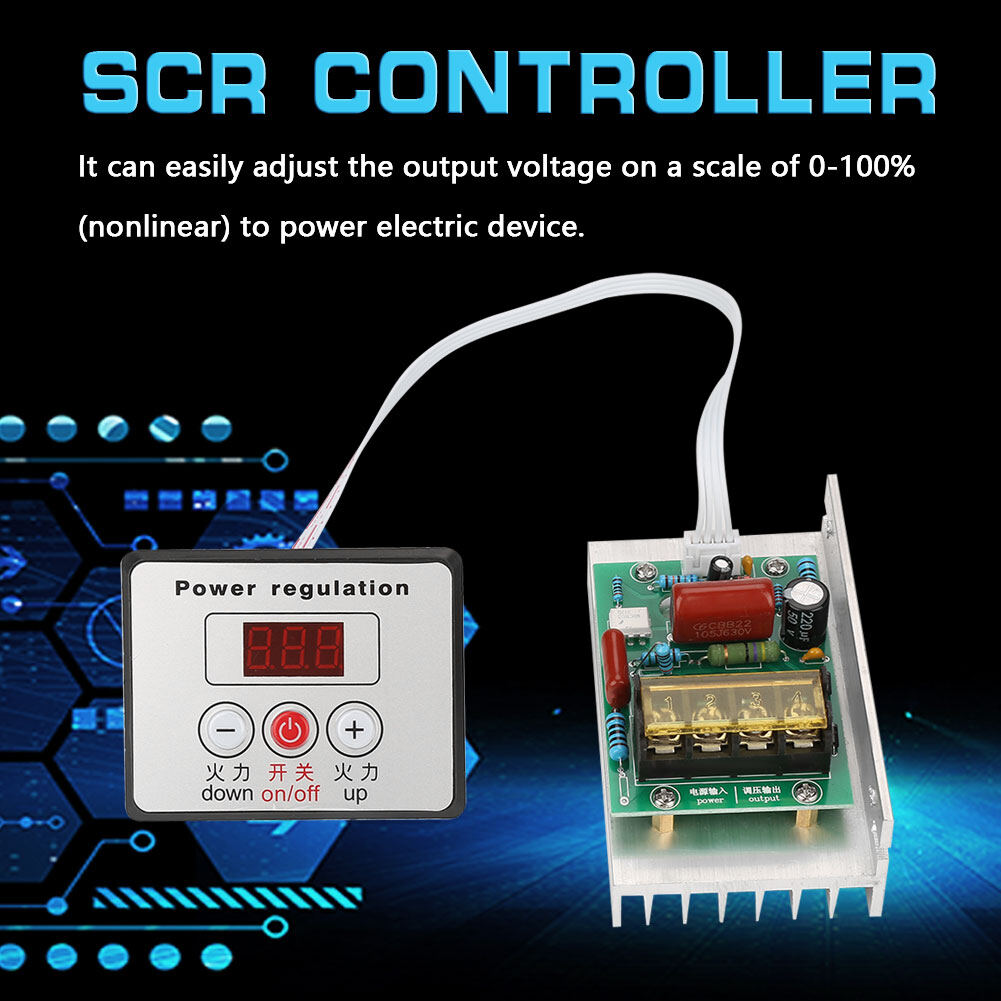

• It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device.

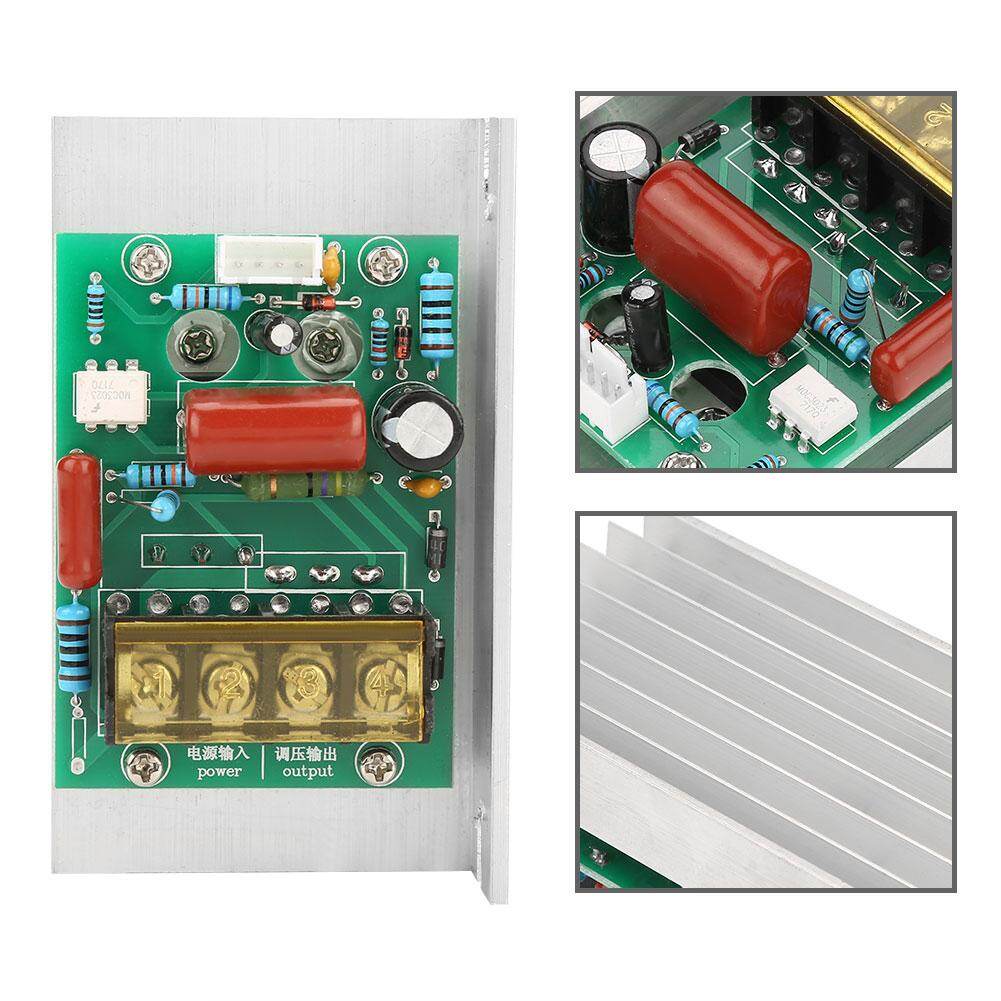

• Designed with large and thick heat sink that would enhance heat dissipation.

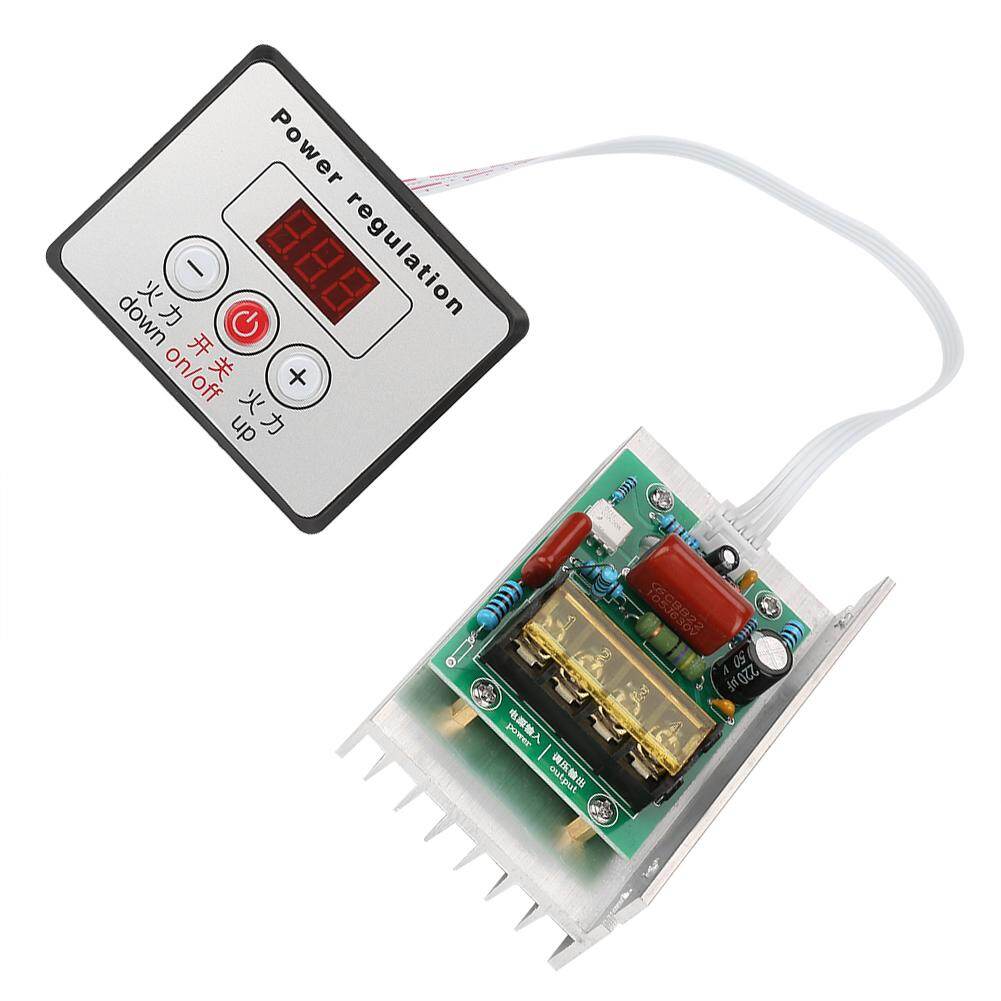

• This voltage regulator is adjusted with button which is much more stable than potentiometer.
• Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier, longer service life and more durable.

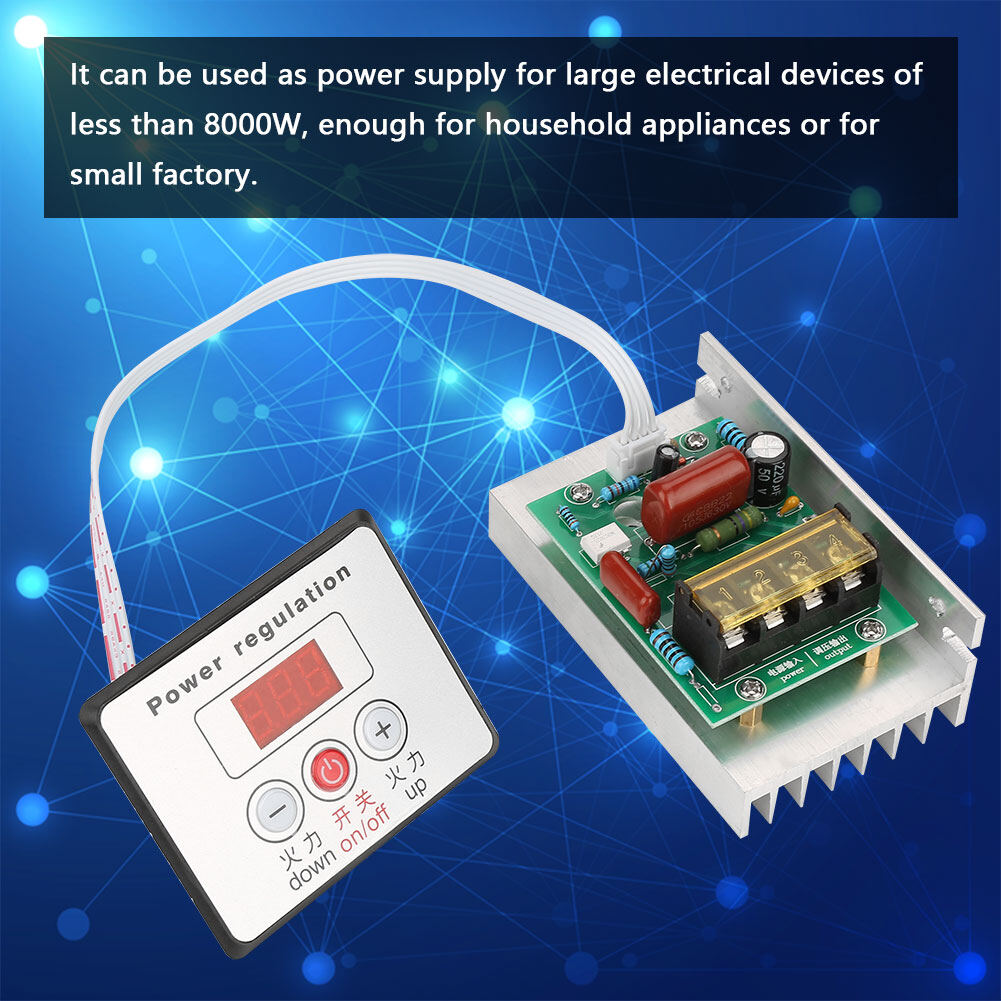

• It can be used as power supply for large electrical devices of less than 8000W, enough for household appliances or for small factory.
• Could be widely used as heat controller on electric stoves, water heaters, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron, etc.

Specification:
Voltage: AC 220V
Max Power: 8000W(instantaneous limit power for impedance load; for long time use, 4000w or lower is recommended)
Voltage Adjustment: 0-100% (nonlinear) (0,30,35,40...100)

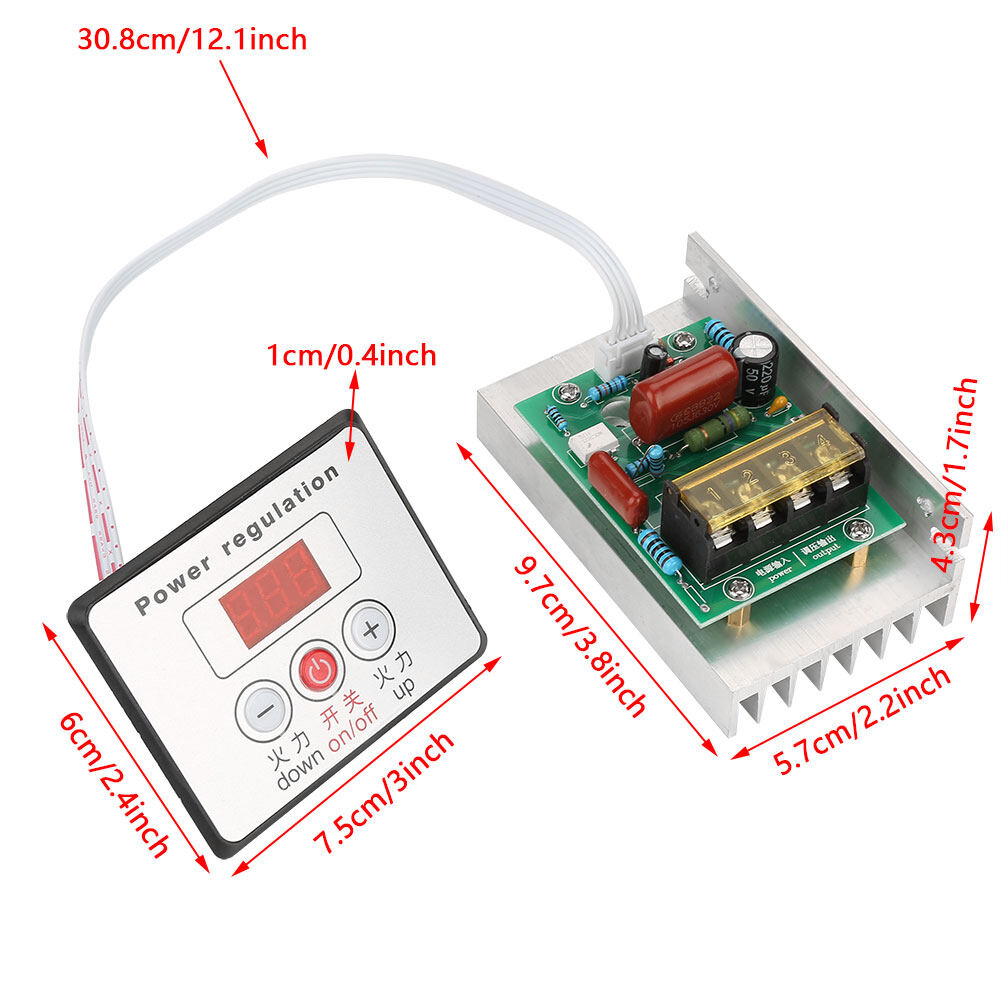

Controller Size: Approx. 9.7*5.7*4.3cm/3.8*2.2*1.7inch
Panel Size: Approx. 7.5*6*1cm/3*2.4*0.4inch
Cable Length: Approx. 30.8cm/12.1inch
Fix Screw Hole Spacing on Panel: Approx. 6*4.5cm/2.4*1.8inch
Weight: Approx. 195g / 6.9oz

Package List:

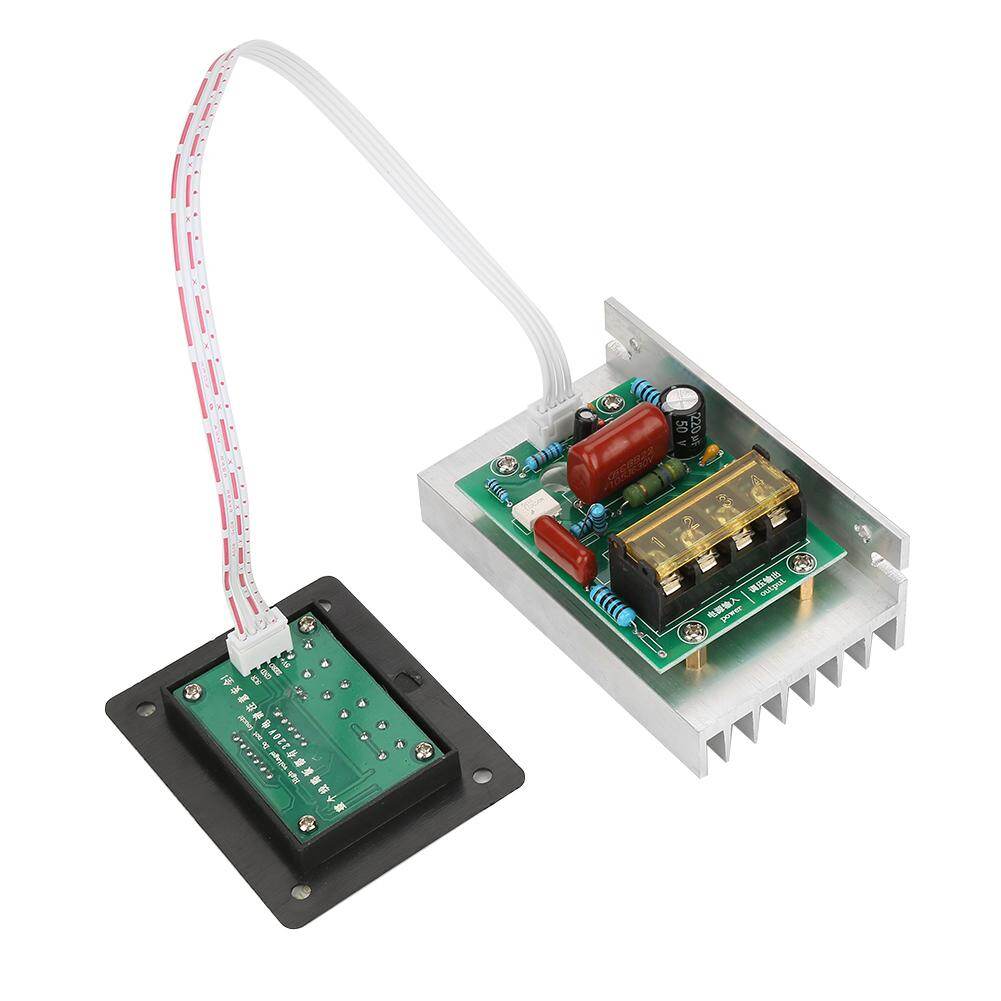

1 x SCR Controller
1 x ABS Panel
1 x Panel Sticker
1 x Cable

Note:
1. AC input, AC output, only for stepping down; voltage can be adjusted only when connected to load; mainly used for resistive load.
2. It cannot replace electric bicycles' battery charger, nor drive electric appliances which use switch power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker with a computer), and cannot drive induction cooker, energy saving lamp.
