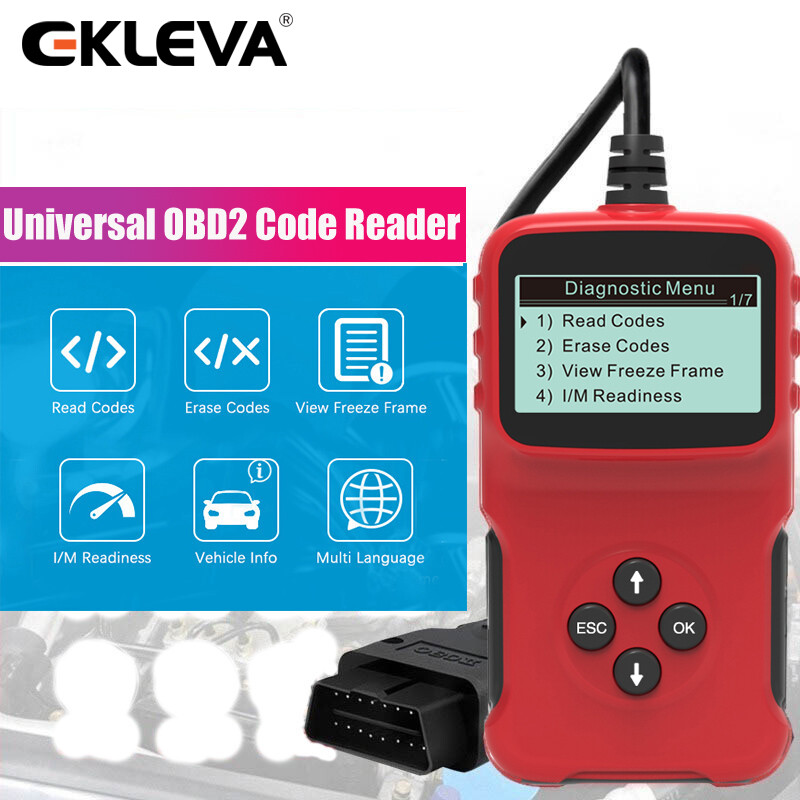

Đầu Đọc Máy Quét Chẩn Đoán Xe Ô Tô Cầm Tay EKLEVA OBD2 OBDII, Mã Lỗi Công Cụ Sửa Chữa Ô Tô OBDII Phổ Thông Công Cụ Chẩn Đoán

EKLEVA OBD2 OBDII Auto Car Diagnostic Scanner Handheld Car Diagnostic Repair Tool Automotive Erase/Reset Fault Codes Reader

Description:

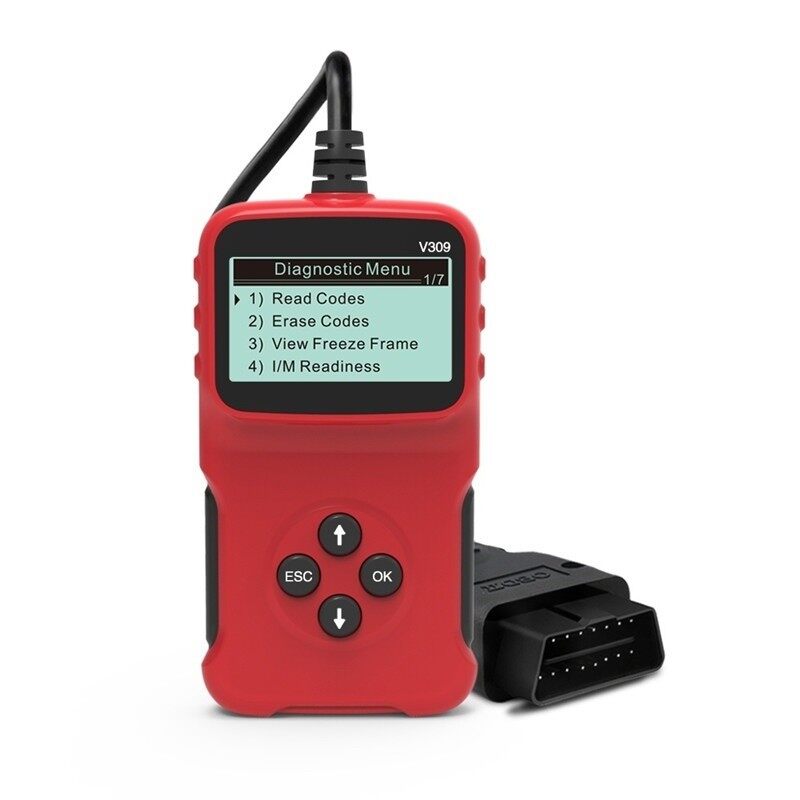

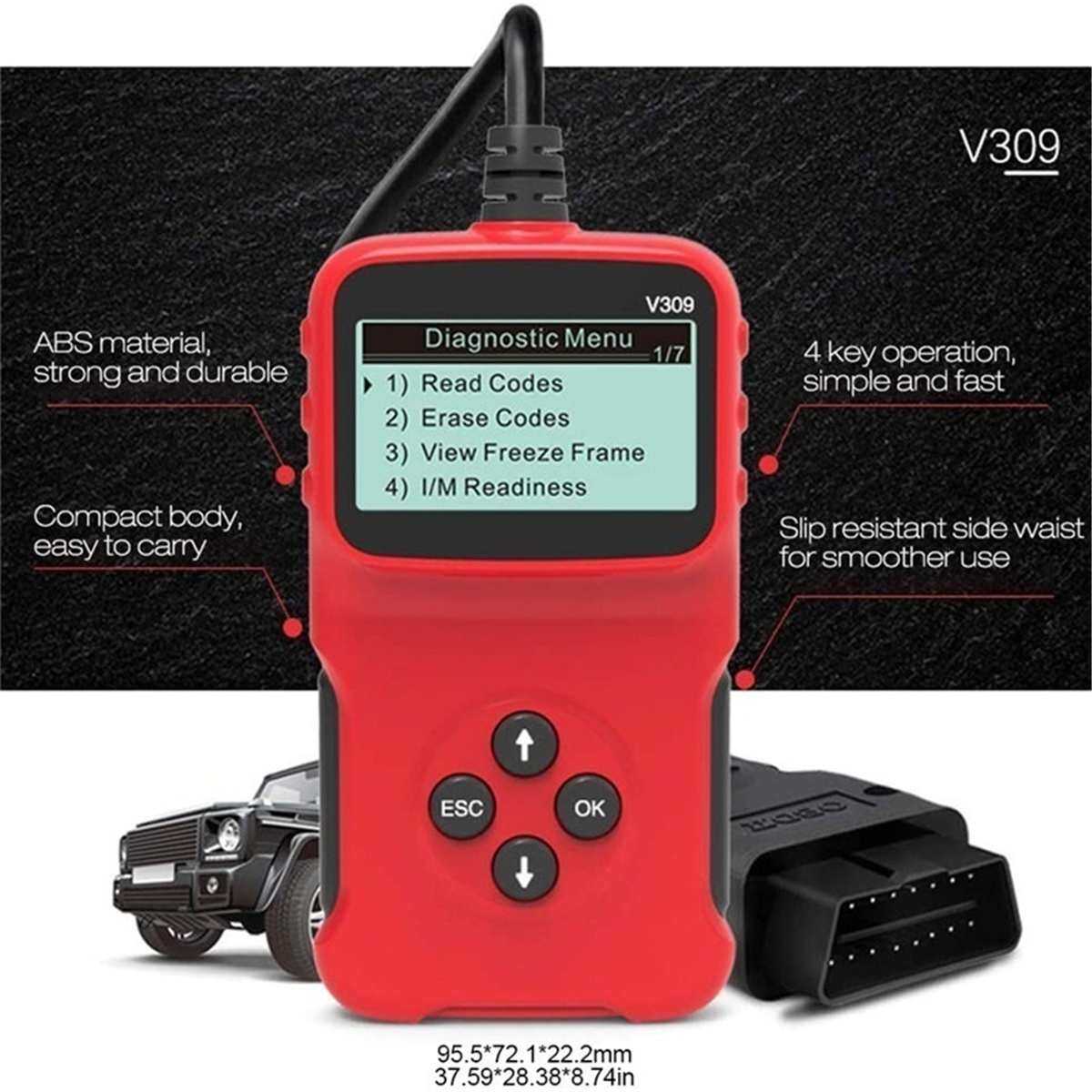

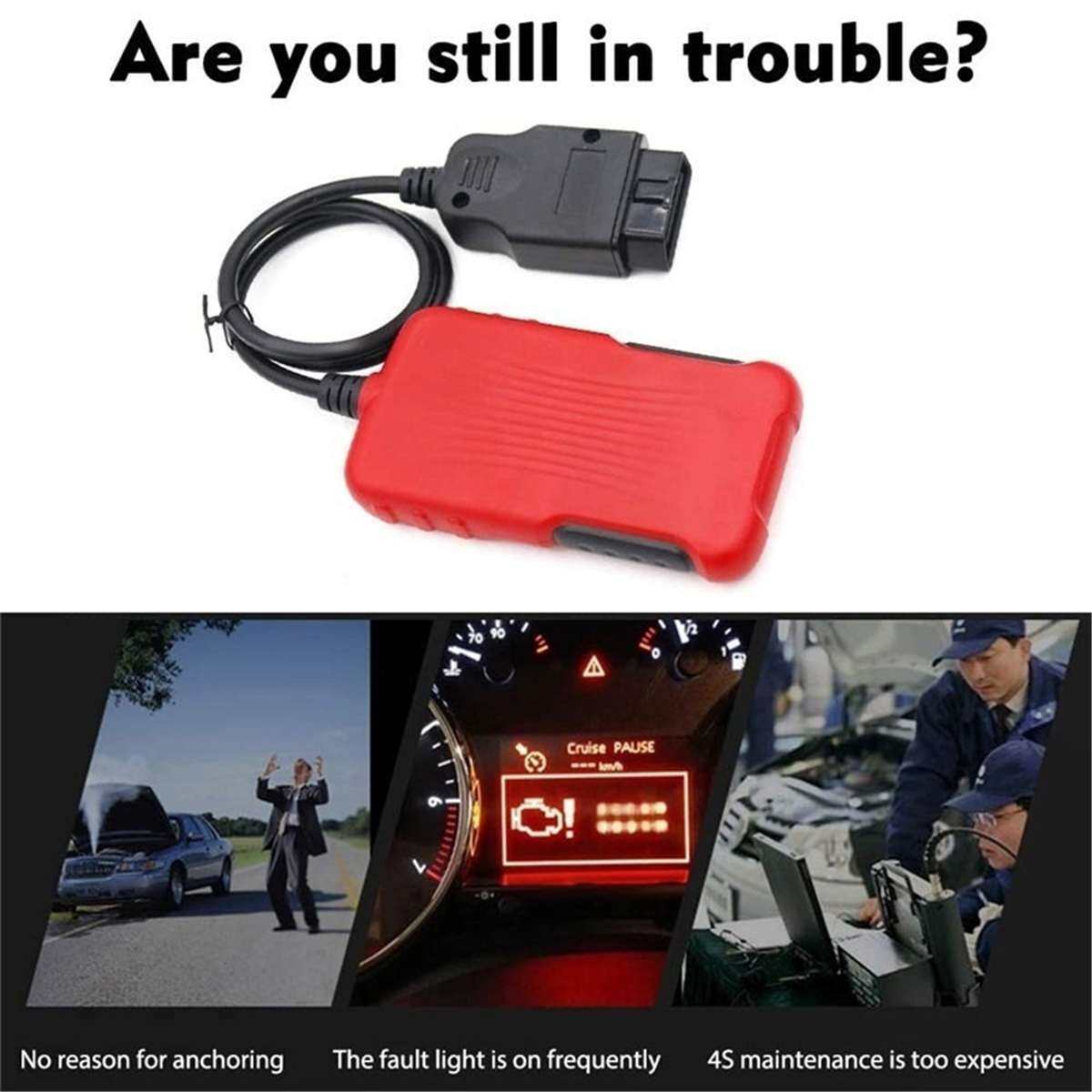

Hand-held OBD2 tool---V309 makes it an easy way to saves time and money on repairs - find out what's wrong before repair
V309 offers a solution for someone who worried about car maintenance.
The easy-to-use device, which applies to drivers to monitor their vehicles' health.


Features:

1. Read the error diagnosis code-general and manufacturer-specific, and display their meaning (the database has more than 3000 common code definitions)

2. Clear the error code and turn off the MIL ("Check Engine" indicator)

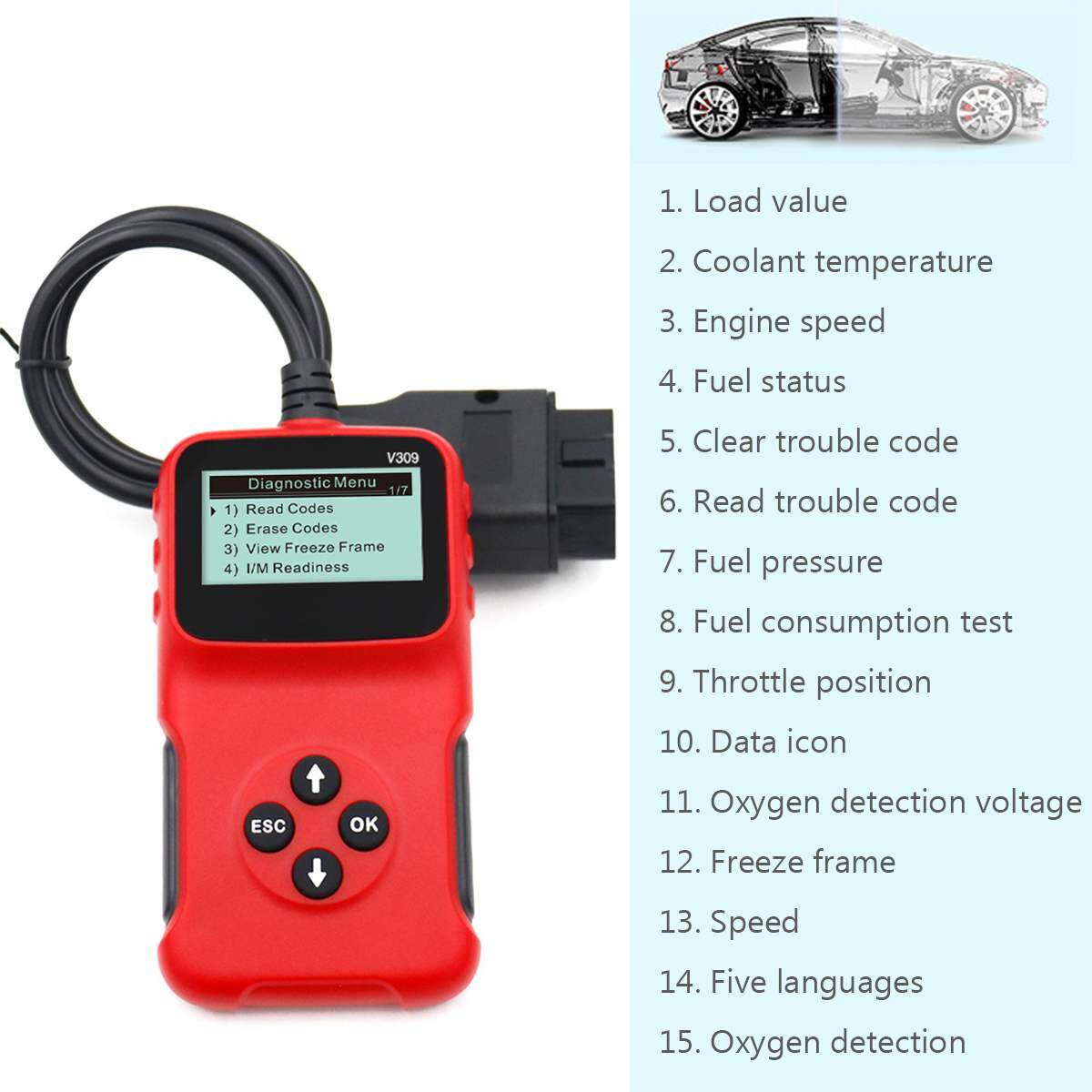

3. Display current sensor data, including:

• Engine speed per minute (RPM)
• Calculated load value
• Coolant temperature
• Fuel system status
• Speed
• Throttle absolute position
• With short-term fuel status
• Associated oxygen detection voltage
• Fuel system status
• Fuel pressure
• Fuel consumption monitoring
• Data graph display and logging
• Freeze frame data
• Continuous and discontinuous oxygen detection results

4. Support 5 languages

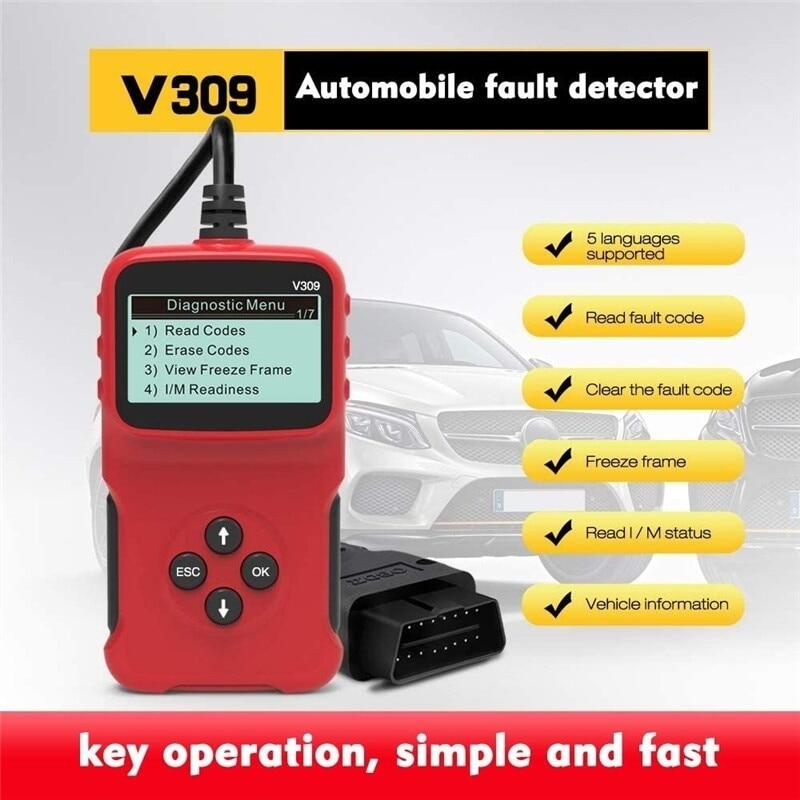

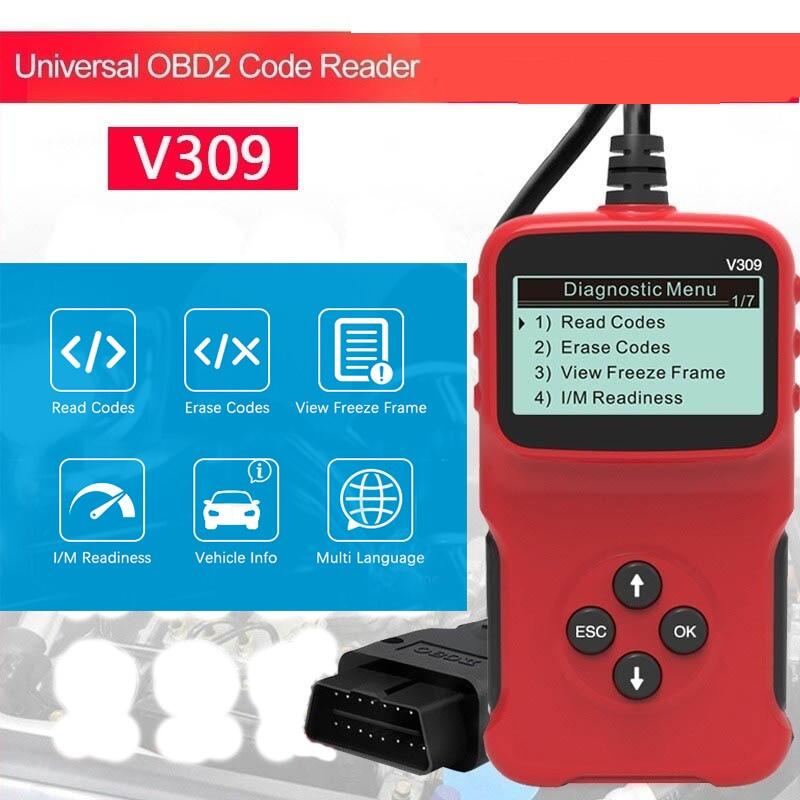

V309 Function:
1. Reads & clears trouble code
2. Reads live data stream
3. Displays I/M readiness Status
4. Detects OBD-II Freeze Frame Information
5. Retrieves Vehicle information (VIN, CID, and CVN)
6. Works on most 2001 and later OBD II compliant US, European and Asian vehicle
7. Multi-Languages: English, French, German, Spanish, Dutch
8. Easily determines the cause of the check engine light.
9. Turns off check Engine light, clear codes, and resets monitors

Features:
1. Easy to handle it, no need to install the software.
2. Plug-and-play interface and highly reliable
3. Large LCD screen easy to read

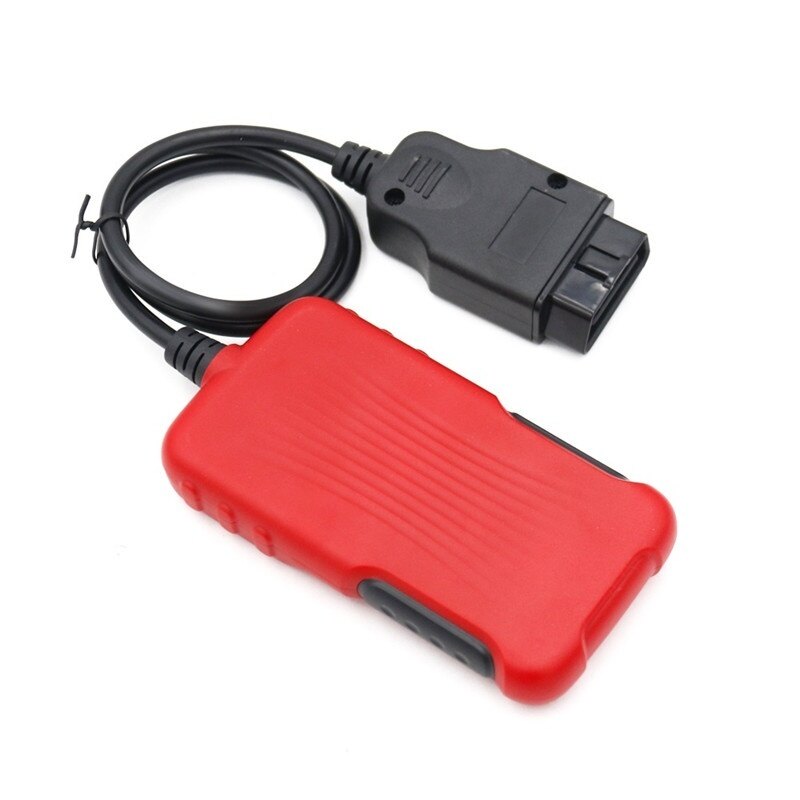

4. No batteries, supply power through detachable OBDII cable
5. Small size and conveniently fits in your palm
Main control: St

Display: backlight, 128 x 64 pixel display
Operating temperature: 0 to 50 C (32 to 122 f)
Storage temperature: - 20 to 70 C (- 4 to 158  f)
Voltage: 8v-15.5v from vehicle battery
Working current: 80mA
Package Size: 20 * 13 * 6cm / 7.87 * 5.12 * 2.36in

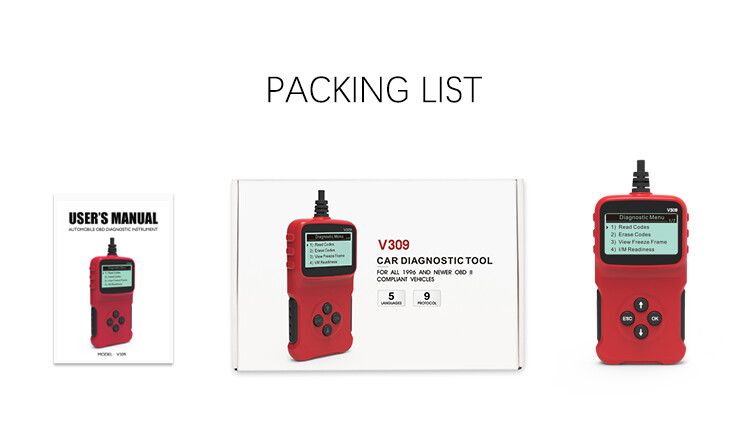

Packing List:

• 1 * Scanner
• 1 * OBDII Cable
• 1 * User Manual

Notes:

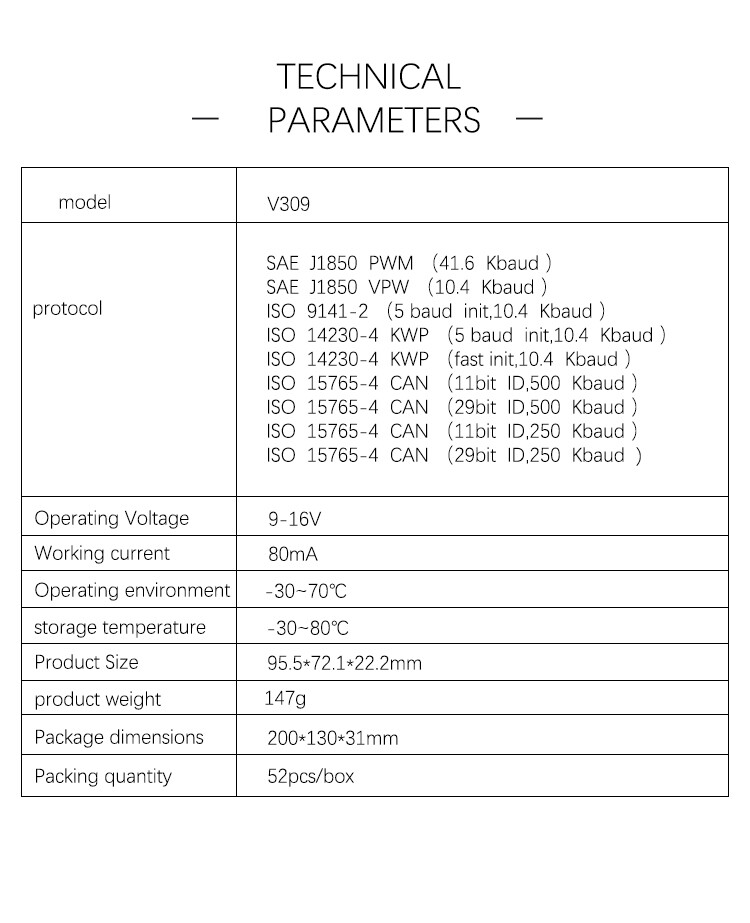

Support agreement:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
