Mạch thu tín hiệu Eachine TX805 Mini 5.8G 40 kênh công suất 25/200/600/800MW có thể chuyển đổi - INTL

Description

Specification:
Brand name: Eachine
Model: TX805
Item name: FPV Transmitter VTX
Frequency: 5.8G
Channels: 40CH

Input  voltage: 7V~24V

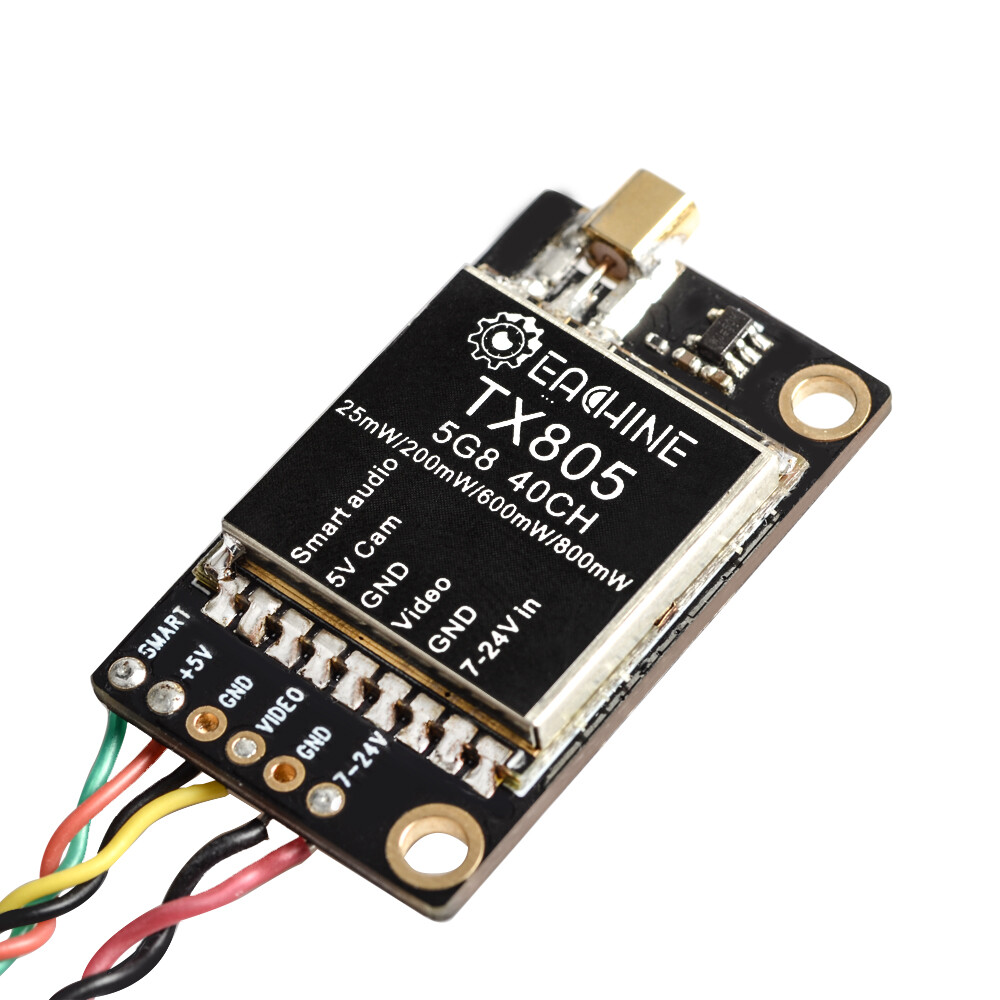

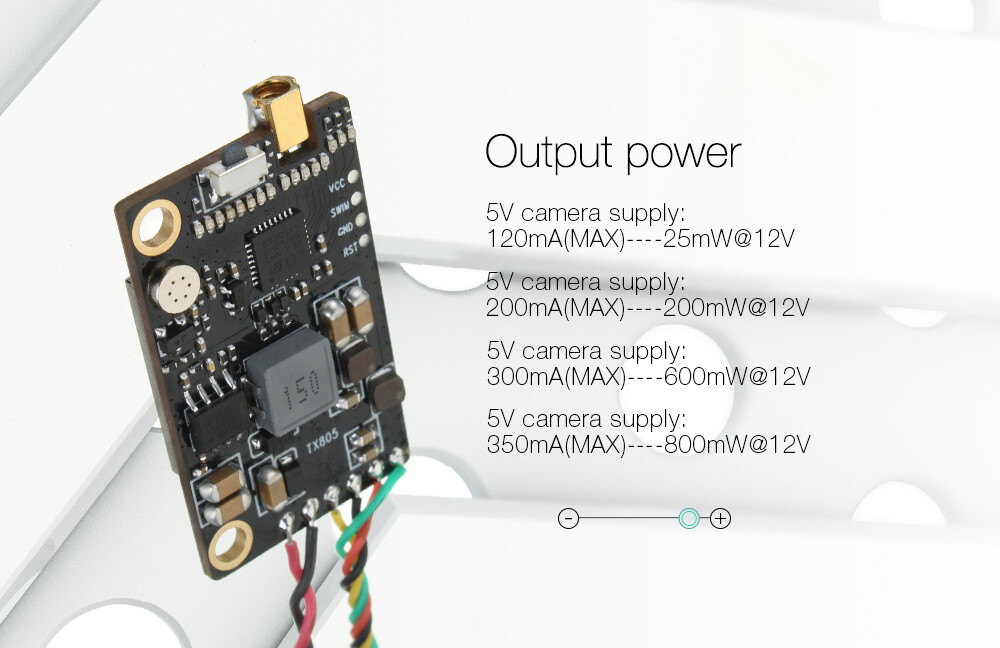

5V camera supply: 120mA(MAX)----25mW'12V

5V camera supply: 200mA(MAX)----200mW'12V

5V camera supply: 300mA(MAX)----600mW'12V

5V camera supply: 350mA(MAX)----800mW'12V

Extra features: Smart audio

Power supply: 5V output for Camera

Output power: 25mW/200mW/600mW/800mW switchable

Antenna connector: MMCX

Cable connector: Solder pads

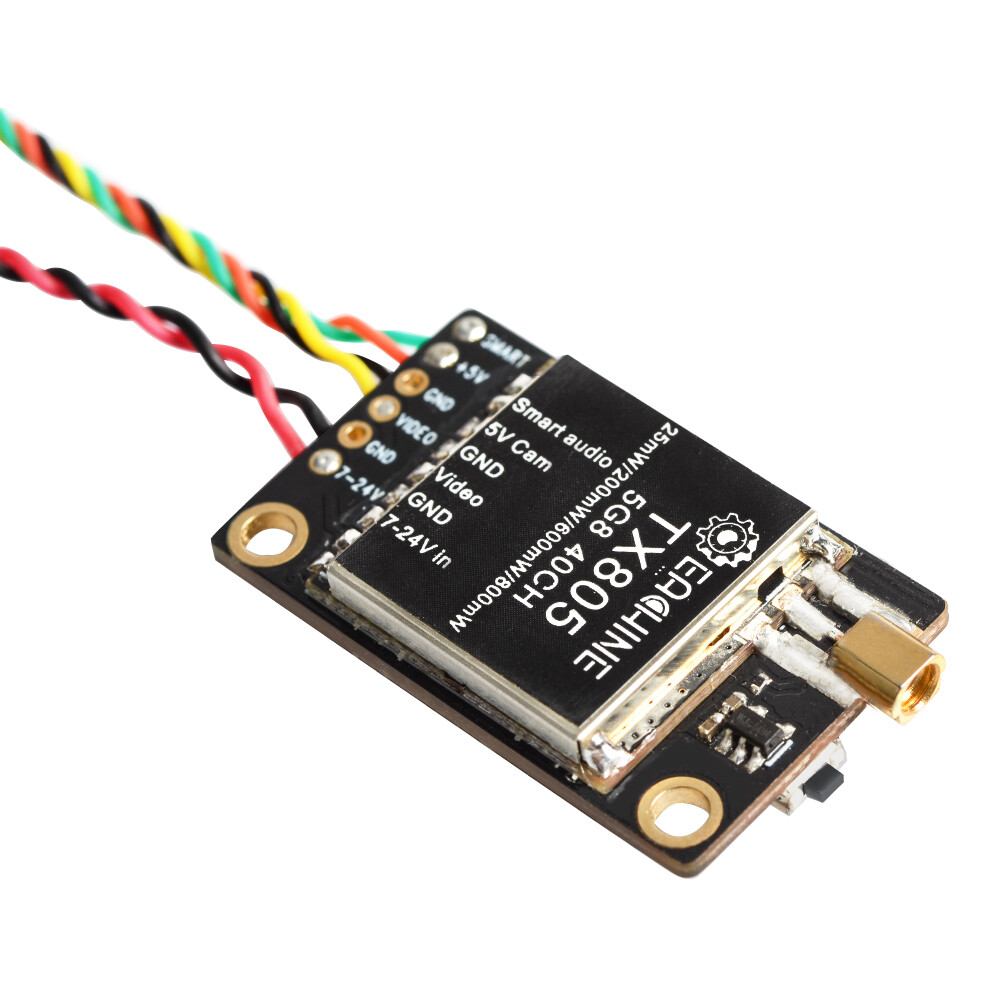

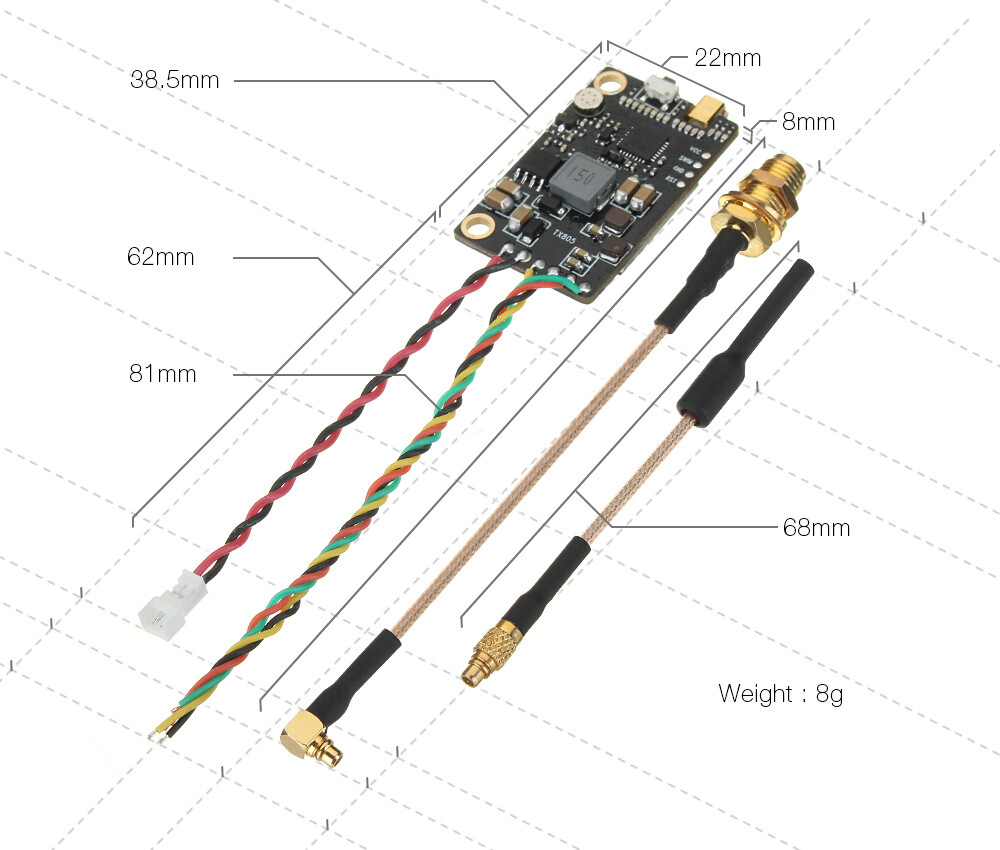

Dimensions: 36mm*22mm*5mm,30.5 stackable hole

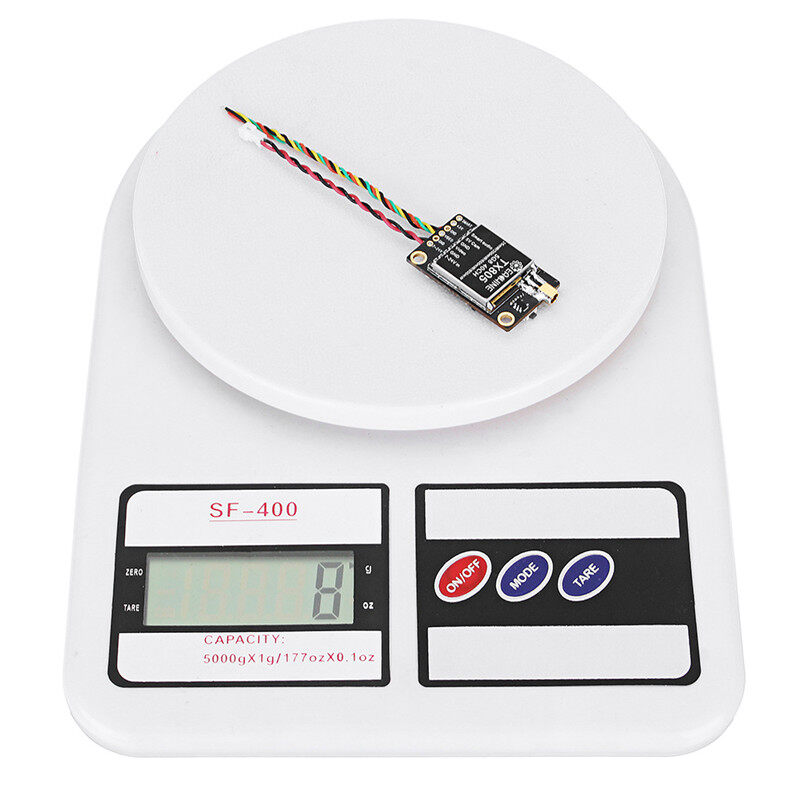

Weight: 8g(excluding antenna)

Features:

1. Pitmode

2. Support Smart audio

3. 40 channels with MIC

4. Power failure memory

5. 25/200/600/800mw power switchable
6. Support OSD Configuring via Betaflight FC
7. One button frequency and power setup

8. 7-24V wide input voltage with 5V for camera,12V typical corresponding current value:

    25mw-120mA 200mw-200mA 600mw-300mA 800mw-350mA
9. Solid MMCX antenna connection and MMCX brass dipole antenna

Button control Channel select mode

Channel select

Select channels by simple short presses.

Blue LED light on stands for CH1,short presses to change 8 channels sequentially.

For CH2/3/4/5/6/7/8,Blue LED flicker once,it won't light on.

Notice:Blue LED only light on for CH1

Band select

Press button for 2S,Red LED will flash,then short presses to select 5 bands.

Power select

Press button for 4S,Red LED will flash,then select power by simple short presses to select 25mW/200mW/600mW sequentially,For 200mW, Green LED flicker once,it won't light on;For 600mW Blue LED flicker once,it won't light on .Press the button again ,Red LED,Green LED and Blue LED lights together,Represents the highest power 800mW.

Notice:Red LED only light on for 25mW.

Pit Mode(0.01mW)

While in Pit Mode you can change channels and set power levels , but none of these changes will take effect until you quit Pit Mode.By default ,Pit Mode will send a very weak signal.

Two ways to exit pit mode:

Press button 12S until all 16 LED turned off and light on again to exit pit mode,or you can exit pit mode via Betaflight OSD.

Notice:The VTX has memory for settings,To change the settings ,please repeat steps as above.

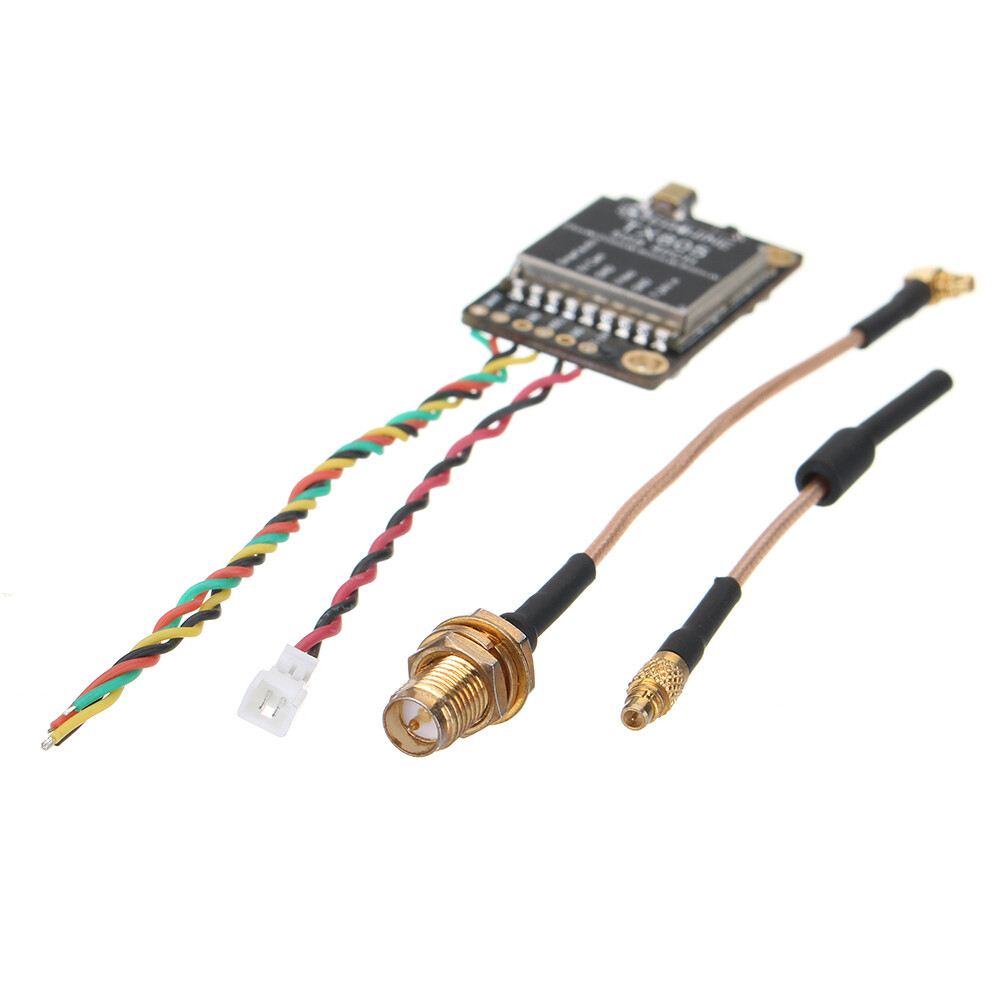

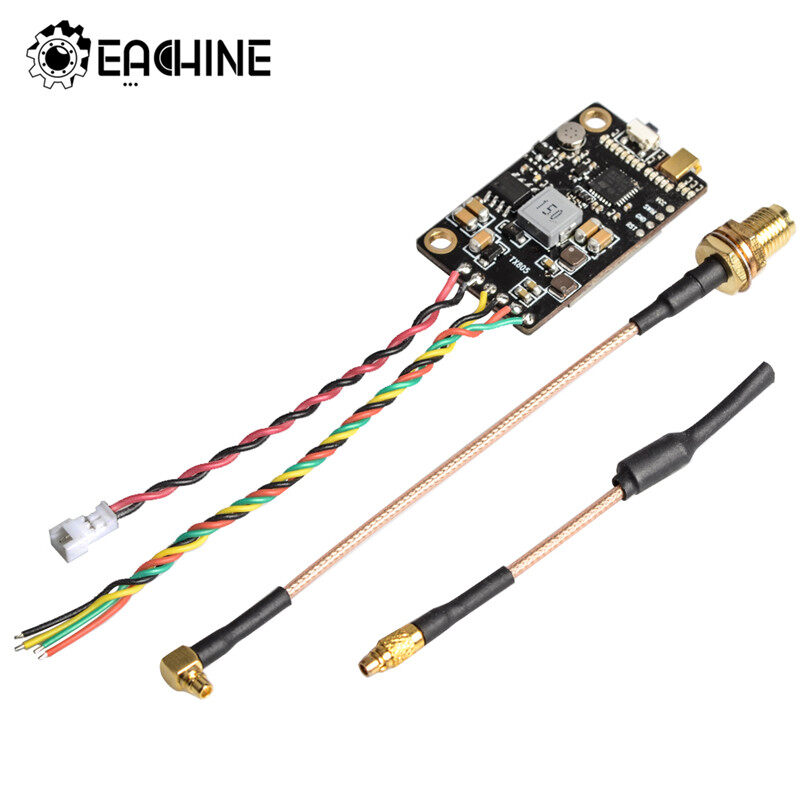

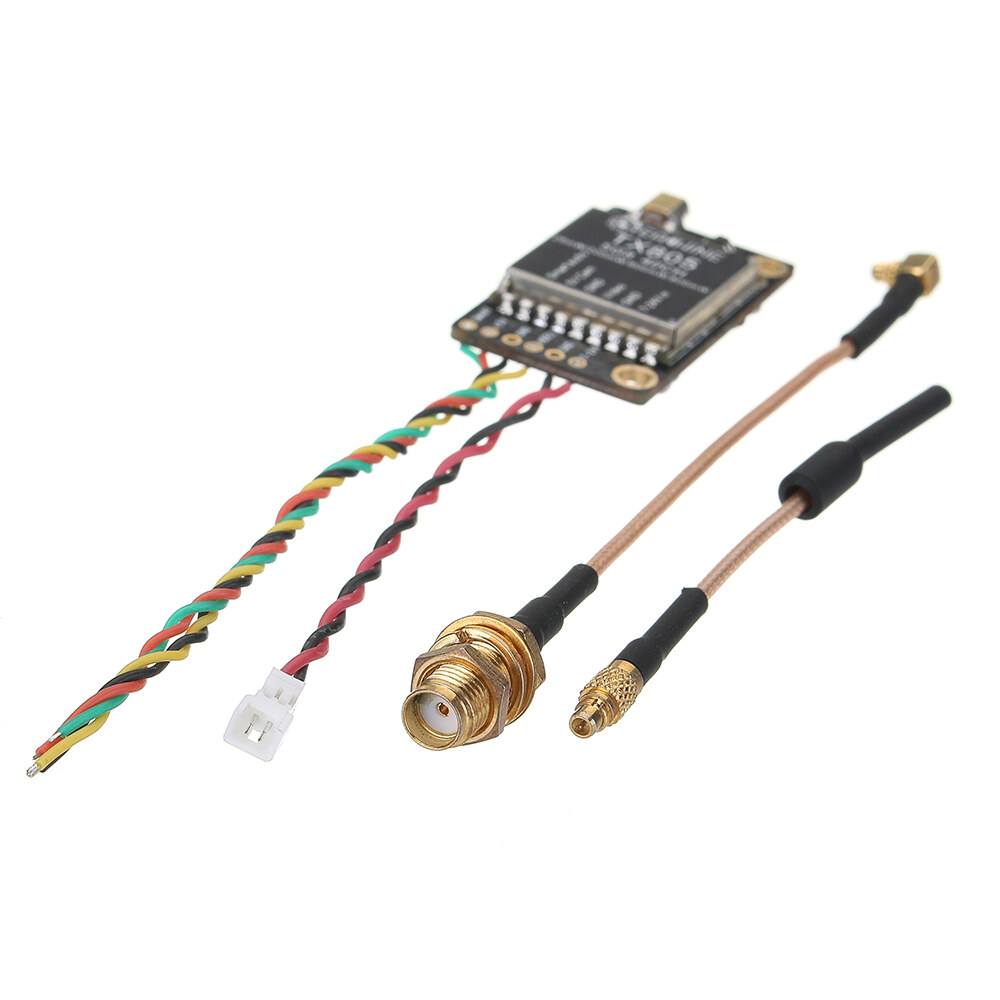

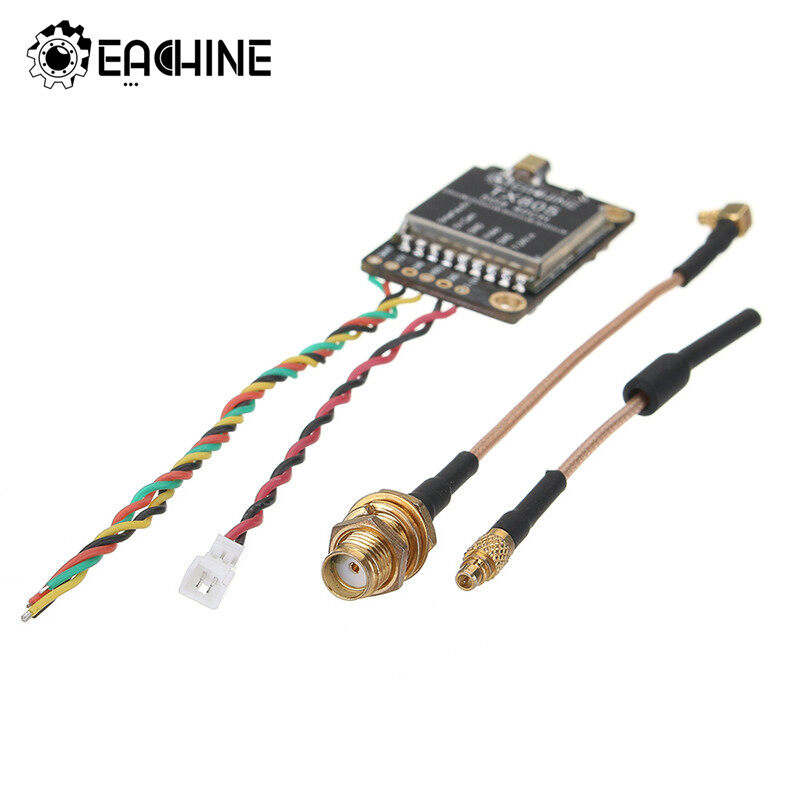

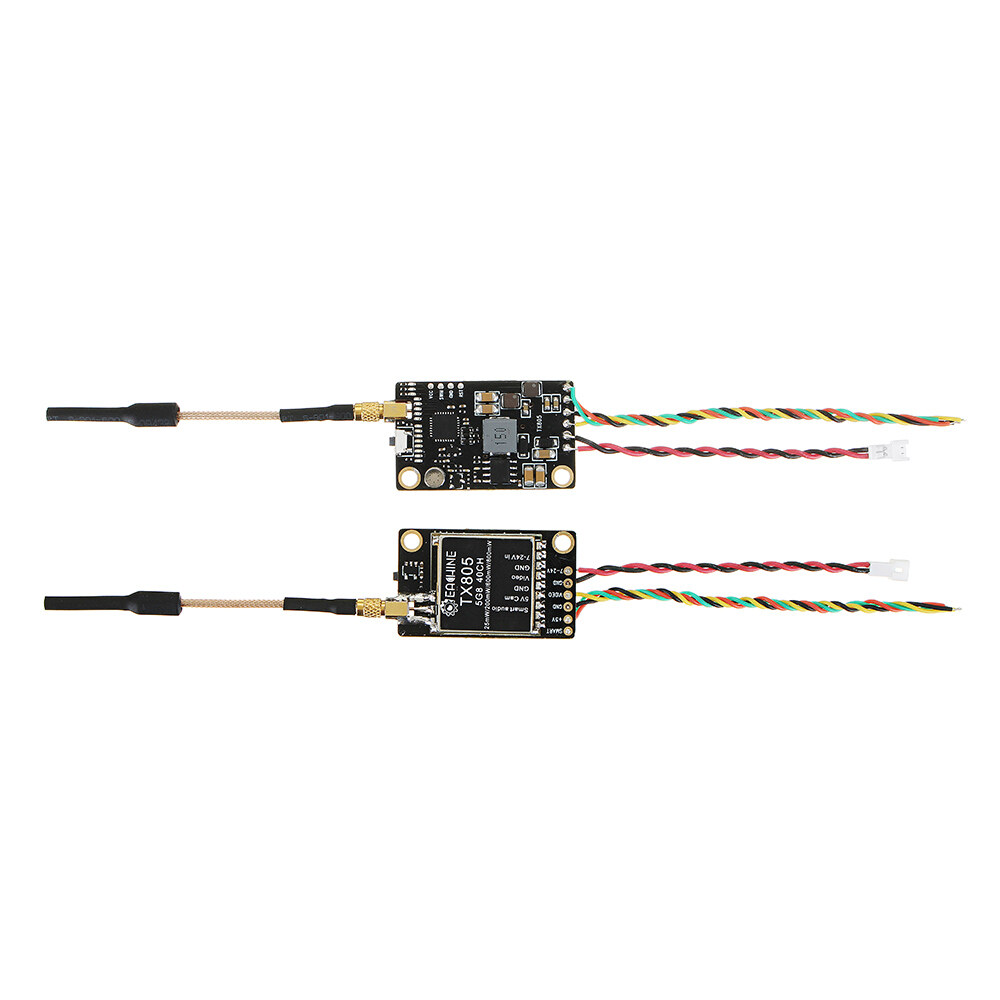

Package included:
1 x Eachine TX805 5.8G 40CH 25/200/600/800mW FPV Transmitter VTX

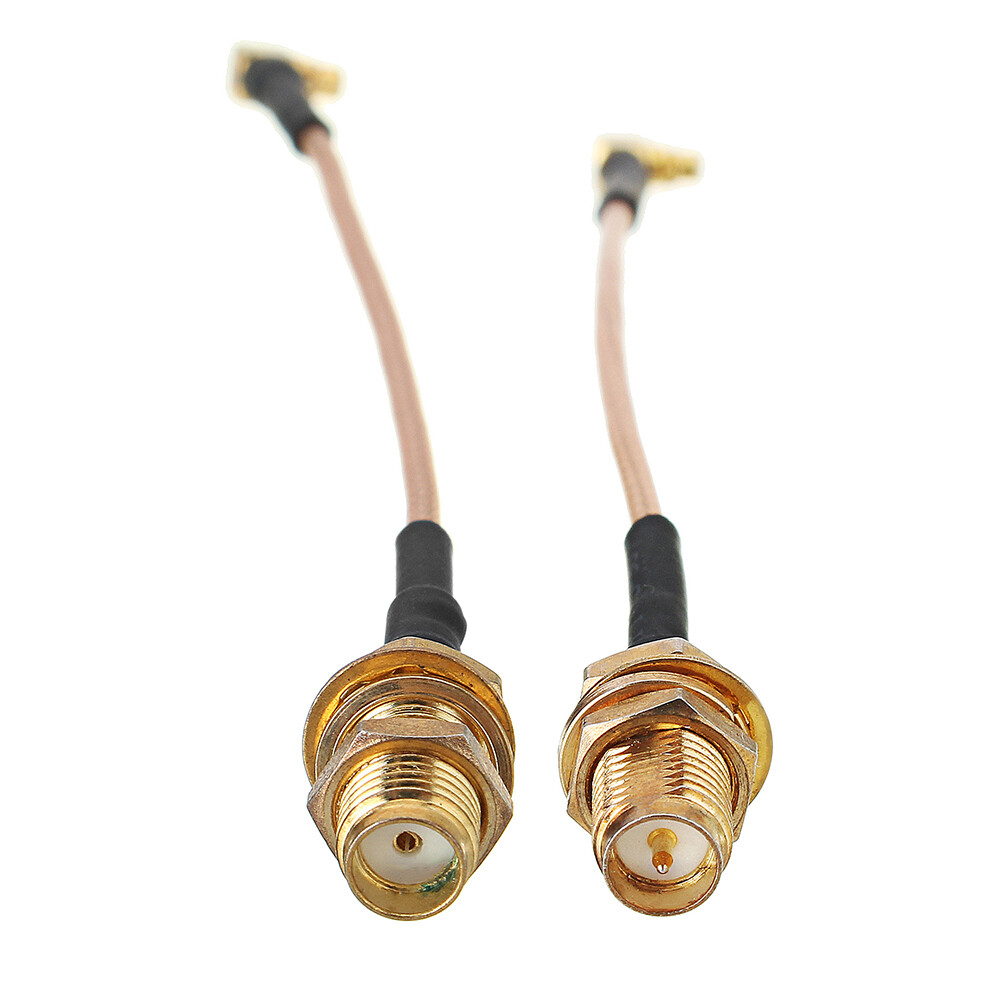

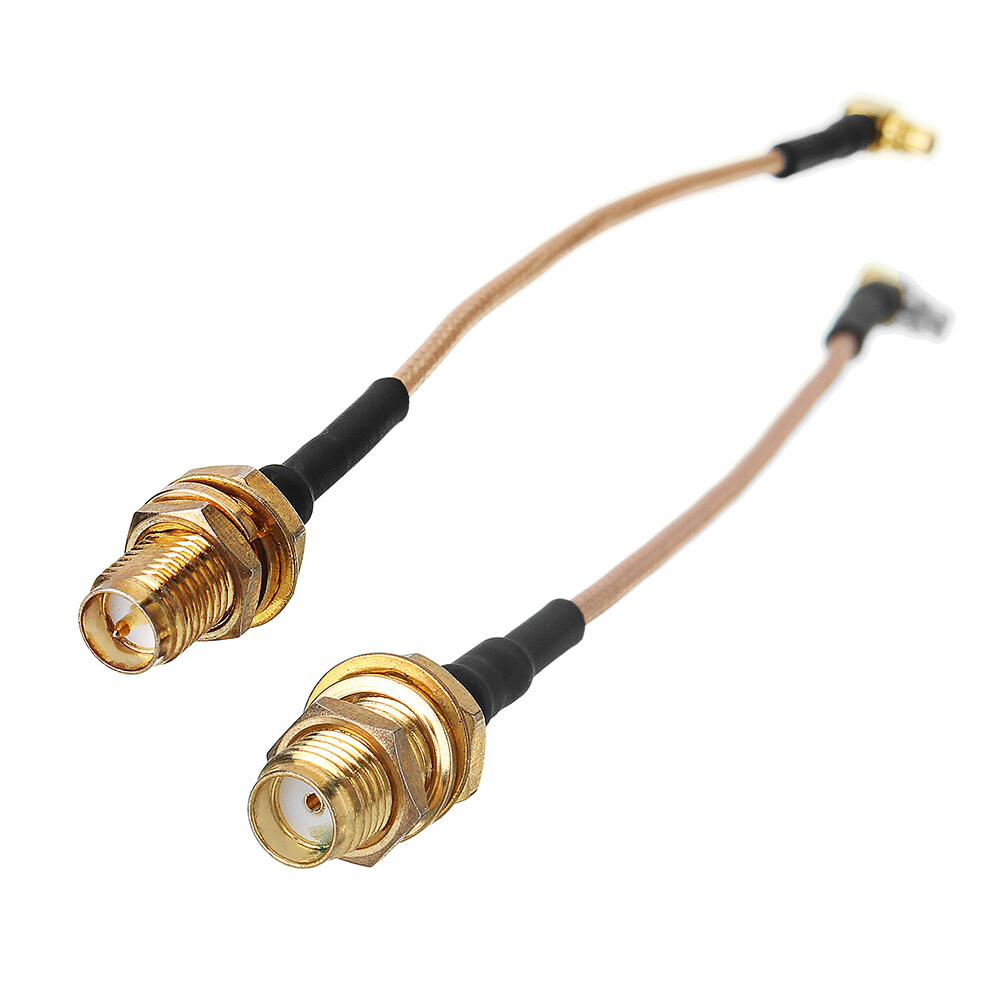

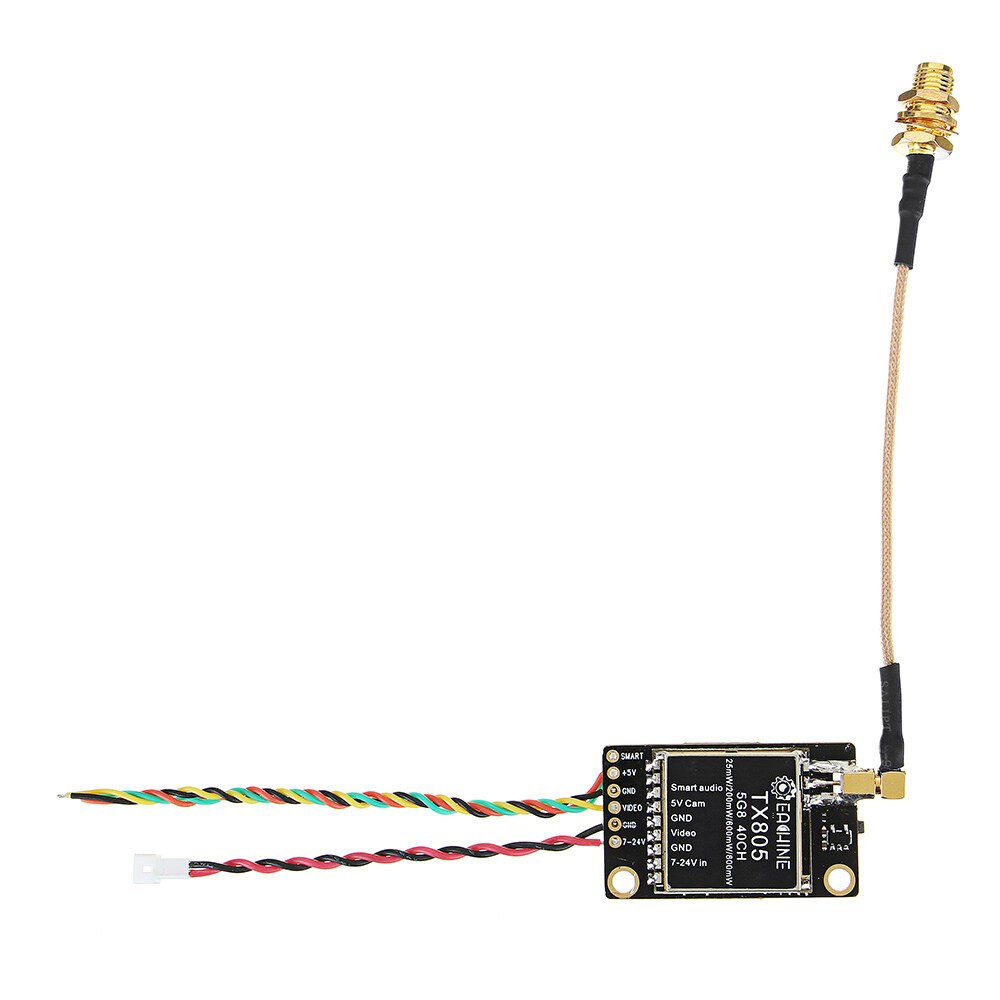

1 x Adapter connector cable (RP-SMA or SMA Female)
1 x MMCX Pigtail Antenna

1 x Instructions
