1.Parameter

Features:

Used to sense the level of liquid within a tank.

Light weight and simple working principle, high reliability.

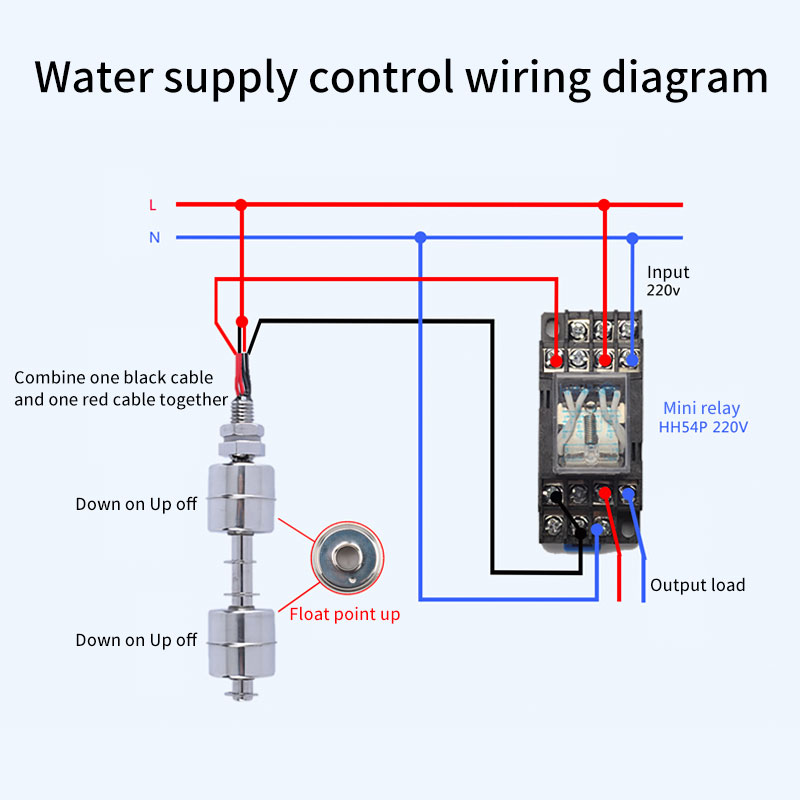

The switch may activate a pump, an indicator, an alarm, or other device.

This float switch is a simple structure, easy installation liquid level controller.

Widely used in electronic, electrical, chemical, water treatment, drainage and other fields.

The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank, depending on whether you for wish to detect the water's rise or fall.

Specification:

Color: Silver

Material: Stainless Steel

Max. Contact Rating: 10W / 50W

Max. Switching Voltage: 240V AC

Max. Breakdown Voltage: 220V DC

Max. Switching Current: 0.5A

Max. Carry Current: 1A

Max. Contact Resistance: 100mΩ

Operating Pressure: 10kg/cm

Max. Pressure: 0.2 Mpa

Applicable Proportion: 0.75

Operating Temperature: -10 ~ +120℃

Switch Operation: Reversible

Wire: PTFE High Temperature Line

Installation Method: Vertical Mounting

Thread Diameter: 10mm / 0.39 inch

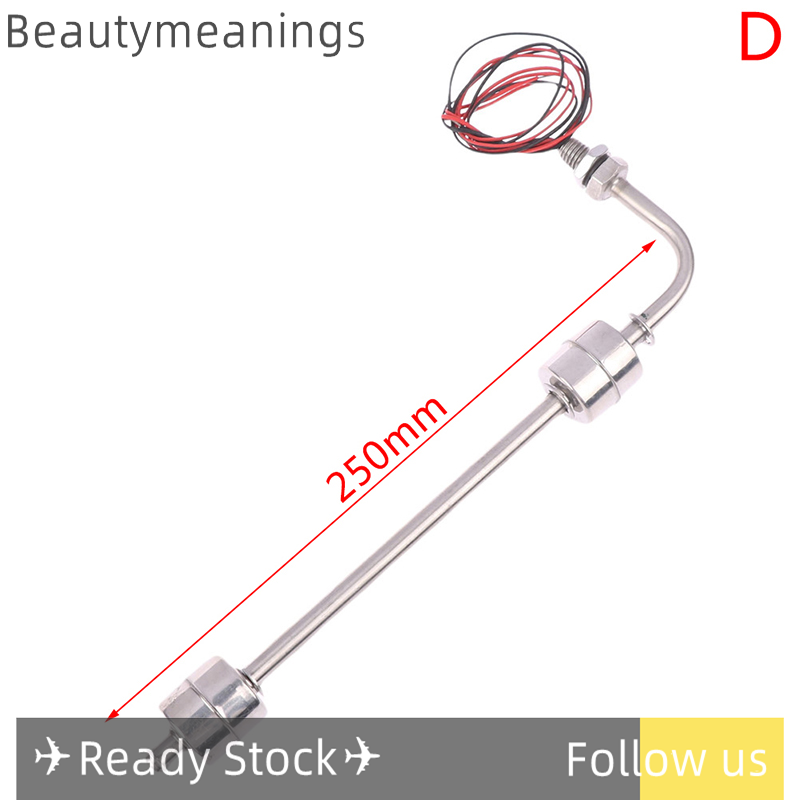

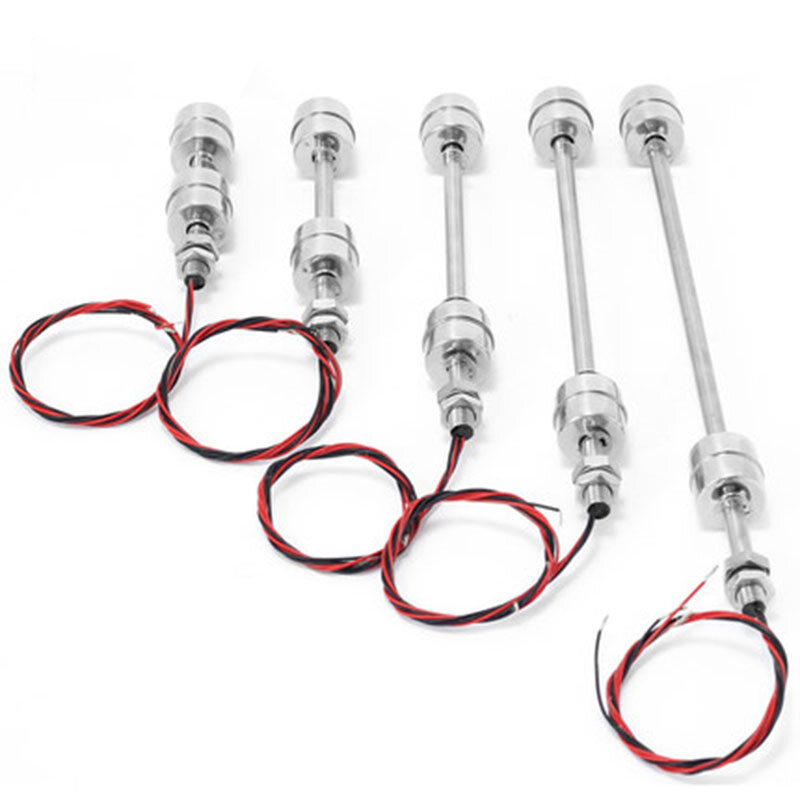

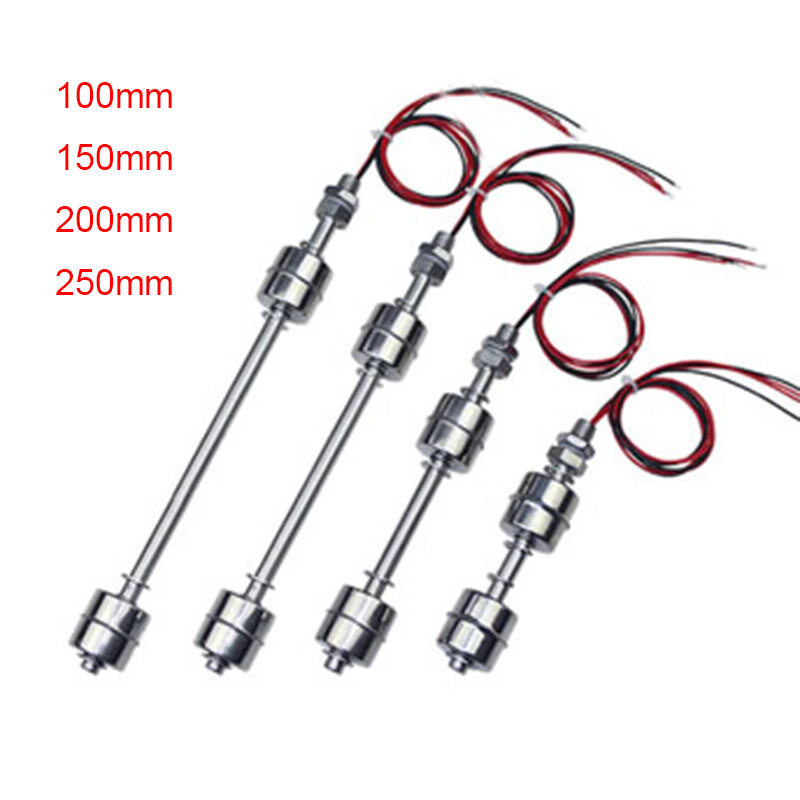

4 Size Optional: 100mm / 3.94 inch

150mm / 5.91 inch

200mm / 7.87 inch

250mm / 9.84 inch

Package Included: 1 x Floating Switch

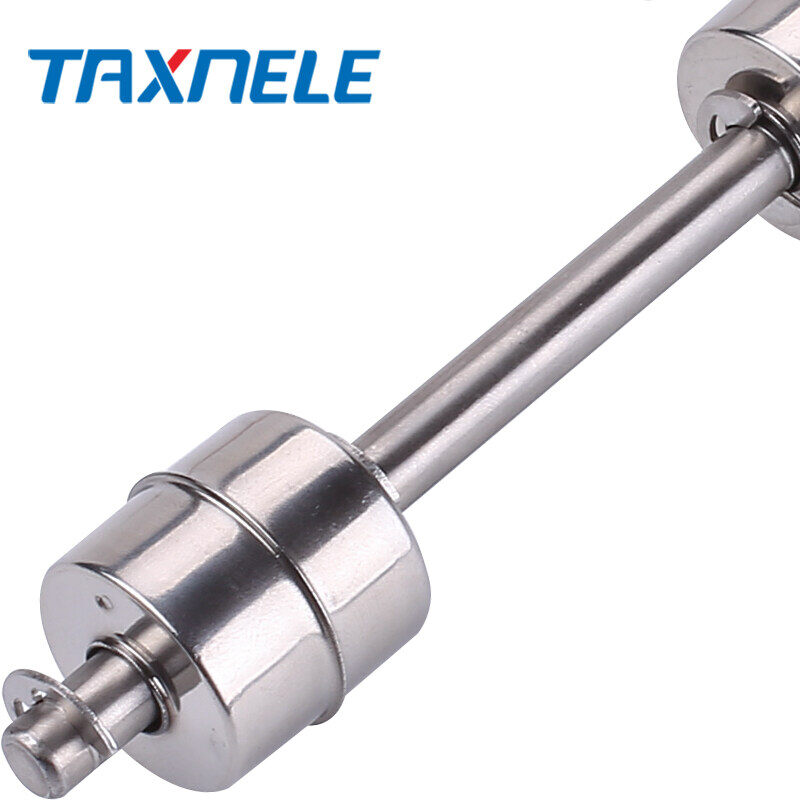

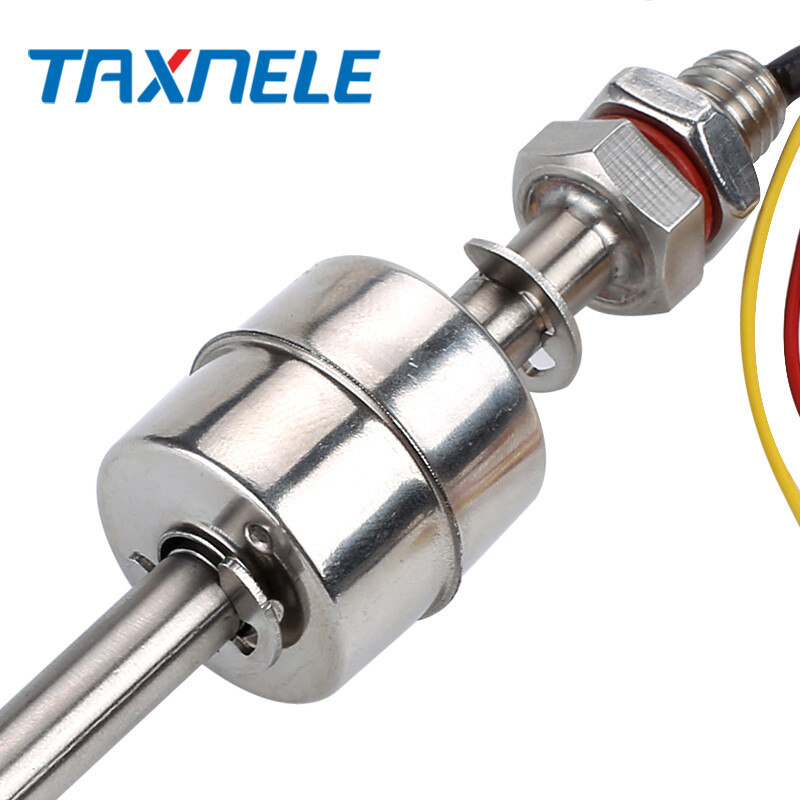

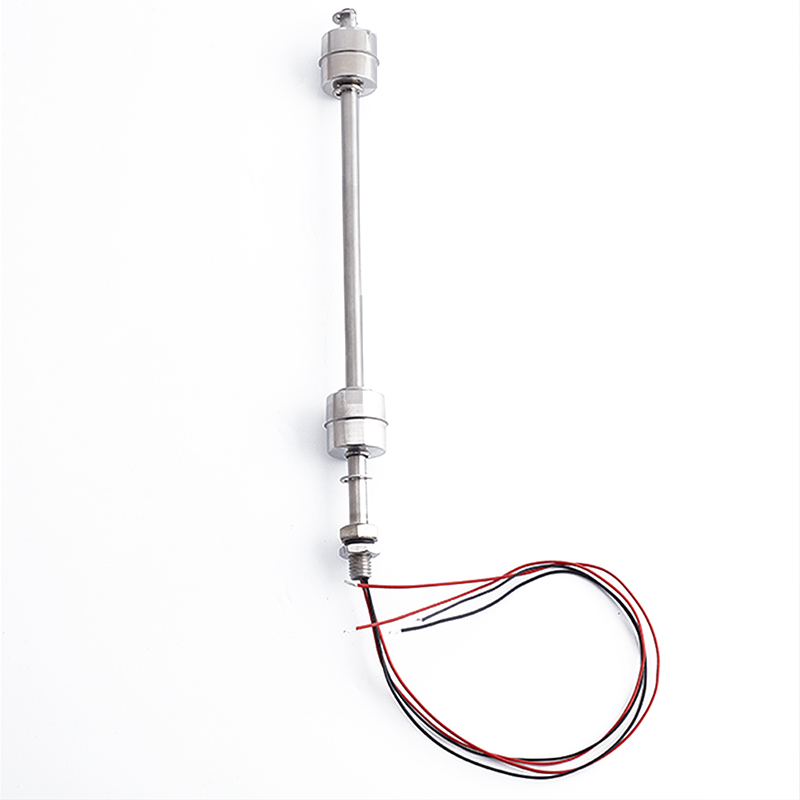

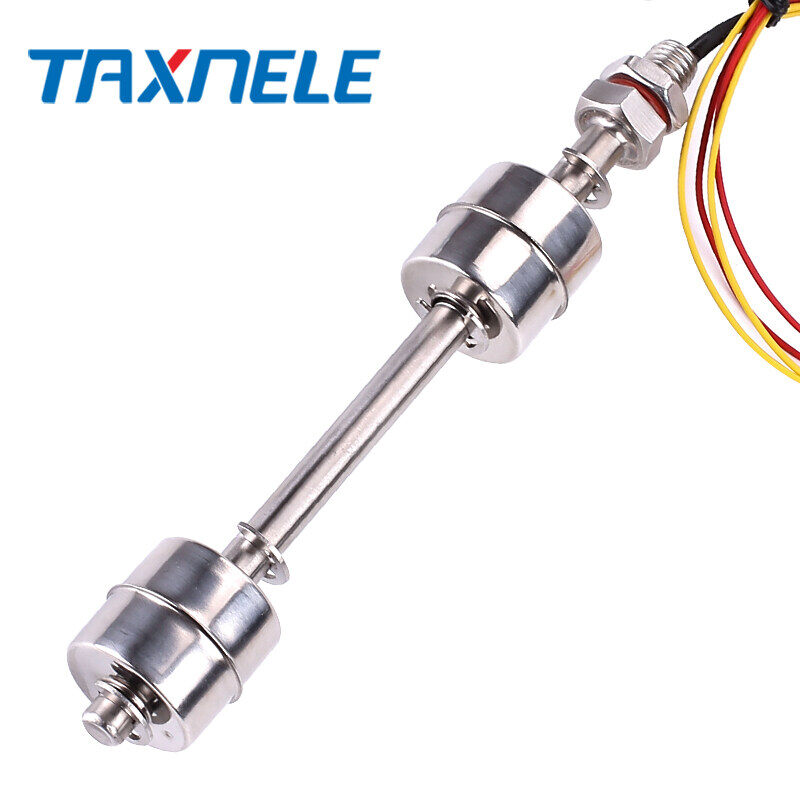

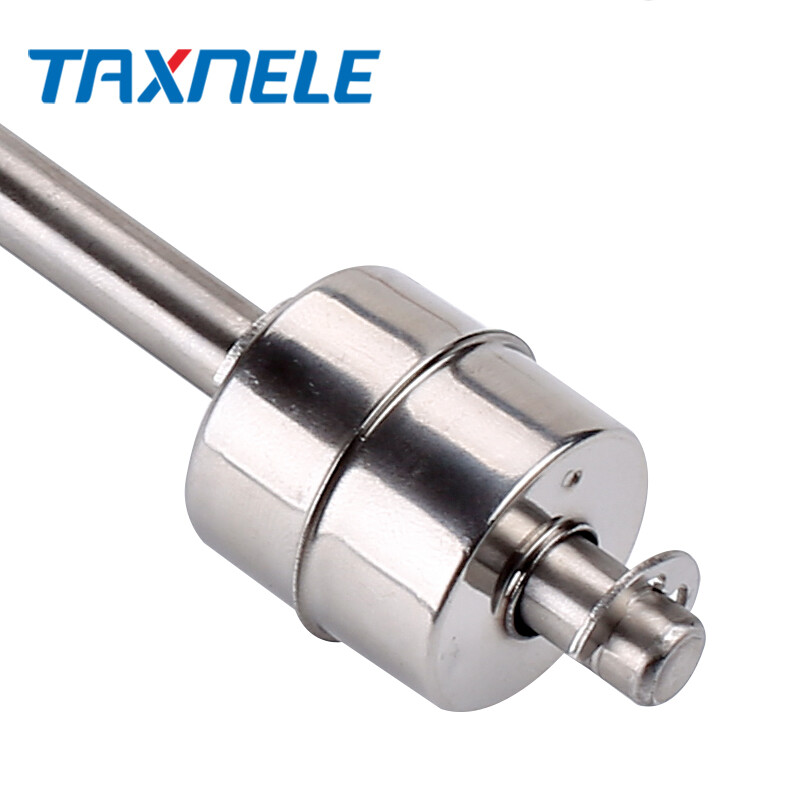

2.Product display
