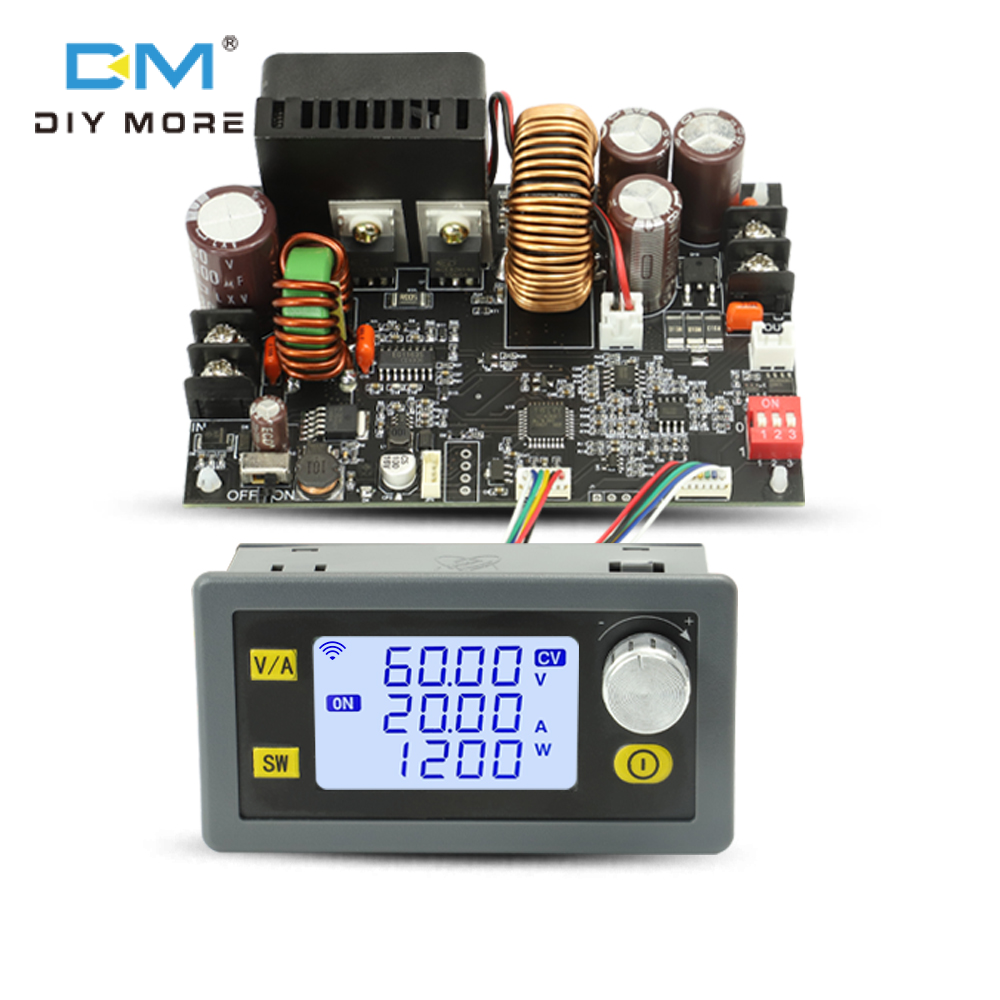

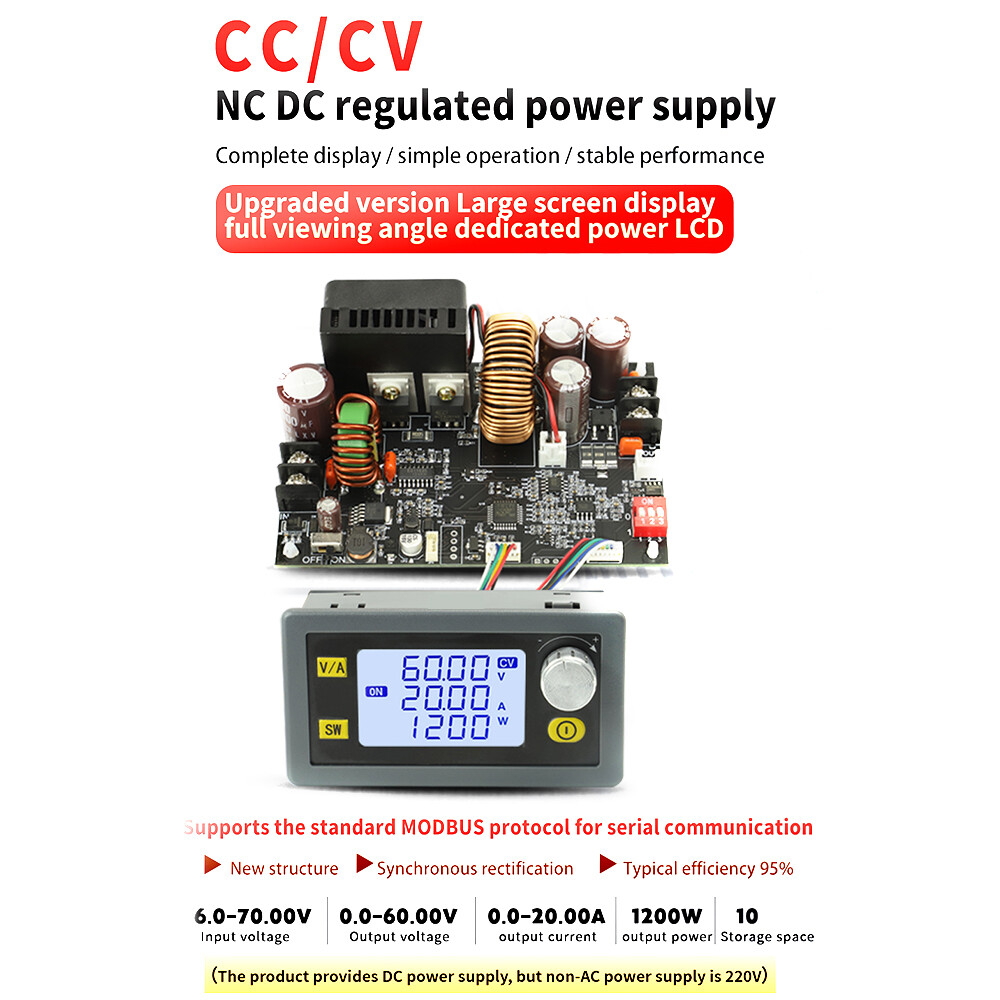

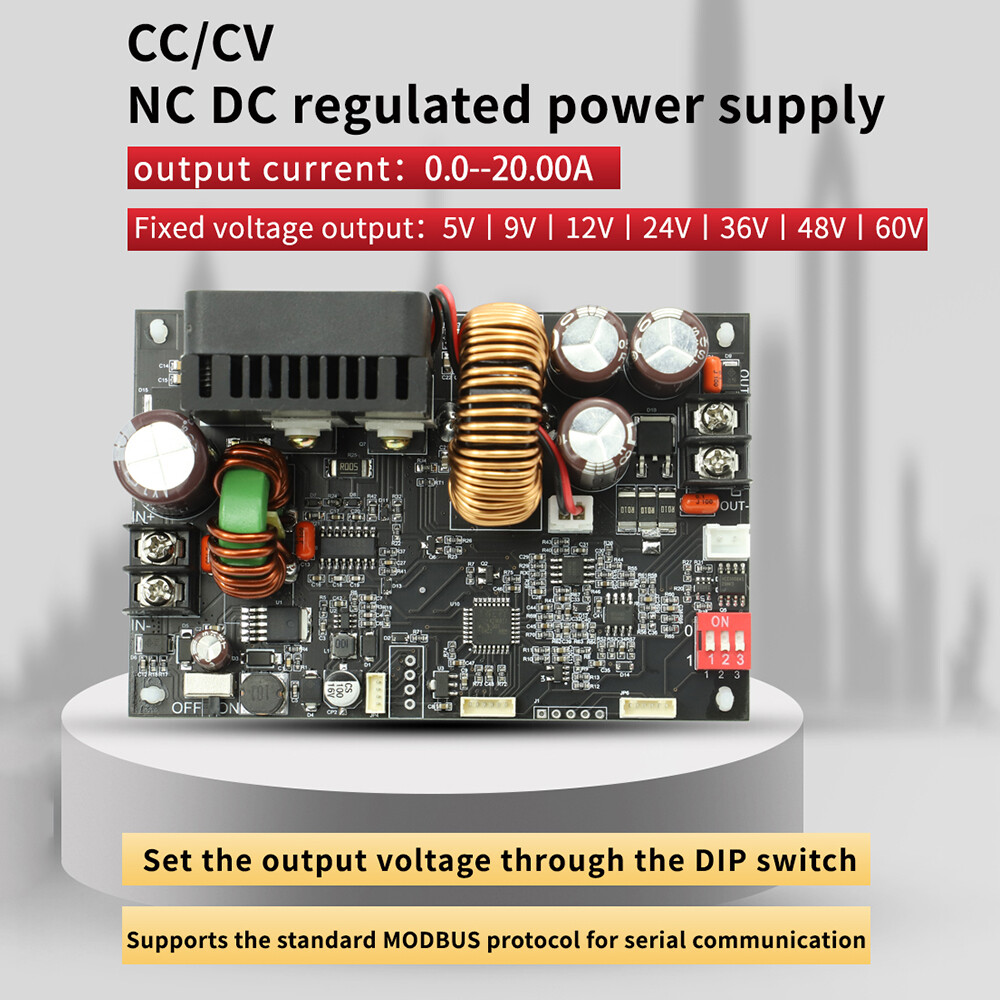

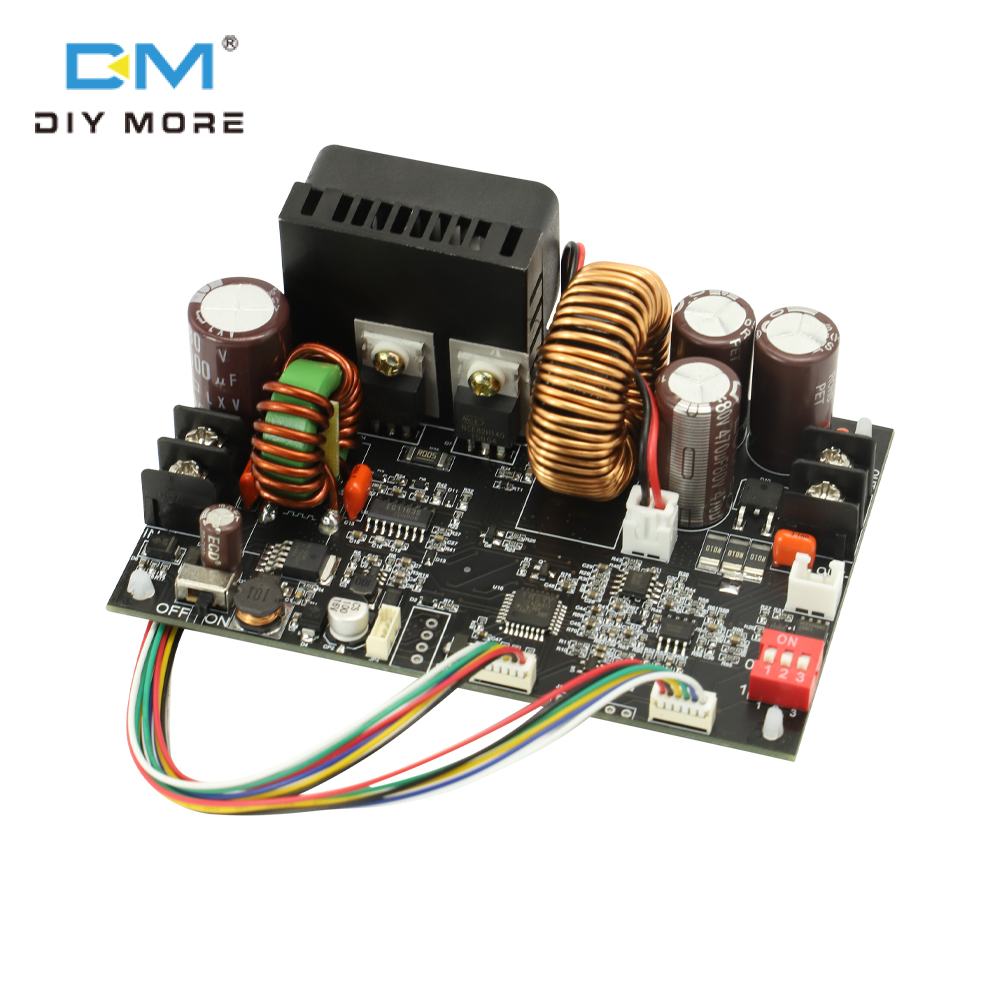

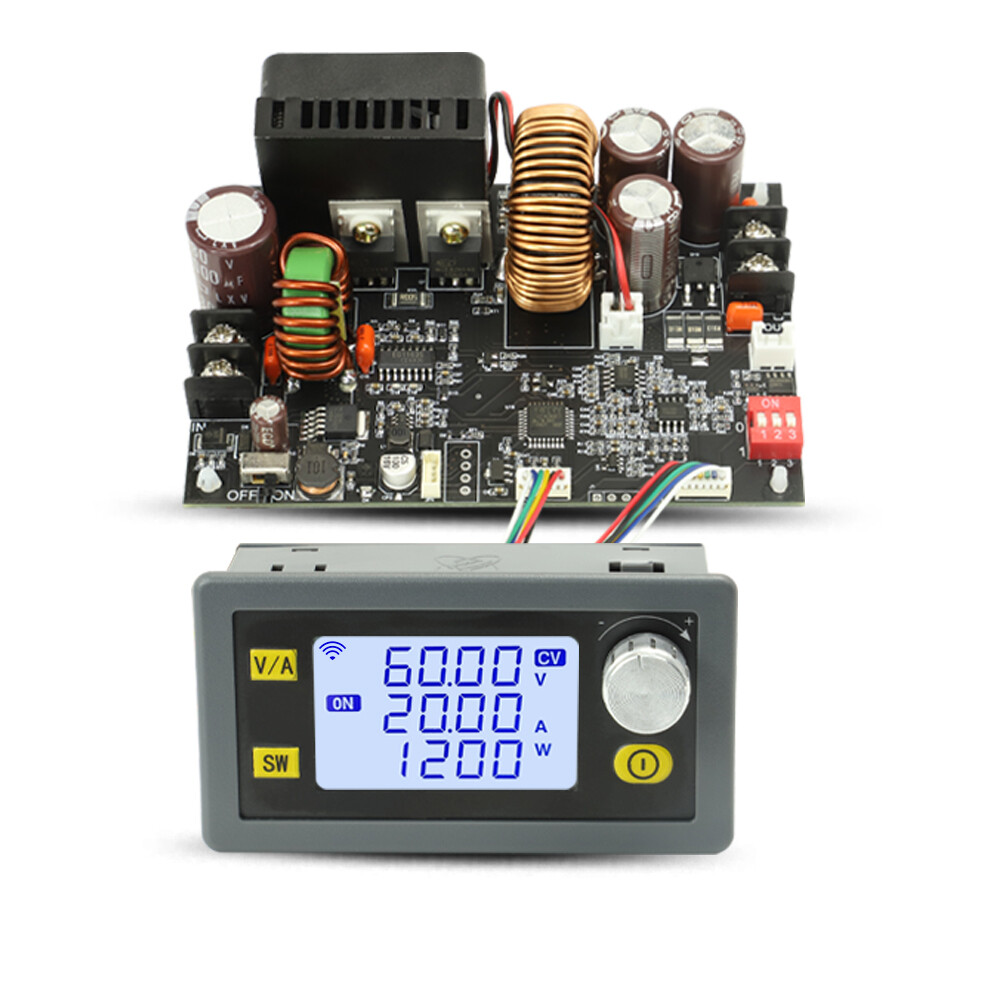

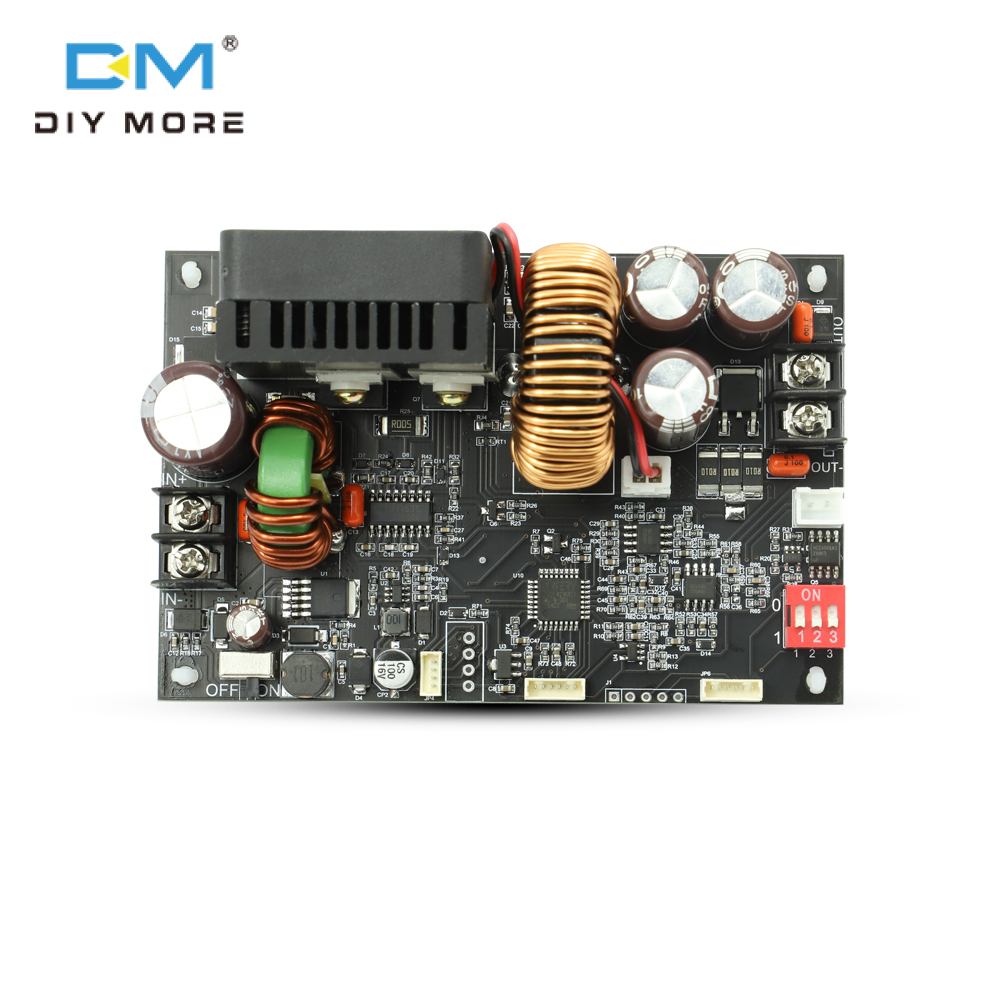

diymore XY6020L Numerical Control DC 6-70V Step Down Stabilized Power Supply Constant Voltage Current Buck Converter Module

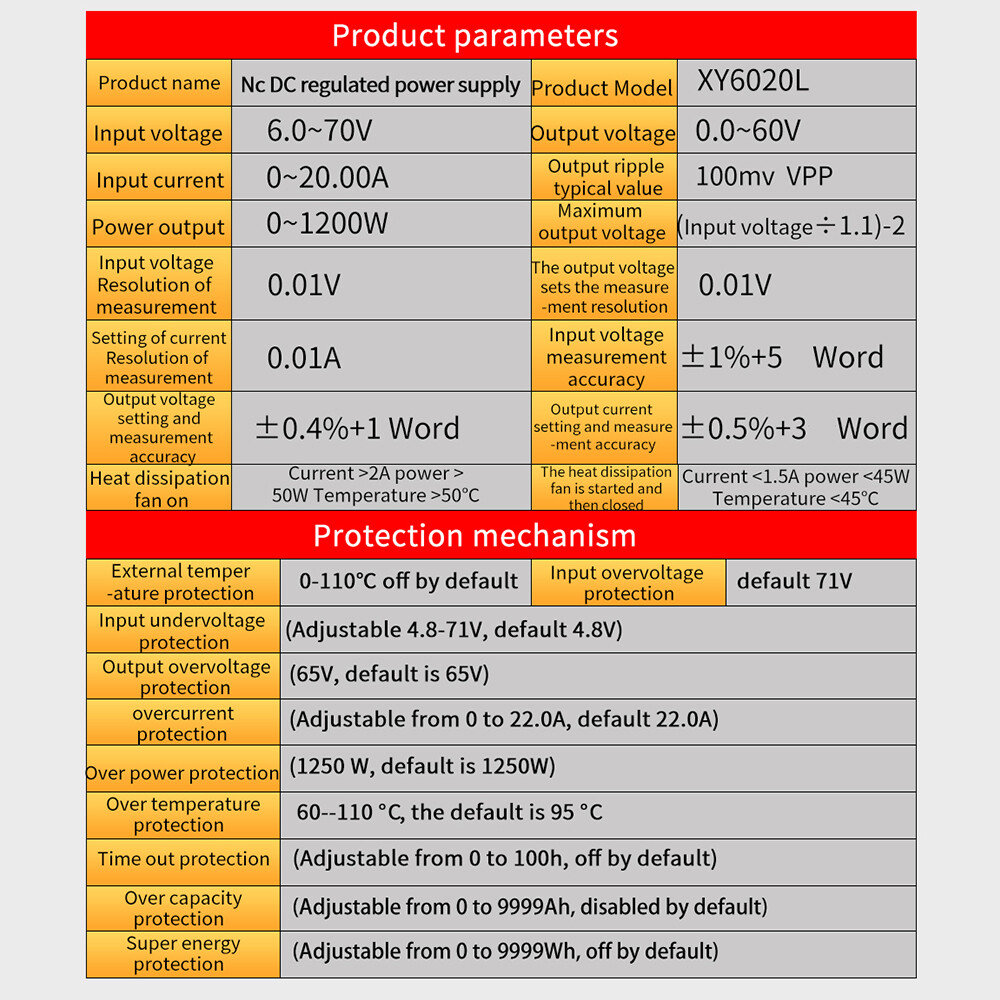

Parameters:

Input voltage: 6.0~70V

Output voltage: 0.0~60V

Output current: 0~20.00A

Typical value of output ripple: 100mv VPP

Output power: 0~1200W

Maximum output voltage: (input voltage+1.1) - 2

Input voltage measurement resolution: 0.01V

Output voltage setting measurement resolution: 0.01V

Current setting measurement resolution: 0.01A

Input voltage measurement accuracy: ± 1%+5 characters

Output voltage setting and measurement accuracy: ± 0.4%+1 word

Output current setting and measurement accuracy: ± 0.5%+3 words

Cooling fan on: current>2A power>50W temperature>50 ℃

Turn off the cooling fan after it is turned on: current<1.5A, power<45W, temperature<45 ° C

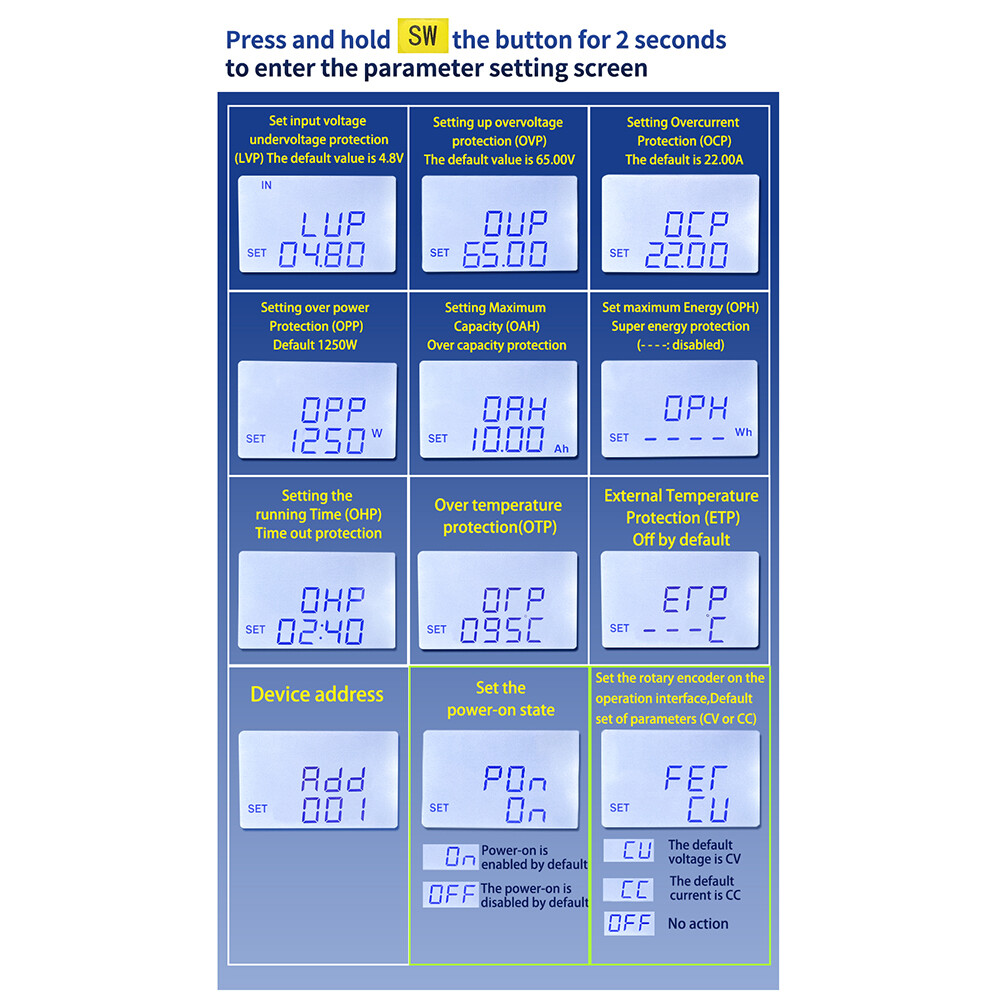

Protection mechanism:

External temperature protection: 0 - 110 ° C default off

Input overvoltage protection: 71V default

Input undervoltage protection: 4.8-71V adjustable default 4.8V

Output overvoltage protection: 0-65V Default: 65V

Output overcurrent protection: 0-16A, default 16A

Output over power protection: 0-950W Default: 950W

Over temperature protection: 60 -- 110 ° C, 95 ° C by default

Timeout protection: 0 - 100H adjustable default off

Overcapacity protection: 0~9999AH is adjustable and closed by default

Super energy protection: 0~9999WH, adjustable and closed by default

Package include:

Package A:

Header * 1

Base plate * 1

Wire * 2

Package B:

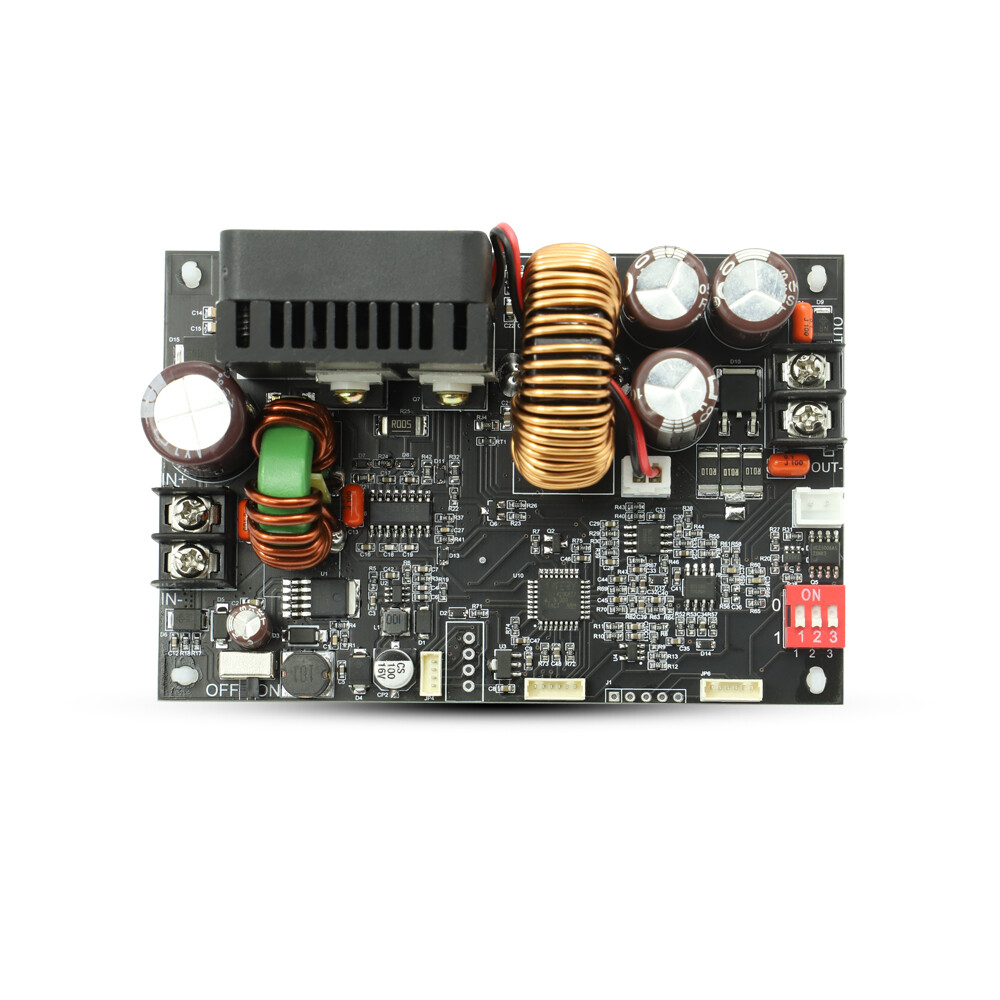

Bottom plate * 1 (output current 0-20A can be used separately for the bottom plate)
