Parameters:

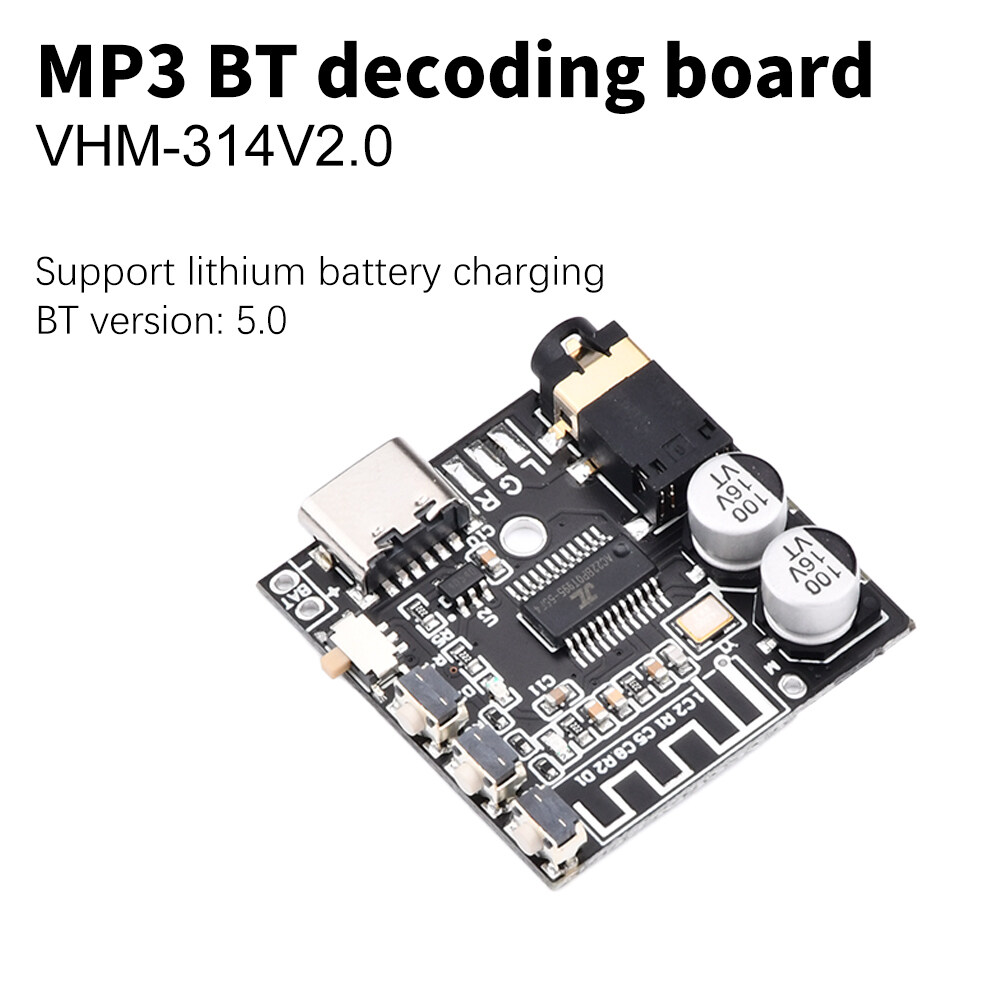

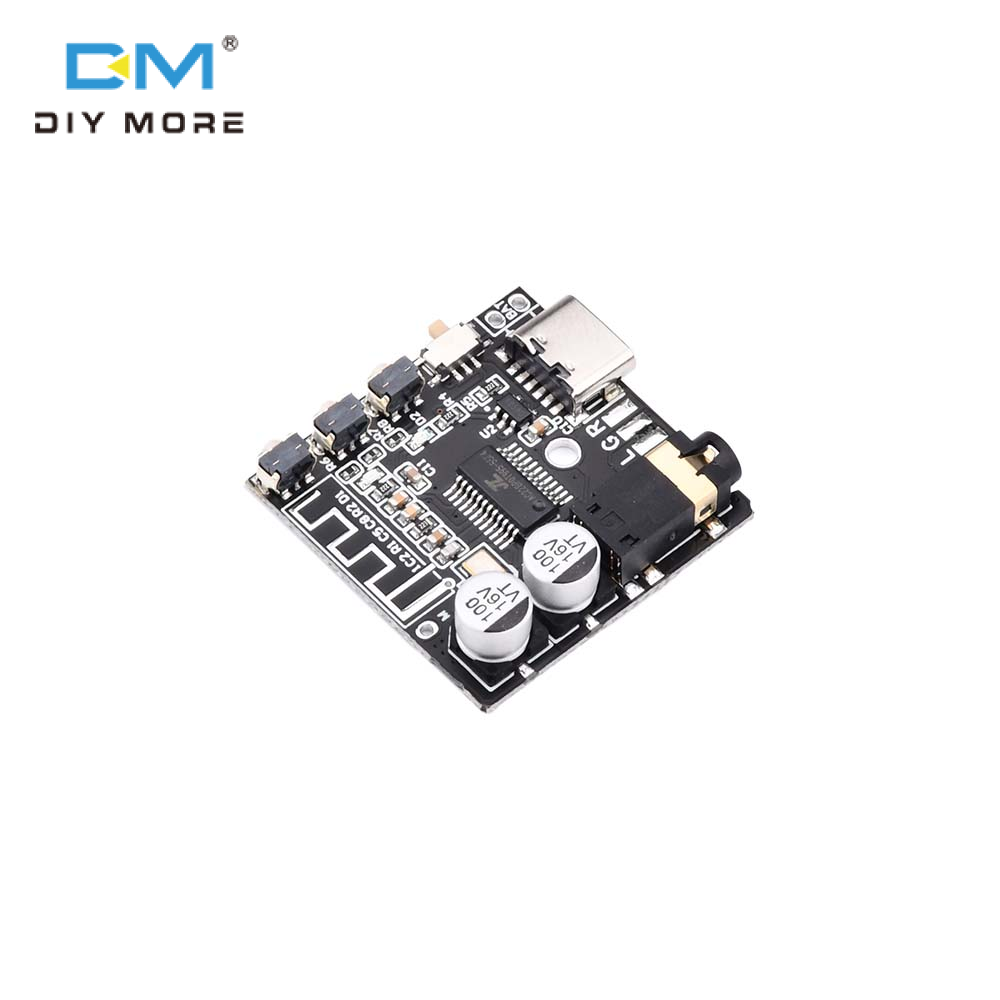

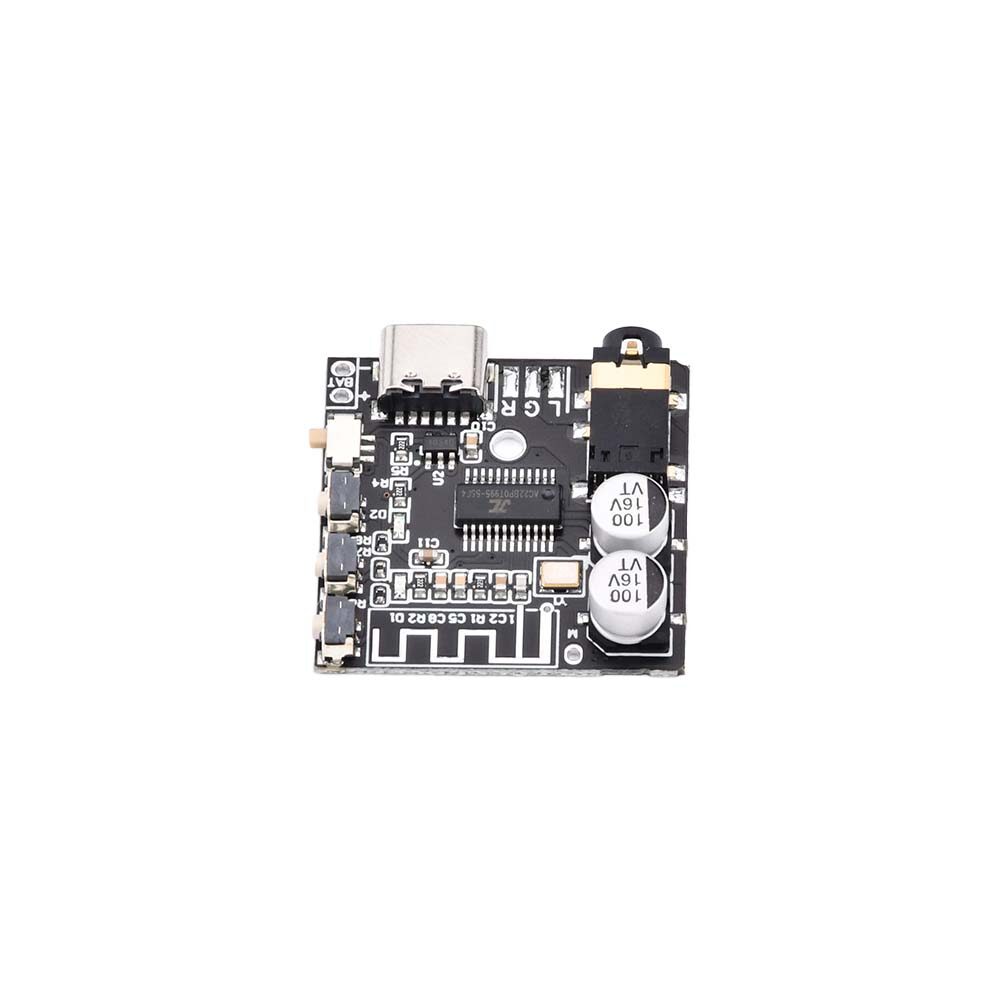

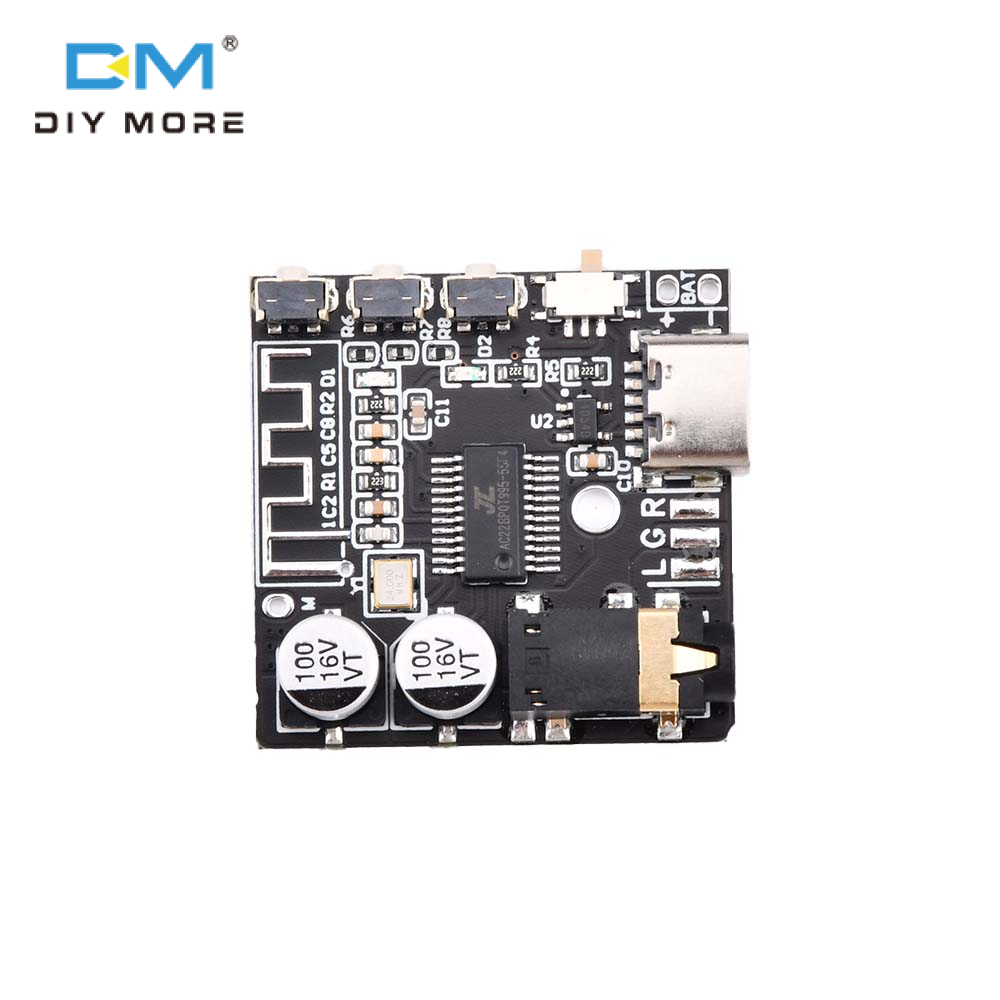

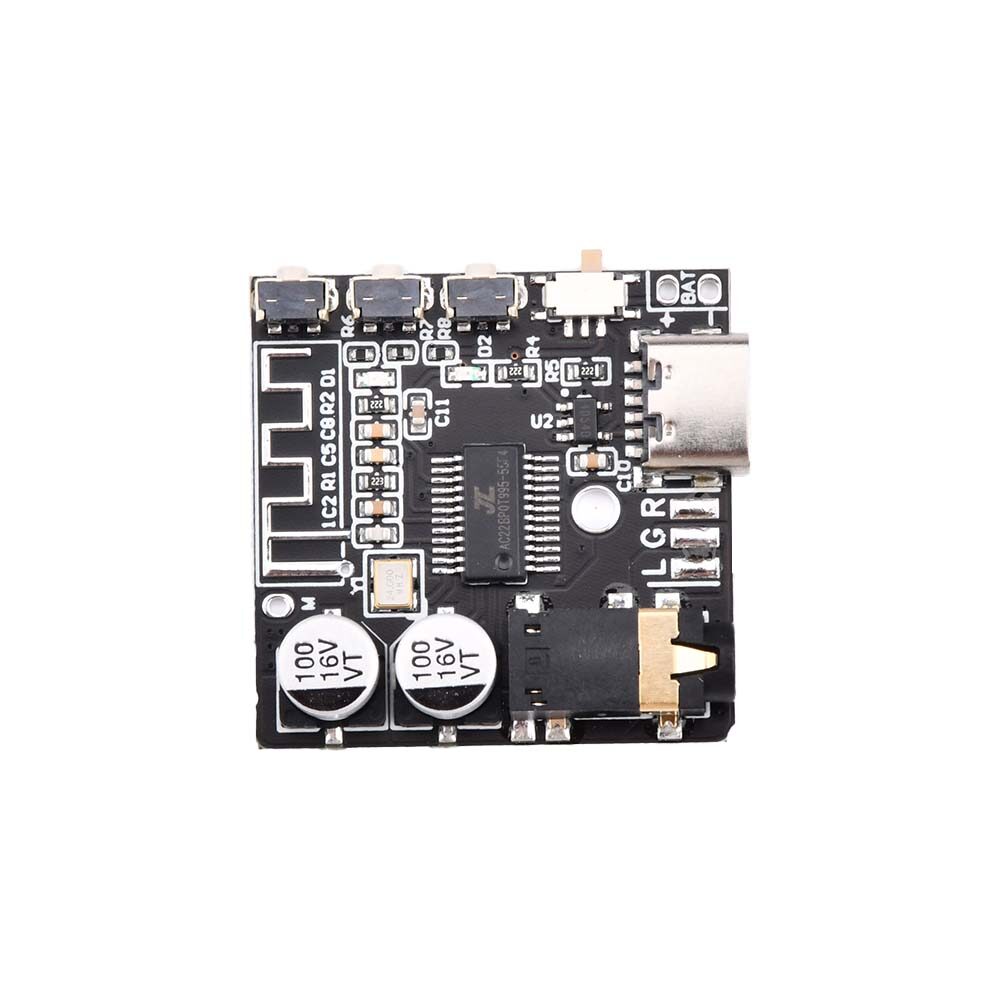

MP3 Bluetooth decoding board
Interface: Type-C
Input voltage: 5V
Bluetooth version: 5.1
Working current: 20mA
Maximum charging current: 300mA
G: Common ground interface (common ground with amplifier/headset)
Two color indicator: red, blue
Bluetooth indicator: blue
Power indicator: red
50: Left channel output
R: Right channel output
Support lithium battery charging

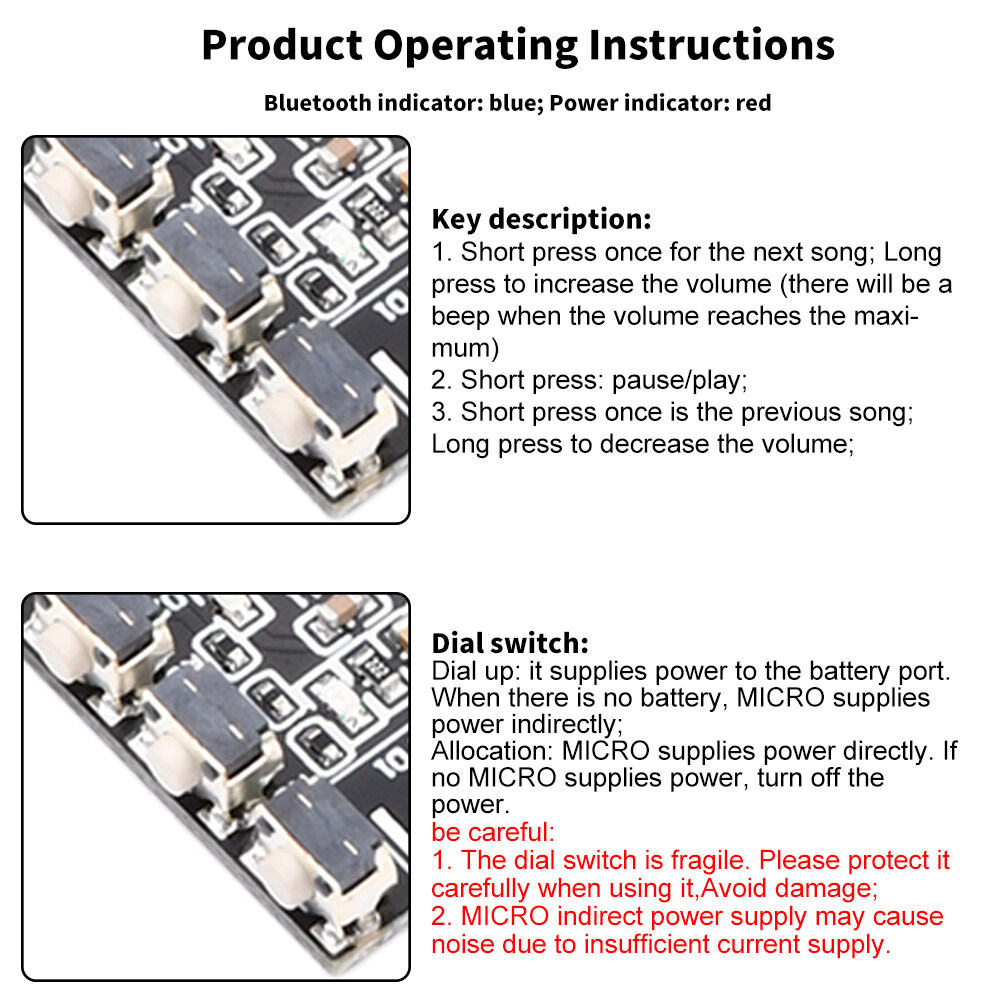

Key description:
1. Short press once for the next song; Long press to increase the volume (there will be a beep when the volume reaches the maximum)
2. Short press: pause/play;
3. Short press once is the previous song; Long press to decrease the volume;
Dial switch:
Dial up: it supplies power to the battery port. When there is no battery, Type-C supplies power indirectly;
Allocation: Type-C provides power directly. If Type-C does not provide power, turn off the power.
Be careful:
1. The dial switch is easy to break. Please protect the switch carefully to avoid damage;
2. Type-C indirect power supply may cause noise due to insufficient current supply.

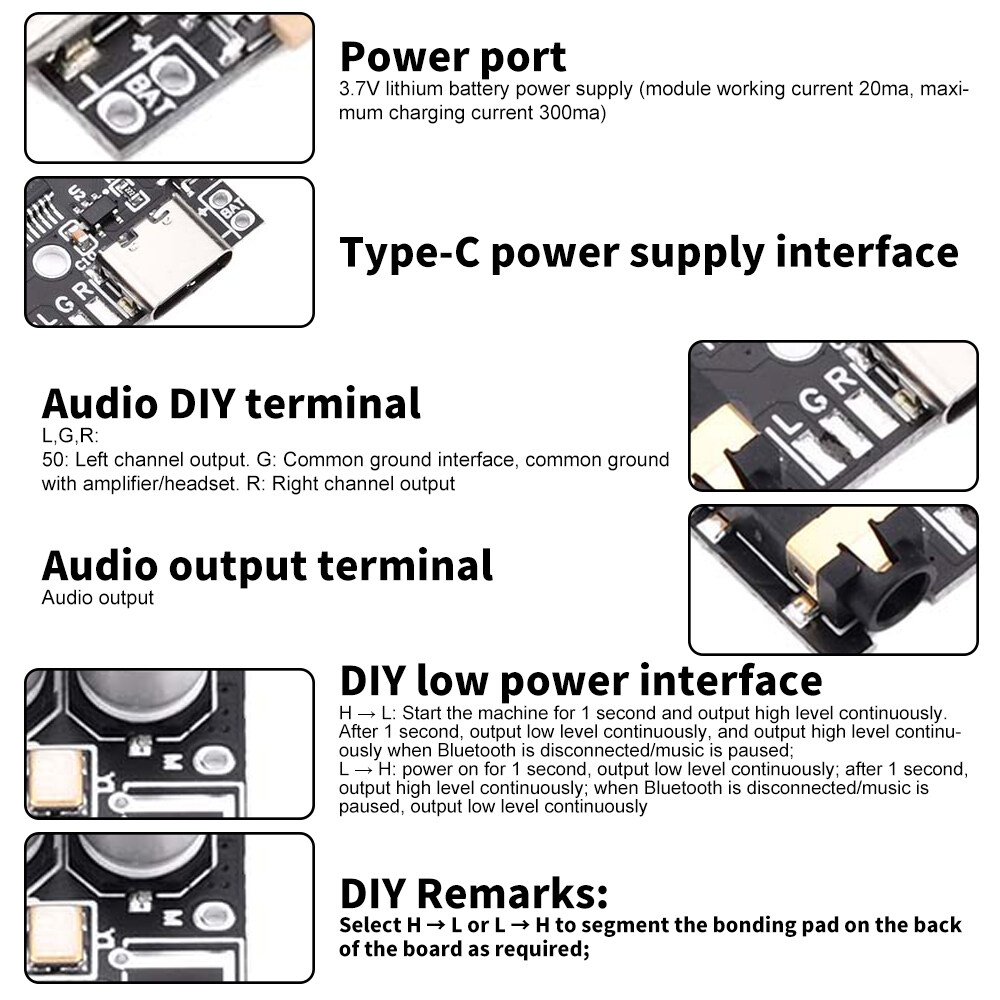

DIY low power interface
H → L: Start the machine for 1 second and output high level continuously. After 1 second, continue to output low level, and continue to output high level when Bluetooth is disconnected/music is paused;
L → H: power on for 1 second, output low level continuously; after 1 second, output high level continuously; when Bluetooth is disconnected/music is paused, output low level continuously
Package include:
1 * module
