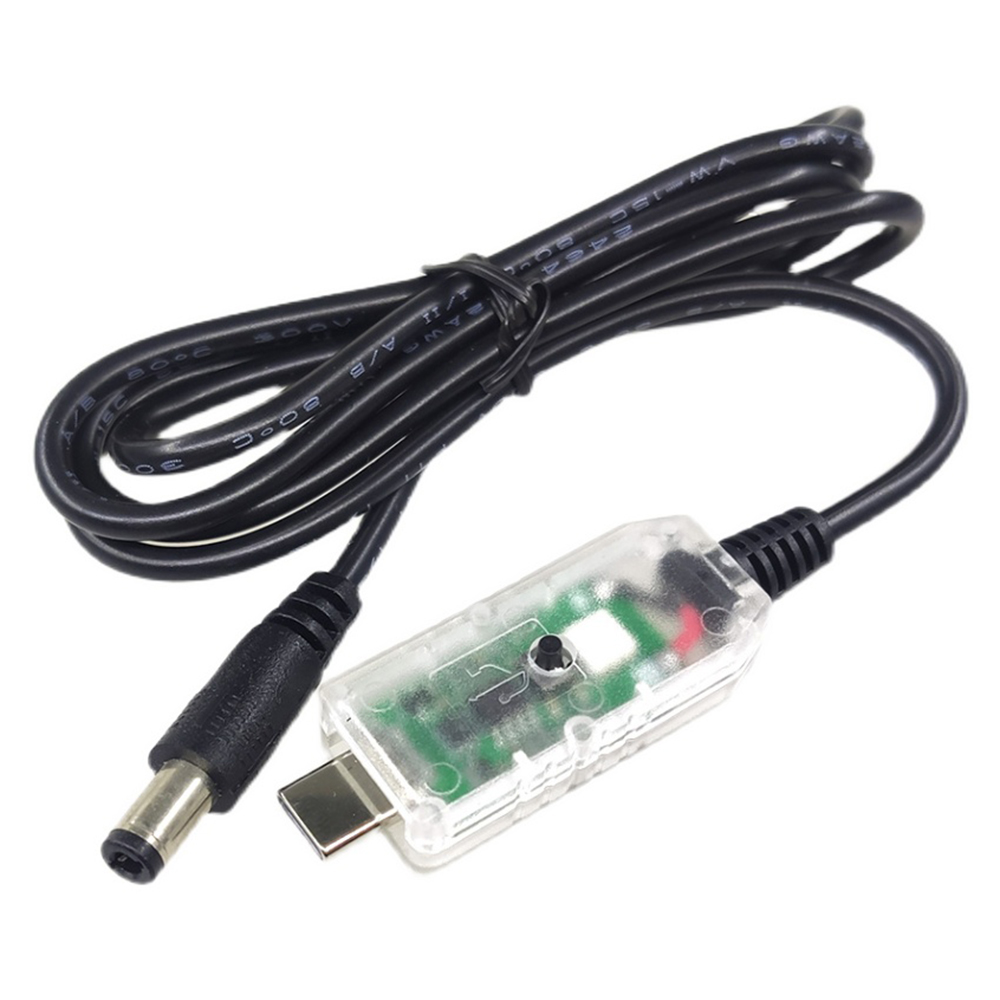

diymore Loại-C USB-C pd2.0 3.0 để USB điện một chiều mồi nhử sạc nhanh kích hoạt thăm dò ý kiến mô-đun sạc

Parameters:

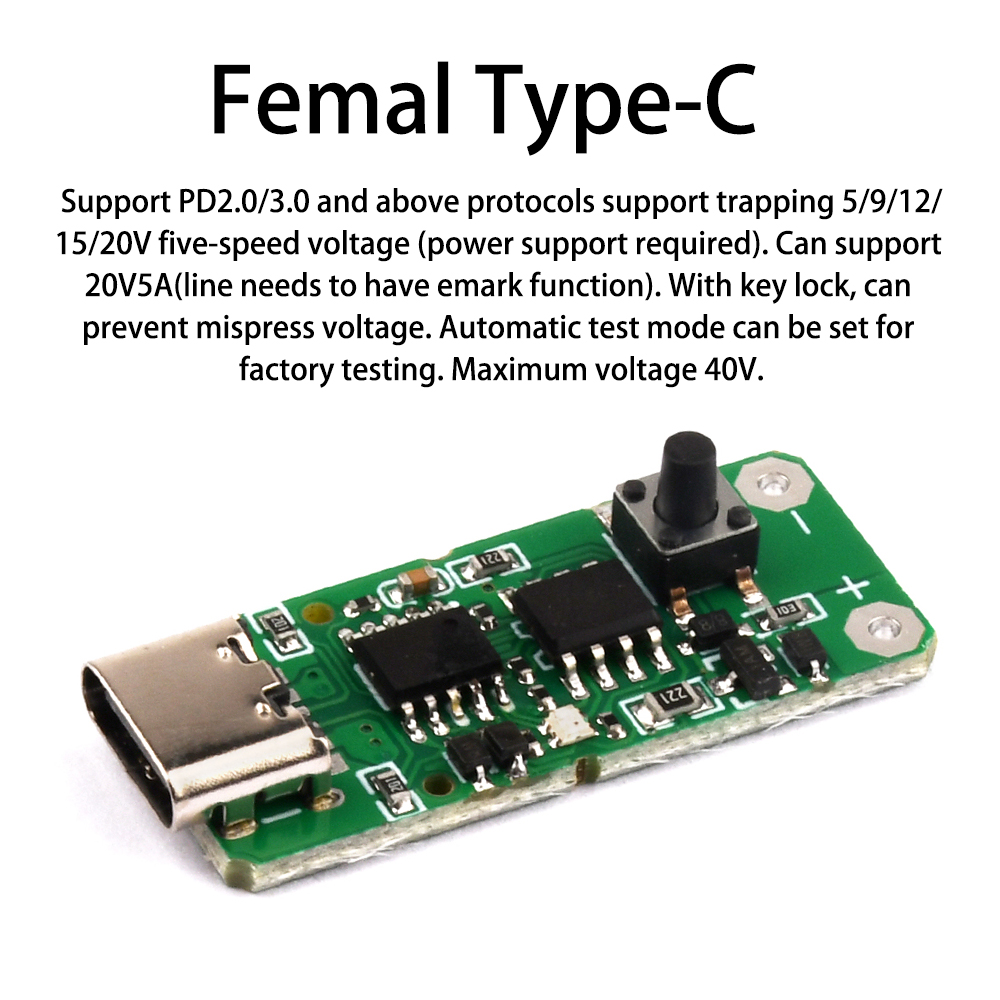

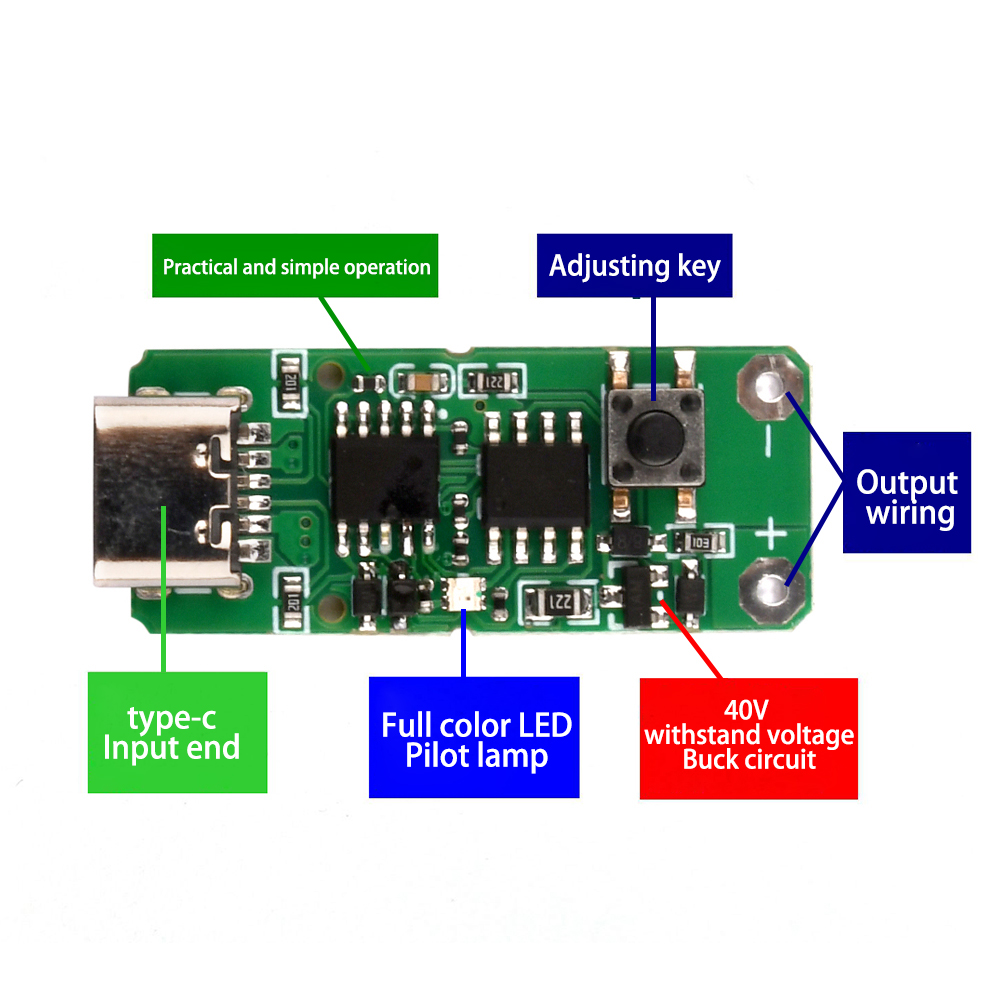

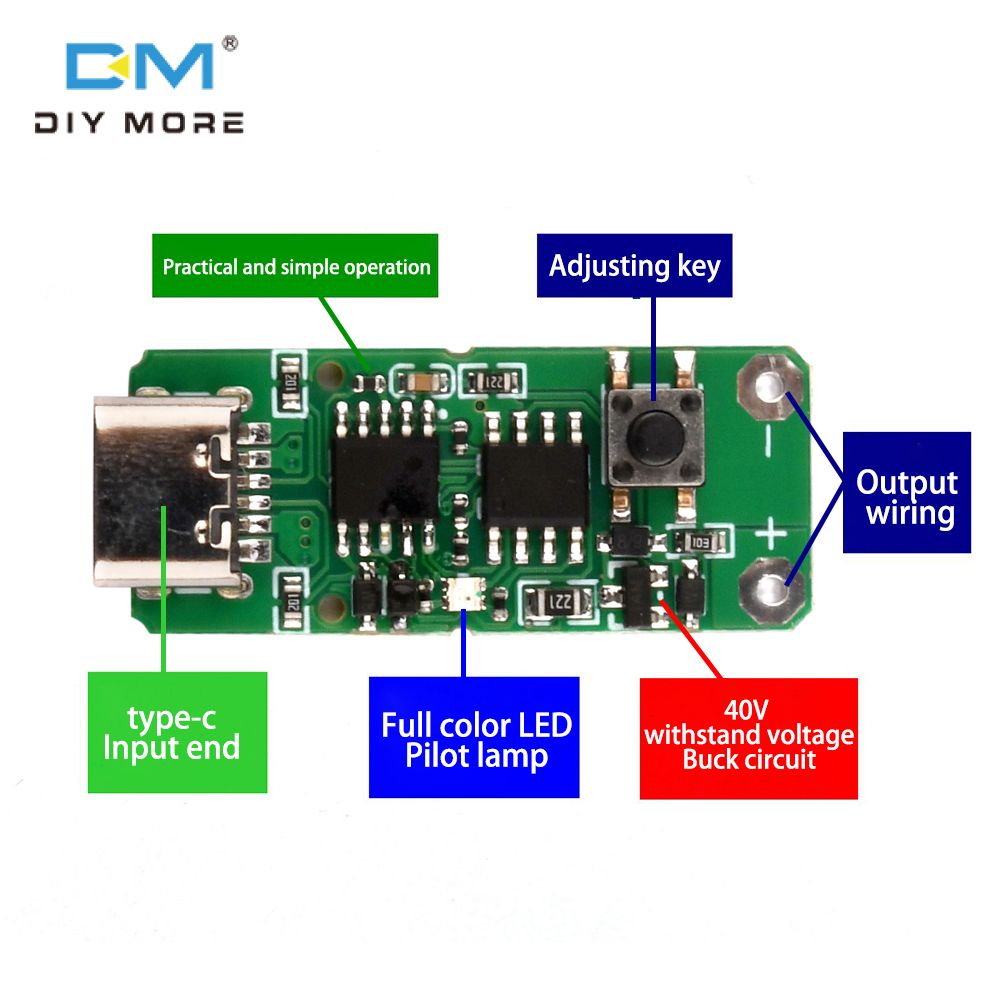

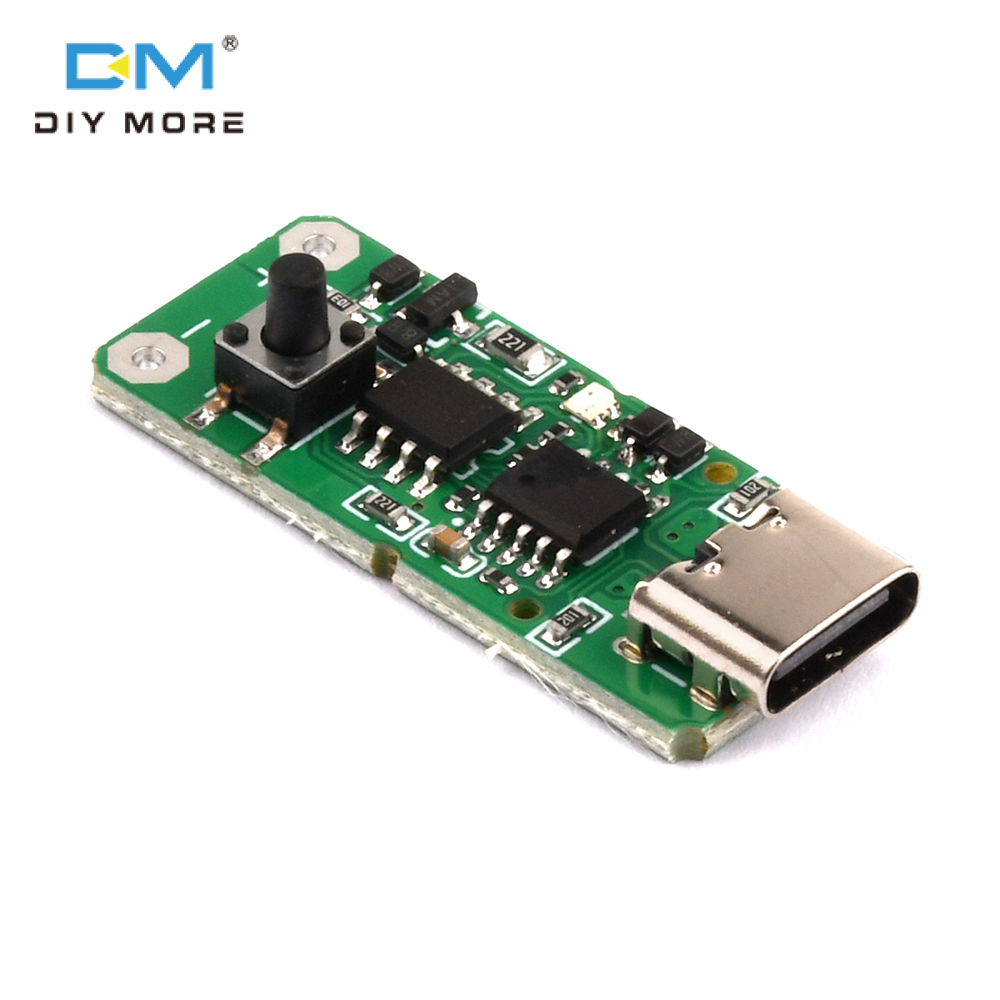

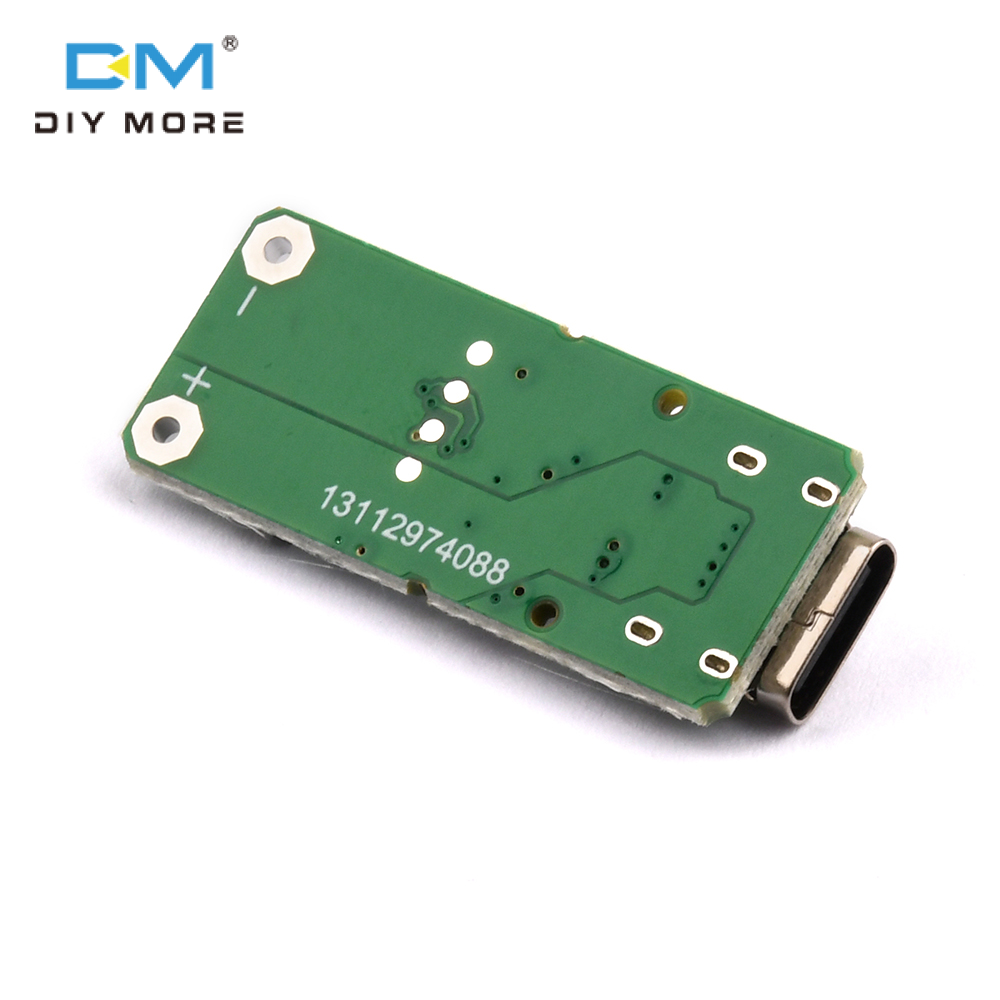

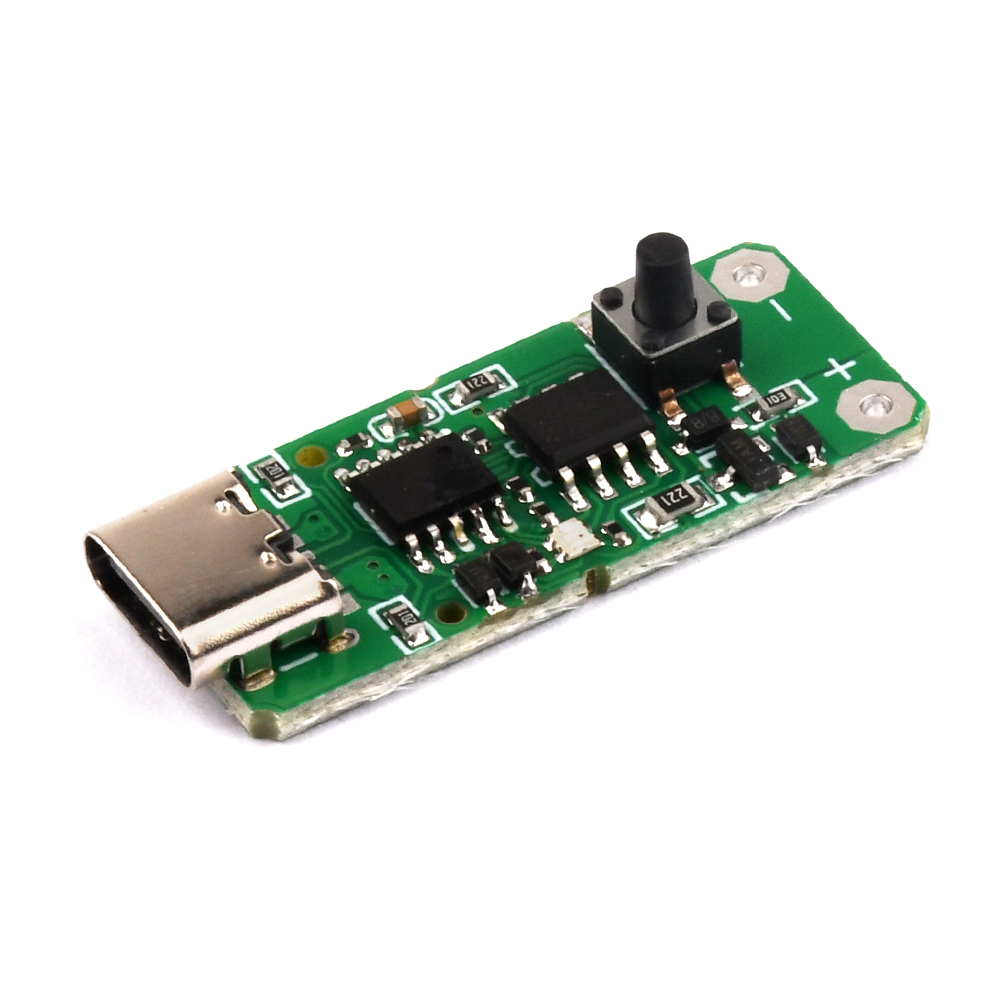

Mother head decoy:

Supports PD2.0/3.0 and above protocols

Support deception 5/9/12/15/20V

Five voltage levels (requires power support)

Can support 20V5A (the line needs to have emark function)

Equipped with button lock to prevent accidental voltage pressing

Automatic testing mode can be set for factory testing

Maximum withstand voltage 40V

Module Description:

Normal mode:

After powering on, output the set voltage value and click the button to switch to the next voltage. The voltage switching sequence is 5V>9V>12V>15V>20V. If you continue to press, it will return to 5V and enter the next cycle. The indicator light will change color based on voltage changes. If the output voltage is too low, the LED light flashes to indicate. If a software lock is added, pressing and holding the button during power on can unlock the software lock. After unlocking, pressing the button can switch the voltage.

Factory testing mode:

Mainly used for aging testing and module polling voltage after power on. After the polling is completed, maintain the highest voltage that can be output. At this point, the output voltage can be adjusted by pressing the button.

Mode switching:

When powered on, the button will flash until the light flashes, and it will switch between normal mode and aging mode.

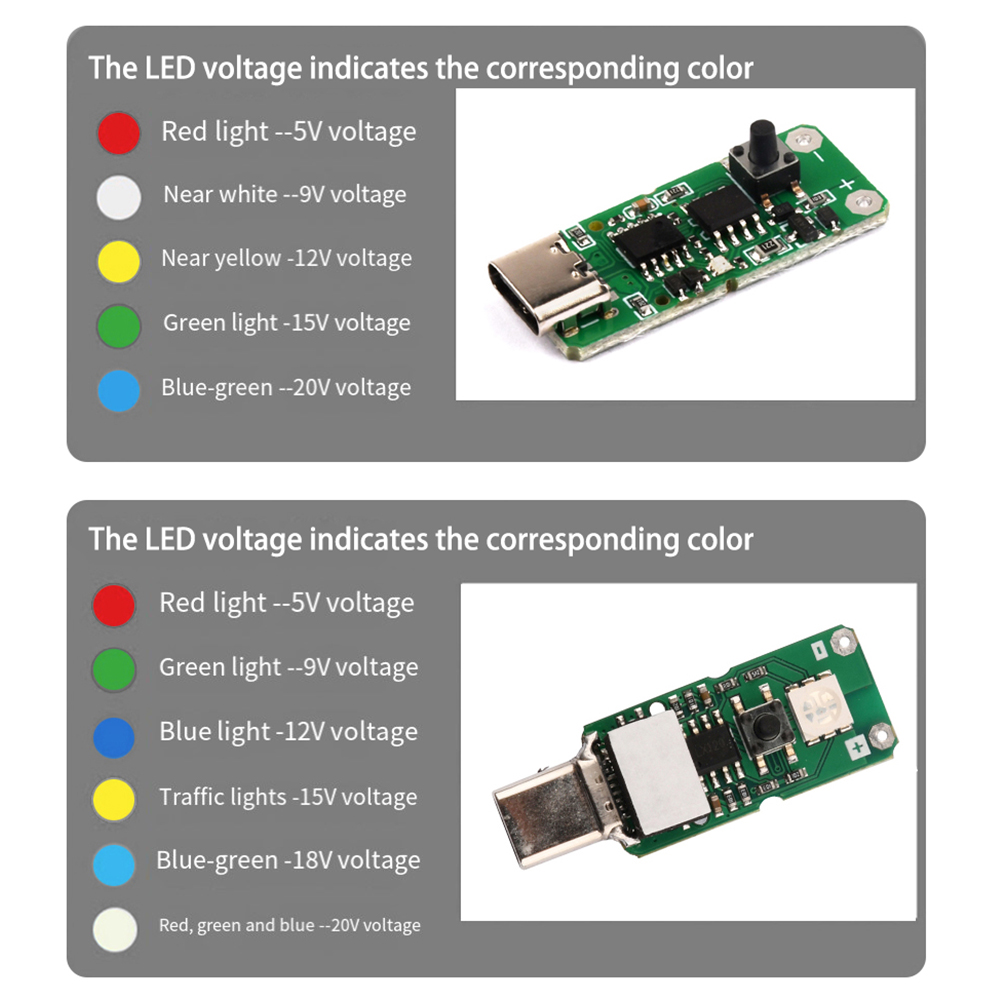

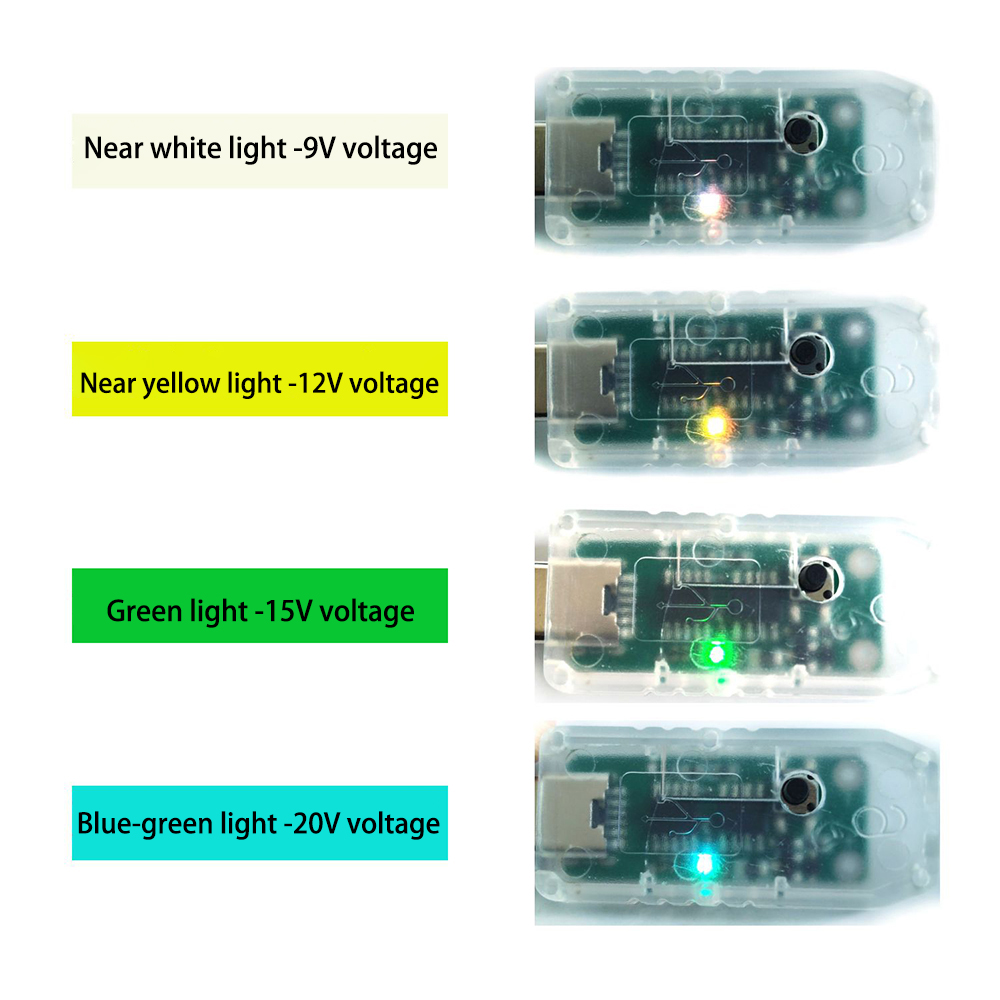

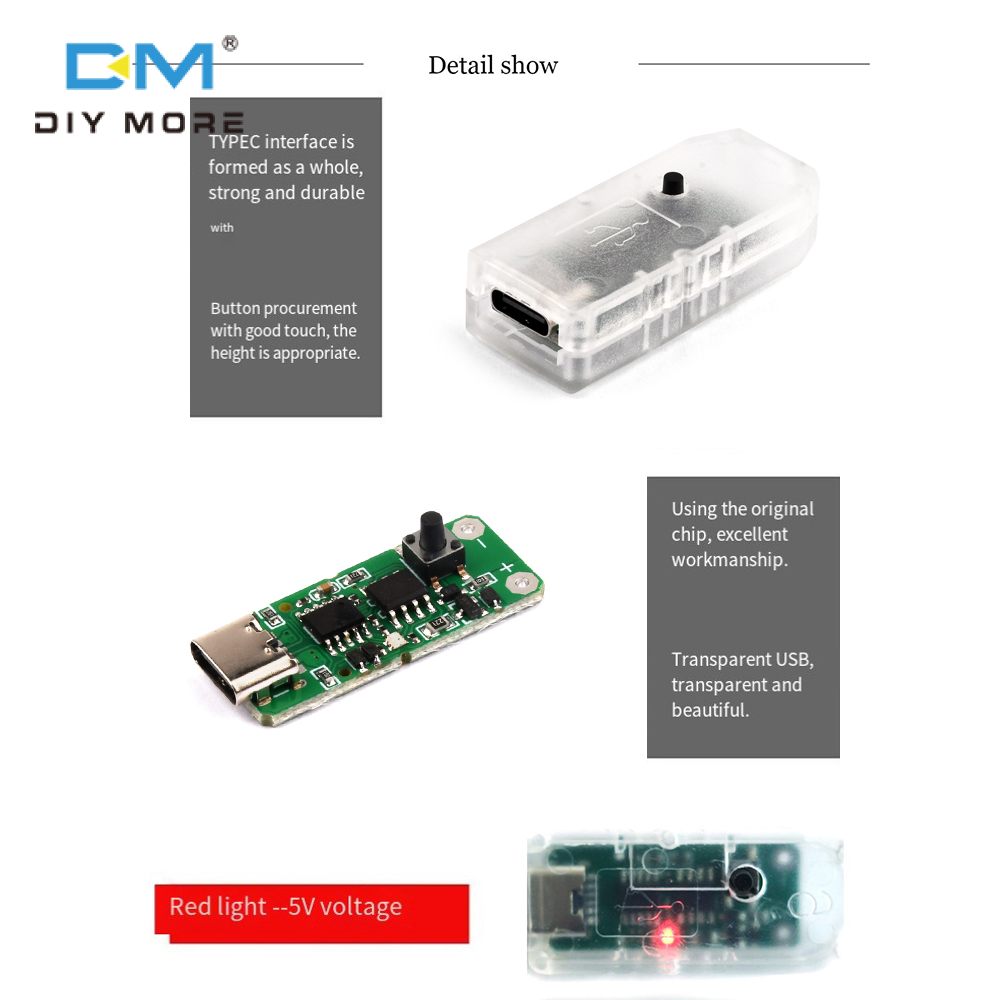

LED voltage indication corresponding color:

Red light -5V voltage

Near white -9V voltage

Near yellow -12V voltage

Green light -15V voltage

Teal --20V voltage

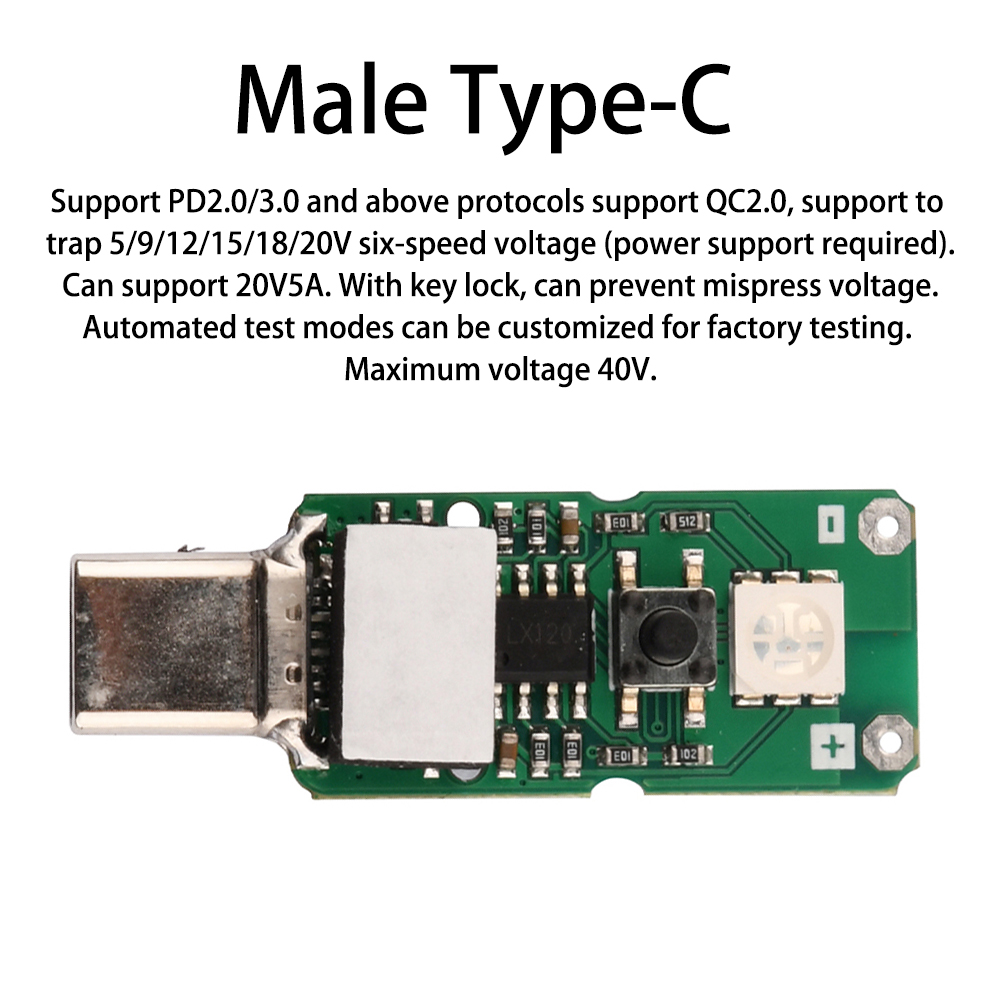

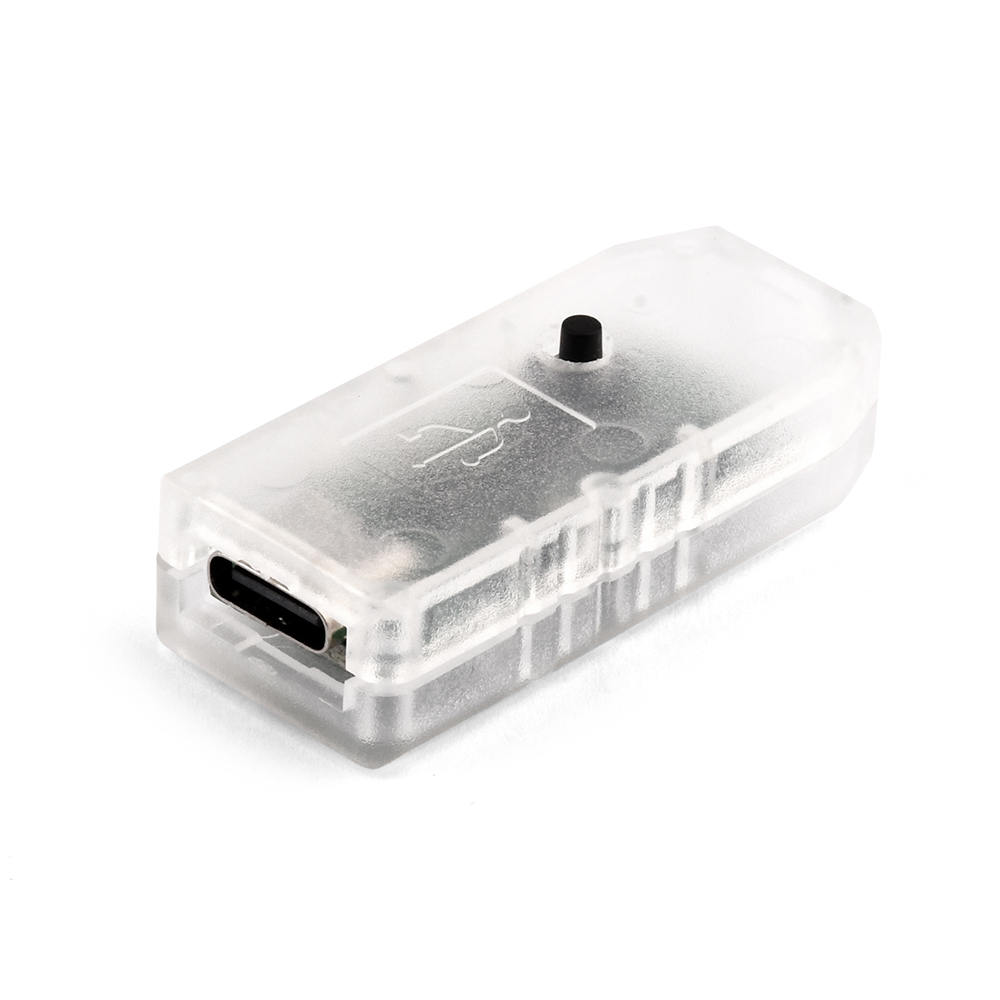

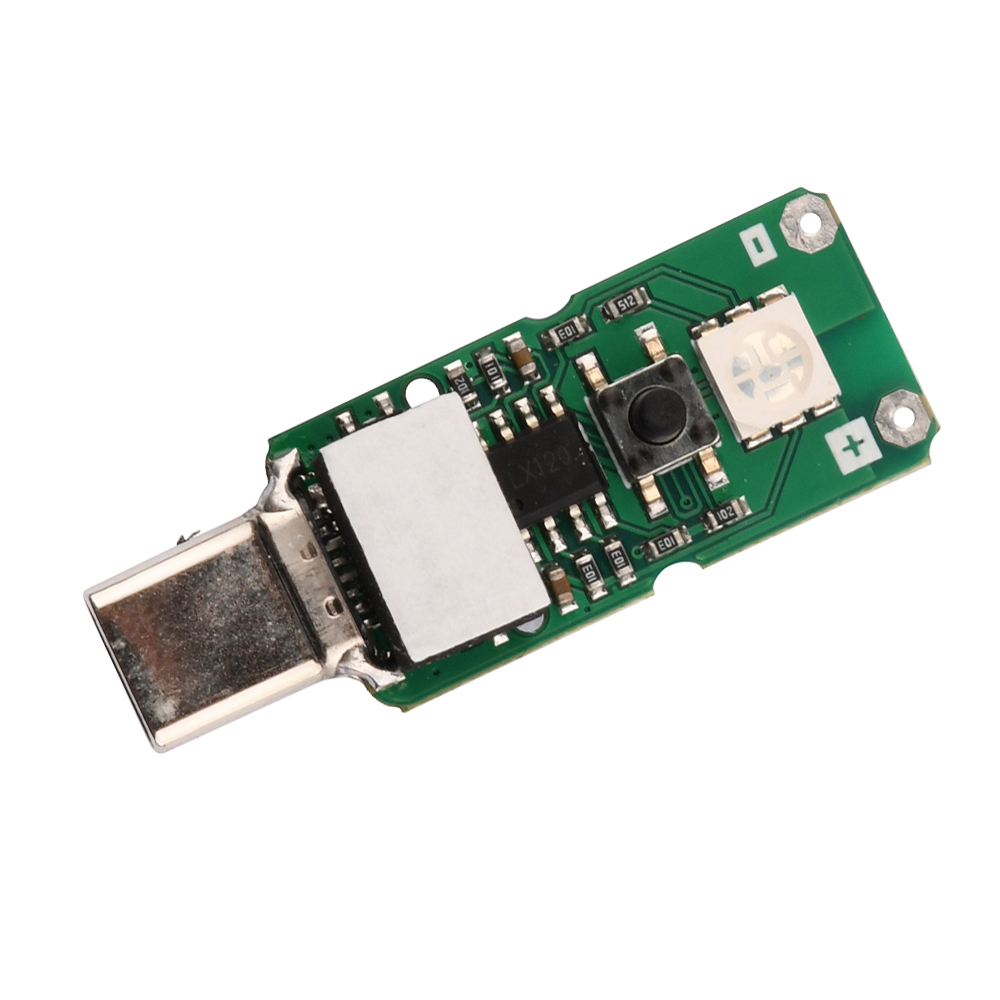

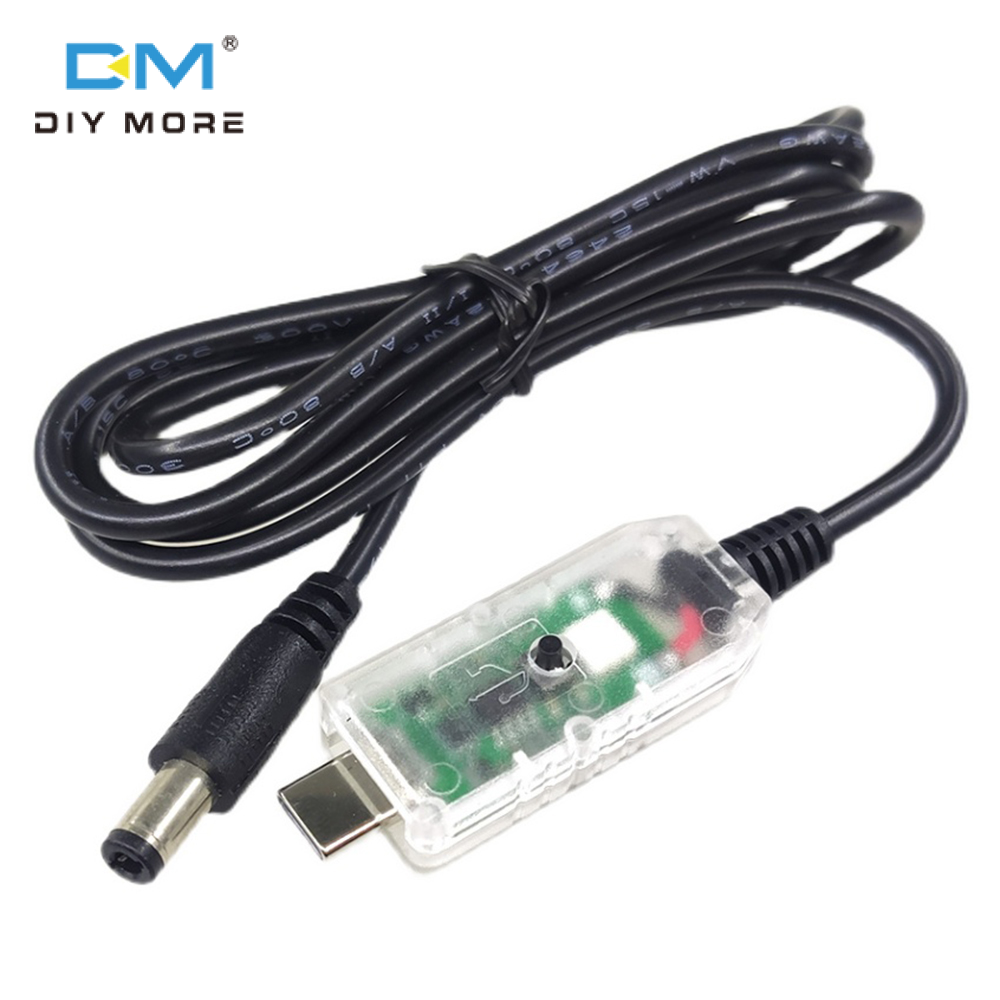

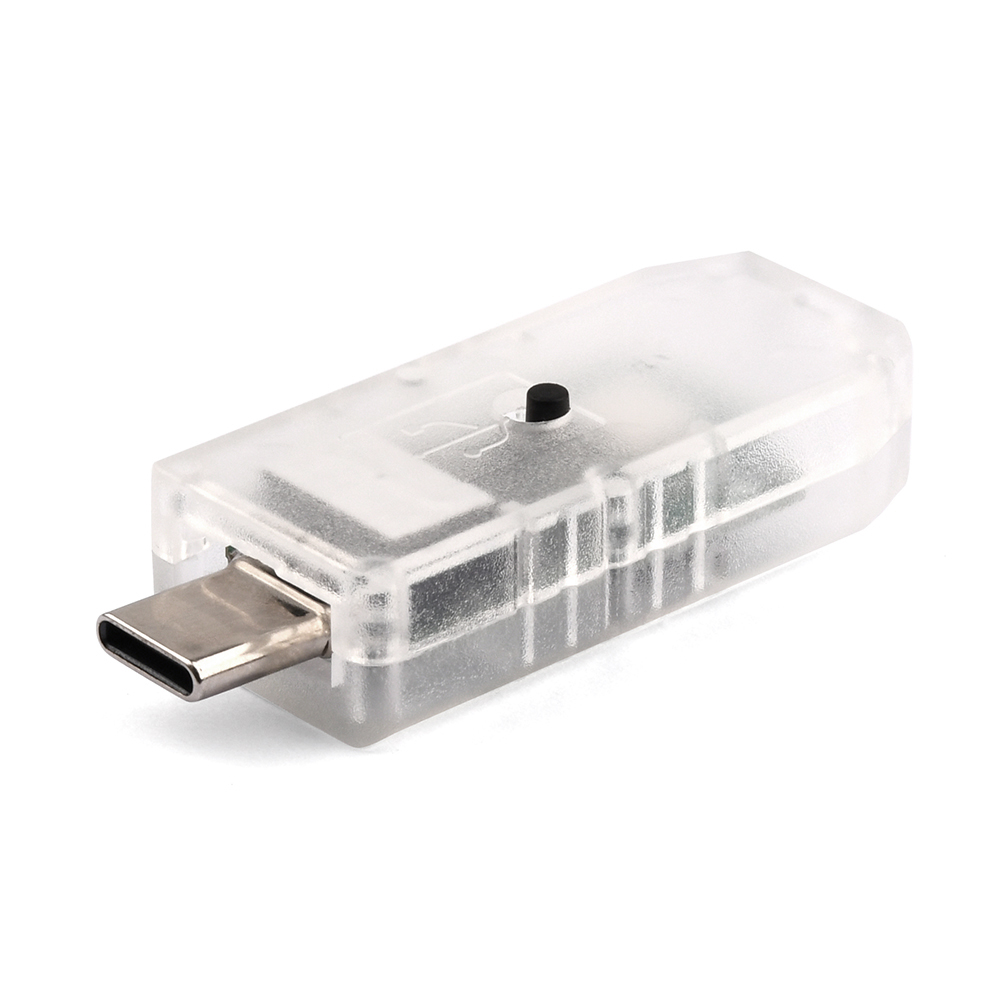

Male decoy:

Supports PD2.0/3.0 and above protocols

Support QC2.0

Support deception of 6 voltage levels 5/9/12/15/18/20V (requires power support)

Can support 20V5A

Equipped with button lock to prevent accidental voltage pressing

Customizable automatic testing mode for factory testing

Maximum withstand voltage 40V

Module Description:

Normal mode:

After powering on, output the set voltage value and click the button to switch to the next voltage. The voltage switching sequence is 5V>9V>12V>15V>18V>20V (usually the power supply does not support 18V). Continue to press to return to 5V and enter the next cycle. The indicator light will change color based on voltage changes. If the output voltage is too low, the LED light flashes to indicate.

If a software lock is added, pressing and holding the button during power on can unlock the software lock. After unlocking, pressing the button can switch the voltage.

Factory testing mode:

Mainly used for aging testing and module polling voltage after power on. After the polling is completed, maintain the highest voltage that can be output. At this point, the output voltage can be adjusted by pressing the button.

Mode switching:

When powered on, the button will flash until the light flashes, and it will switch between normal mode and aging mode.

LED voltage indication corresponding color:

Red light -5V voltage

Green light -9V voltage

Blue light -12V voltage

Traffic lights -15V voltage

Teal --18V voltage

Red, green, blue -20V voltage

Package include:

1X module

Tip:

There is a close relationship between the rated power of the power supply and heat generation. The higher the power, the better the selection of heat dissipation and component efficiency in the design. This means that if you use a current of 2a, both the 3a power supply and the 5a power supply can be used. However, the temperature of the 3a power supply is higher than that of the 5a power supply, and the lifespan will be greatly shortened. Considering the service life, it is recommended to choose a higher current.
