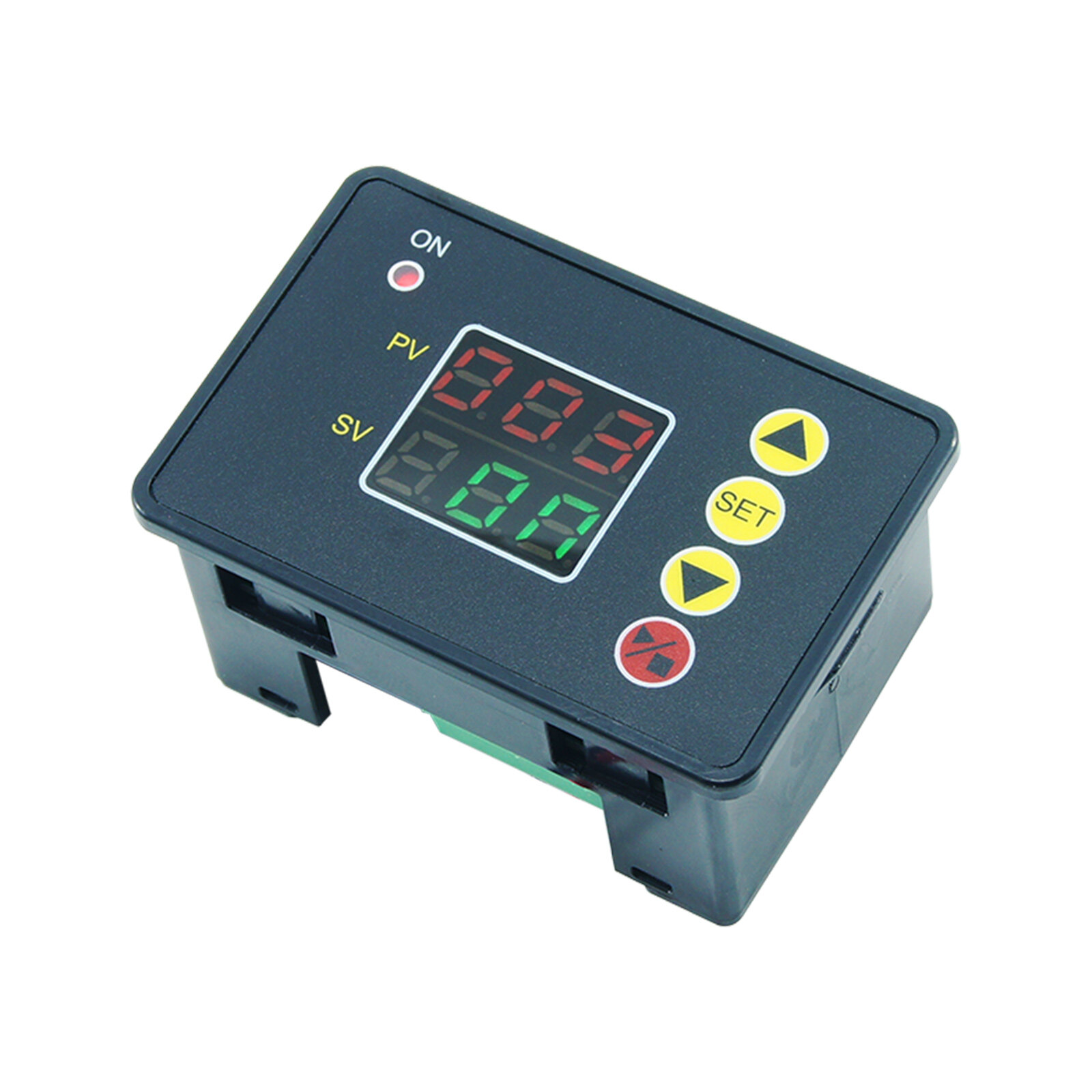

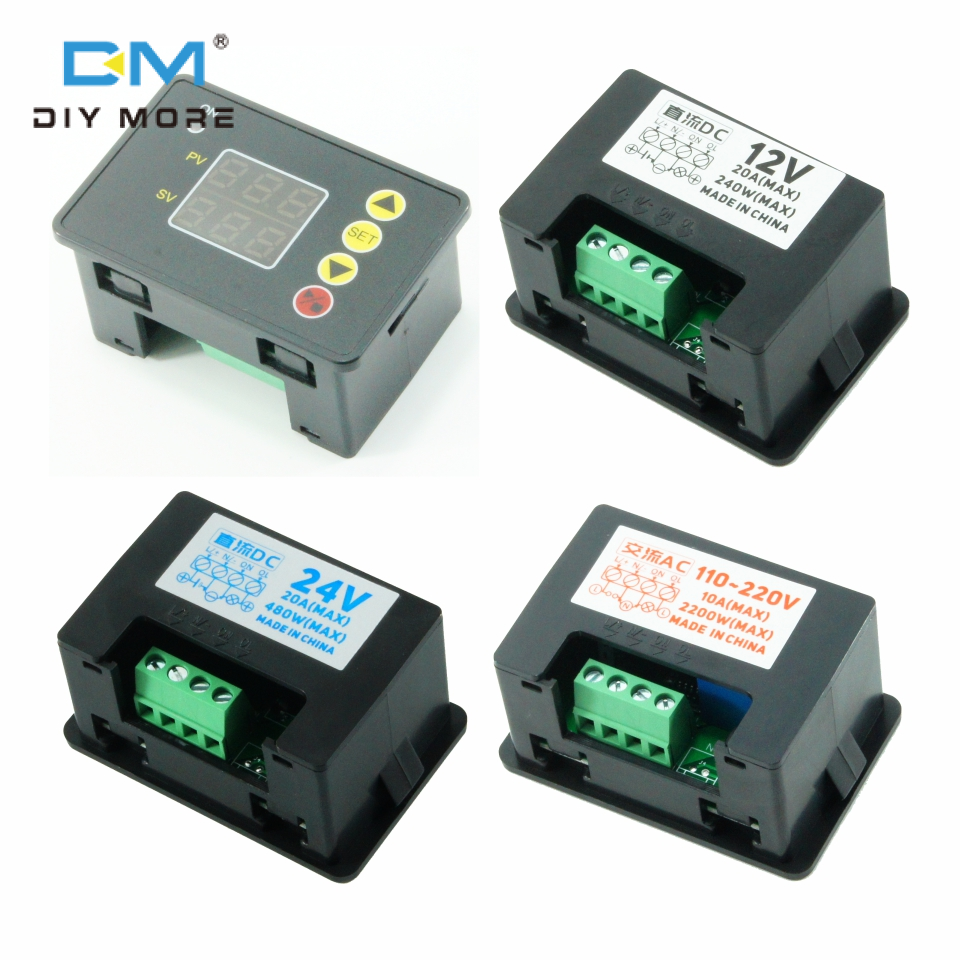

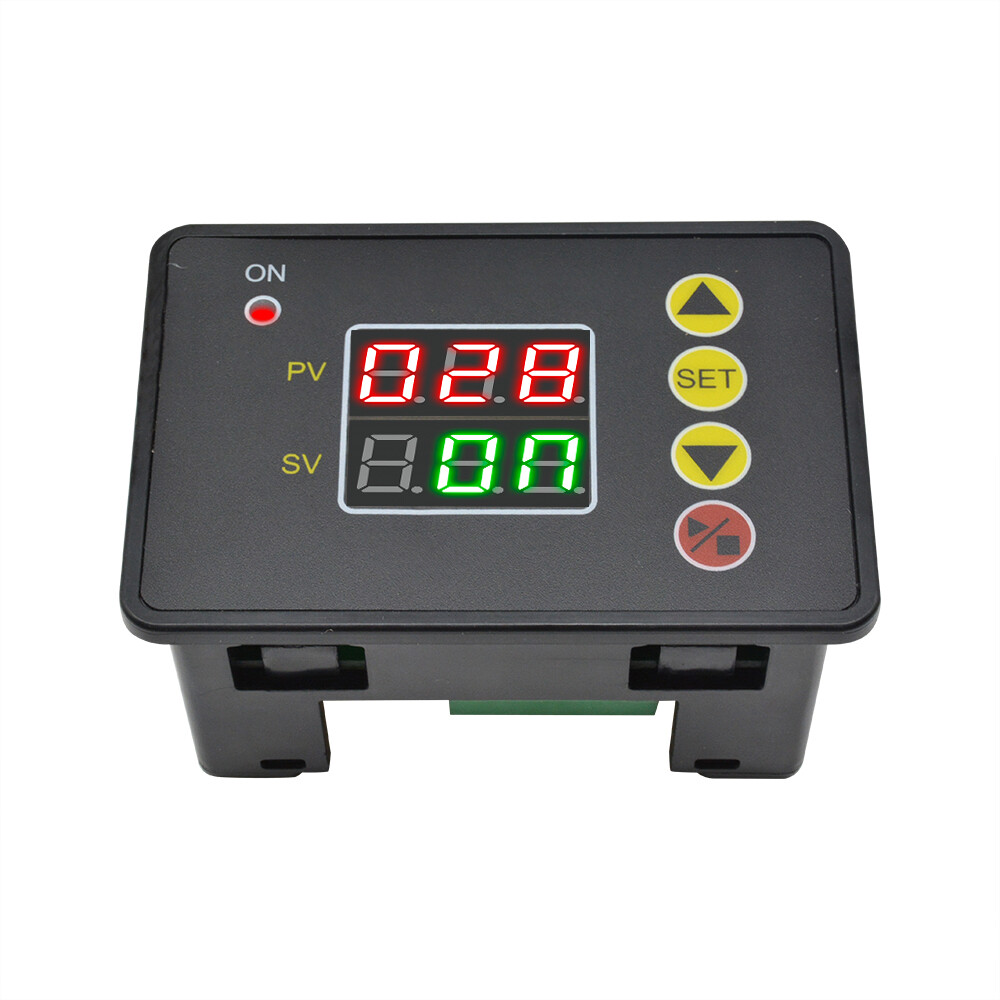

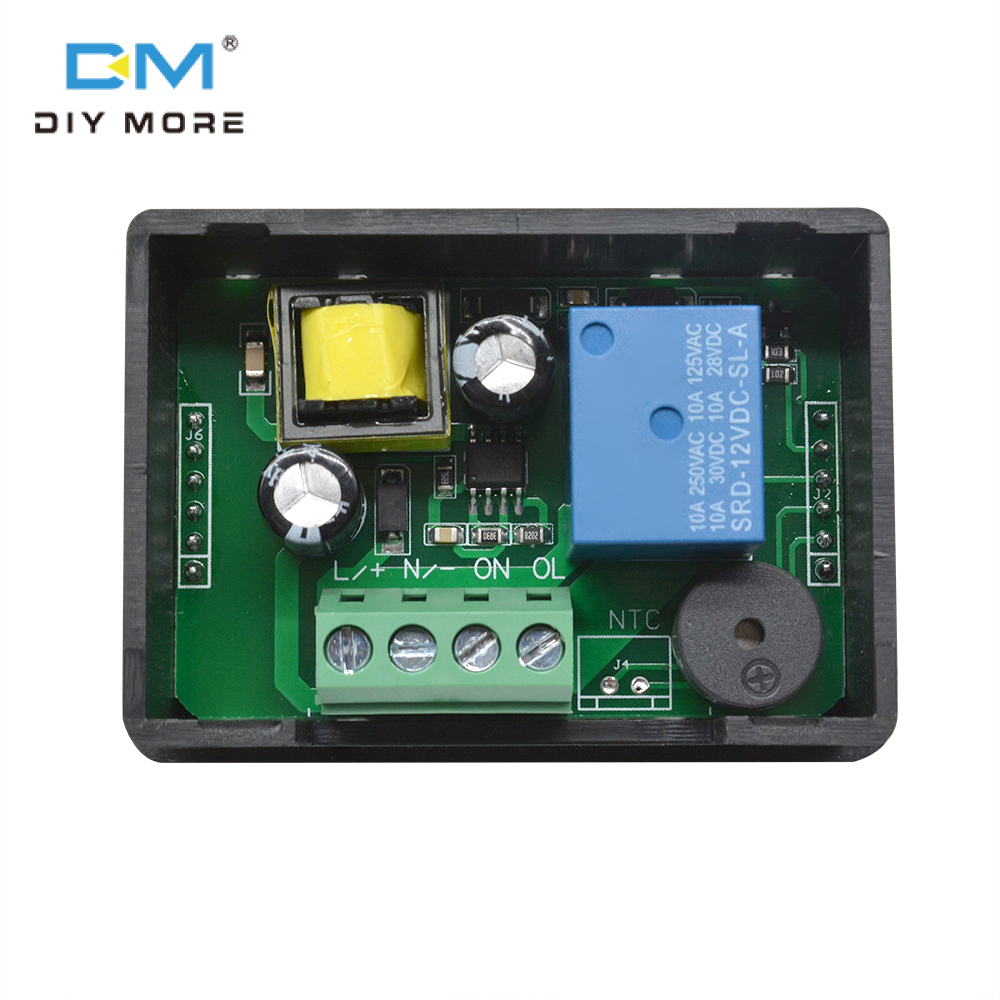

diymore Bộ Điều Khiển Thời Gian Máy Vi Tính Màn Hình Kỹ Thuật Số T2310 DC12V/24V/AC110V-220V Mô Đun Điều Khiển Công Tắc Rơ Le Trễ Thời Gian LCD Hẹn Giờ

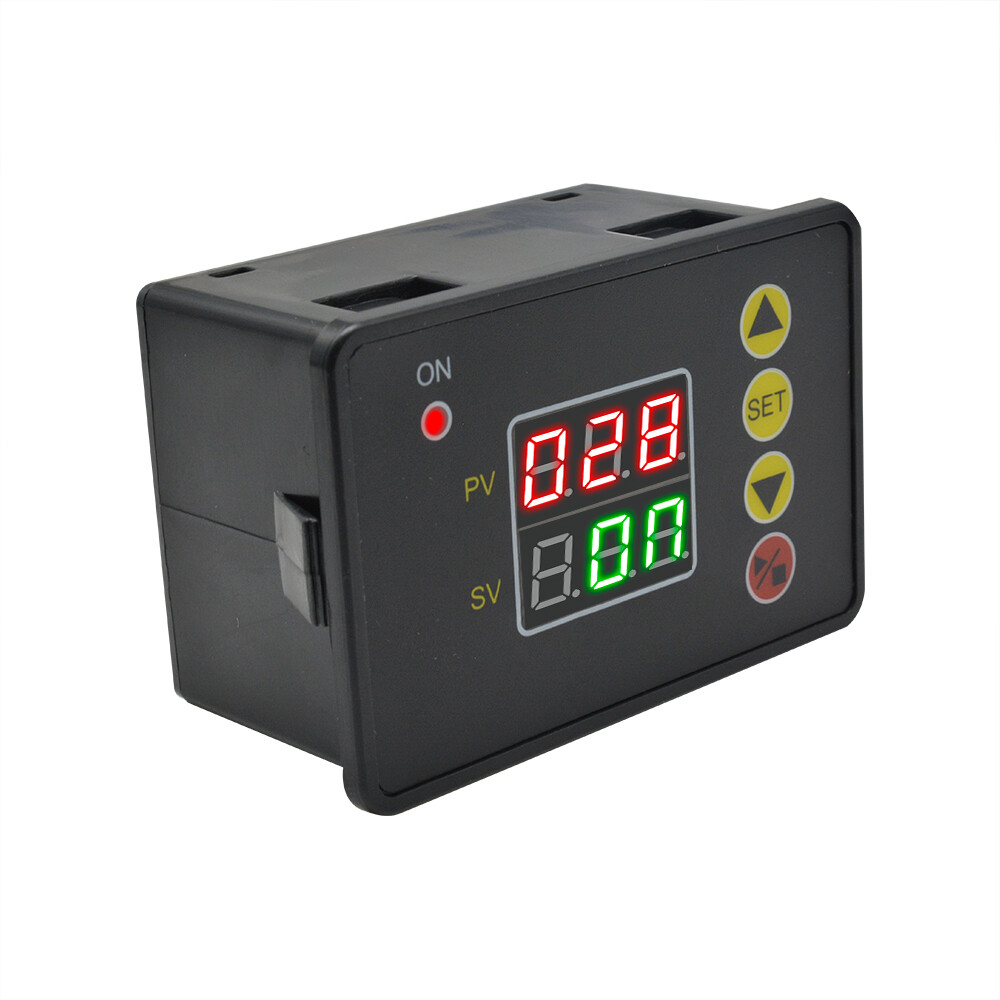

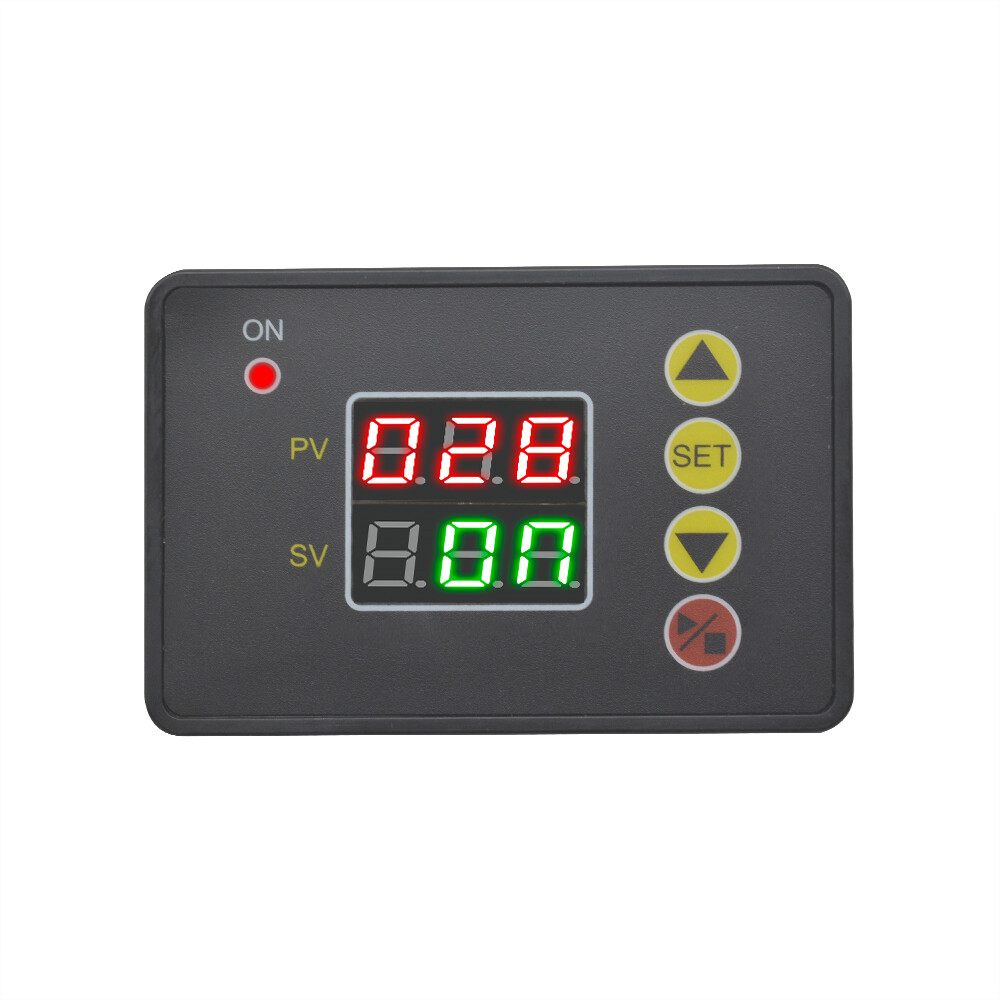

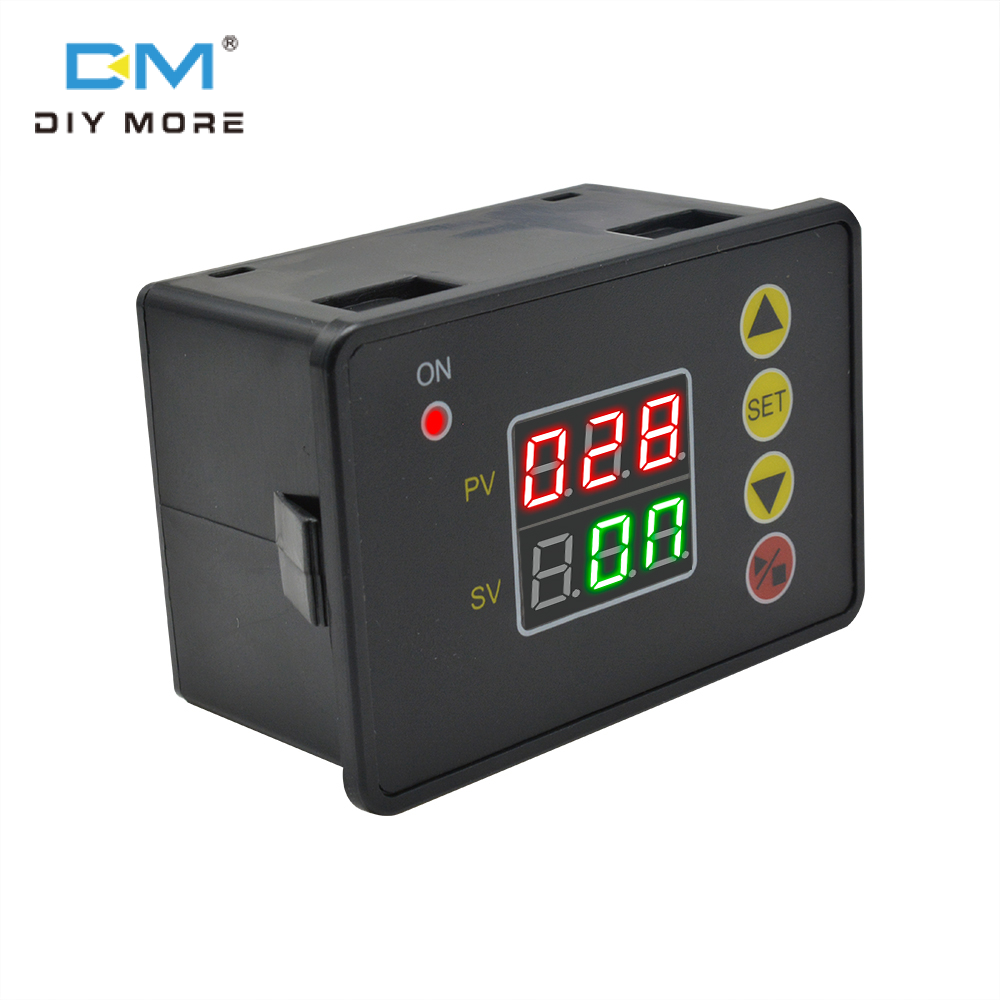

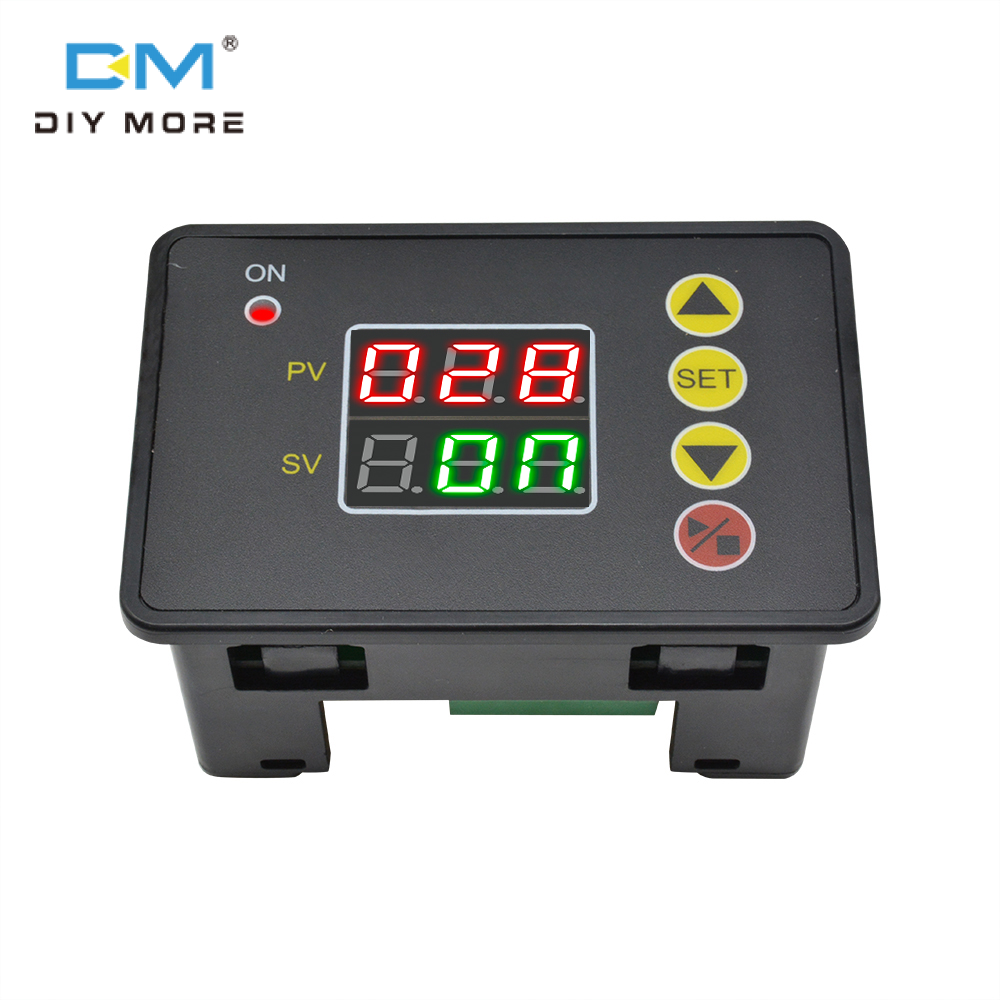

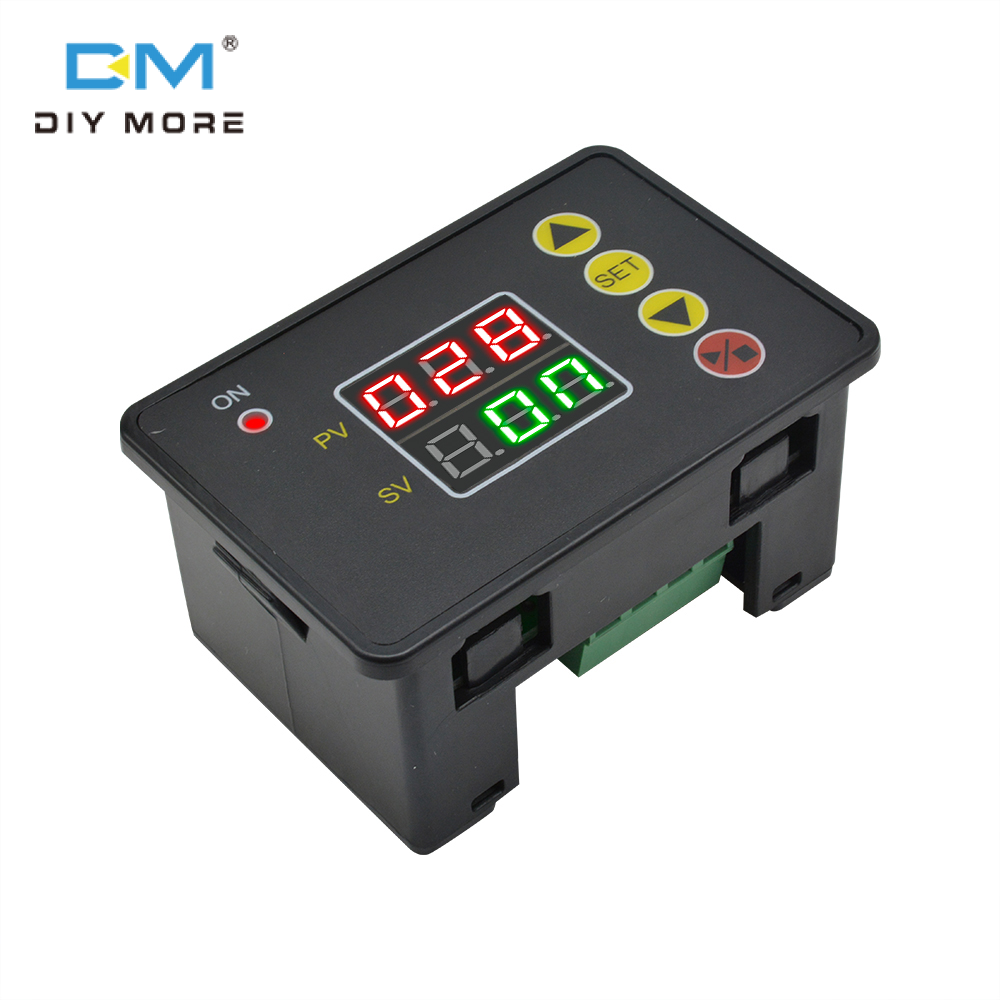

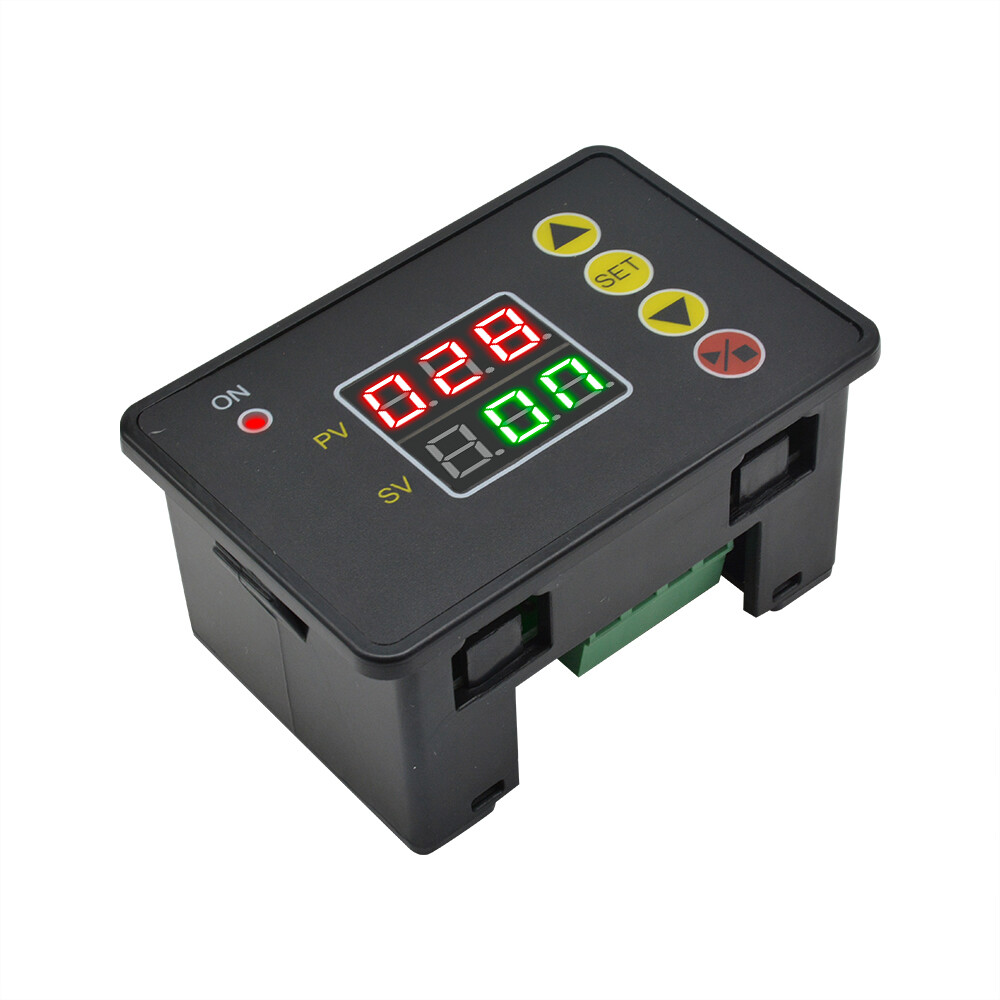

T2310 DC 12V 24V AC 110V-220V Digital Display Microcomputer Time Controller Timer LCD Time Delay Relay Switch Control Module

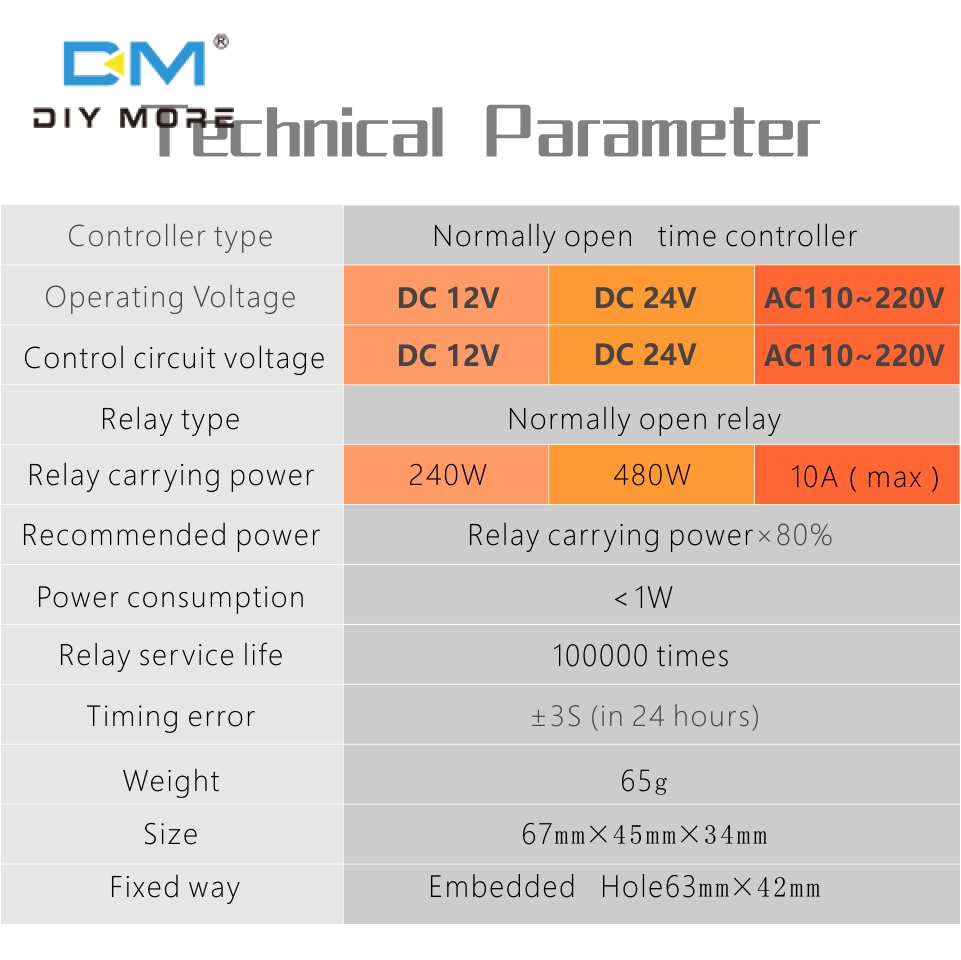

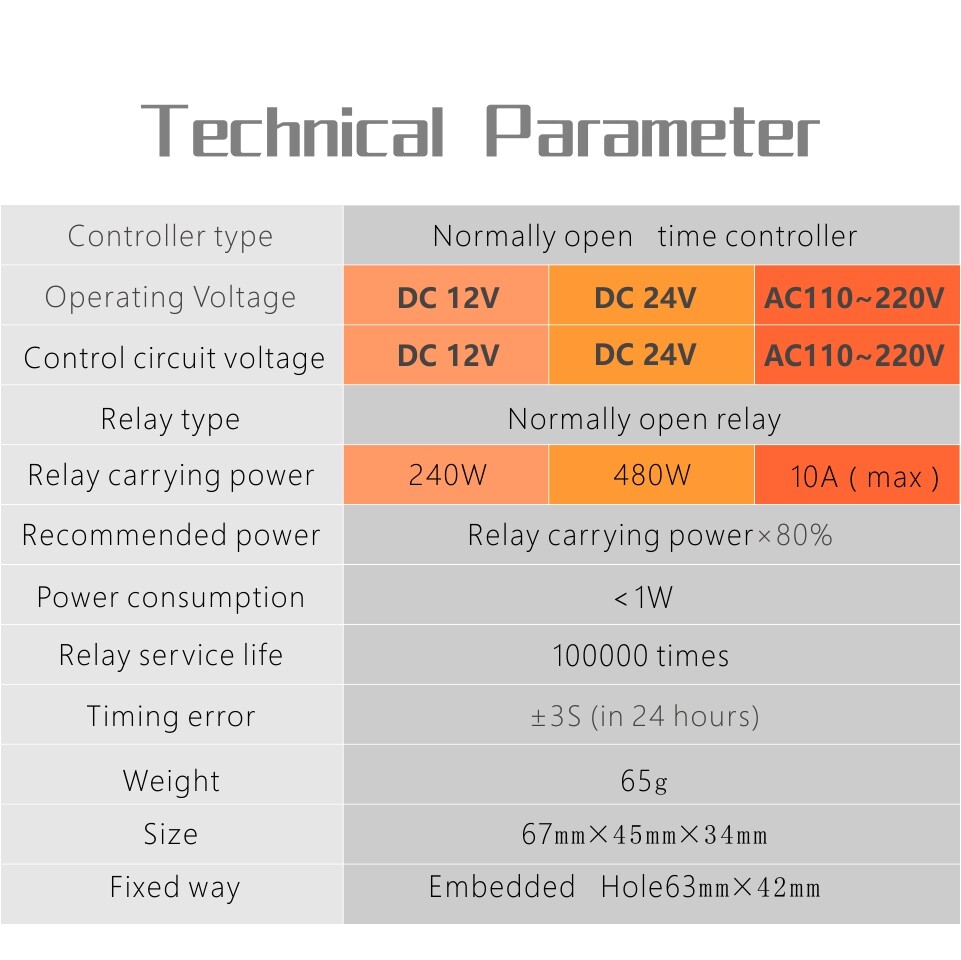

Product parameters:

Controller type: normally open microcomputer temperature controller

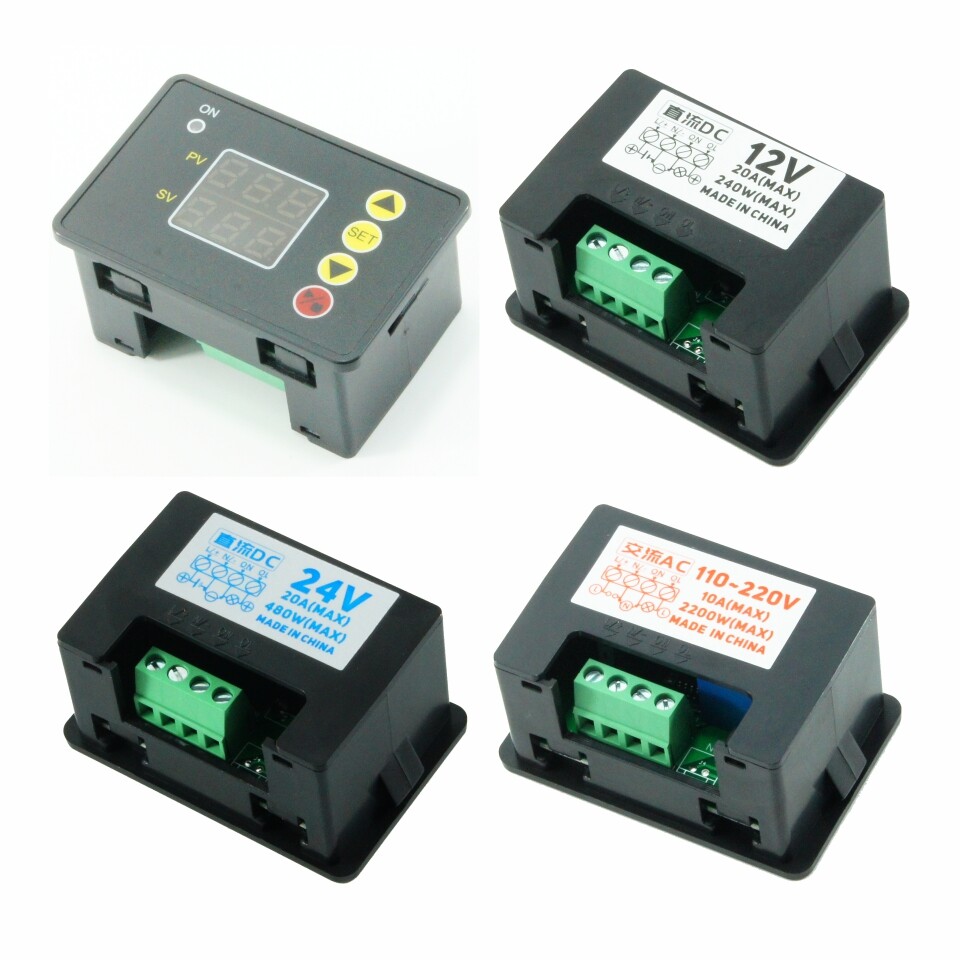

Working voltage: DC12V DC24V AC110~220V

Control circuit voltage: DC12V DC24V AC110~220V

Relay carrying power: 240W 480W 10A (maximum)

Recommended power of control loop: no more than relay carrying power × 80%

Relay type: normally open relay (control circuit is de-energized when de-energized)

Working power consumption: less than 1W

Relay life: 100,000 opening and closing times

Crystal timing error: ±3 seconds (within 24 hours)

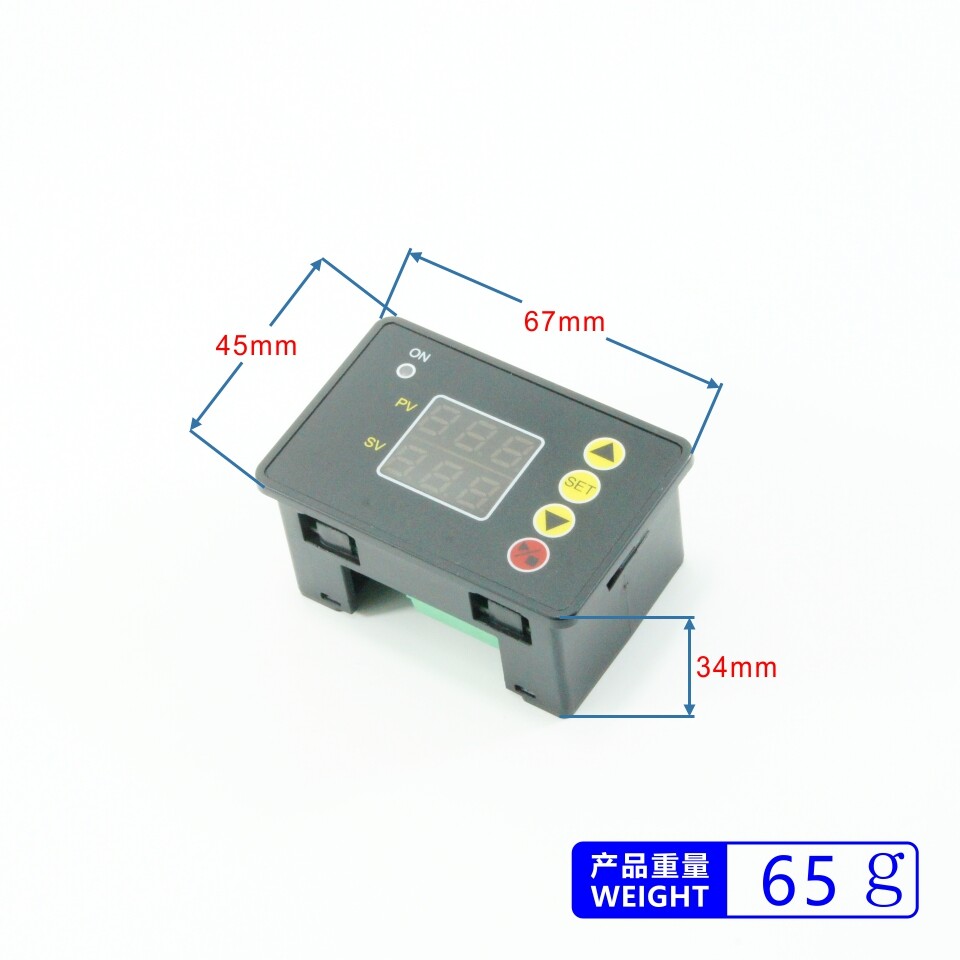

Product weight: 65g

Product size: 67mm×45mm×34mm

Installation method: embedded installation, installation opening 63mm × 42mm

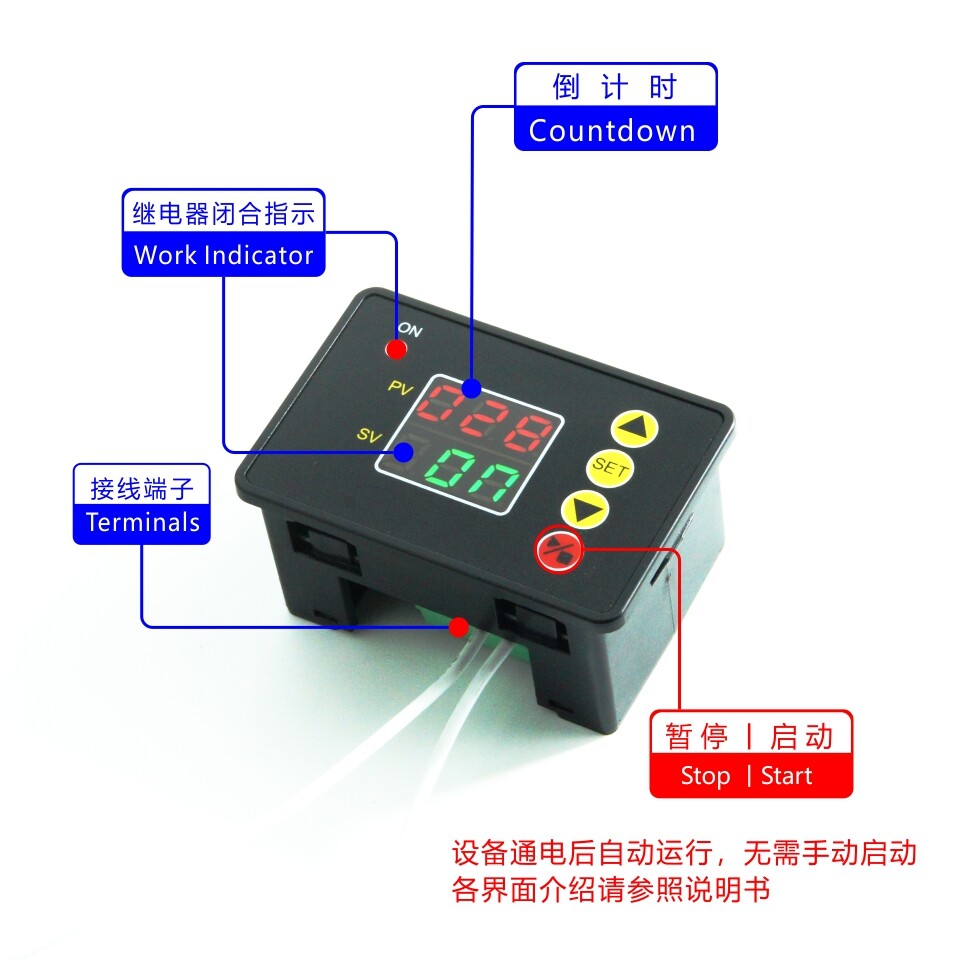

Product advantages:

Independent crystal oscillator, more accurate timing

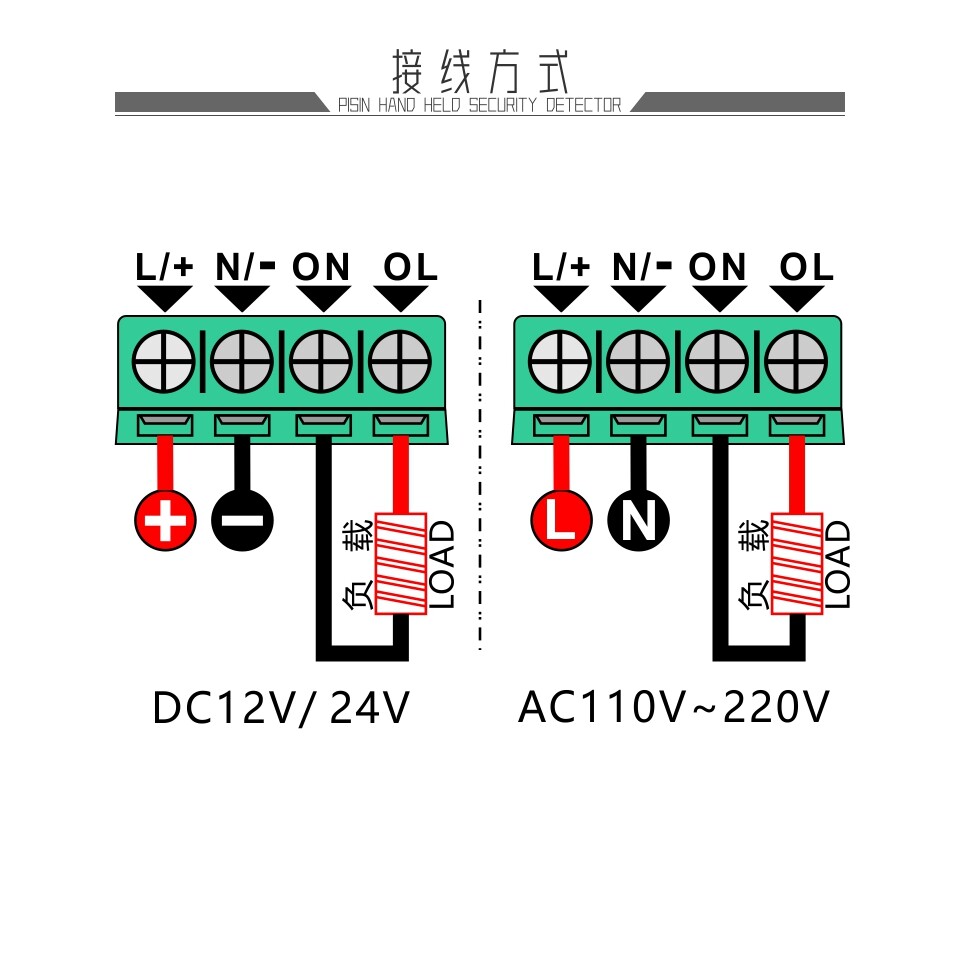

1. Direct output type is convenient for wiring

2. Add buzzer, audible alarm

3. Add a pause button to stop emergency

5. Start and stop setting mode, province conversion, which is more convenient

6. Automatically save when power off, run automatically when power on

7. The timing unit can be set separately, and there are 36 working combinations

8. Timing range: 0-999 seconds, minutes, hours

9. Timing in minutes or hours means that the nixie tube flashes in seconds.

Note:

This product works as a countdown and cannot be set to a 24-hour working mode.
