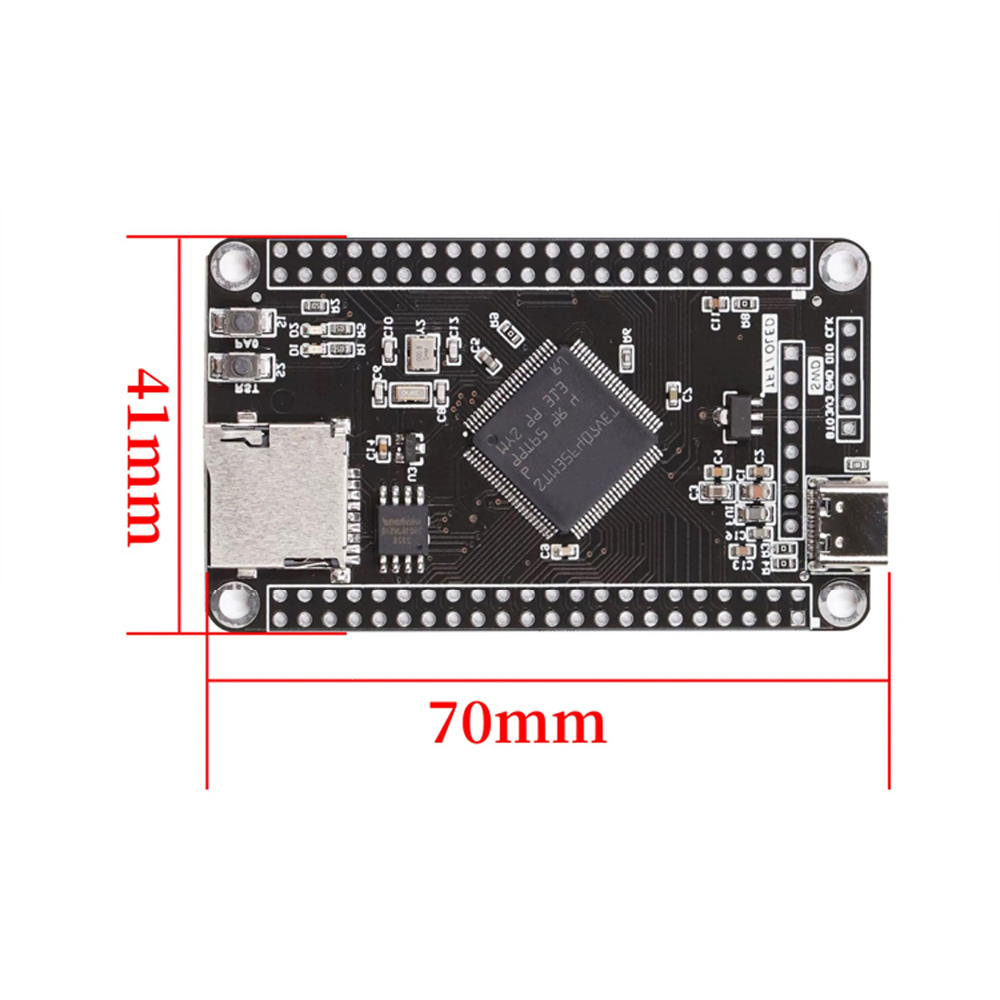

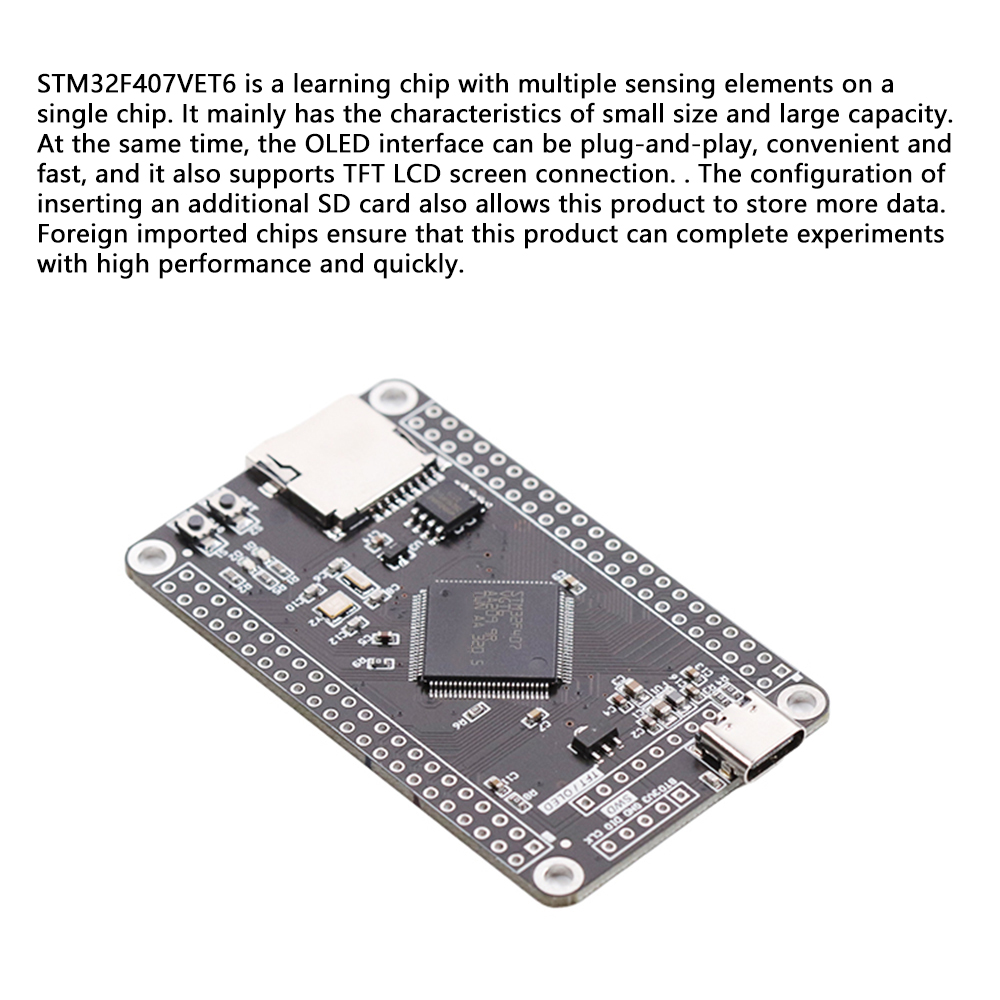

diymore stm32f407vet6 pm32f407vgt6 stm32f407vgt6 Cortex-M4 MCU bảng mạch Nhân Học bảng mạch phát triển STM32

Parameters:

1. Type-C interface power supply

2. OLED interface - plug and play, supporting 0.96 inch OLED

3. TFT LCD screen interface: connected to 1.44 inch full color LCD screen and 1.8 inch full color LCD screen

4. Data storage: W25Q16

5. High speed crystal oscillator: 8MHZ

6. Low frequency crystal oscillator: 32.768K

7. Power supply+programmable LED light, user and reset button

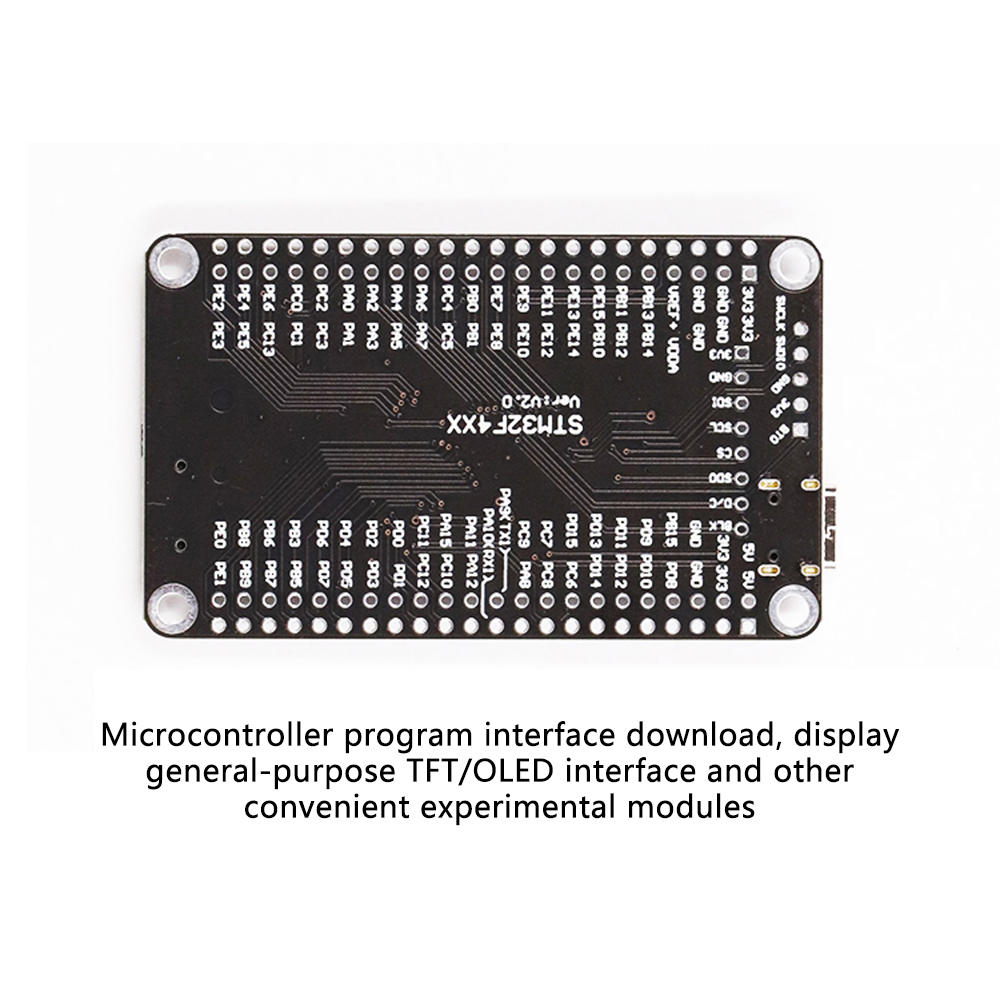

8. All CPU-IO outputs, 2.54mm integer multiple pins

9. SD/TF memory card holder: Additional memory cards can be inserted to avoid frustration due to small memory during experiments

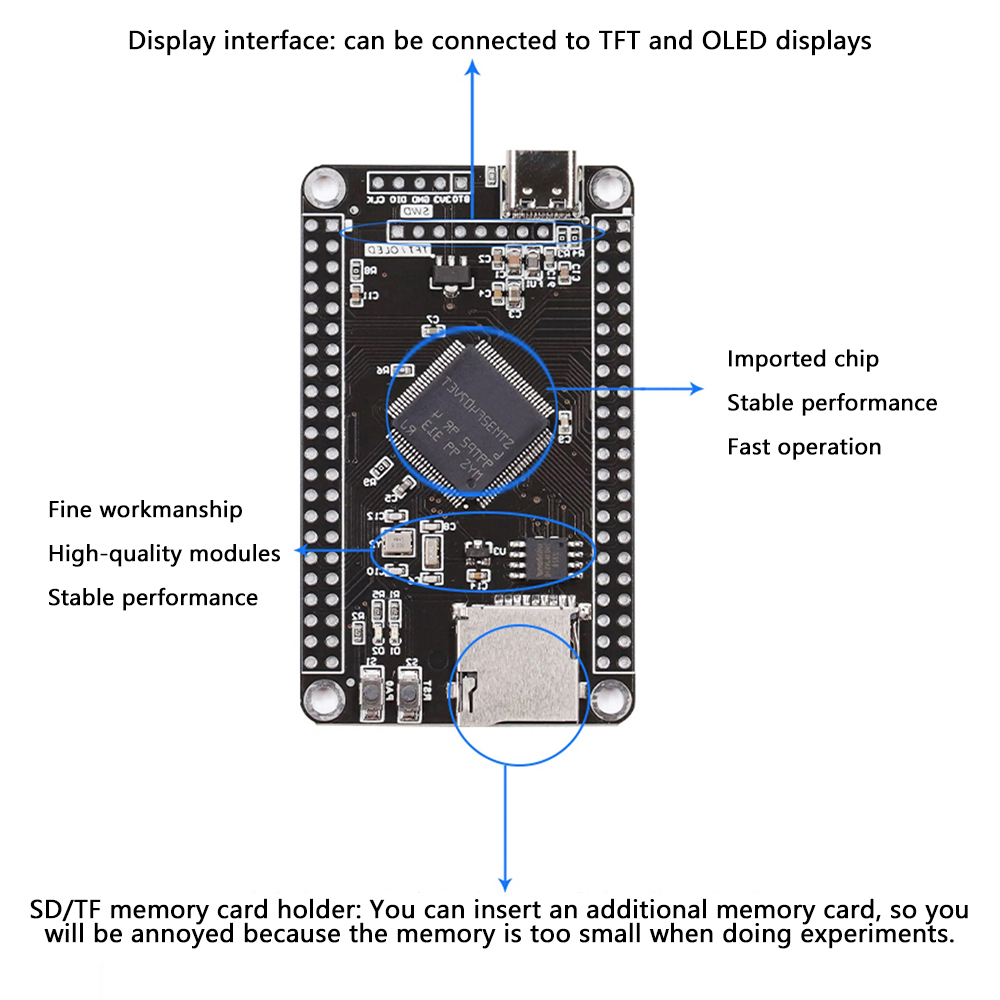

10. Download microcontroller program interface, display screen universal TFT/OLED interface, and other convenient experimental modules

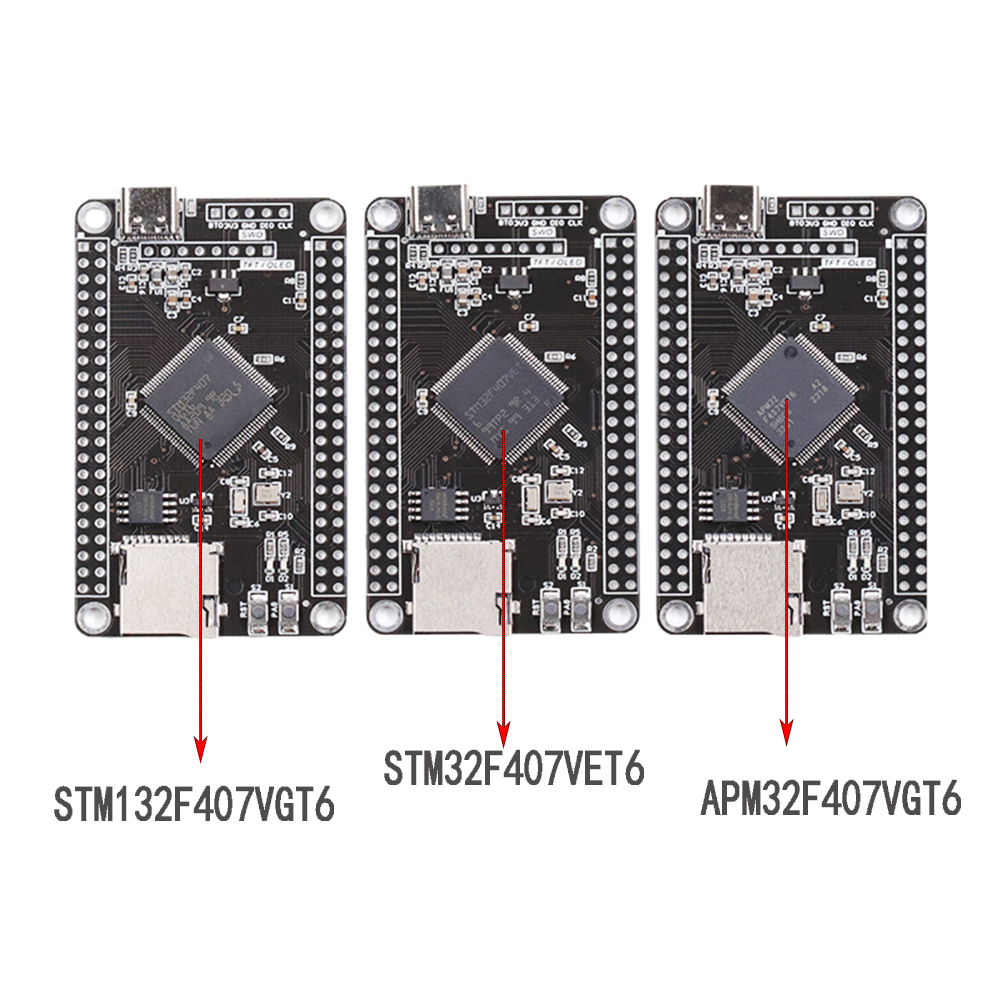

11. Chip model: STM32F407VET6/APM32F407VGT6/STM32F407VGT6

12. Core: Cortex-M4 32-bit RISC

13. Feature: Single cycle DSP instruction

14. CPU core: ARM ® Cortex ®- M4

15. Interface: CANbus, DCMI, EBIT/EMI, Ethernet, I ² C. IrDA, LINbus, SPI, UART/USART, USB OTG

16. Working frequency: 168MHz

17. Memory RAM capacity: 192x8KB

18.210 DMIPS/1.25 DMIPS/MHz

19. Working voltage: 1.8V~3.6V

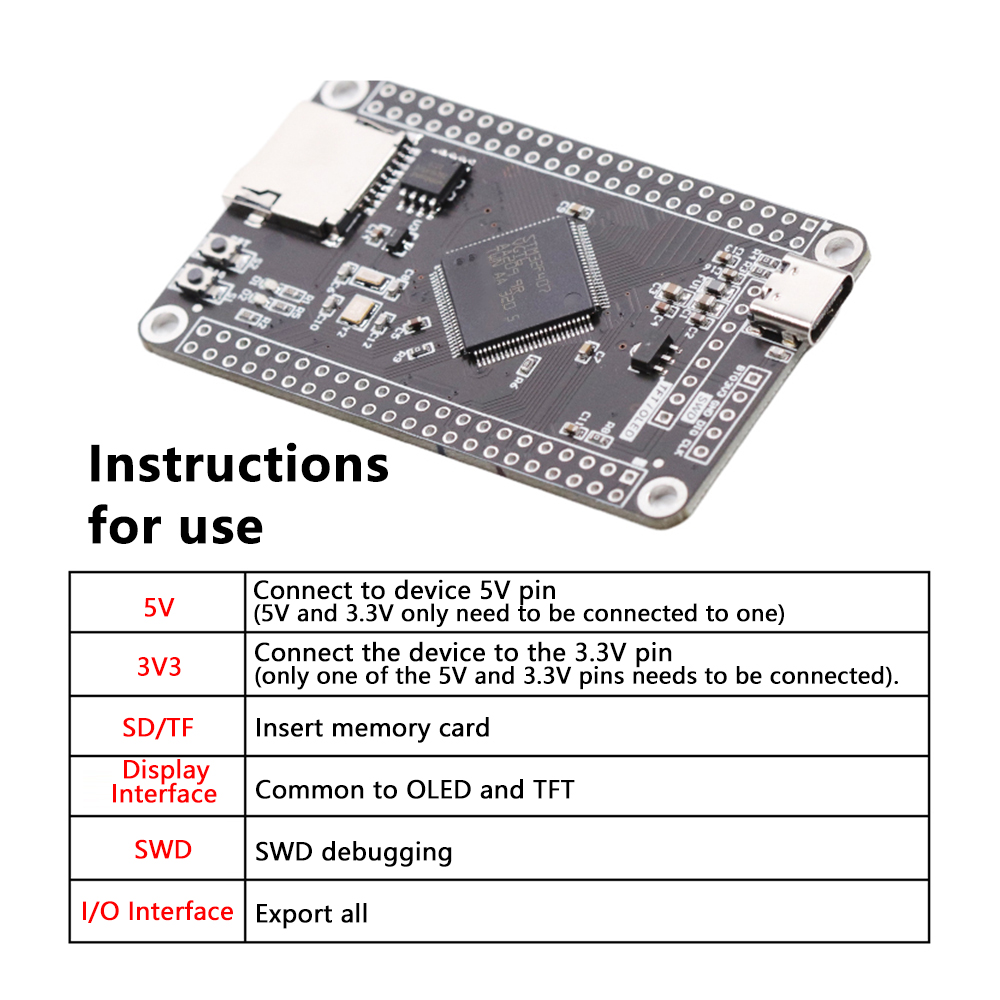

Instructions for use:

5V: Connect to the 5V pin of the device (only one 5V and 3.3V needs to be connected)

3V3: Connect to device 3.3V pin (only one is needed for 5V and 3.3V)

SD/TF: Inserting a memory card

Display interface: common to OLED and TFT

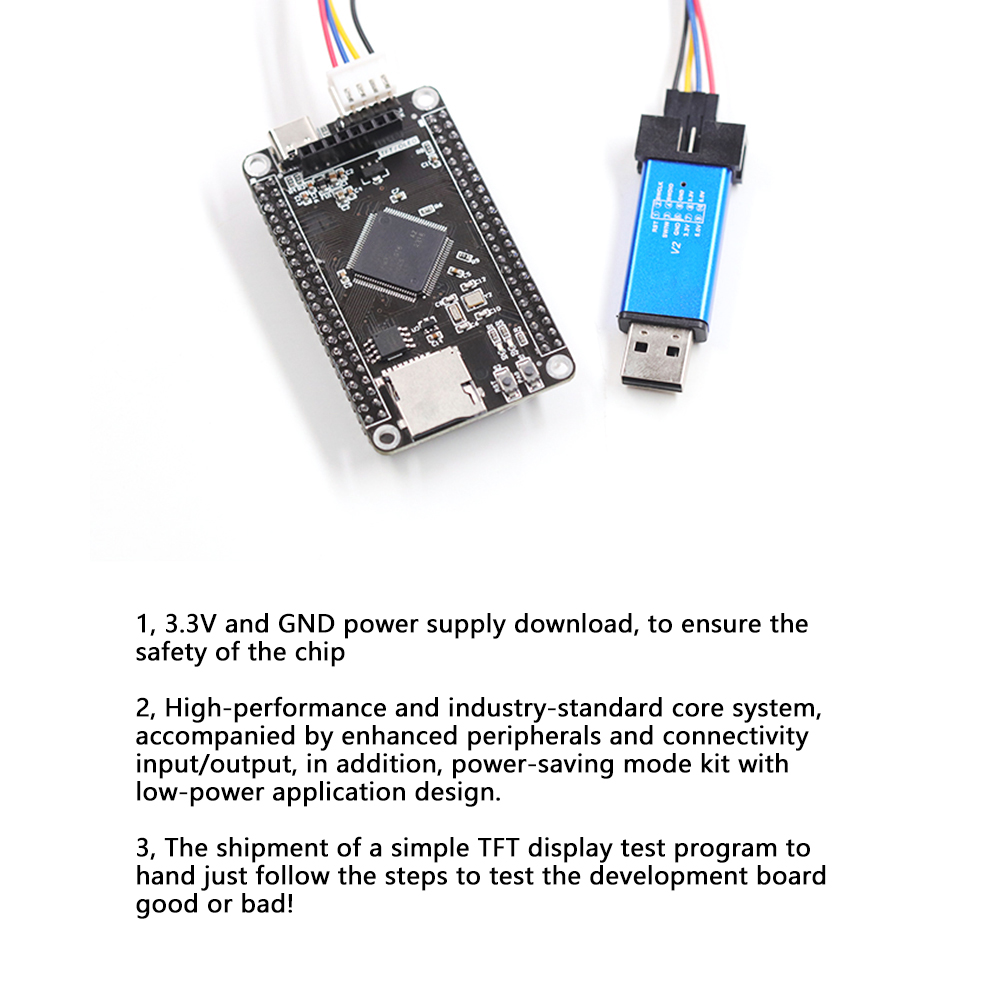

SWD: SWD debugging

I/O interface: all outgoing

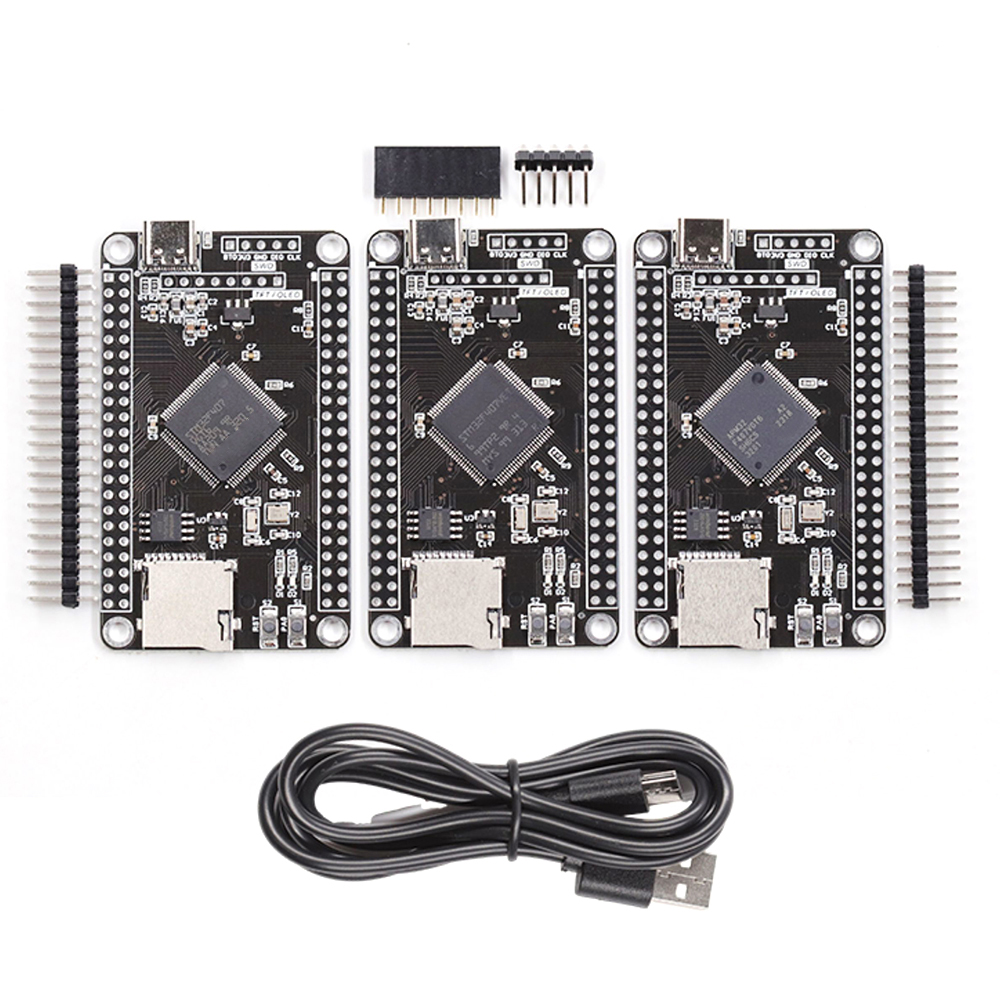

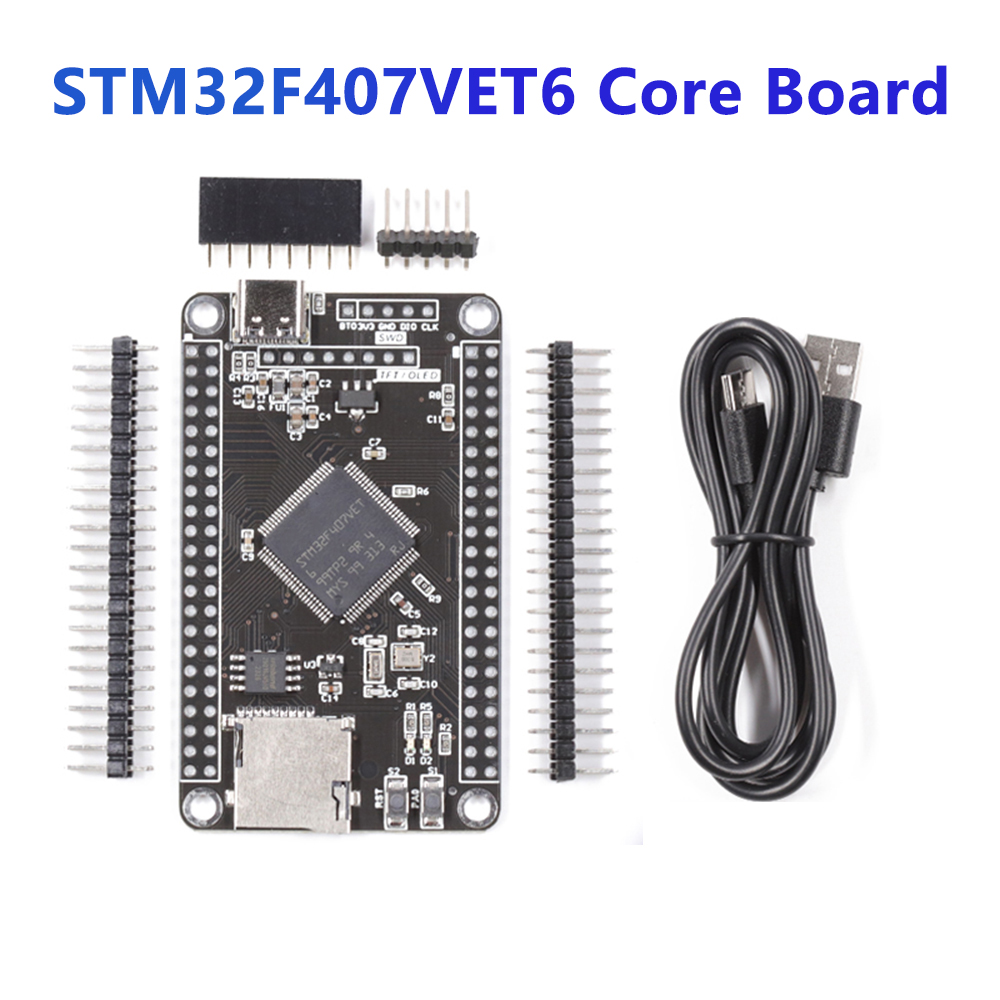

Package include:

1X development board

4X pin arrangement

1X power cord
