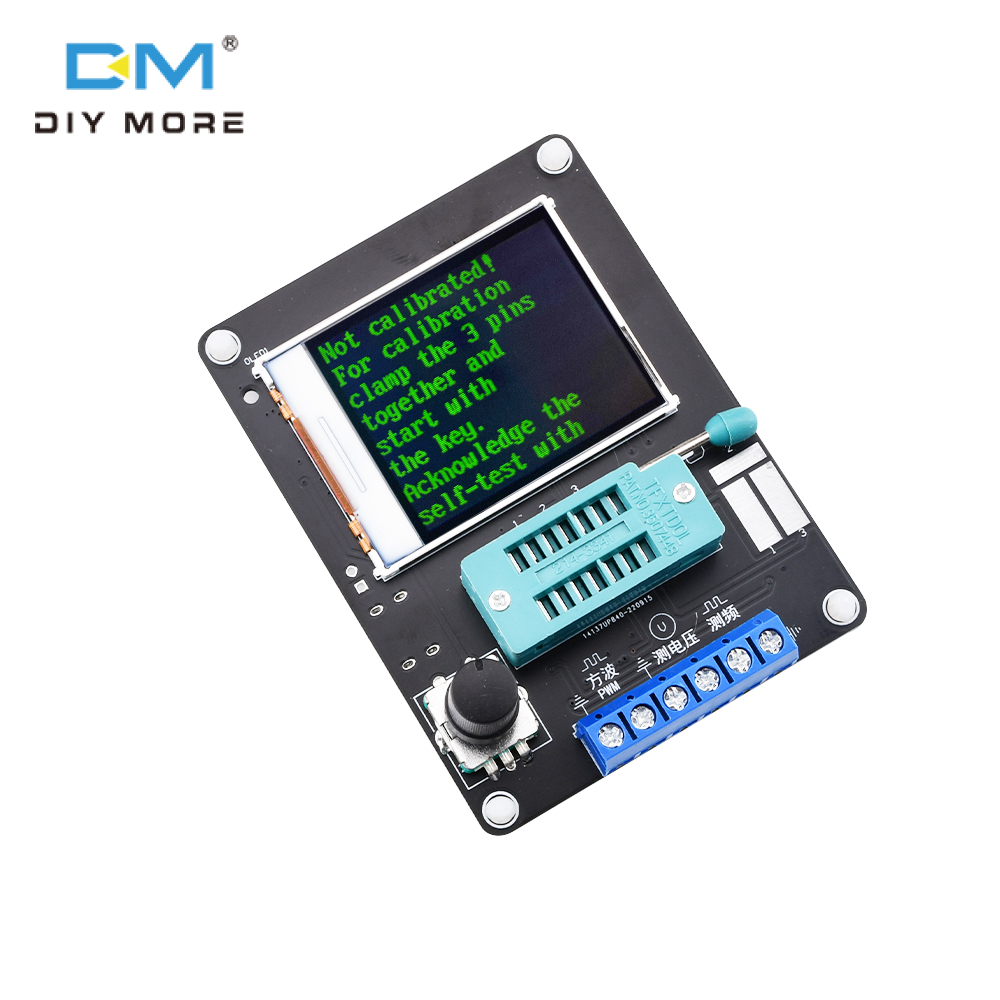

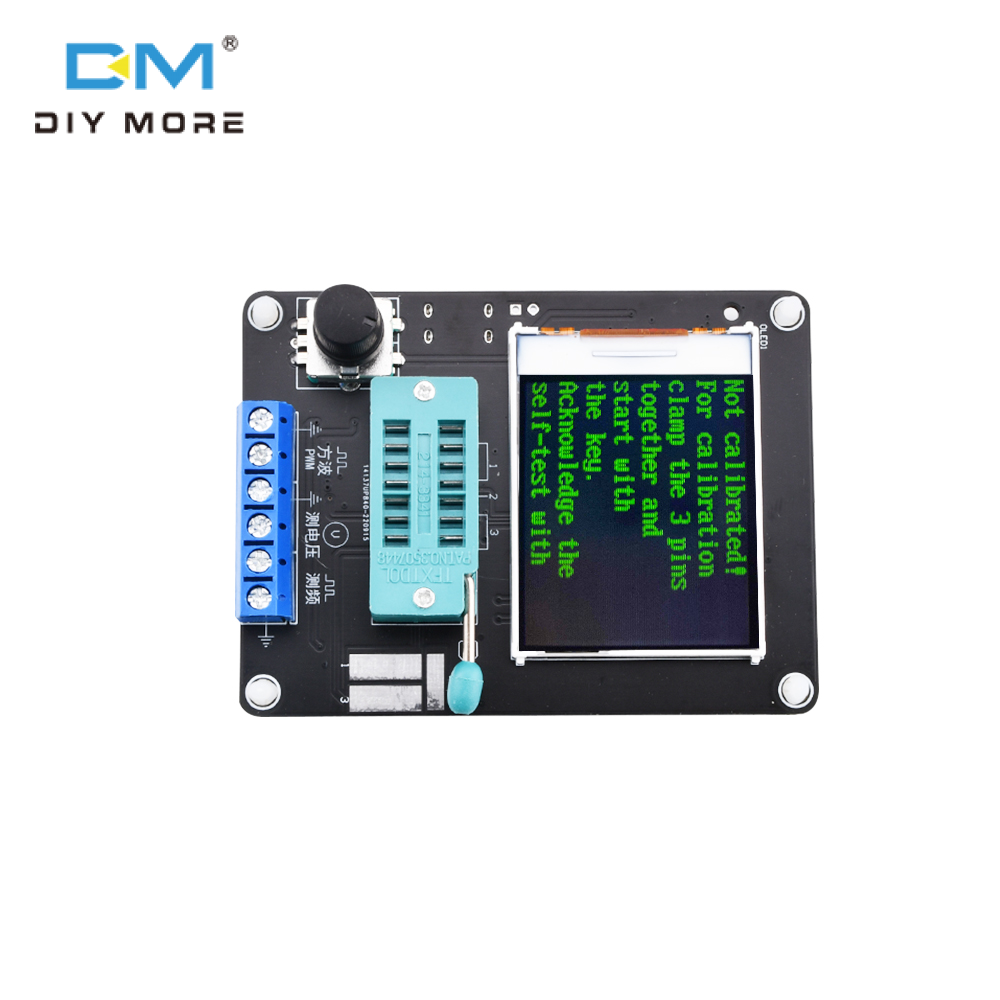

diymore Kháng Cảm Điện Dung Meter GM328A Transistor Tester ESR Meter Điện Dung Meter Transistor Tester

Note:

Before testing the capacitor, discharge the capacitor first, and then insert the test base for measurement, otherwise the microcontroller of the tester may be damaged.

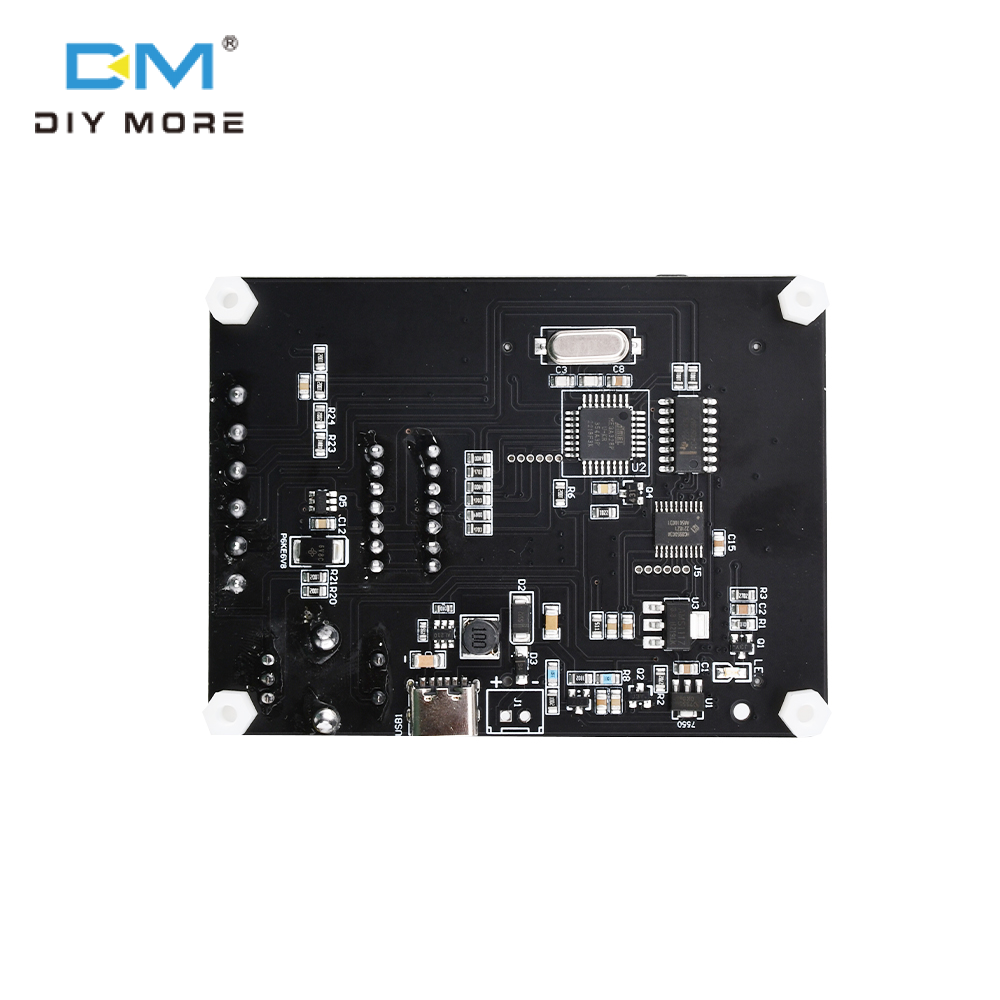

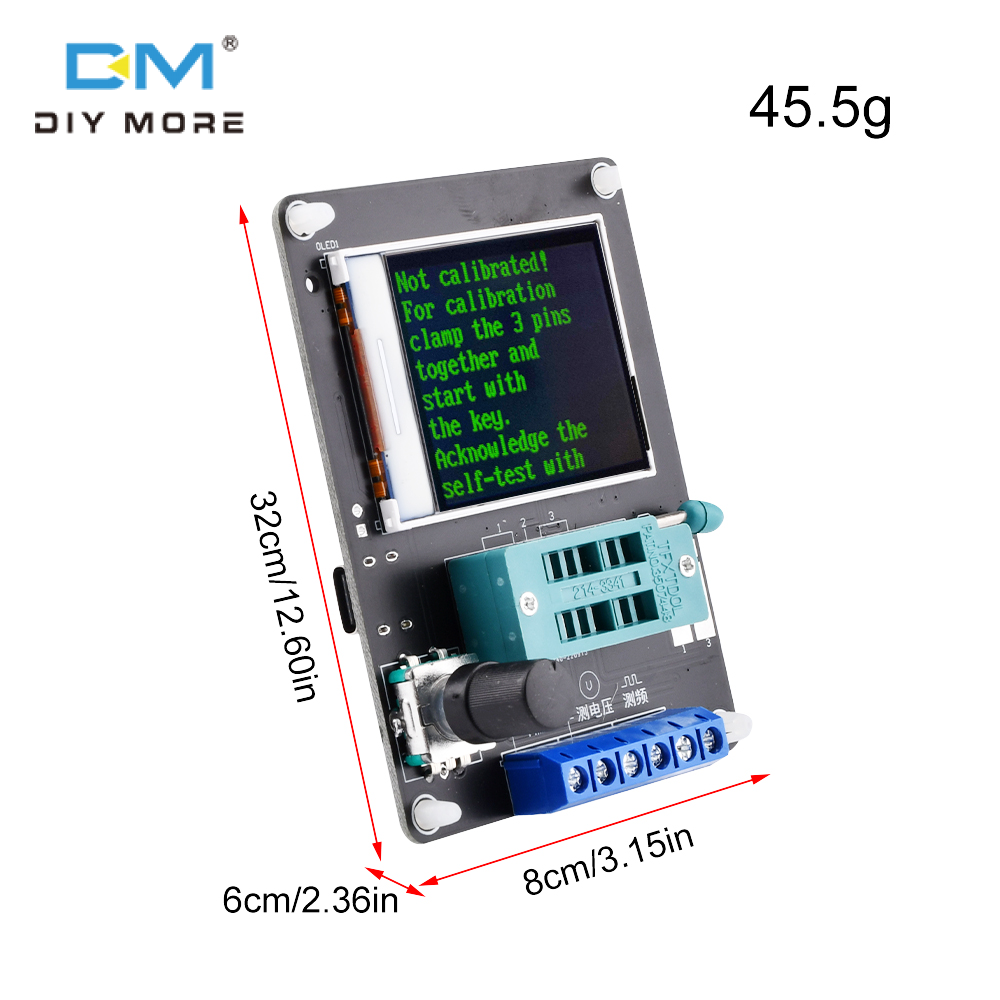

Specification:

Input voltage: DC5V

Operating voltage: about 30mA,

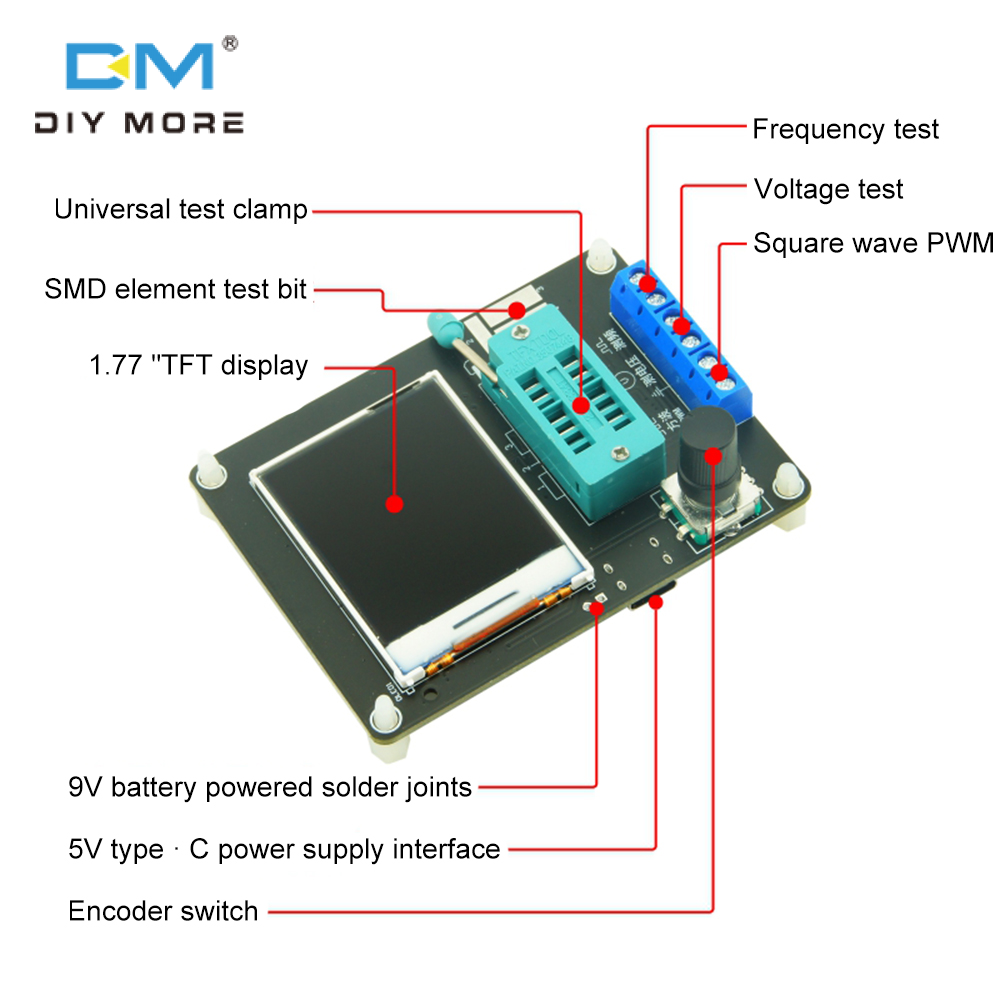

Transistor tester control

The tester is controlled by a rotary encoder switch,

The rotary encoder switch can have a total of 6 operations, short press, long press, left turn, right turn, press left turn, press right turn.

Press once in the off state to turn on the power and start the test.

After a test is completed, if no device is detected. Long press the switch or rotate the switch left and right to enter the function menu. After entering the function menu, the left or right switch can select up and down the menu item. To enter a function item, press the switch once. When you need to exit from a function, hold down the switch.

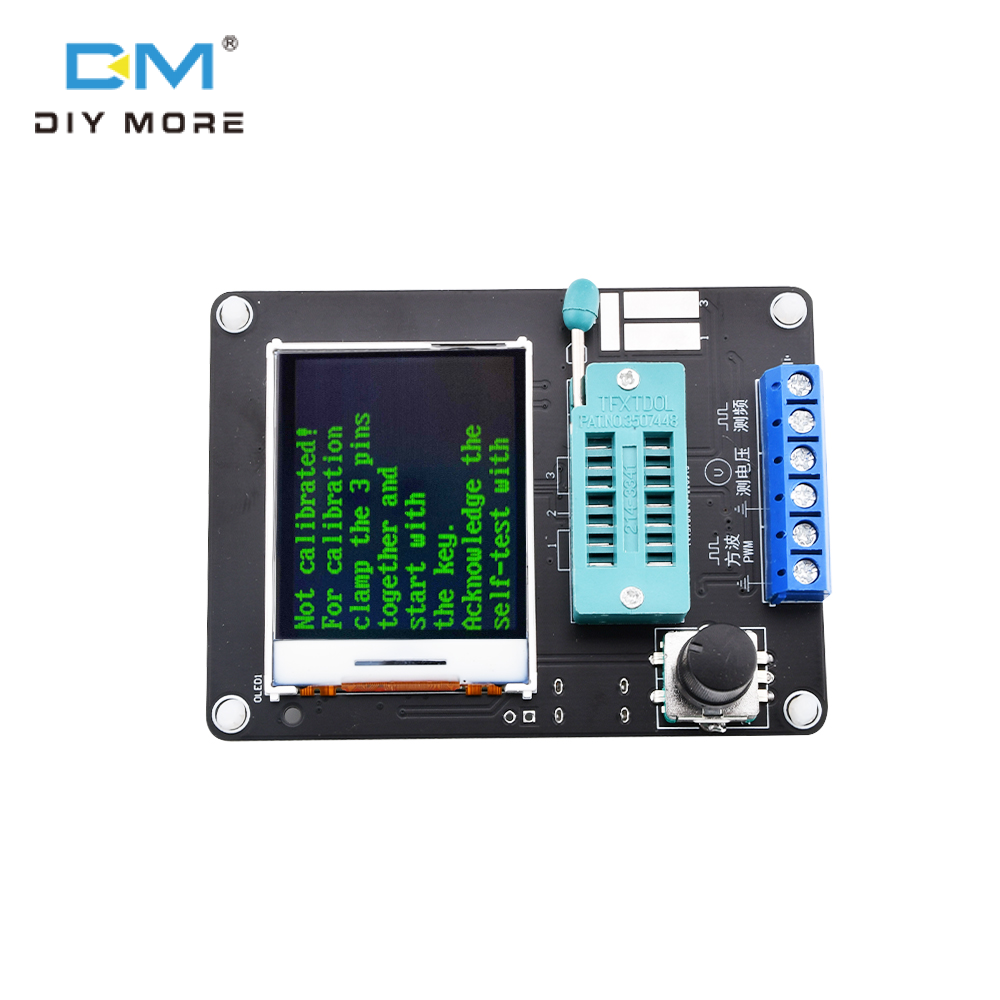

Calibration:

Tester calibration is used to eliminate the error of its own components, so that the final test results are more accurate. Calibration is divided into rapid calibration and full-function calibration.

Operation method of quick calibration: short connect the three test points TP1, TP2 and TP3 with wires, and then press the test button, while paying attention to the screen. The screen color will change to white text on black background, and the prompt "Selftest mode.. ?" After that, press the test button to enter the rapid calibration process; If the message "Selftest mode.. ?" After that, if there is no key within 2 seconds, a normal test process will be carried out. Finally, the resistance values of the wires at the three test points of TP1, TP2 and TP3 are displayed. Once you go through the quick calibration process, you'll see some data on the screen, just ignore it. Wait until a blinking string appears on the screen

"Isolate the Probes!" After that, remove the short wires of TP1, TP2, and TP3. The quick calibration is completed until the string "Test End" appears on the screen. For the first calibration, use full function calibration.

Full function calibration needs to be accessed from the function menu, and an additional 220nf capacitor is required. Full-function calibration performs a more comprehensive calibration process and takes longer. Once in the features menu, rotate the test button to the menu item "Selftest", then press the test button to enter the fully functional calibration process, with the blinking string "short Probes!" popping up on the screen first. As with the quick calibration, the three test points are shorted with wires and wait for the calibration process to occur, with the string "isolate Probes!" flashing on the screen. , remove the short in three test points lead, continue to wait for the calibration process, the screen string "1 -- 3 & gt; For 100nf, install the 220nf capacitor on the test points TP1 and TP3. Wait until the screen prompts "Test End" and the full-function calibration process is complete.

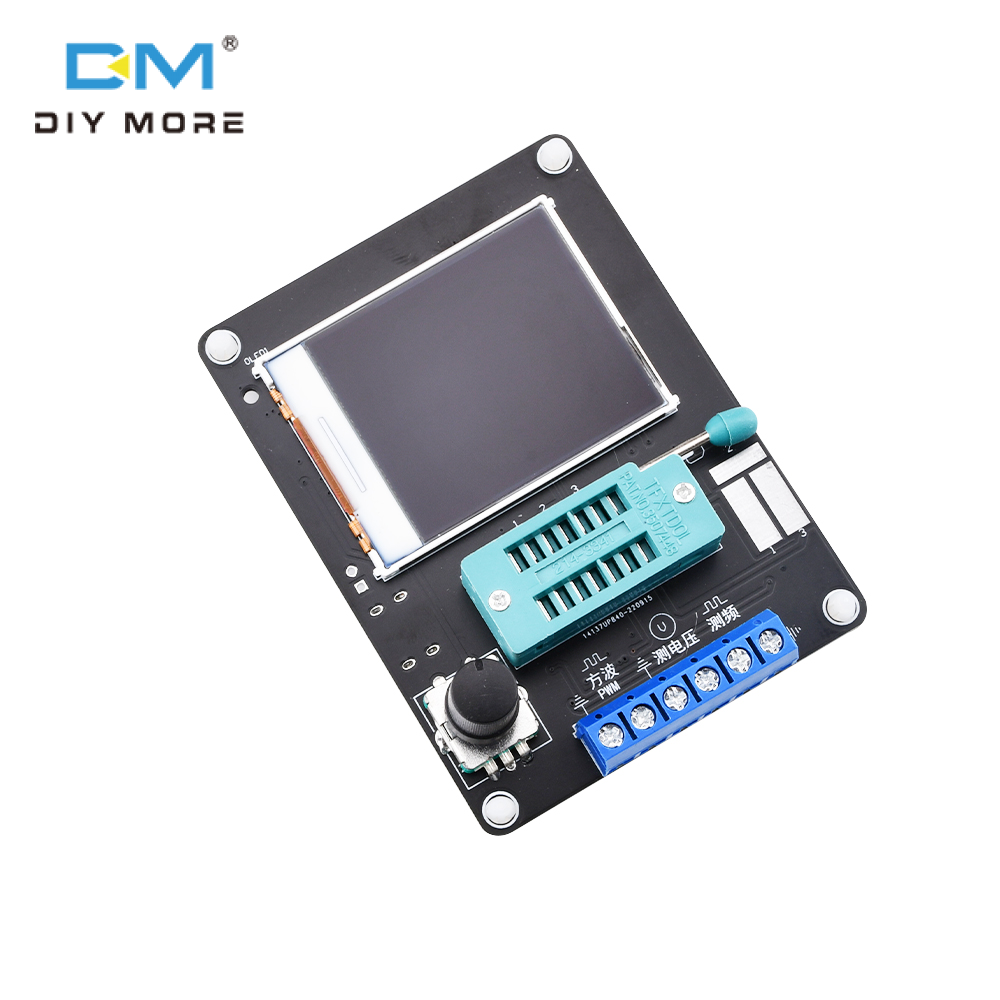

Package includes:

GM328A transistor tester X1
