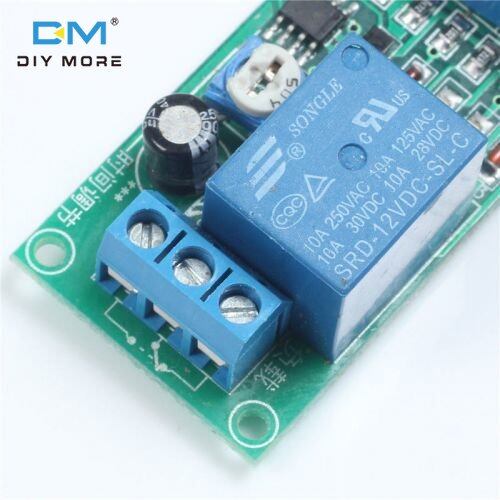

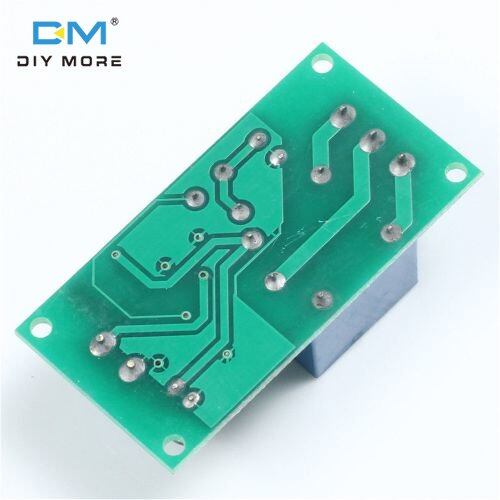

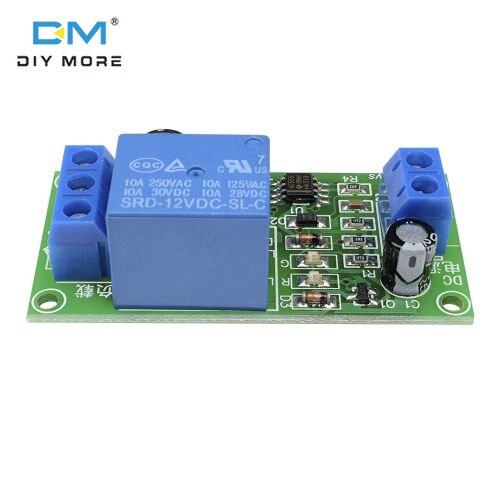

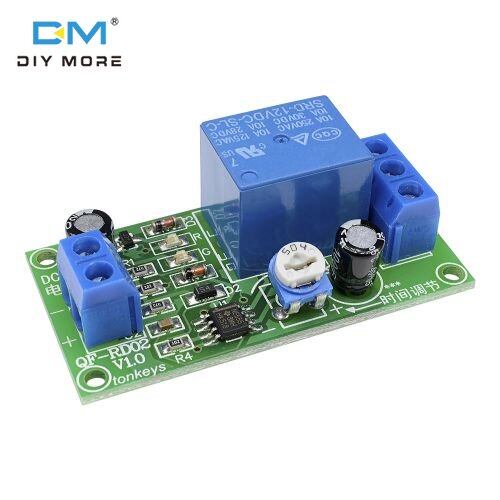

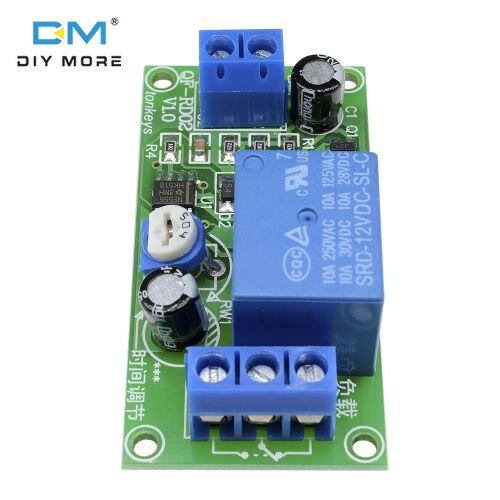

NE555 Time Delay Relay DC 12V Conduction Trigger Timing Delay Timer Switch Pulse Generation Adjustable Time Relay Module

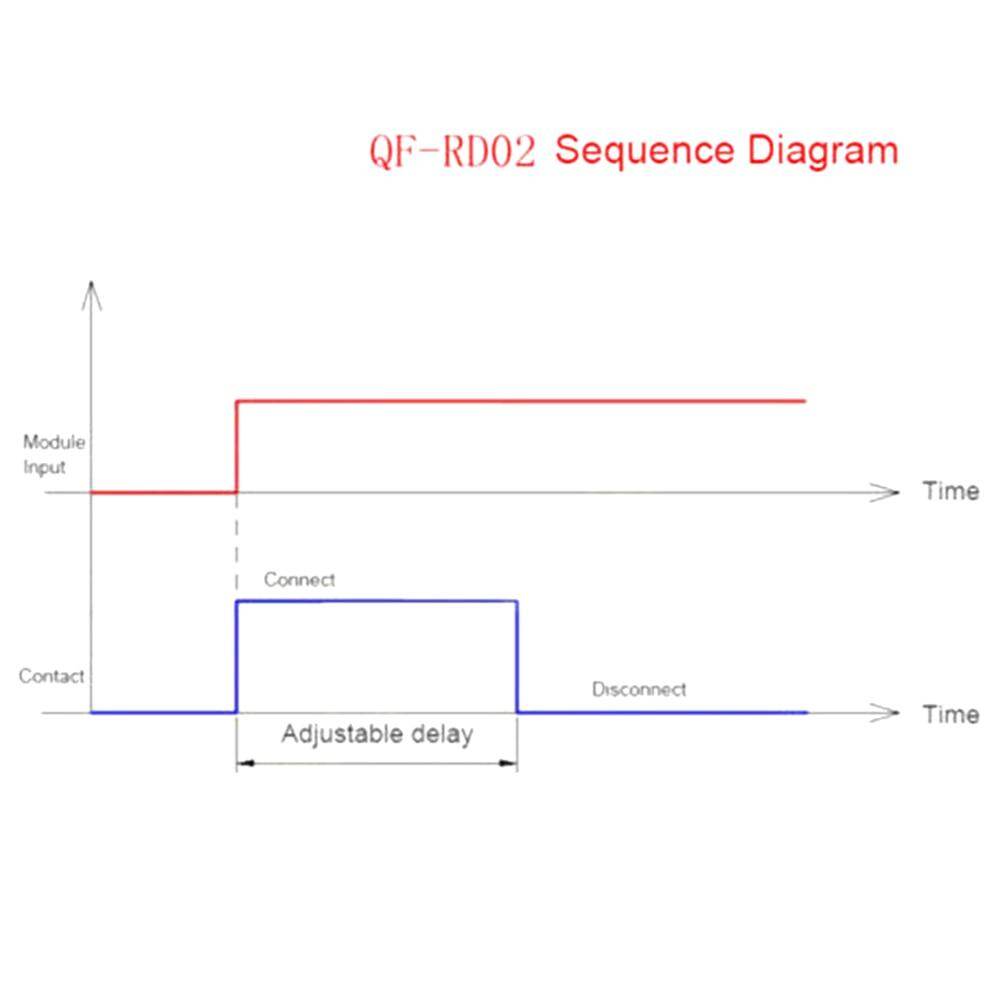

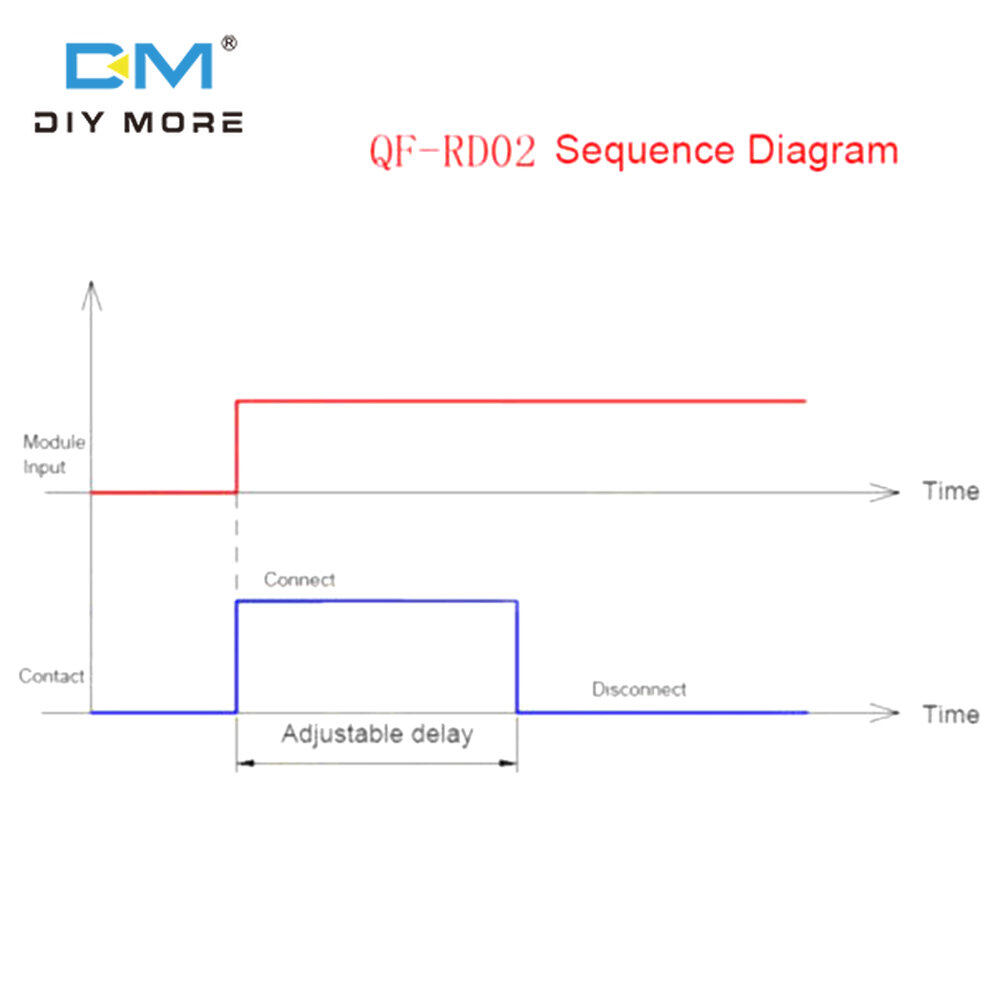

Features: 12V Conduction delay relay module brand new and high quality delay turn-on / Turn off module. the use of high-performance timing CPU design. the power indicator LED and switch trigger timing indication LEDs The output can be connected to AC 250V 10A or DC 30V 10A load There is the chronopotentiometry regulation time, adjustable from 0 to 60 seconds by default, or by changing the capacitance adjustment time longer Standby current: 5mA Action: 45mA For applications of: Vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices. Parameter: 1.Module based on: NE555 chip. 2.Delay module: delay connect module 3.Input voltage: DC12V (DC 10v ~ 14.5v is okay.) 4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 12V optional) 5.Max. load: 2200W Main Chip (NE555) Characteristics: 1.Timing from microseconds to long hours 2.Simple circuit design 3.Precision Pulse Generation / Timing, 4.Adjustable Duty Cycle 5.Countless Application and Information Sources Package Included: 1 xDC 12V NE555 Delay Timer Relay Switch Module
