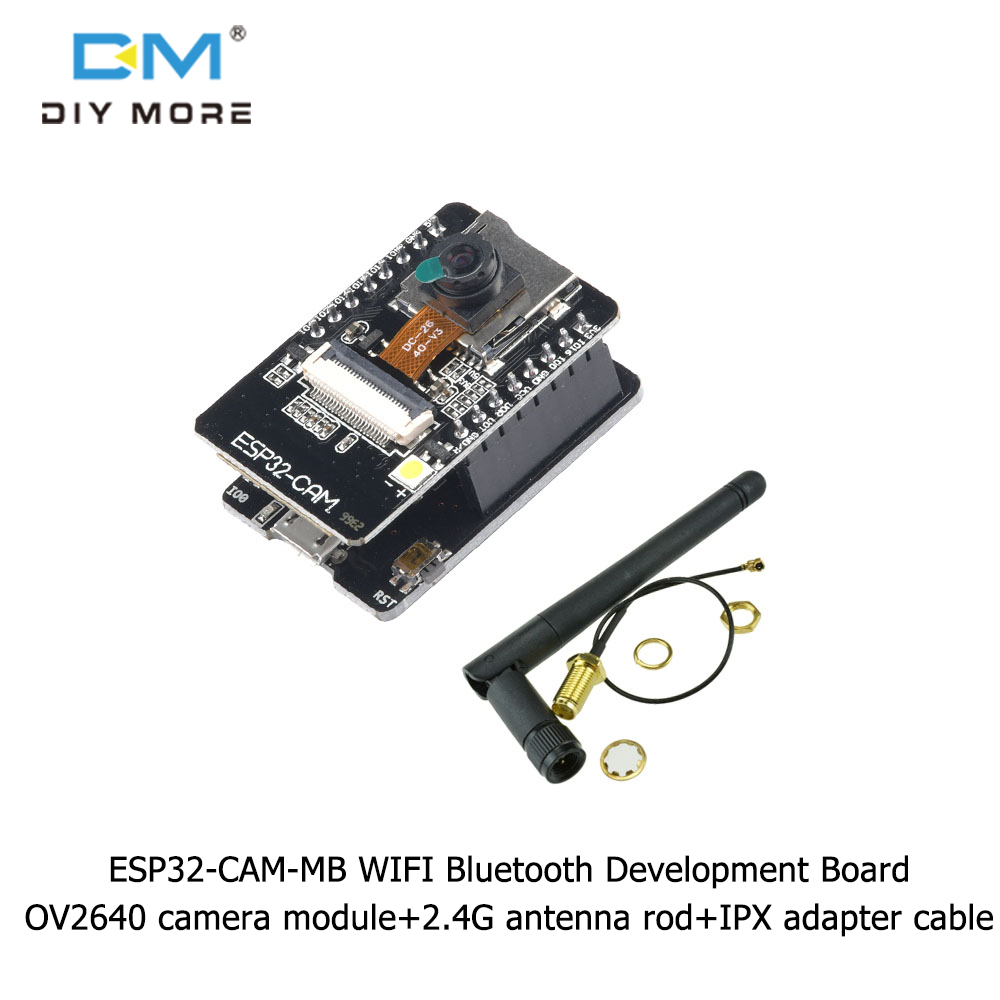

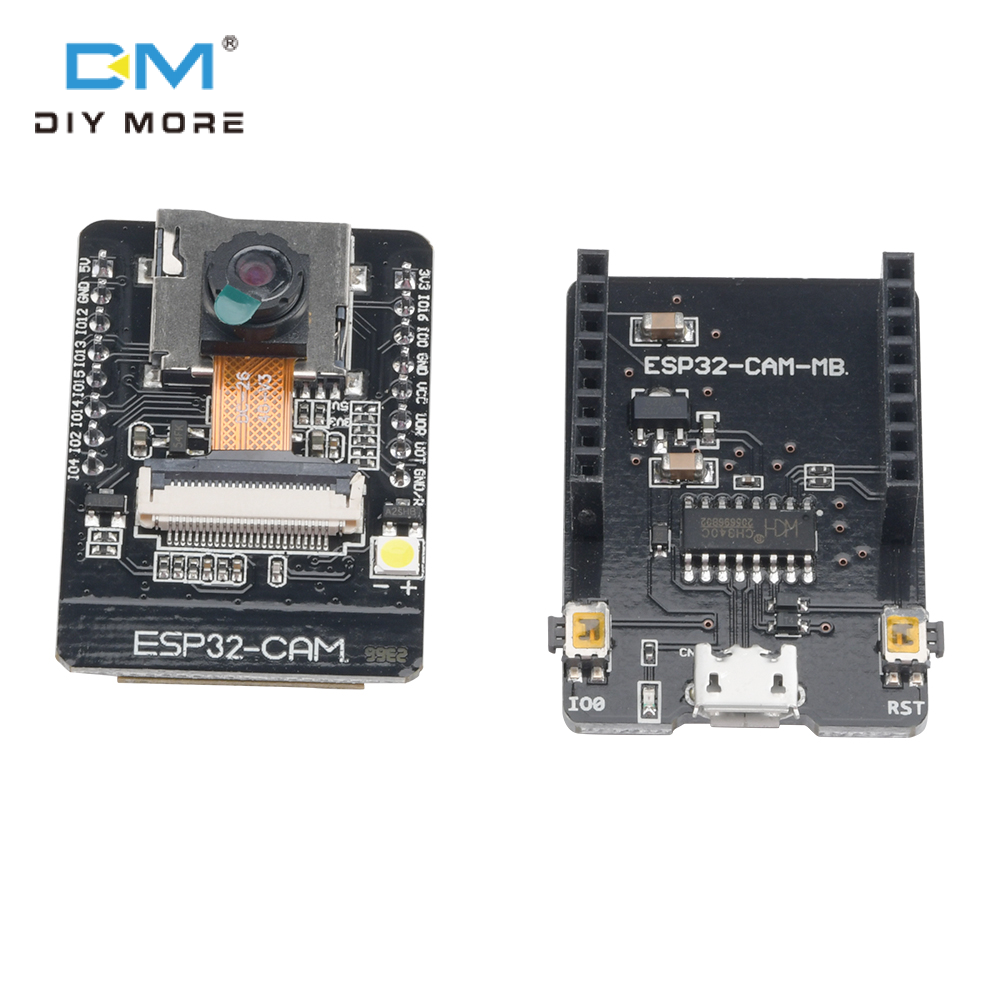

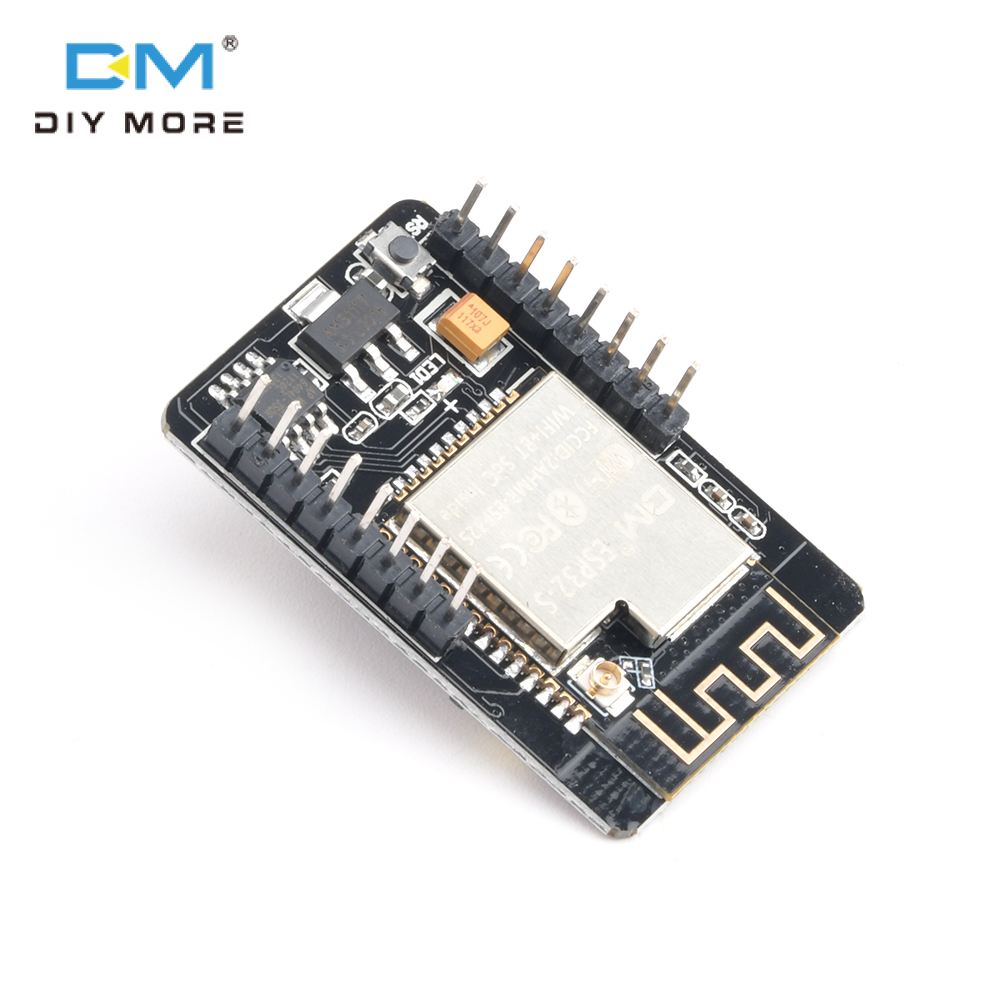

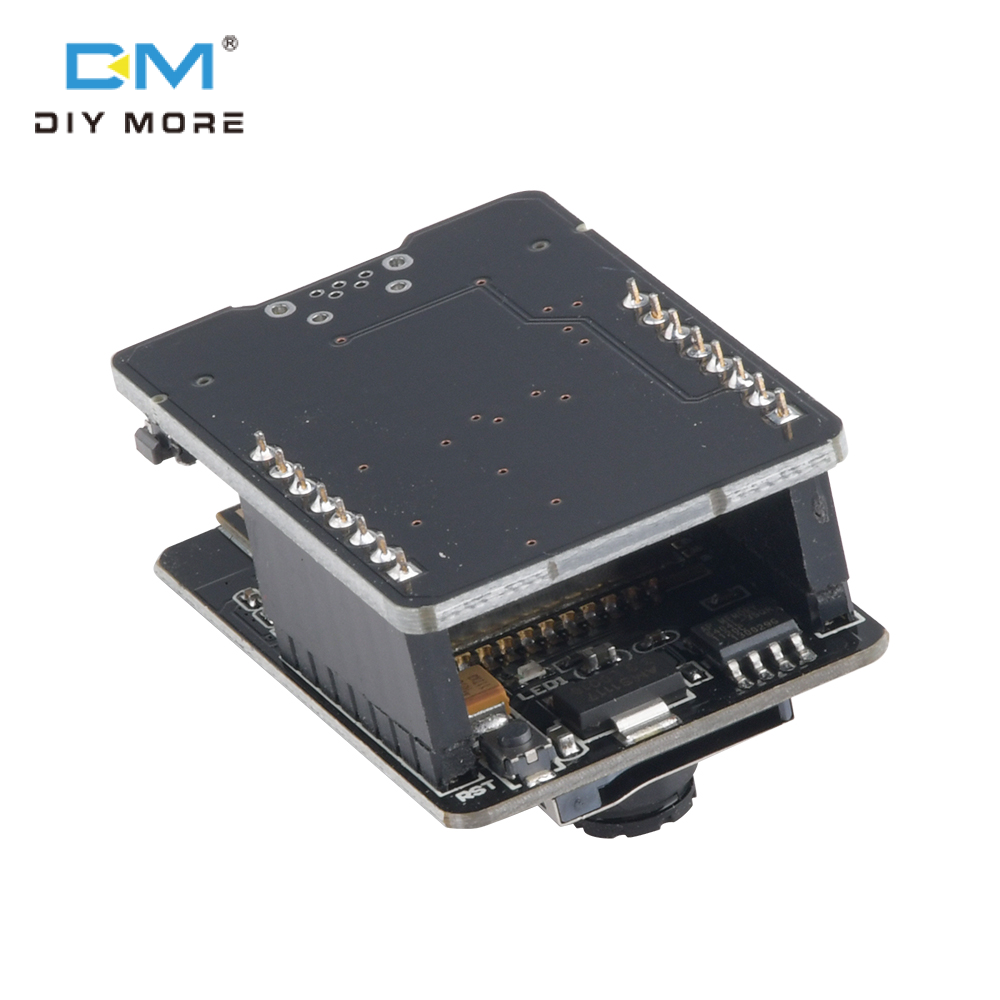

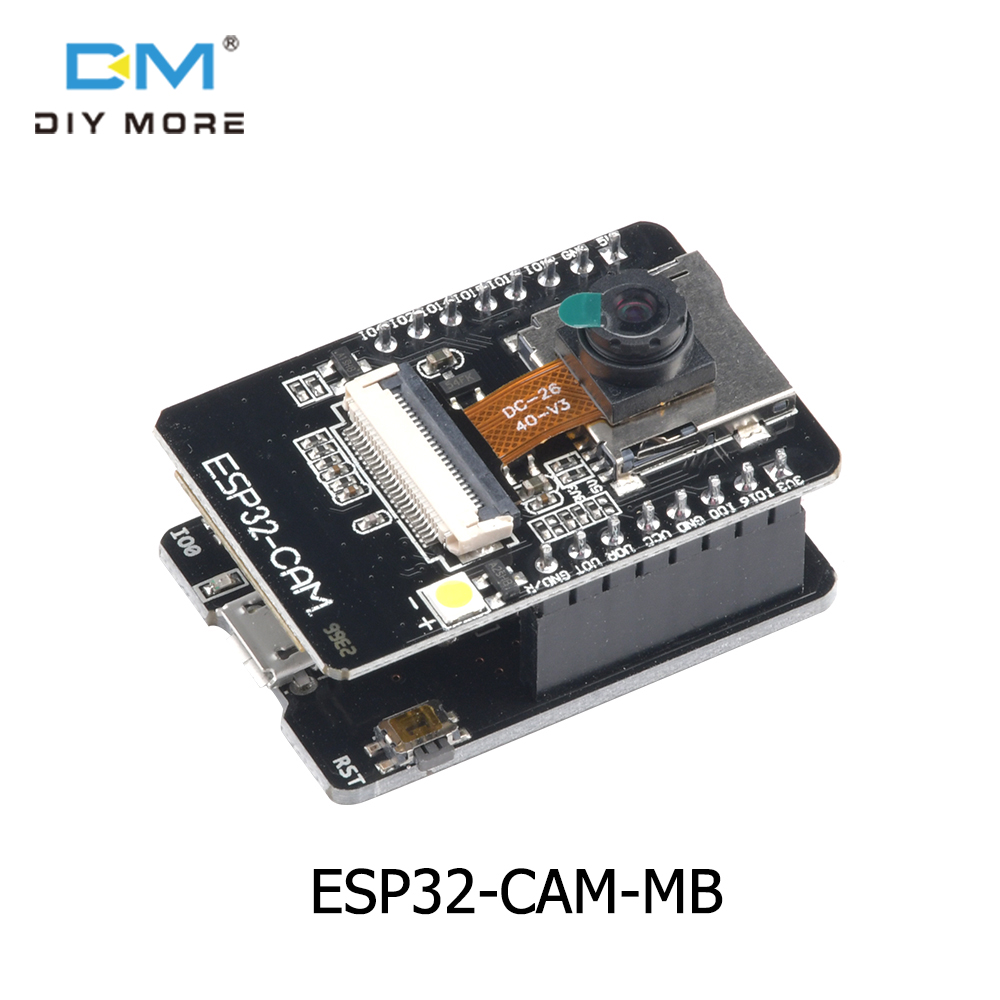

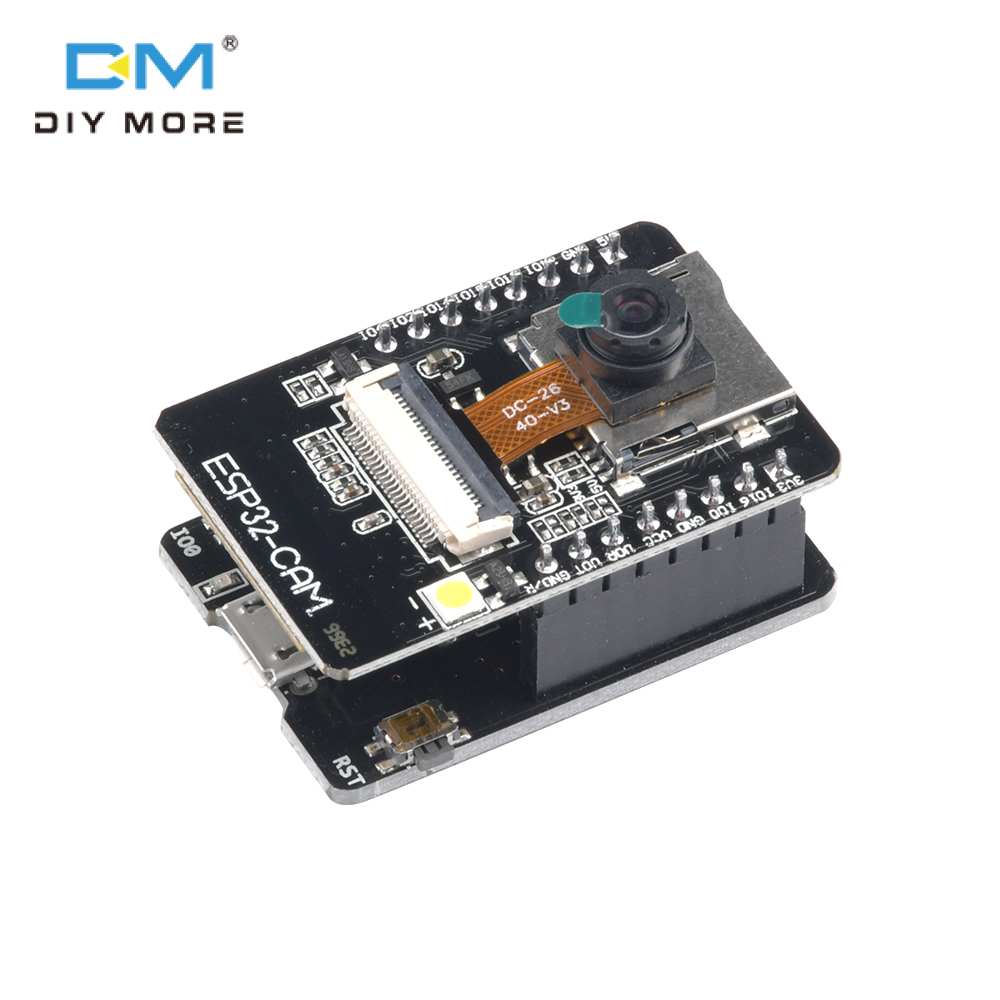

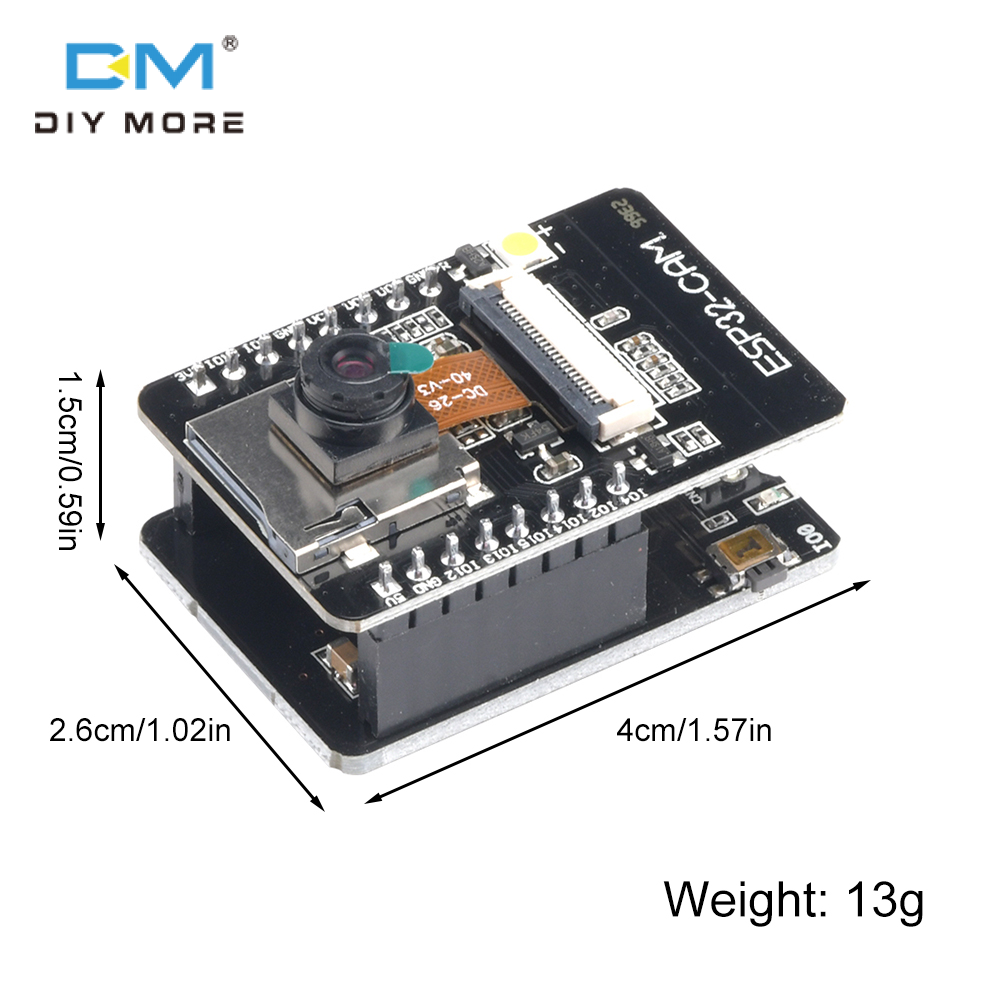

diymore ESP32-CAM-MB WIFI Bluetooth Ban phát triển Mô-đun camera OV2640 Hỗ trợ tải xuống bằng tay và tự động Giao diện USB MICRO Cổng nối tiếp Mô-đun camera OV2640 CH340G+Cột ăng-ten 2.4G+Cáp chuyển đổi IPX ESP-32S ESP-WROOM-32U ESP-WROOM-32D

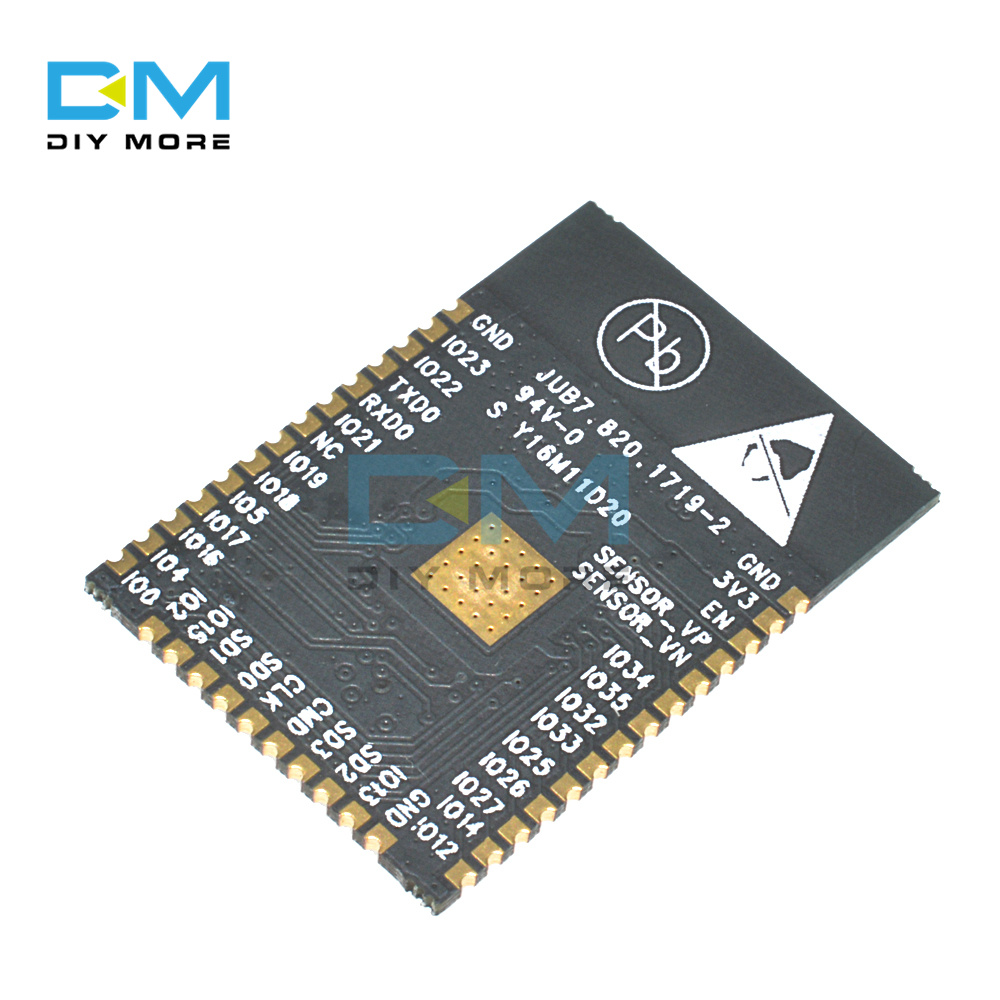

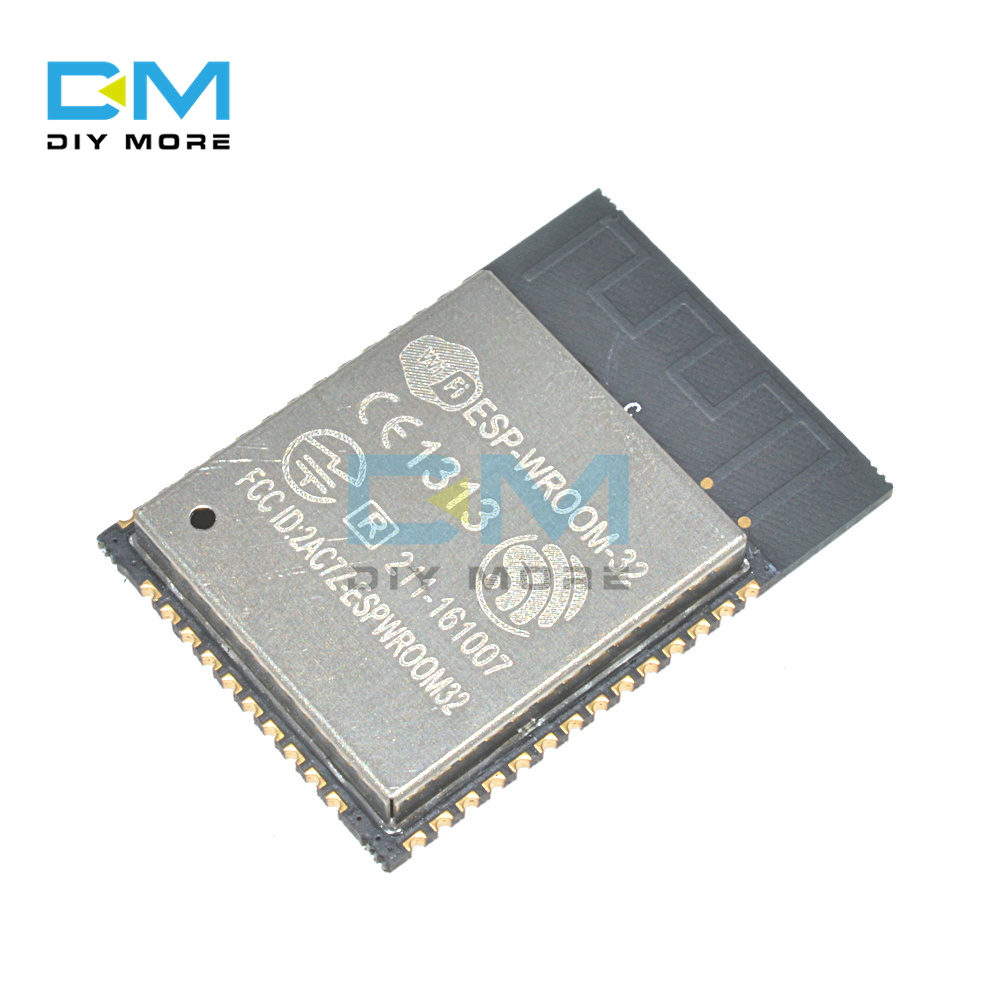

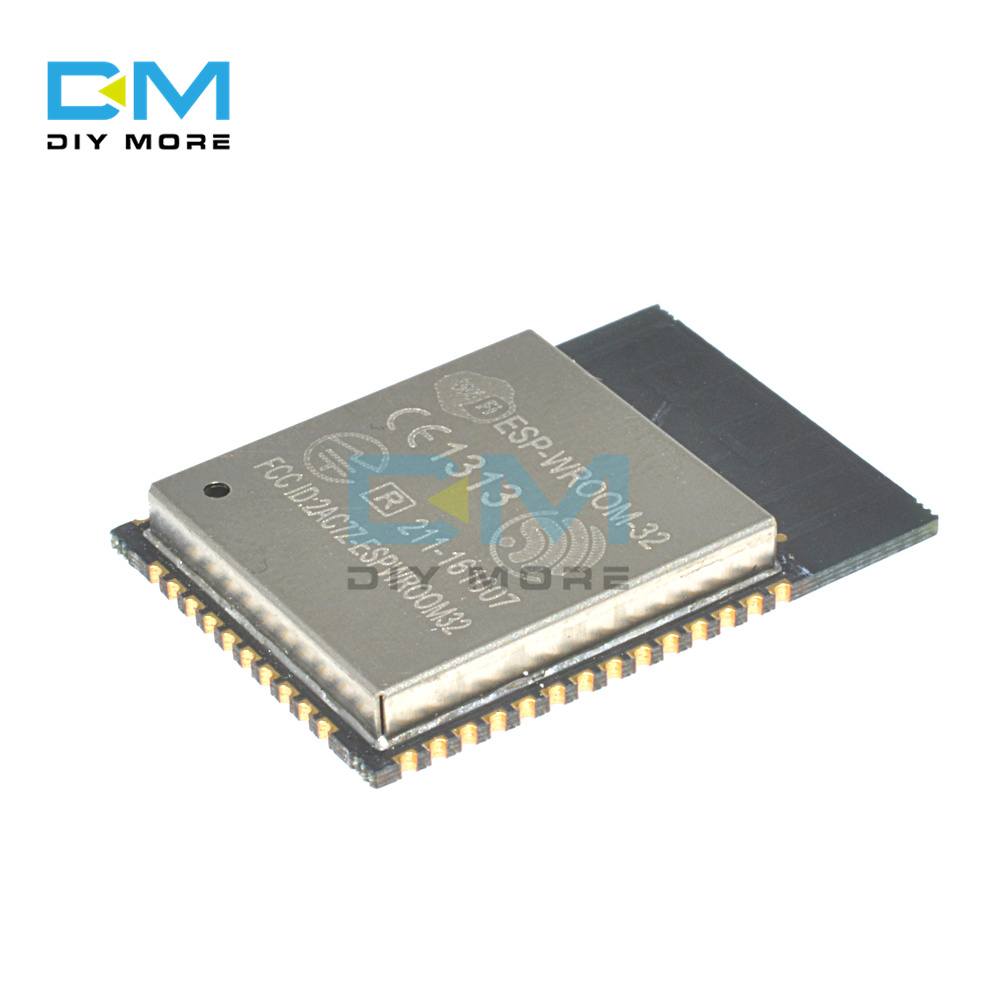

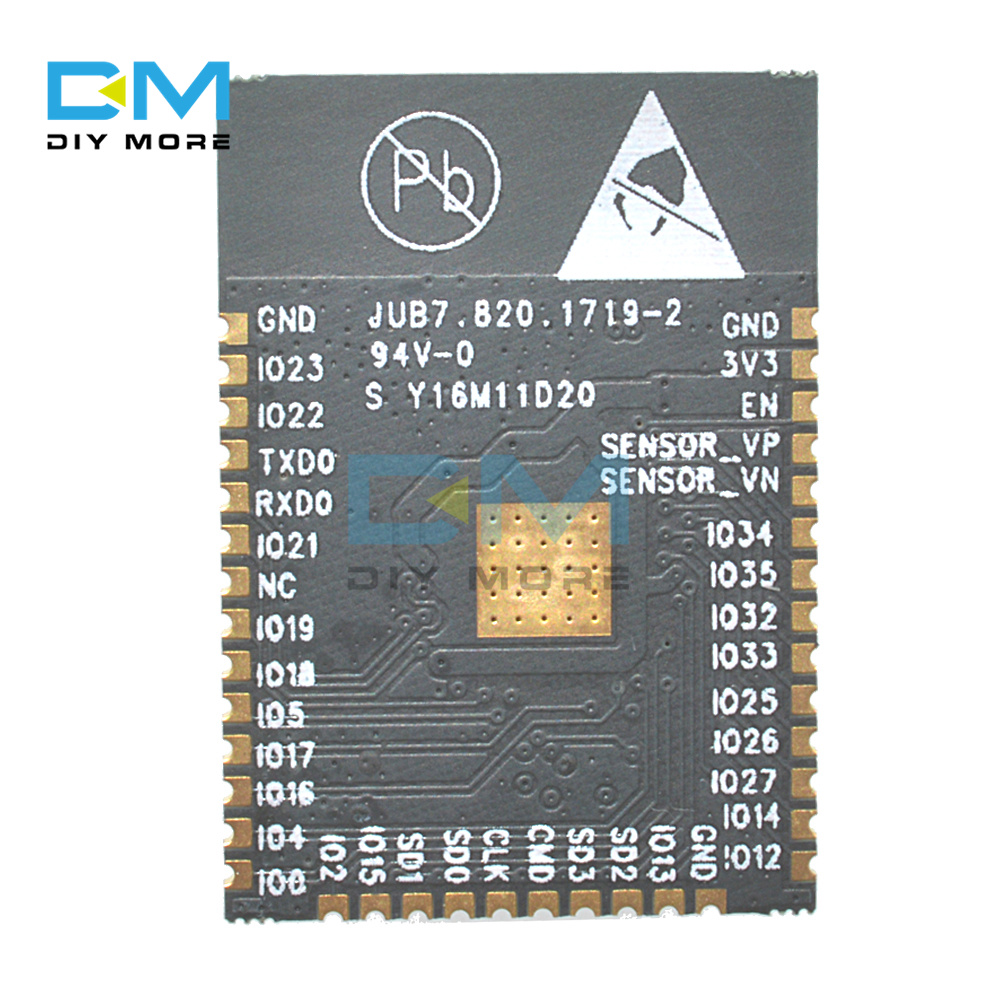

ESP-WROOM-32:
ESP-WROOM-32 is Powered by Espressif's most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current

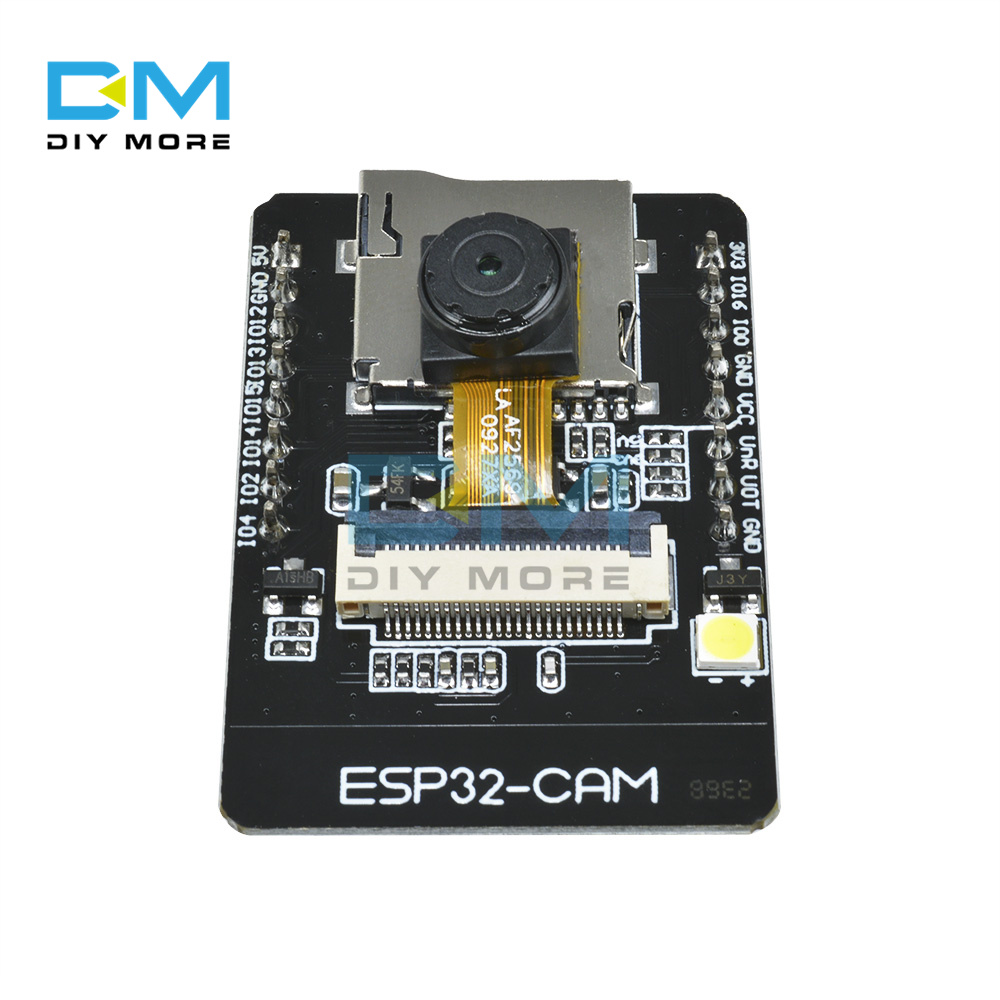

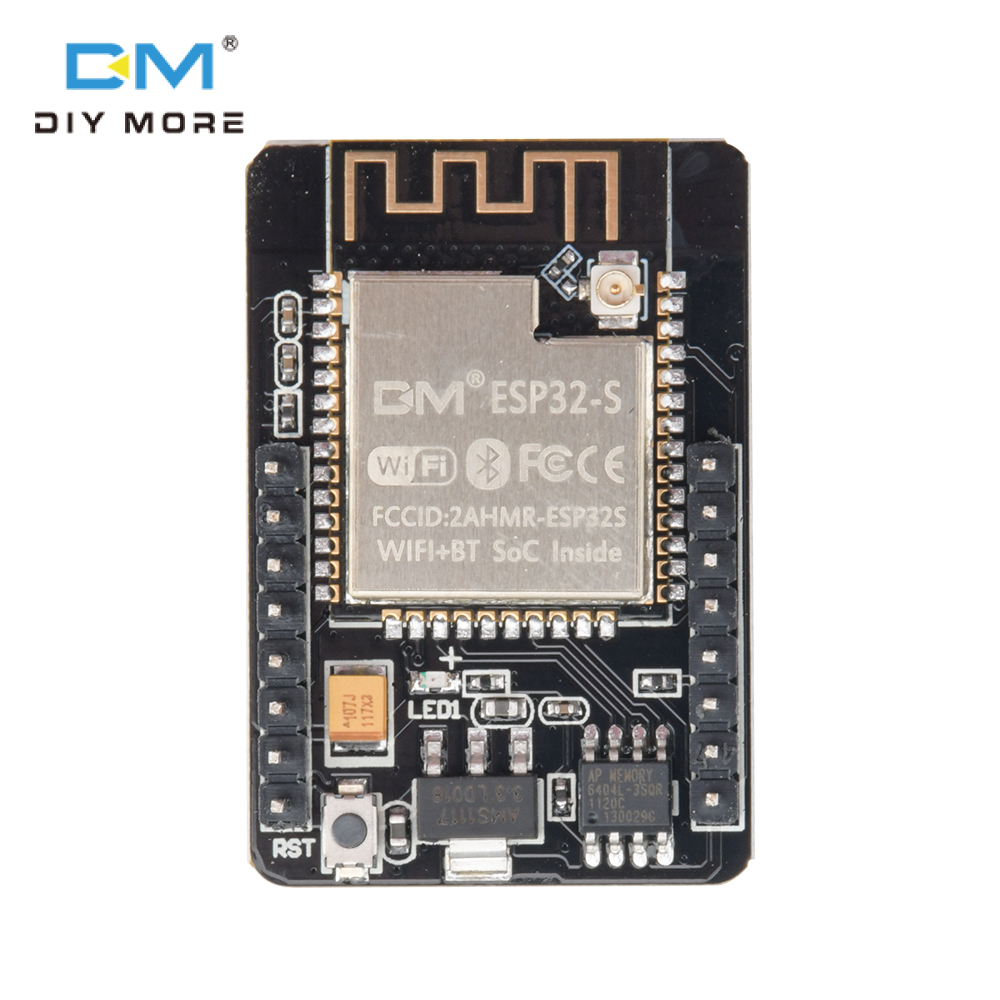

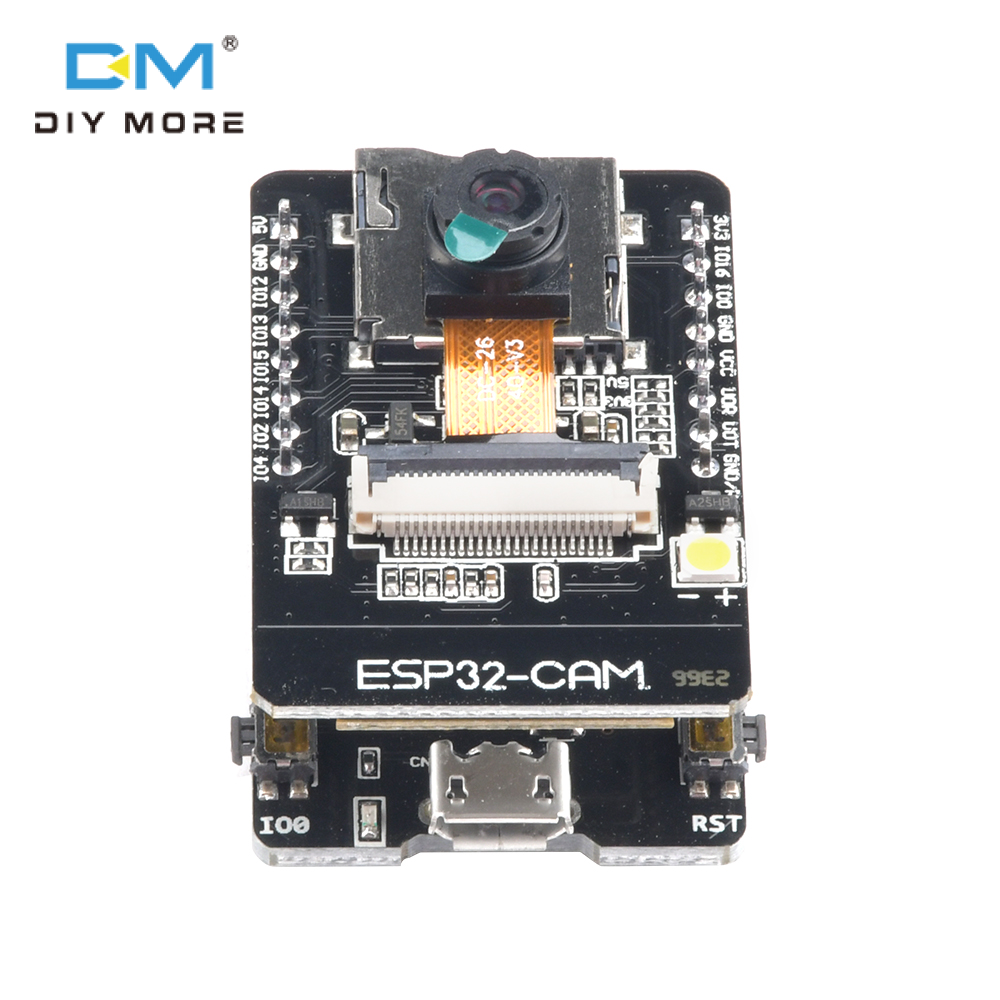

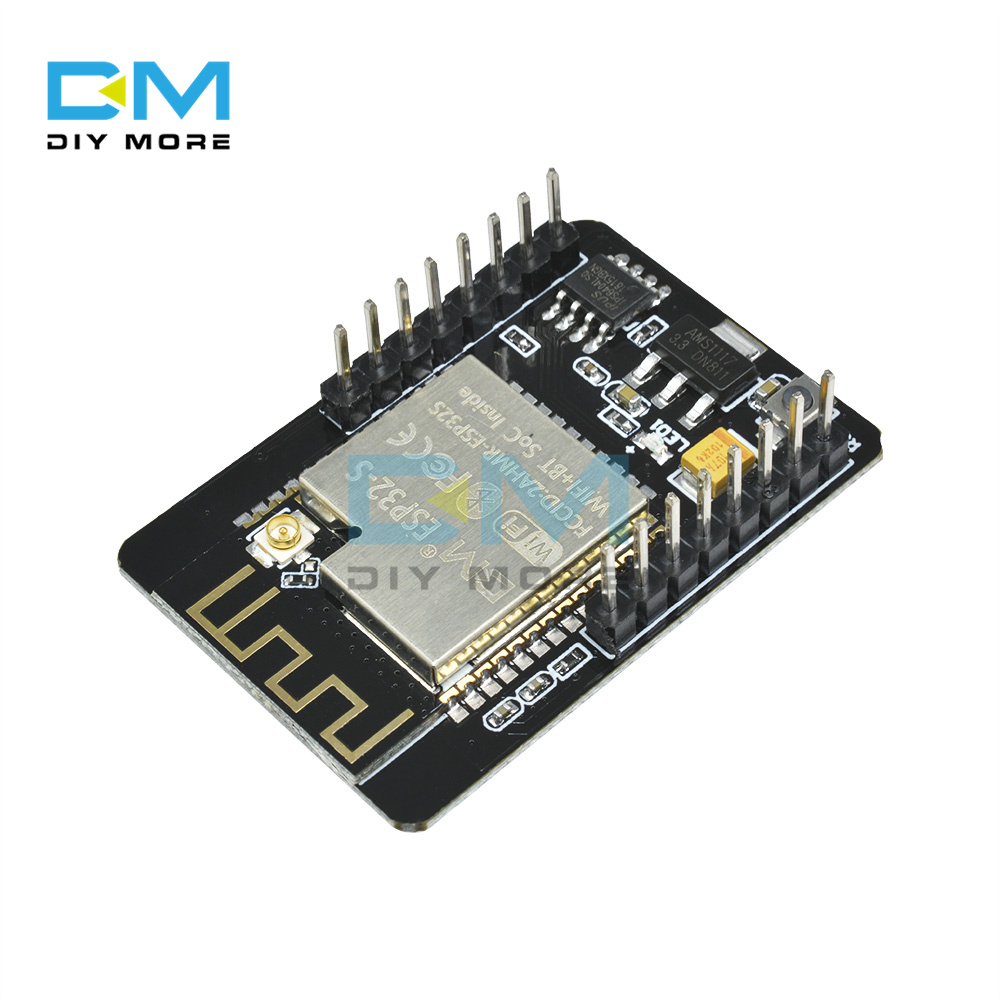

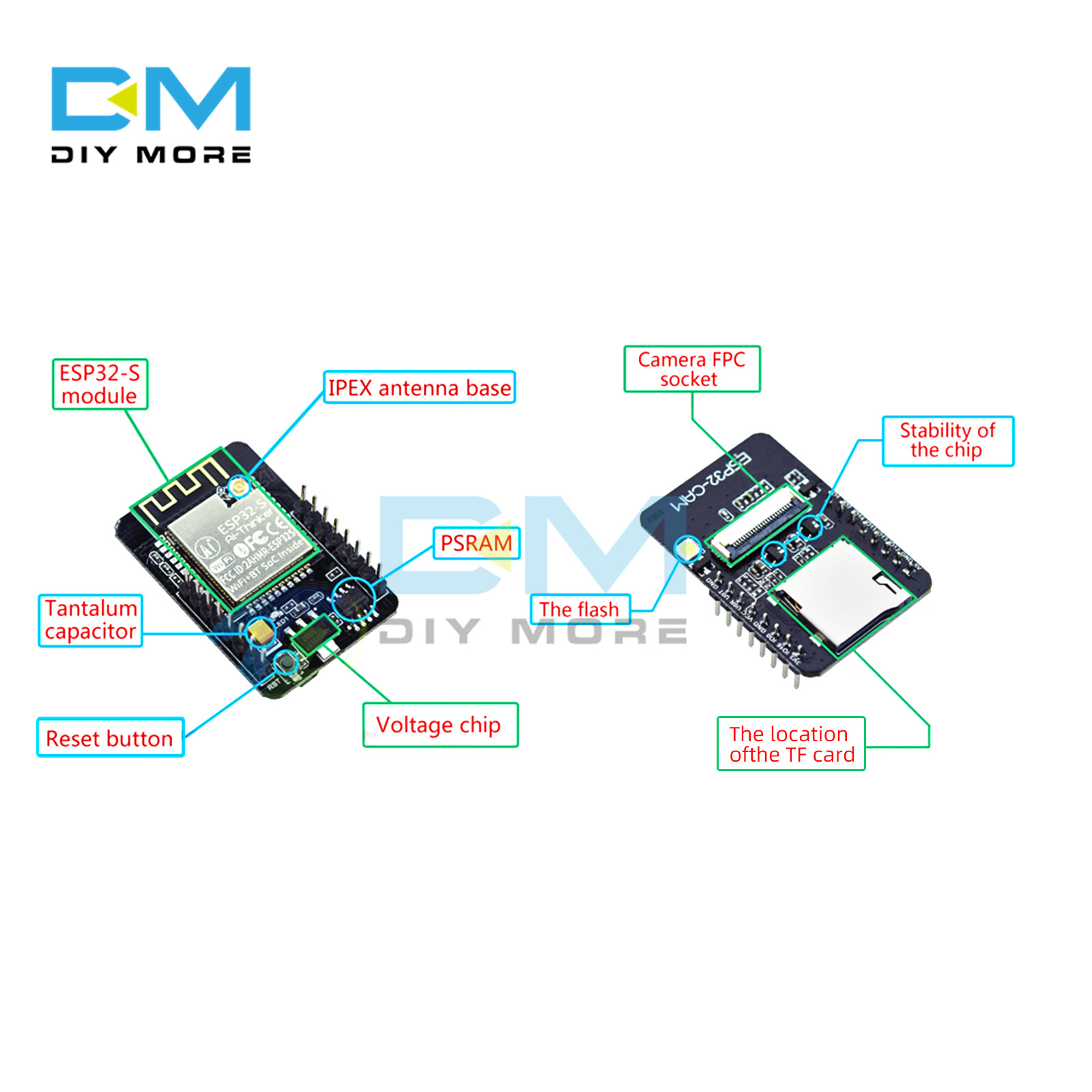

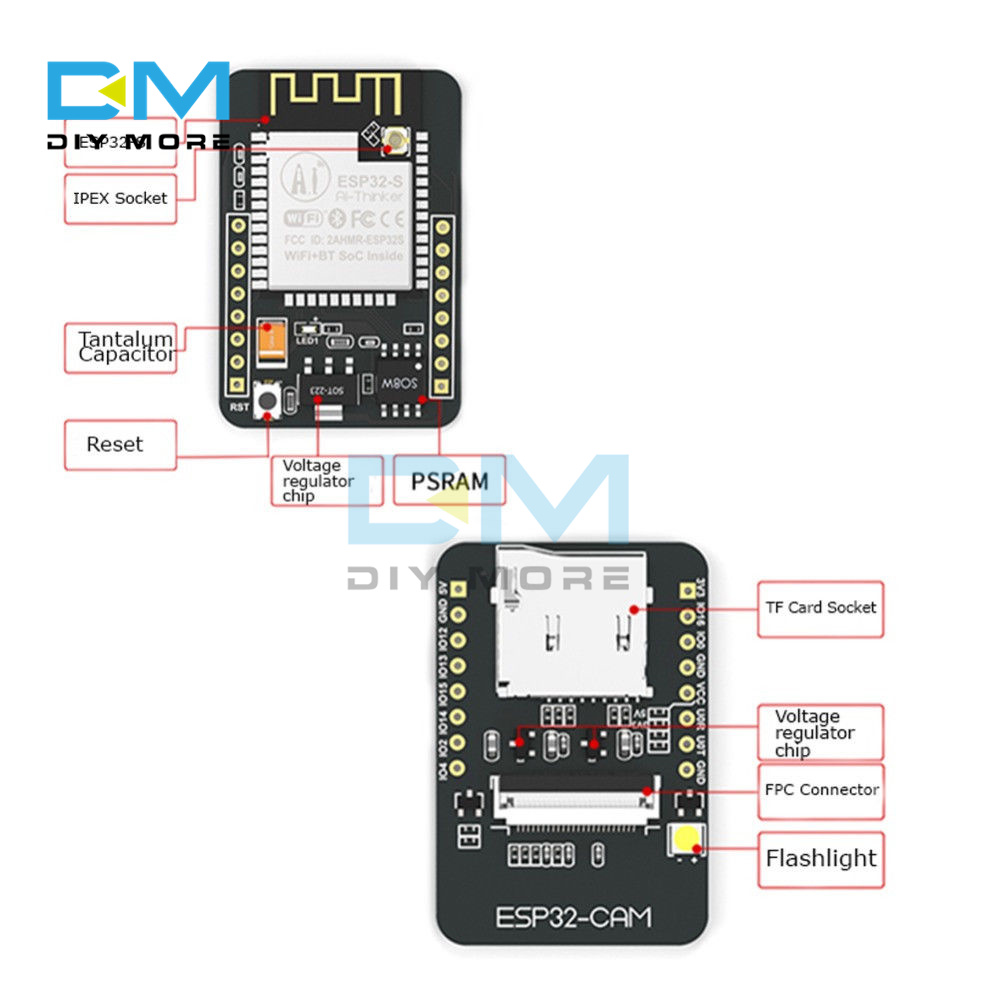

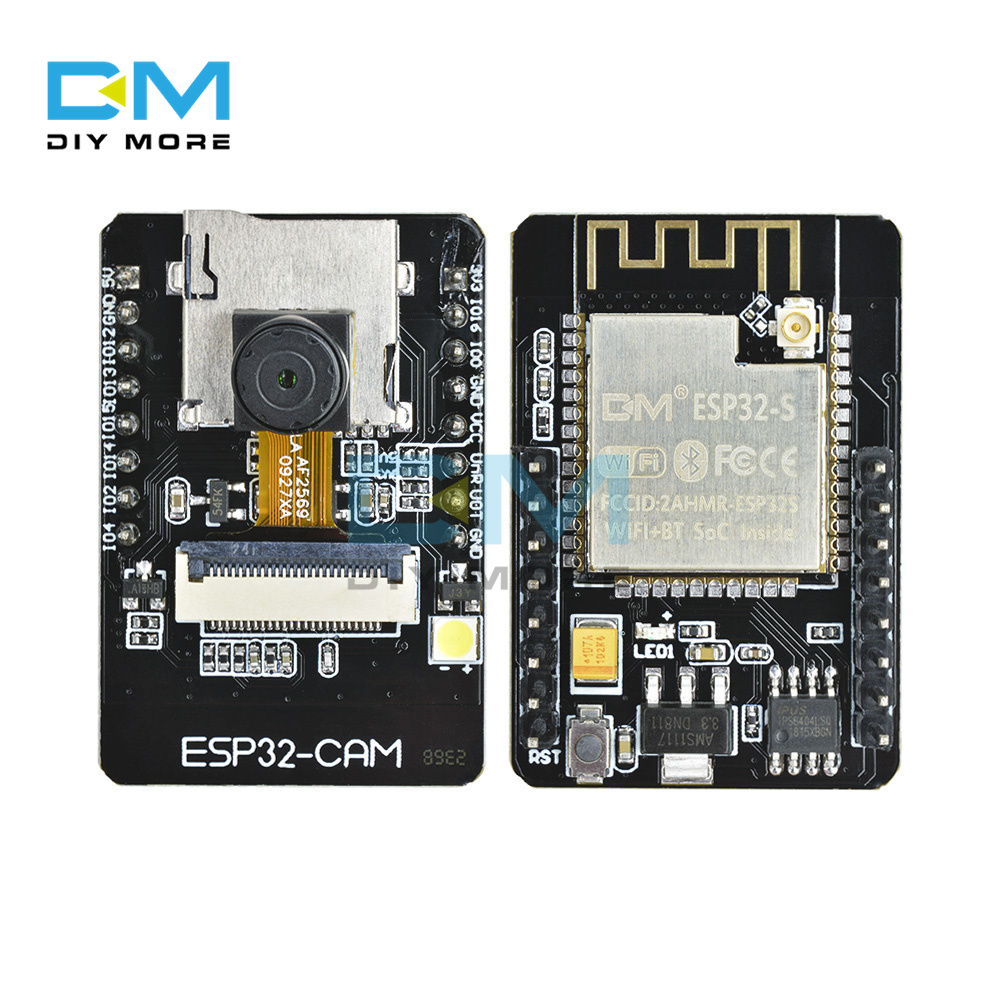

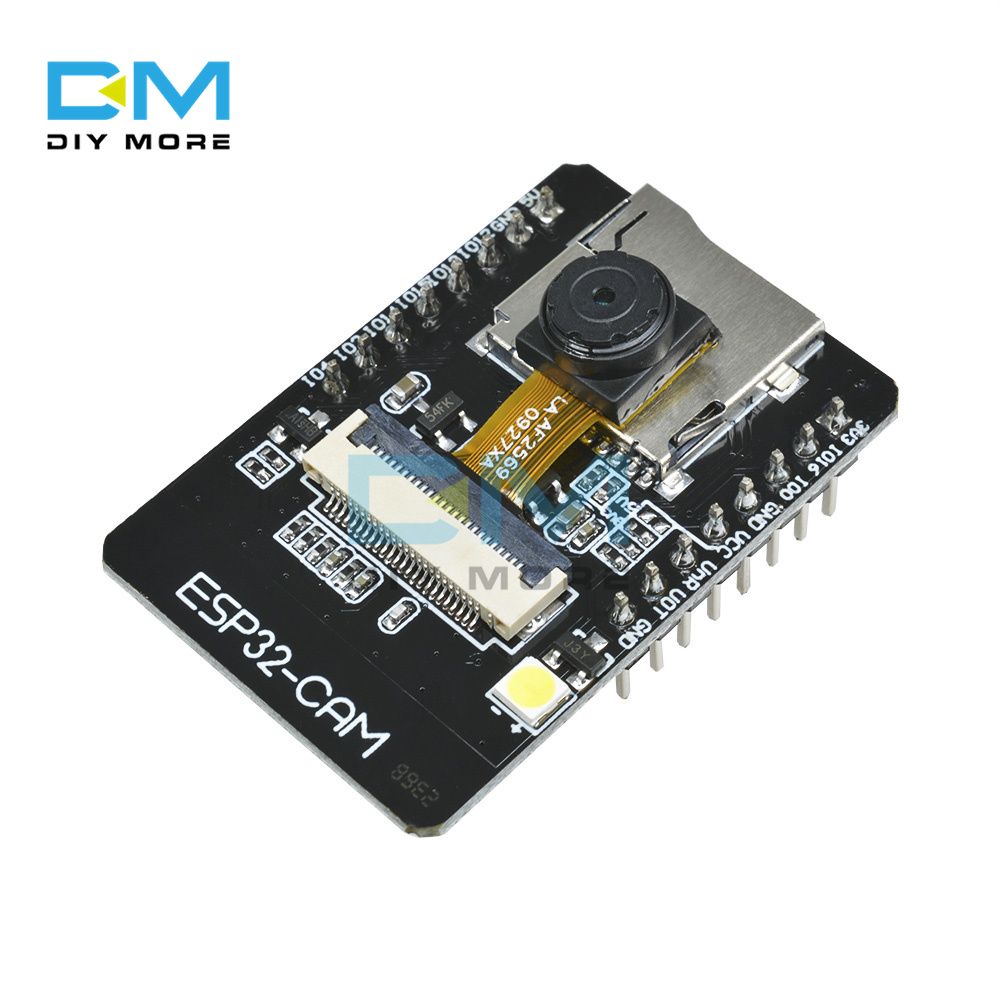

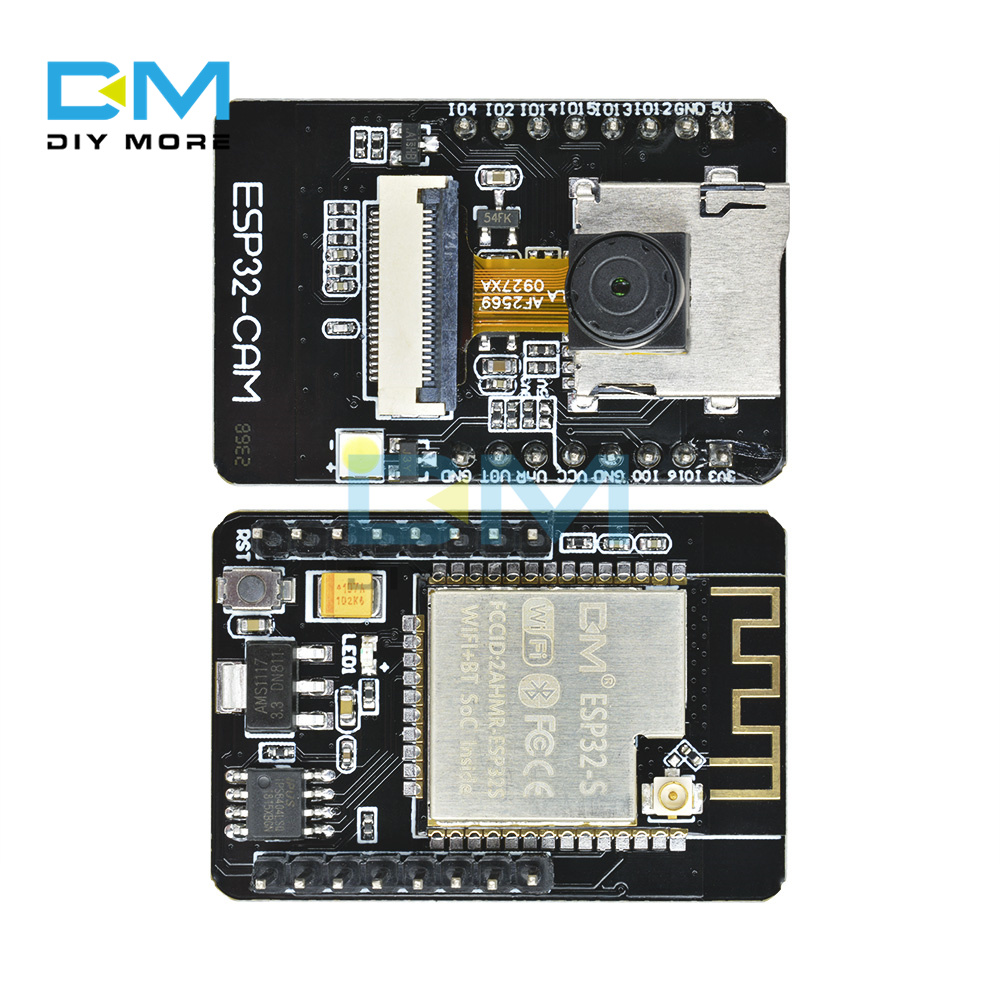

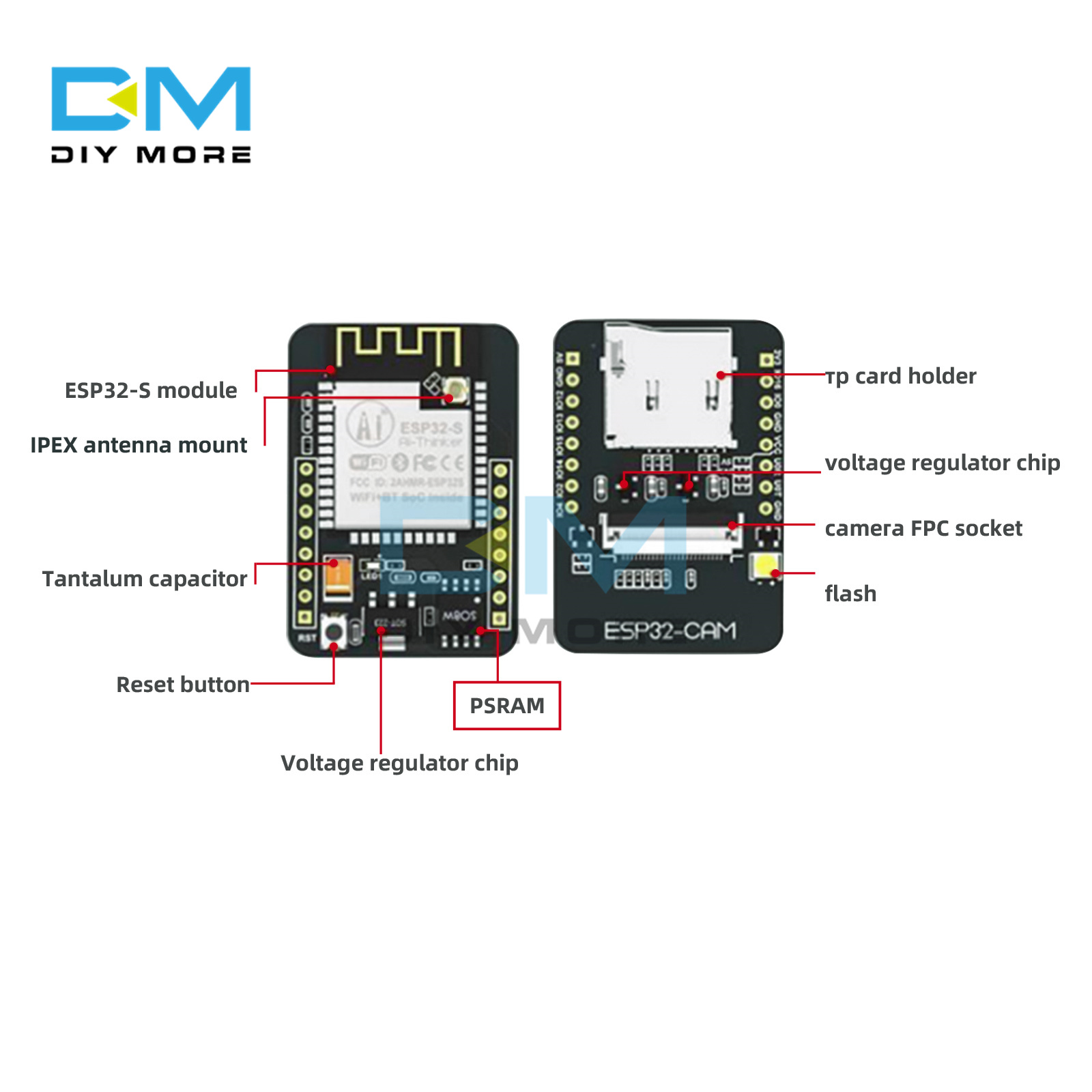

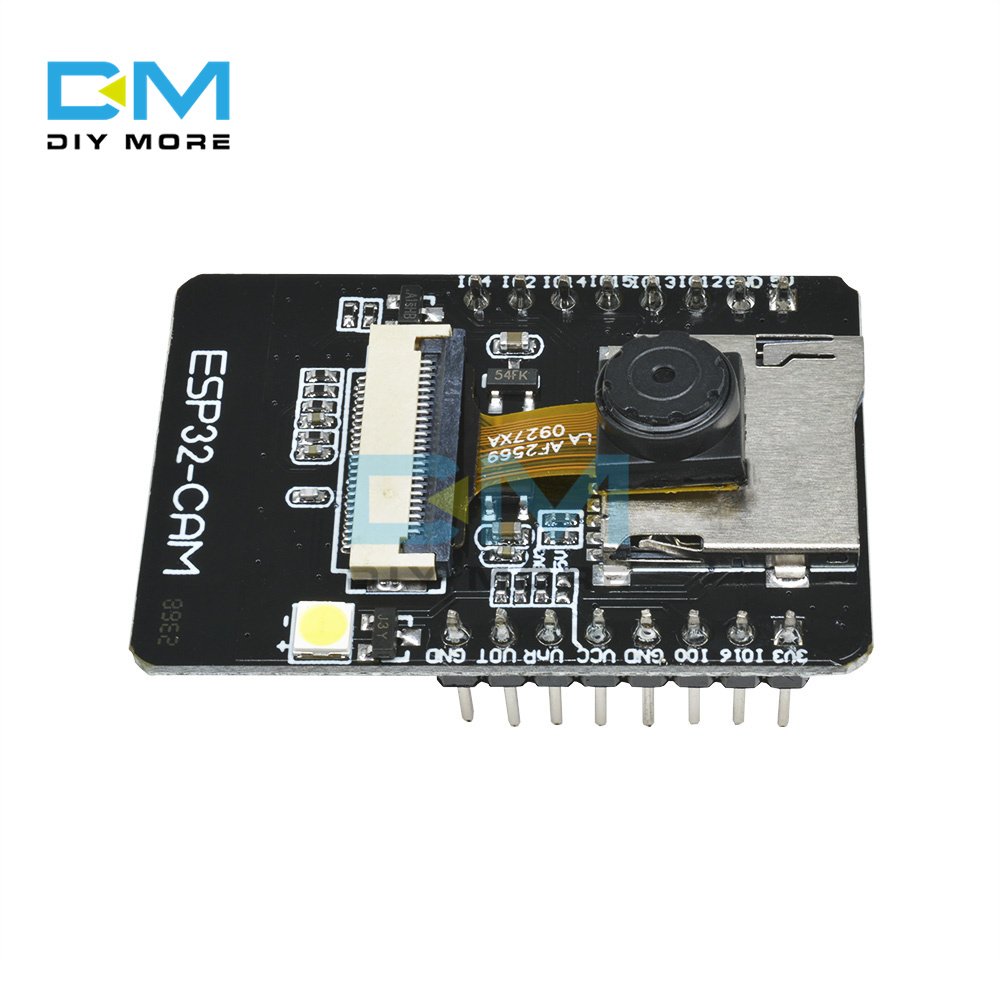

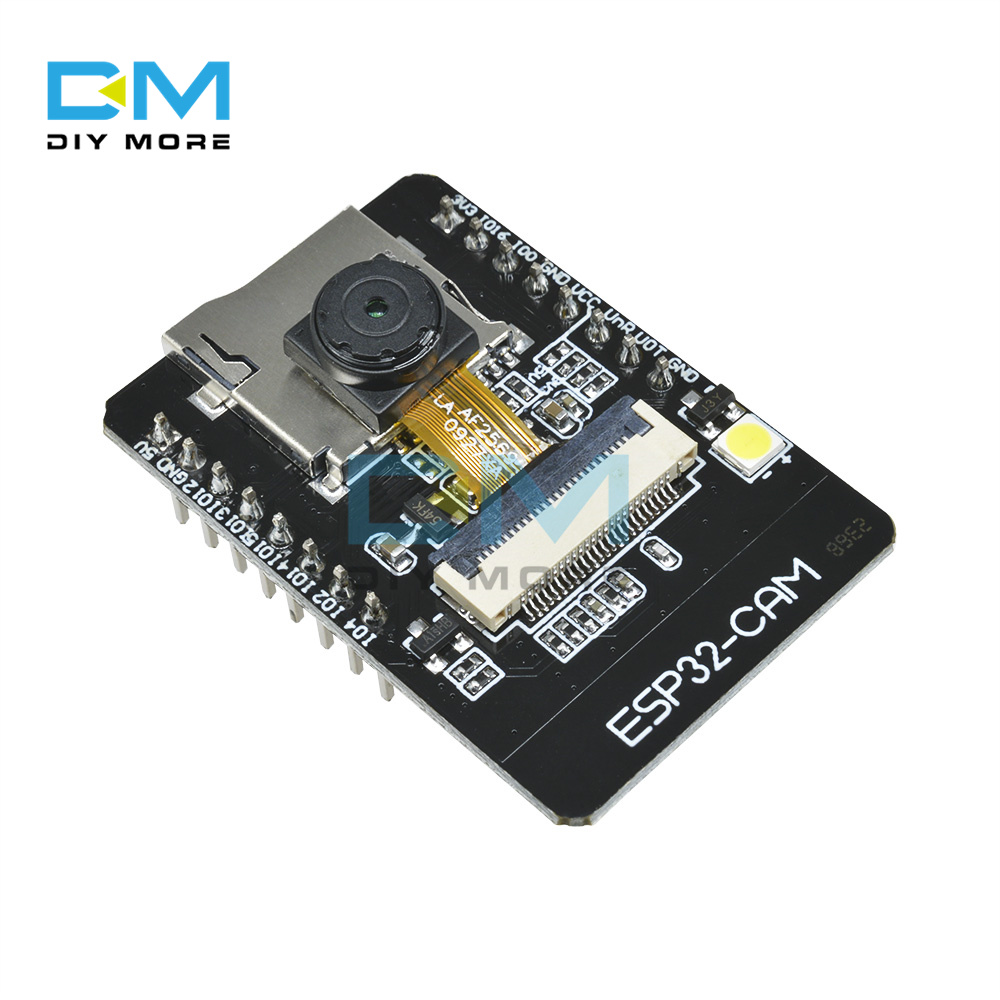

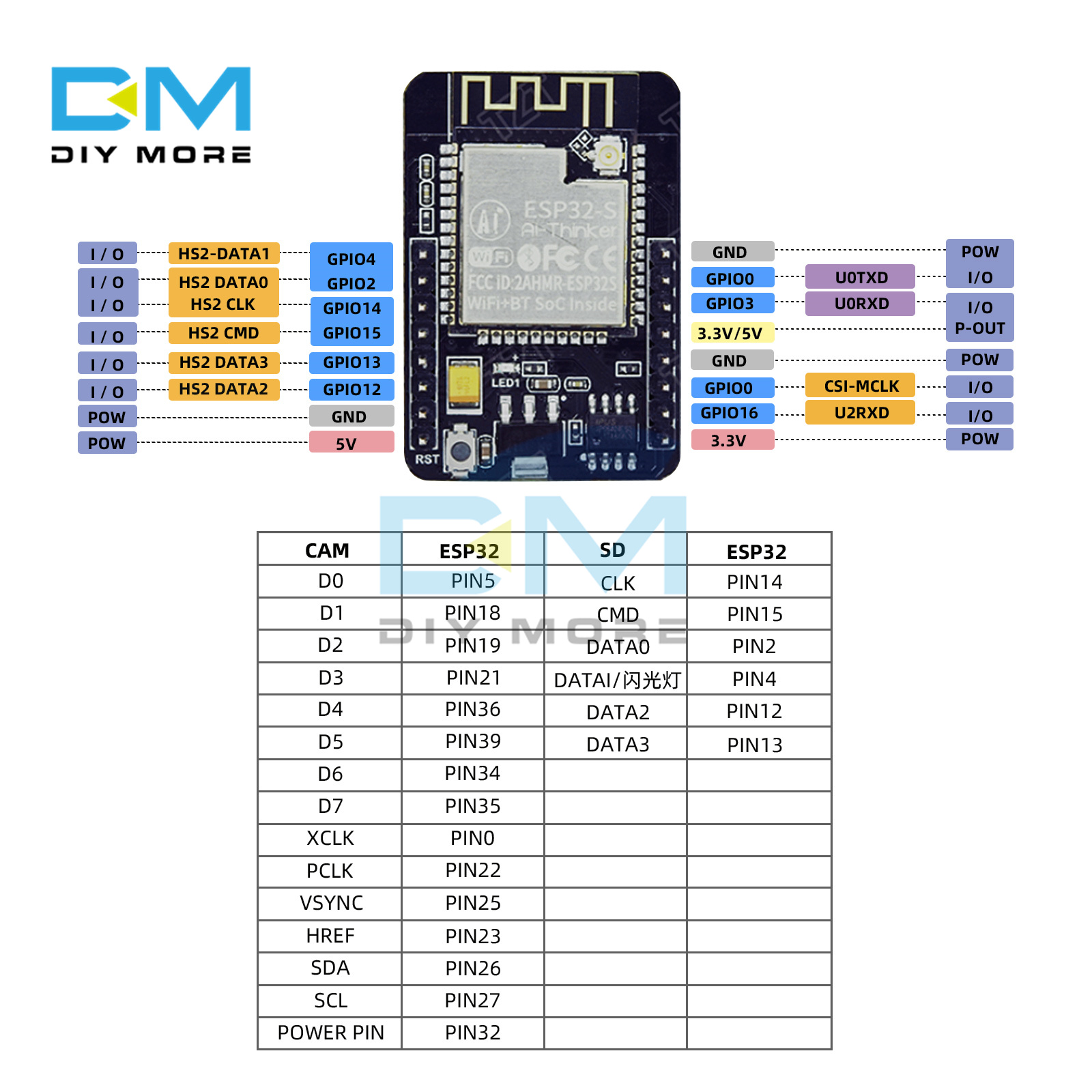

ESP32-CAM:
Features:
Low-power dual-core 32-bit CPU for application processors
Main frequency up to 240MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras, built-in flash
Support image WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click distribution network
Support secondary development

Description:
Modle: ESP32-CAM
Operating Voltage: 5V
SPI Flash: 32 Mbit
RAM: Inter 520KB+, External 4M PSRAM
Bluetooth: BLuetooth 4.2 BR/EDR & BLE standard
WIFI: 802.11/b/g/n/e/i
Port: UART, SPI, I2C, PWM
IO Port: 9
Serial port rate: 115200 bps
Picture form: JPEG (only OV2640 support), BMP, GRAYSCALE
Spectrum range: 2412 -2484MHz
Antanna: Onboard PCB Antanna 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Operating Temperature: -20 -85 Degrees Celsius
Storage Tepmerature: -40 -90 Degrees Celsius, <90%RH

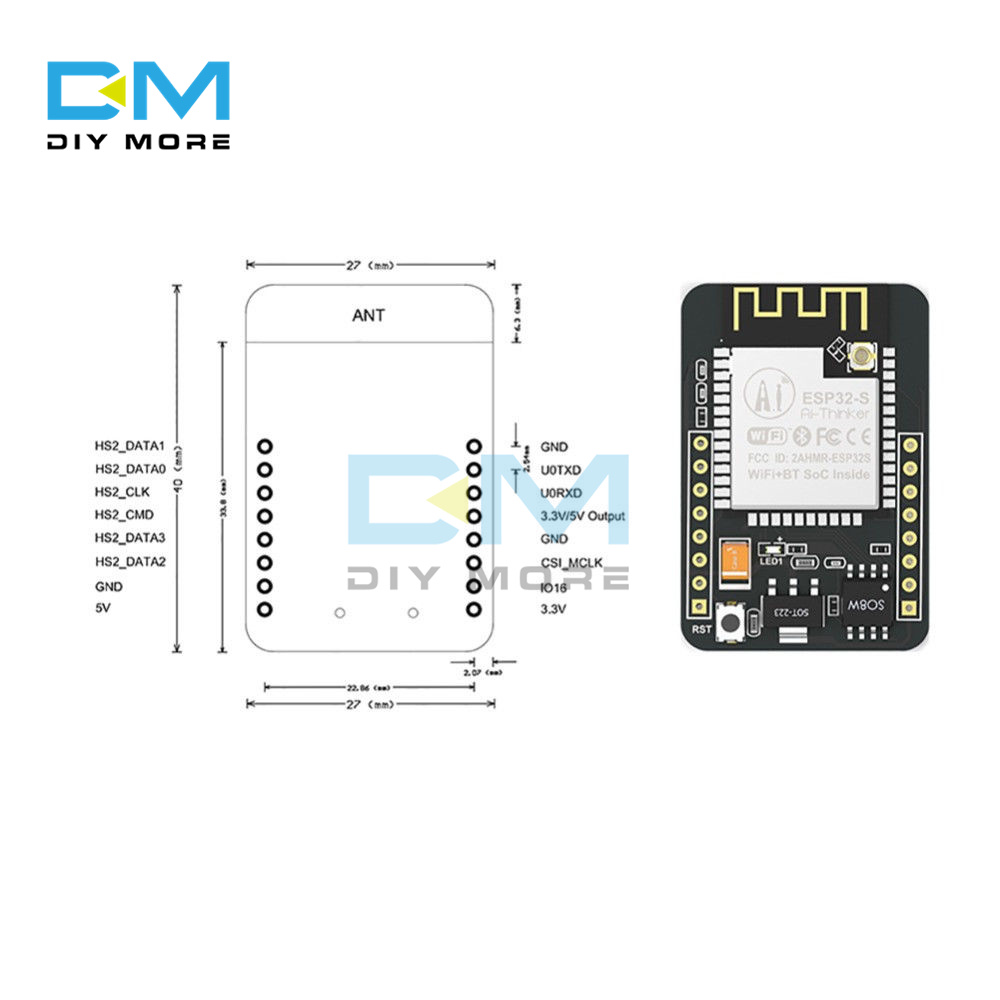

The ESP32-CAM has a very competitive small form factor camera module that can operate independently as a minimum system with a footprint of only 27*40.5*4.5mm and a deep sleep current of up to 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT
hardware terminals.

Package Included:
1* ESP32-CAM module
1* Camera Module OV2640 2MP

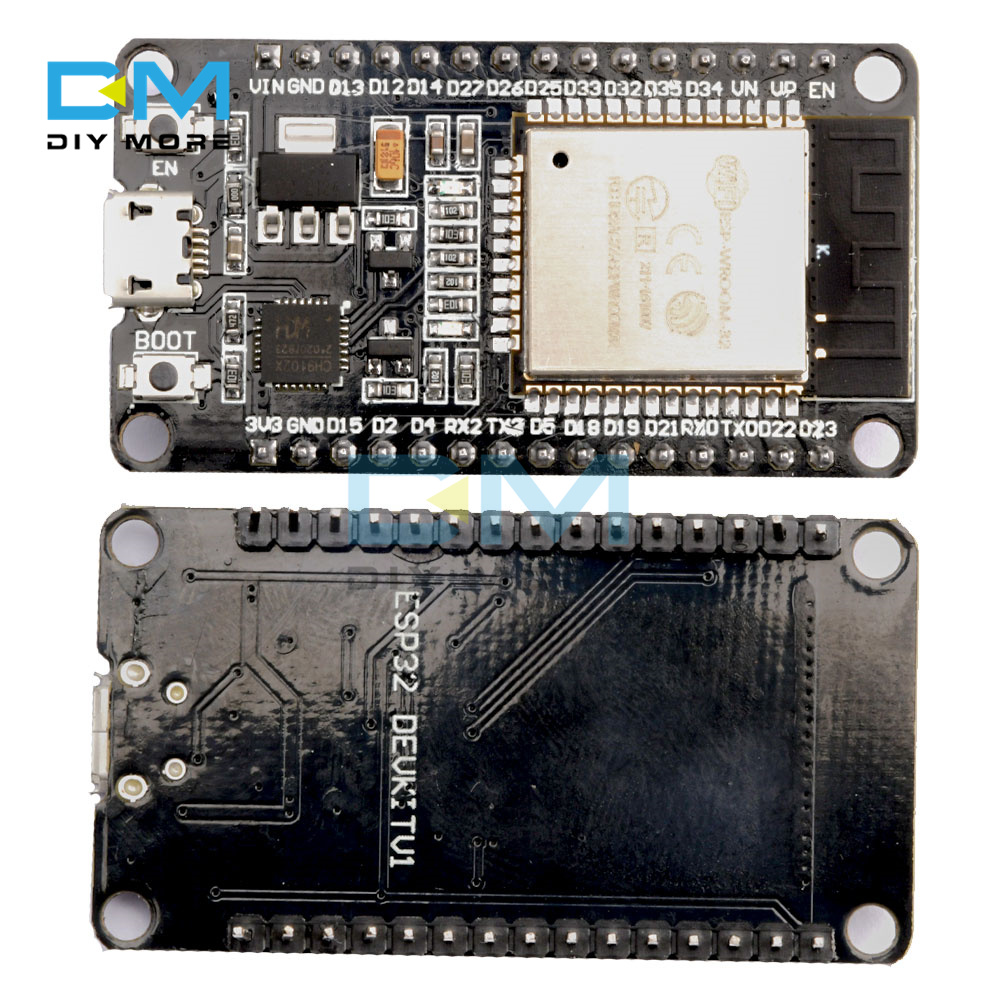

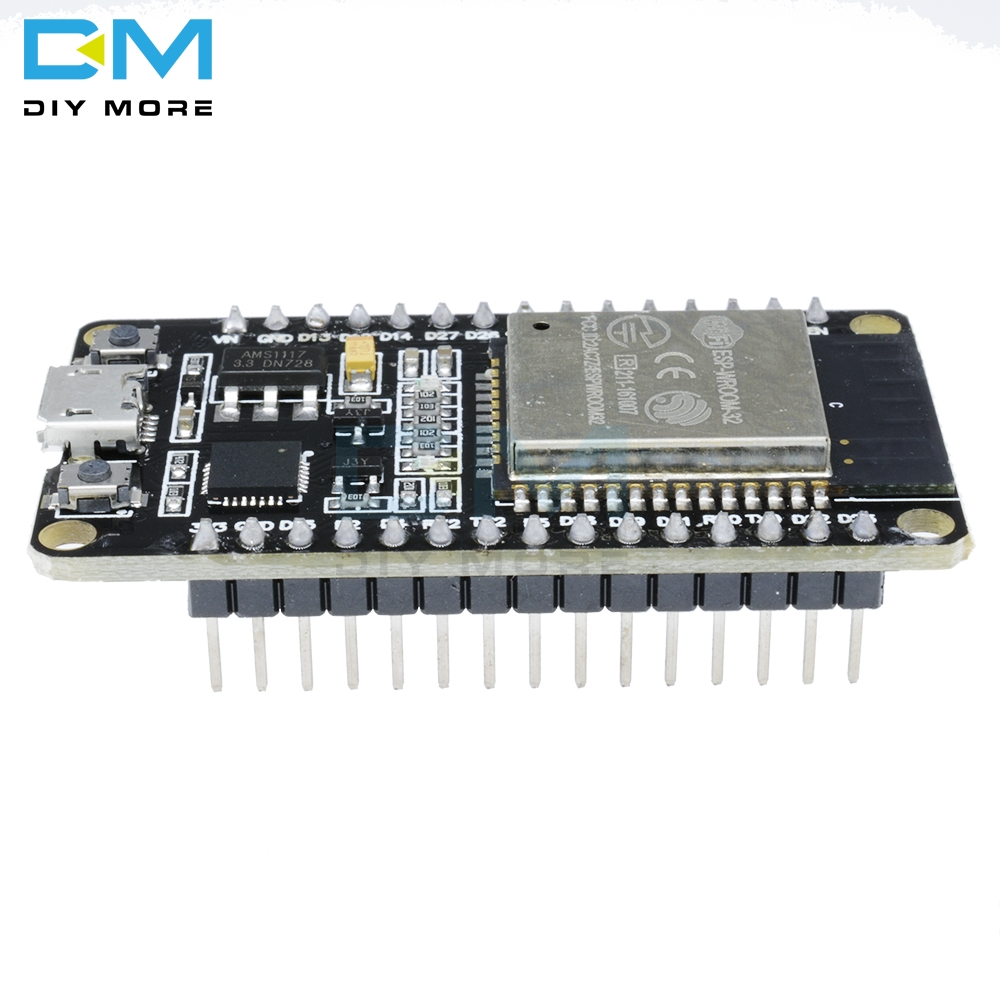

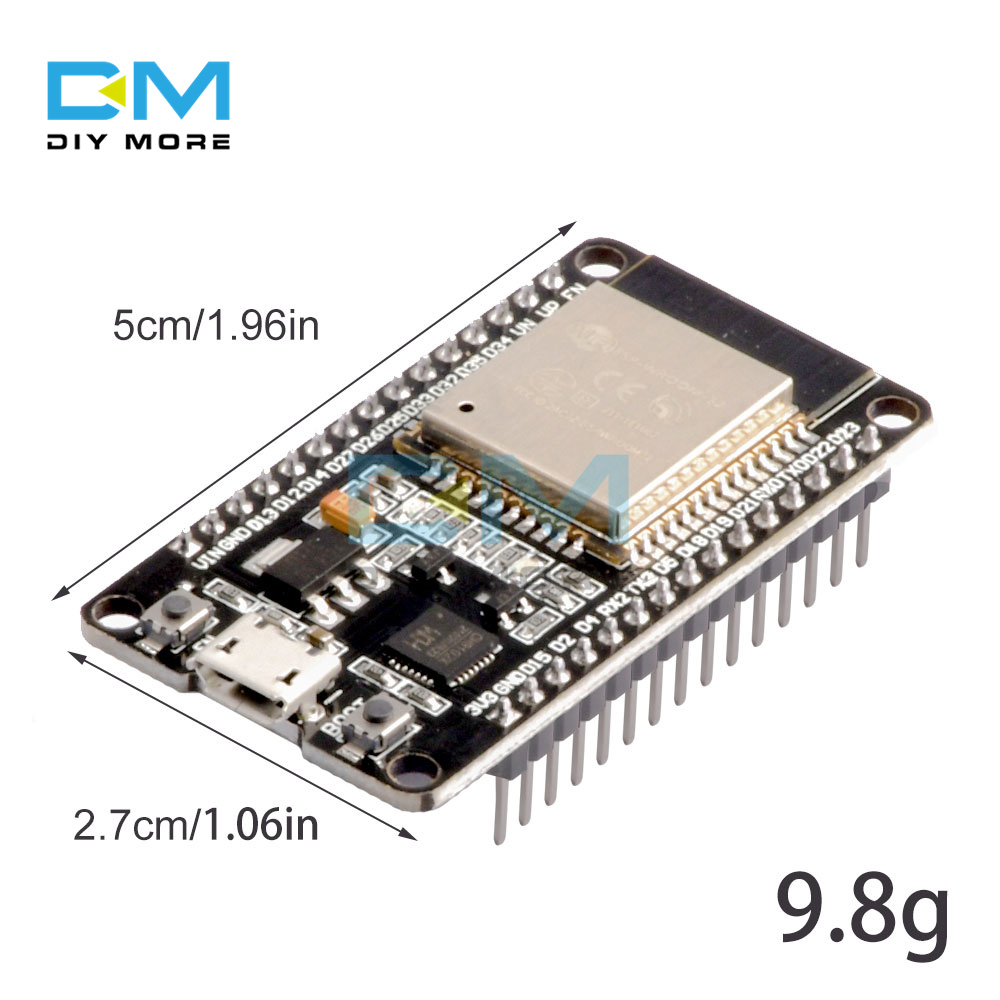

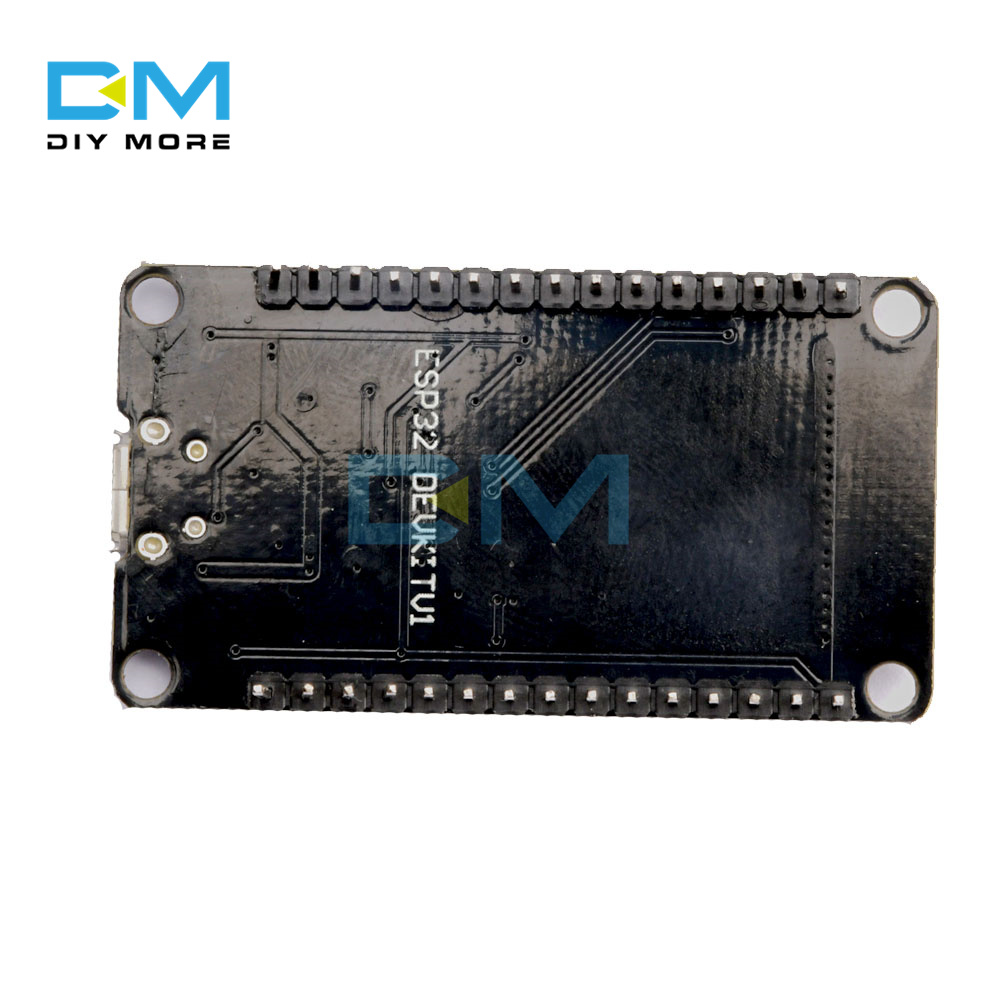

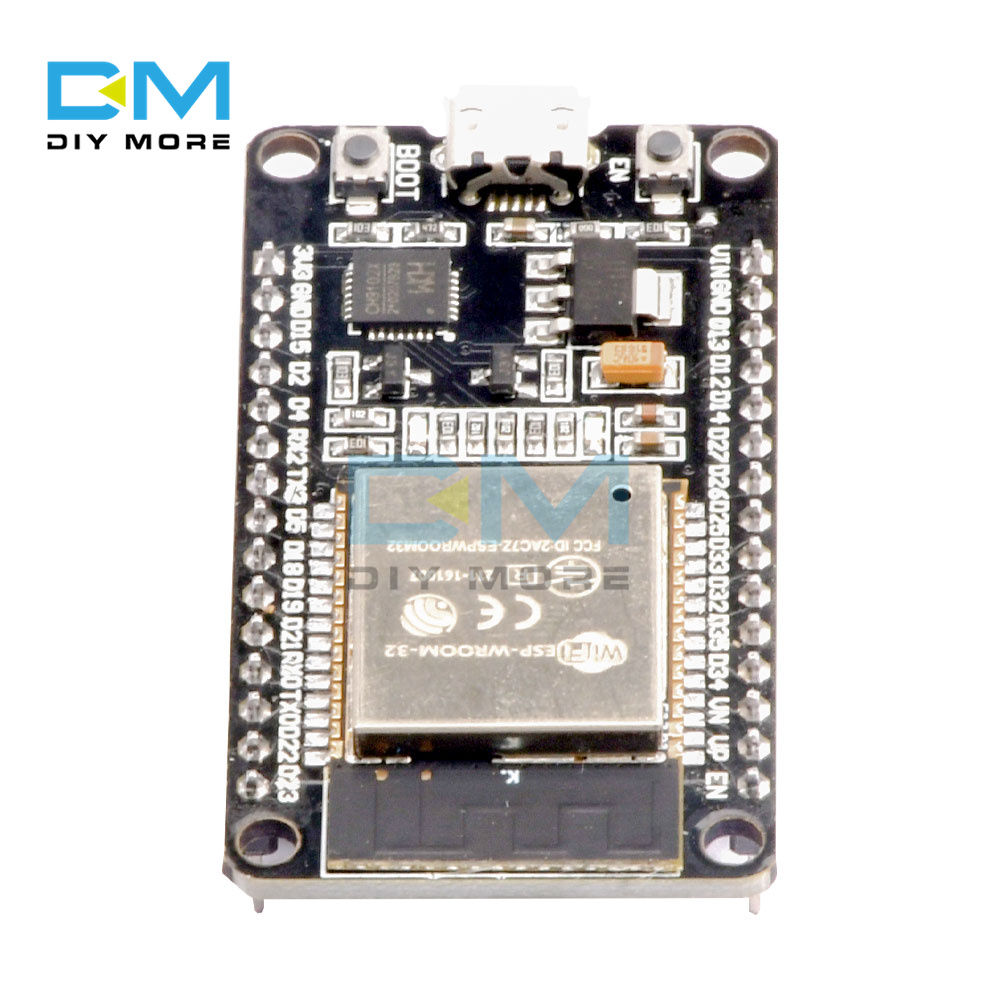

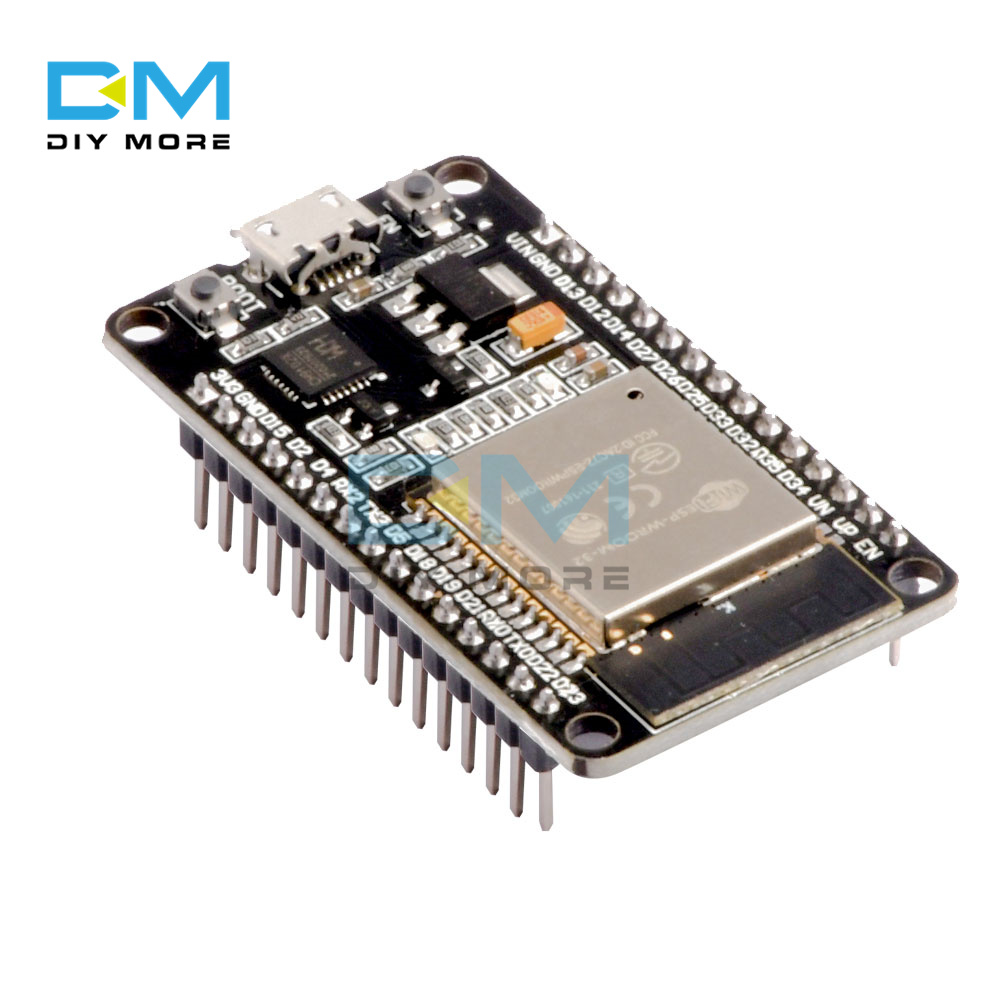

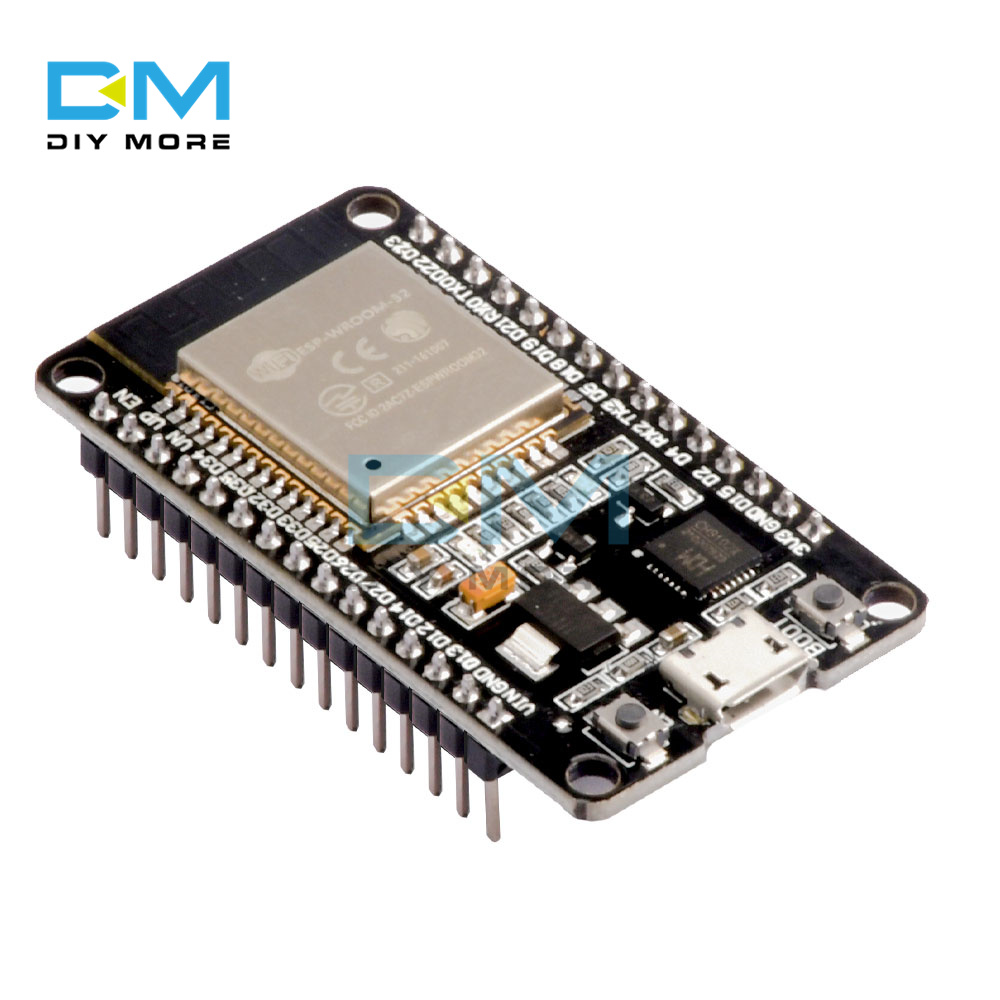

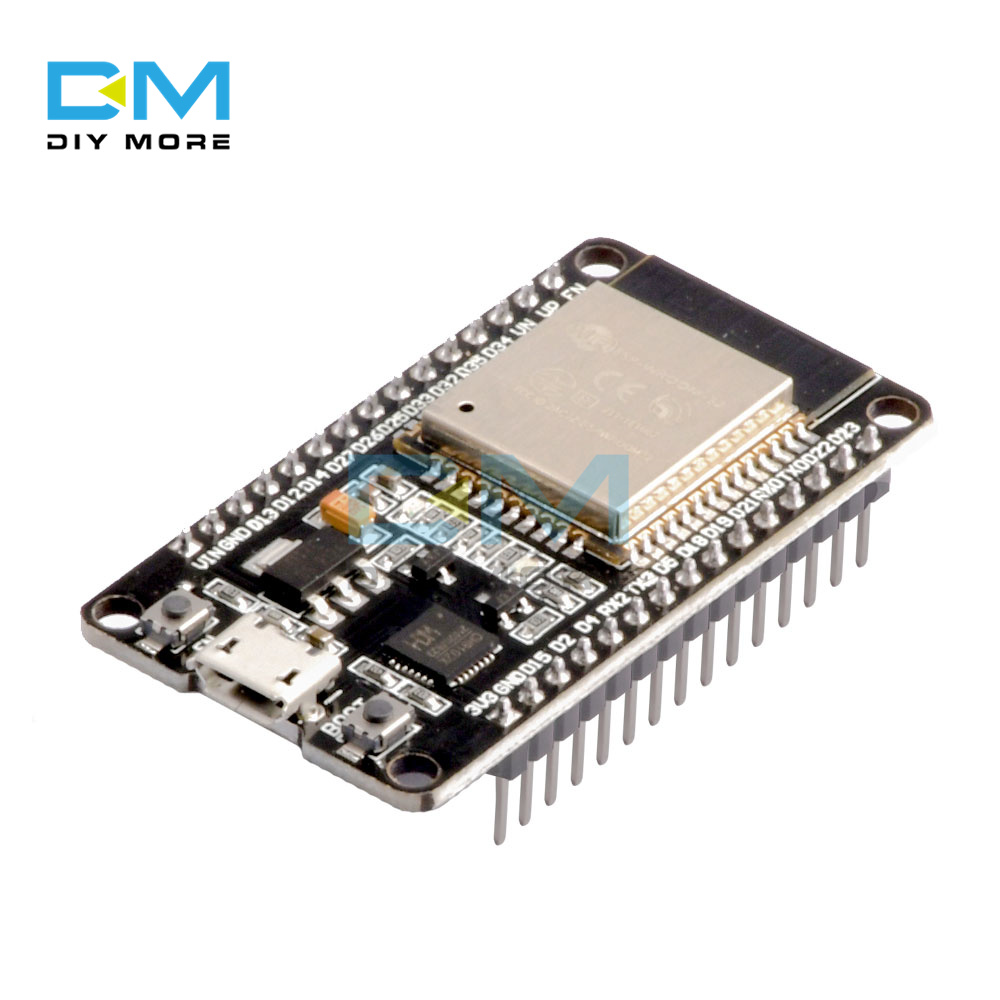

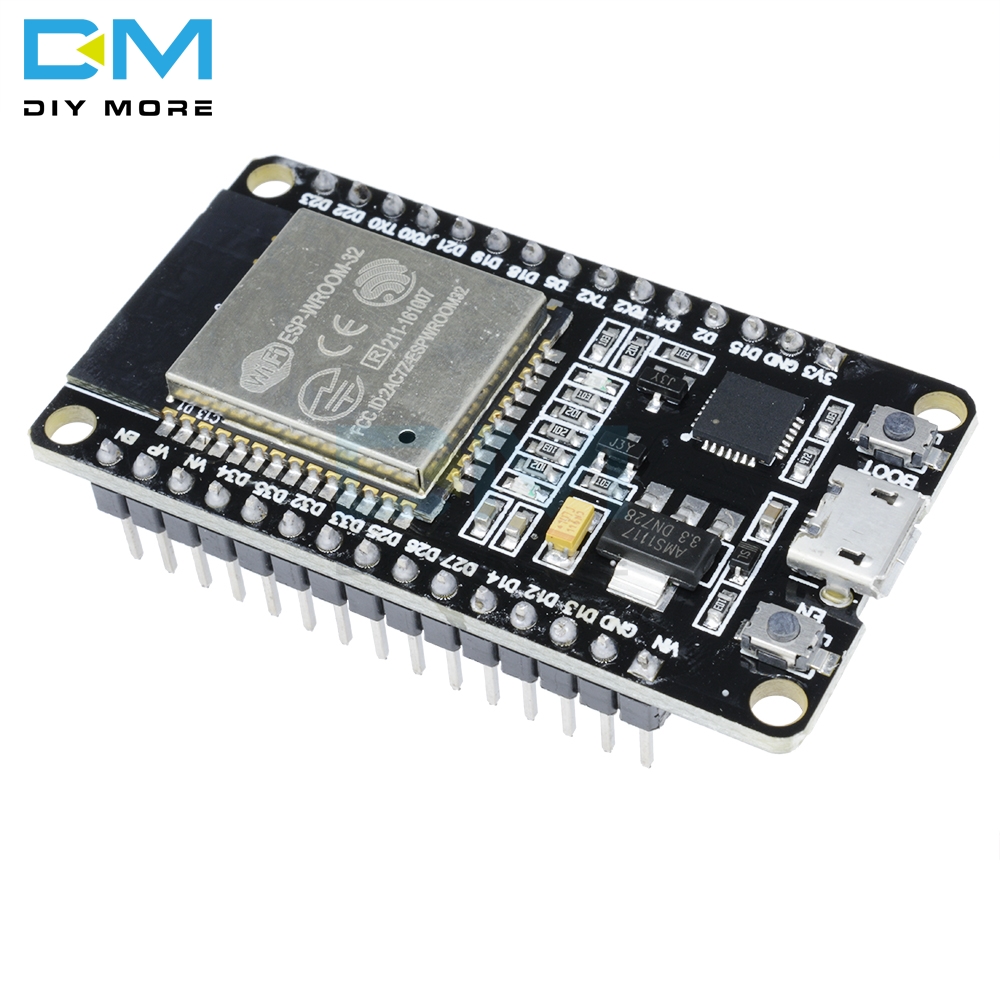

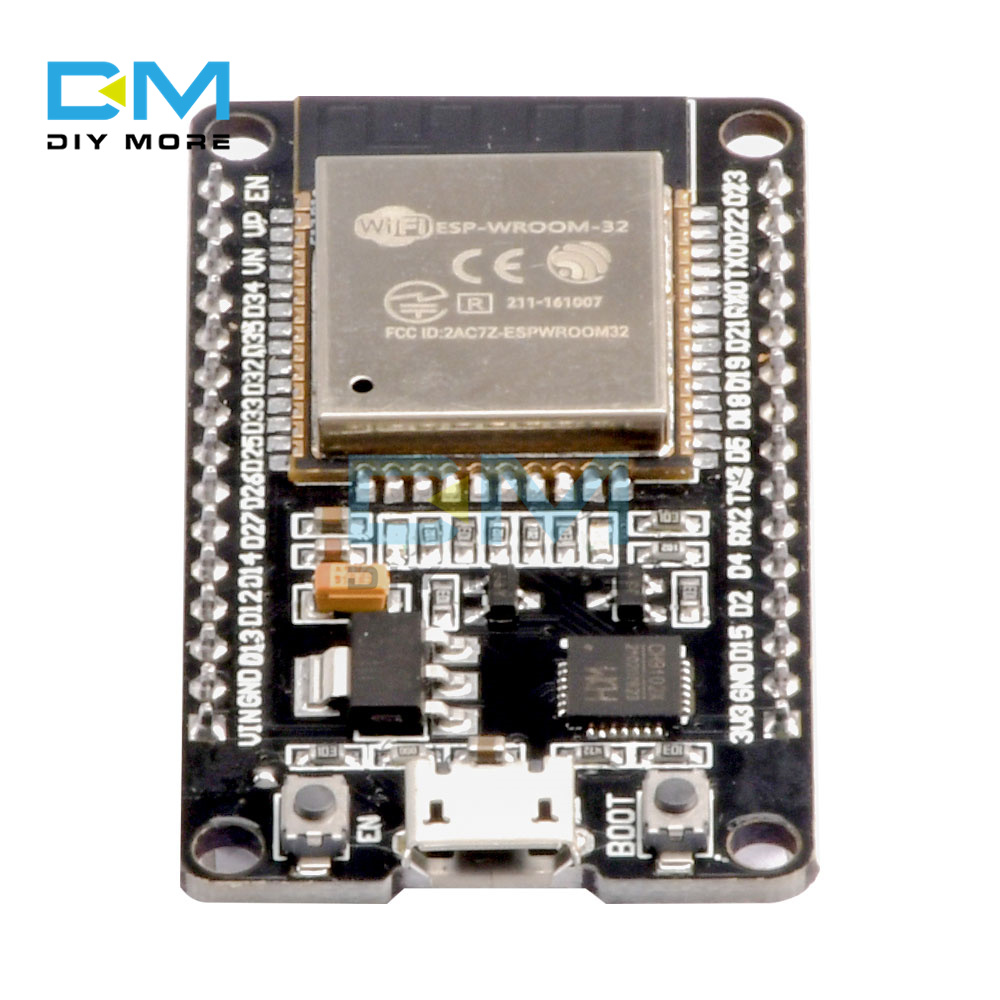

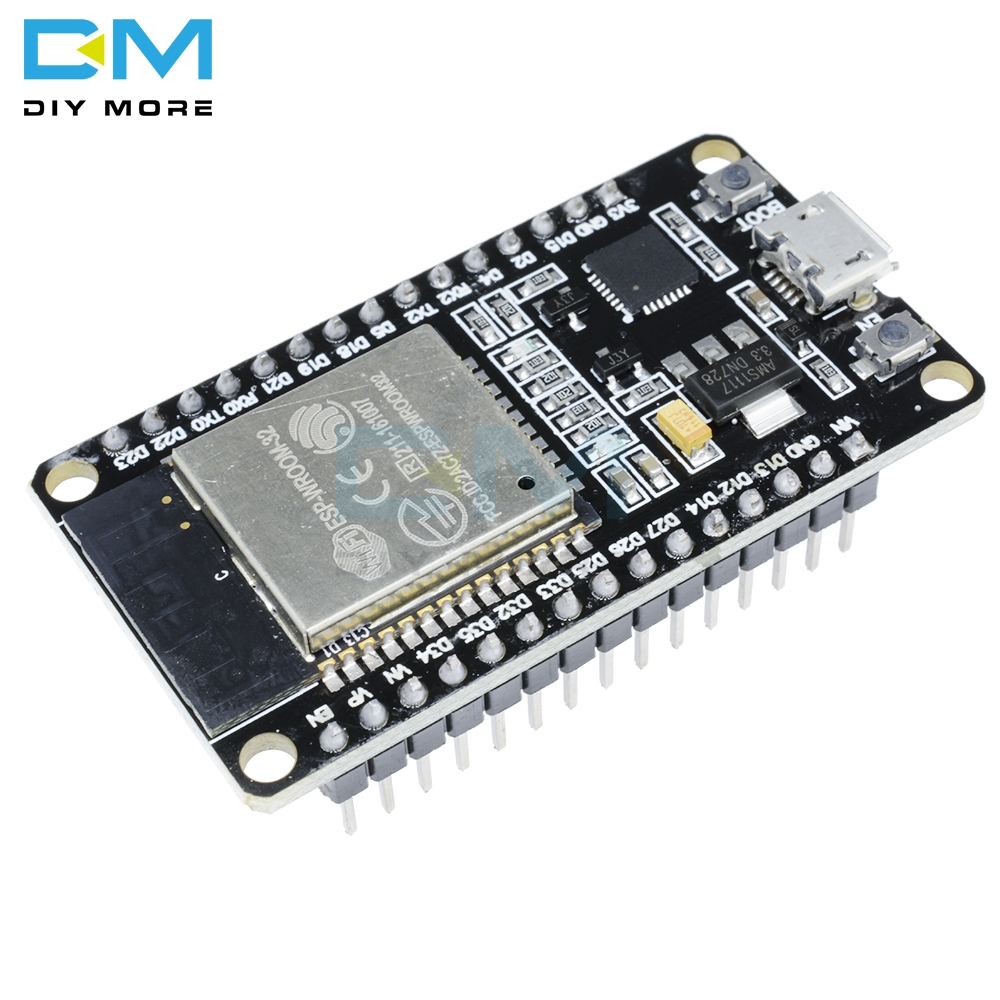

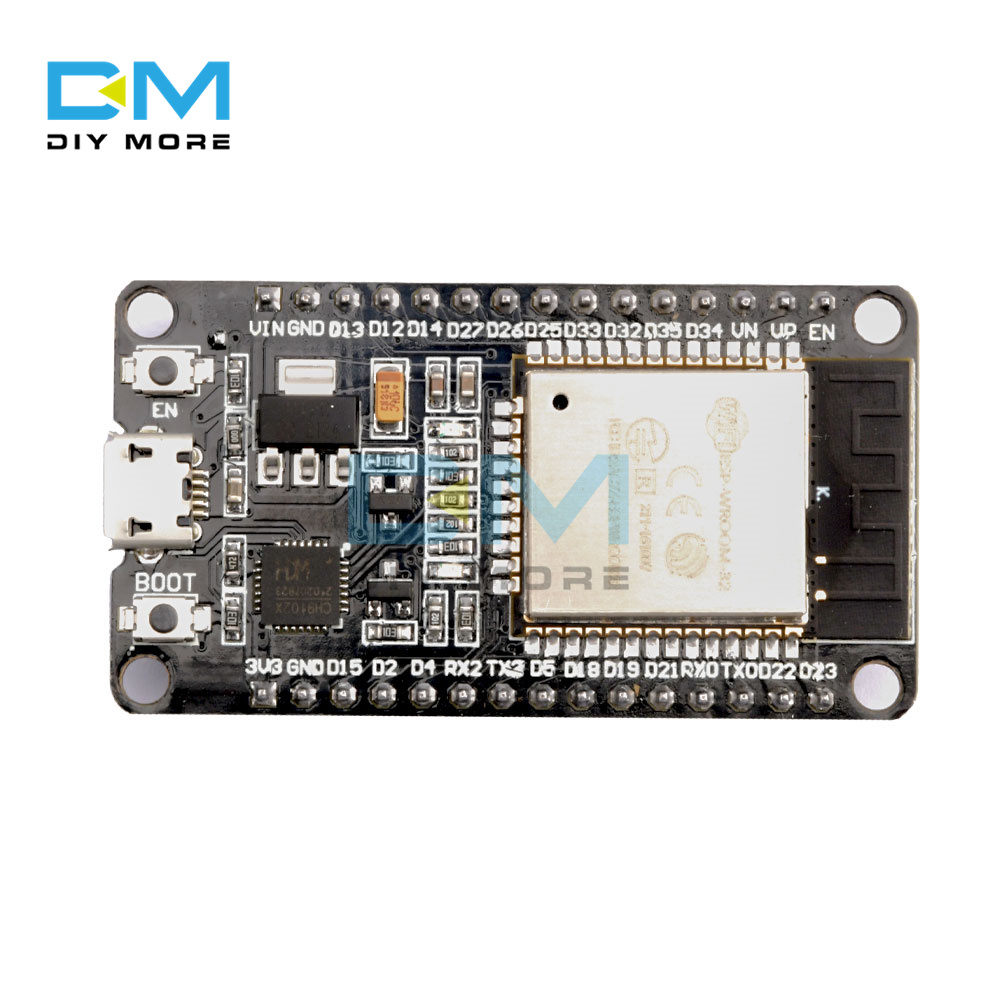

ESP-32 30PIN:
Introduction:
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,
and power management module. The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,
power and RF properties best, which is safe, reliable, and scalable to a variety of applications.

Features:
High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop

Package Included:
1* ESP32 ESP32S WiFi Bluetooth Development Board

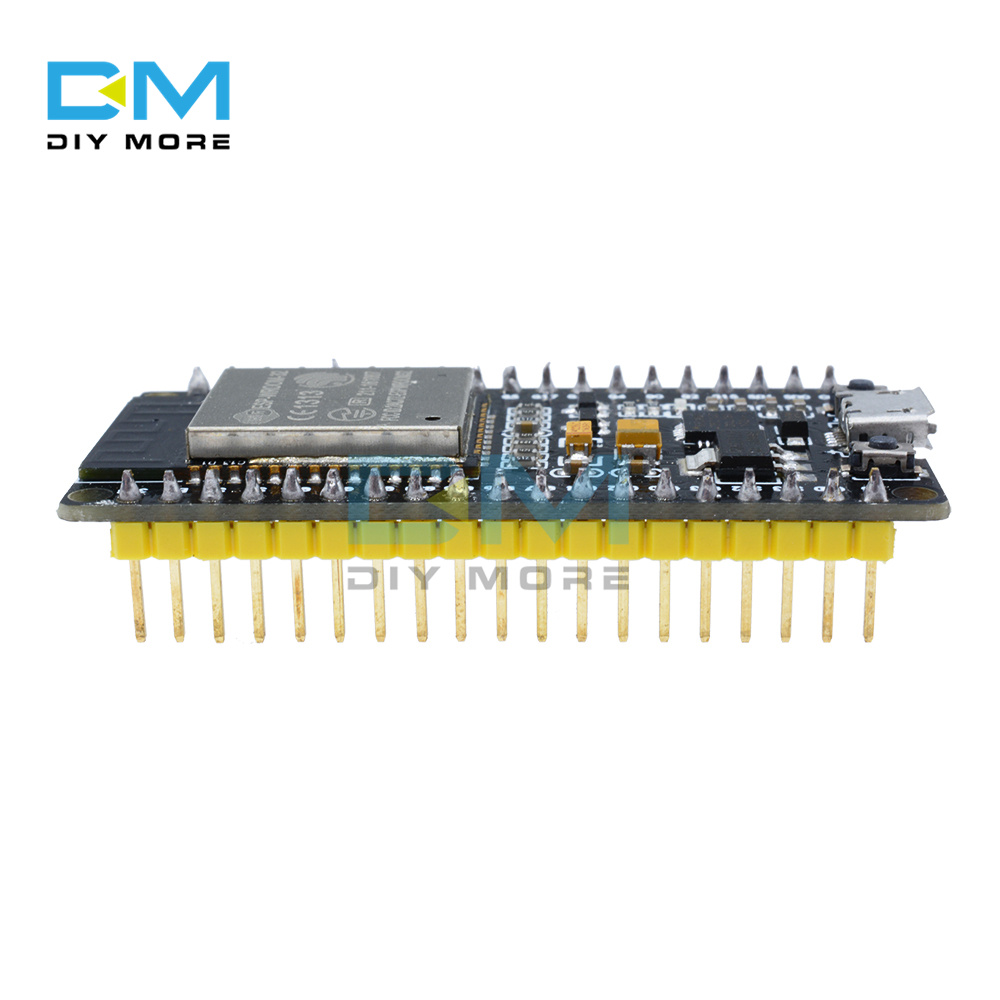

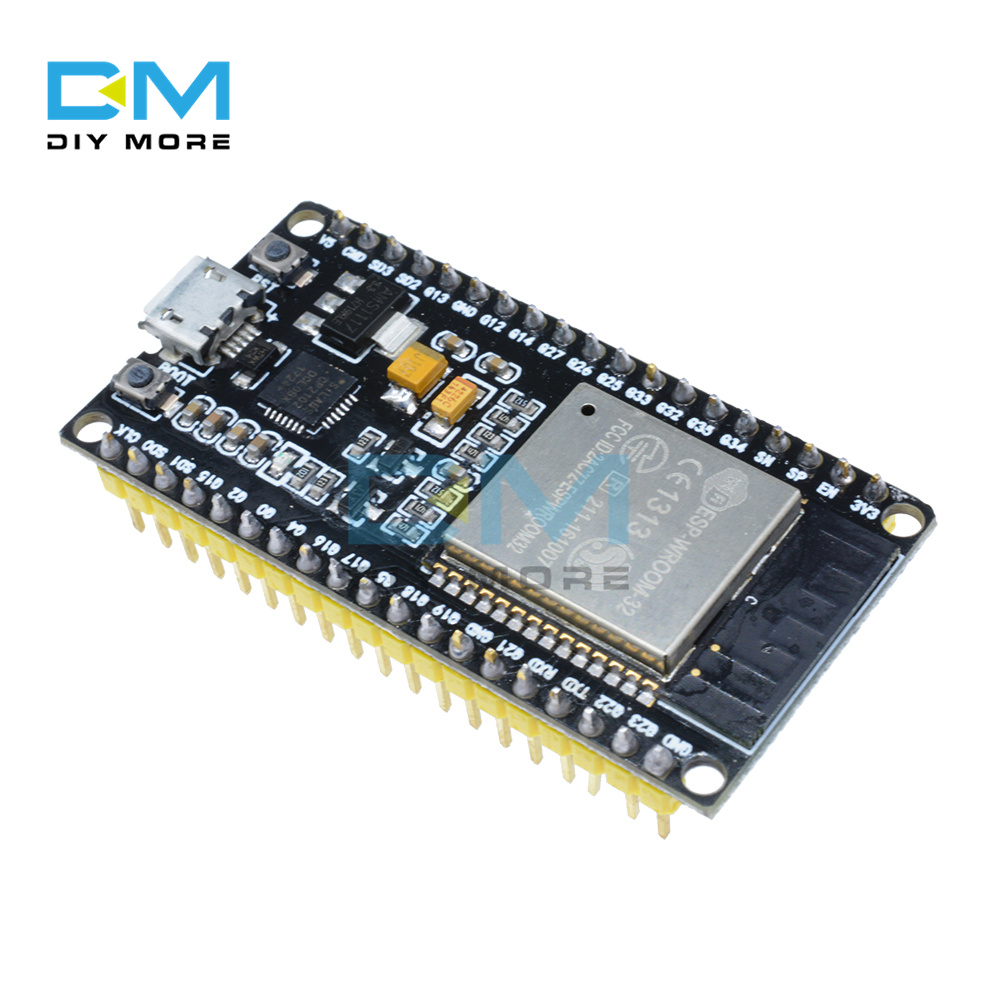

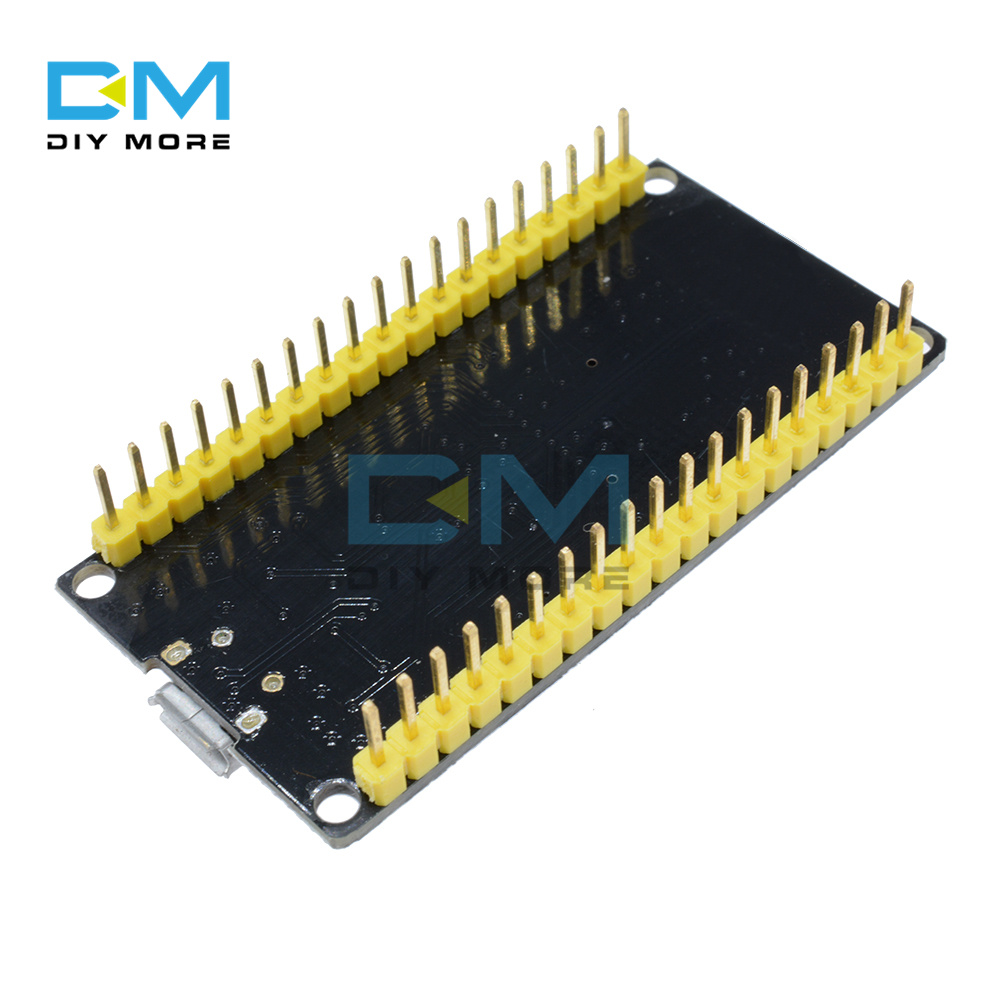

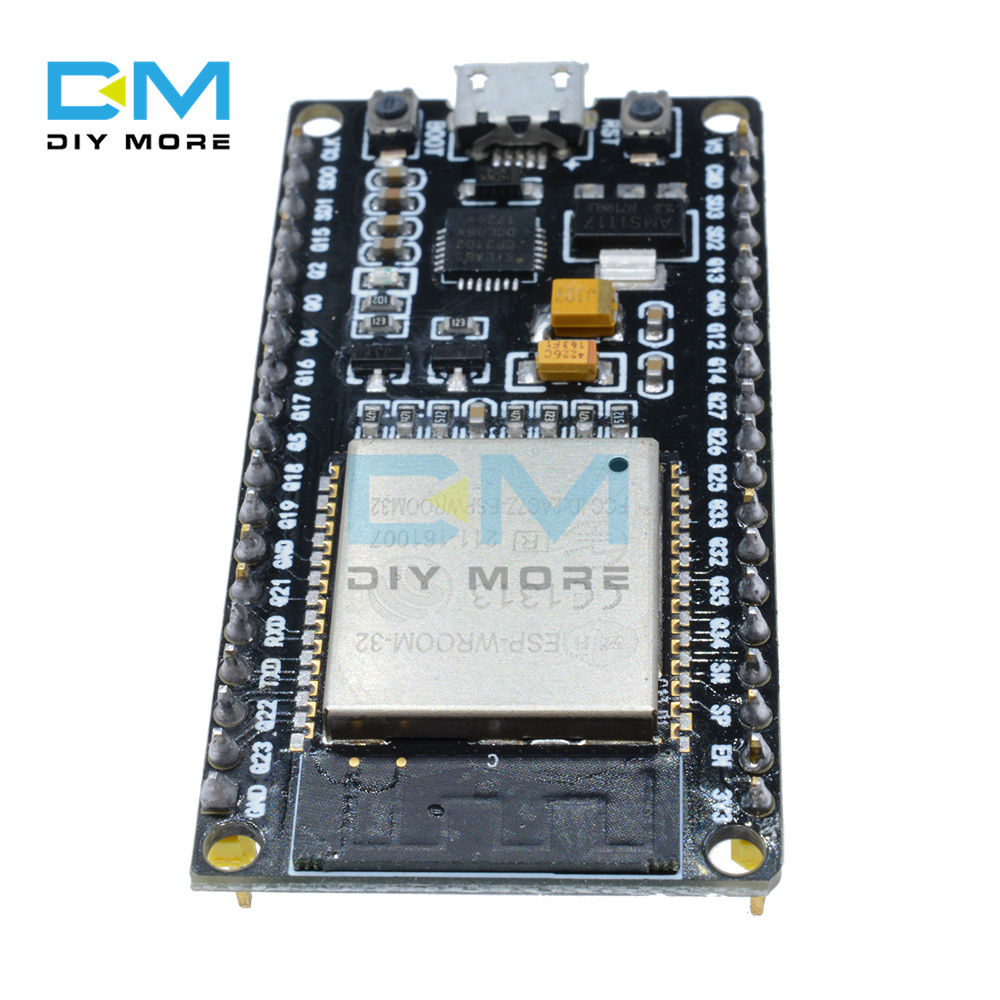

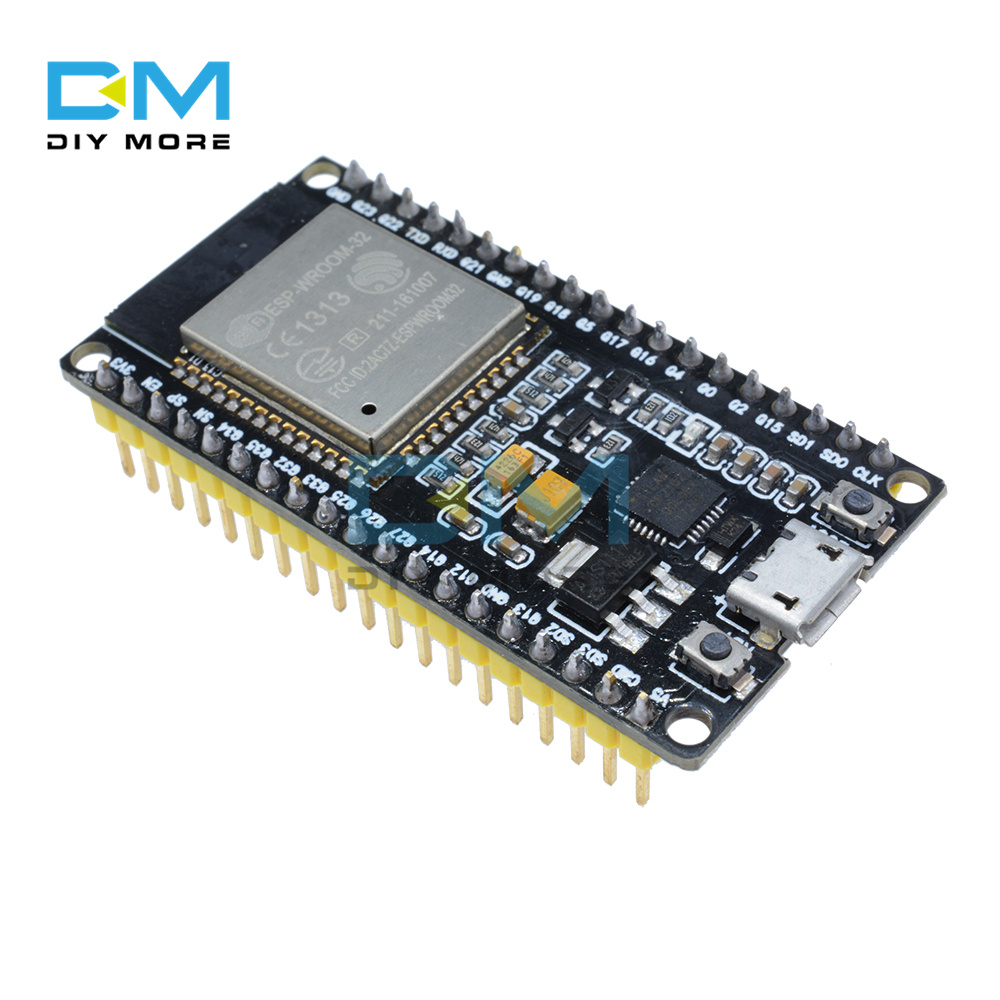

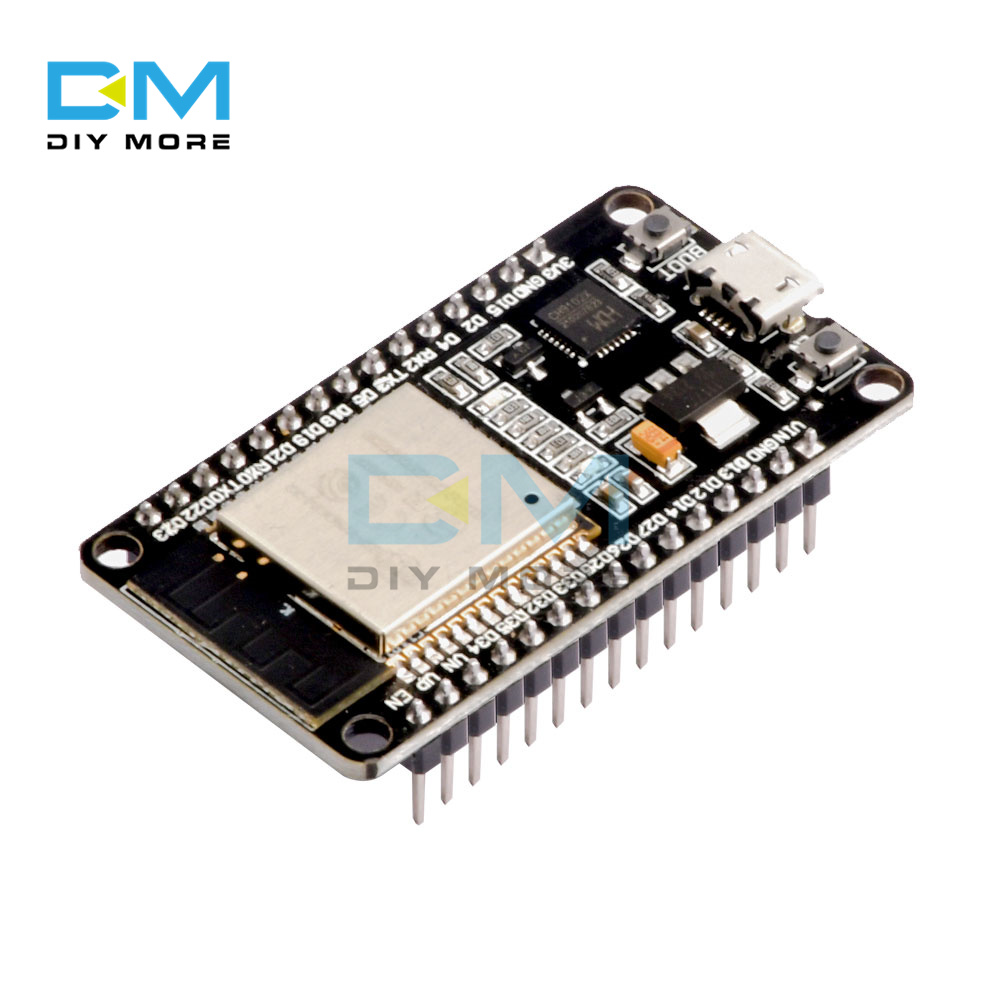

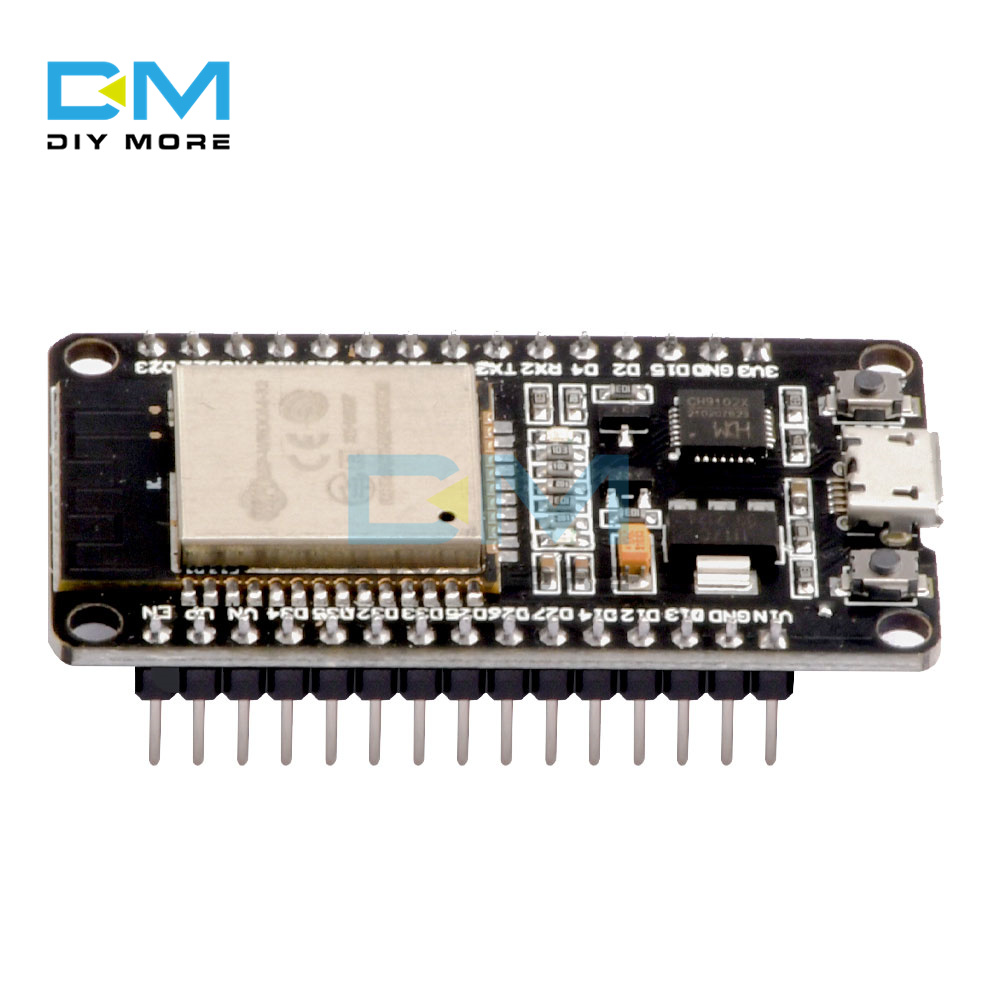

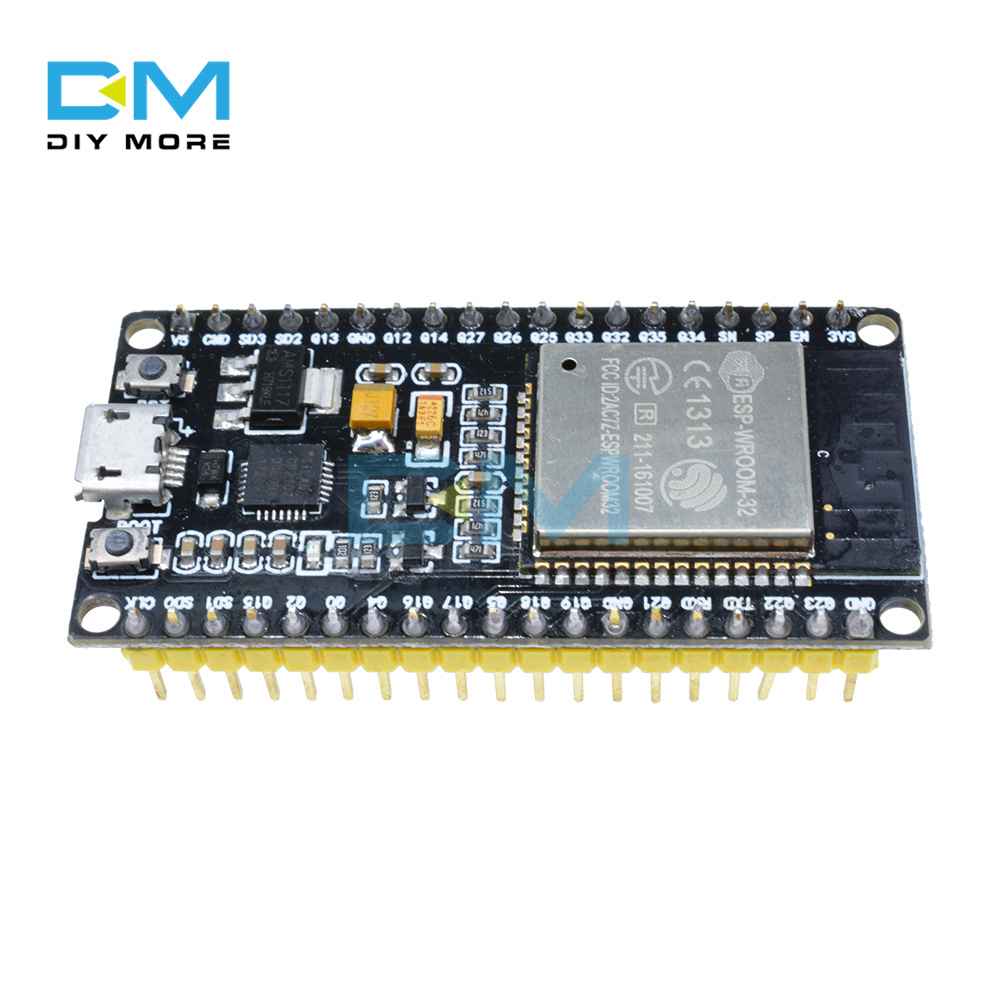

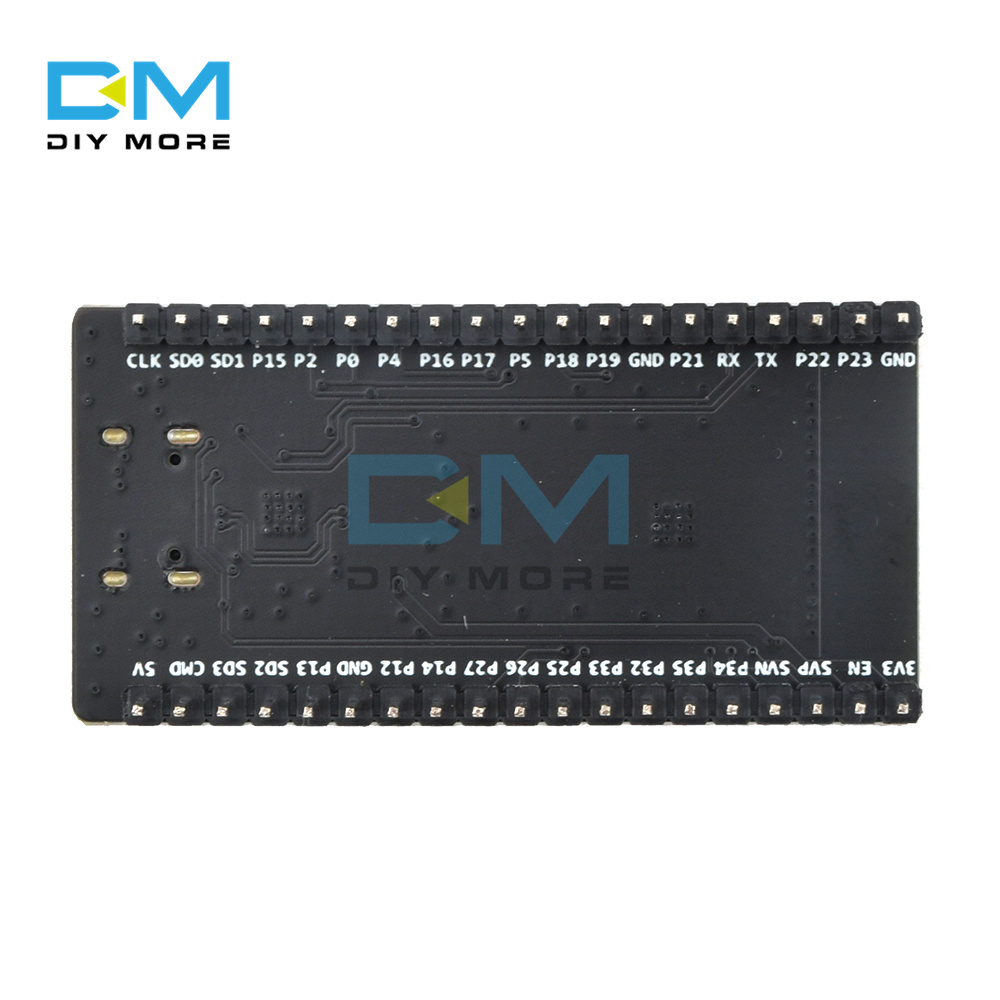

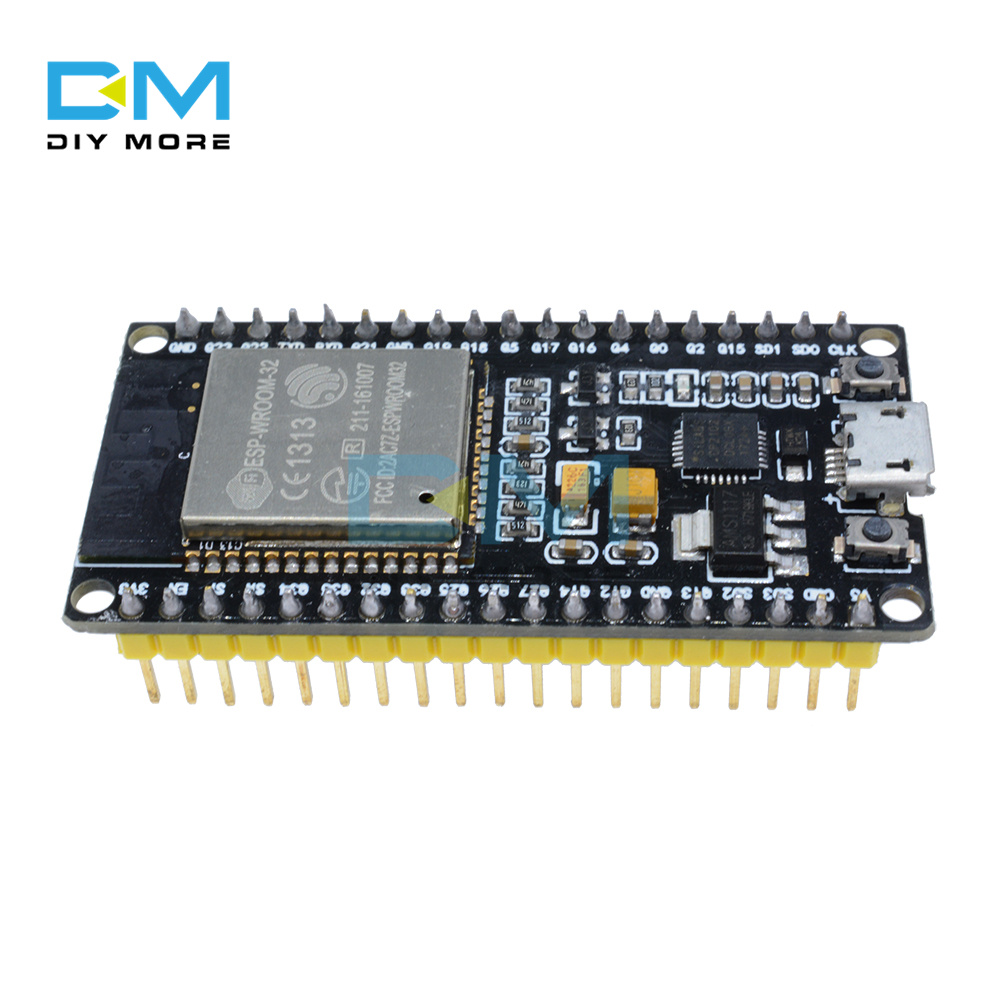

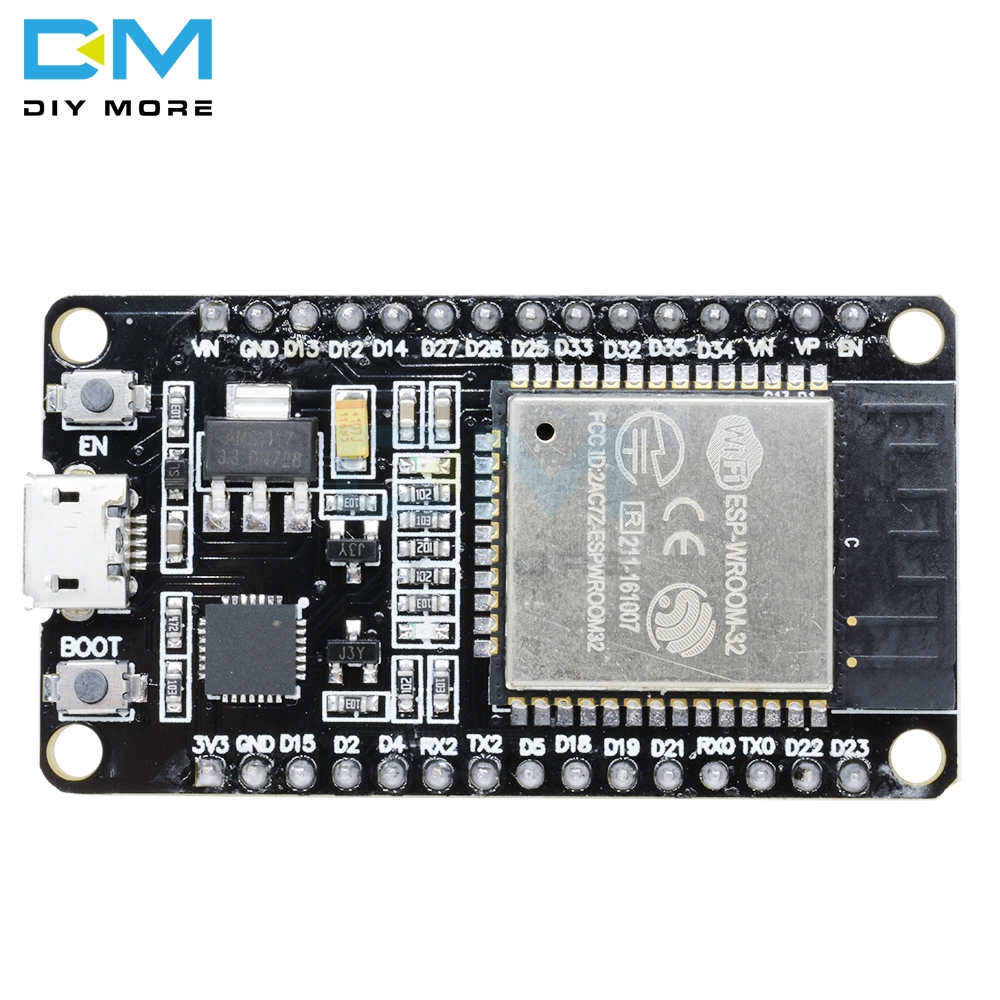

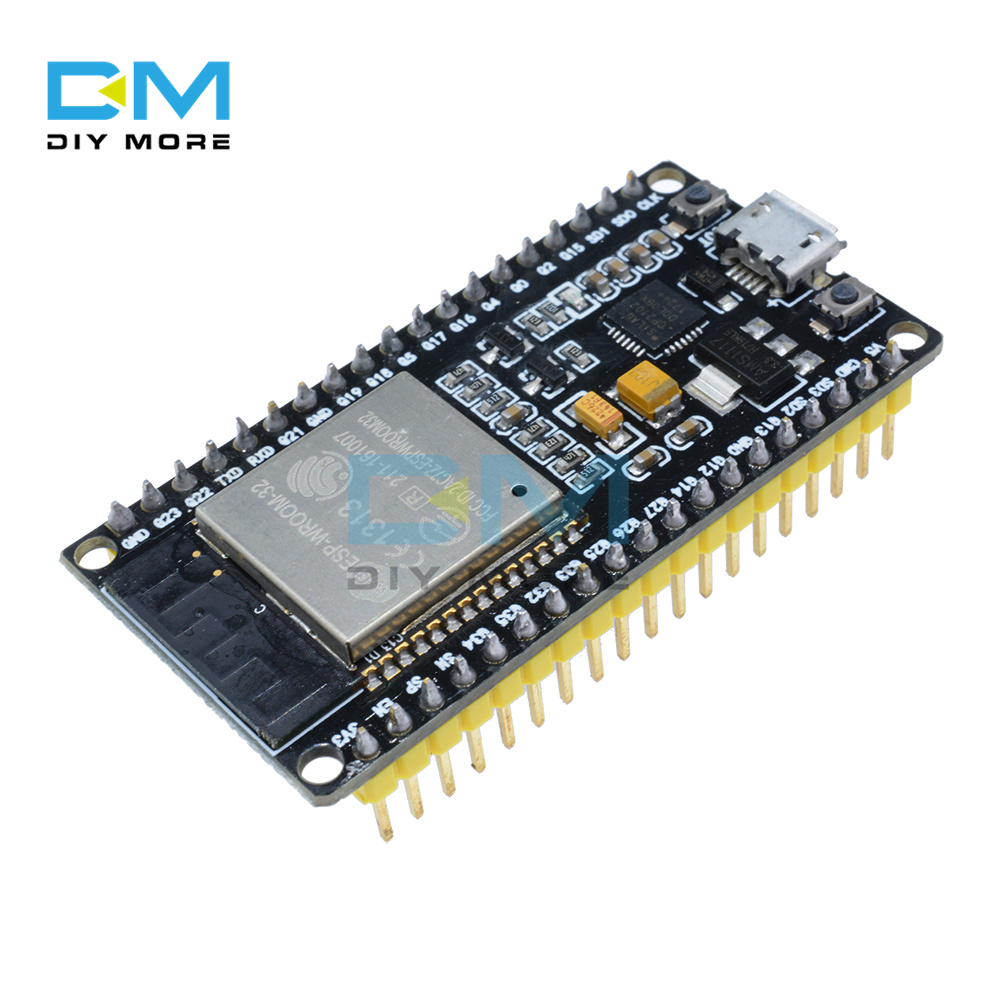

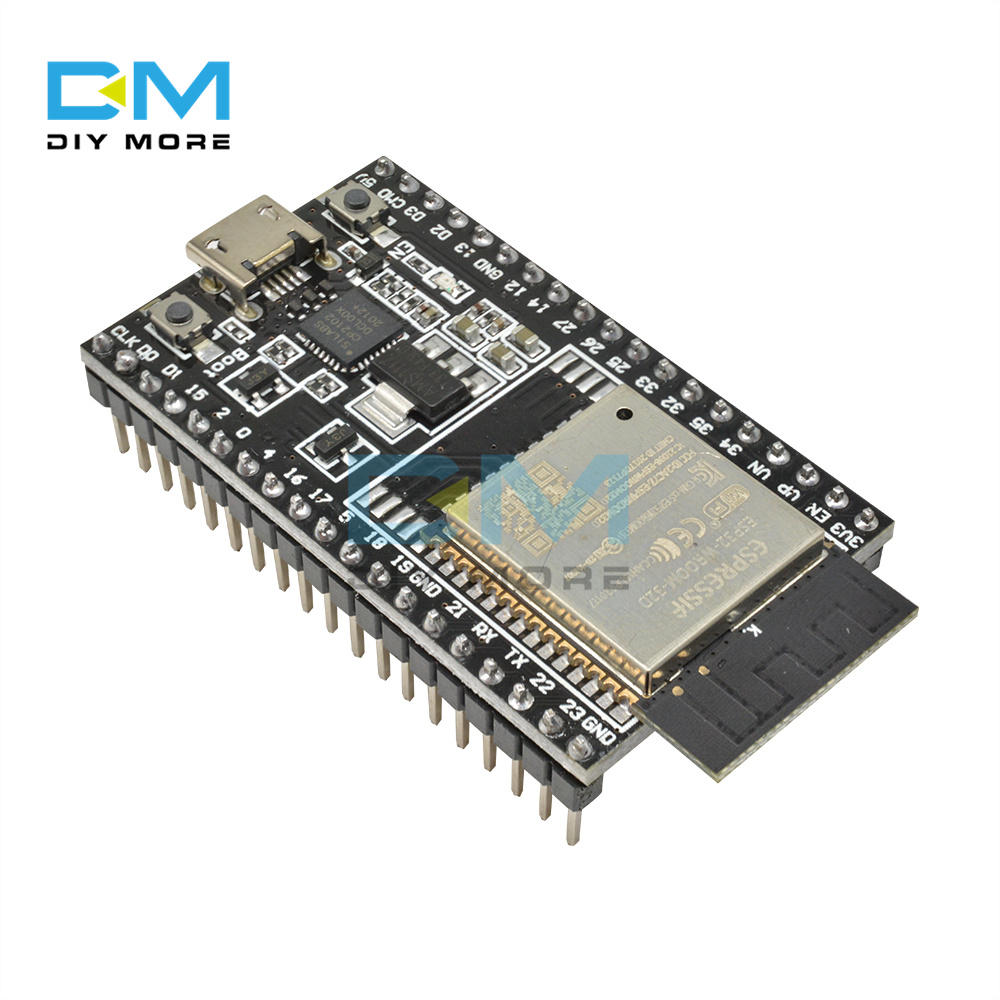

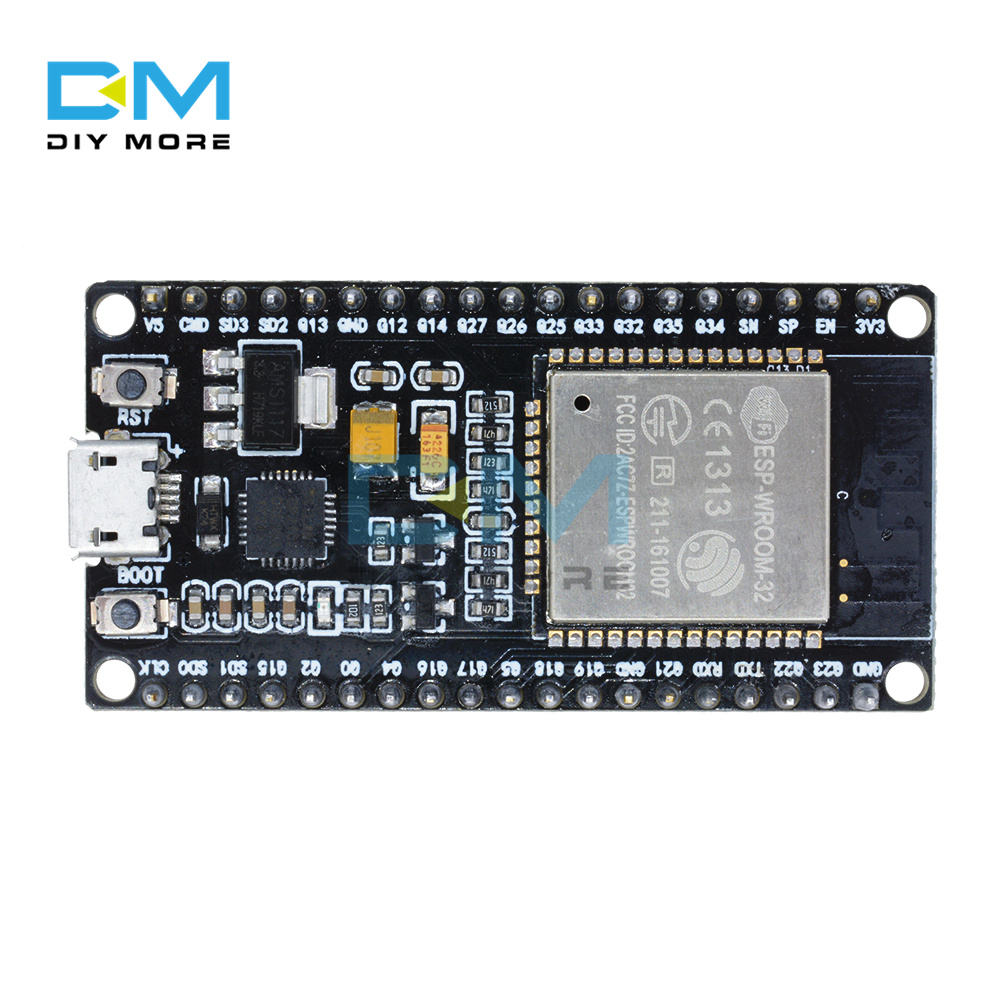

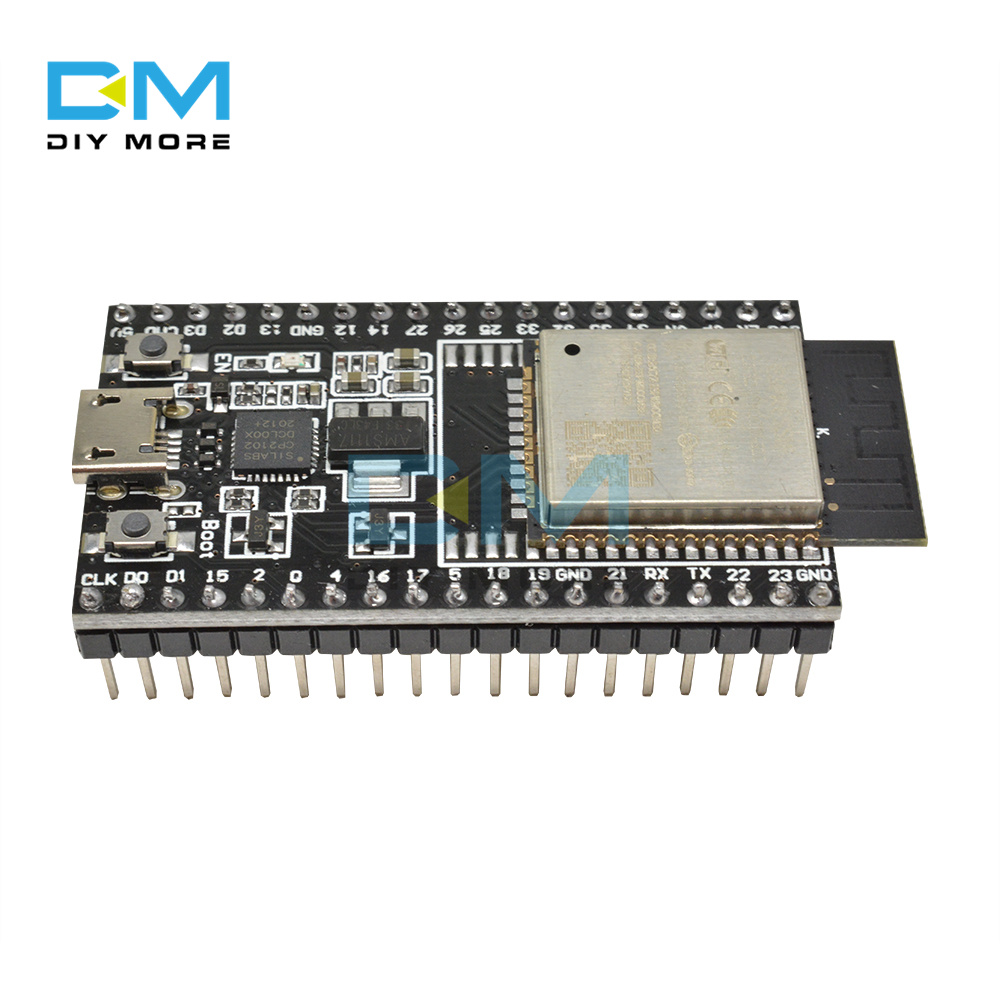

ESP-32 38PIN:
Feature:
100% brand new and high quality.
ESP32 is already integrated antenna and RF balun,power amplifier,low-noise amplifiers,filters,and power management module.
The entire solution takes up the least amount of printed circuit board area.
This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,power and RF properties best,which is safe,reliable,and scalable to a variety of applications.
High performance-price ratio.
Small volume,easily embeded to other products.
Strong function with support LWIP protocol,Freertos.
Supporting three modes:AP,STA,and AP+STA.
Supporting Lua program,easily to develop.

Package Included:
1* ESP32 Development Board

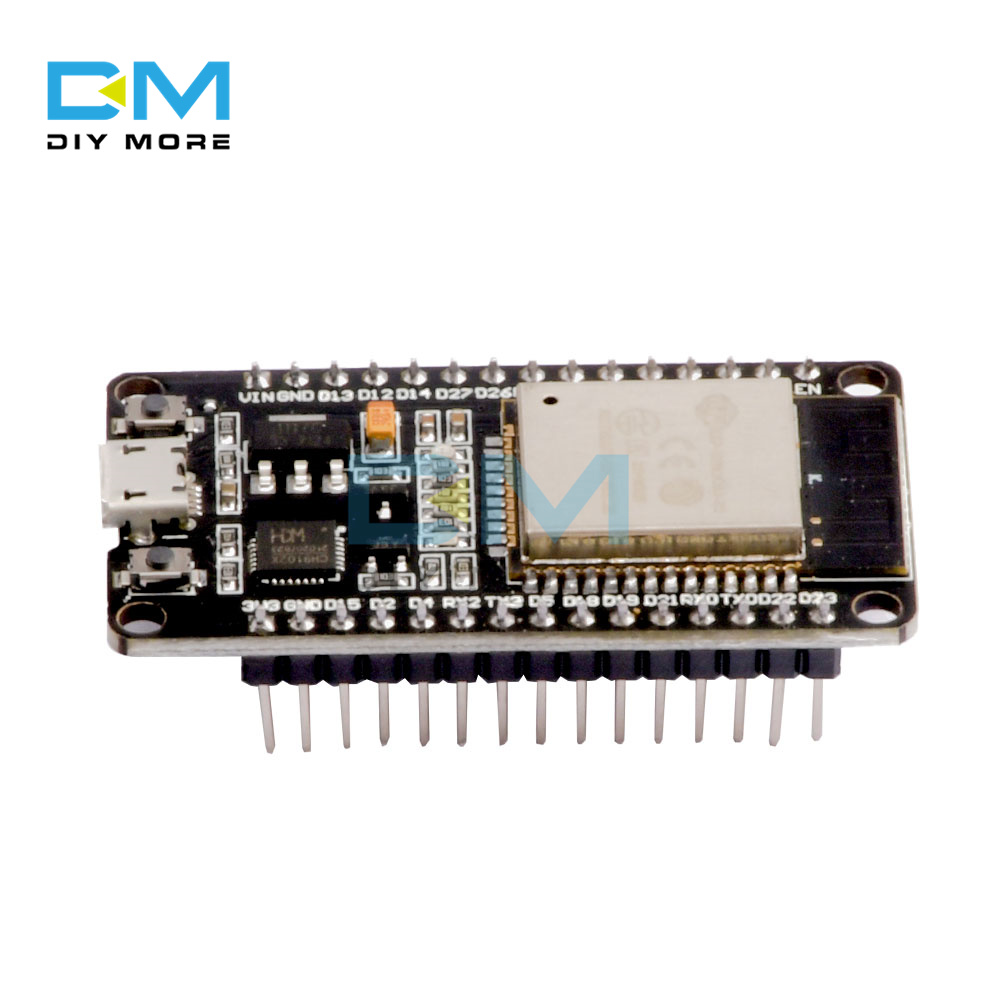

ESP32 CH9102X:
Product selling point:
1: Wide range of applications
2: Small size, easy to install
3: Simple and easy to understand
4: Support high baud rate, better stability
5: Safe and reliable

New version!
Windows 10 system automatically installs the driver
Support high baud rate, better stability.
ESP32 Development Board CH9102X WiFi+Bluetooth Ultra Low Energy Dual Core ESP-32 Similar to ESP-32S

ESP32 has integrated antenna and RF balun, power amplifier, low noise amplifier, filter
and power management modules. The entire solution takes up minimal printed circuit board area.
The board uses TSMC's 2.4GHz dual-mode Wi-Fi and Bluetooth chip with 40nm low-power technology.
Optimum power and RF performance, safe and reliable, and scalable to a variety of applications. Features: high cost performance, small size, easy to embed in other products, powerful, support LWIP protocol, Freertos supports AP, STA, AP+STA three modes, supports Lua program, easy to develop

Package Included:
1* CH9102X development board

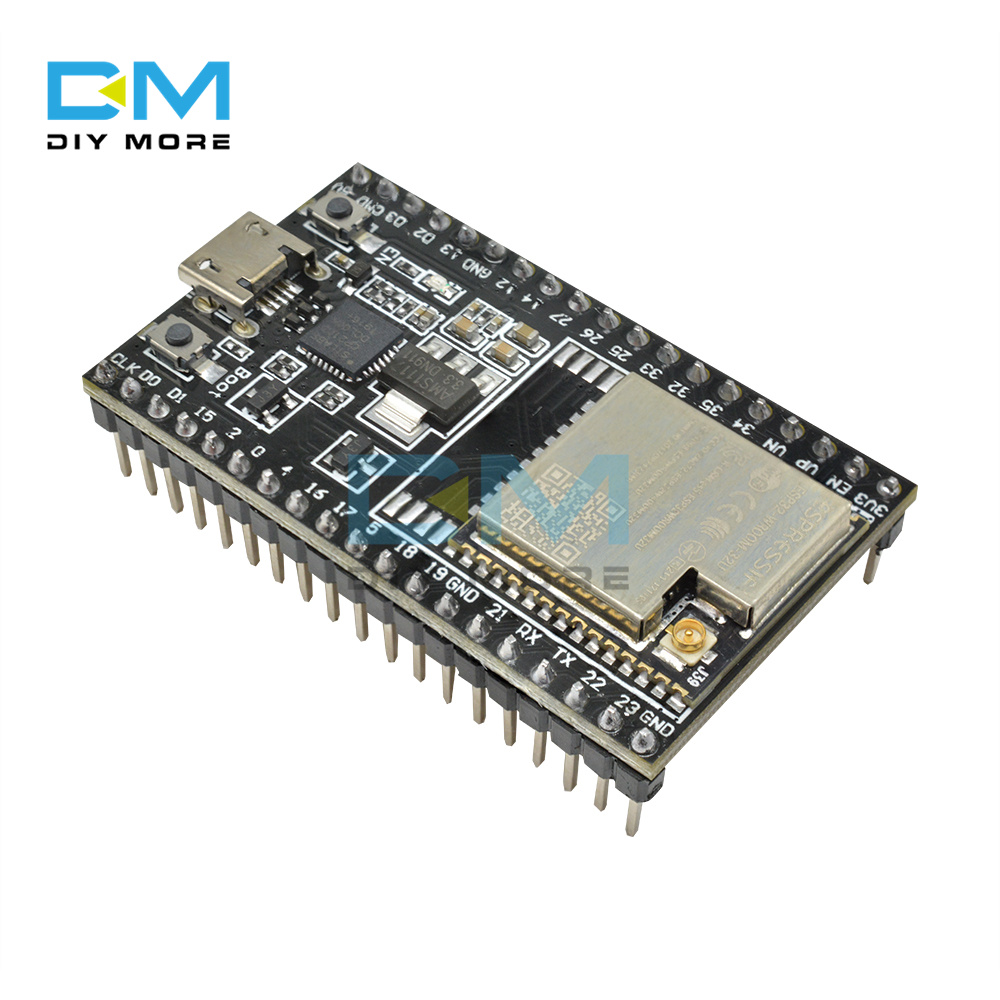

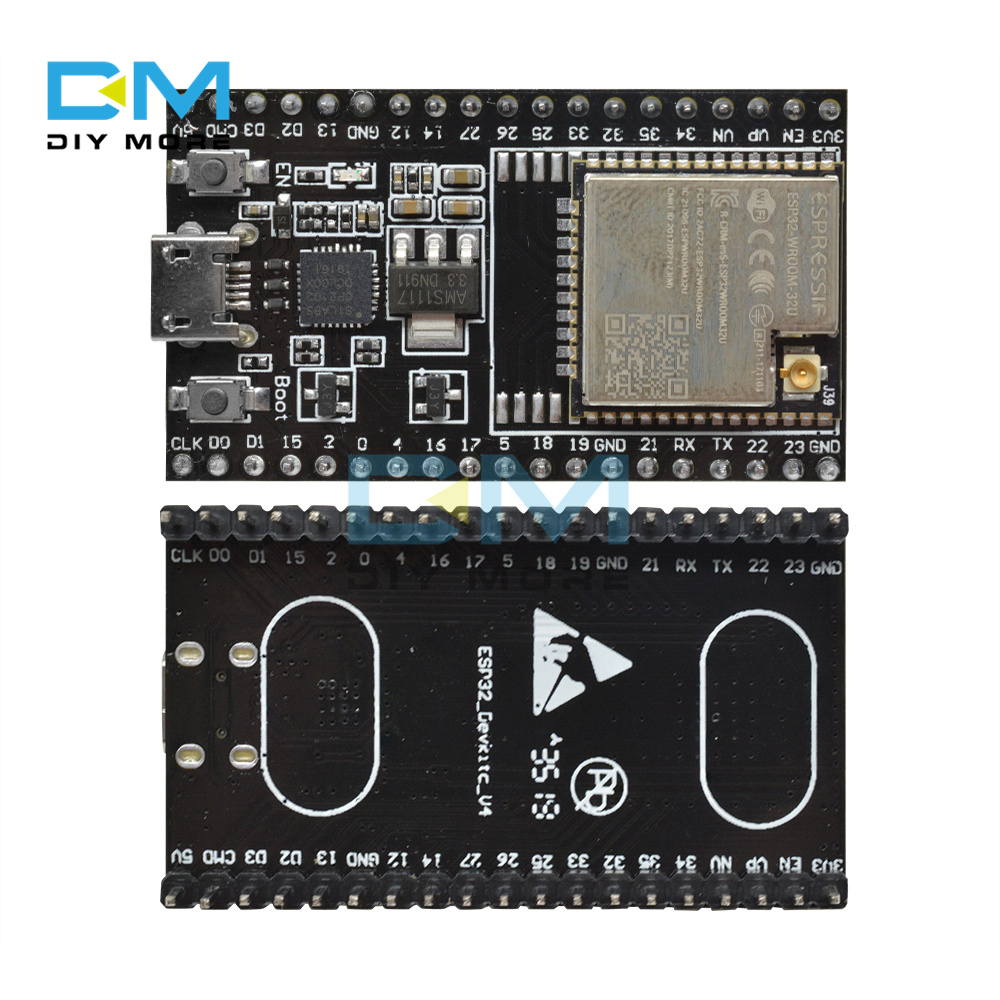

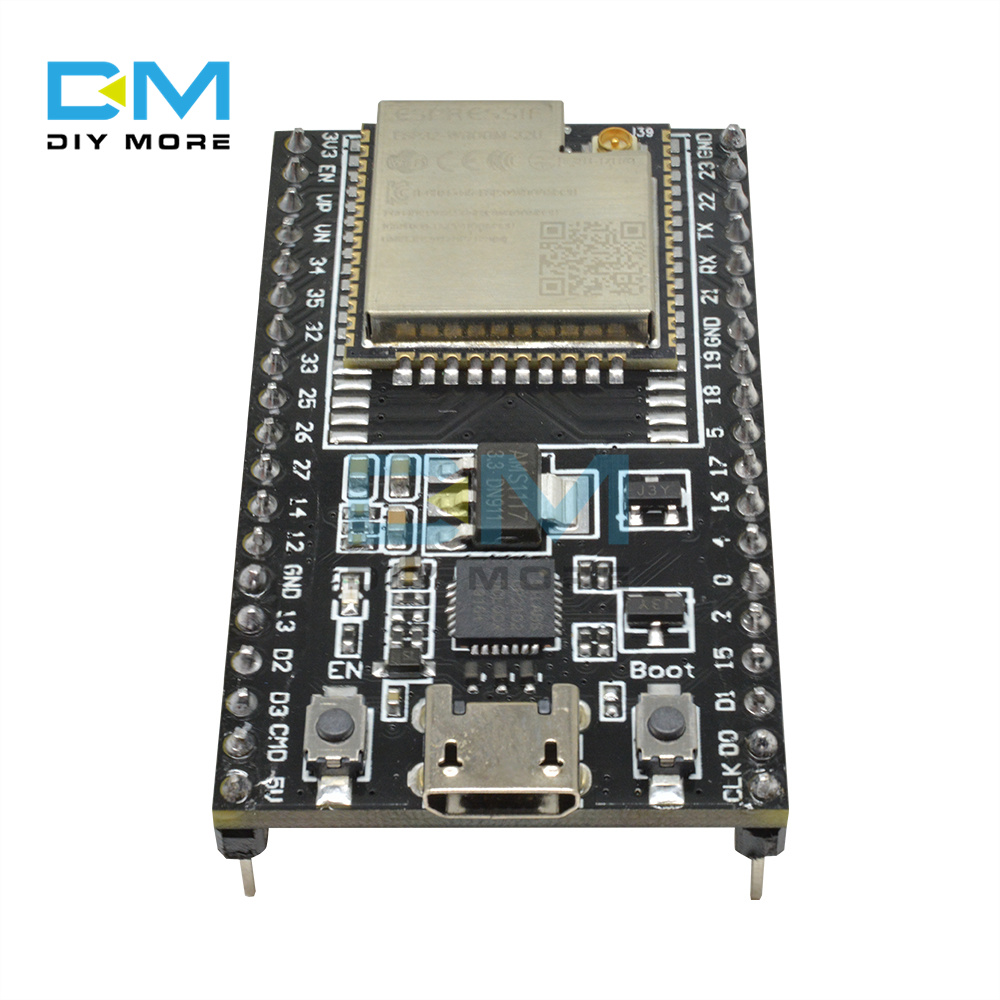

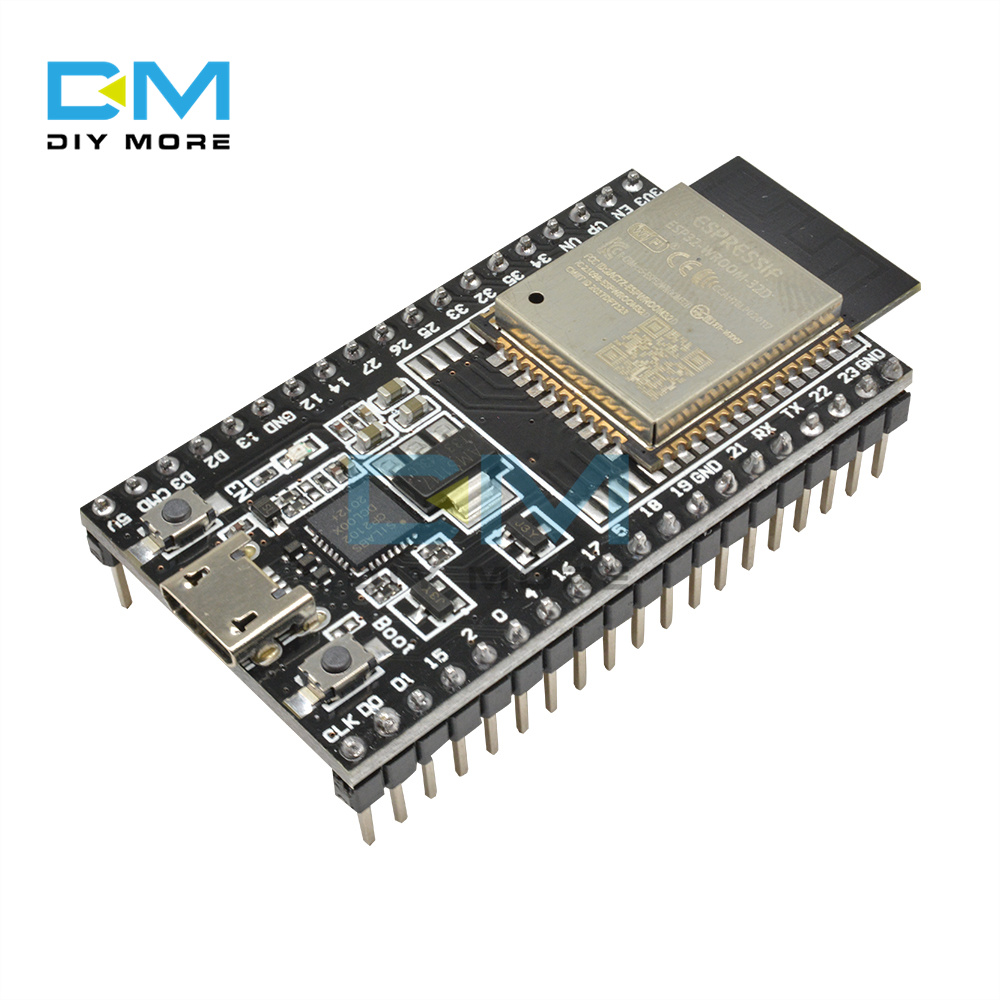

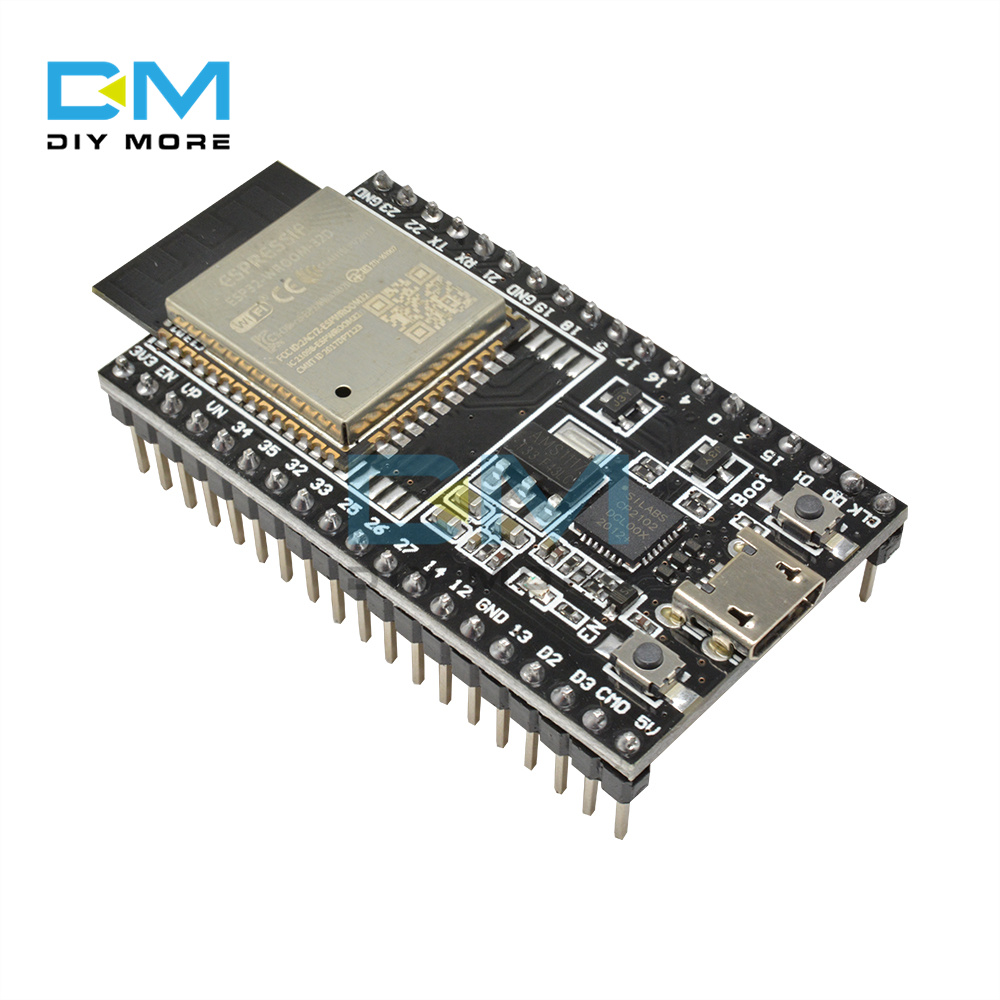

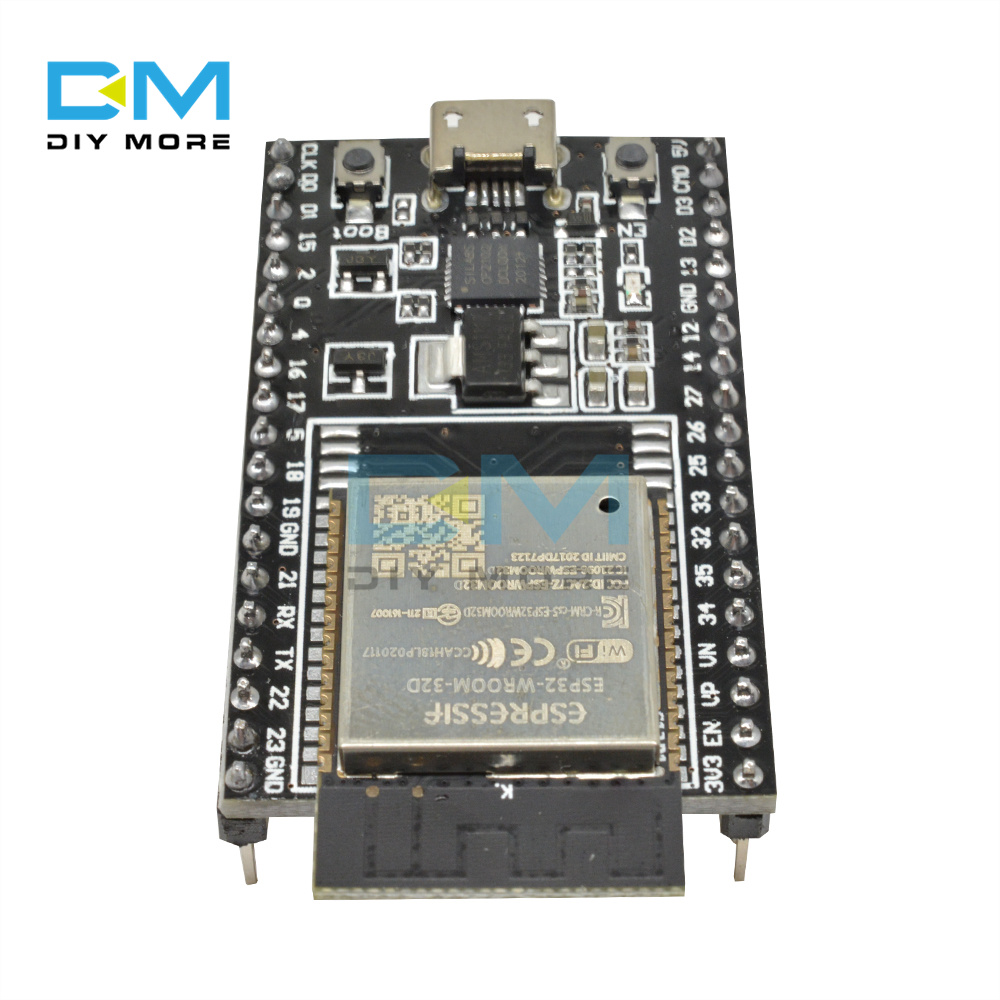

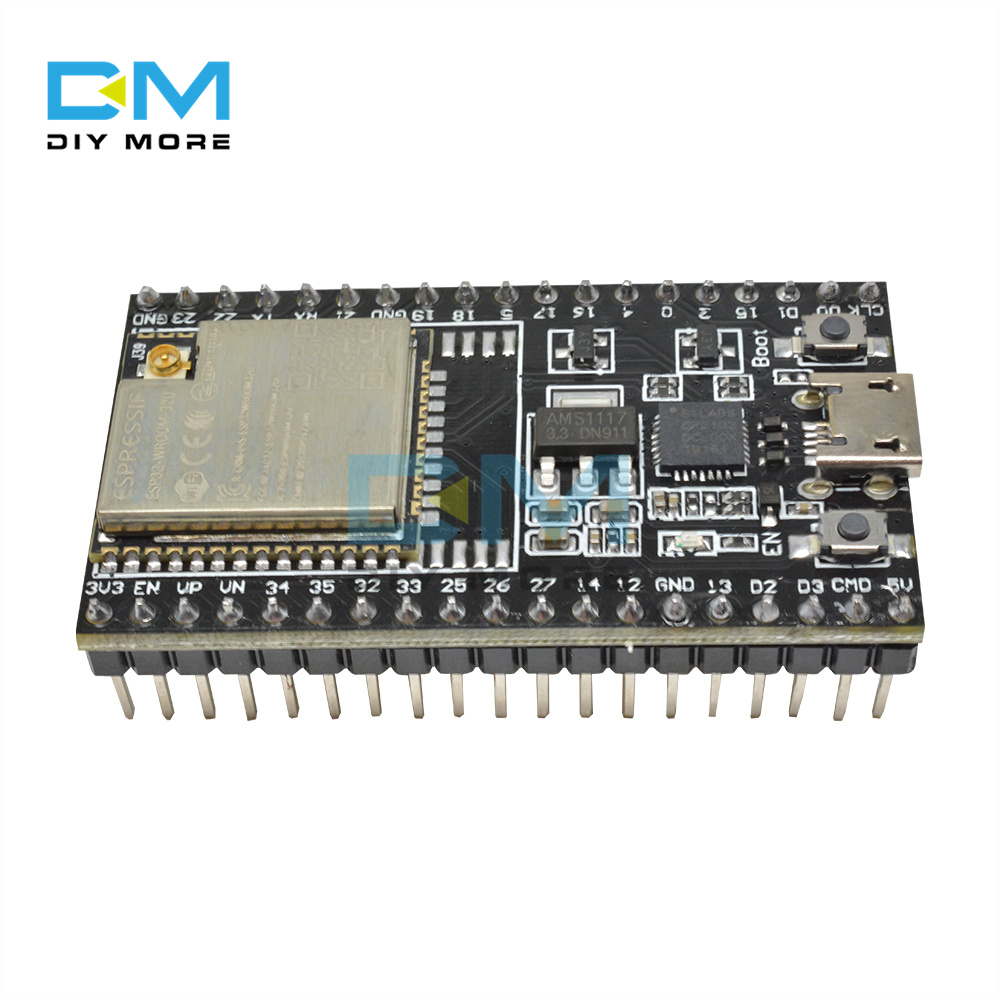

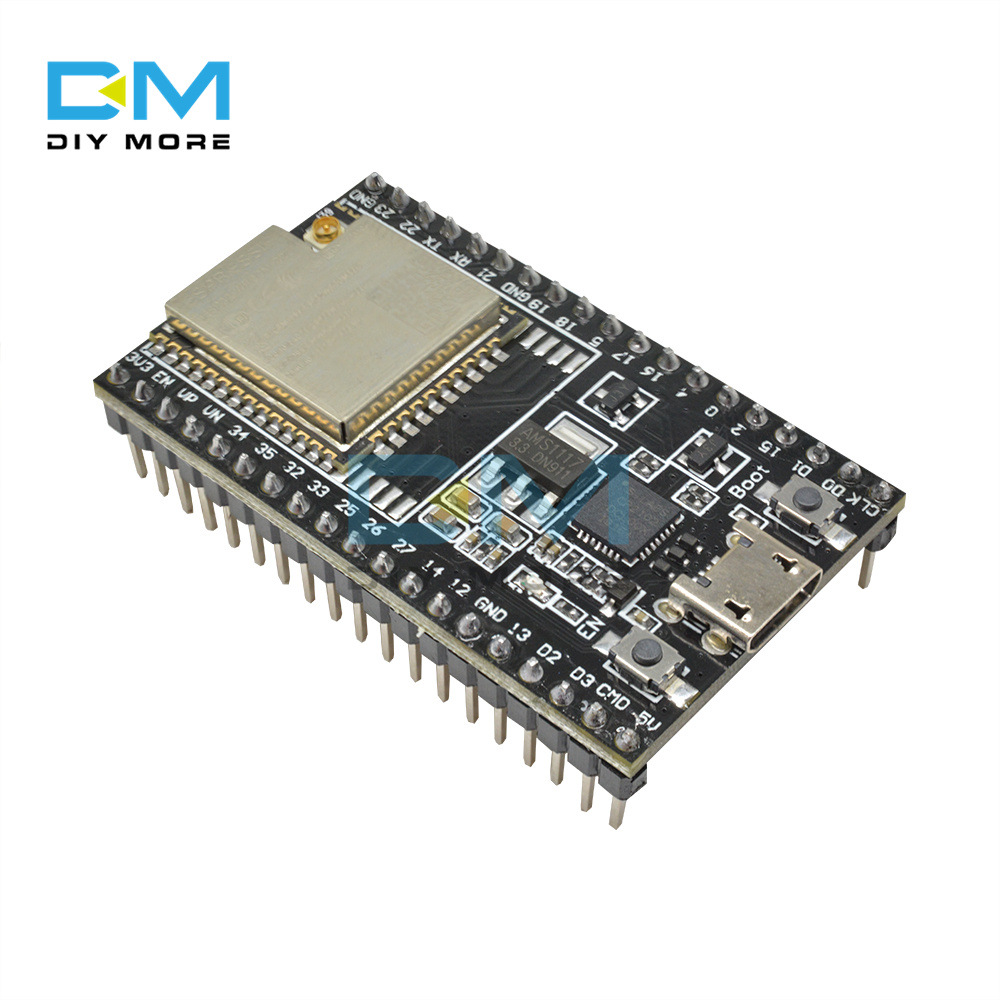

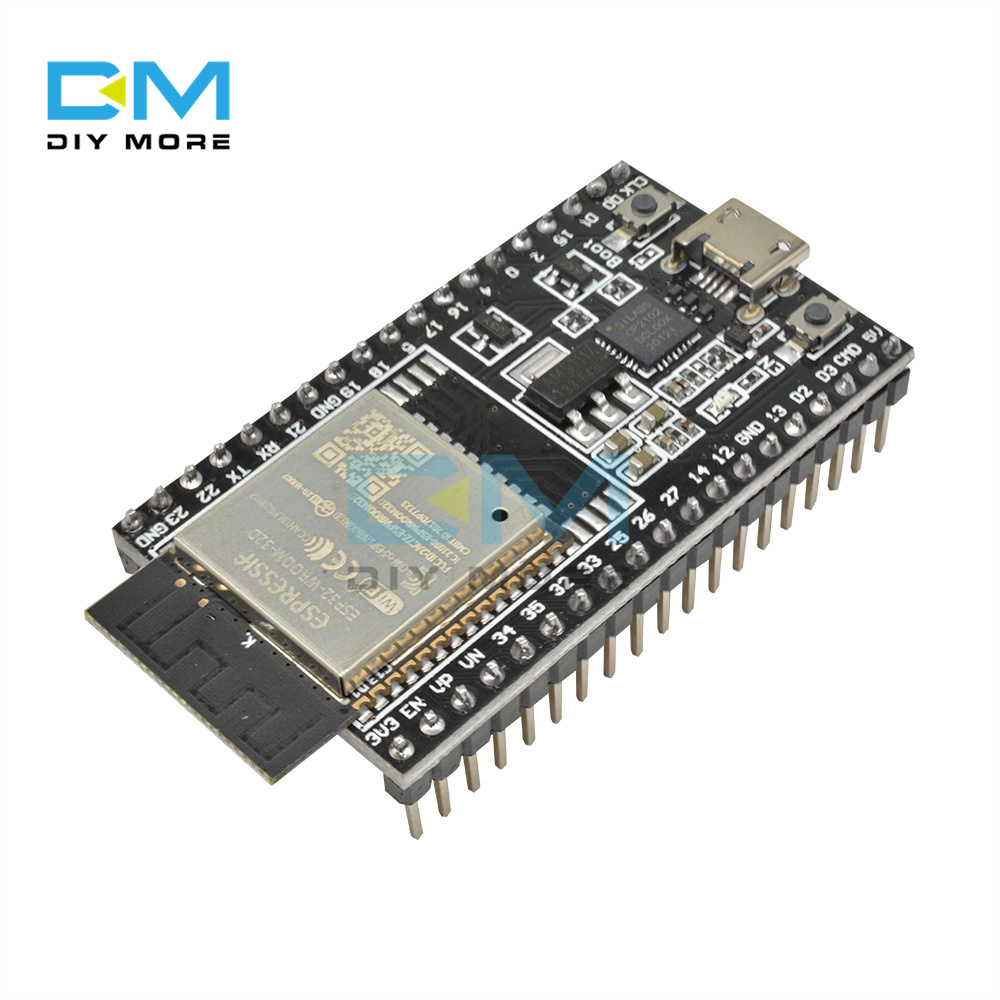

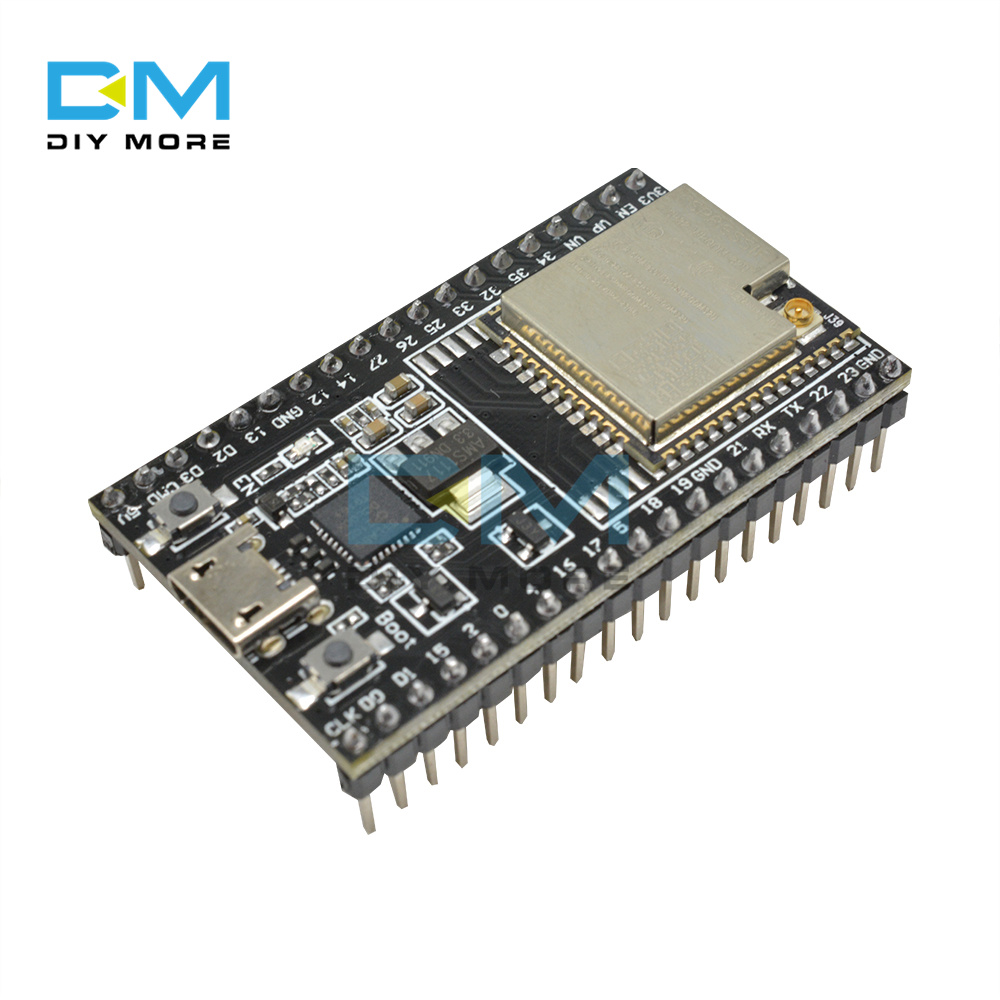

ESP32-WROOM-32D/ ESP32-WROOM-32U:

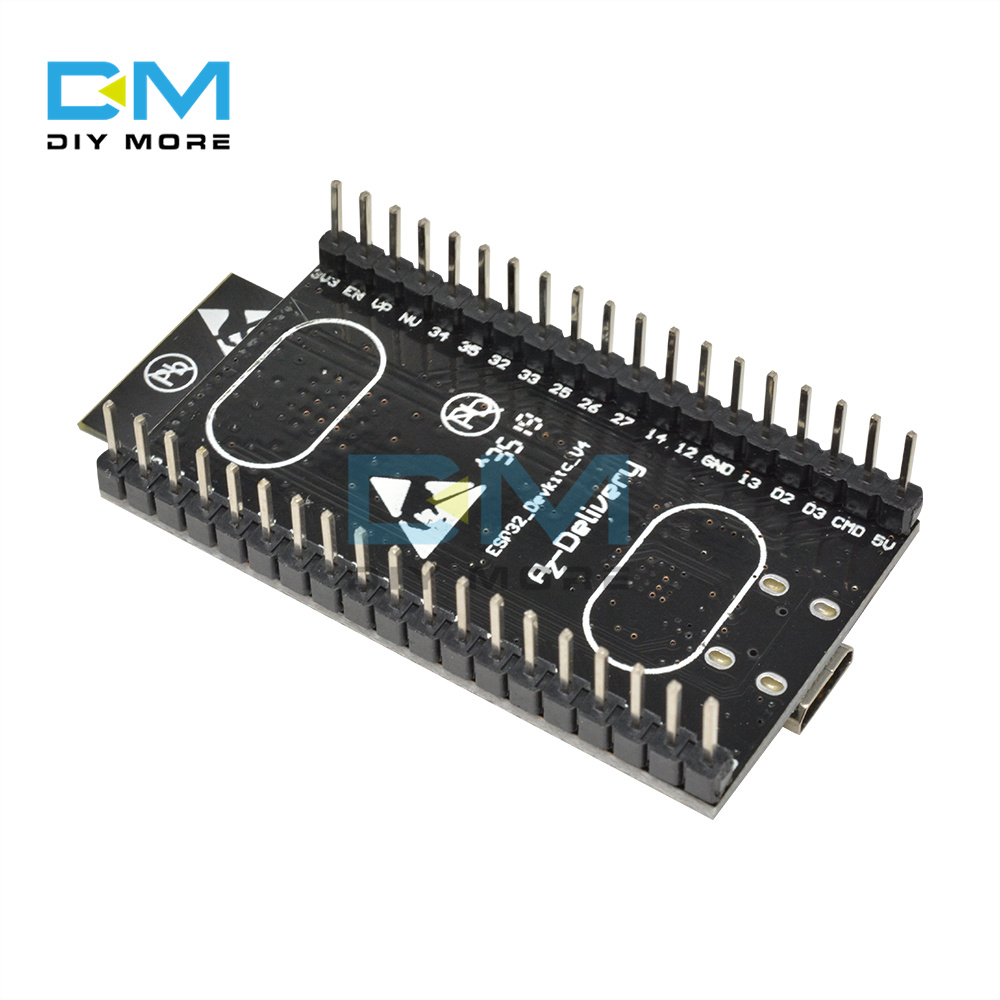

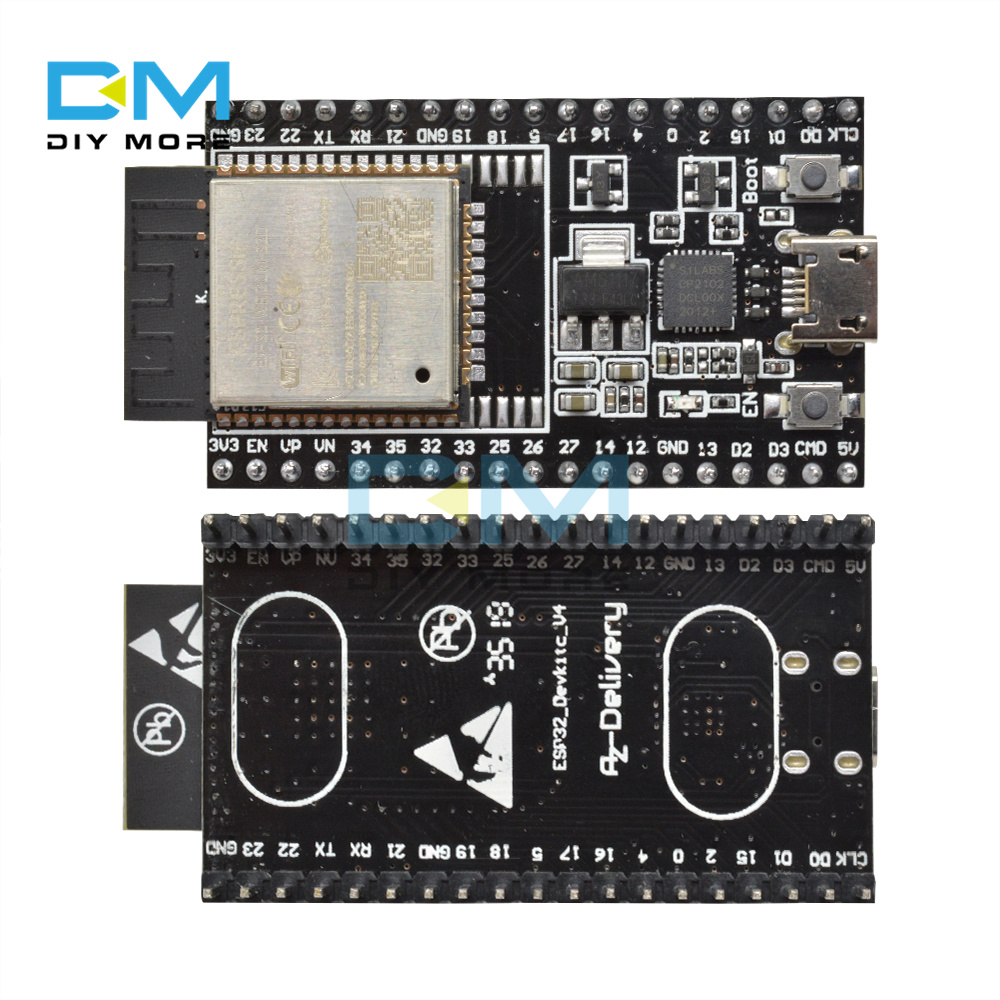

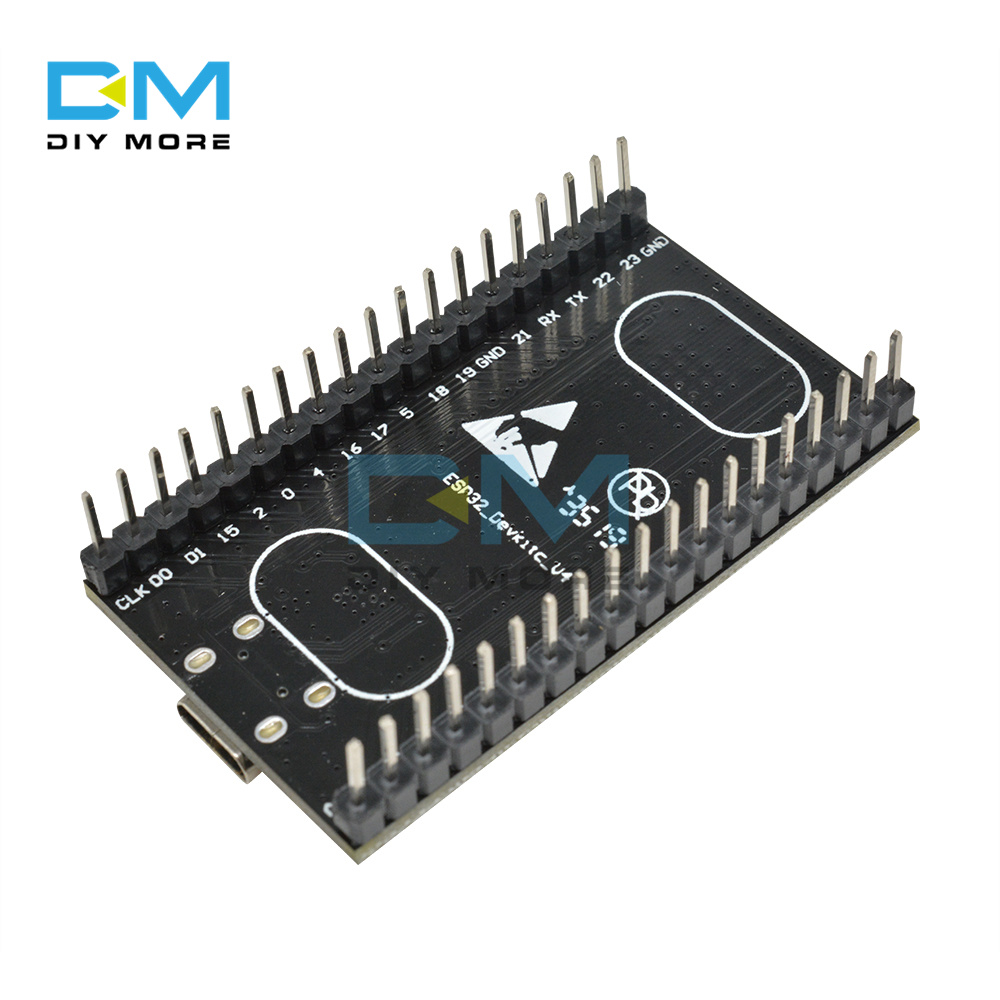

ESP32-DevKitC V4 Getting Started Guide:
This guide shows how to start using the ESP32-DevKitC V4 development board. For description of other versions of ESP32-DevKitC check ESP32 Hardware Reference.

What You Need:
ESP32-DevKitC V4 board
USB A / micro USB B cable
Computer running Windows, Linux, or macOS
You can skip the introduction sections and go directly to Section Start Application Development.

Overview:
ESP32-DevKitC V4 is a small-sized ESP32-based development board produced by Espres-sif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitC V4 on a breadboard.

To cover a wide range of user requirements, the following versions of ESP32-DevKitC V4 are available:
Different ESP32 modules:
ESP32-WROOM-32
ESP32-WROOM-32D
ESP32-WROOM-32U
ESP32-SOLO-1
ESP32-WROVER
ESP32-WROVER-B
ESP32-WROVER-I
ESP32-WROVER-B (IPEX)
male or female pin headers.

Package Included:
1* ESP32-DevKitC Development Board ESP32-WROOM-32D/ESP32-WROOM-32U

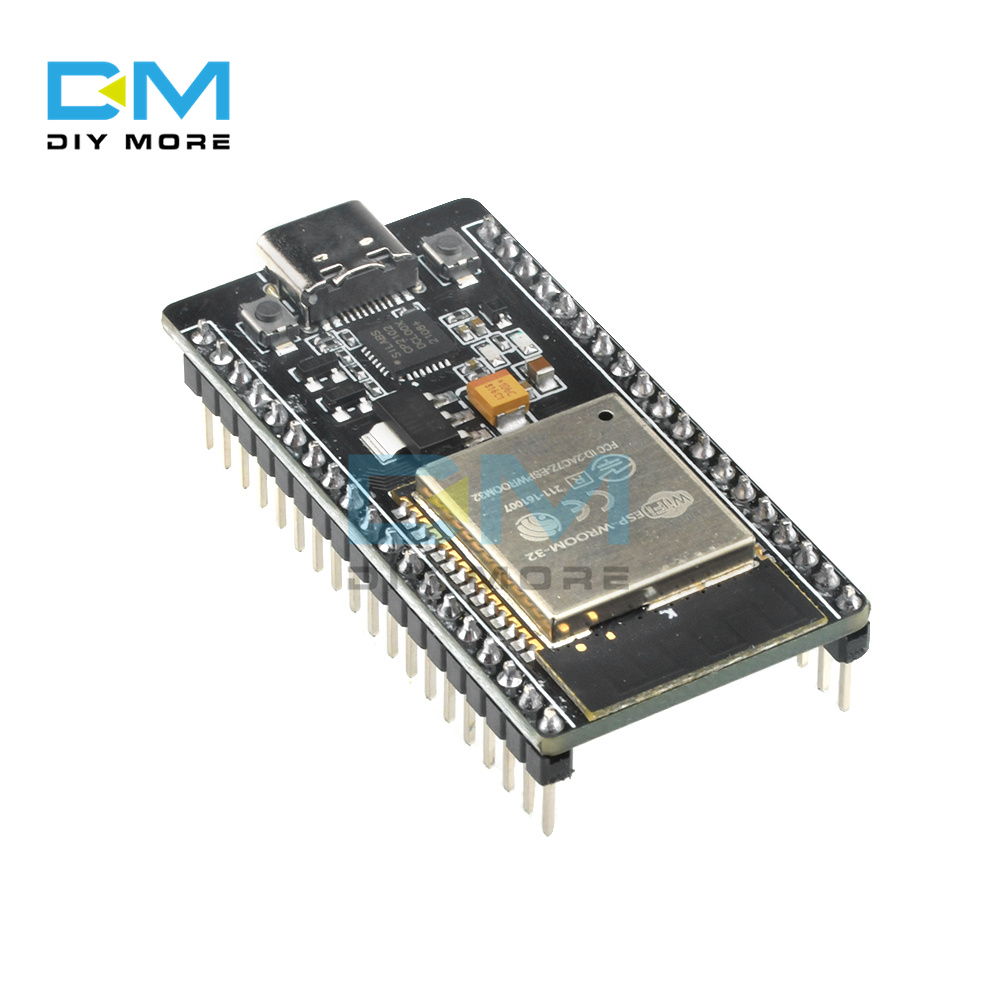

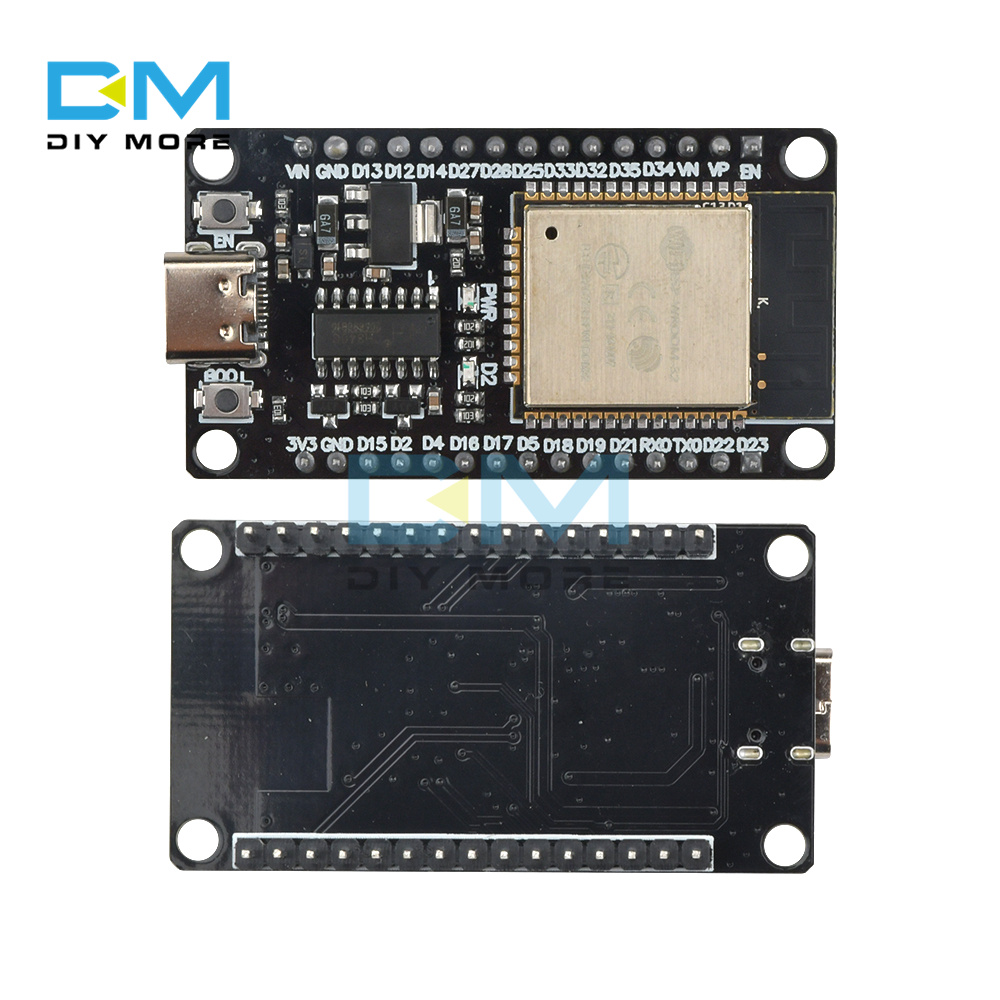

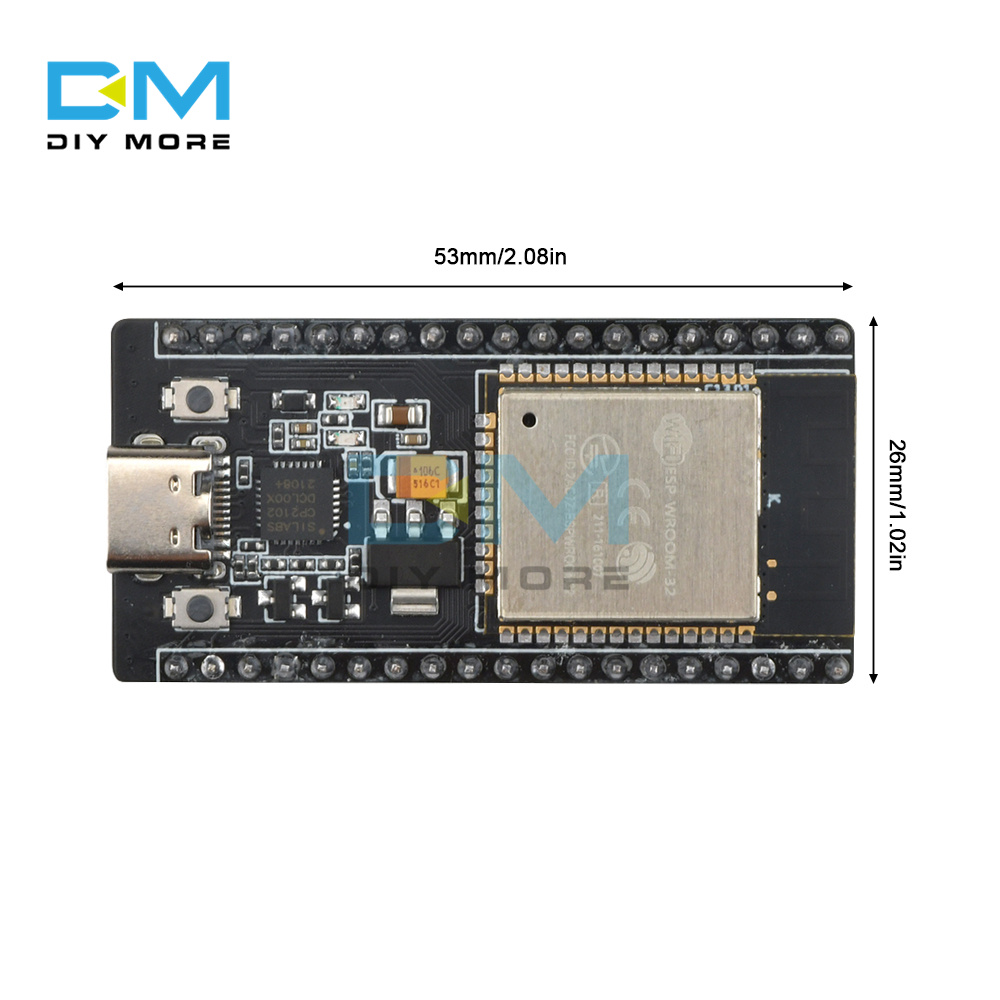

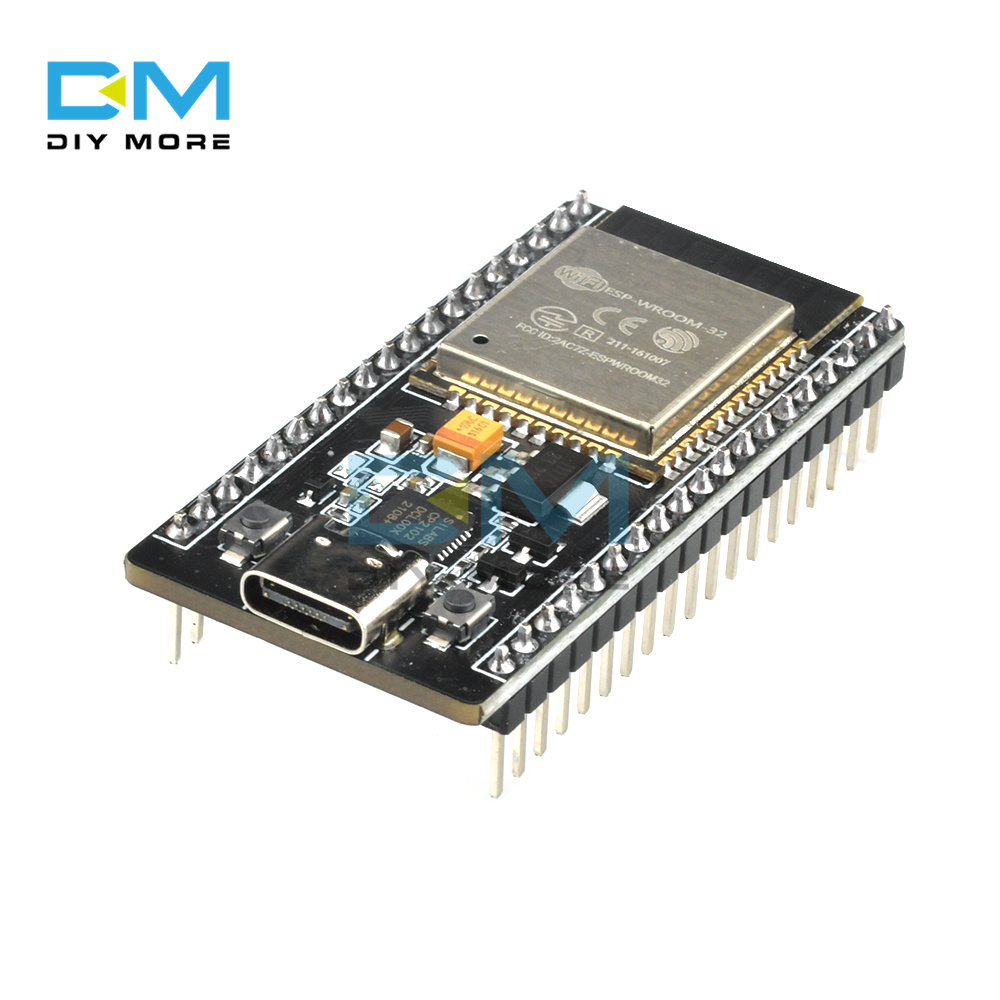

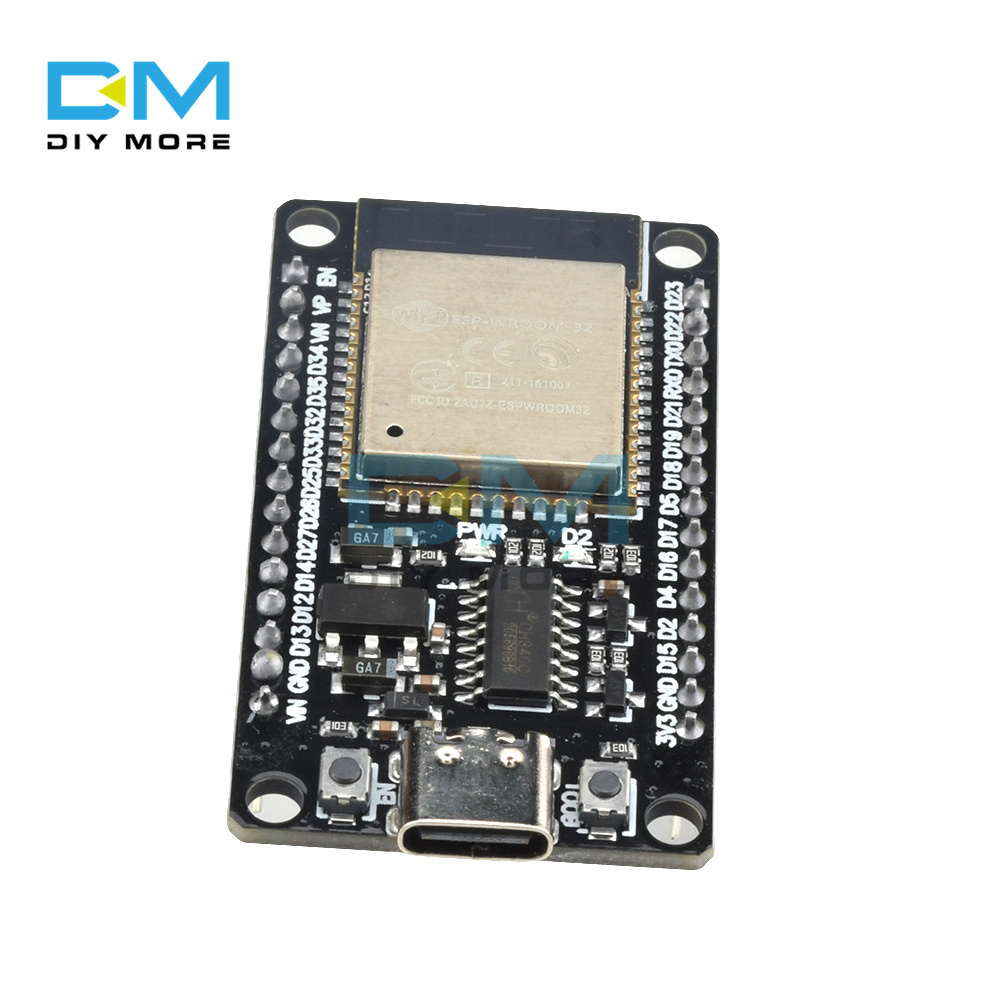

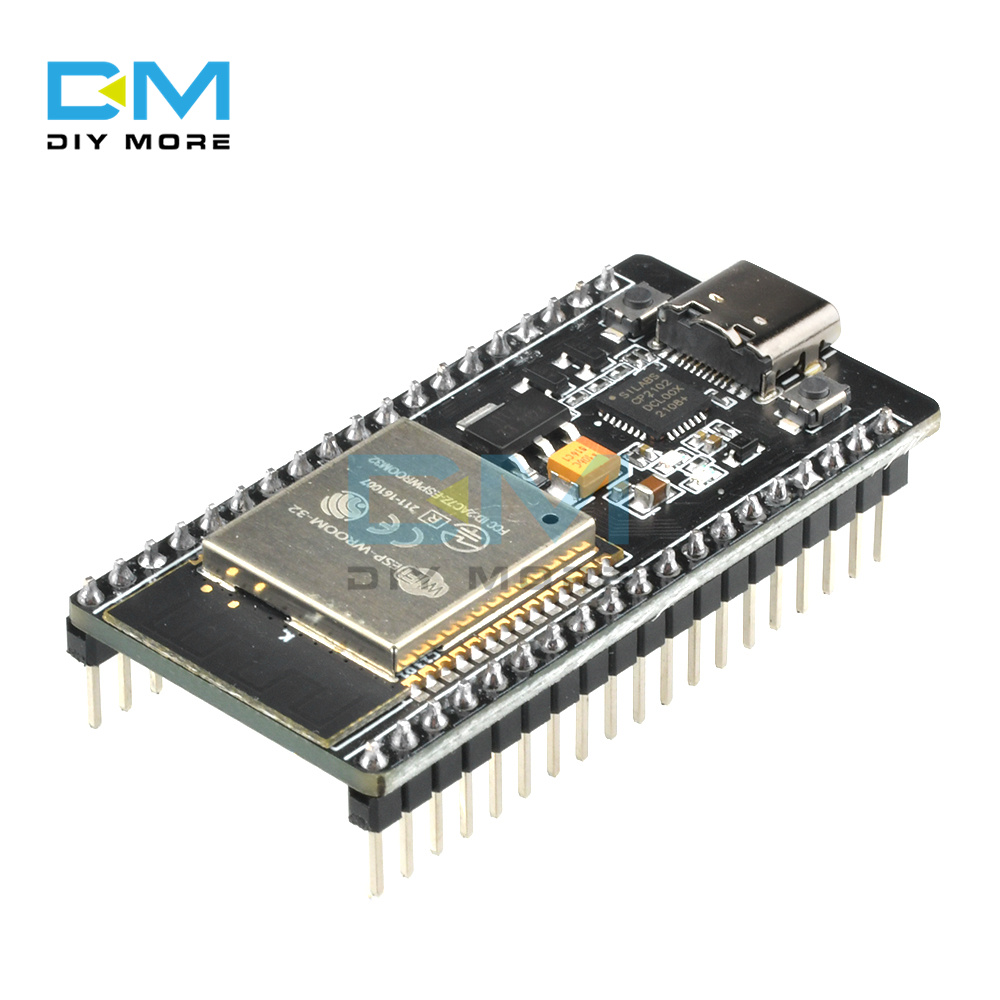

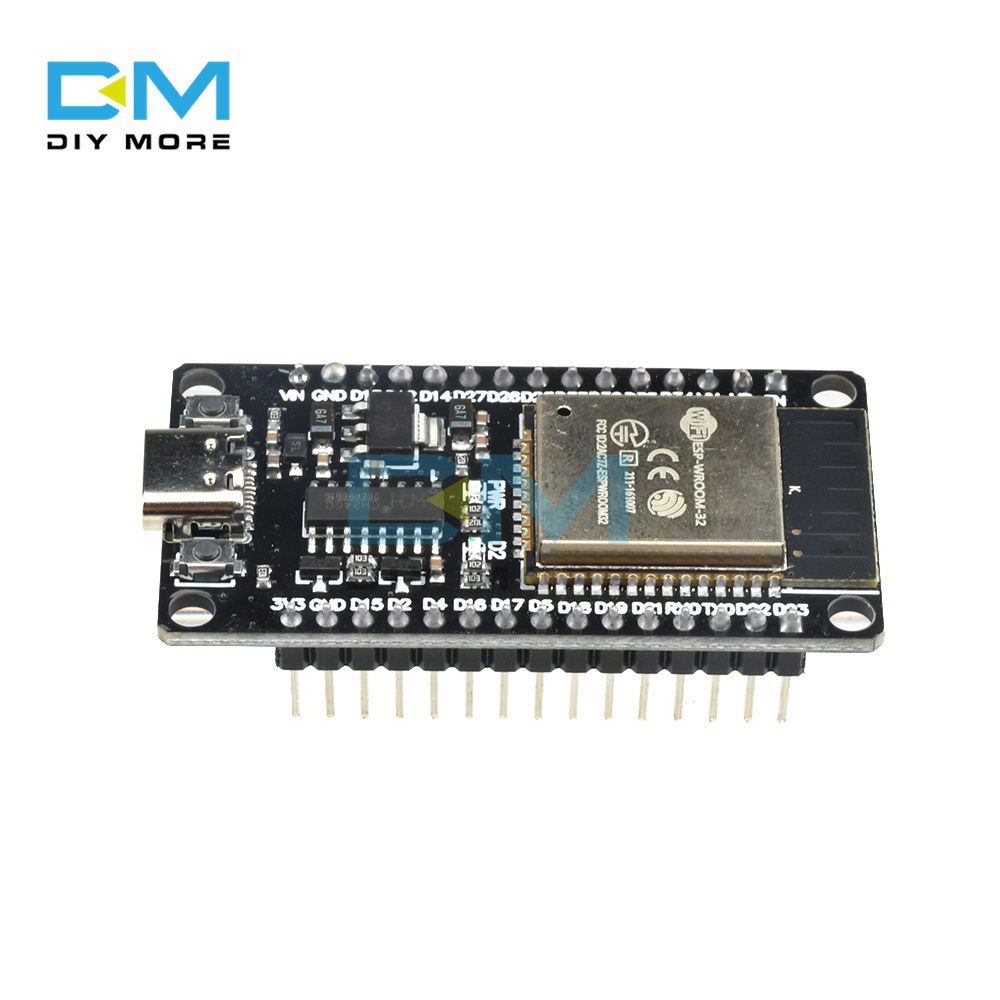

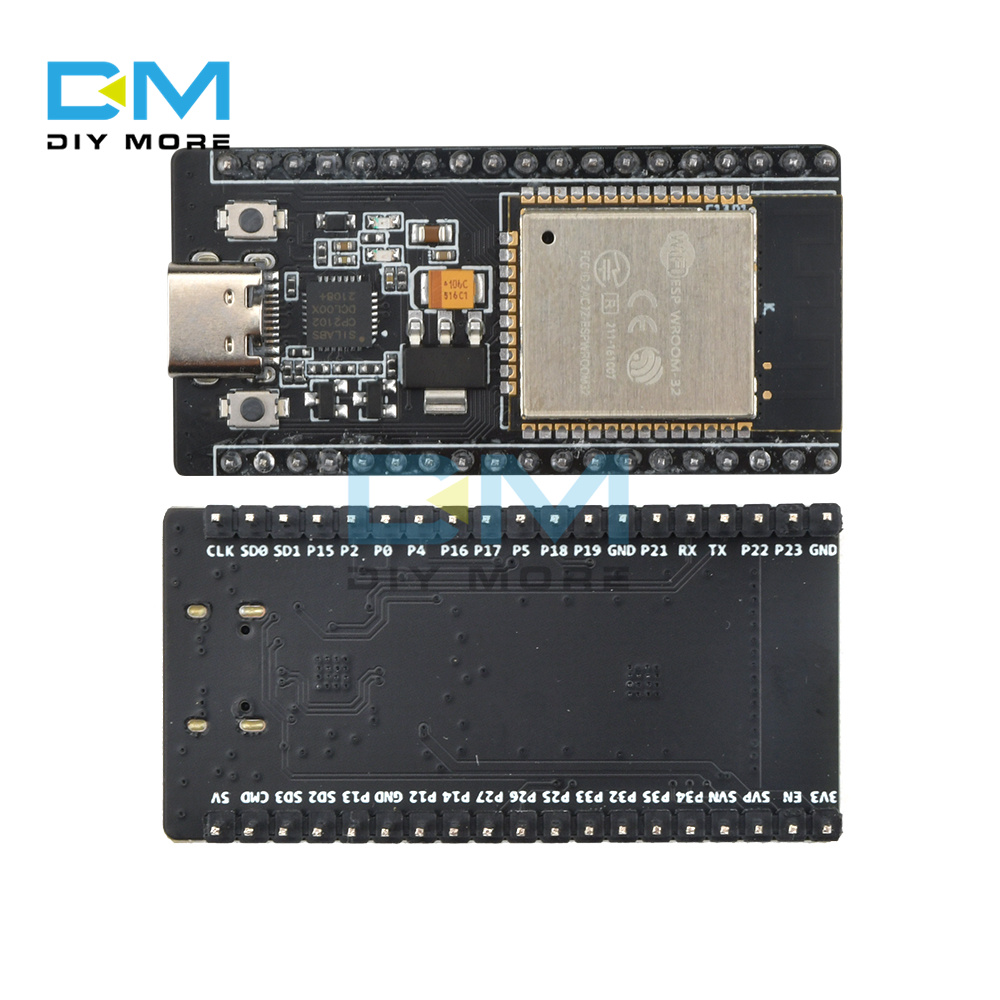

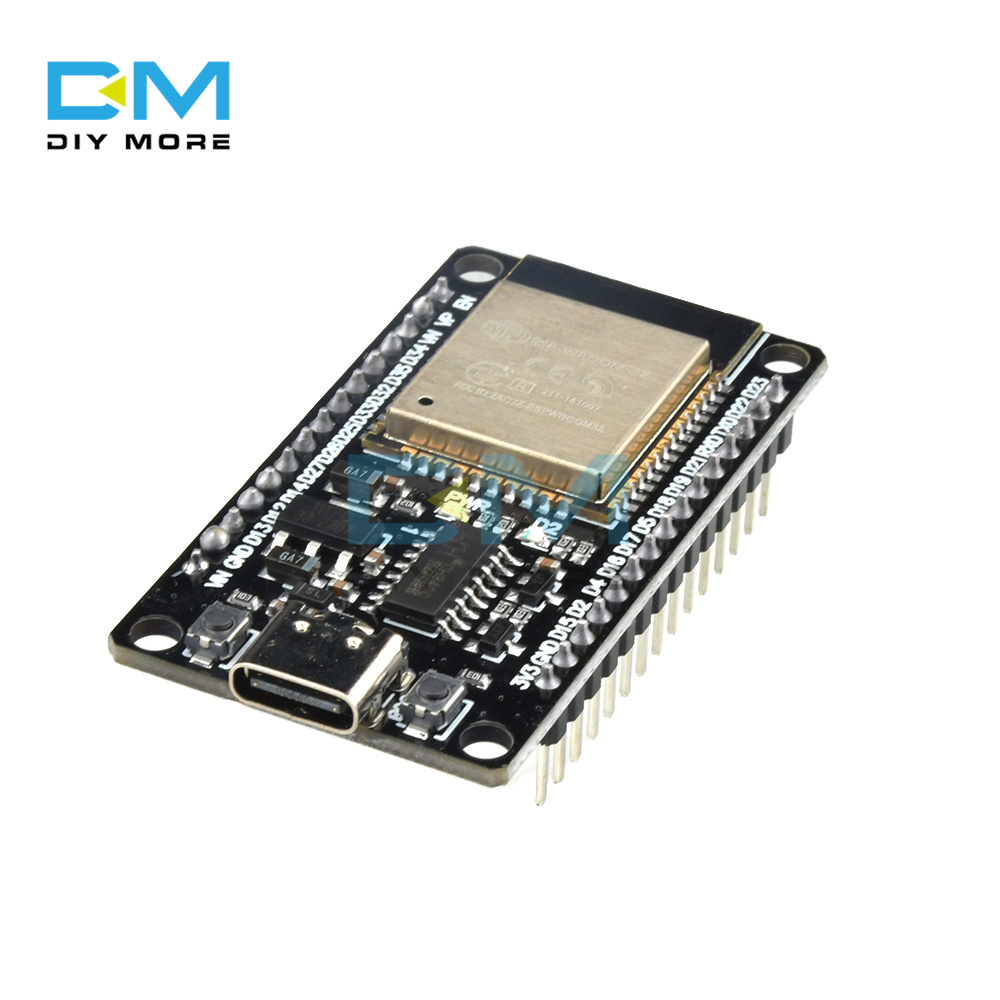

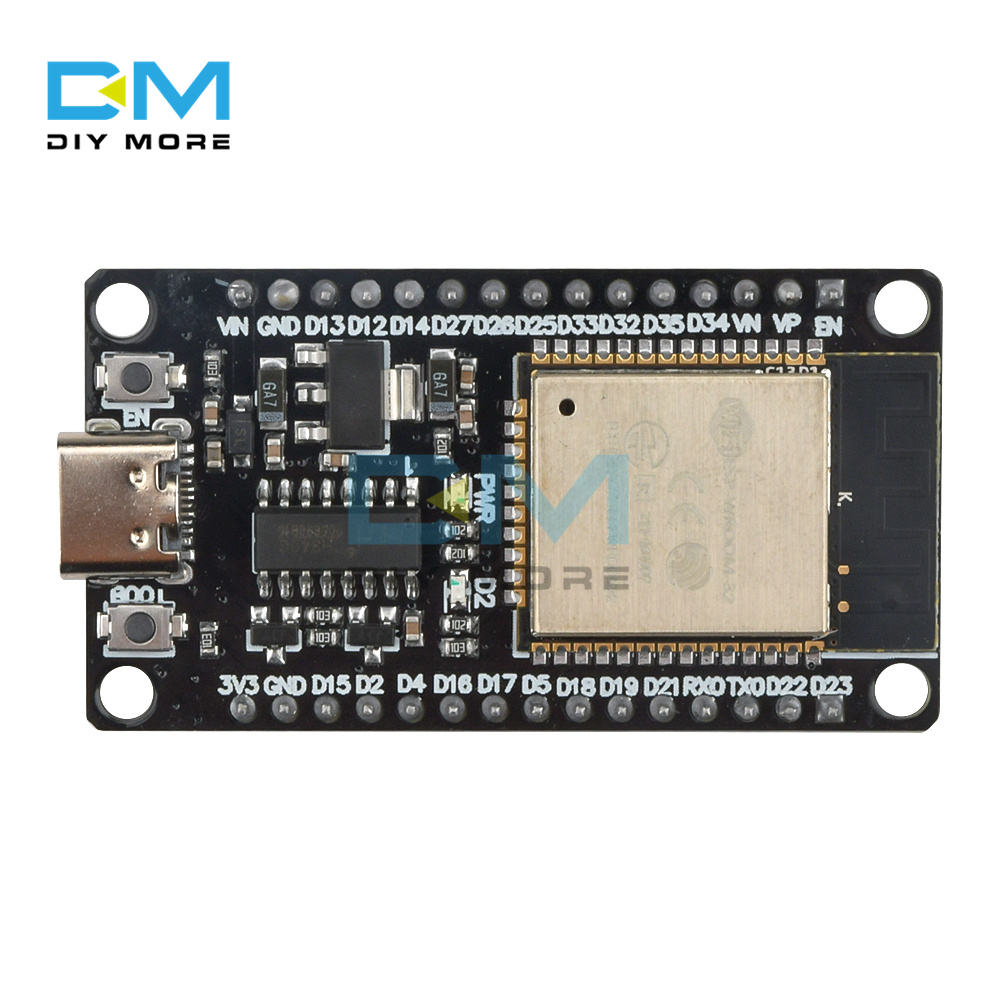

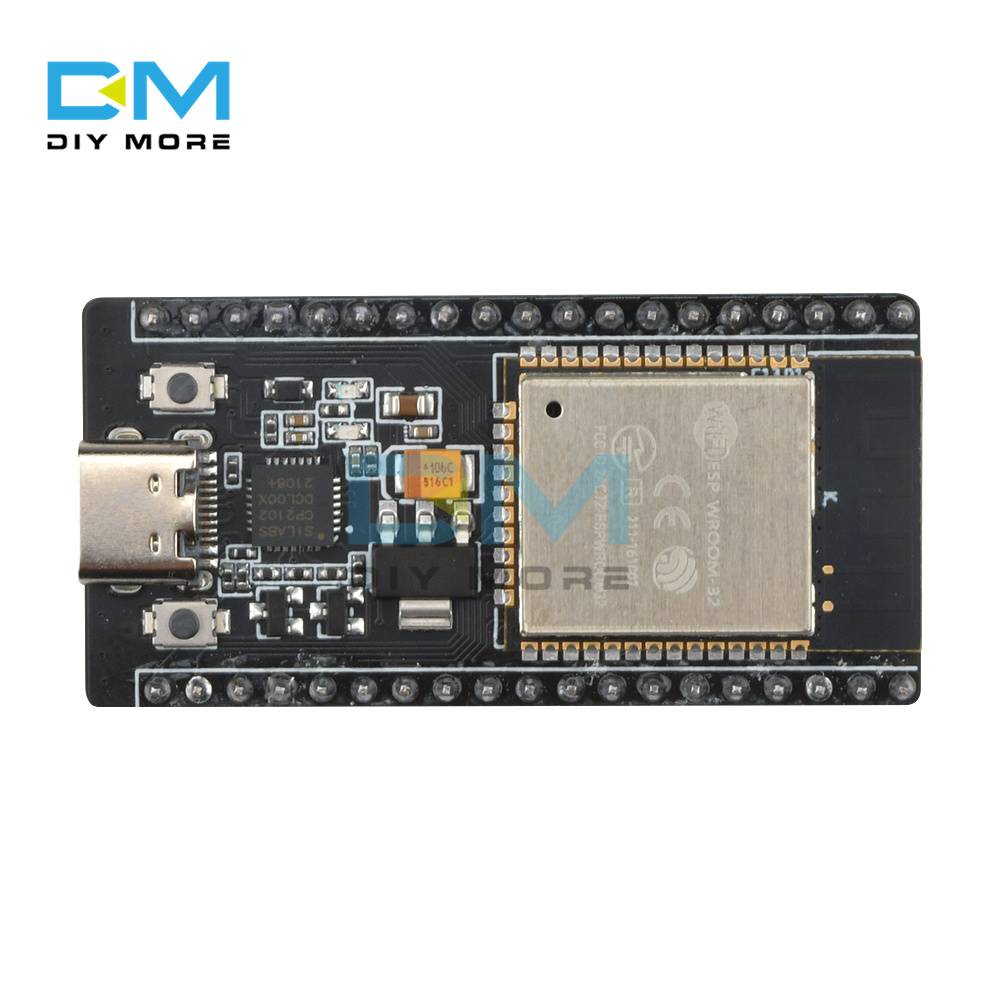

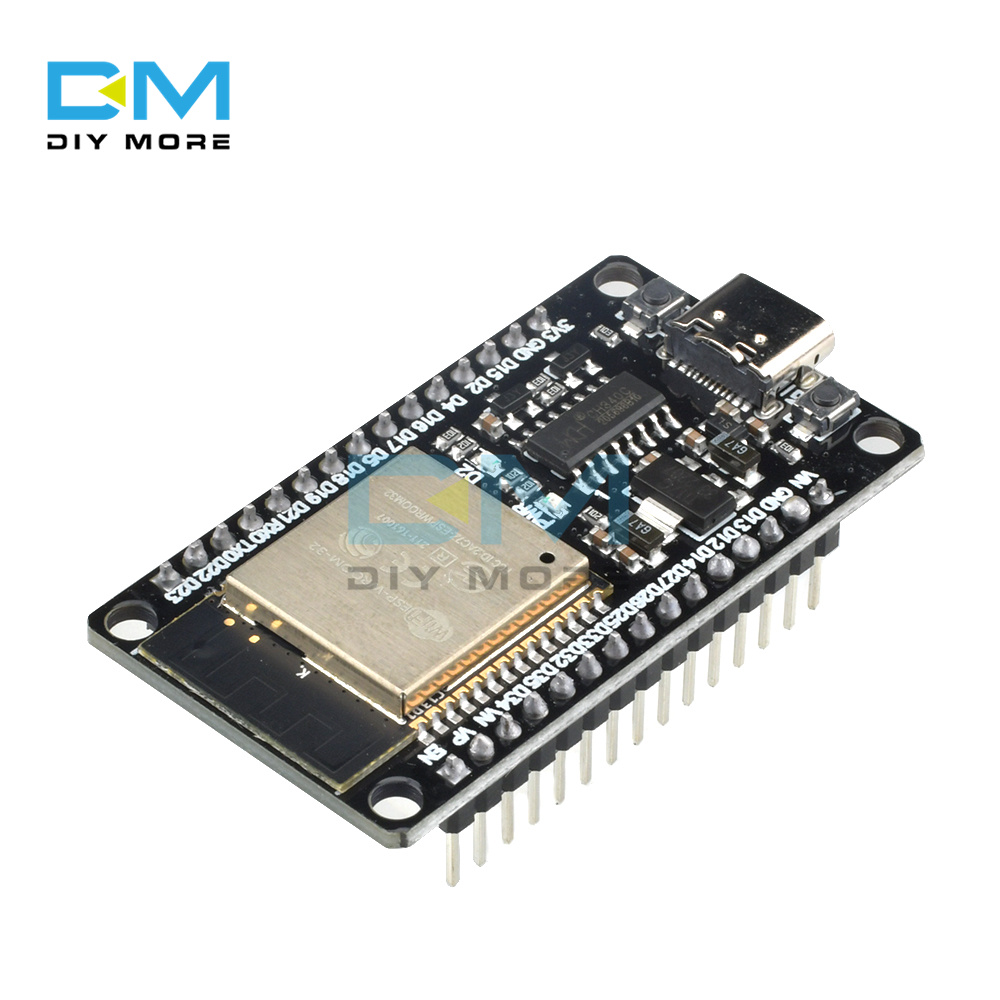

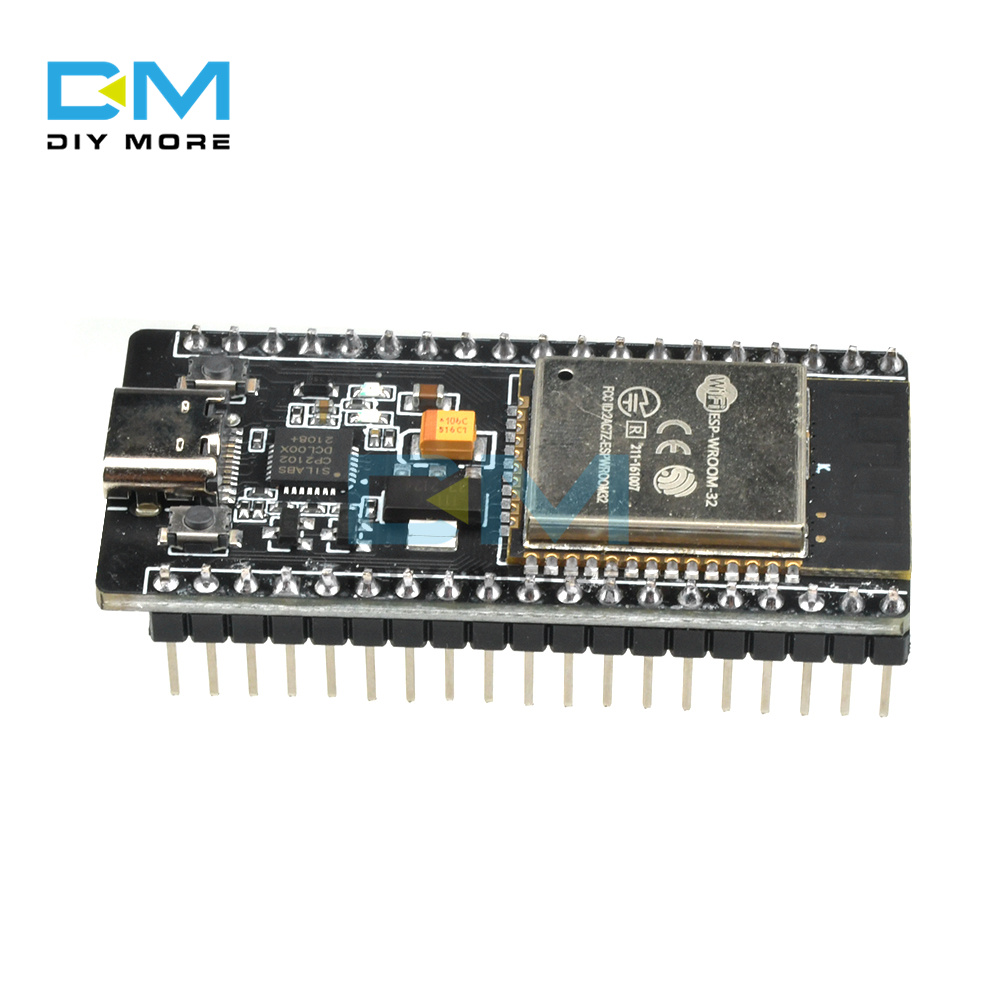

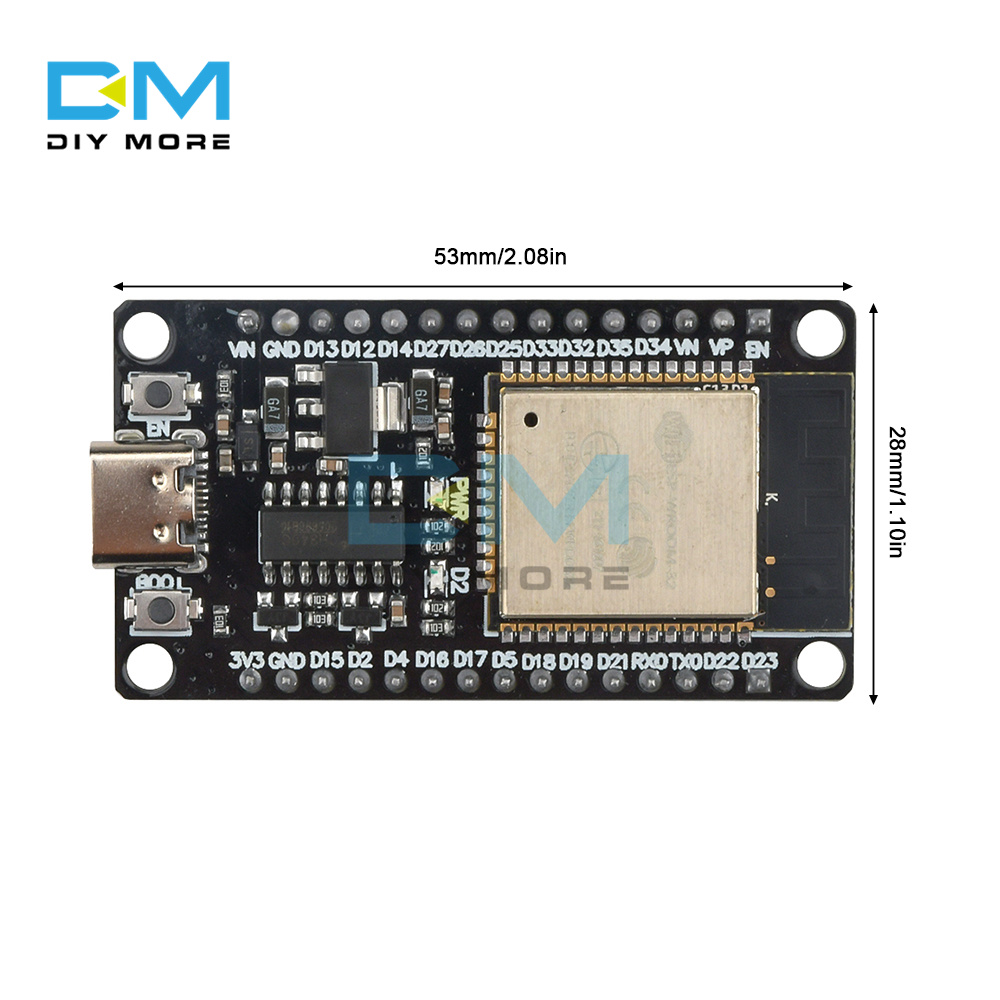

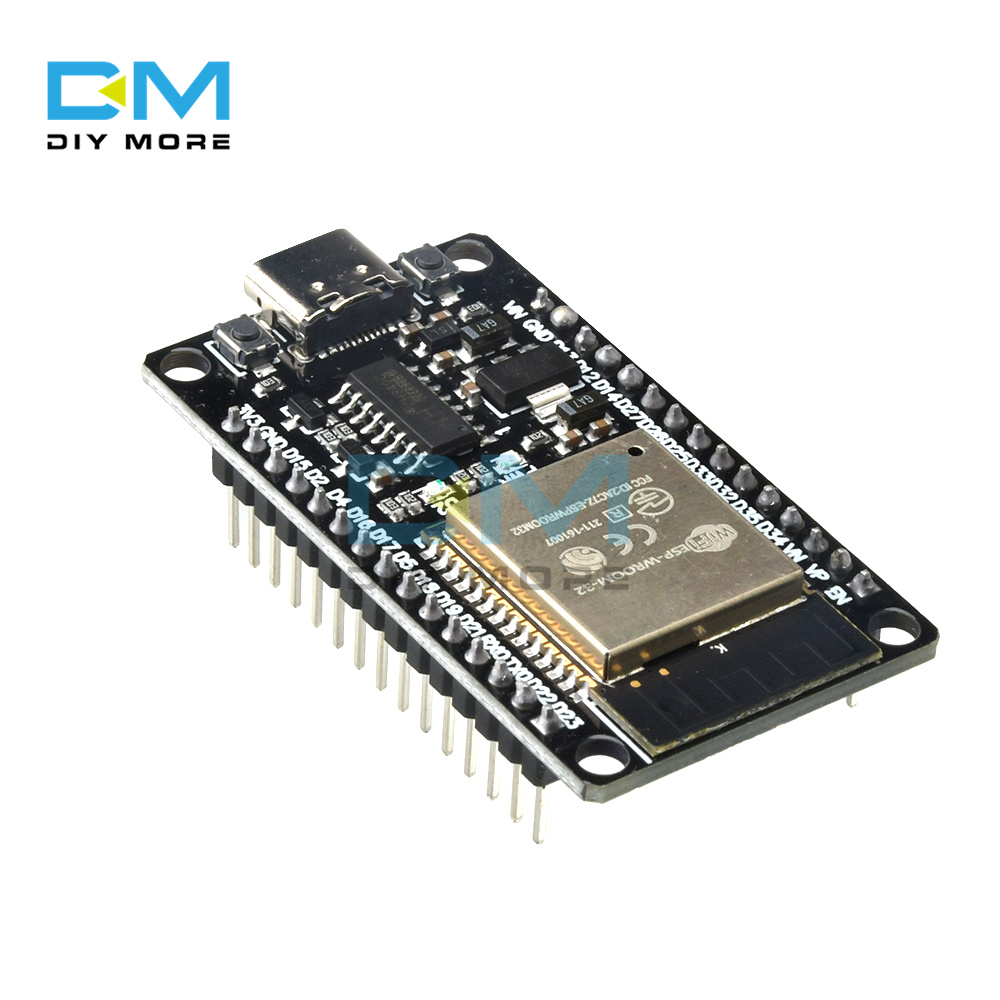

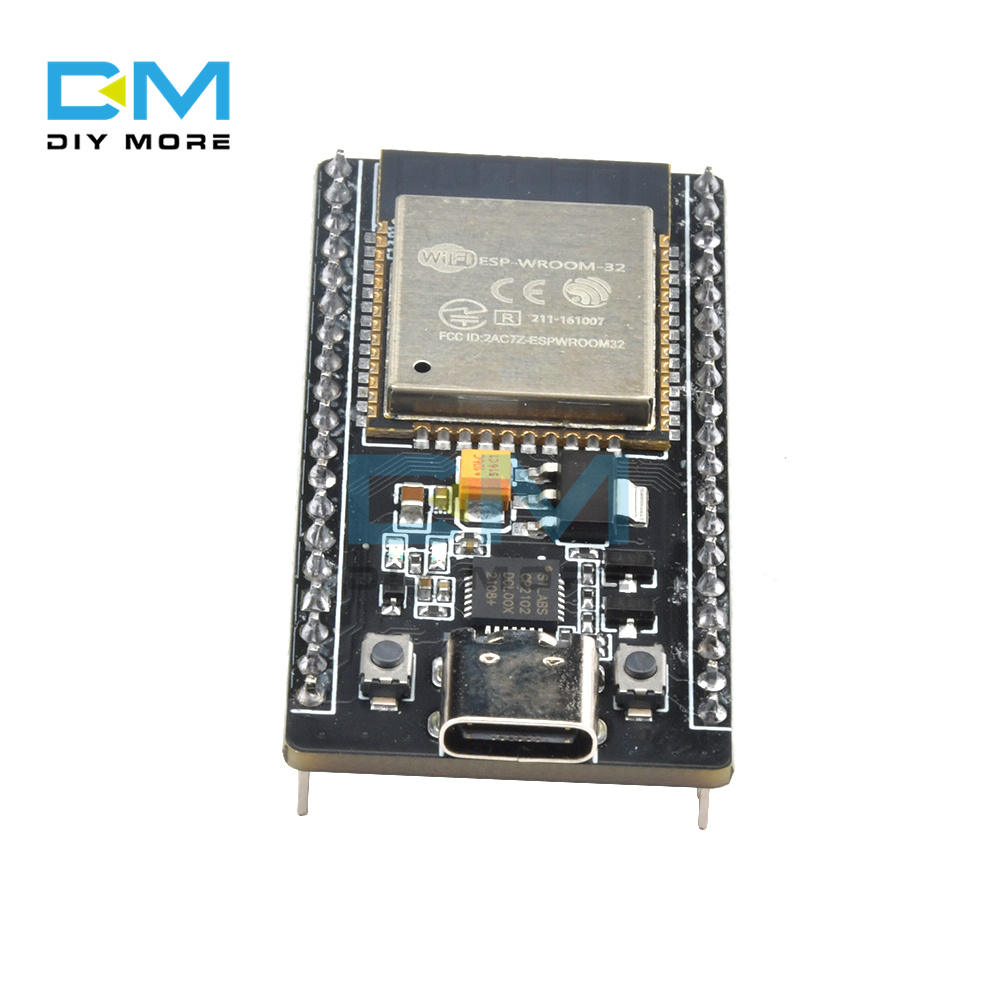

ESP32 CH340C Type-C/ESP32 CP2102 Type-C:
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Multiple specifications are optional, cost-effective
3. Small size, easy to embed in any product
4. Powerful function, support LWIP protocol, freertos
5. Support three modes: AP, STA, AP+STA coexistence mode

Product parameters:
ESP-WROOM-32 is a universal WiFi BT BLE MCU module, powerful and versatile
The module is the core ESP32 chip, with scalable, adaptive functions, two CPU cores can be controlled or powered on individually, the clock frequency can be adjusted from 80 MHz to 240 MHz, the user can cut off the power of the CPU, and use low-power co-processing The ESP32 also integrates a large number of peripheral devices, including capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet interface, high-speed SDIO/SPI, UART, I2S and I2C
ESP-WROOM-32 integrates traditional Bluetooth, Bluetooth low energy and Wi-Fi, and has a wide range of uses: Wi-Fi supports a wide range of communication connections, as well as direct connection to the Internet through a router; Bluetooth allows users to connect mobile phones or broadcast BLE messages. Standard for signal detection, ESP32 chip sleep current is less than 5 A, suitable for battery-powered wearable electronic devices, ESP-WROOM-32 supports data rates up to 150 Mbps, and provides up to 22 dBm output power through a power amplifier for The largest range of wireless communication, therefore, the chip has industry-leading specifications and provides the highest performance in terms of high integration, wireless transmission distance, power consumption and network connectivity
The operating system of ESP32 is freeRTOS with LWIP, and built-in TLS 1.2 with hardware acceleration, the chip also supports OTA encryption upgrade, developers can continue to upgrade after the product is released

Package Included:
1* Module

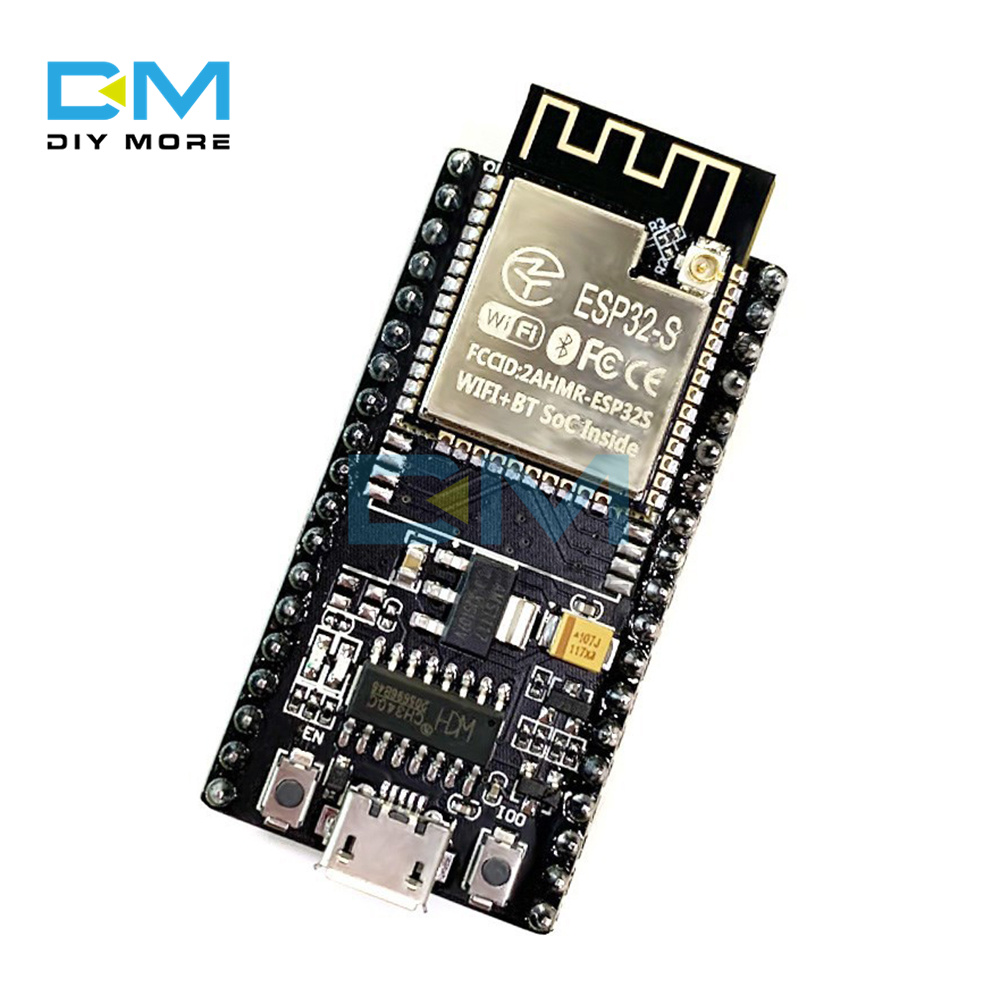

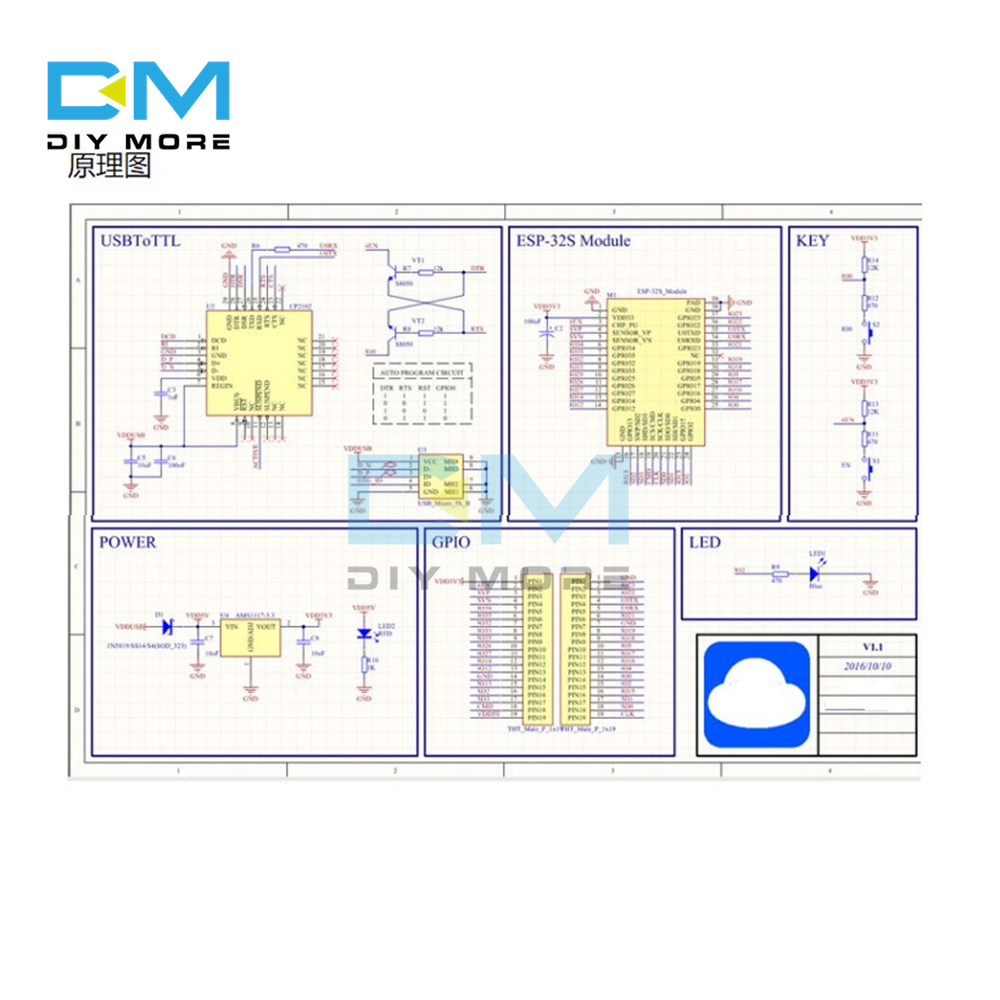

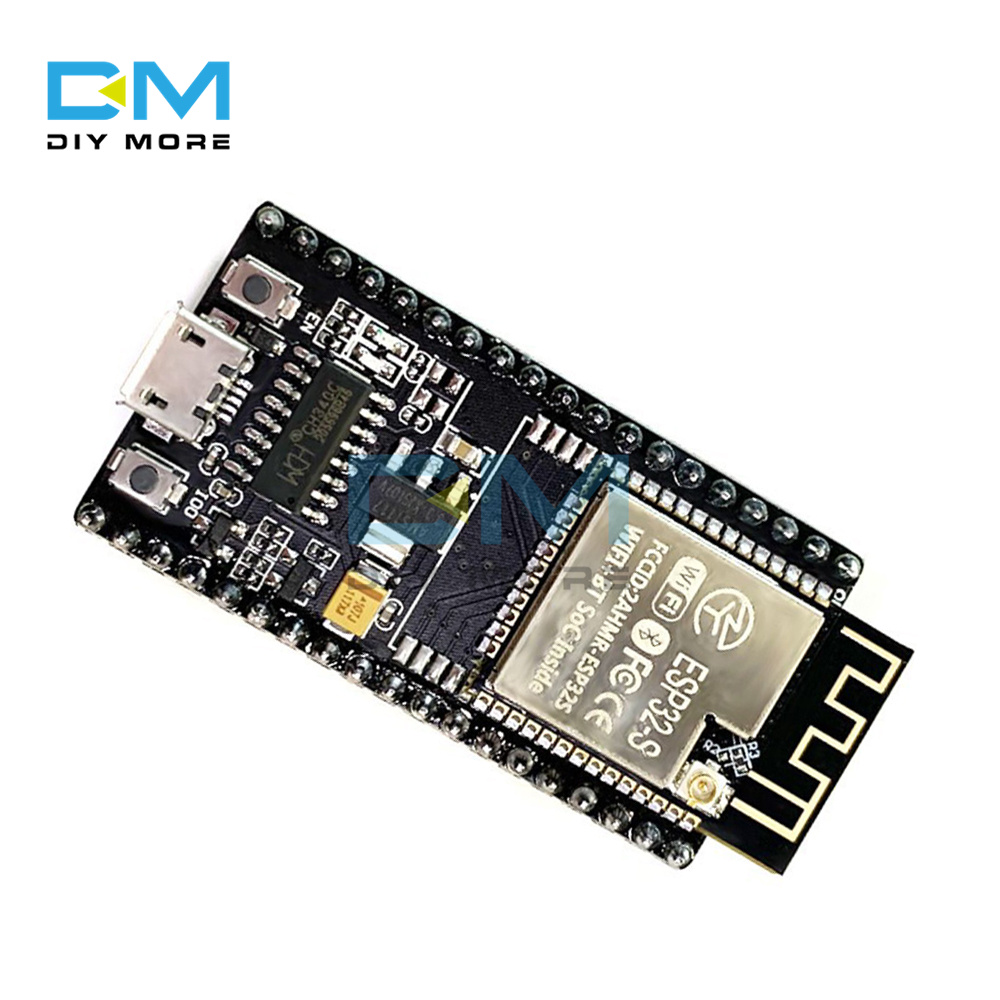

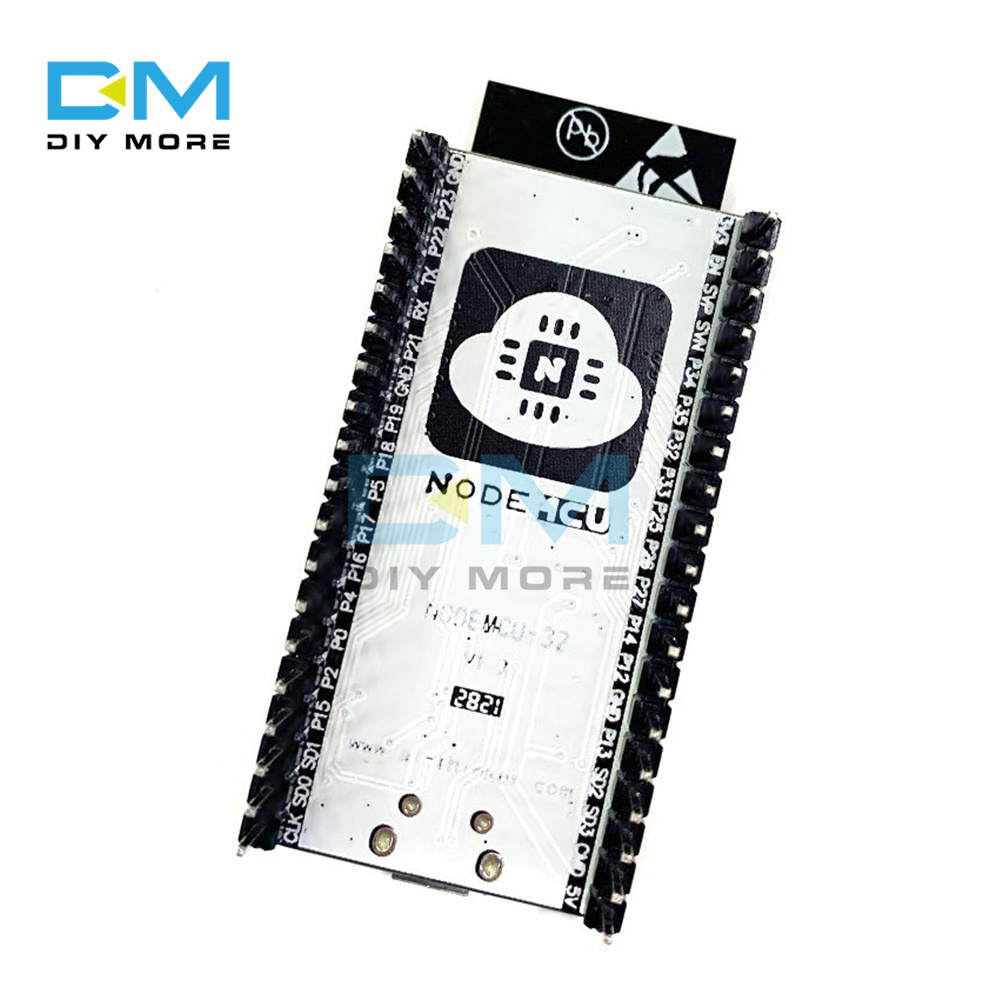

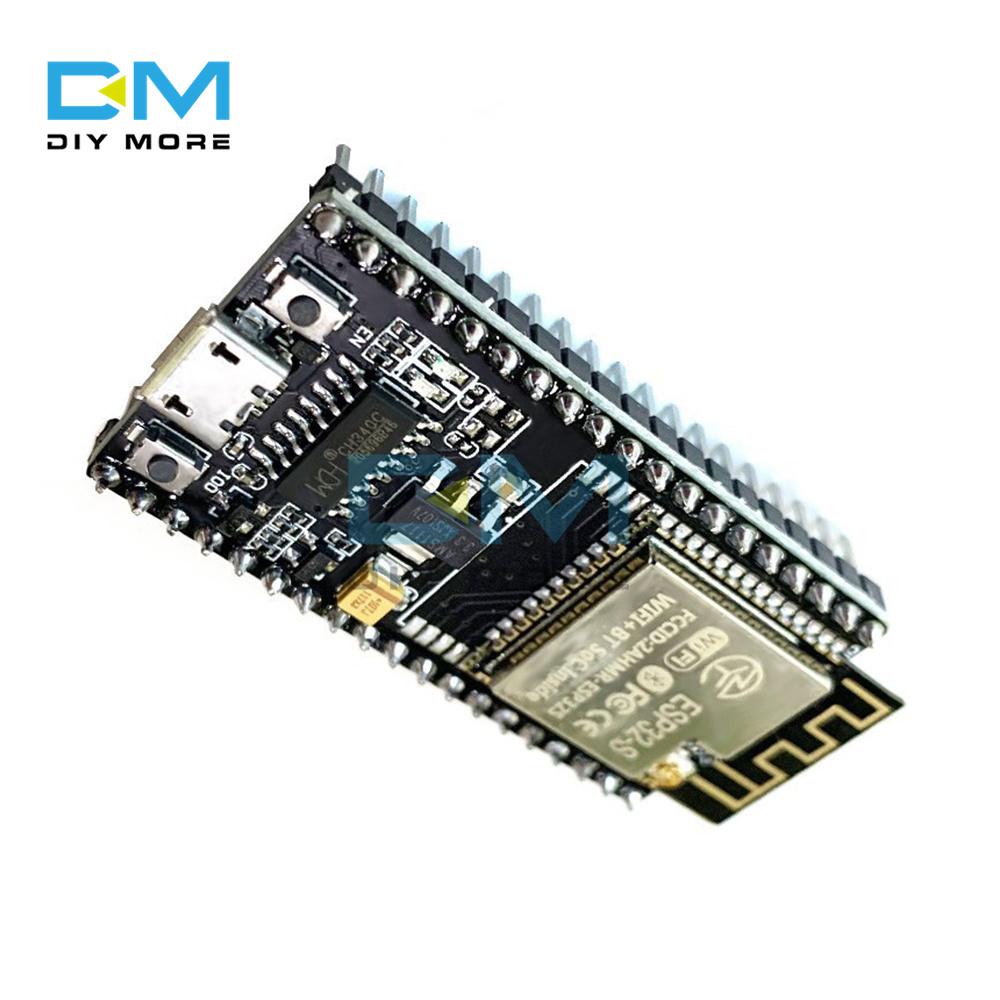

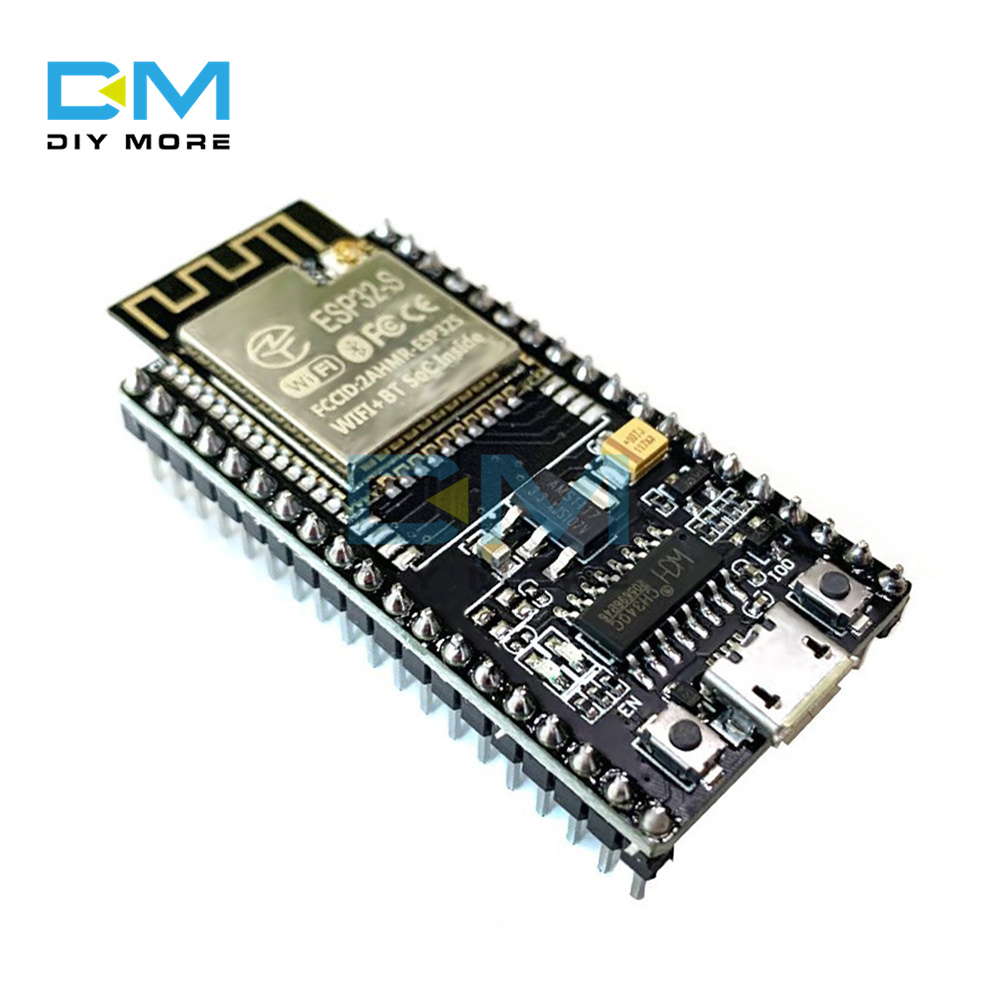

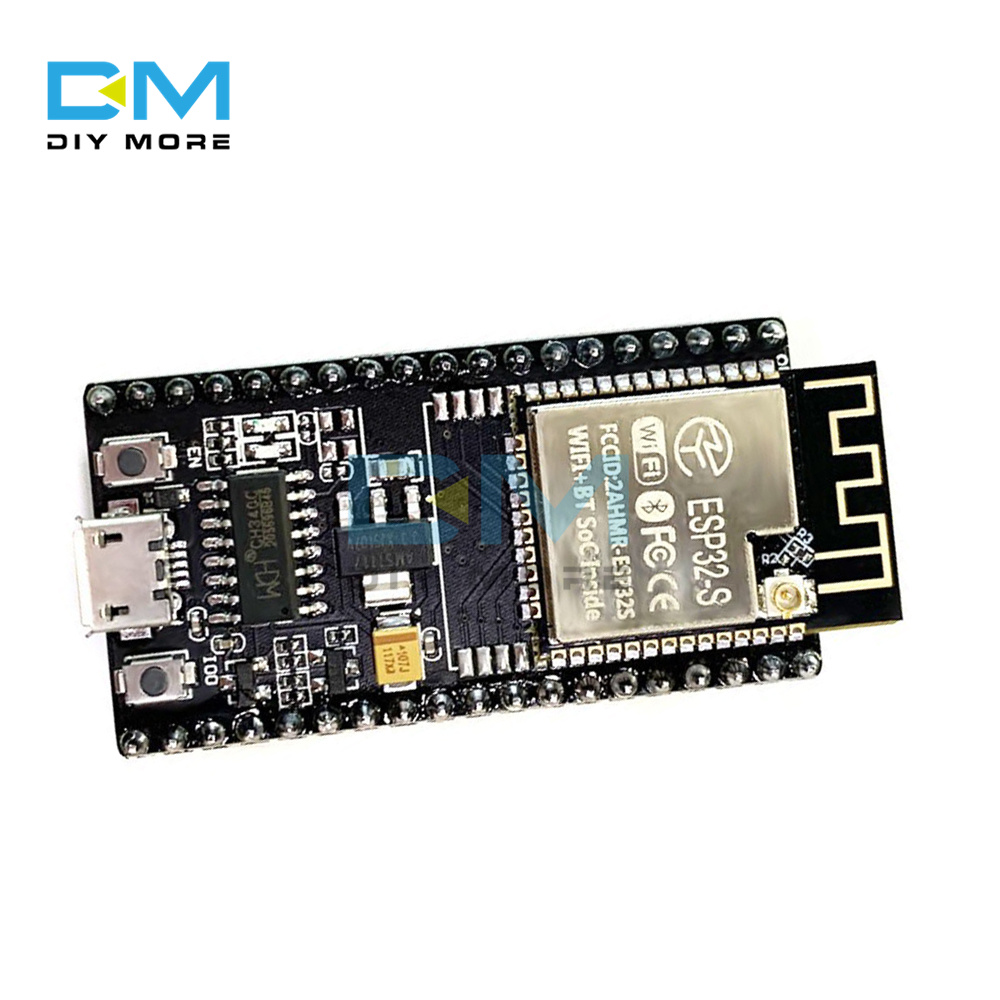

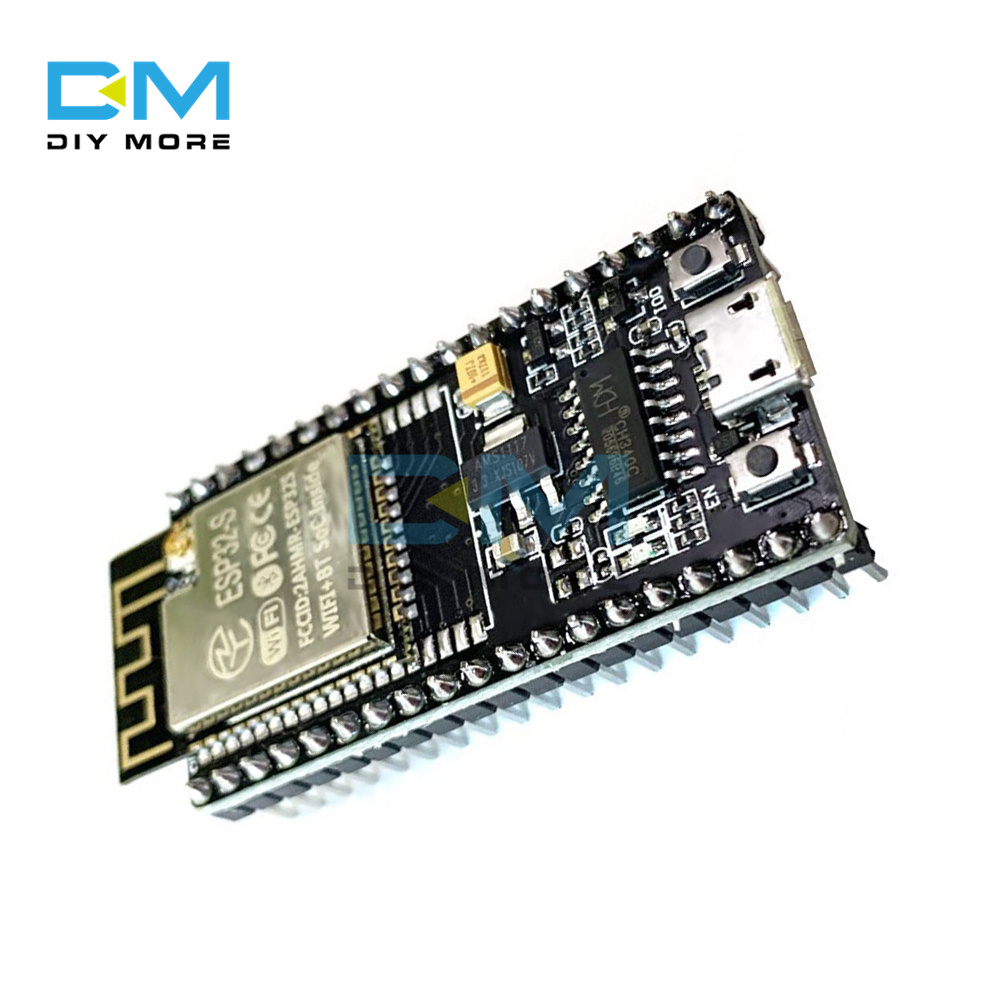

ESP-32S-CH340C Micro USB:
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Include USB serial port, plug and play
3.36 GPI0, each can be configured as PWM, I2C
4. WiFi Bluetooth module, built-in antenna
5. Simple and convenient to use

Product introduction:

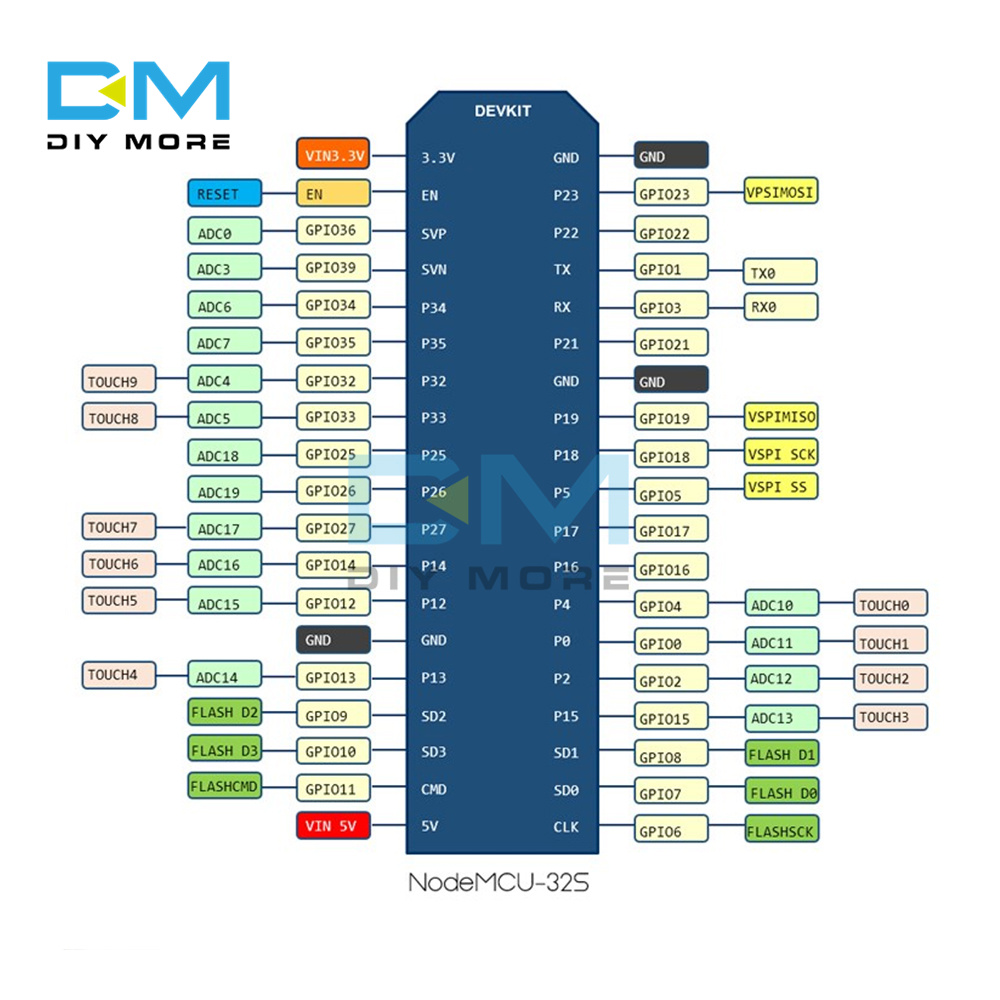

NodeMCU is an open source IoT platform, it uses Lua scripting language programming, the platform is based on eLua open source project, the platform uses a lot of open source projects, such as lua-cjson, spiffs. [NodeMCU-32S] contains can run on ESP32 Wi-Fi -The firmware on the Fi SoC chip and the hardware based on the ESP-32S module, the Node MCU-32S development board continues the classic design of NodeMCU 1.0, and leads most of the I/o to the pin headers on both sides. Connect peripherals according to your own needs. When using a breadboard for development and debugging, the standard pin headers on both sides can make the operation easier and more convenient.

Package Included:
1* Module
