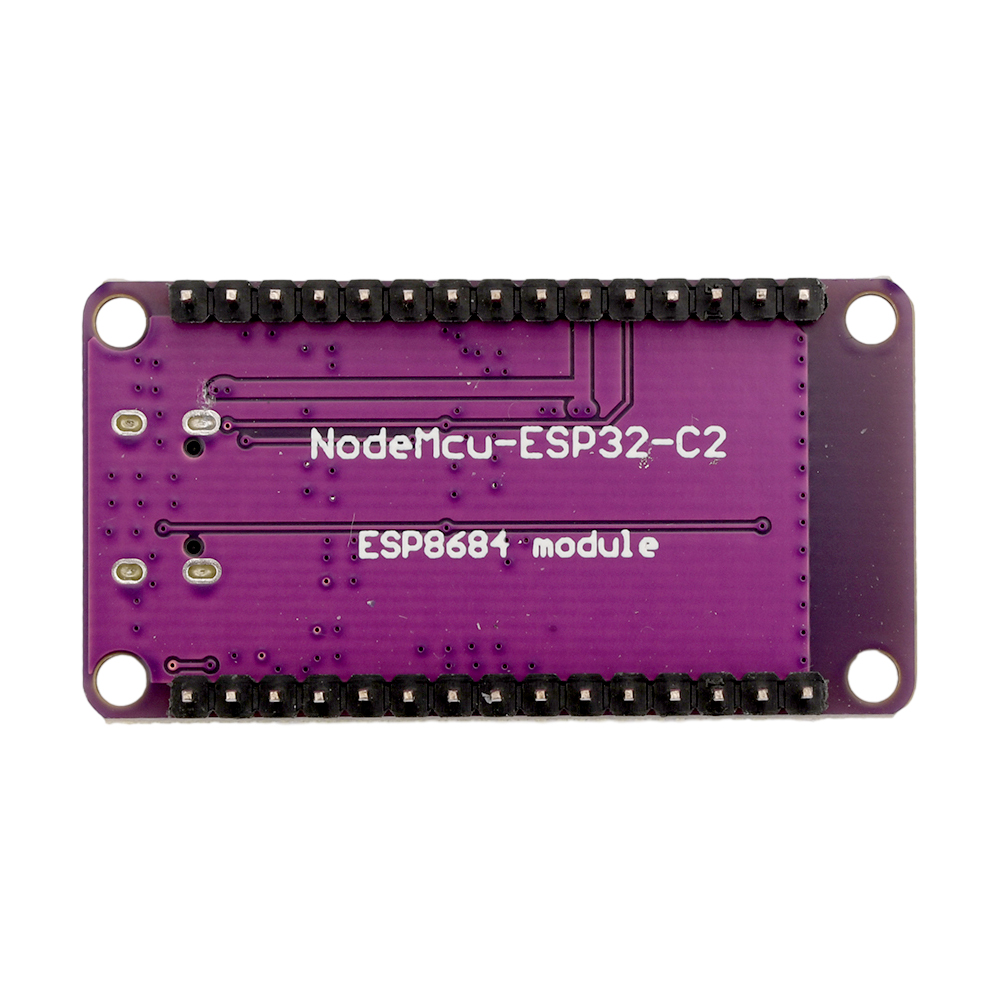

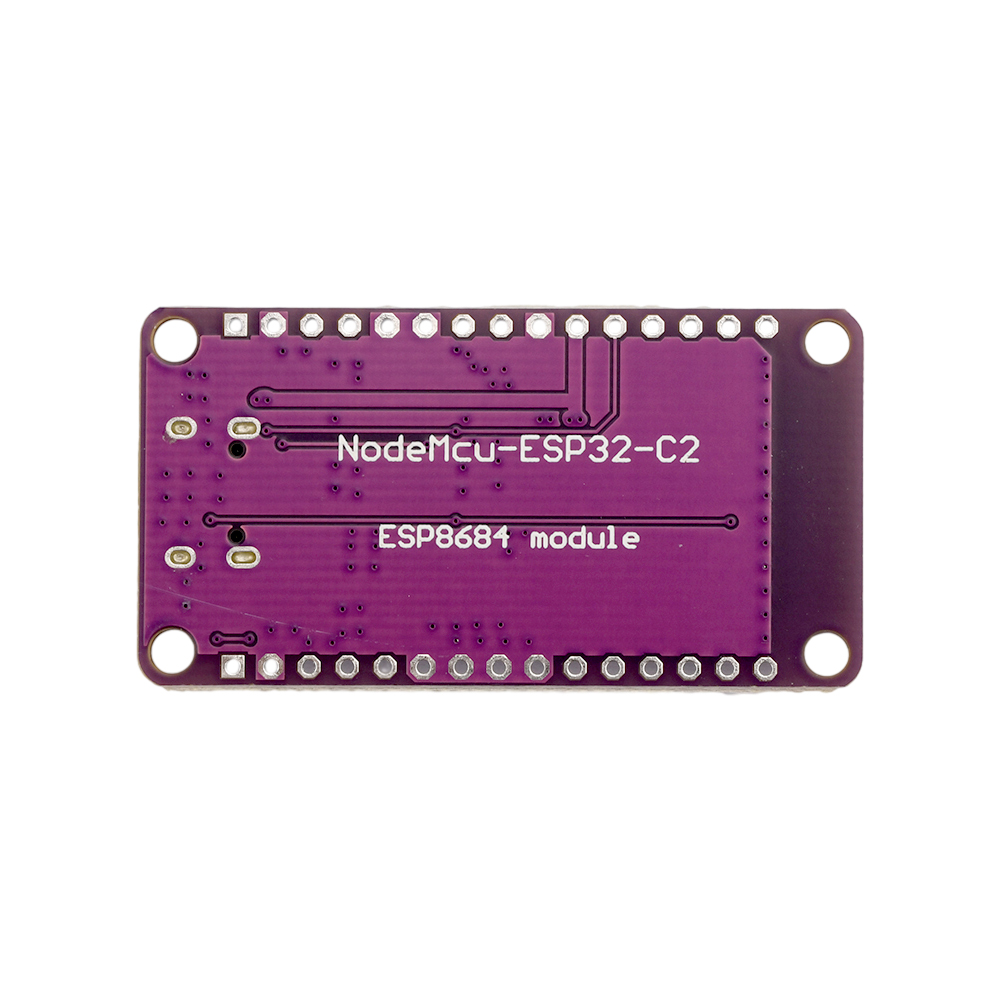

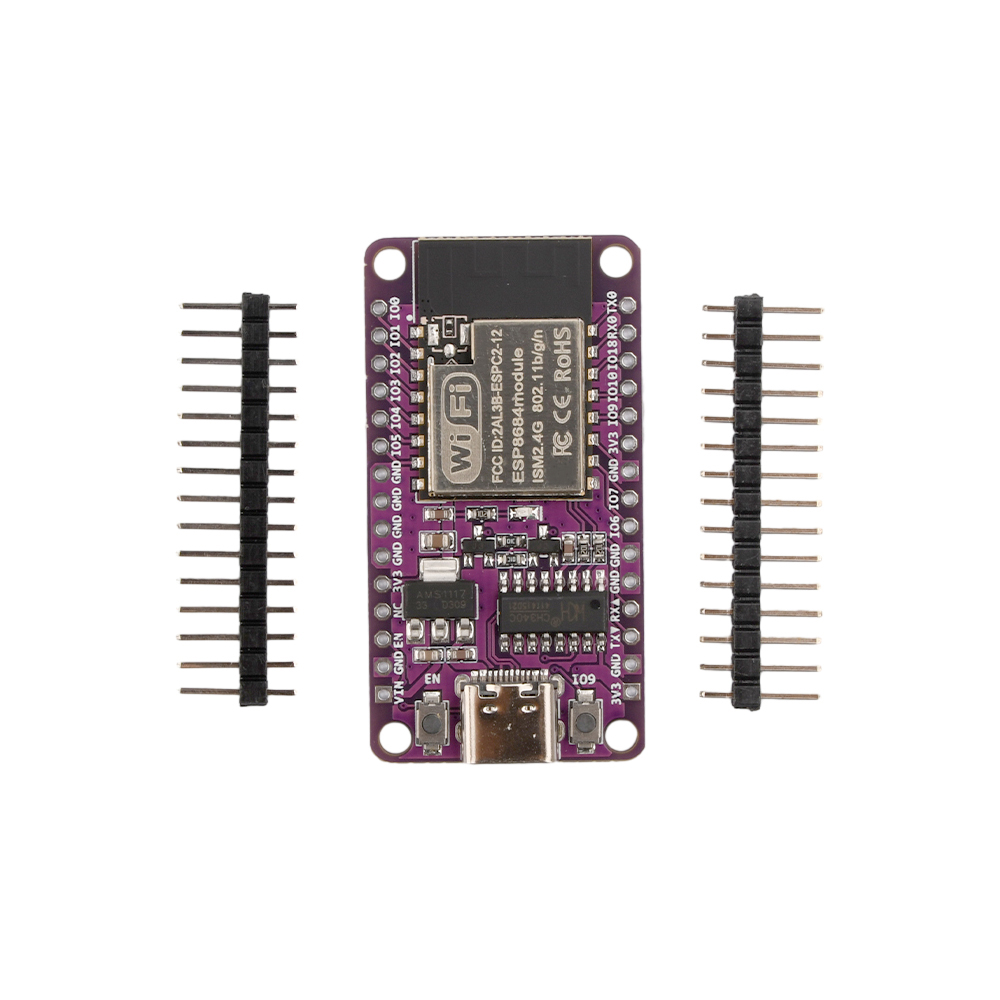

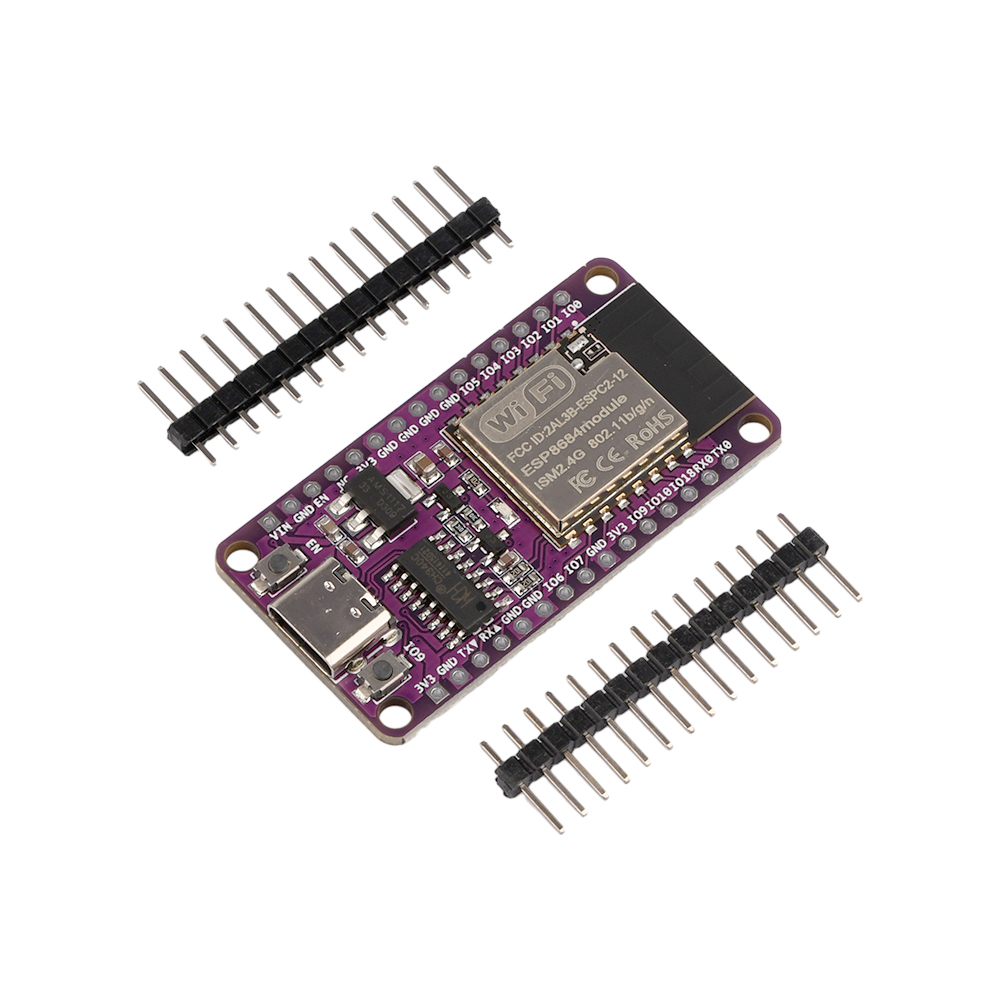

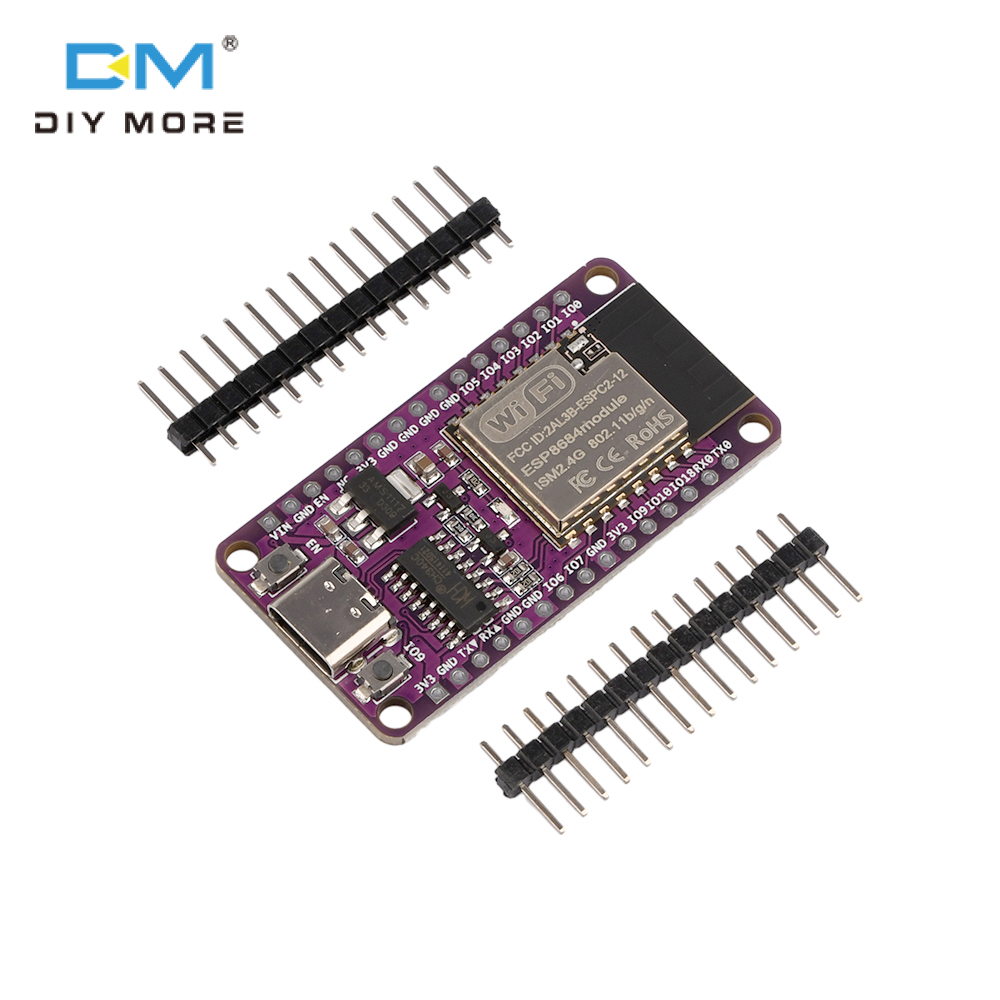

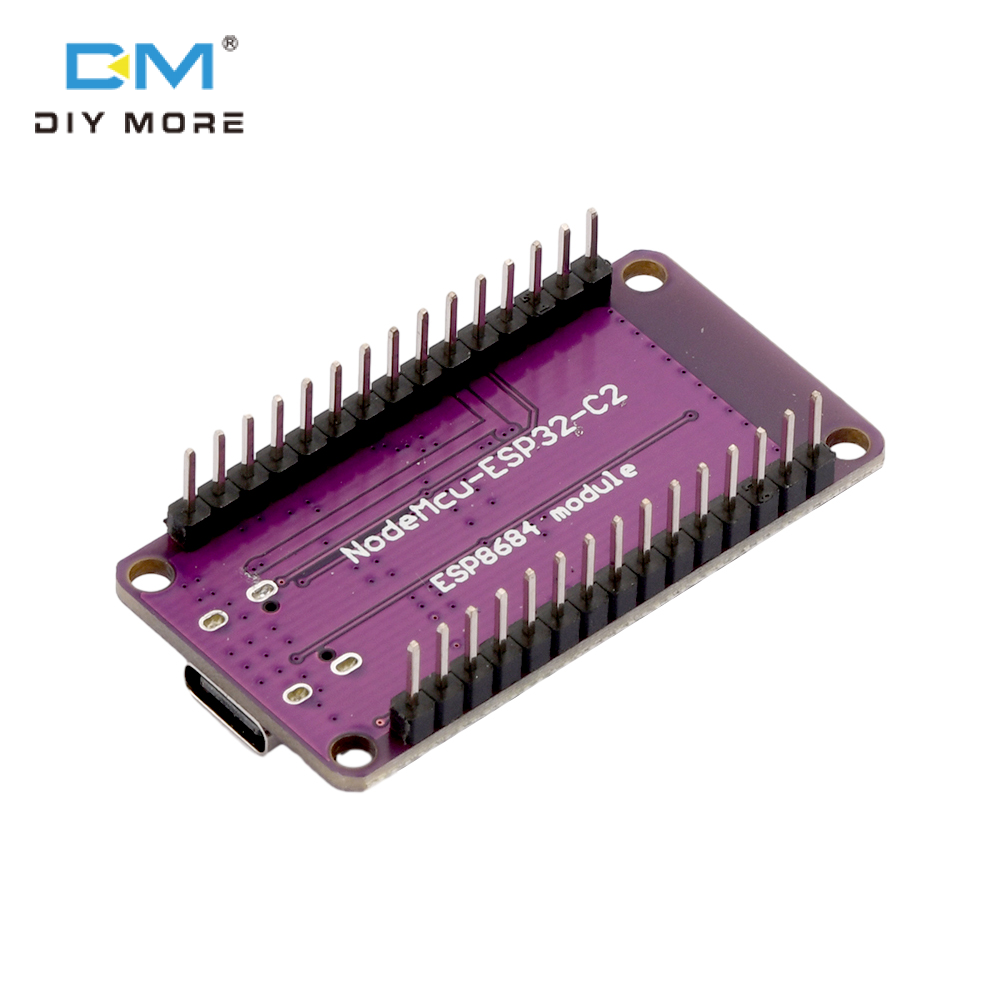

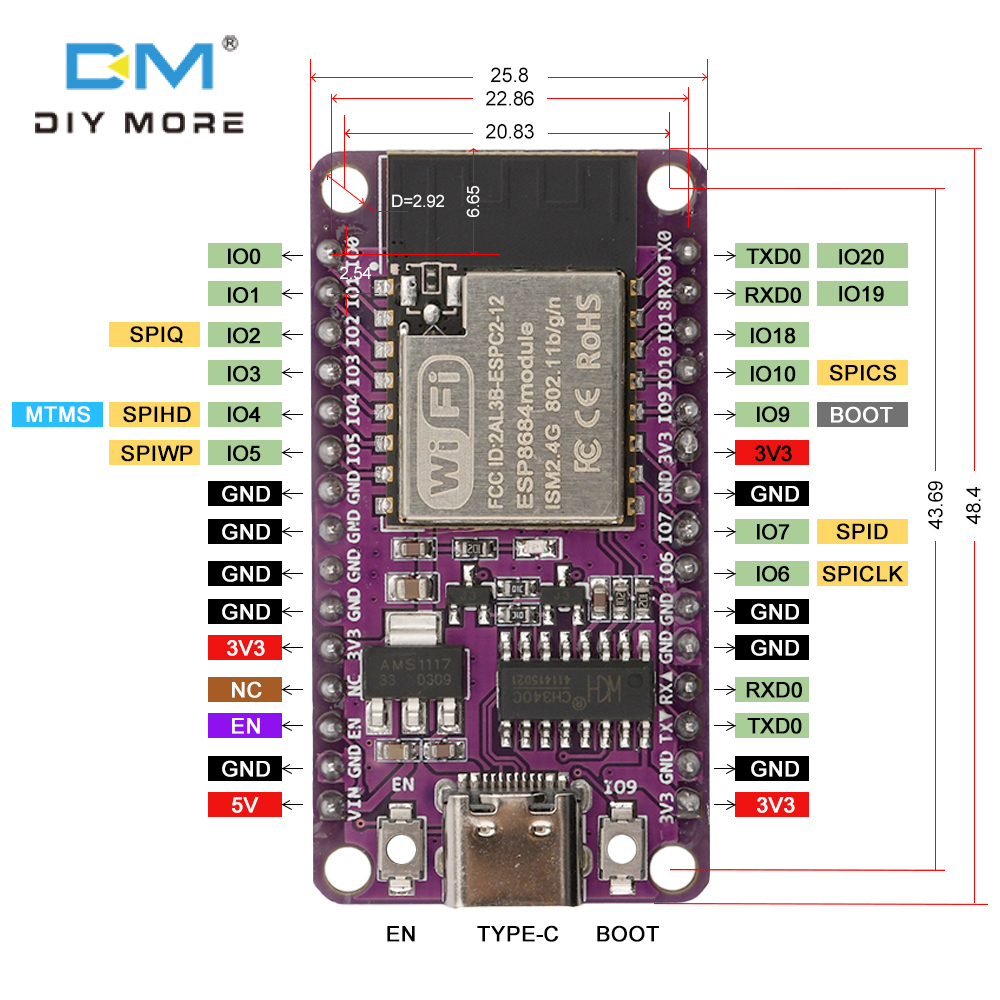

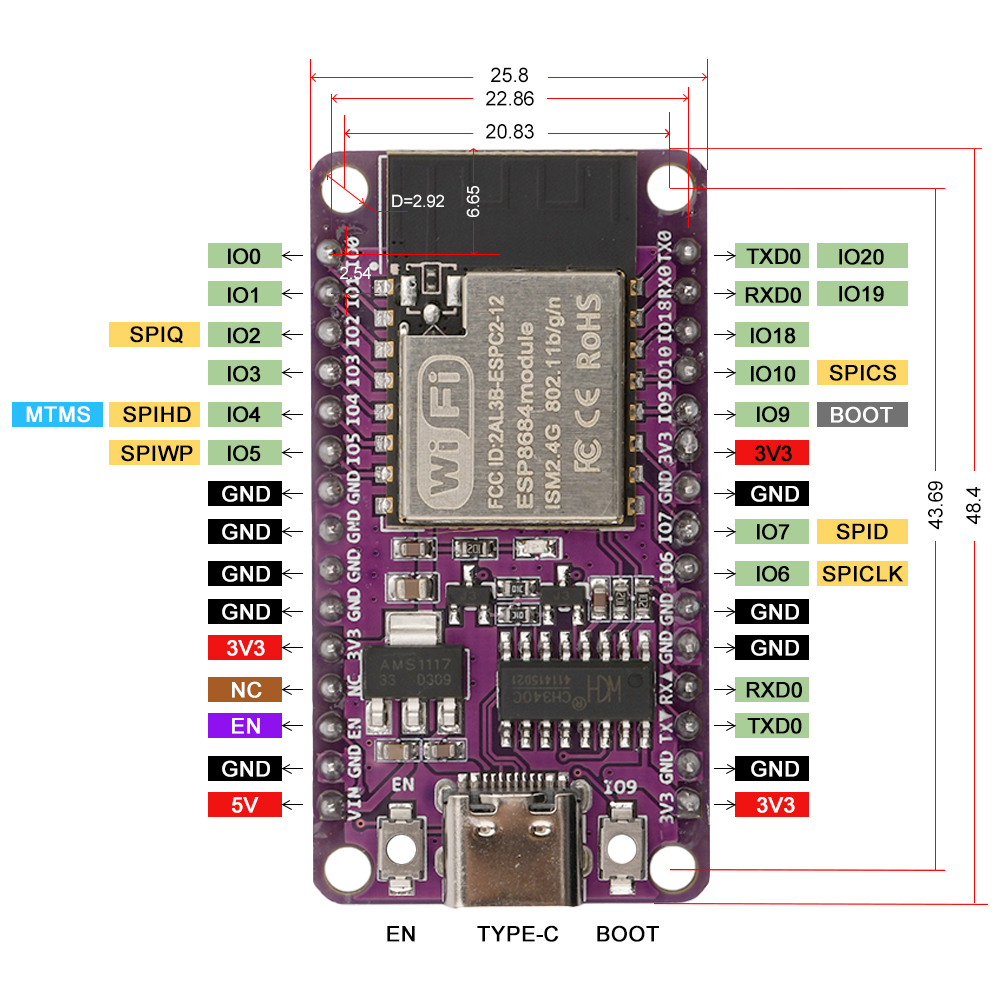

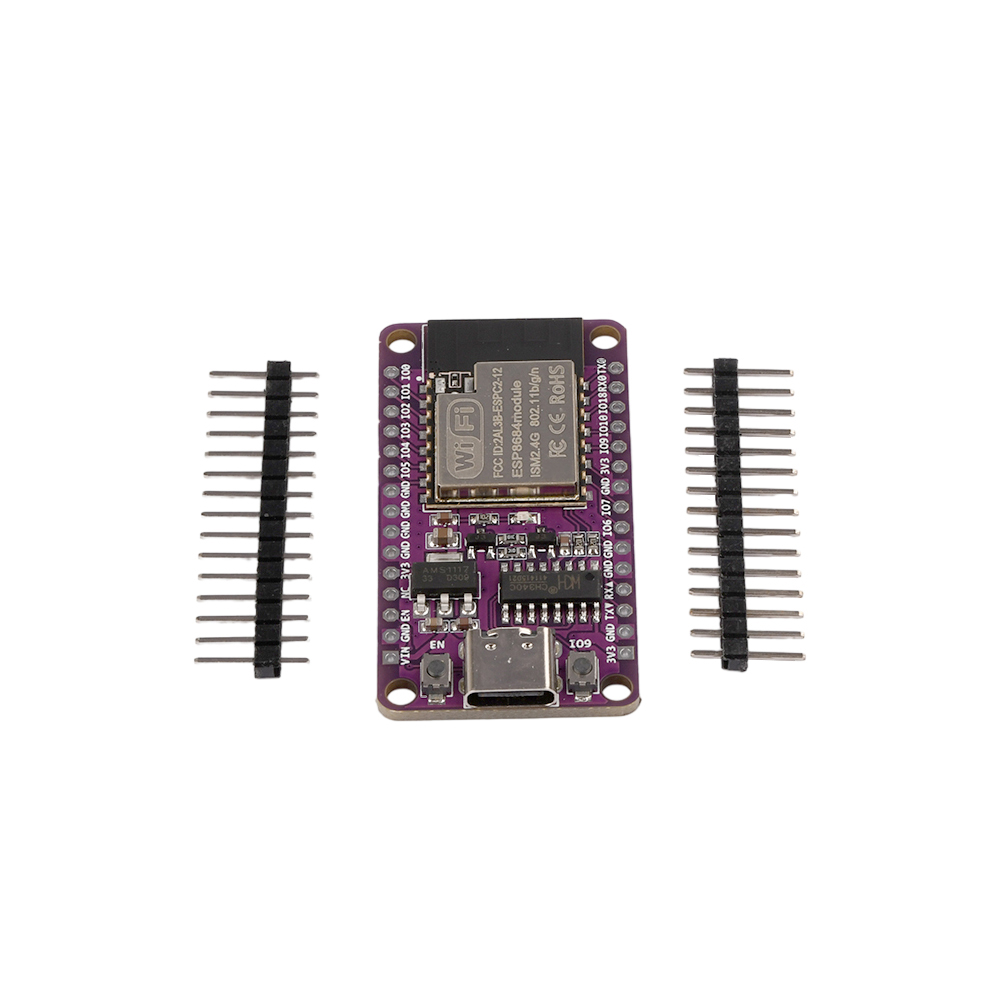

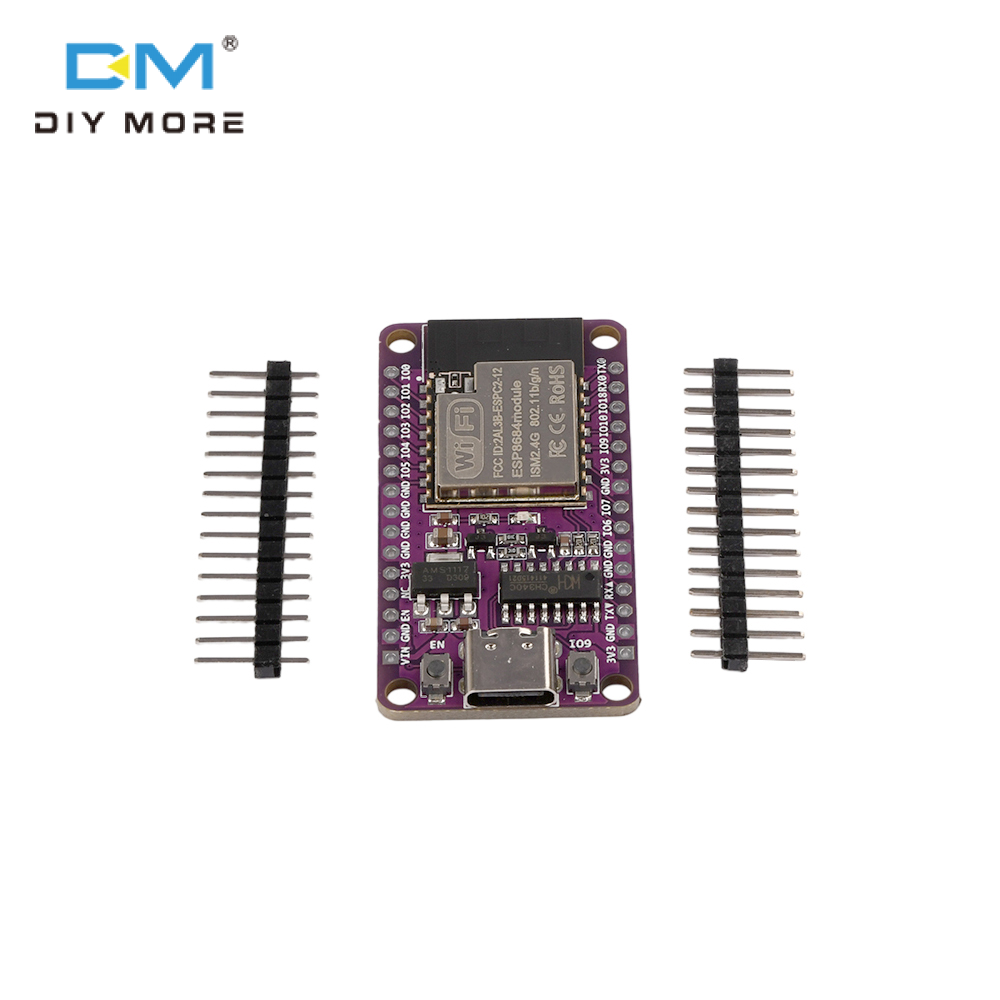

diymore ESP32-C2 bảng mạch phát triển ESPC2-12 module tương thích cho ESP8684-DevKitM-1 Wifi & mô-đun Bluetooth

Parameters:

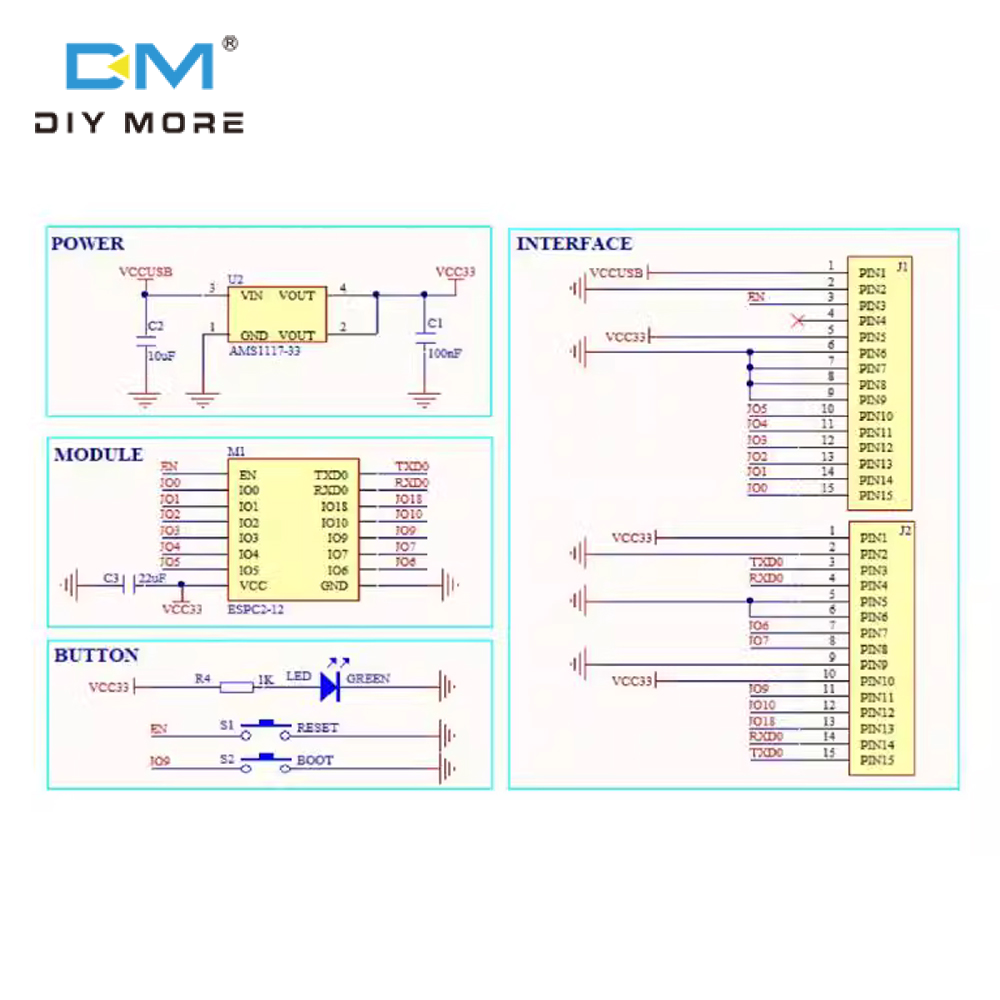

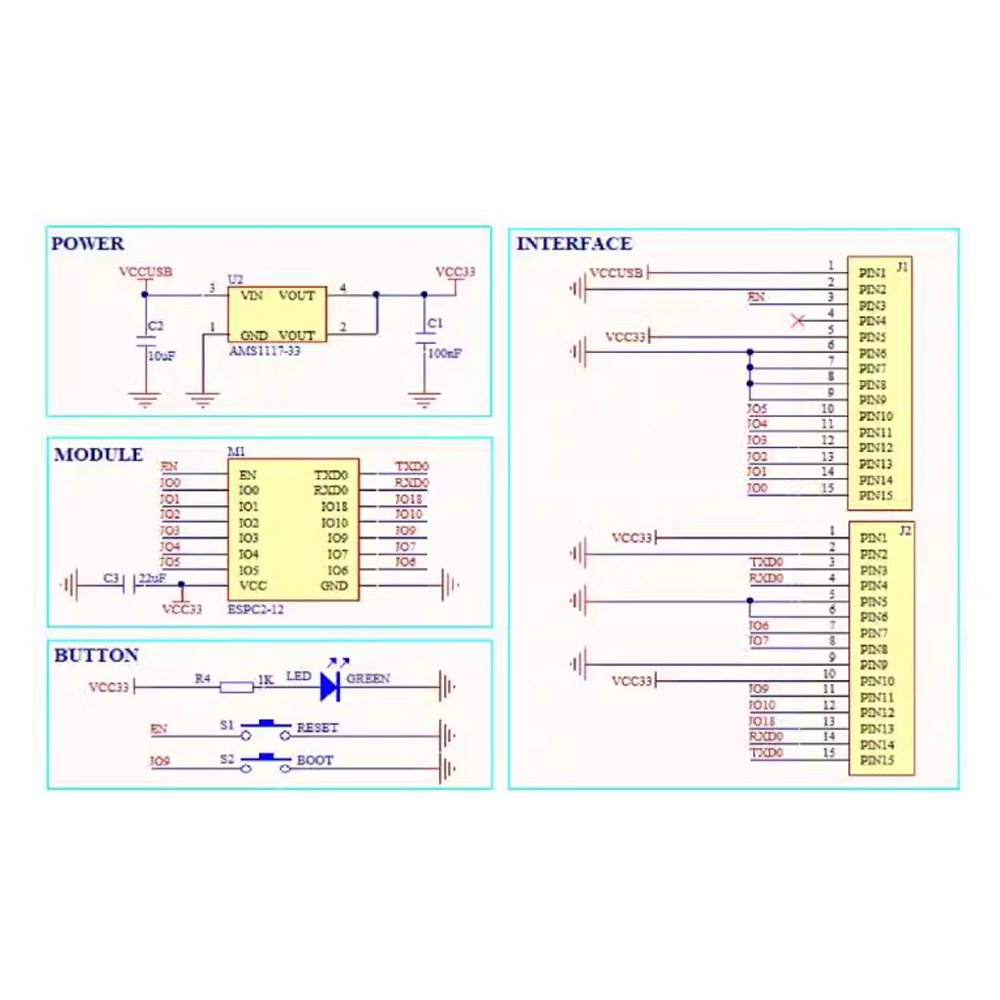

Power converter, 5V to 3.3V LDO

Input 5V

Output 3.3 V

5V power indicator light, which lights up when the development board is connected to a USB power supply.

Reset button Reset button

Boot key download button, hold down the Boot key while pressing the Reset key to enter the “firmware download“ mode, and download the firmware through the serial port.

WIFl:

Supports IEEE 802.11 b/g/n protocol

Supports a 20 MHz bandwidth in the 2.4 GHz frequency band

Bluetooth low-power Bluetooth subsystem, supporting BT 5

CPU and storage

32-bit RISC-V single core processor with up to 120 MHz main frequency

Built in 272 KB SRAM (of which 16 KB are dedicated to cache)

576 KB ROM storage space

Frequency 2.4G~2.5G (2412M~2484M)

Transmission power:

802.11b:+20.5 dBm

802.11g:+19 dBm

802.11n:+18 dBm

Receiver sensitivity:

802.11b: -90 dBm (11Mbps)

802.11g: -77 dBm (54Mbps)

802.11n: -74 dBm (MCS7)

EVM:

-25dB at 802.11b and 11Mbps at 21dBm

-27dB at 802.11n and 54Mbps at 19dBm

[email protected] HT20, [email protected]

Antenna PCB antenna: BLE RF power control range -27~20dBm

Hardware:

CPU 32-bit RISC CPU

UART/SDIO/SPI/I2C/GPIO/PWM interface

Working voltage 3.0V~3.6V

Working temperature -40 ° C~105 ° C

Environmental temperature -40 ° C~105 ° C

software

Wi Fi working mode STA, soft AP, and sniffer mode

Safe mode WPS/WEP/WPA/WPA2/WPA3

Update firmware UART download

Software Development SDK

Network protocols IPv4, TCP/UDP/HTTP/FTP/MQT

Advanced peripheral interfaces and sensors

thirteen × GPI0 port

Digital interface:

three × SPL

two × UART

one × I2C host

LED PWM controller with up to 6 channels

General DMA controller (GDMA), with 1 receiving channel and 1 sending channel

Application:

Serial transparent transmission；

Wi Fi detector；

Intelligent power plug/intelligent LED light；

Mesh network；

Sensor networks；

OTT equipment；

Wireless positioning system beacon；

Industrial fieldbus；

Package include:

1X development board
