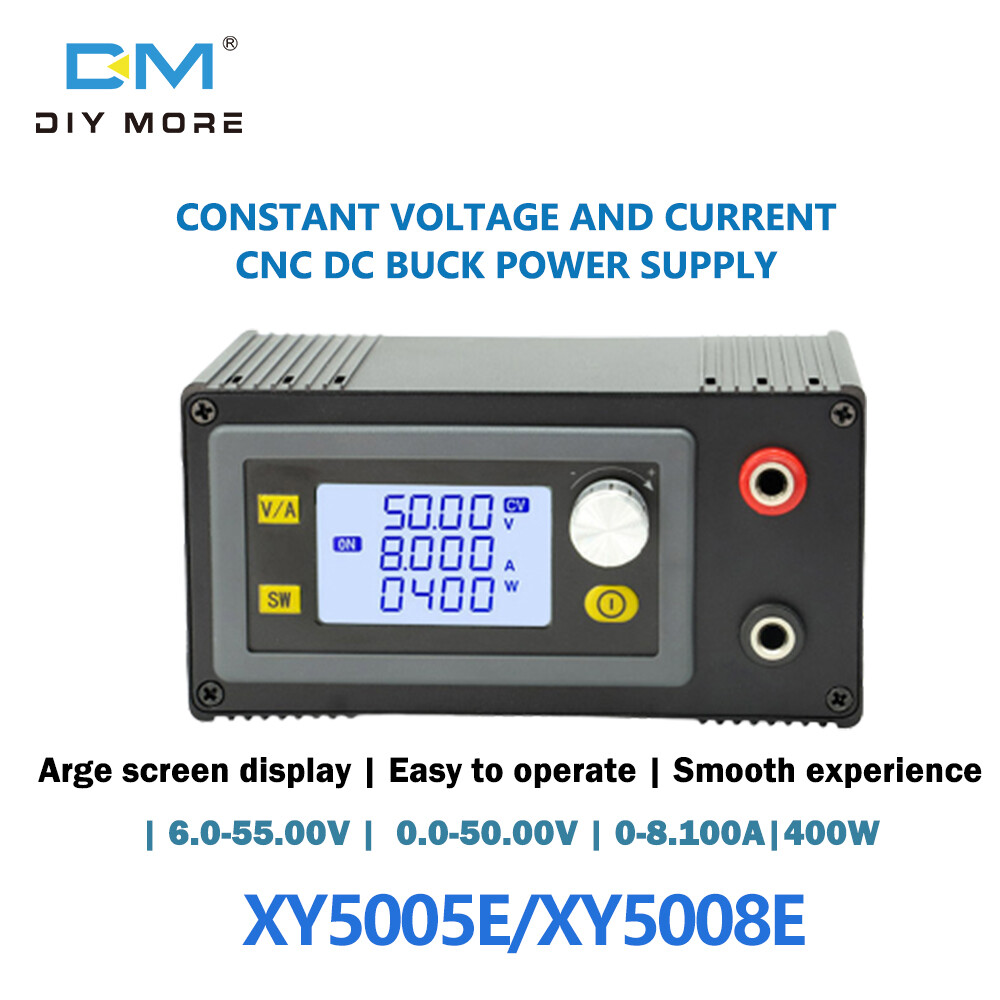

Diymore CNC Adjustable DC Stabilized Voltage Power Supply, Constant Voltage and Current Maintenance, Step-down Module Input Voltage 6-55V, Current 0.000-8.100A, Power 250W XY5005E XY5008E

Parameters:

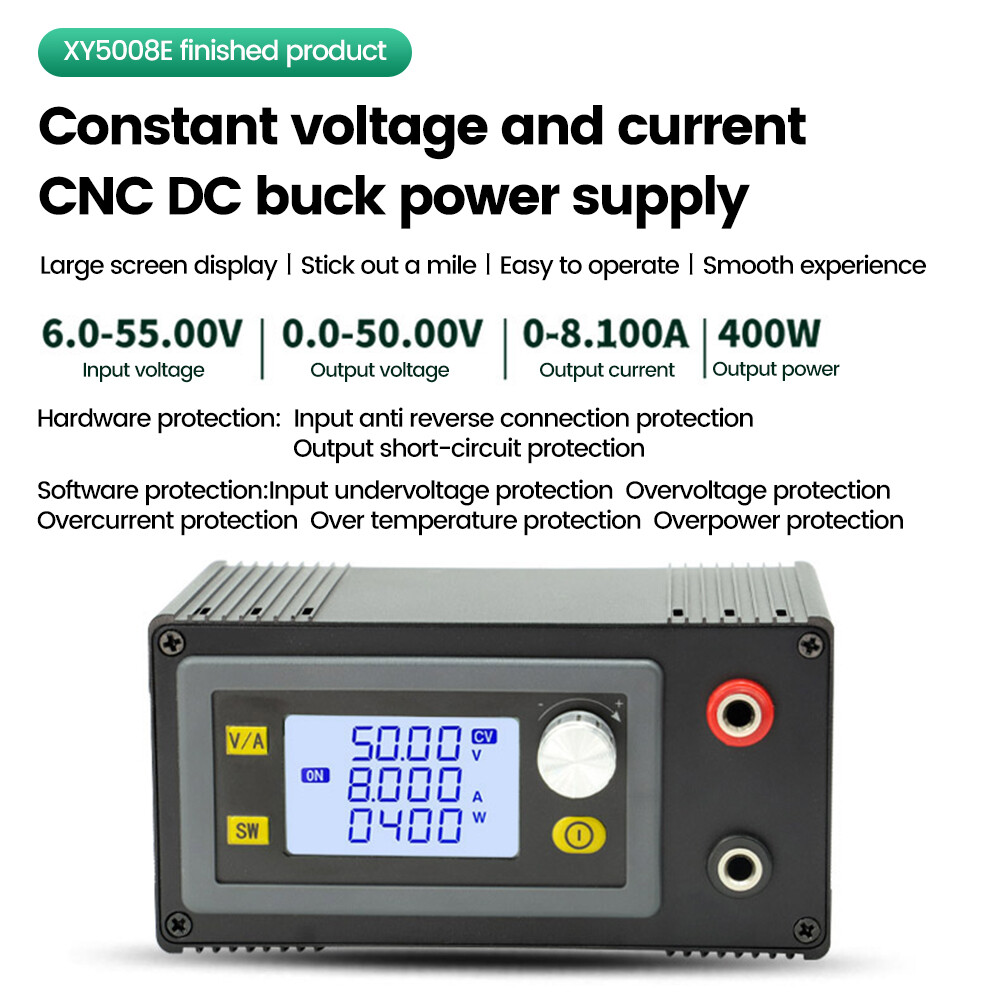

Product model: XY5008E

Input voltage: 6.0~55V

Output voltage: 0.0~50V

Output current: 0.000-8.100A

Voltage accuracy:+0.4%+1 word

Output power: 0-400W

Current accuracy:+0.5%+3 words

Voltage resolution: 0.01V

Current resolution: 0.001A

Conversion efficiency: around 95%

Soft start: Yes

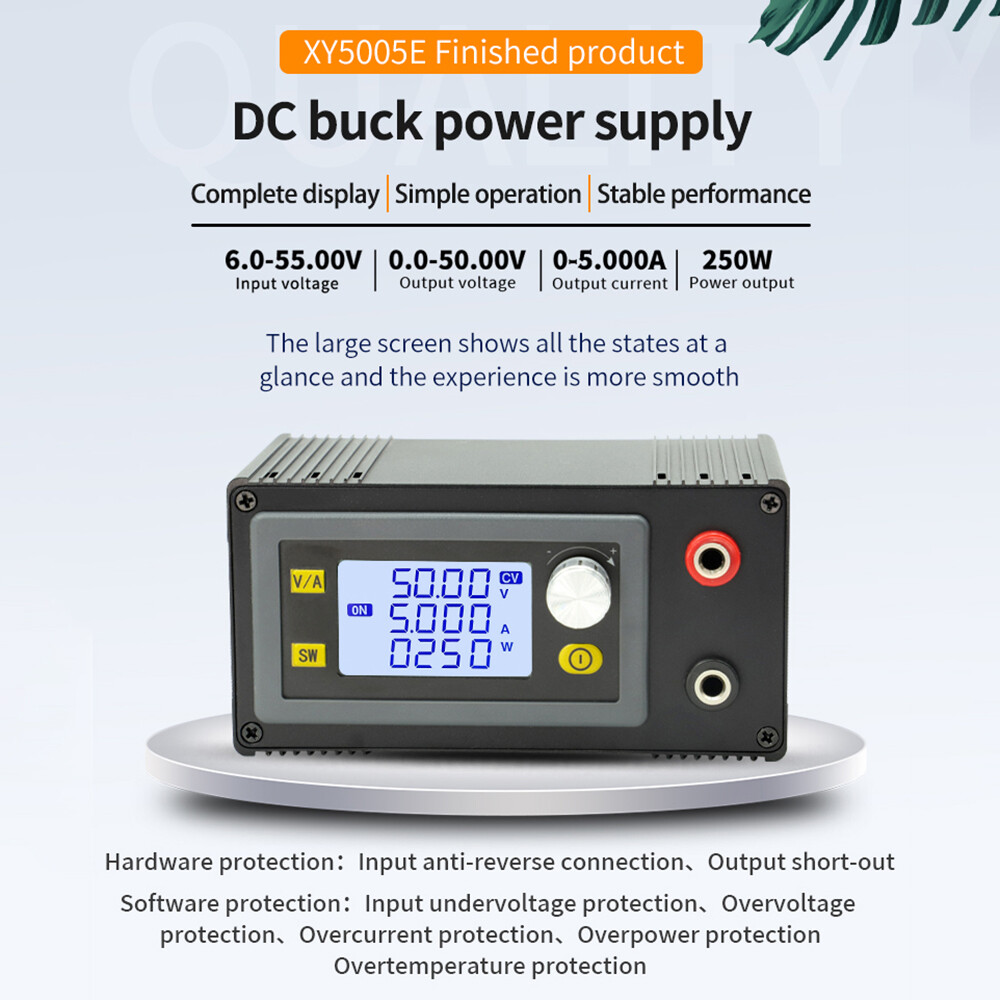

Product model: XY5005E

Input voltage: 6.0~55V

Output voltage: 0.0~50V

Output current: 0.000-5.000A

Voltage accuracy:+0.4%+1 word

Output power: 0-250W

Current accuracy:+0.5%+3 words

Voltage resolution: 0.01V

Current resolution: 0.001A

Conversion efficiency: around 95%

Soft start: Yes

Regarding the protection mechanism:

Input anti reverse connection: Yes

Output short circuit protection: Yes

Input undervoltage protection: (4.8-30V adjustable, default 4.8V)

Output overvoltage protection: (0-52V adjustable, default 52V)

Output overcurrent protection: (0-8.2A, default 8.2A)

Output Overpower Protection: (0-410W, default 410W)

Over temperature protection: Yes, default to 100 ° C

Time out protection: (0-100H adjustable, default off)

Overcapacity protection: (0-9999AH adjustable, default off)

Superenergy protection: (0-9999WH adjustable, default off)

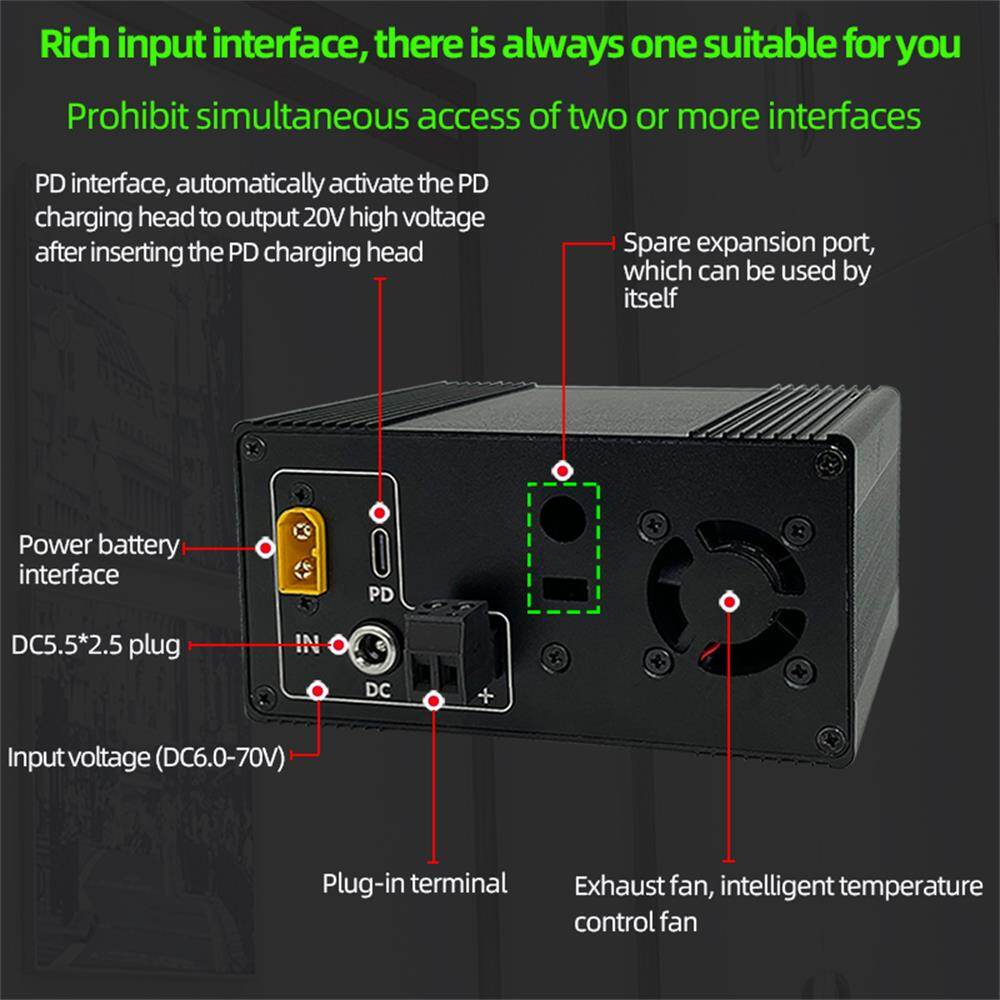

Added rich input interfaces, but prohibits simultaneous access of two or more interfaces

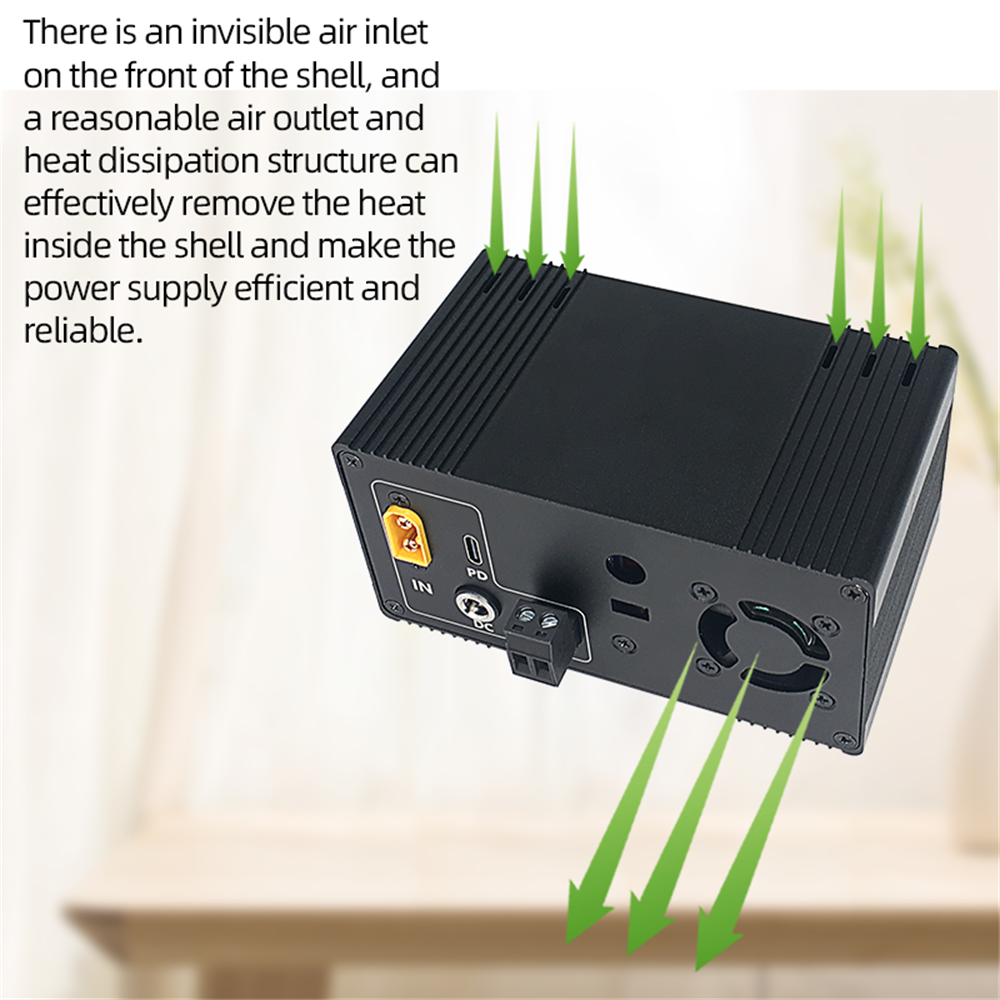

The front of the shell is equipped with an invisible air inlet, and a reasonable air outlet and heat dissipation structure can effectively remove the heat inside the shell, ensuring efficient and reliable operation of the power supply

Package include:

Adjustable regulated power supply * 1
