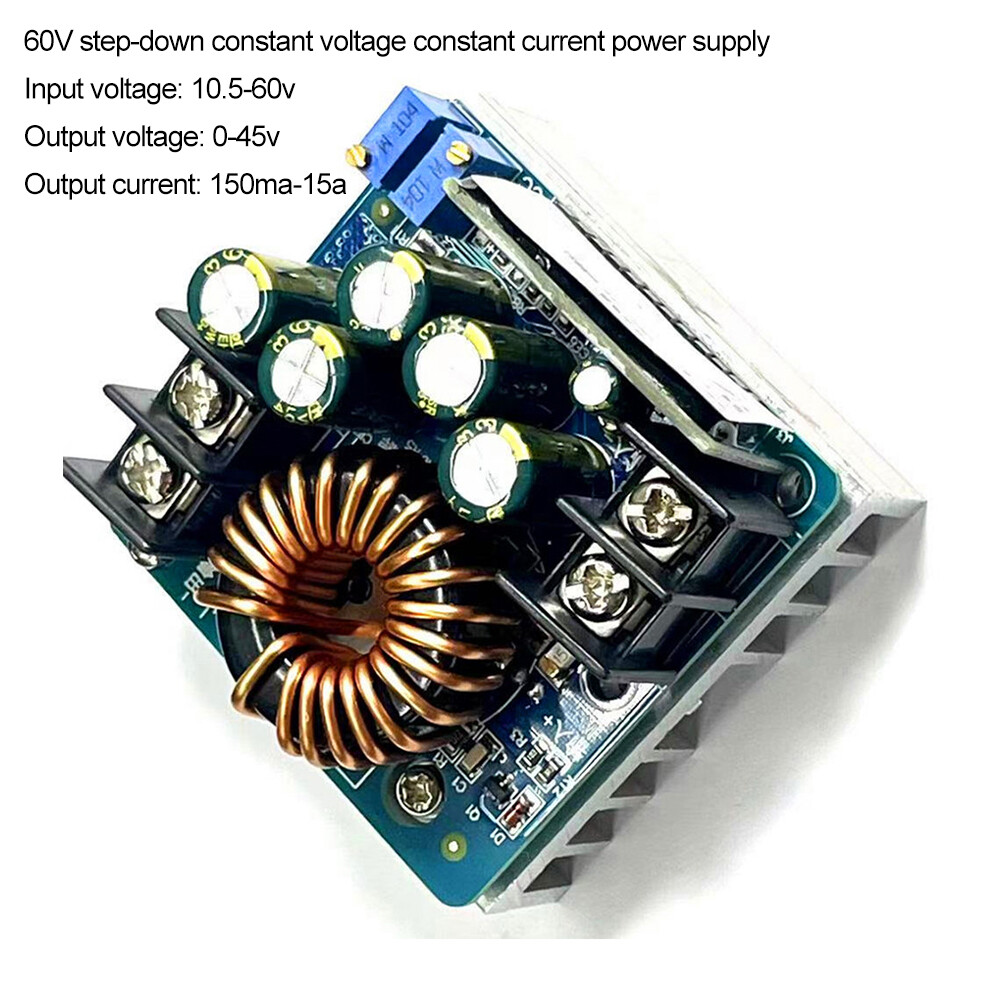

Module name: 400w
Module nature: Non isolated buck module (BUCK)
Input voltage: 10.5-60V
Output voltage range: 0-45V (must meet voltage reduction conditions, IN input multiplied by 0.8)
Minimum output voltage: 0V (+1V)
Maximum output voltage: approximately equal to input * 0.8 (for example, if the input is 40V and 40V * 0.8=32V, the maximum output voltage is 32V, which will actually be slightly higher and reach around 34V.35)
Output constant current: 0.2-15A (continuously adjustable, over 12A, heat dissipation should be strengthened)
Maximum output power: 400W (requires adding a fan for forced cooling of the heat sink and magnetic ring)
Continuous maximum working power: 280W (in a ventilated environment)
Continuous maximum working current: 12A (in a ventilated environment)
Input undervoltage protection: Yes, (when the input is below 10.5V, the output is closed, with an error of about 0.5V)
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+85 degrees (strengthen heat dissipation when exceeding 65 degrees)
Working frequency: 100KHz
Conversion efficiency: up to 97% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse connection protection: Yes (Be careful when entering a short circuit. Reverse connection will burn the input fuse.)
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)
Work indicator light: Yes (blue LED light)
Constant current indicator light: Yes (during constant current operation, the CC indicator red light on the small board lights up, there is no current output, and this light does not light up at constant voltage)
Wiring method: Equipped with welding free 25A wiring terminal

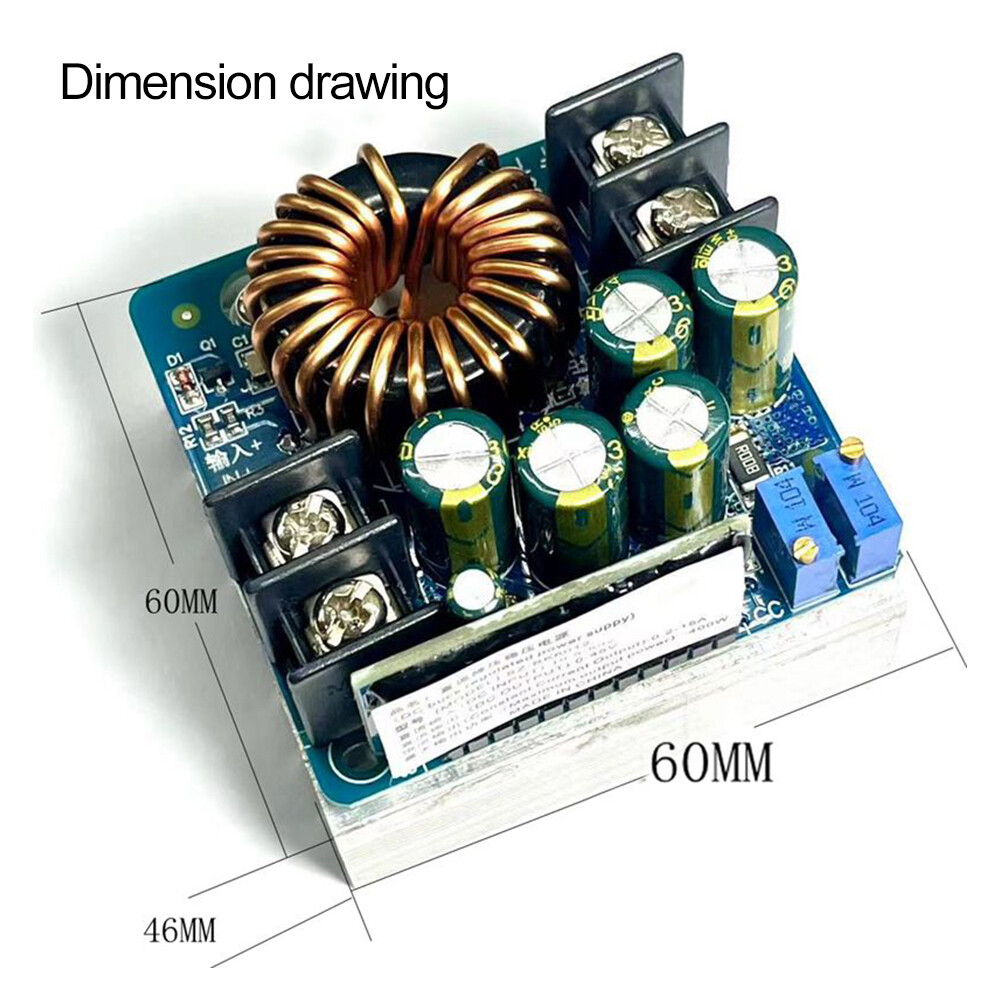

Module size: length 60, width 60mm, height 45mm
Net weight: 170 grams, with packaging of 180 grams.
Packaging method: Independent paper box packaging.

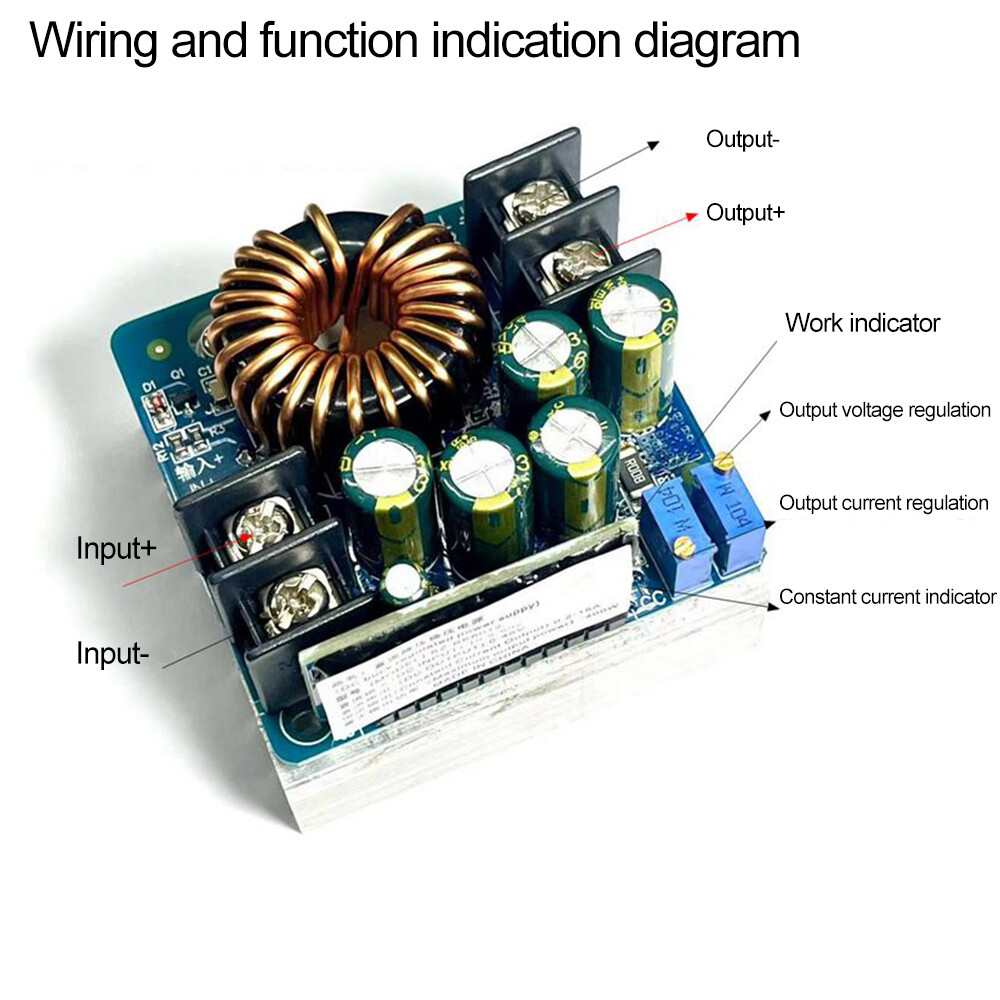

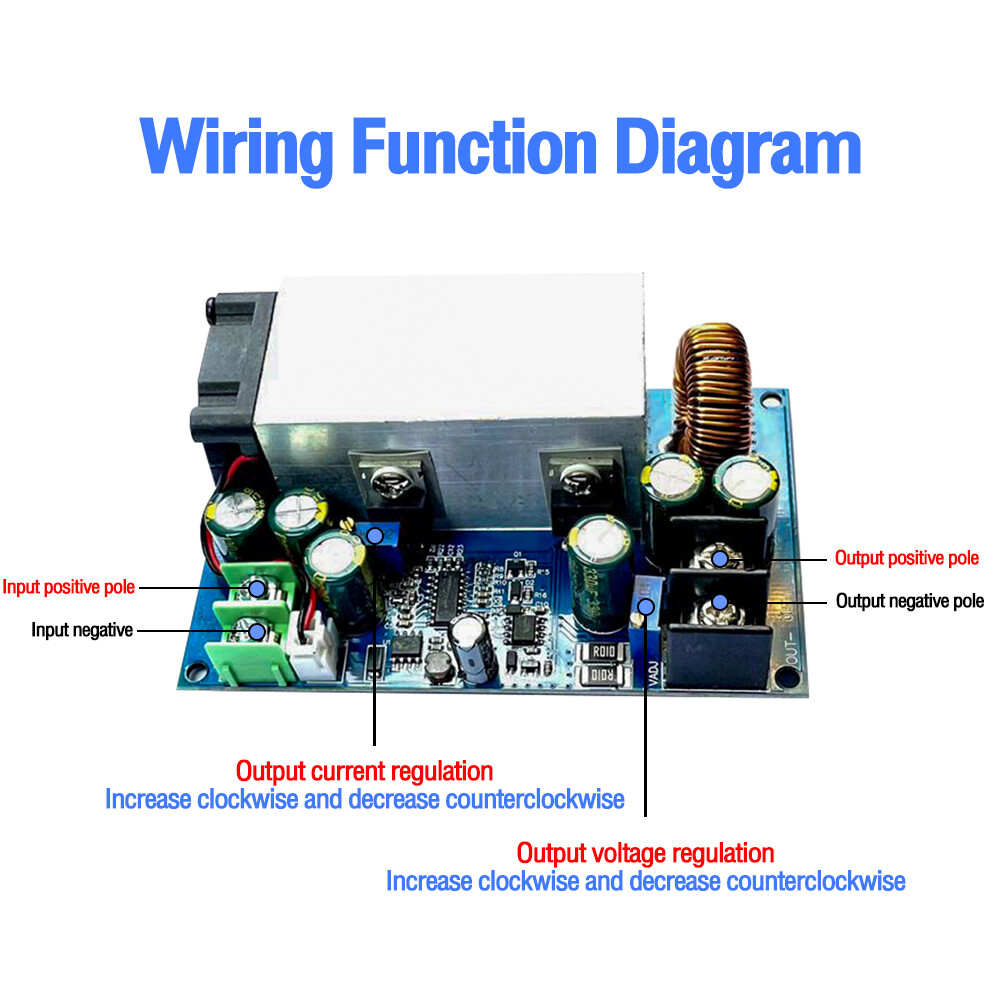

Wiring: "Input/IN" is the input. 'Output/OUT' is the output (marked in Chinese)
Main features of the power module:
10-60V wide input voltage, suitable for most power sources on the market as input sources.
Output constant voltage and current, continuously adjustable voltage and current. Can meet the needs of most electrical equipment.
The output power is large, with good ventilation and natural heat dissipation, which can achieve 280W/12A (note that there are output power and output current limitations).
The module adopts a step rectification scheme with extremely high efficiency, with an output voltage of over 10V and an efficiency of over 92% -96%,
There is a constant current indication when charging the battery. The charging status is clear at a glance.
The input has a 15A fuse, and the reverse connection of the positive and negative poles of the input will not damage the power supply (it will burn the fuse and needs to be replaced)

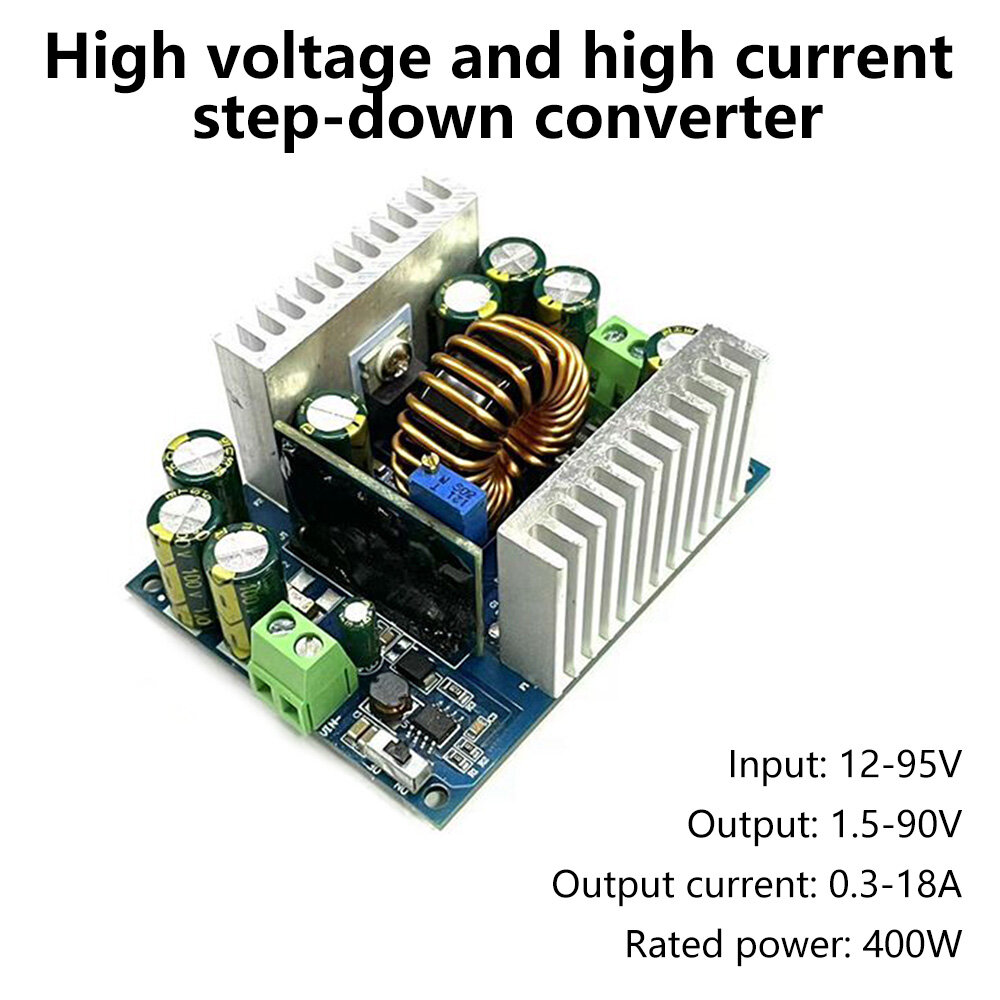

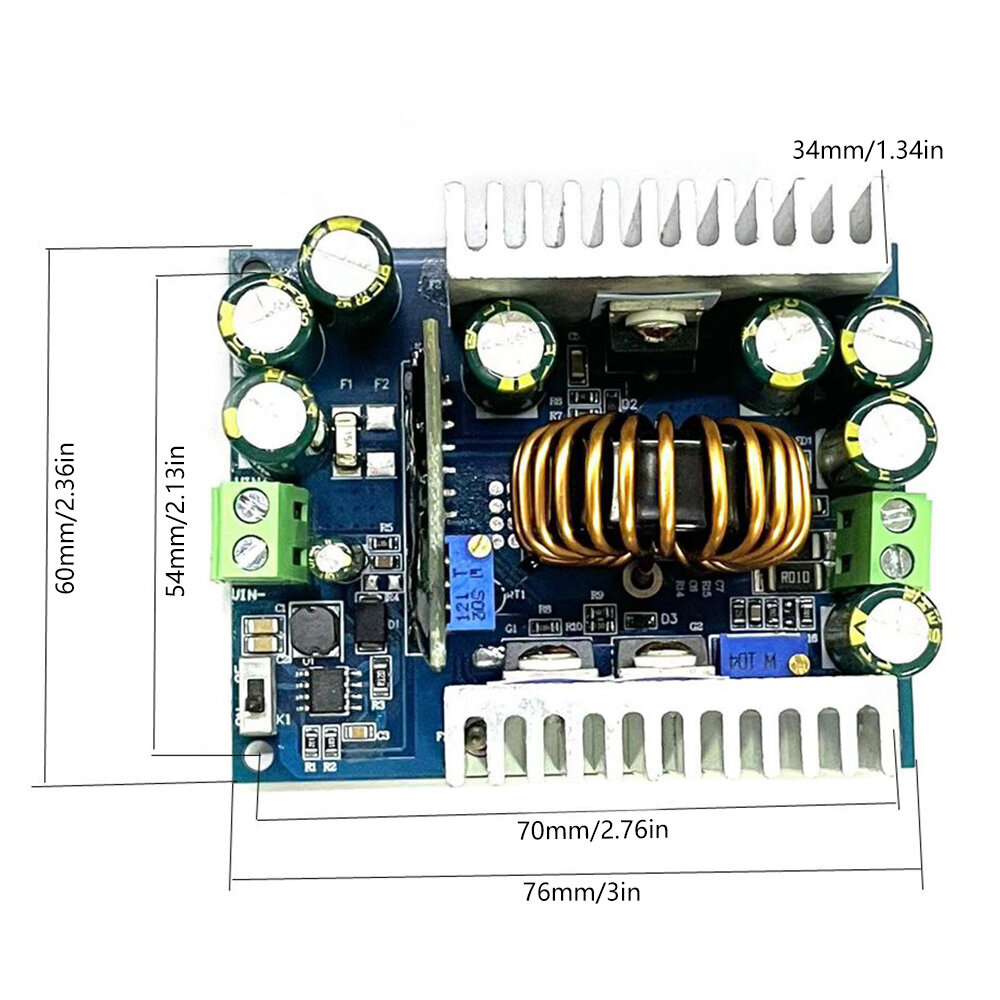

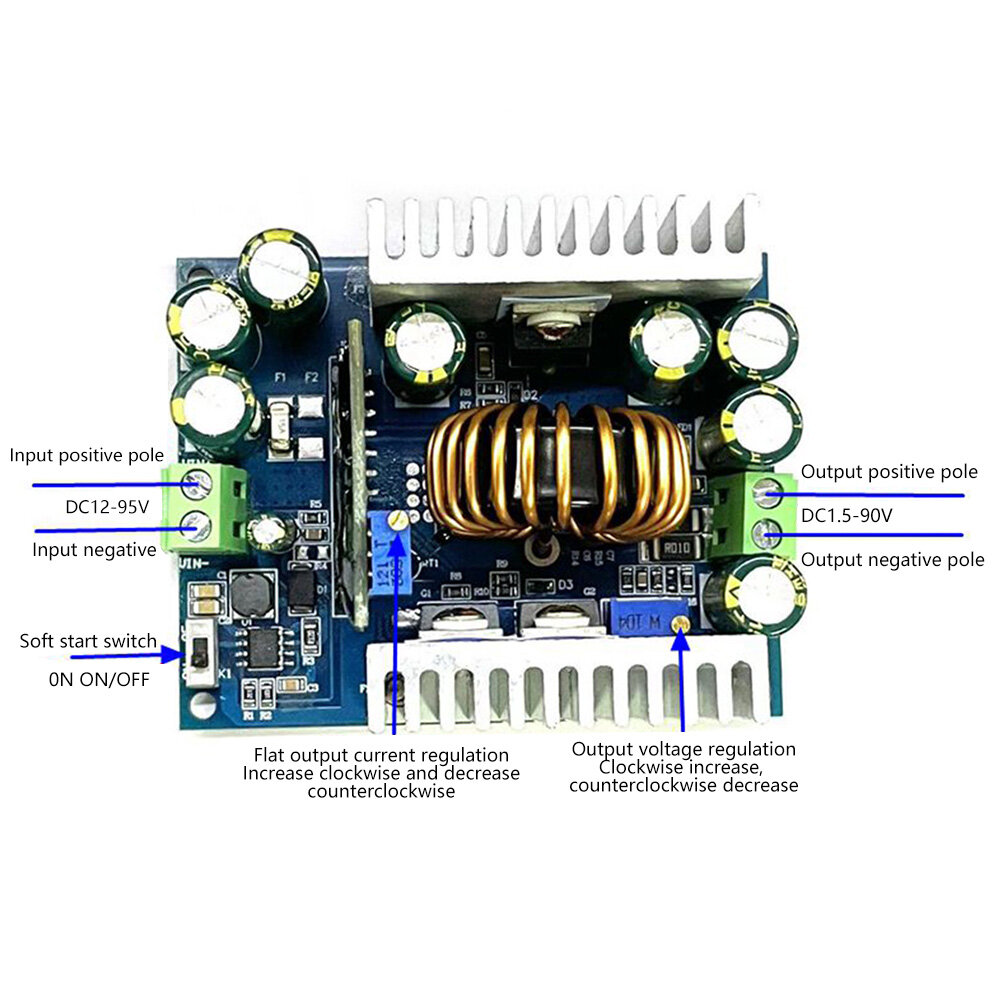

Module name: 500w step-down
Module nature: Non isolated step-down module
Input voltage: 12-95V
Output voltage range: 1.5-90V (can only reduce voltage, cannot increase voltage, output voltage can only be lower than input voltage)
Input output pressure difference: 2V
Output constant current: 0.3-18A (continuously adjustable)
Output rated current: 15A
Rated output power: 400w
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+65 degrees Celsius
Working frequency: 120KHz
Conversion efficiency: up to 96% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse protection: Yes (MOS transistor reverse connection)
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)

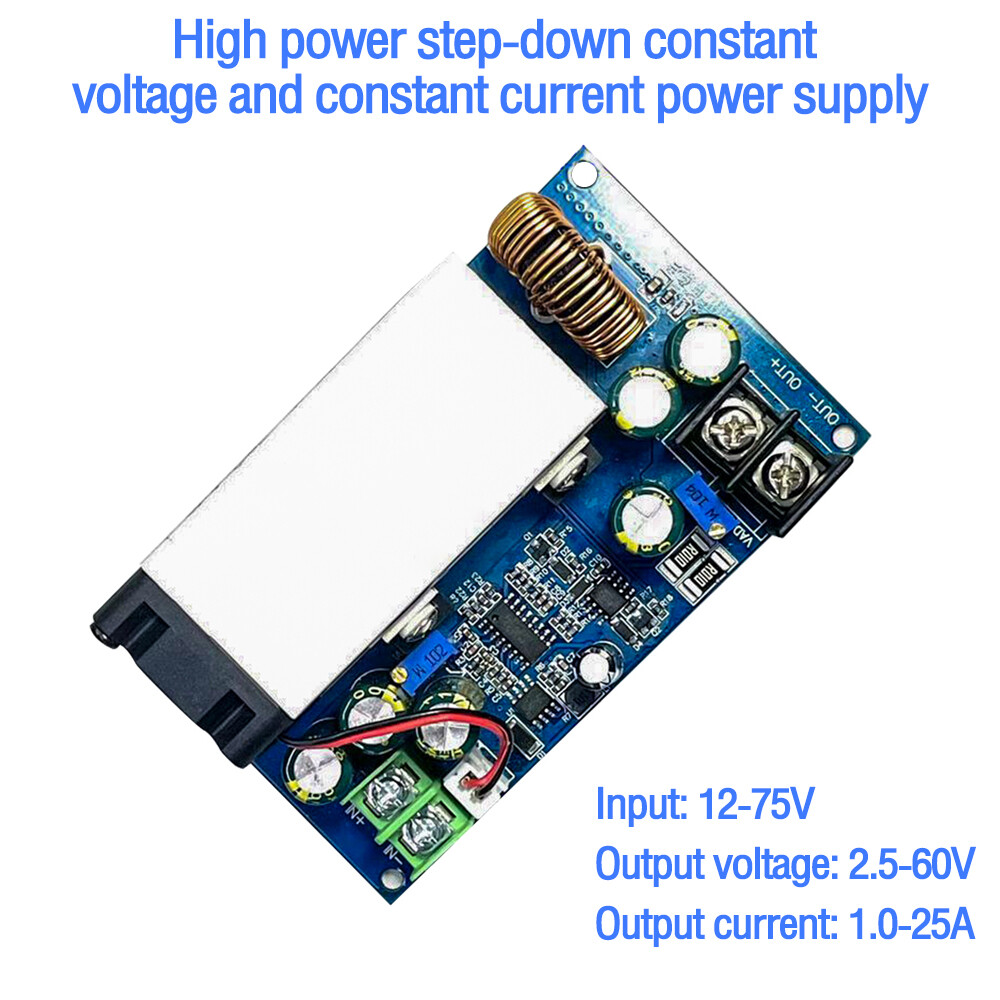

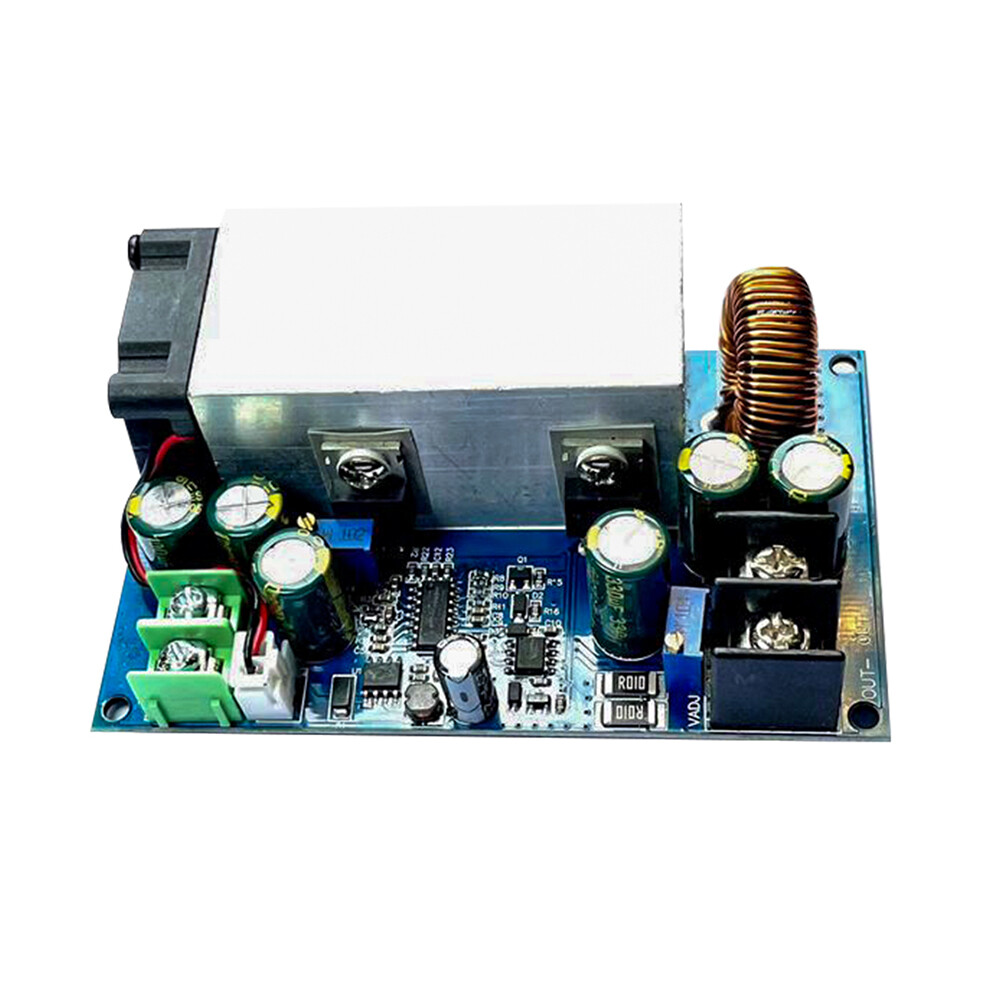

Module name:600W DC12-75V
Parameters:
Product model: SZ-8025CCCCV
Module name: 600W step-down constant voltage constant current adjustable power module
Module nature: Non isolated buck module (BUCK)
Input voltage: 12-75V
Output voltage range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)
Minimum output voltage: 2.5V
Maximum output voltage: approximately equal to input voltage * 0.8 (for example, if the input is 40V, 40V * 0.8=32V, the maximum output voltage is 32V)
Output constant current: 1-25A (continuously adjustable)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (in a ventilated environment)
Continuous maximum working current: 25A (in a ventilated environment)
Heat dissipation method: air-cooled heat dissipation
Input undervoltage protection: None
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+65 degrees Celsius
Working frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse protection: None
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)
Work indicator light: Yes (output voltage blue LED light)
Wiring method: Equipped with solderless terminal blocks

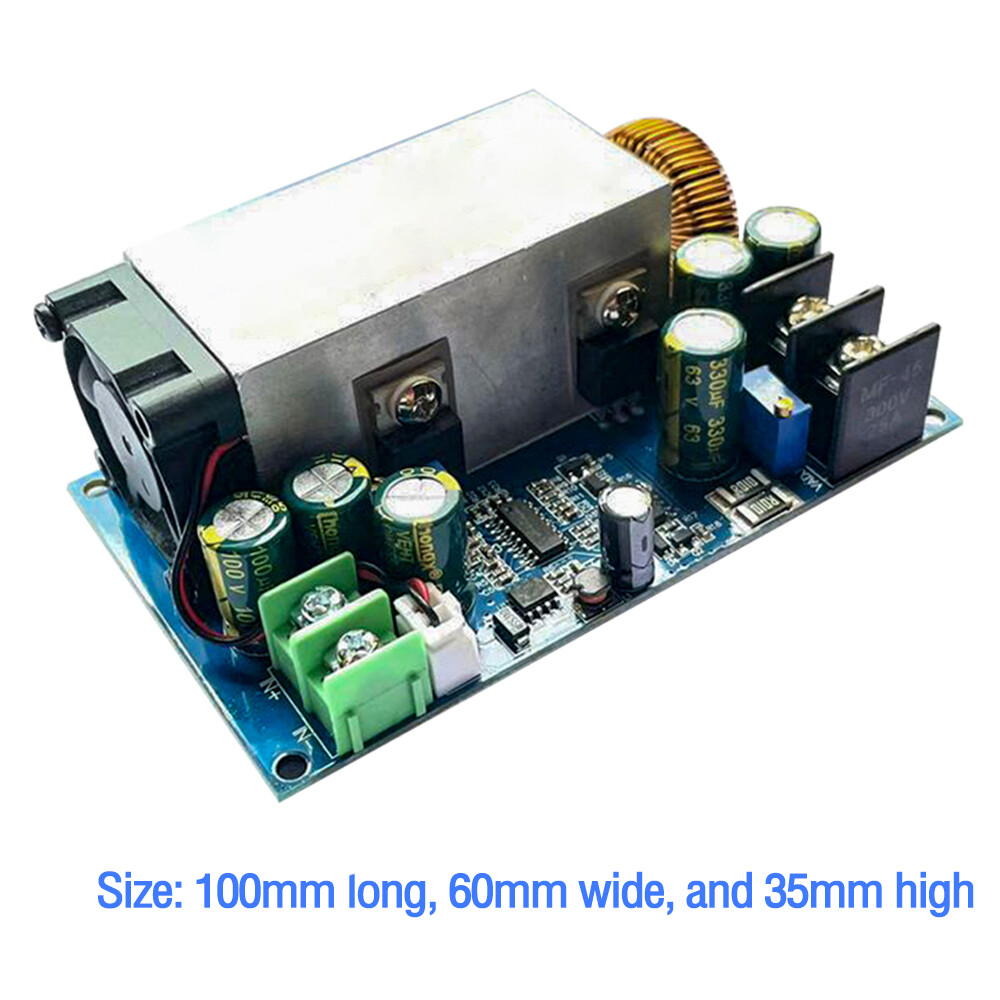

Module size approximately: 100mm long, 60mm wide, and 35mm high
Net weight: approximately 140 grams
Wiring: “IN“ is the input.
'OUT' is the output
