diymore 300w/500w 20A dc-dc converter buck step down constant current module led driver power step down voltage module electrolytic capacitor





Features:



With a wide input voltage range from 6v to 40v, the step-down converter can precisely adjust the output voltage and current.



Efficiency can be up to 96%, measured at 20a, converting 24v to 12v.



It is designed with 75v / 80a large double tube current mos.



High frequency low resistance electrolytic capacitor for input and output use, low ripple, stable output.



Wiring is convenient with these large current screw terminals 30a.

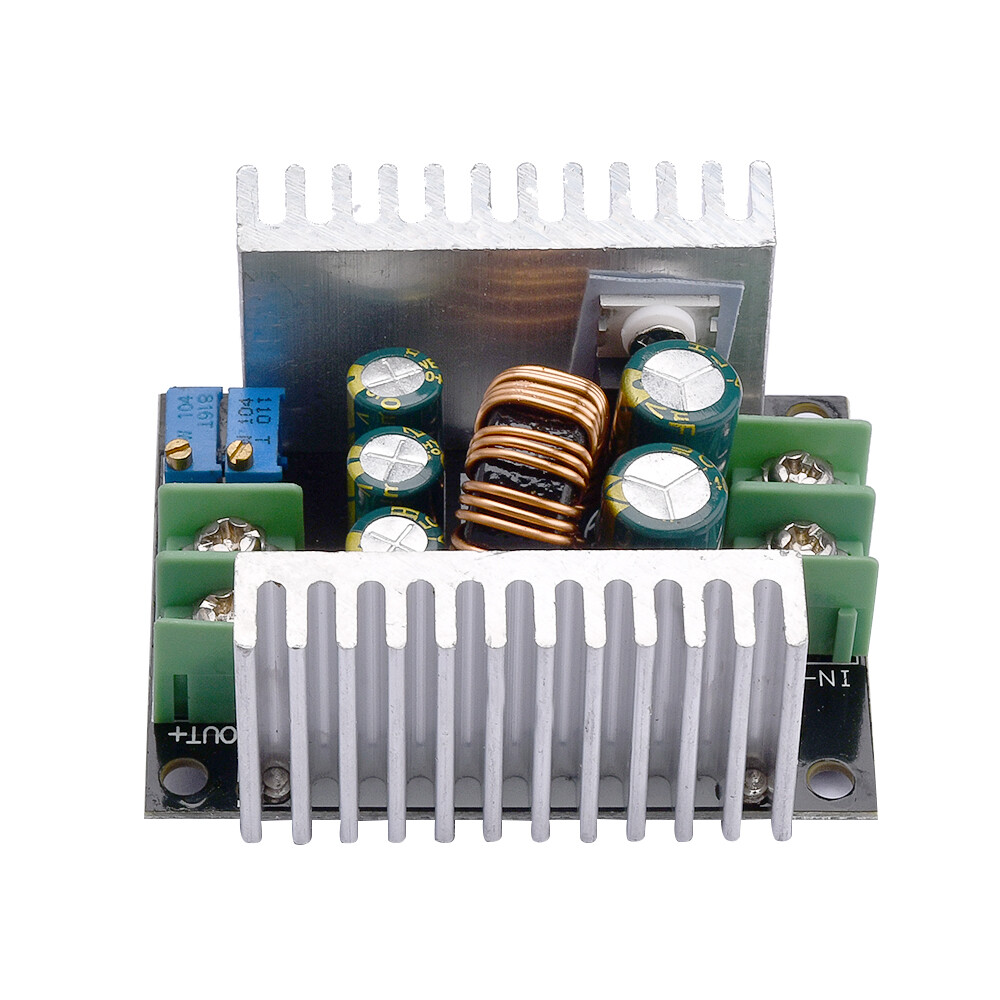

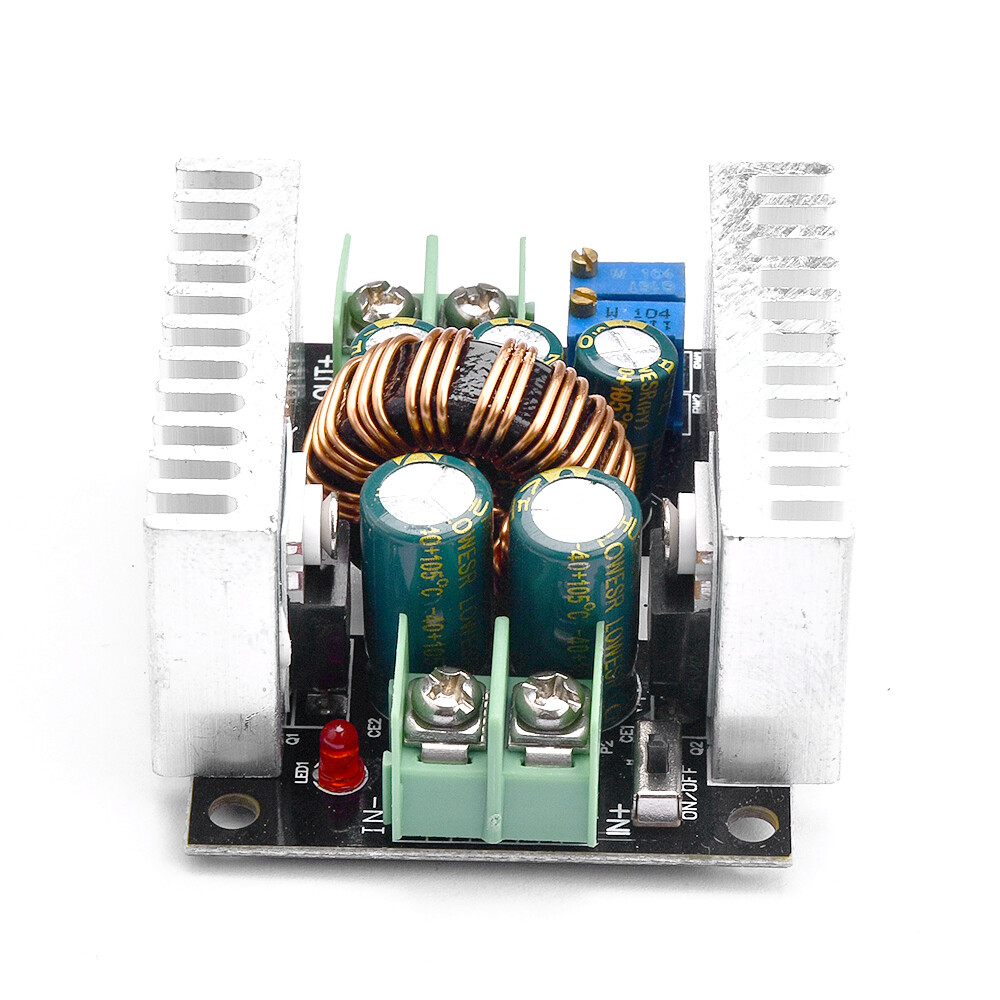

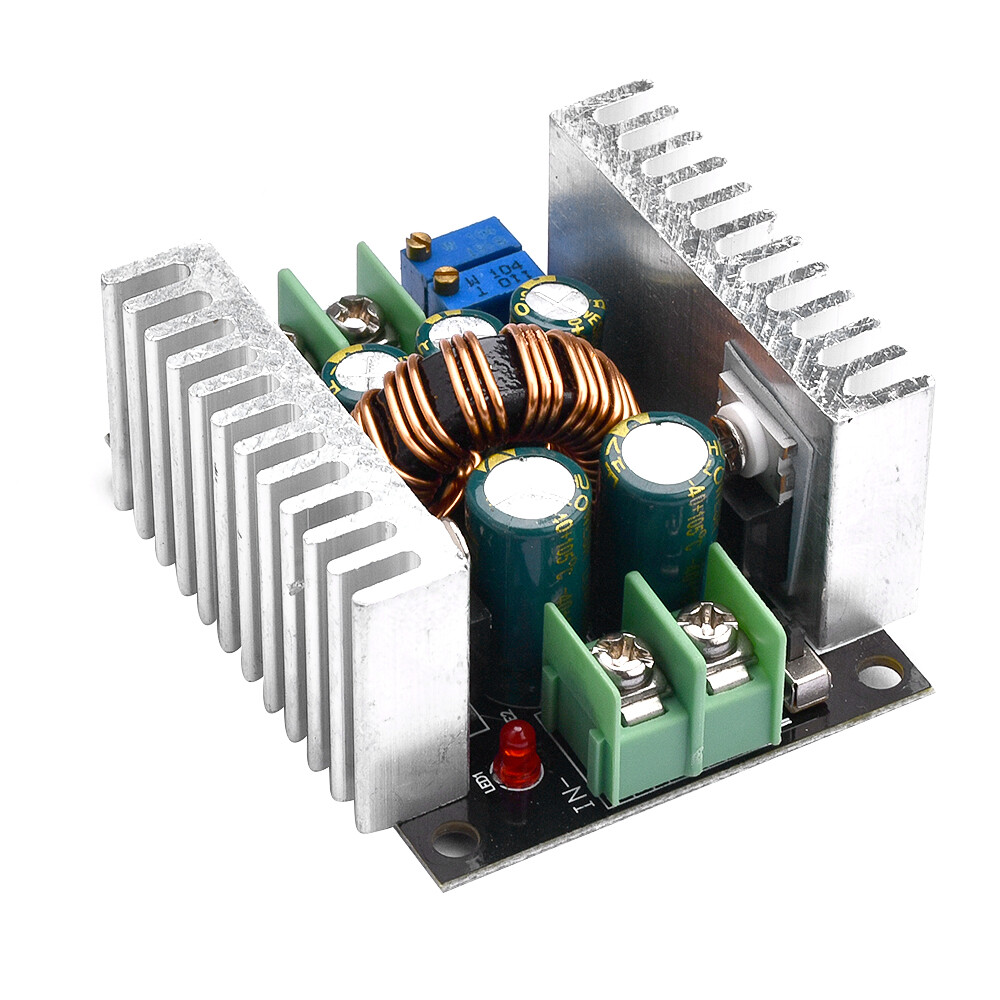

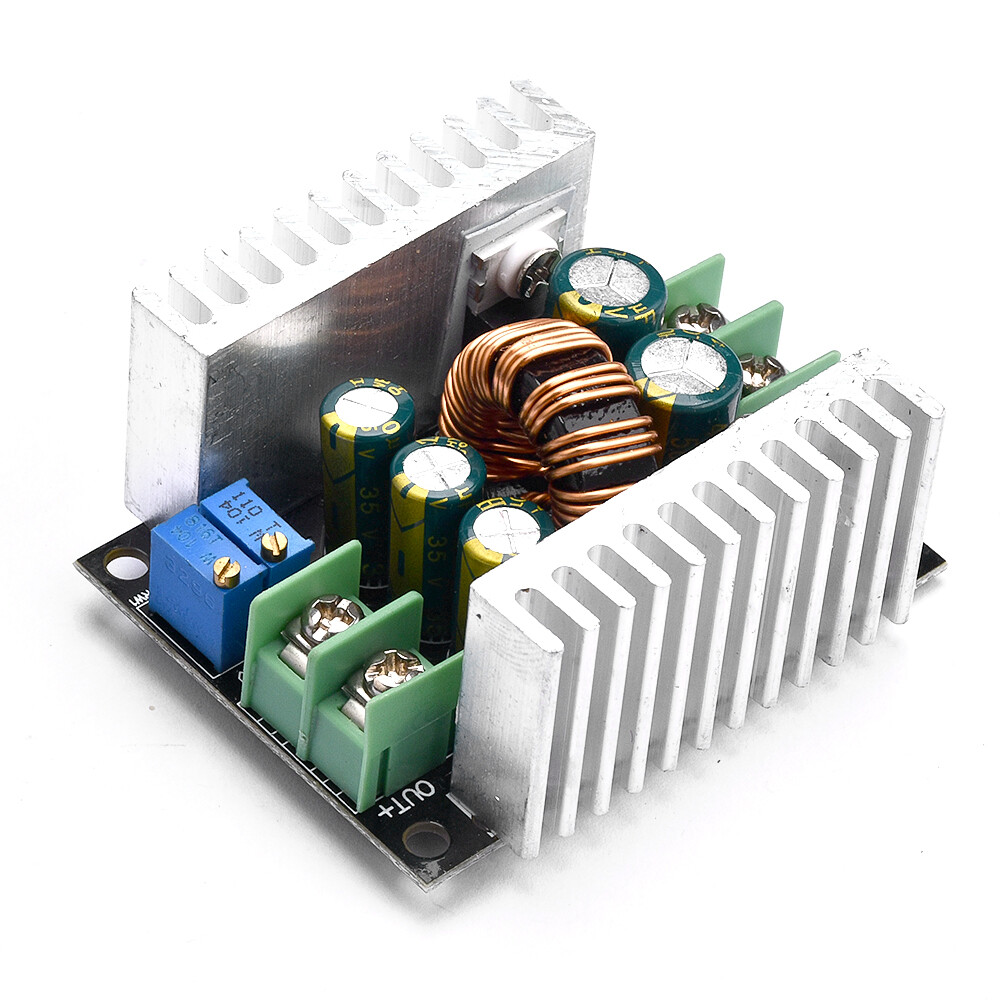

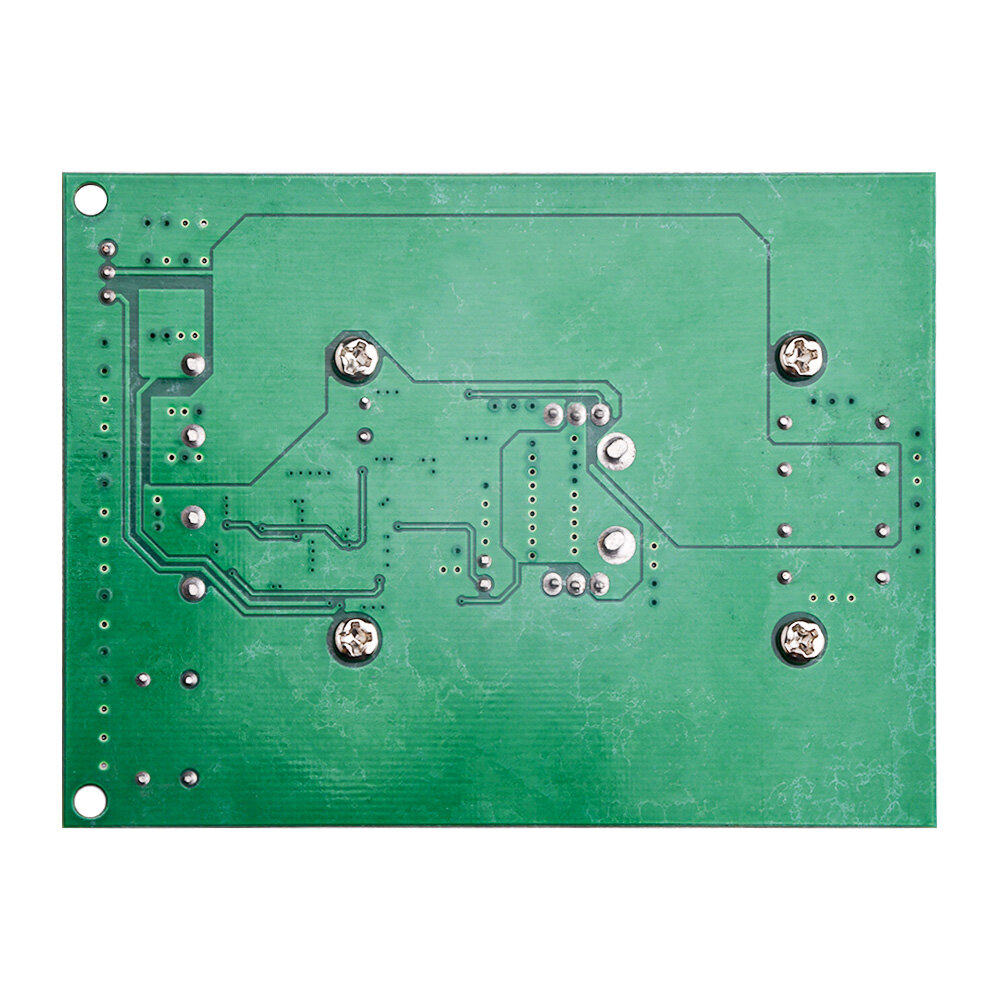

The buck module has 2 heatsinks that could increase heat dissipation.



When there is a big difference between the input and output voltage, please decrease the power and current.

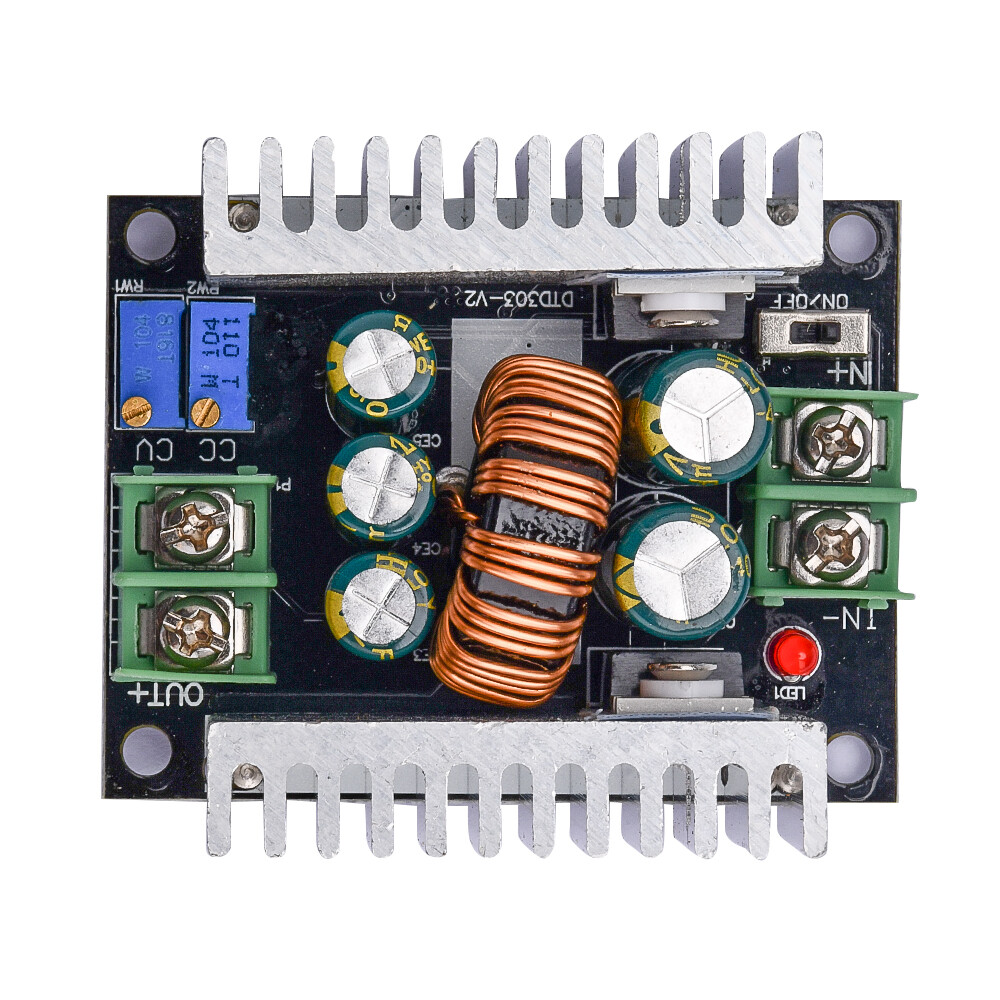

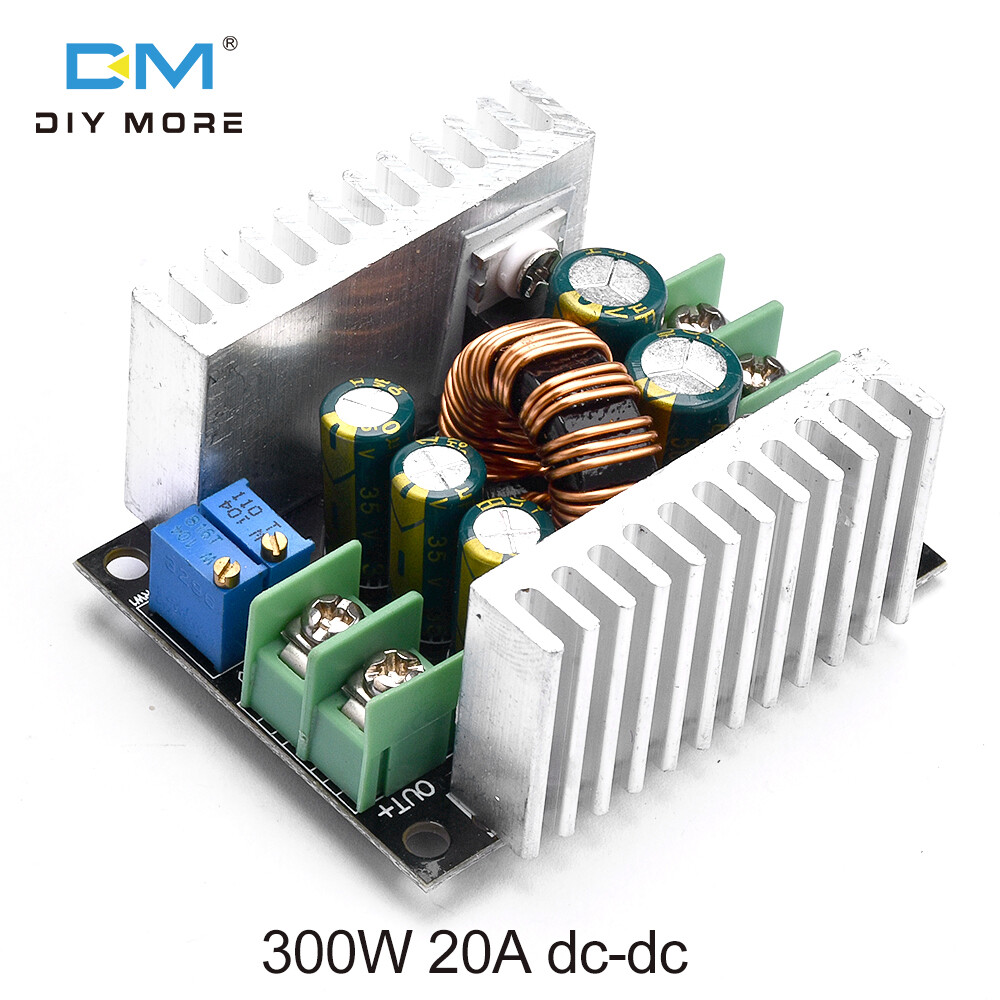

300W Specifications:



Input voltage: 6v to 40v dc (10v to 40v is suggested)



Output voltage: 1.2va 36v dc



Output current: 20a (maximum), 15a (suggested)



Efficiency: 95% (24v to 12v, 20a)



Output ripple: 5050mv



Wiring method: Terminals



Short circuit protection: self-recovery (cannot short circuit for a long time)

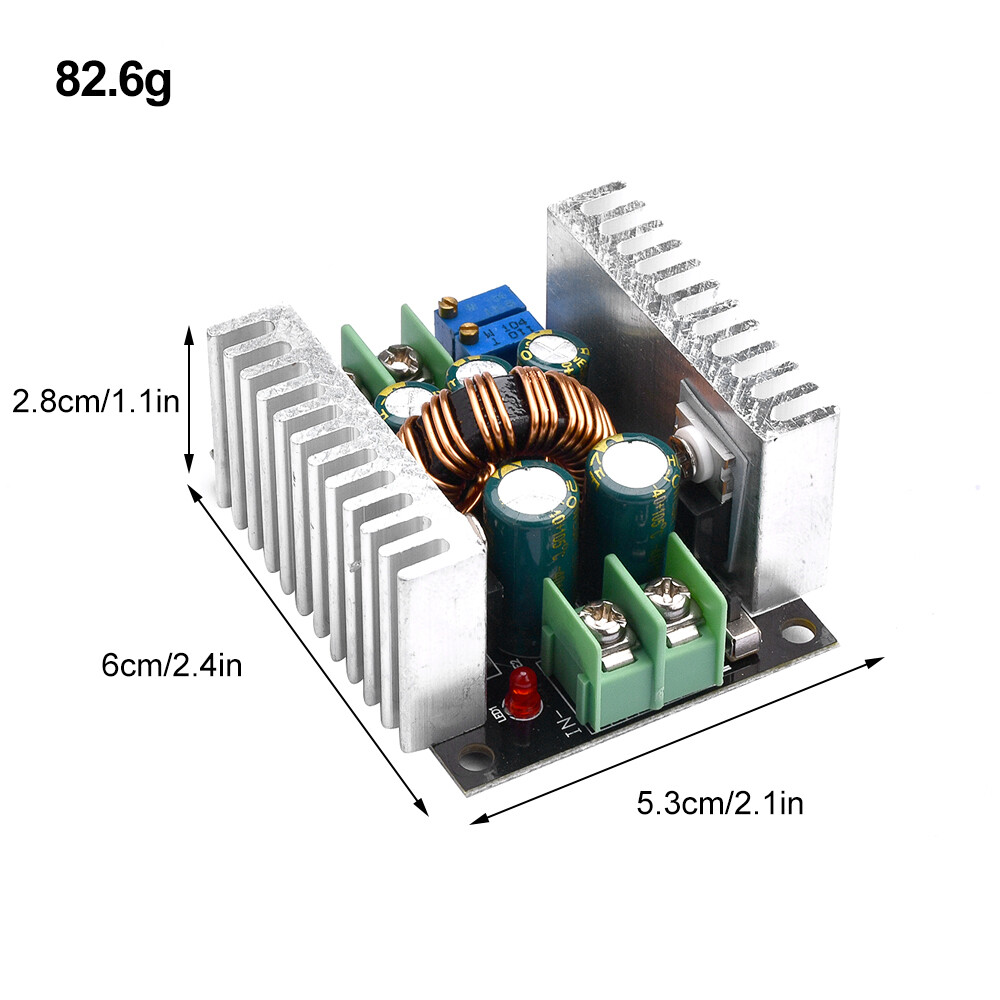

Size: 60x53x27mm / 2.36x2.08x1.06 "

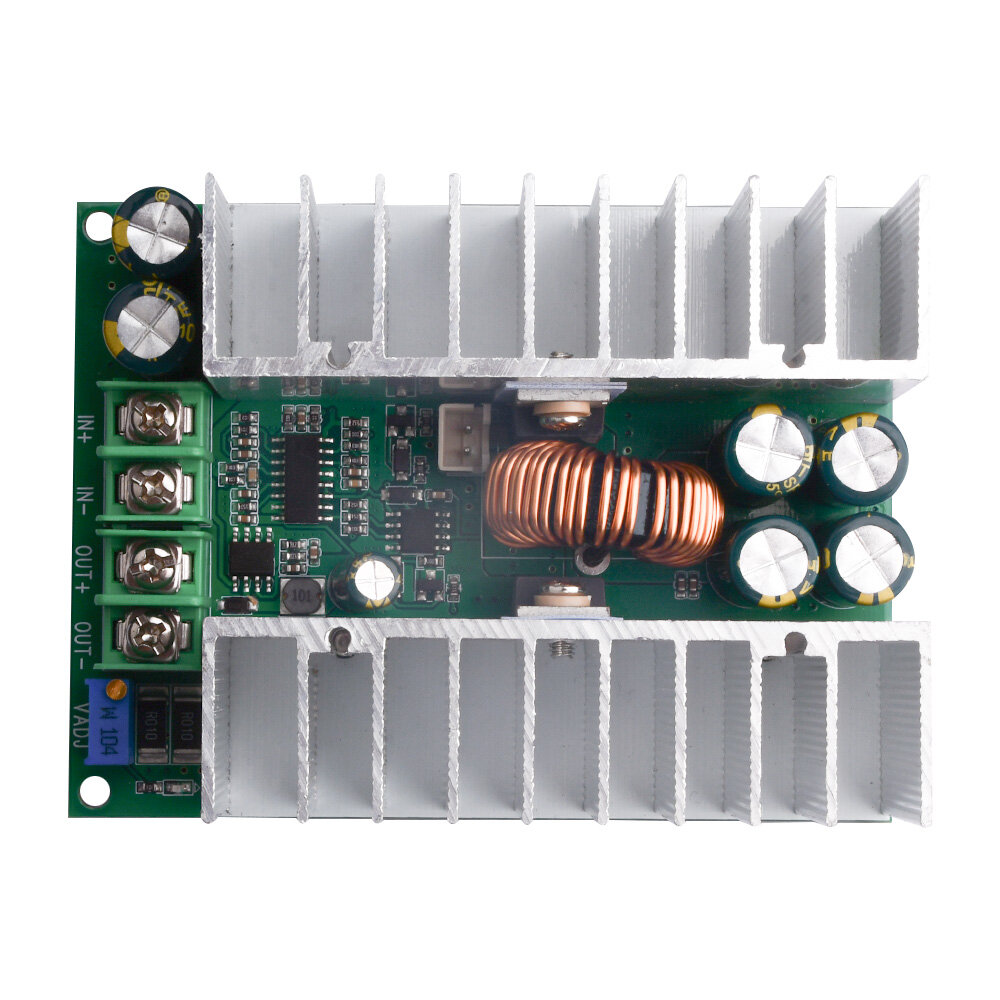

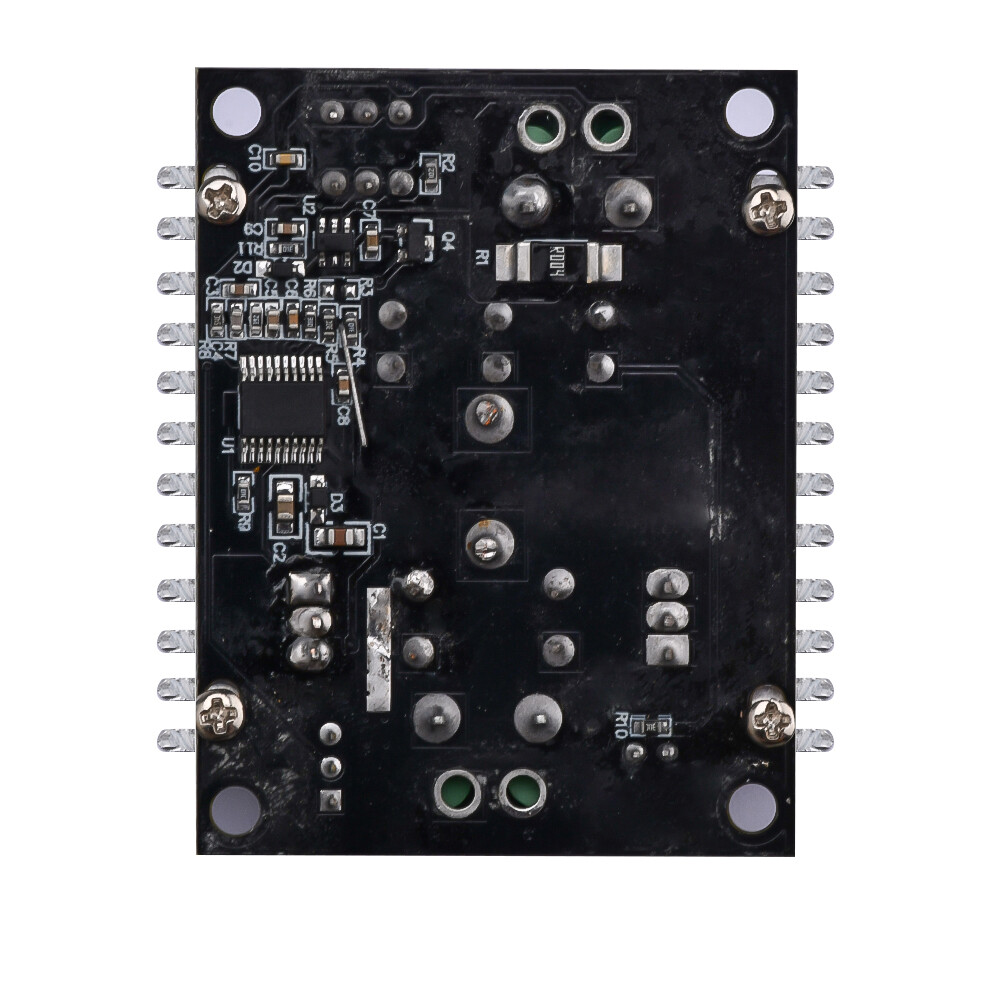

500W Specifications:

Name: DC-DC adjustable step-down module

Input: 12-75V

Output: 2.5-50V adjustable

Current: 25A (MAX)

Efficiency: 95% maximum (the smaller the pressure difference, the higher the efficiency)

Wiring: For high-power situations, the wiring should be as thick as possible.

Voltage conversion overview:

12-75V to 5V

12-75V to 9V

14-75V to 12V

17-75V to 14.8V

19-75V to 16.8V

22-75V to 1 9V

24-75V to 21V

28-75V to 24V

35-75V to 30V

41-75V to 36V

48-75V to 42V

55-75V to 48V

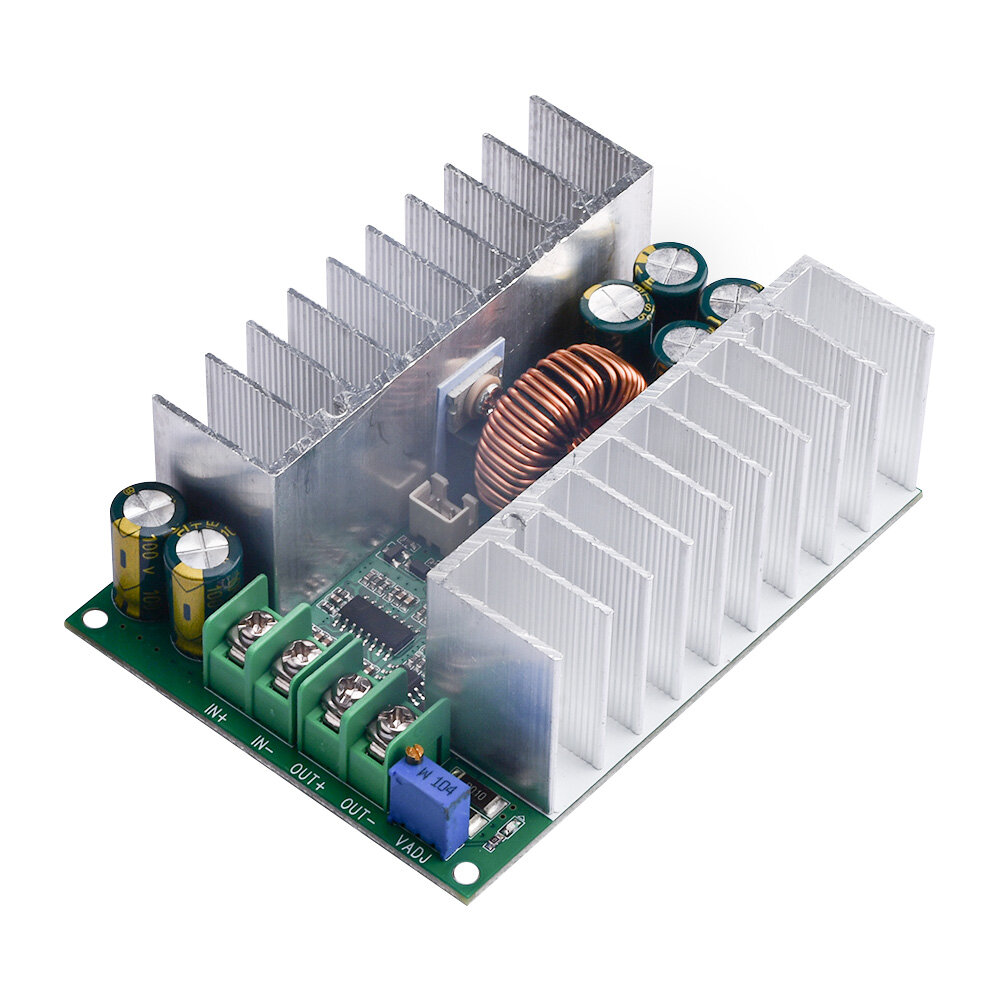

IN+: input positive electrode

VADJ: Output voltage regulation

0UT+: output positive electrode

IN -: input negative electrode clockwise large counterclockwise small

OUT -: output negative electrode

Attention: To charge the battery and battery, please add a diode to the output to prevent backflow!

If you choose a fan free type, if it exceeds 10A, please add a cooling fan yourself





Vo +: positive output

Vo-: negative of the output

+ In: positive entry

-In: negative input

Cv: output voltage adjustment

CC: output current adjustment

En: allow, low voltage level to turn off the output;suspension, high voltage level is effective

When input and output are common grounded, no-load cv output constant voltage, constant dc output current





The package includes:



1x300w 20a adjustable constant current converter buck step-down voltage module
