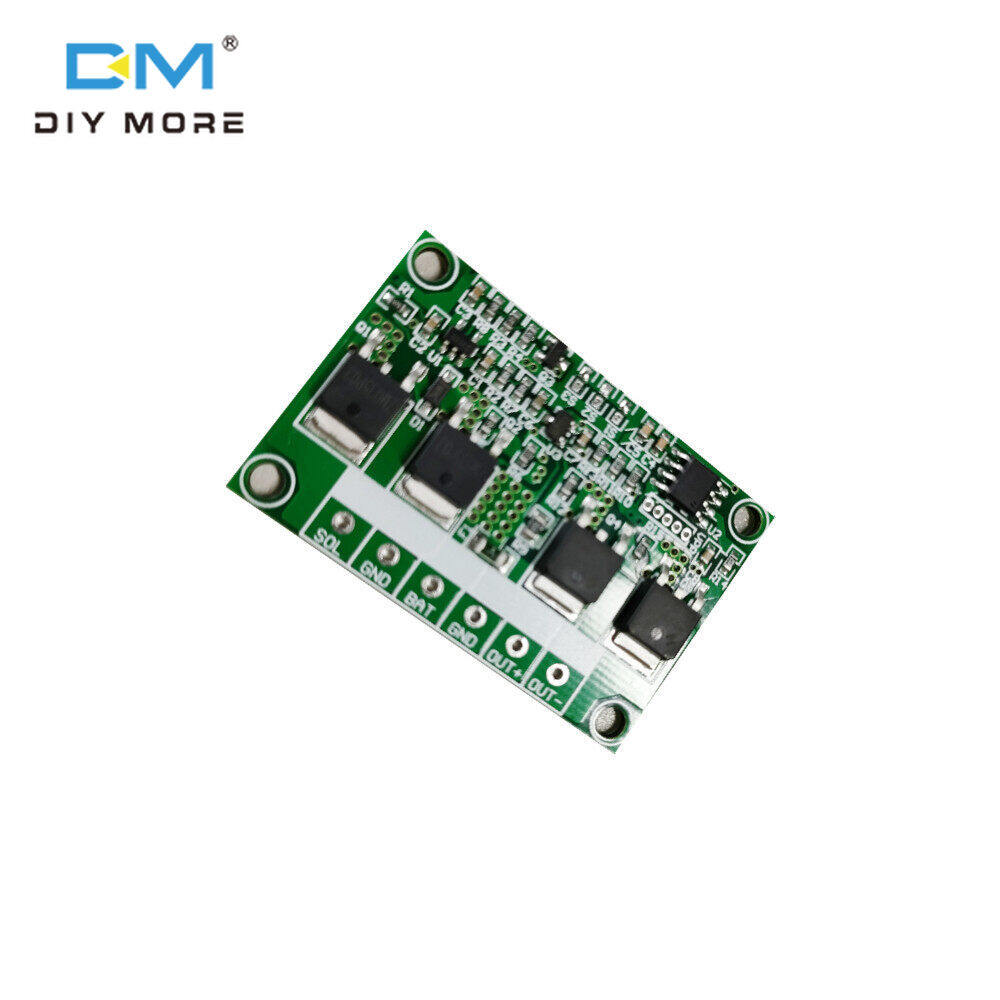

diymore Bảng Mạch Đèn Năng Lượng Mặt Trời Công Suất Cao 10A Bộ Điều Khiển Bảng Mạch Đèn Giao Thông Năng Lượng Mặt Trời Nhiều Điện Áp

Specification:

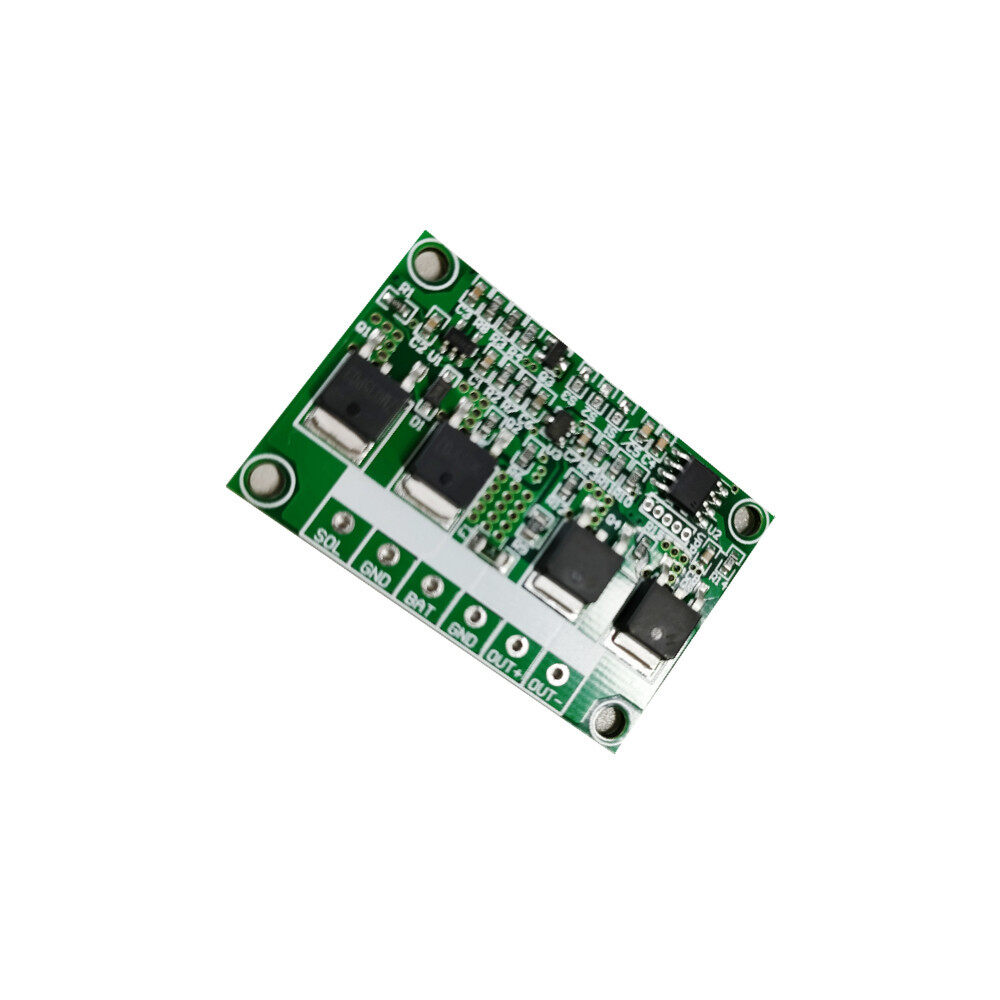

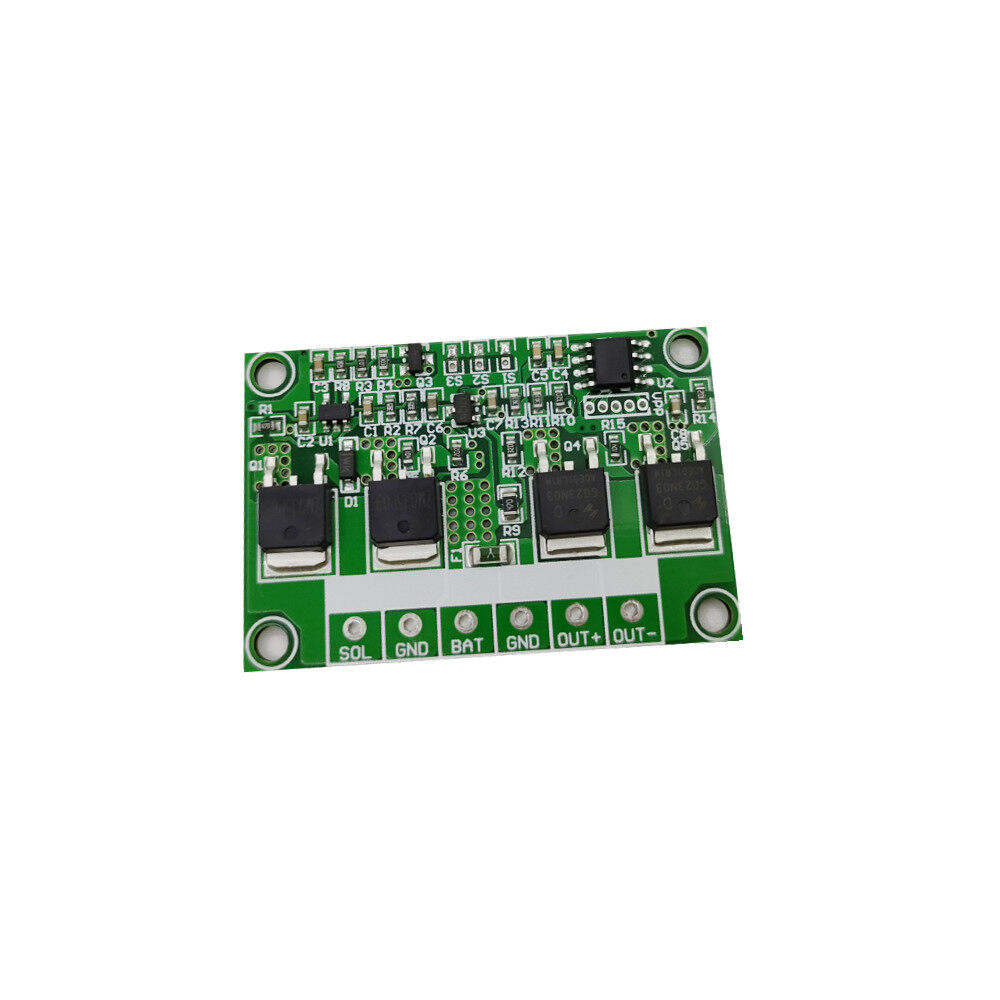

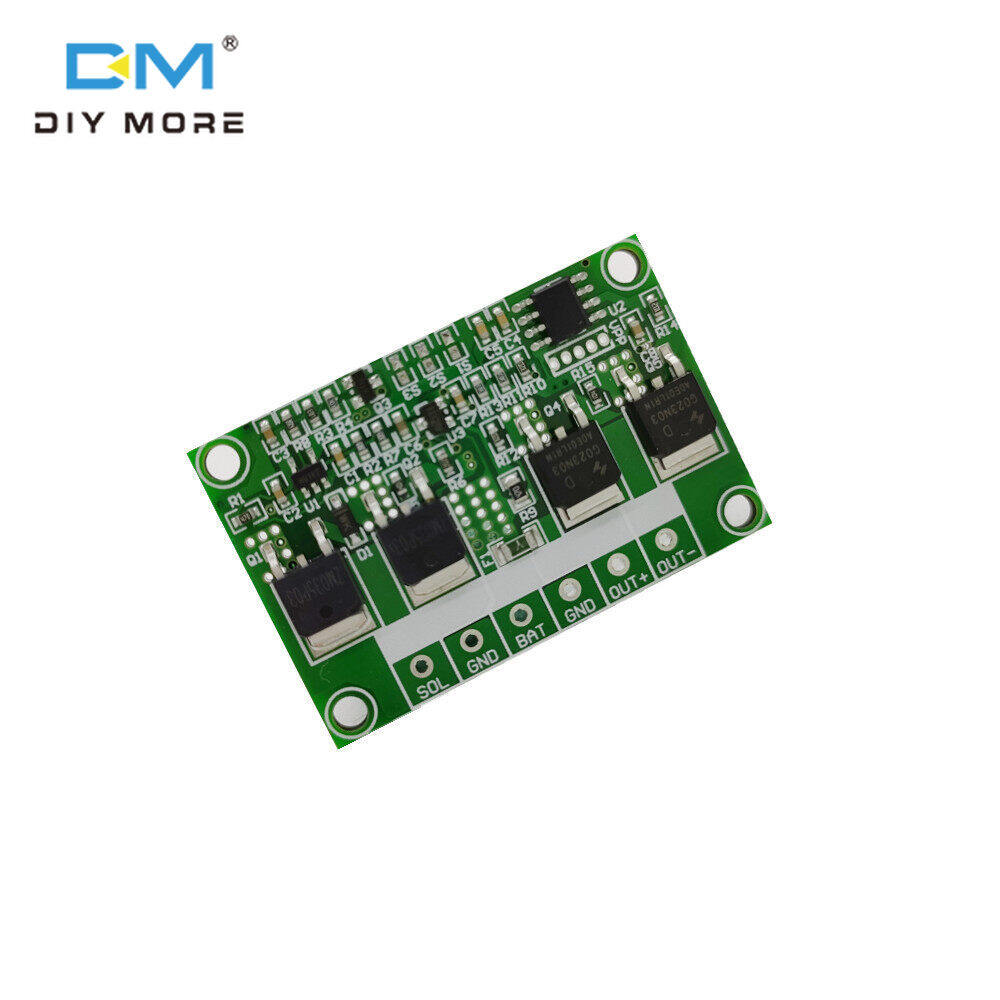

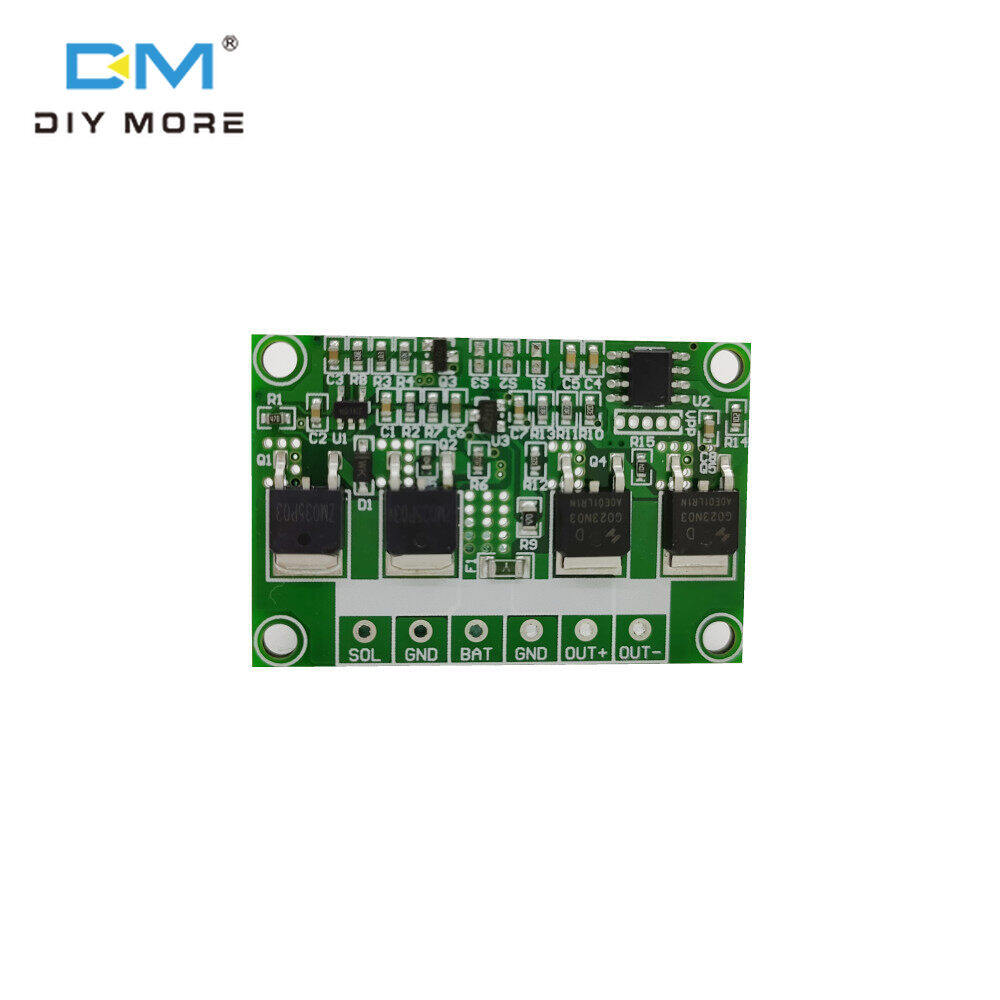

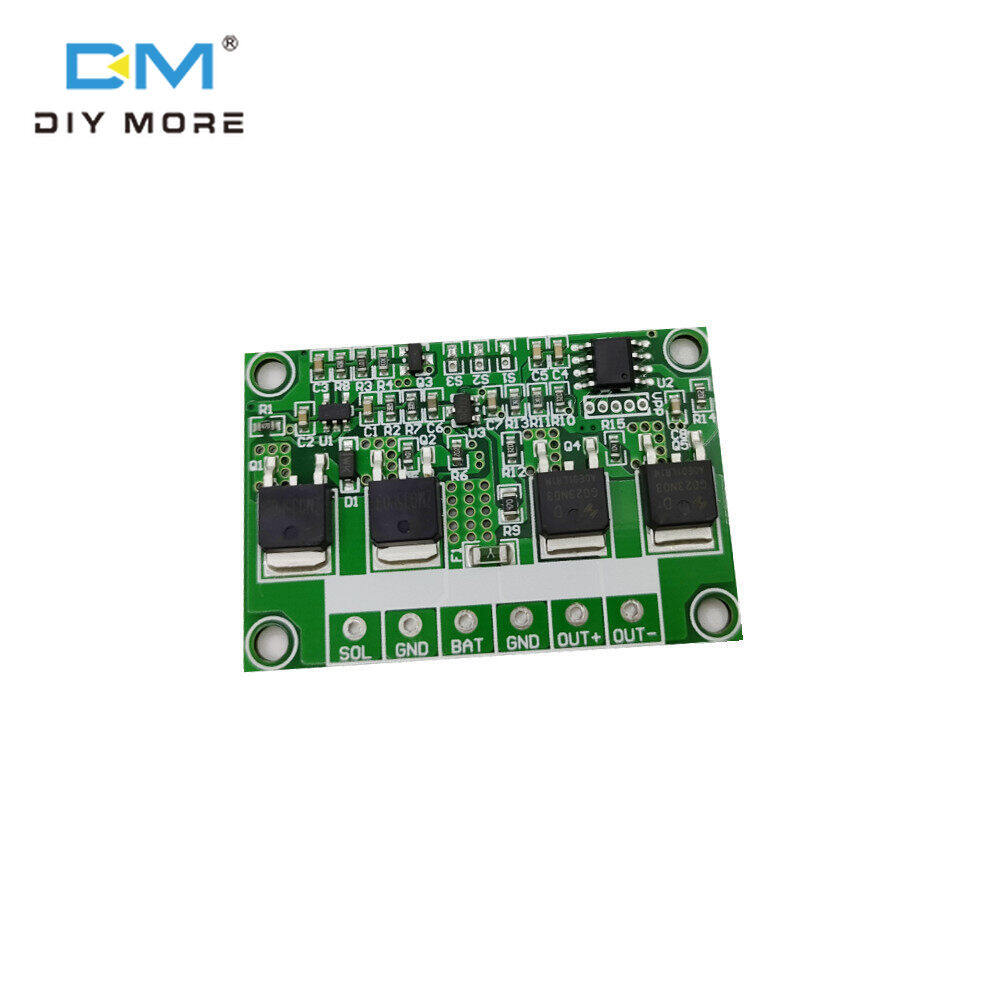

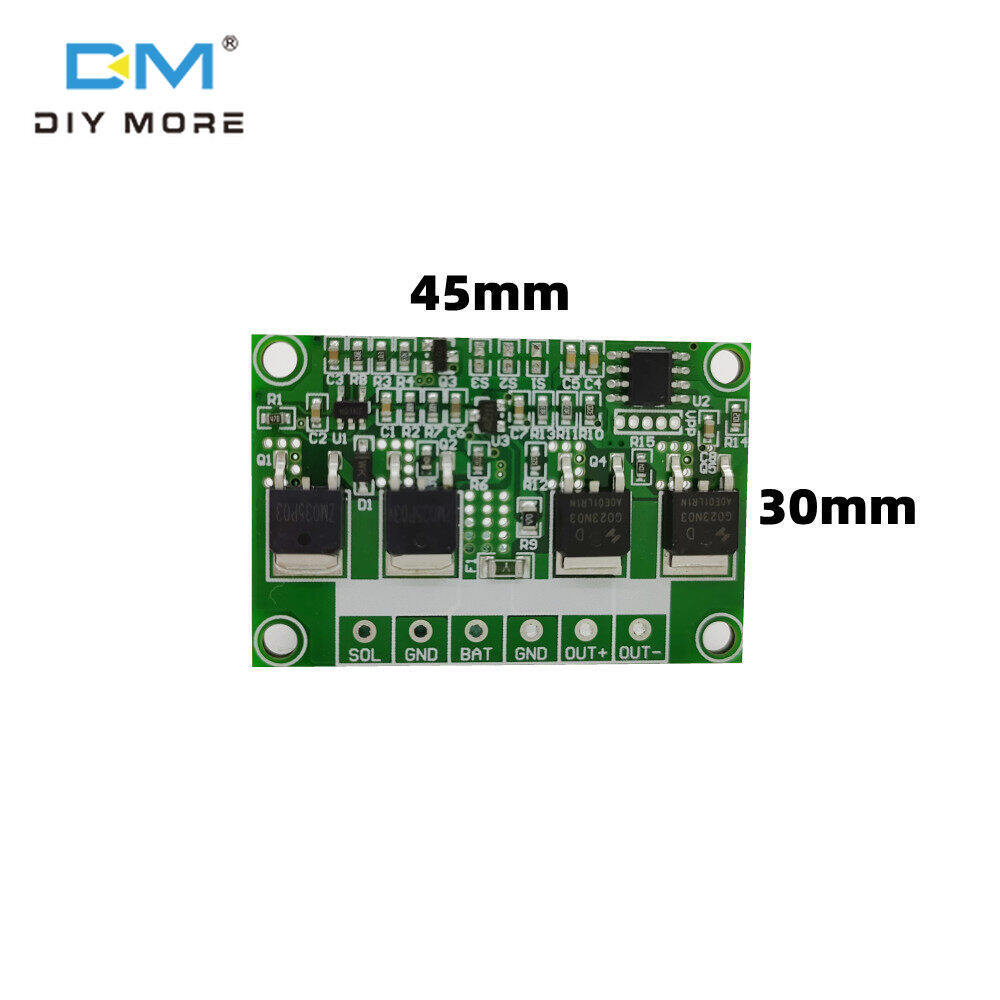

Circuit board size: 30mm*45mm.

How to set the lighting mode:

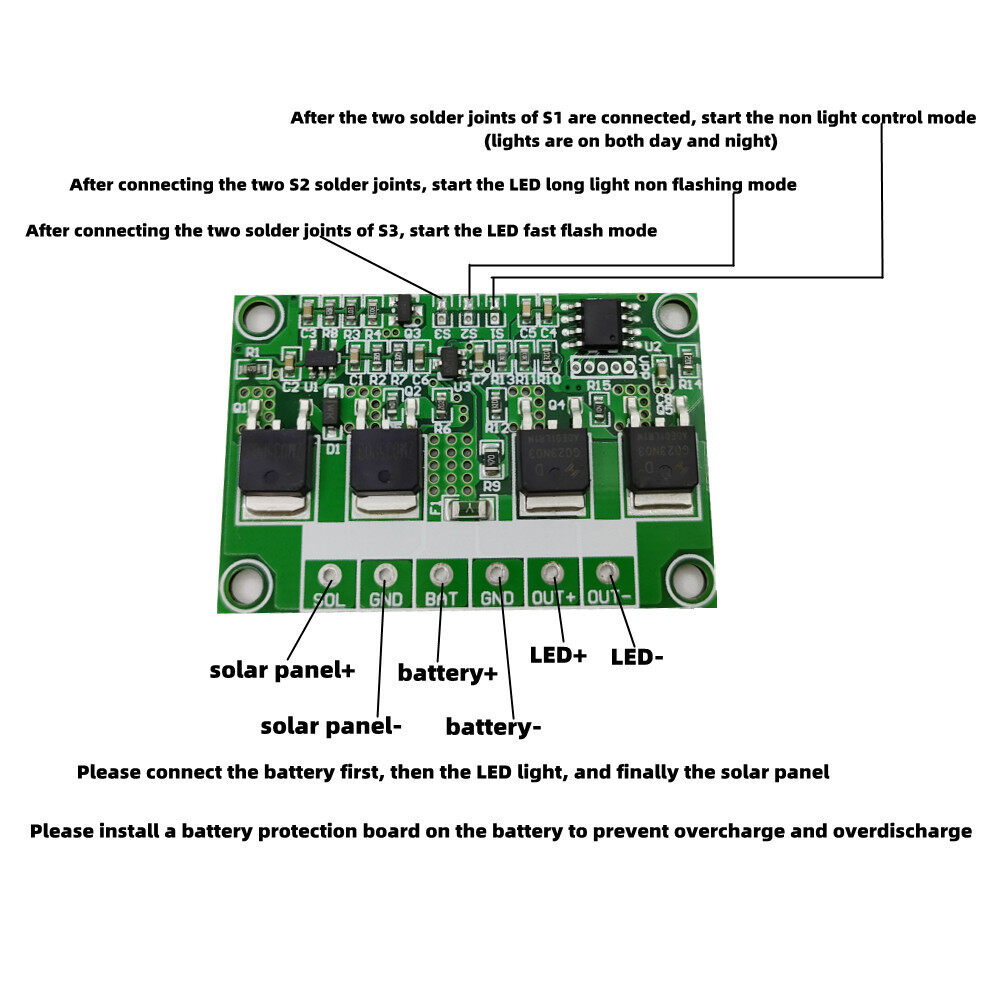

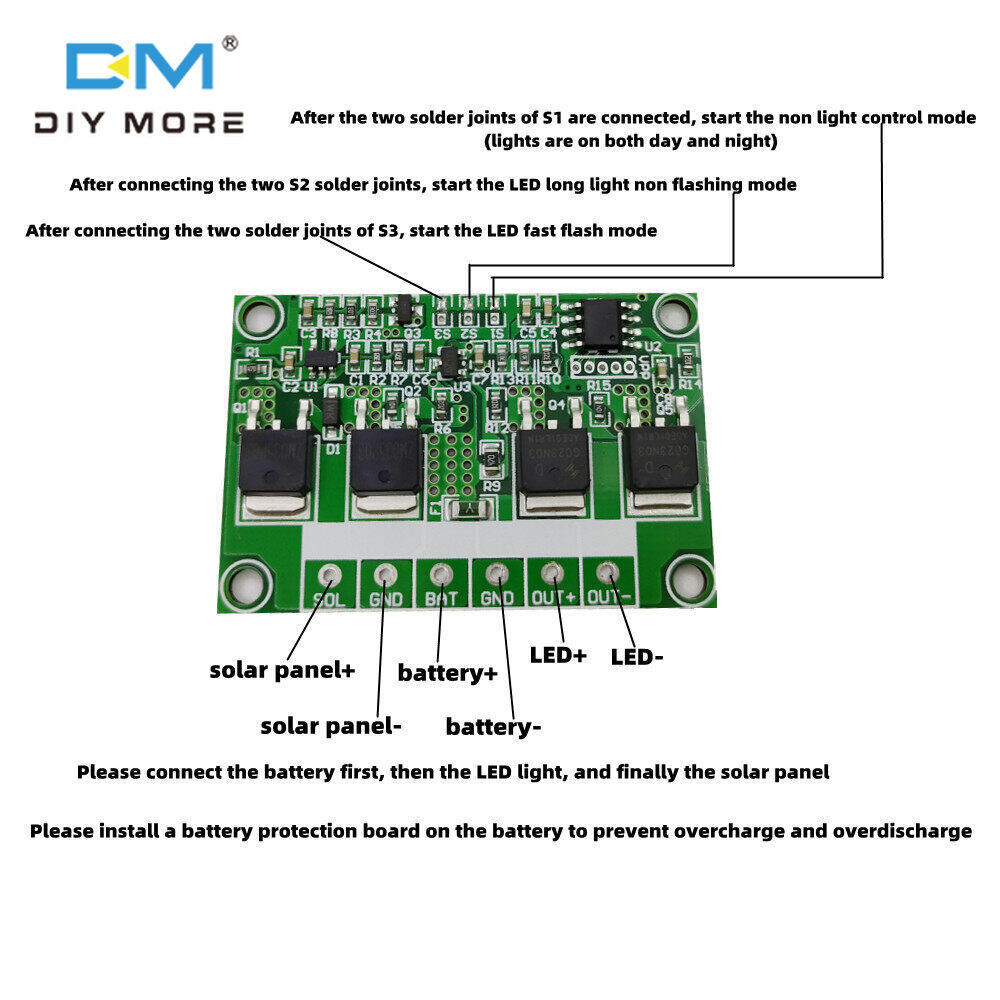

S2 and S3 on the circuit board are the lighting pattern setting points. The circuit board has 4 brightness patterns, which are flashing, steady on, and strobe. The specific setting methods are as follows:
1. Flickering: S2 S3 open circuit is flickering, the default is open circuit state, that is to say, the default is flickering; (blinking for 100 milliseconds, pause for 900 milliseconds) flashing about 60 times a minute
2. Always on: S2 is shorted and S3 is open to be always on. This mode can be used when continuous power supply is required;
3. Strobe: S2 open circuit S3 short circuit is strobe mode;
4. To flash: S2 short-circuit S3 short-circuit flashing mode: flash about 60 times a minute
(Blink for 500ms and pause for 500s)

Light control and non-light control settings:
1. The open circuit of S1 on the circuit board is in the light control state, that is, it is charged during the day, and the light is automatically turned on at night. The default S1 is the open circuit state.
2. After S1 on the circuit board is short-circuited, it is in a non-light control state, that is, charging during the day, and lights up during the day and night.

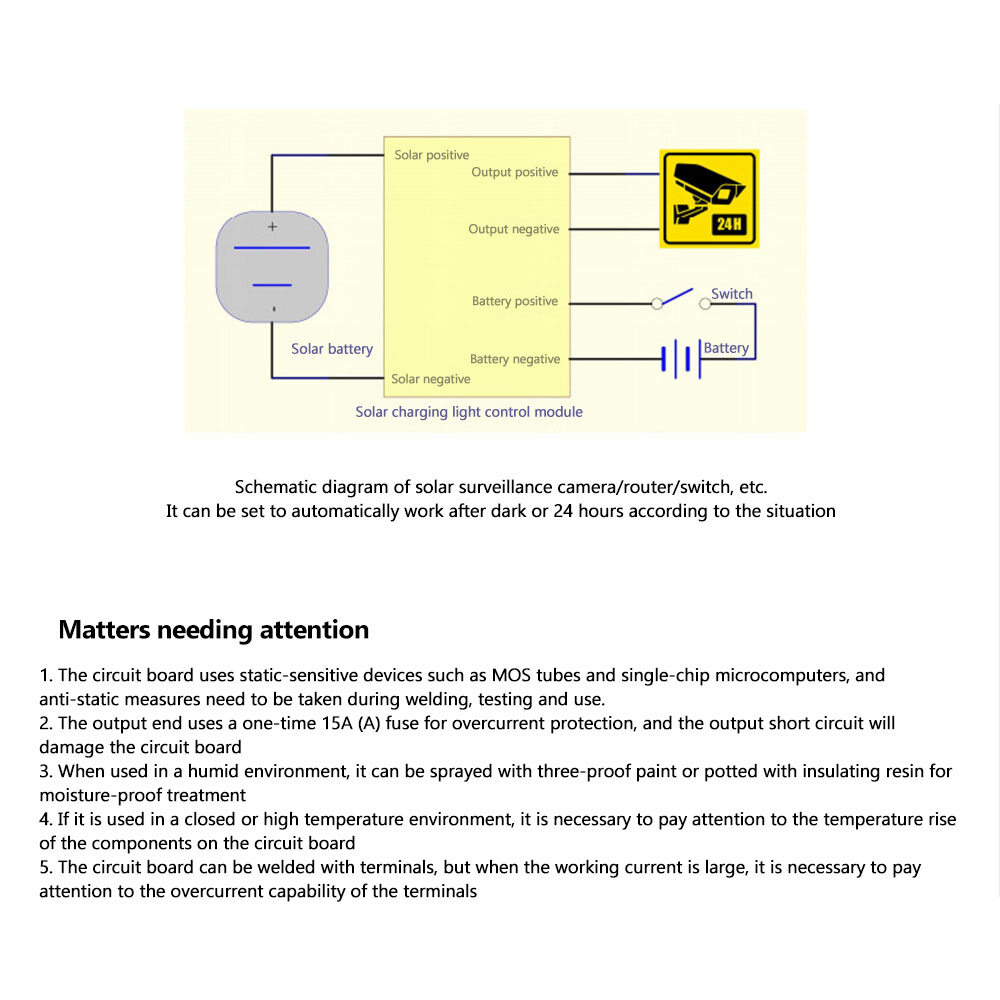

Principle of light control: The circuit board determines the light intensity by judging the voltage of the solar panel, so there is no need to connect an external photosensitive sensor when using the light control function.


Package includes:
1*Solar control panel、
