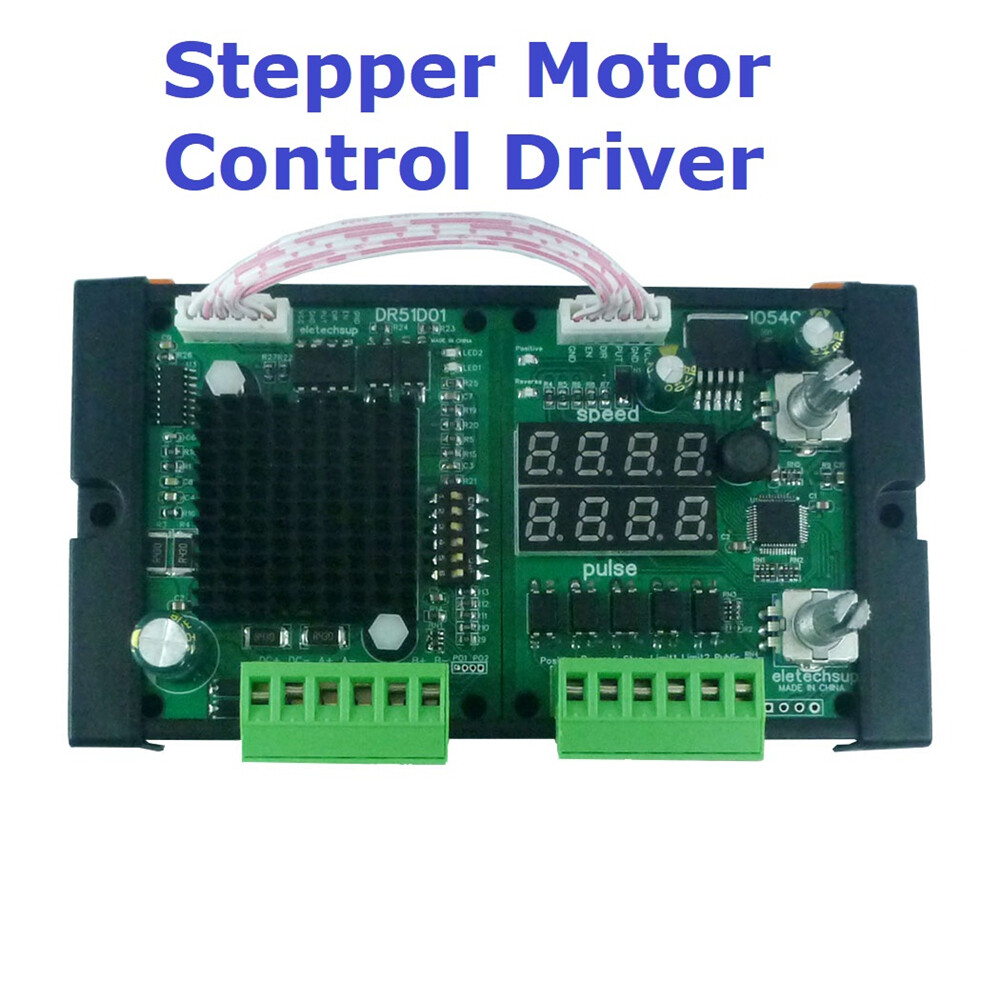

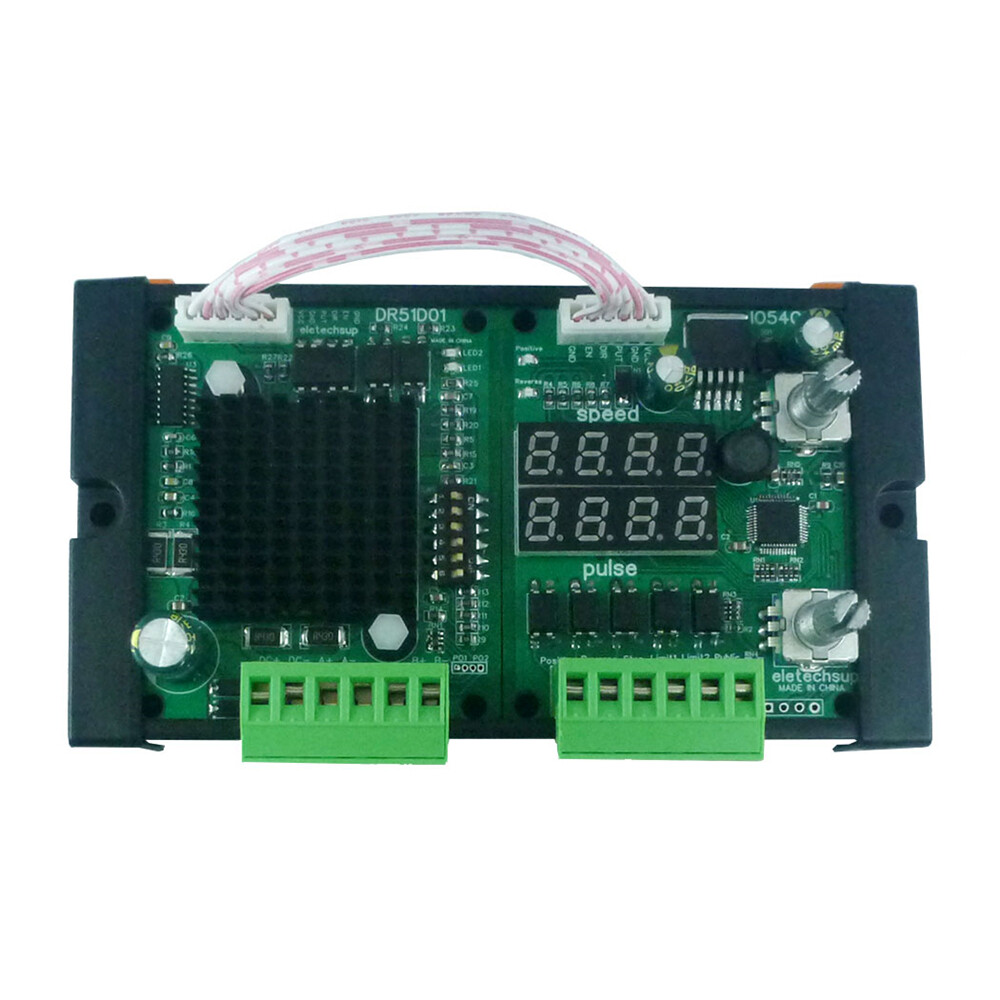

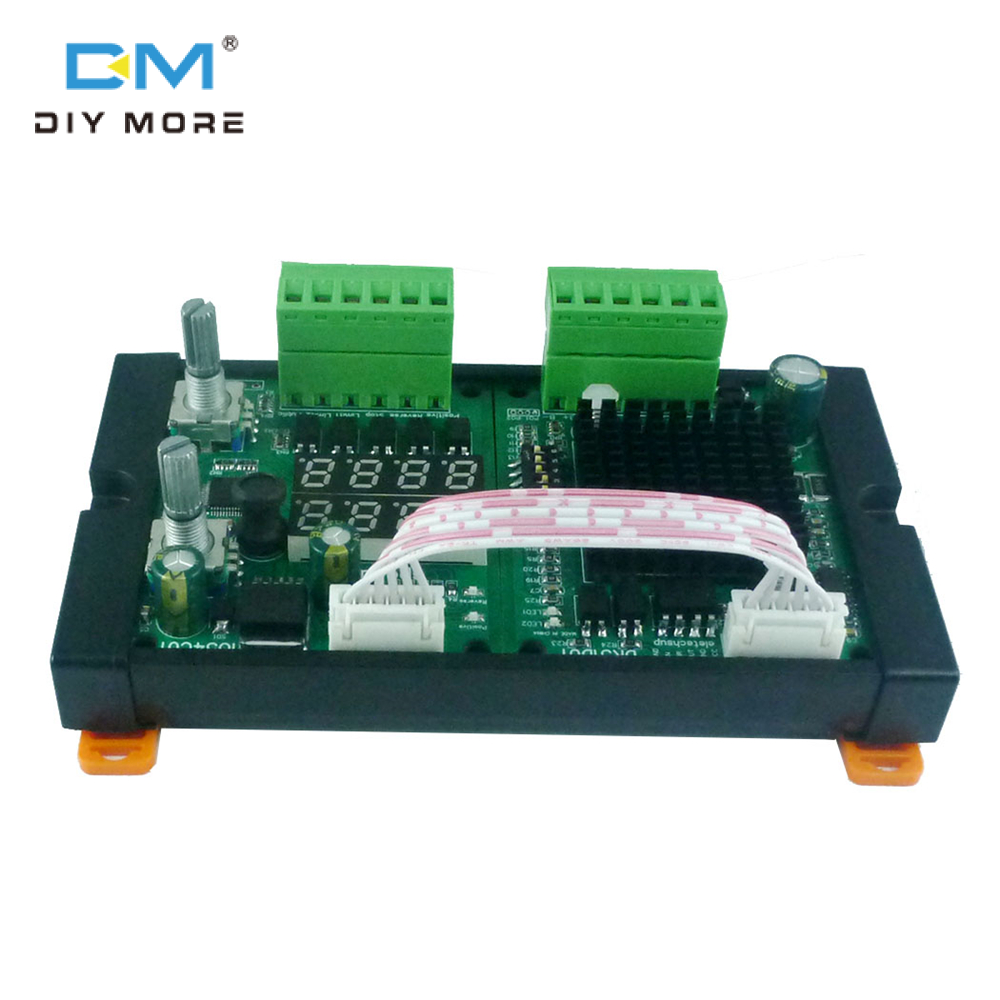

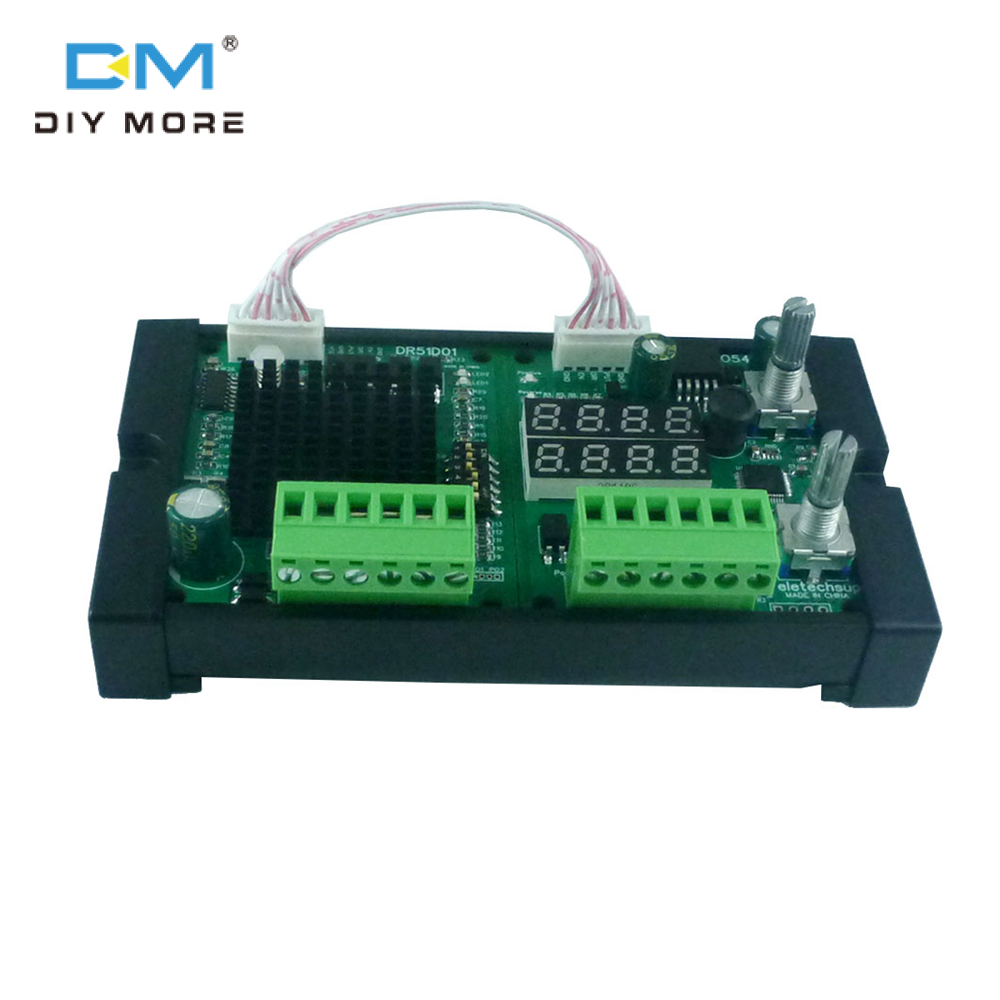

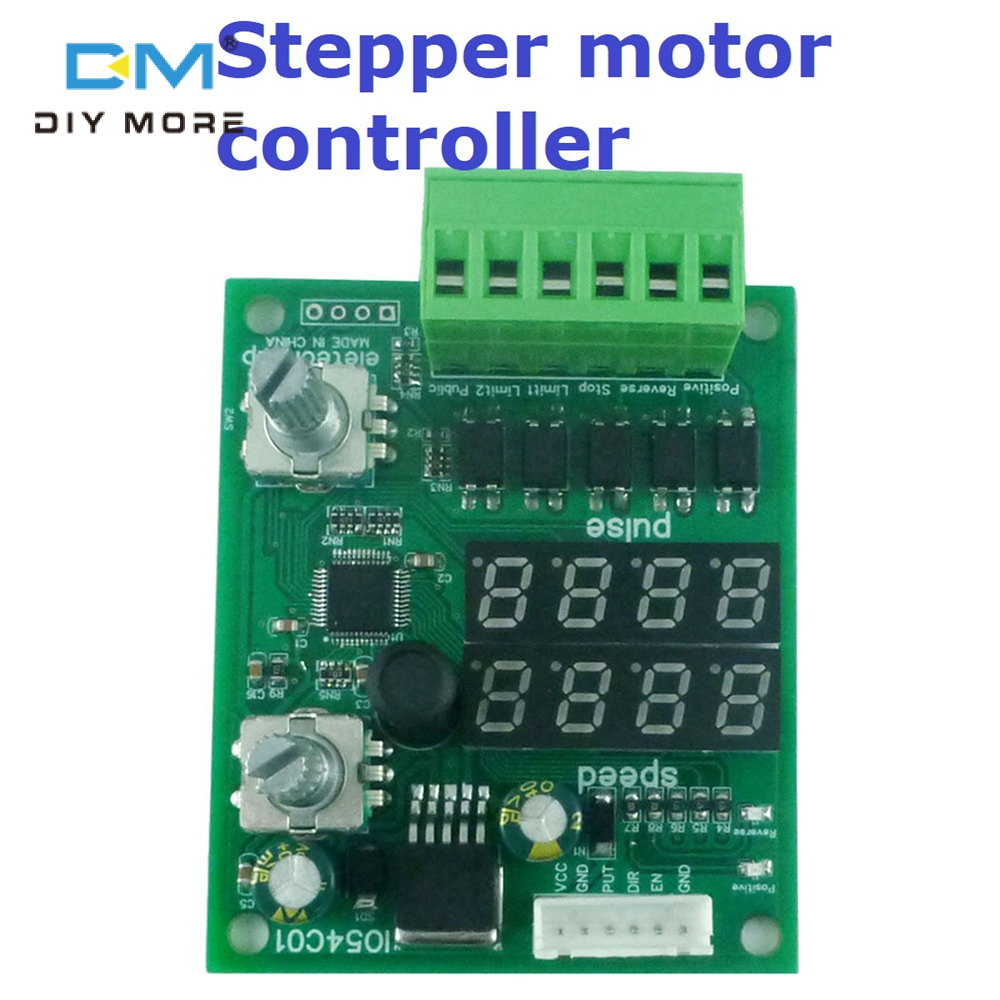

diymore Bộ Điều Khiển Động Cơ Bước 0-3A 42 57 86 Mô-đun Truyền Động Tốc Độ Xung PWM Góc Giới Hạn

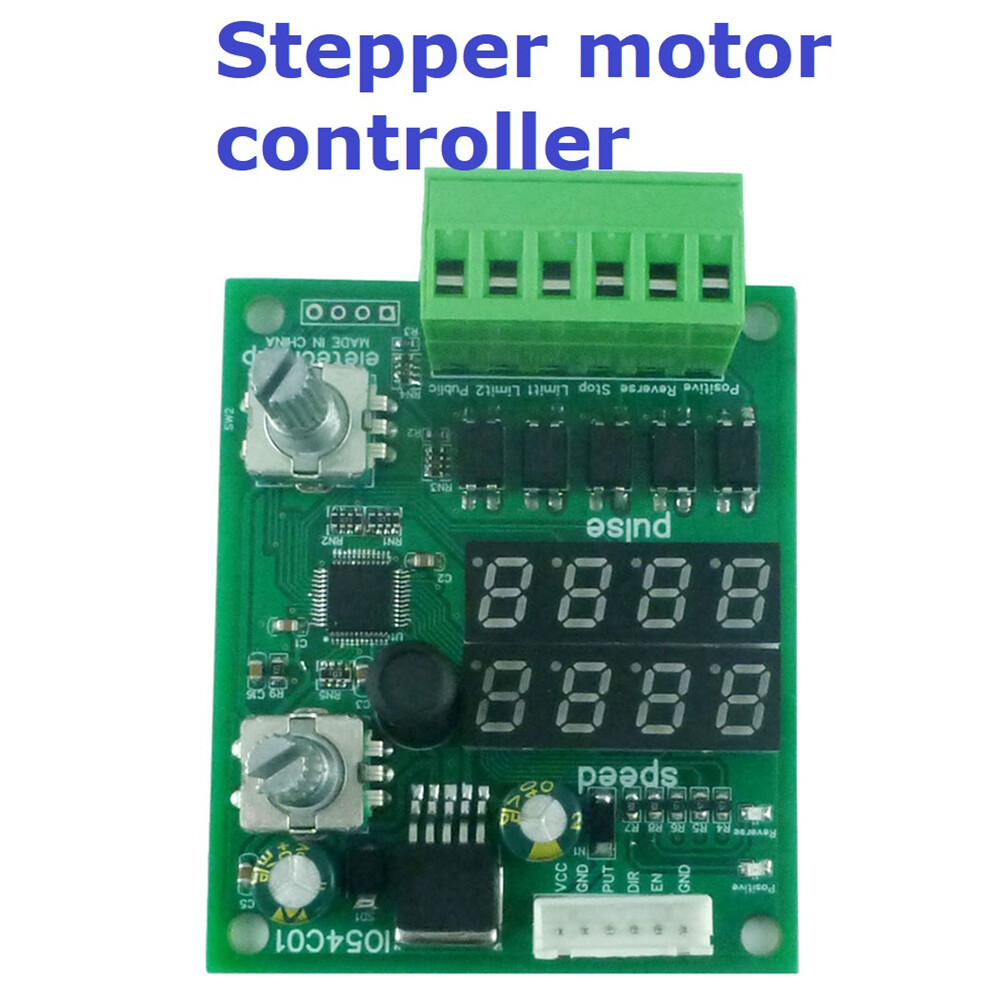

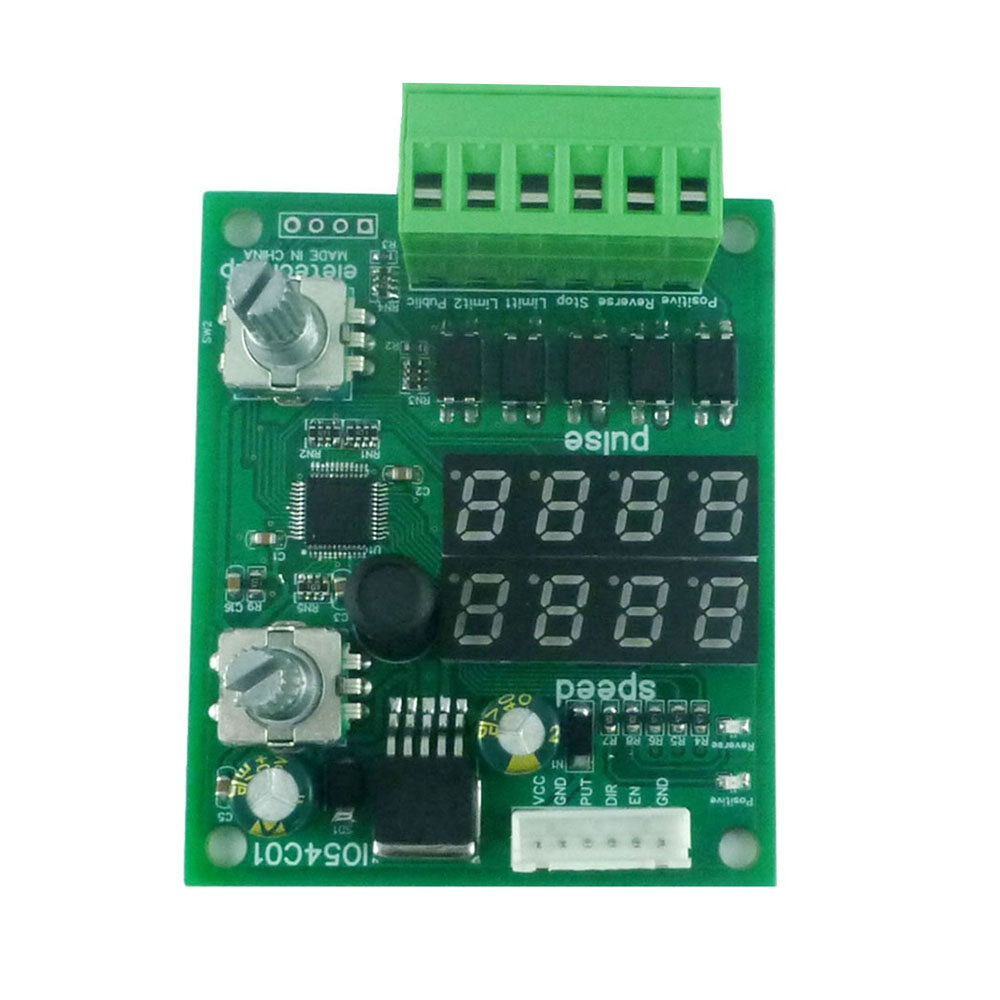

Function: There are 9 common functions by default, which can realize stepper motor jog, self-locking, limit, angle, pulse, speed, reciprocating cycle, delay control, etc. (see function description for details)

NOTE: Please use the power switch to power the drive. Power (voltage * current) is too small, it will affect the torque of the motor. Recommend 24V5A or 12V10A universal switching power supply

★Short press the No. 1 potentiometer to enter the function selection mode, after selecting the function, wait for three seconds to automatically save
In the function setting mode, turn the No. 2 potentiometer to adjust the intermittent time value of the motor forward and reverse rotation
After setting the function mode, turn the potentiometer ① to adjust the motor speed.
★Turn the No. 2 potentiometer to adjust the number of pulses: for example, in the case of 8 subdivisions, 1600 pulses are one circle, press one
The lower corner adjustment potentiometer decimal point 160.0 represents 16000 pulses, that is, 10 turns.

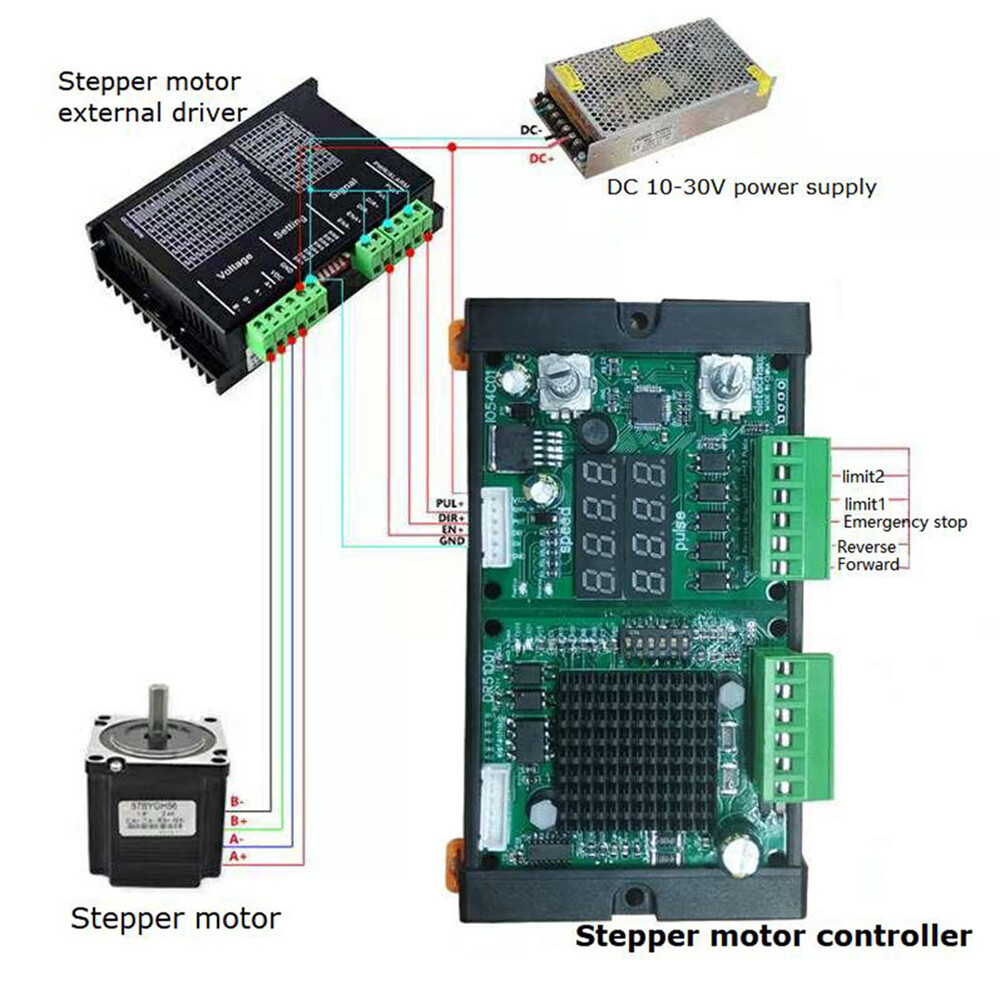

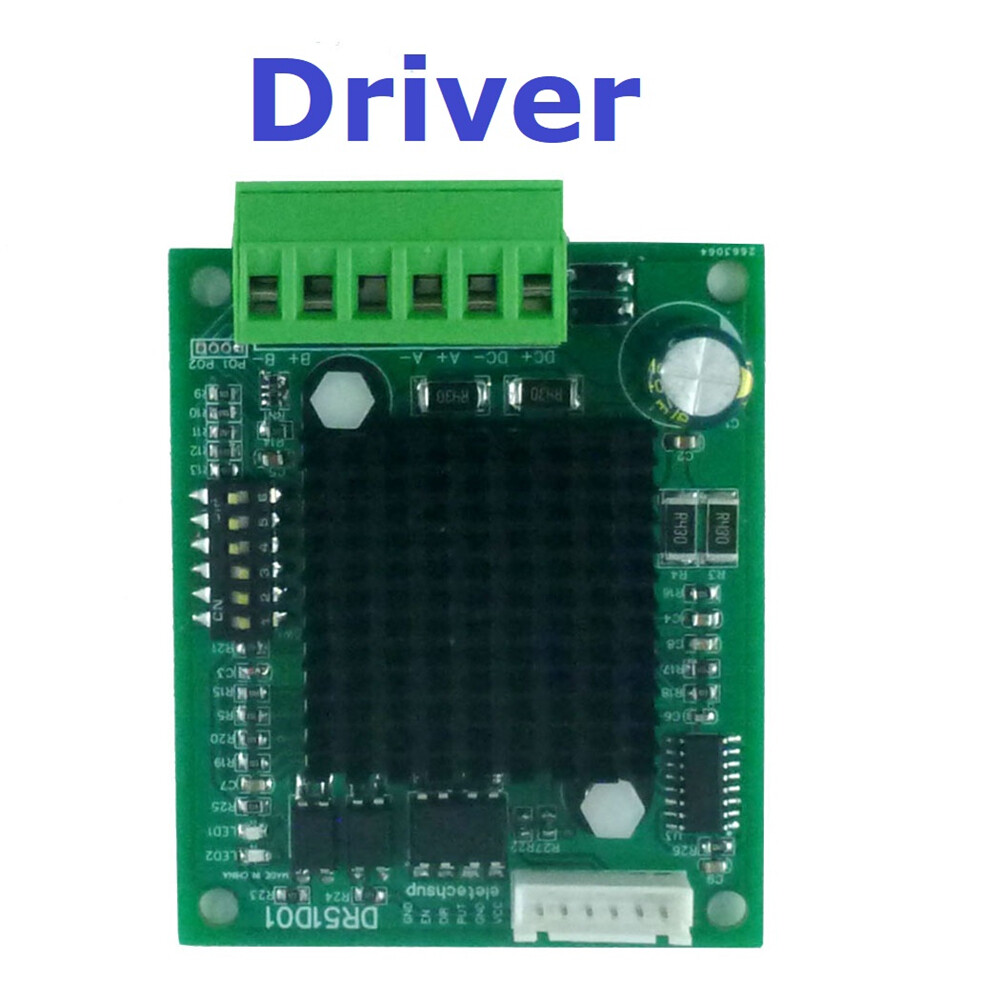

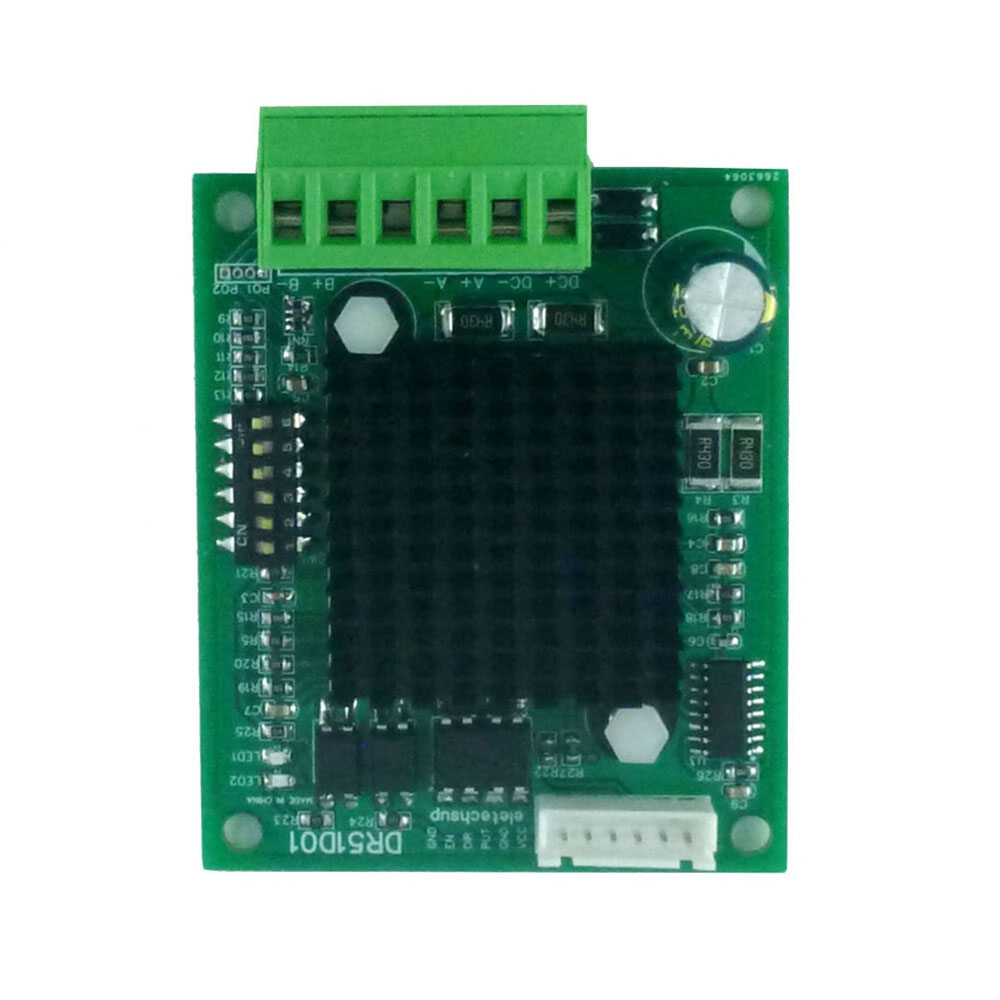

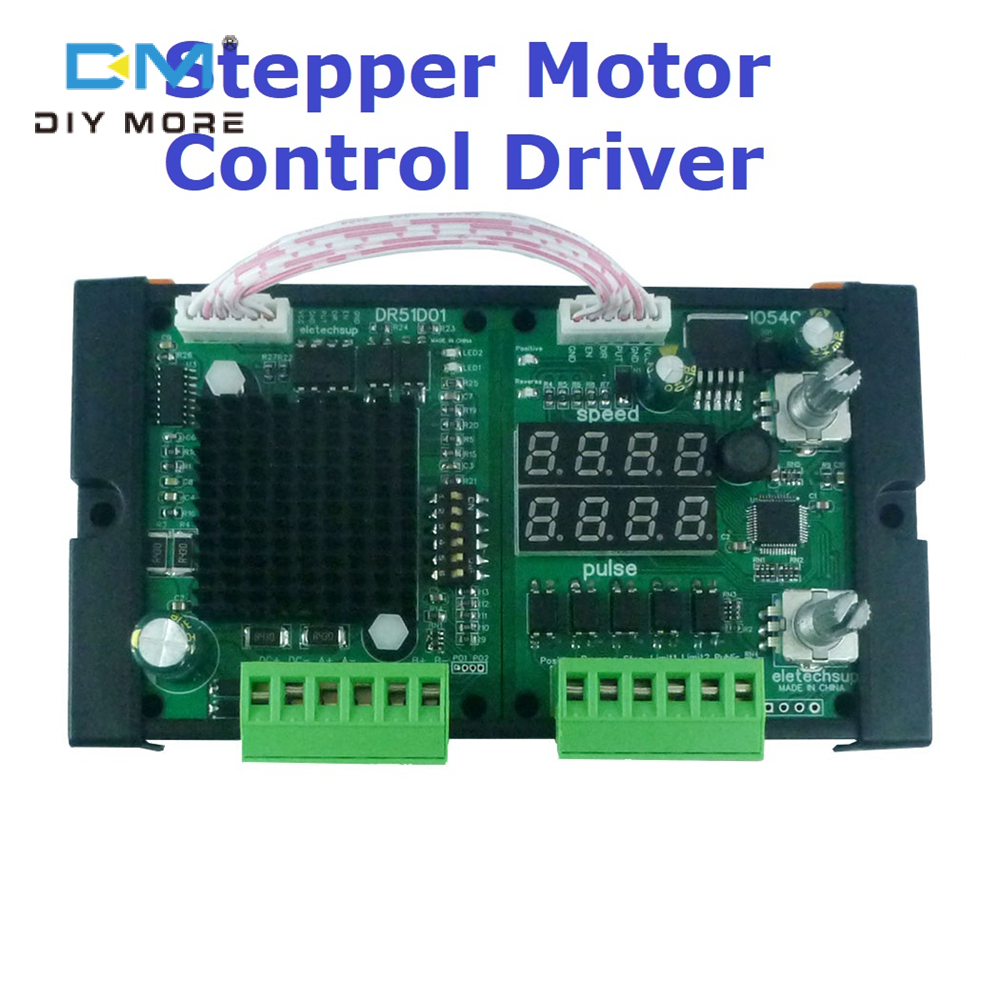

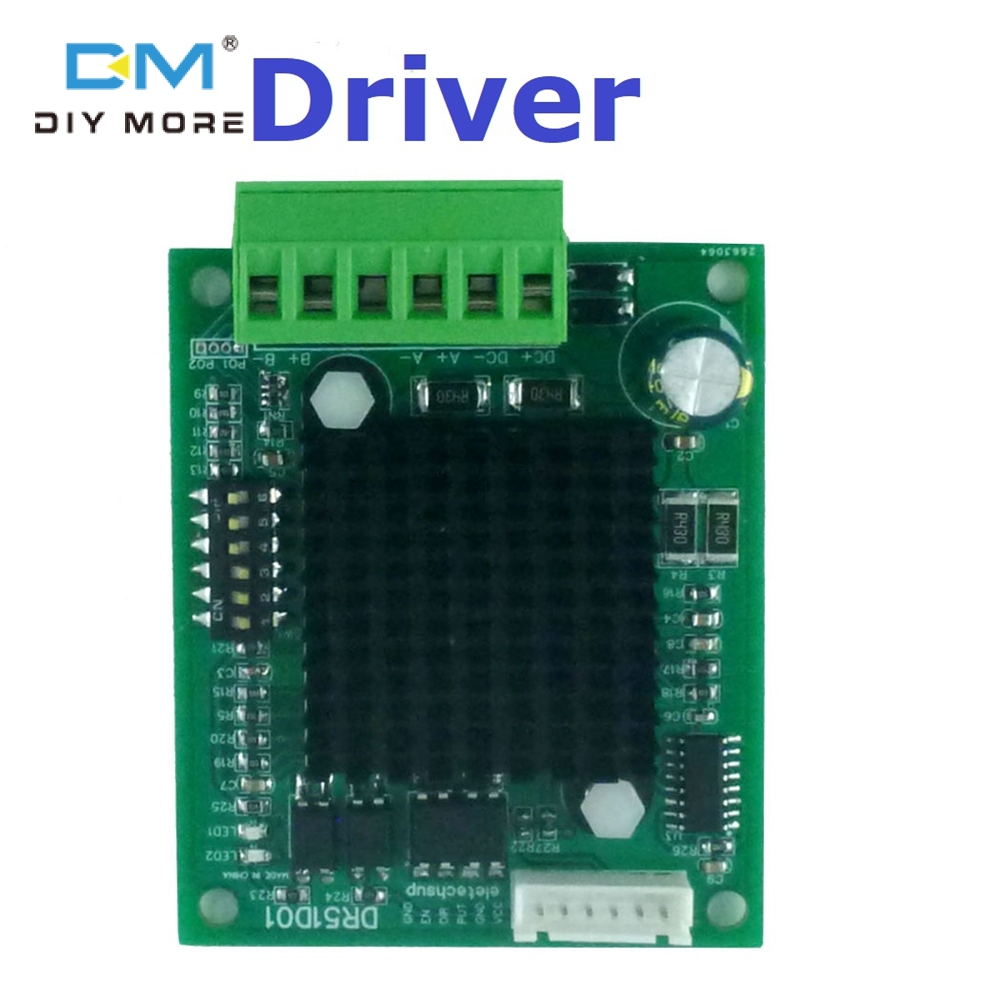

External drive link mode:

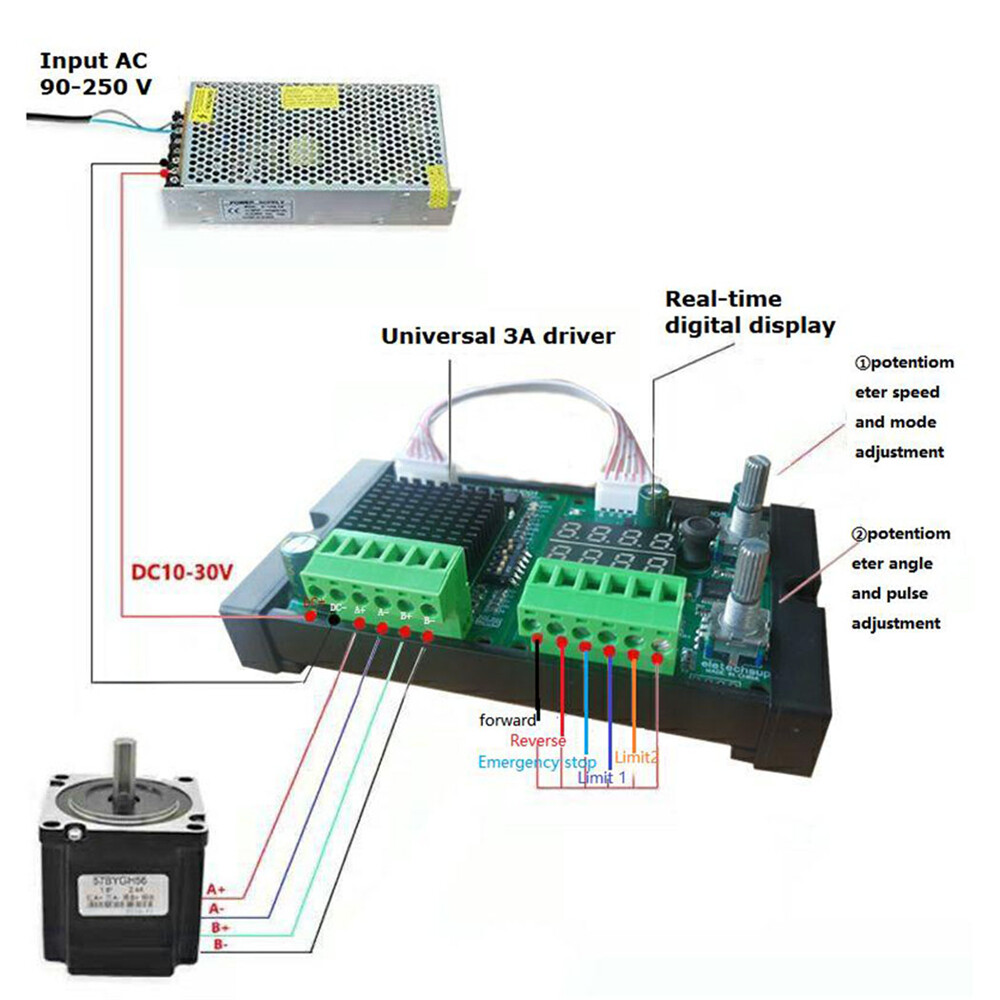

Controller EN Connect Drive EN +
Controller DIR connection drive DR +
Controller PUL Connection Drive PUL +
Controller GND drives DIR- and EN- and PUL- to their negative poles

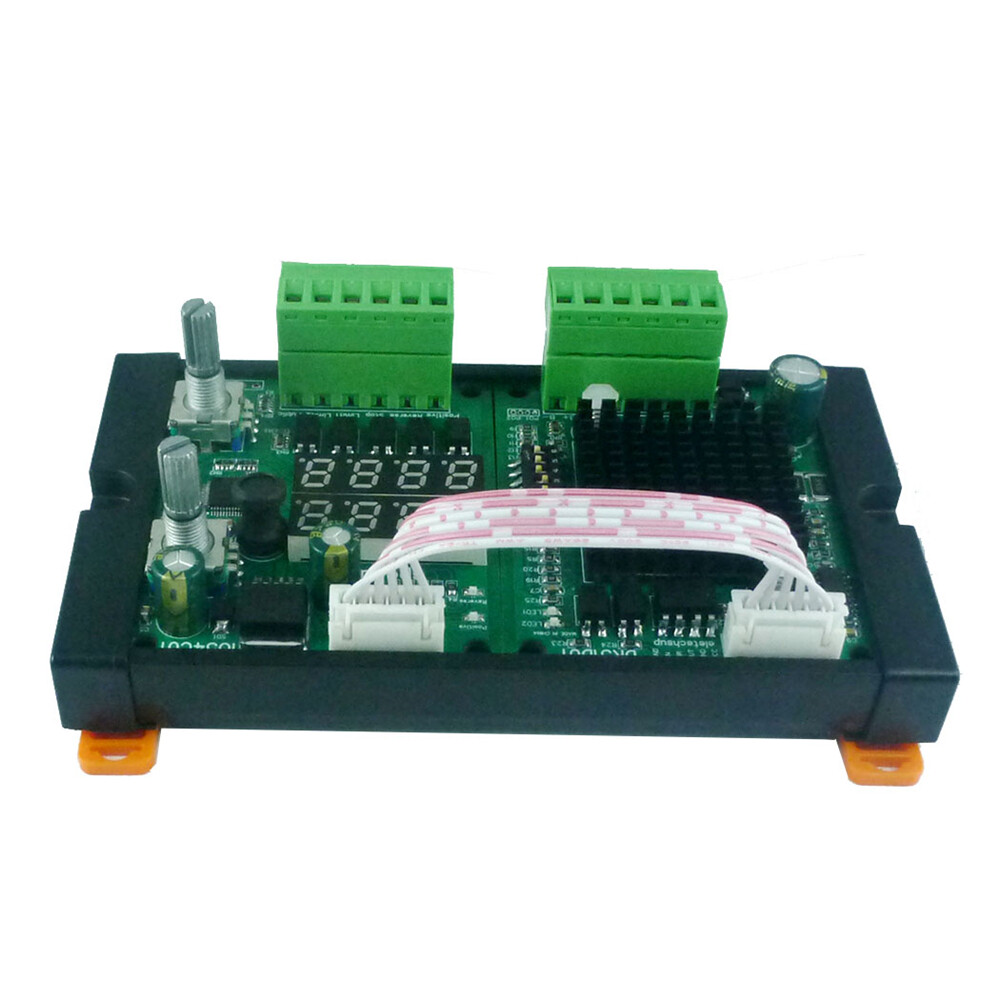

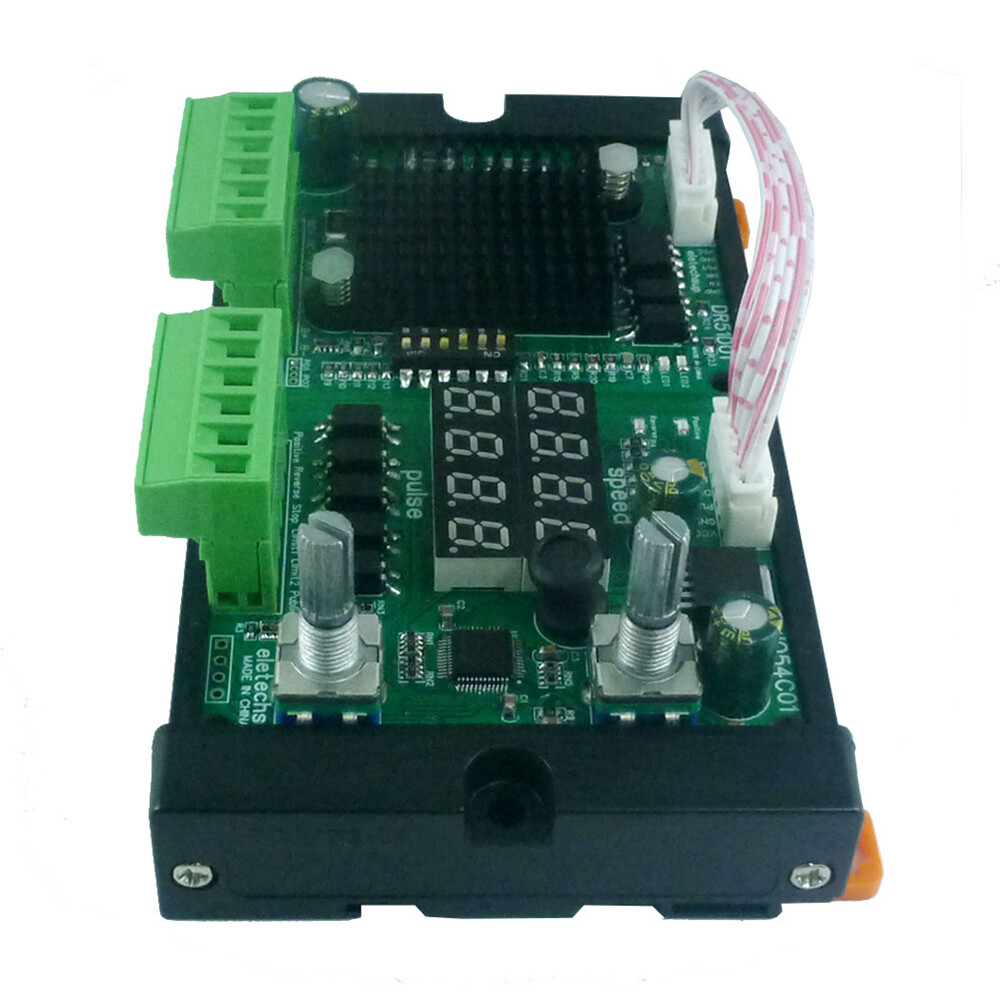

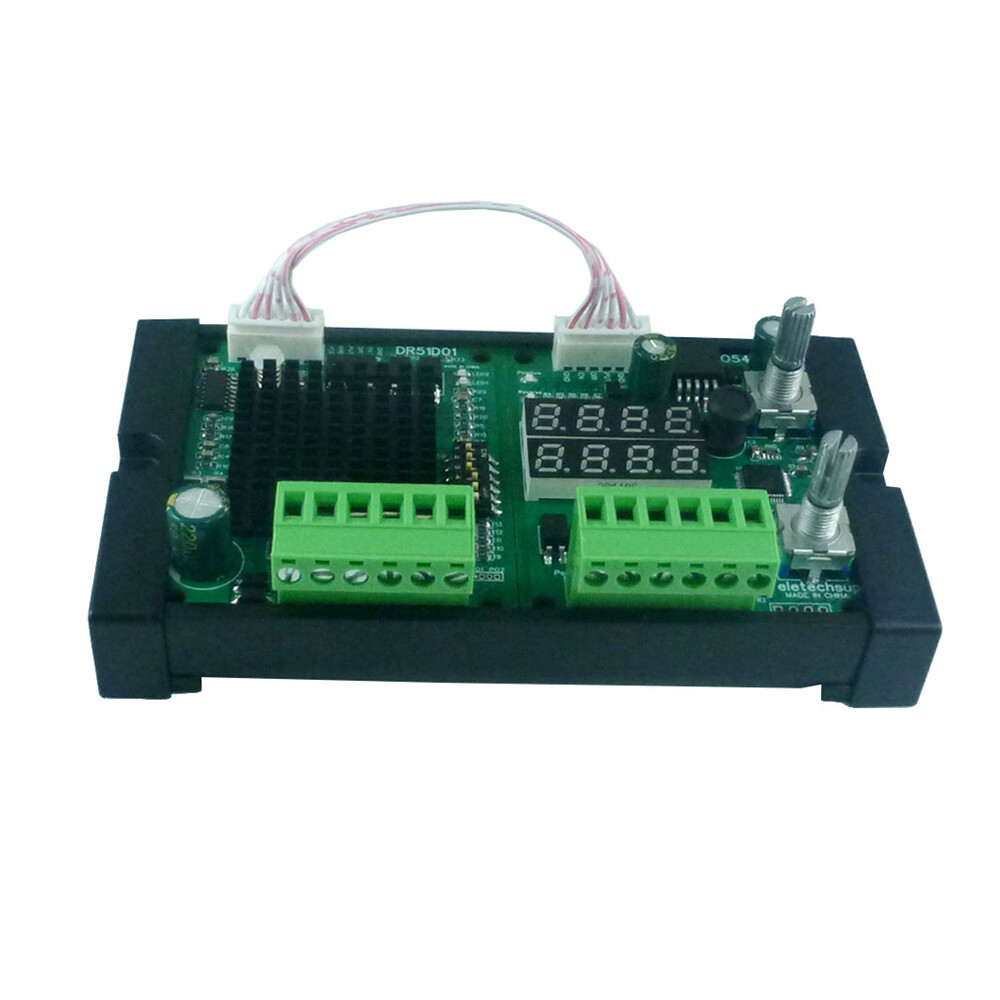

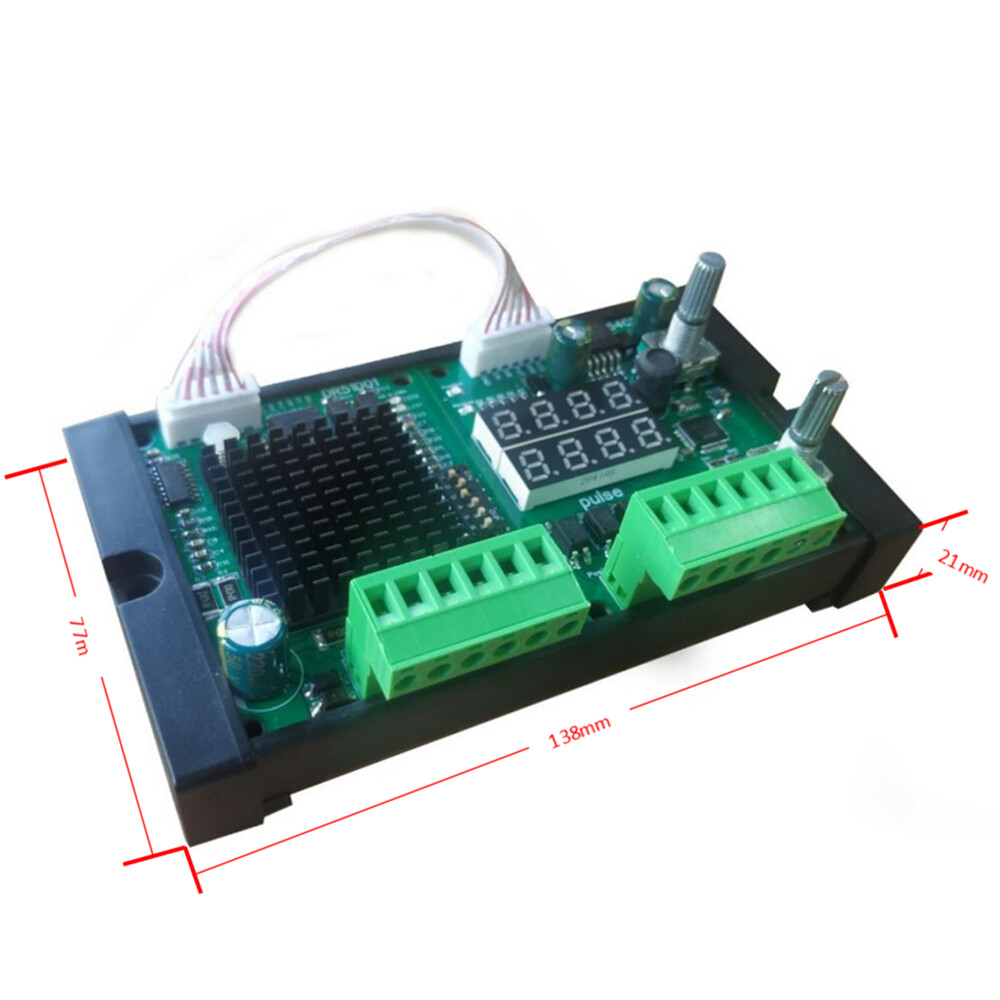

Package includes:
1*control board only/drive module only/drive control board shell combination optional
