Đồng Hồ Đo Điện Áp Dòng Điện Xoay Chiều Kỹ Thuật Số 80V-260V 220V 20A 100A Vôn Kế Năng Lượng Hiển Thị Kỹ Thuật Số LCD Ampe Kế Đồng Hồ Đo Vôn Ampe Kế Dòng Điện Watt

Digital AC Current Voltage Meter 80V-260V 220V 20A 100A LCD Digital Display Energy Voltmeter Ammeter Watt Current Amps Volt Meter Monitor

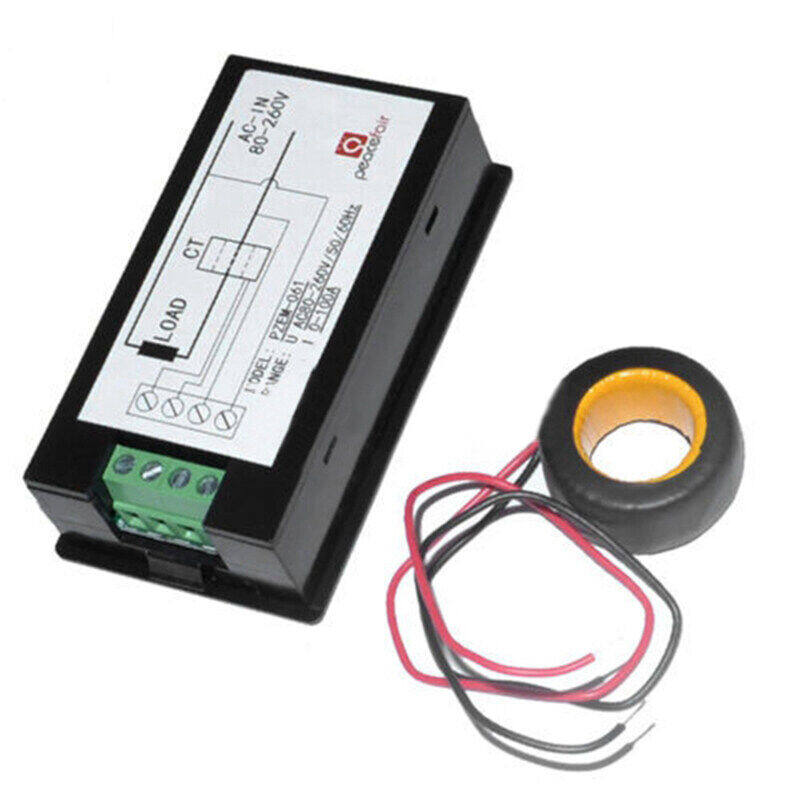

• Note: AC 100A comes with a CT Coil, There is no coil for AC 20A.

Description

Active power is calculated as: P = U  I  cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U  I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U  I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.

Specification

Size: 90x50x25mm

Apply to power grid voltage range 110V-220V

Working voltage: 80 ~ 260VAC

Test voltage: 80 ~ 260VAC

Rated power: 100A / 22000W

Working Frequency: 45-65Hz

Measurement accuracy  1.0

Feature

network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.

A. Function

1. electrical parameter measurement function (voltage, current, active power, power).

2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).

3. The power alarm threshold preset function (can set up their own power alarm threshold).

The power button clear function.

5. Power-down data storage function.

6. Large-screen LCD screen full display function (display voltage, current, active power, power).

7. Backlight.

B. display and key

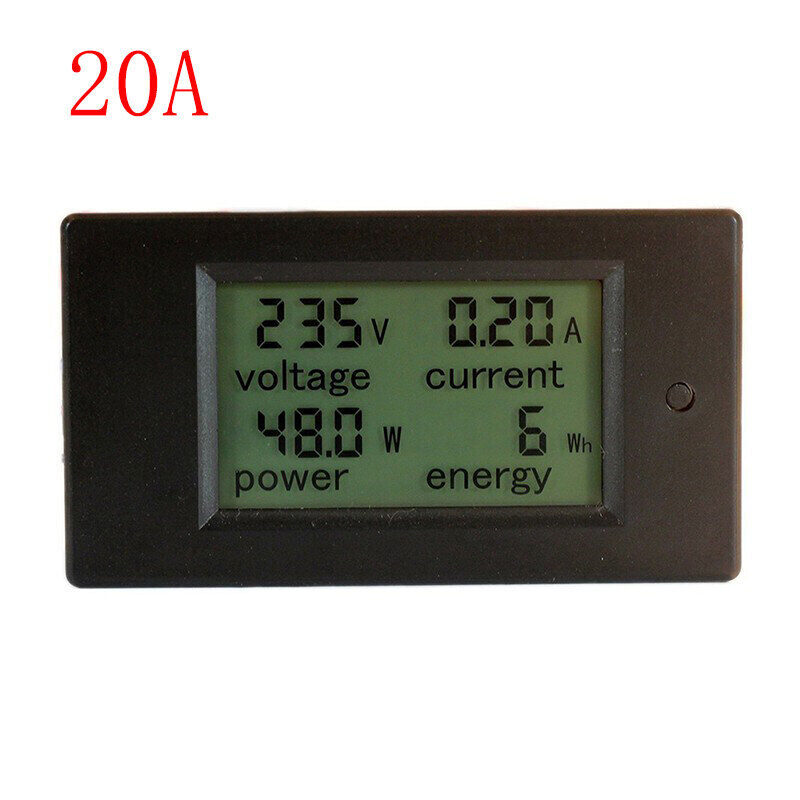

Display Interface

Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

Description

Active power is calculated as: P = U  I  cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U  I; test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.) when, P Less than U  I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.

Specification

Size: 90x50x25mm

Apply to power grid voltage range 110V-220V

Working voltage: 80 ~ 260VAC

Test voltage: 80 ~ 260VAC

Rated power: 100A / 22000W

Working Frequency: 45-65Hz

Measurement accuracy: 1.0
