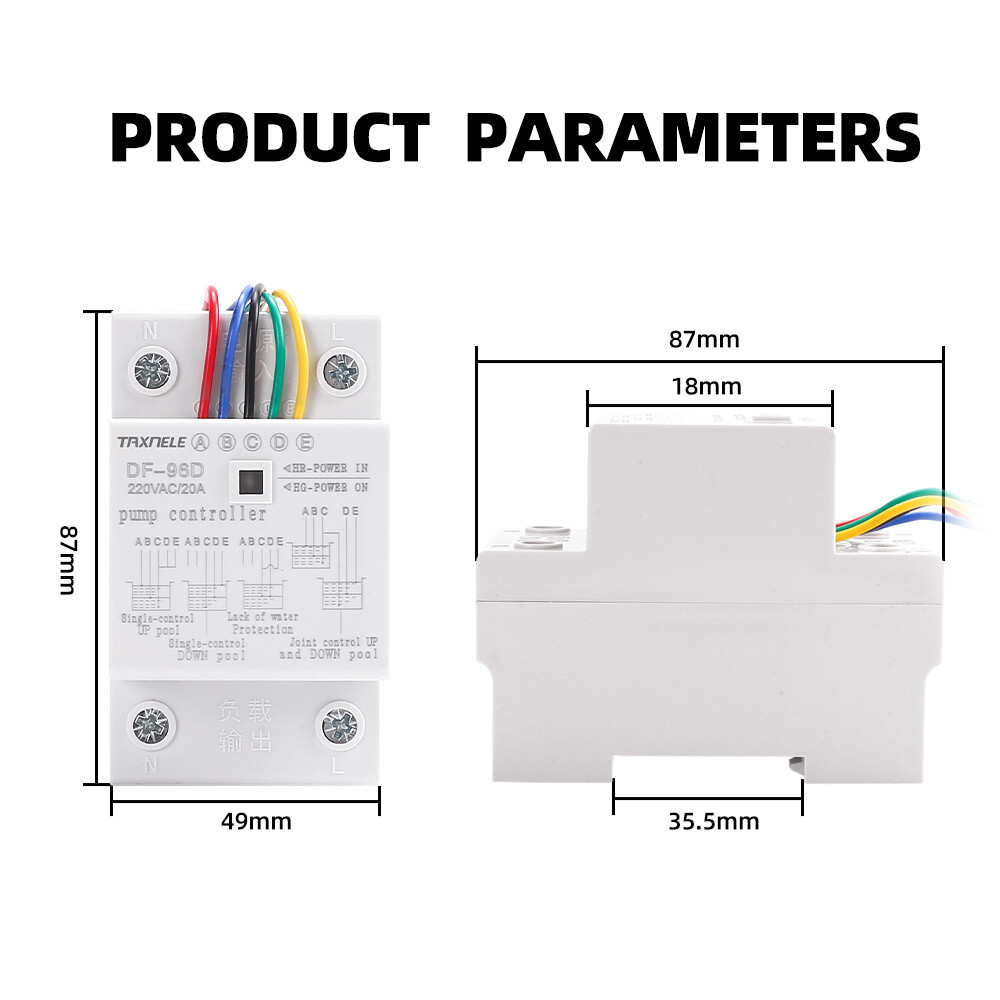

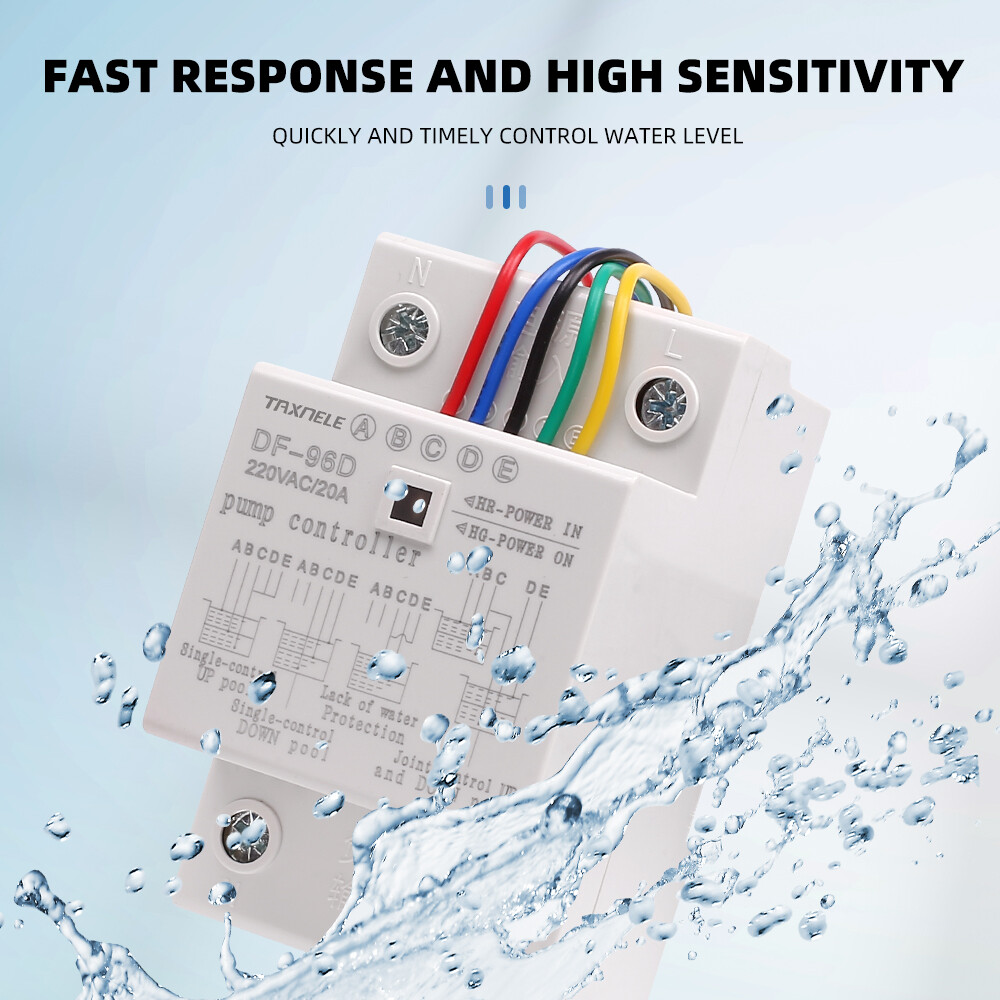

1.Parameter
Features:

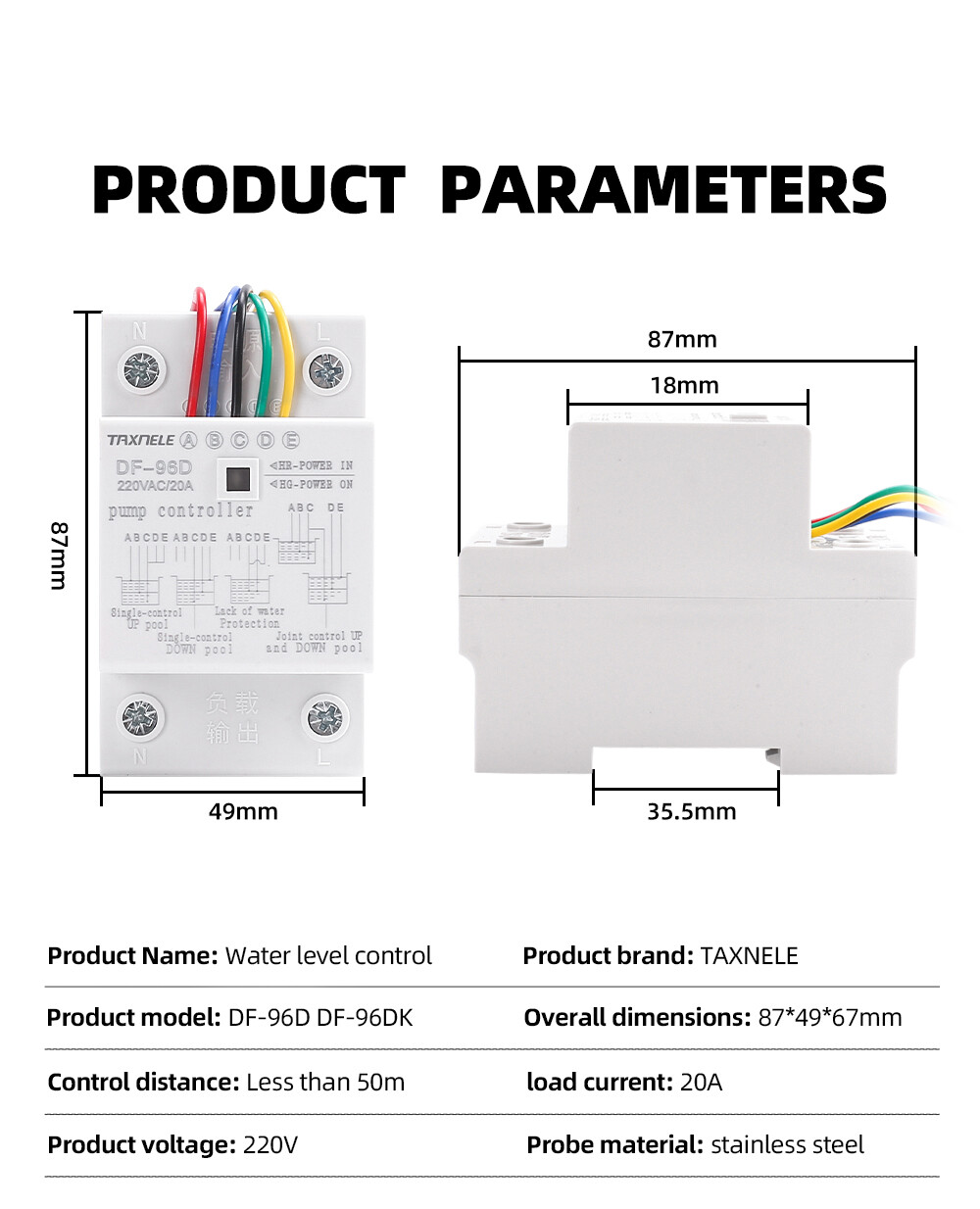

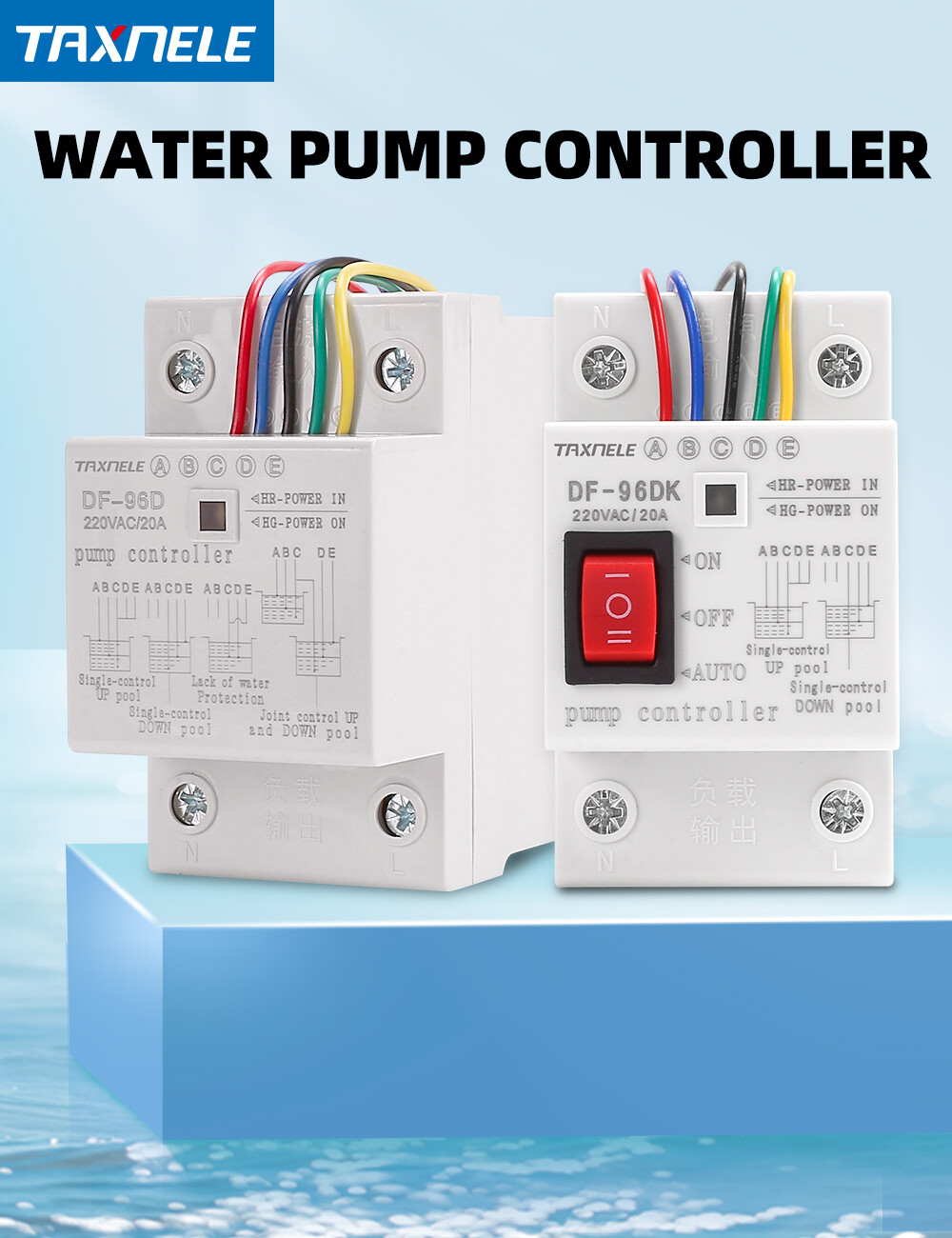

Specification Type: DF-96D/DF-96DK
Updated version Working voltage : AC 220V, 50HZ/60HZ
Max Current : 20A(Use the 30A Delay)

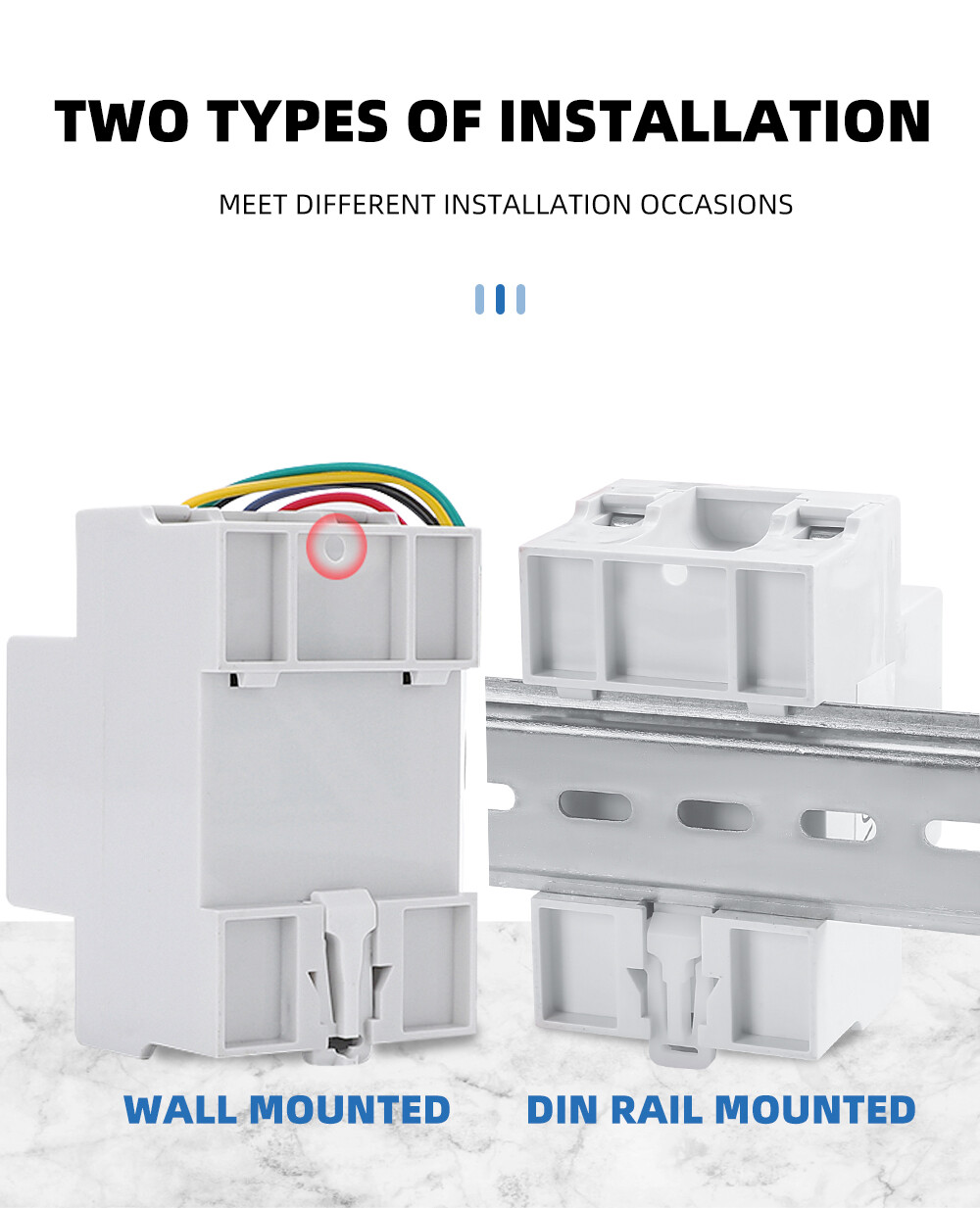

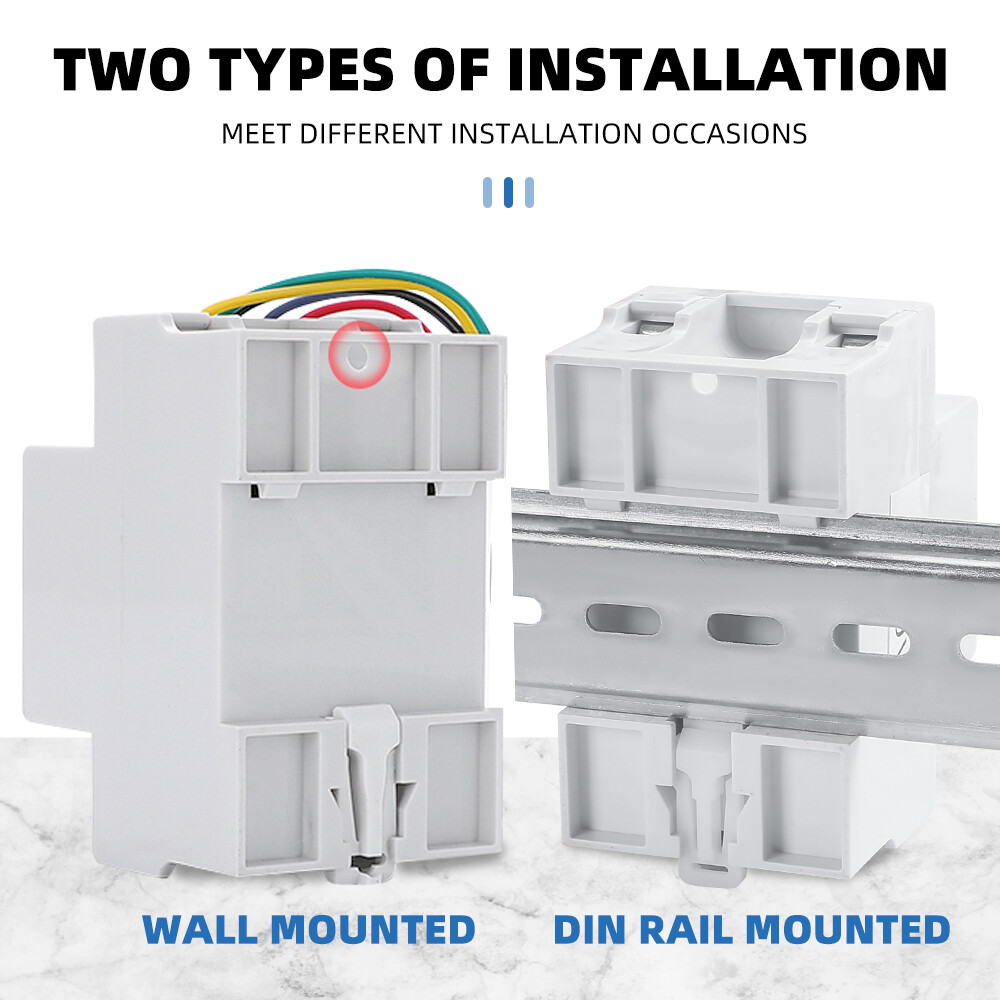

Installation: Din Rail Mount
Power consumption ≤2W
transmission signal: 500M
Size: 126*88*51mm

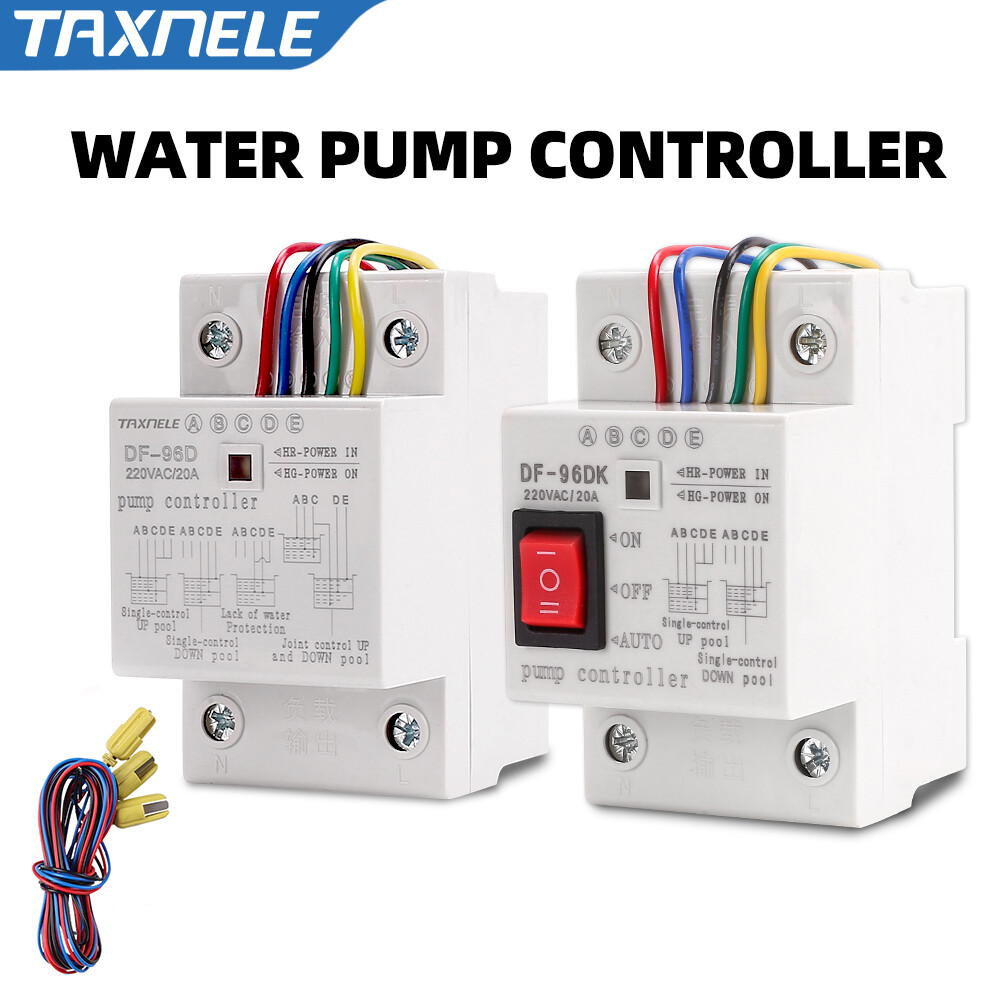

Package include:

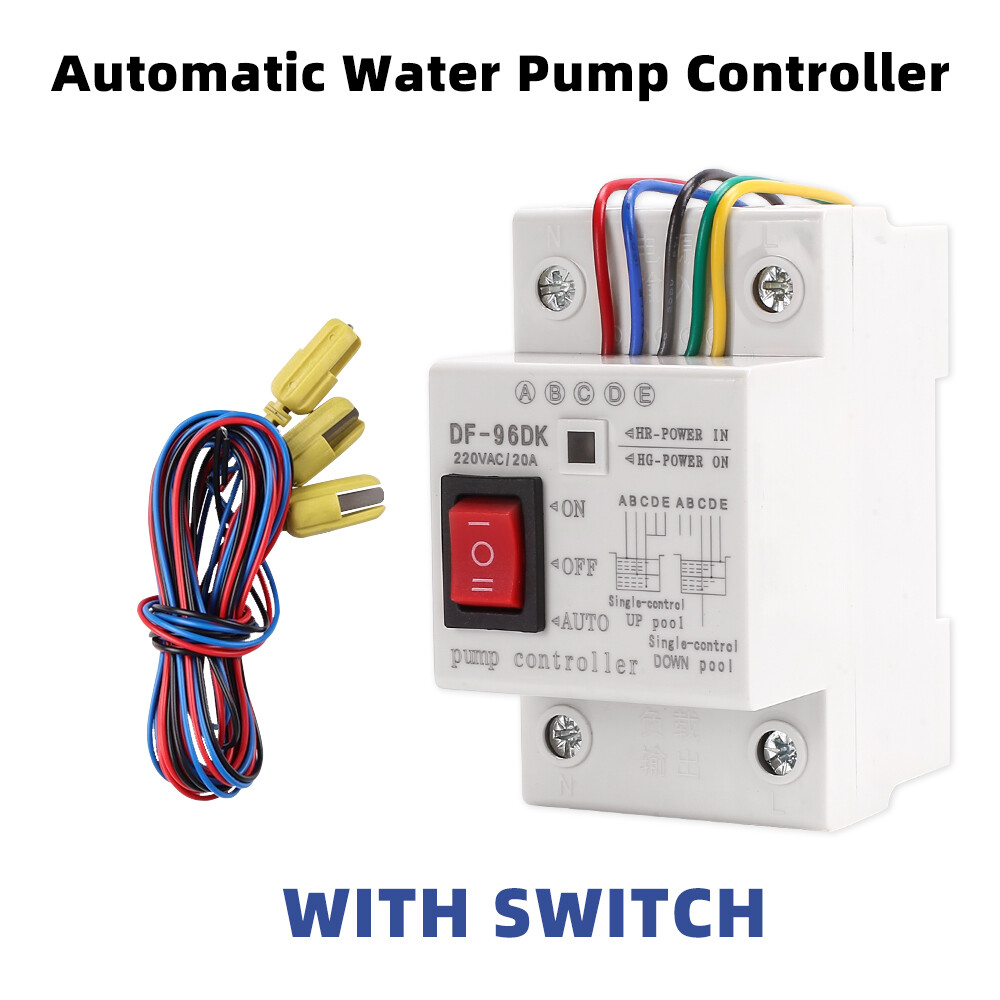

1pcs Automatic Water Level Controller Switch

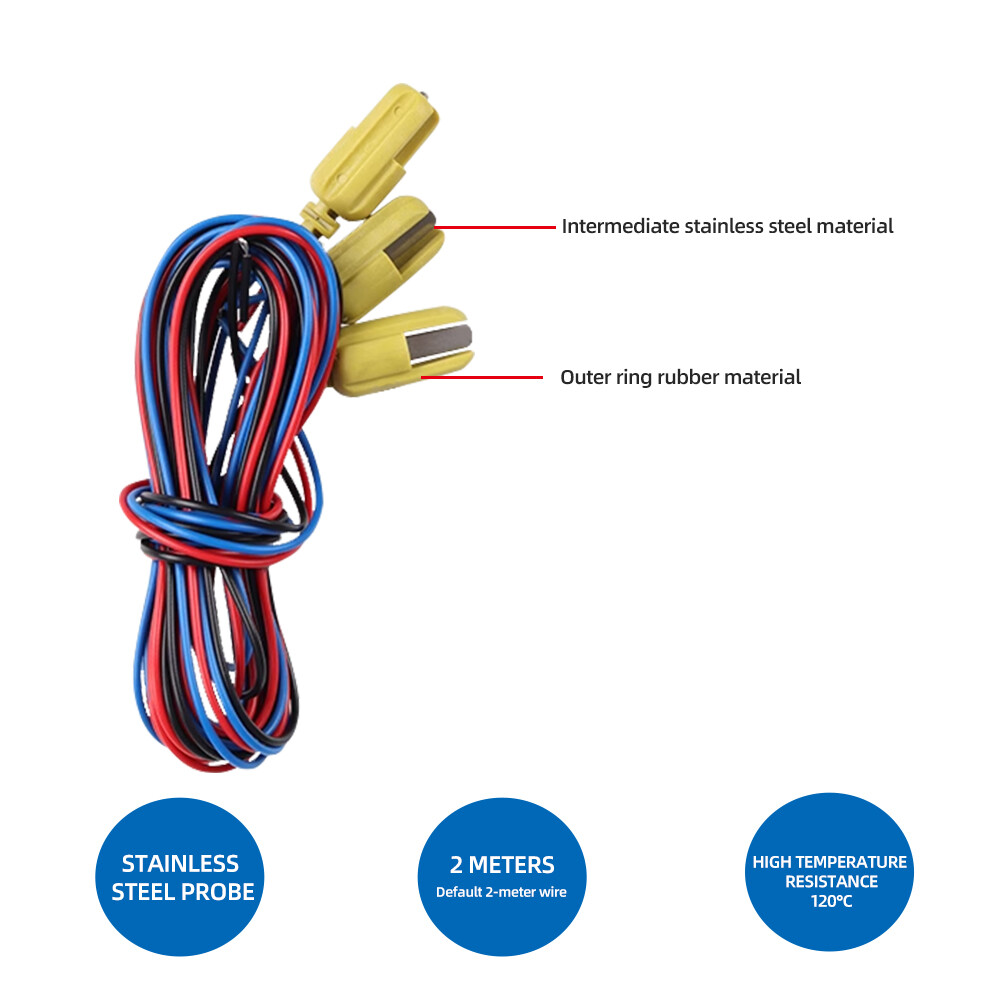

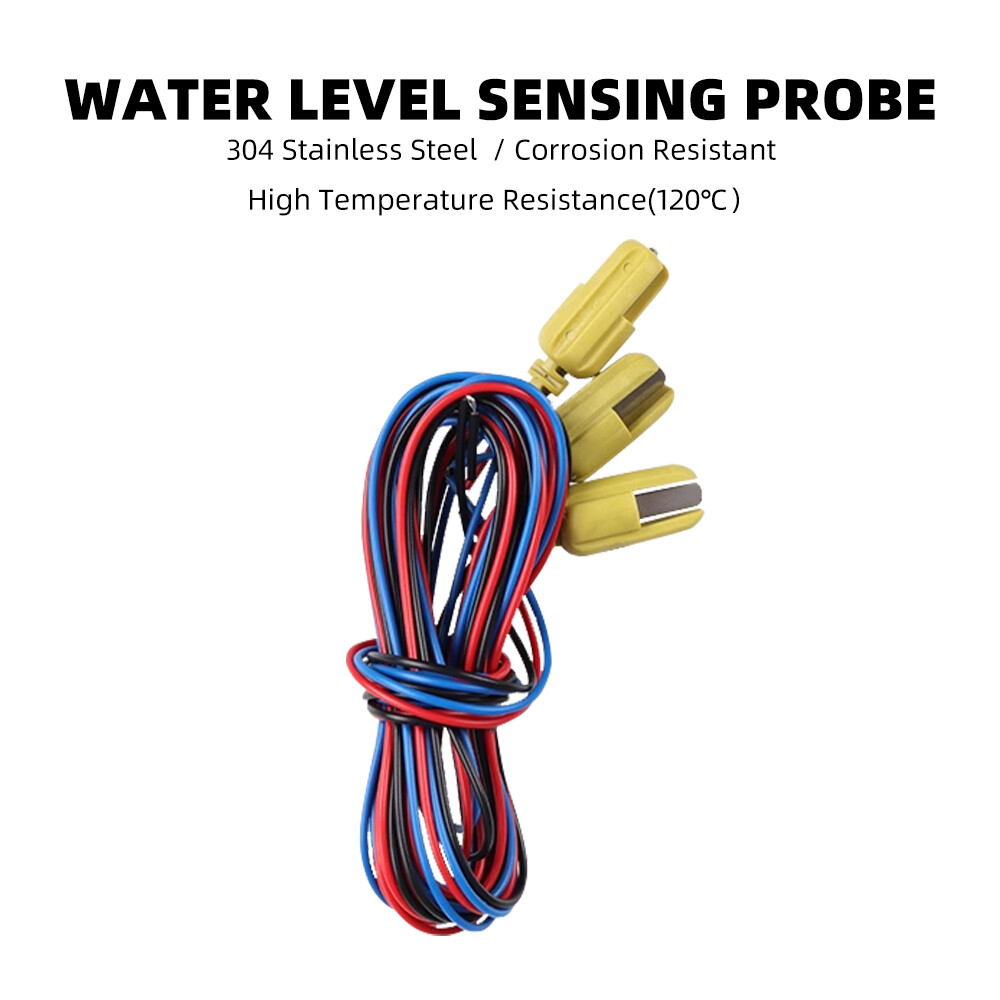

3pcs 200CM Sensor

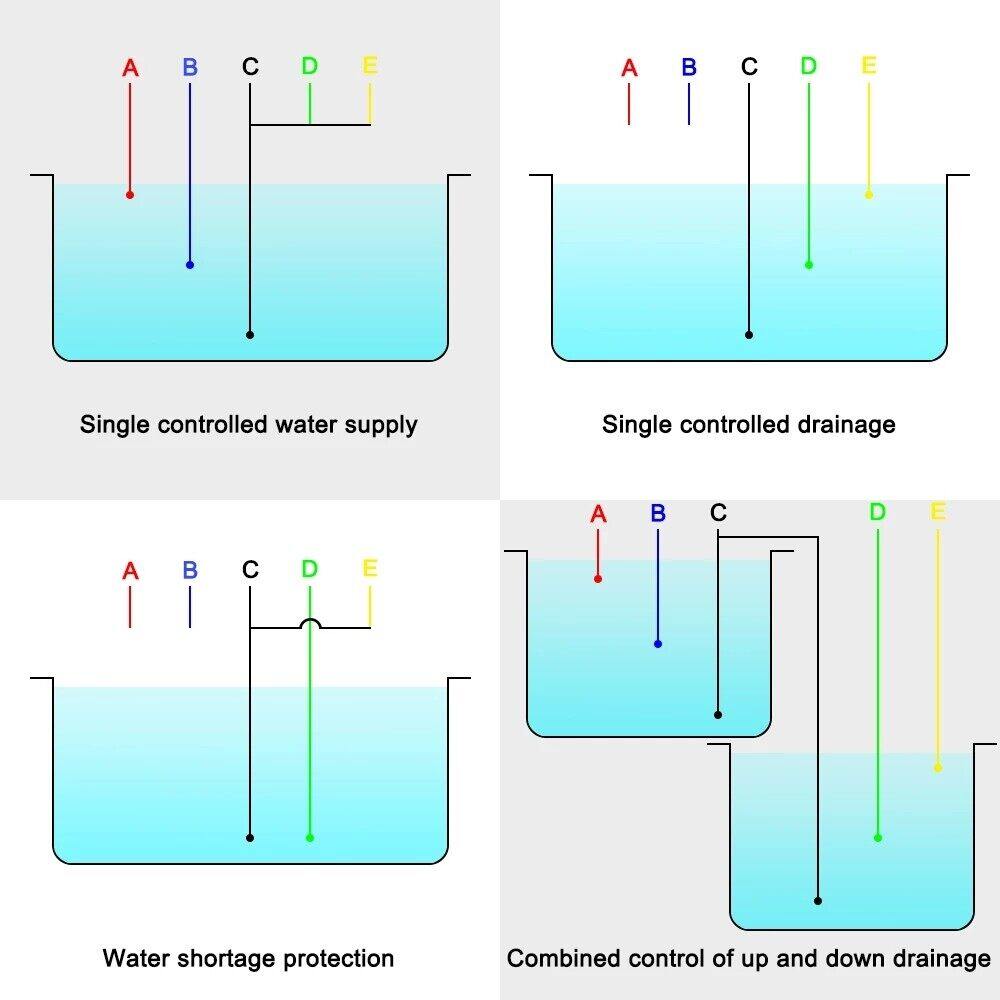

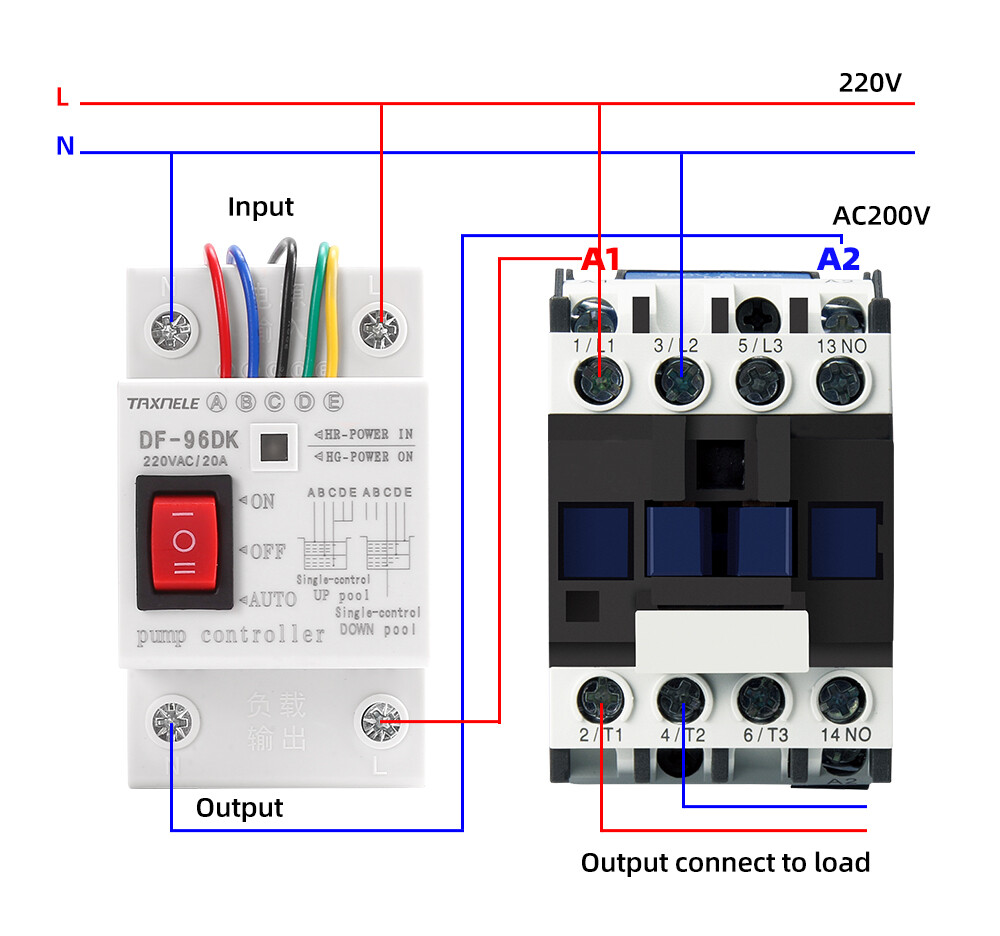

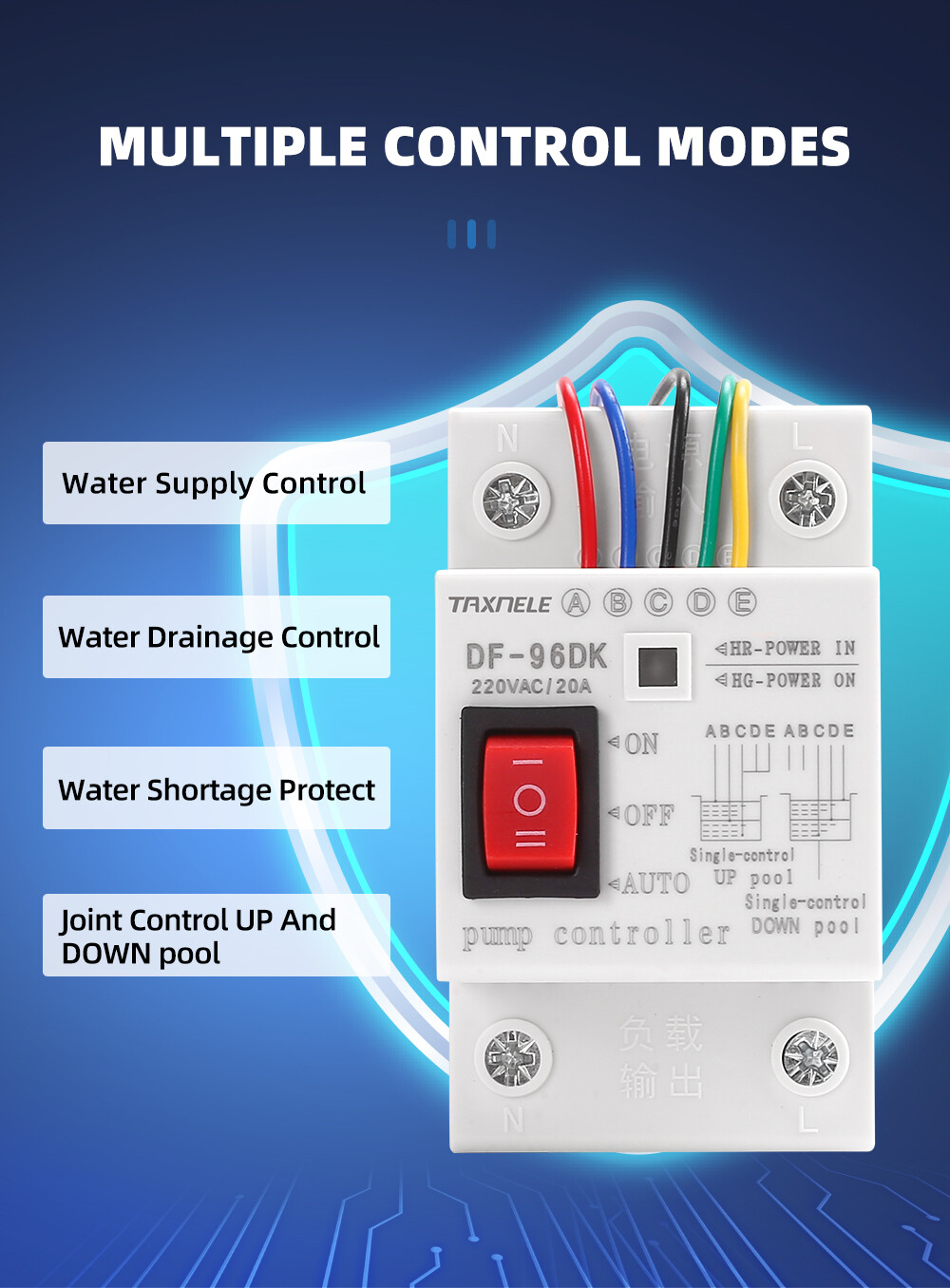

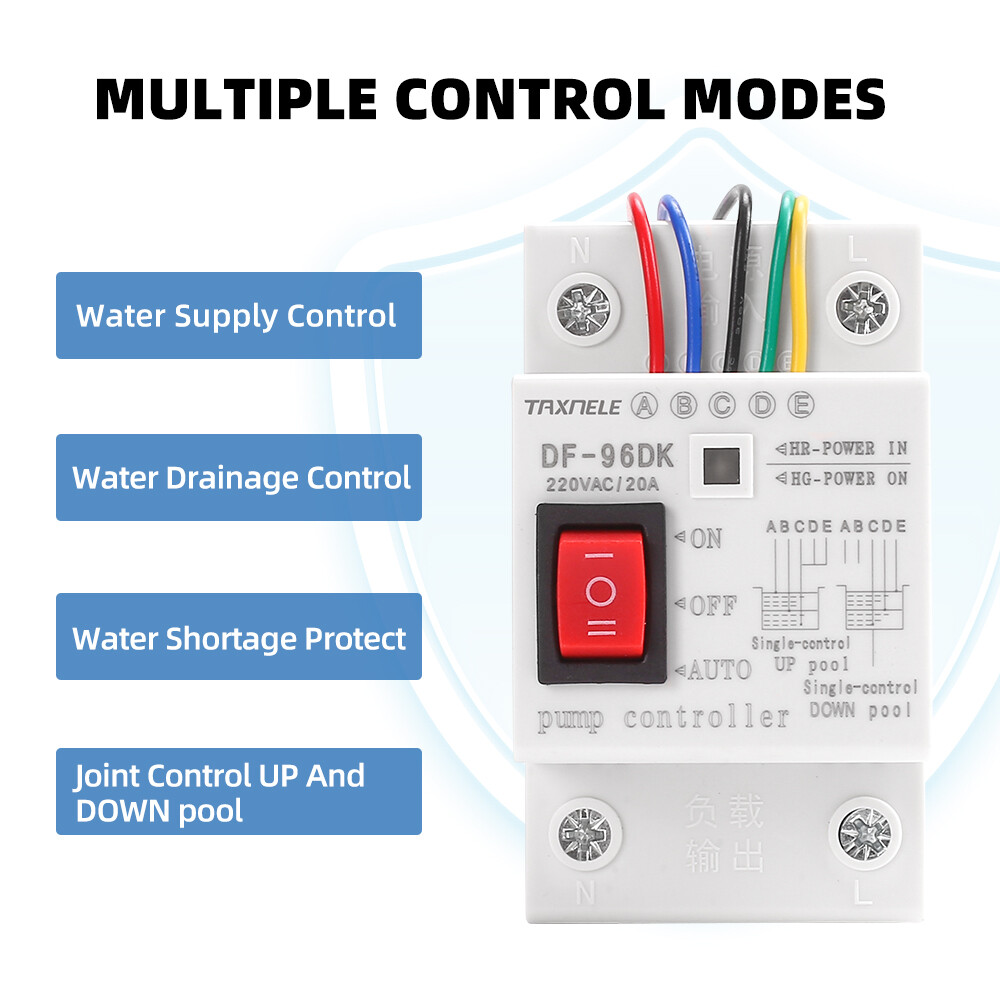

Single-controlUP pool (water storage)installation instructionsshown in figure1
A(red)—Upper waterlevel control point. When water level gets to Apoint,
the probe touchwaterand controller can stop the pump by auto.
B(blue)—Lowerwaterlevel control point. Whenwaterlevel gets off B point,
the probeout of reachwater andcontroller can start the pump by auto.
C(black)—Should be placed in bottom of poolas the common line.
D(green)and E(yellow)are connected withC (black).
Single-control DOWN pool(drain water)installation instructions shown in figure2.
E—Upper waterlevel control point. When water level gets to E point,
the probe touch water andcontroller can start the pump by auto.
D—Lower waterlevel control point. As liquid level gets off Dpoint,
the probeout of reachwater and controller can stop the pump by auto.
C—Should be placed in bottom of poolas the common line.
A&B—disconnected
1 . Lack of water protection installation instructions shown in figure3.
C&D—Lower water level control points. When water level gets off this point,
C or D probe out of reach water andcontroller can stop the pumpby auto.
E&C—short-connected;
A&B—disconnected
2 . Joint control UP and DOWN pool installation instructions shown in figure4.
A—Upper waterlevel control point in UP pool.Whenwater level gets to A point,the probe touch water andcontroller can stop the pump by auto.
B—Lower waterlevel control point in UP pool. Whenwater level gets offA point,the probeout of reach water and controller can start the pump by auto.
C—Should be placed in bottom ofUP and DOWNpools as the common line.
D—Lower waterlevel control point in DOWN pool. Whenwater level gets off Dpoint,the probeout of reach and controller can stop the pump by auto.
E—Upper waterlevel control point in DOWN pool. Whenwater level gets to E point,the probereach water and controller can start the pump by auto.Then poolstarts todrainwater.If not, E point disconnected
Used to solve problem:
1. On power but no work:
a. Check the red indicator is onor not. If not, make theconnection is good enough;
2. Whenwaterlevel is above or below probes but the pump does not start or stop by auto,Pleasecheck itlike the following.
a.Whether the probe is placed too high or low so thatwaterlevel can reach or out of reach it;
b.The connection of upper&lower line or probe is dislocationby error or short connected;
c.To check the probe whetheritis rustor not or the connection is good enough.
d. C- Check the common line whether itis placed in the lowermost bottom of pool.
