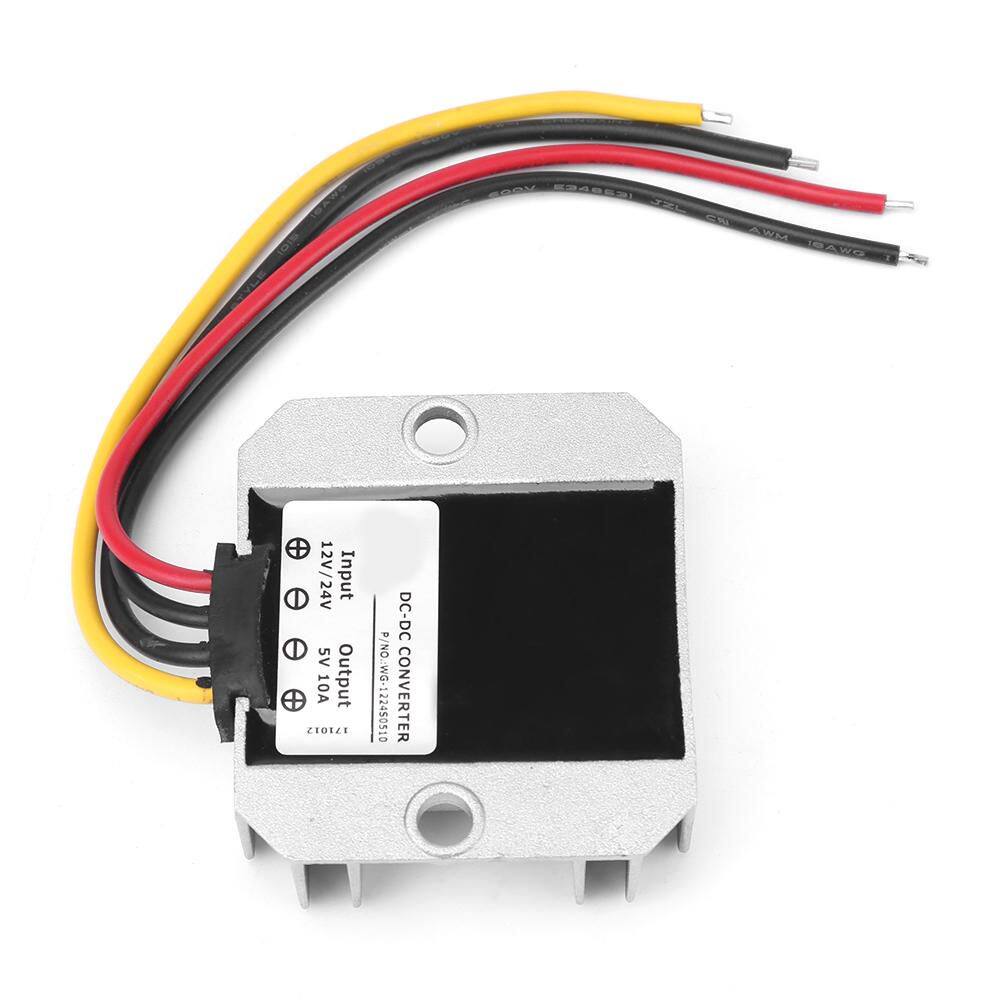

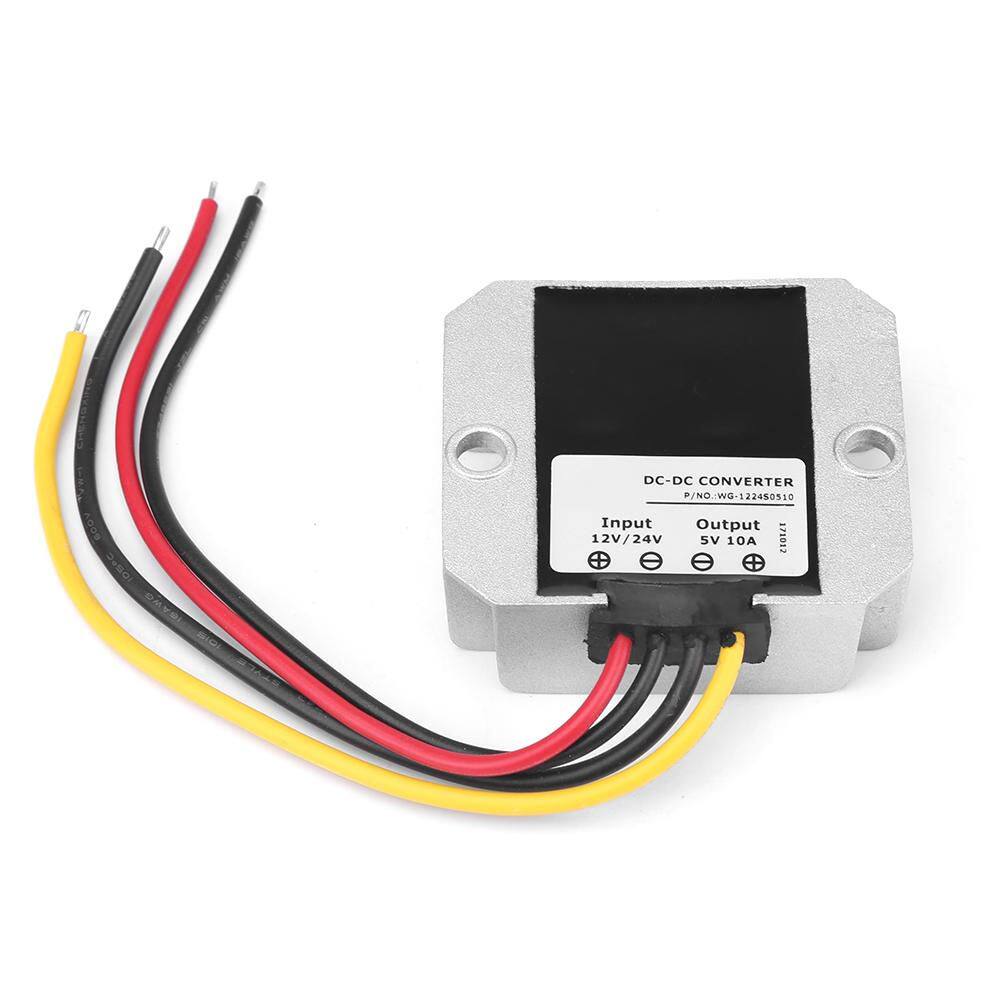

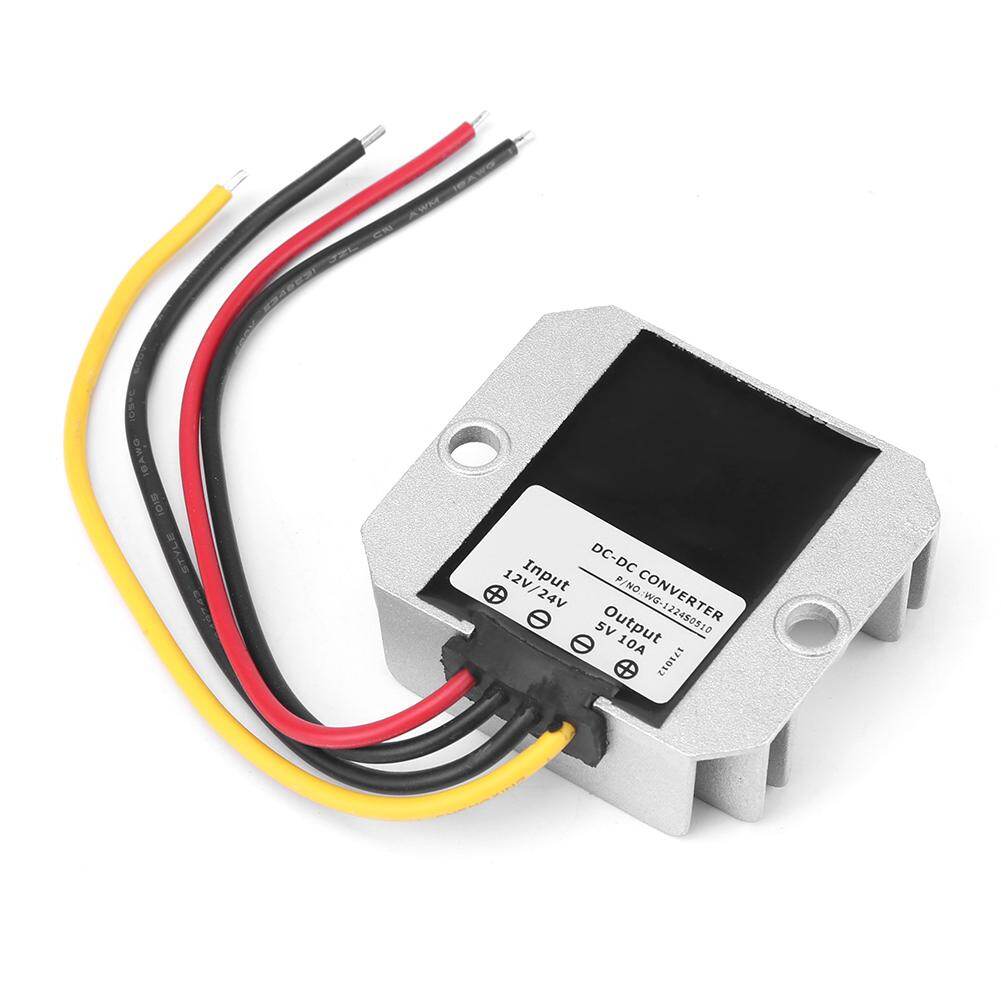

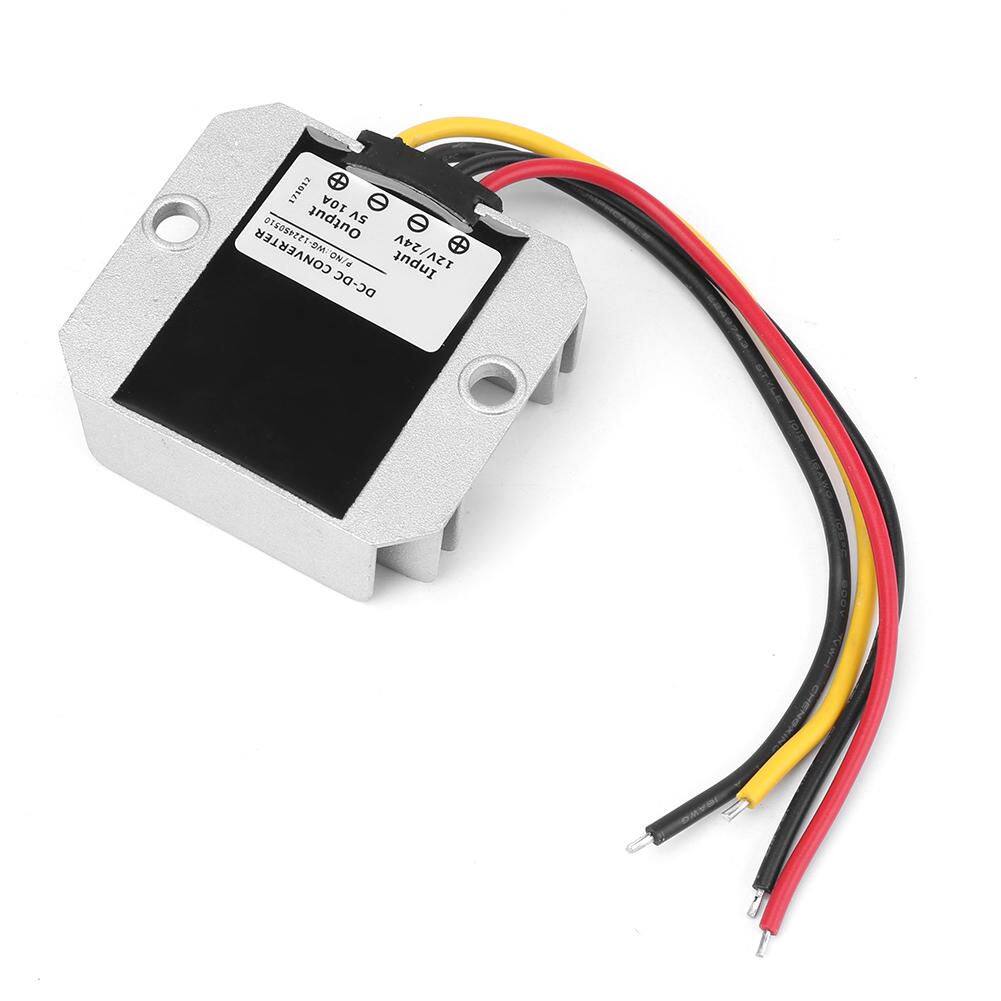

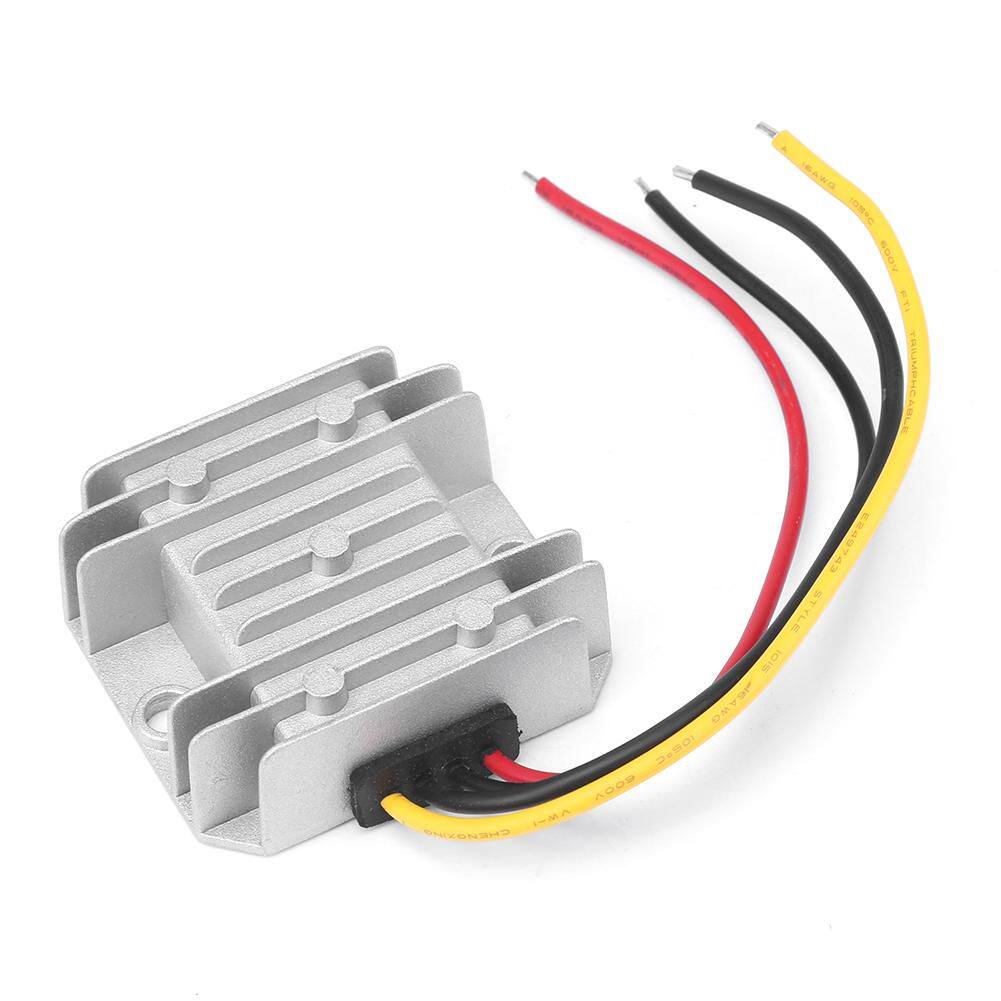

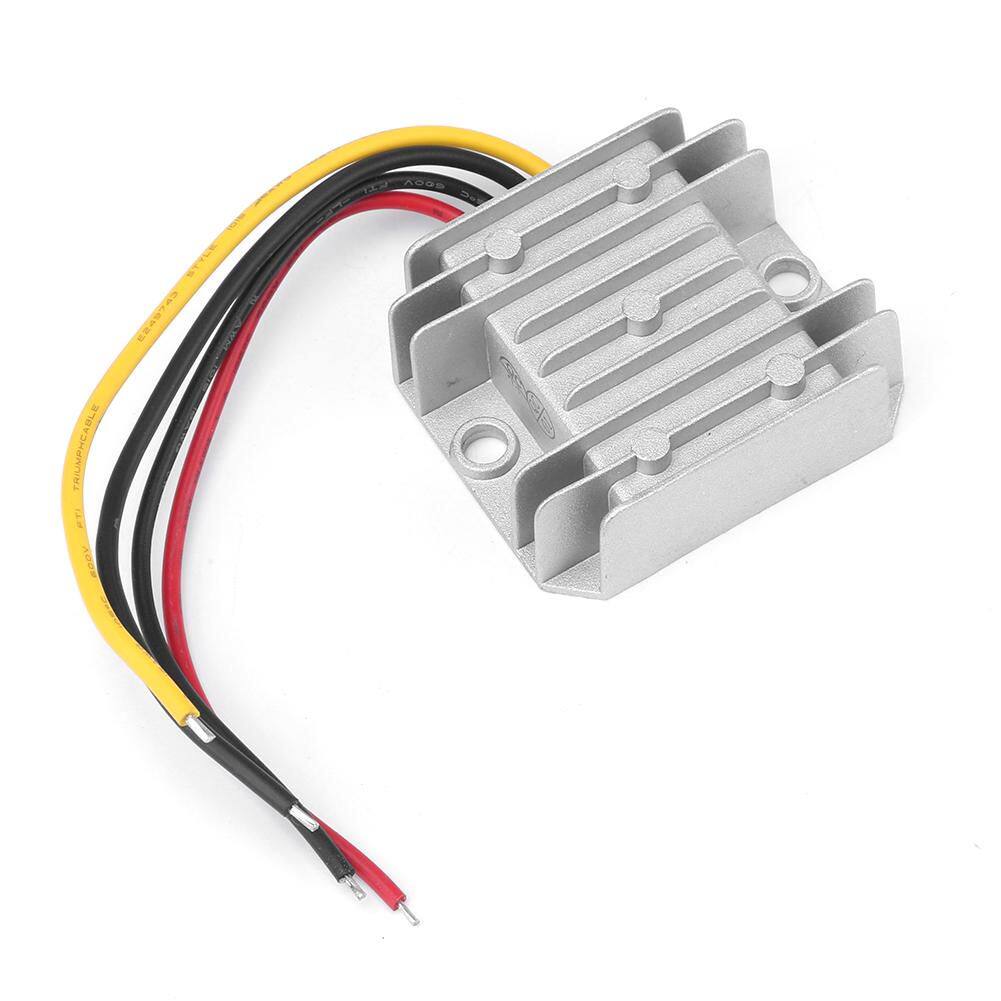

Bộ Chuyển Đổi Hạ Áp DC12V/24V Sang 5V 10A 50W Bộ Điều Chỉnh Điện Áp Buck Bước Xuống Mô-đun Điện Áp Bước Xuống Mô-đun Điện Áp Chống Nước IP68

Features:

• This is a non-isolation DC regulated power converter module with long service life.
• High power and stable output, it converts 12VDC or 24VDC to 5VDC.

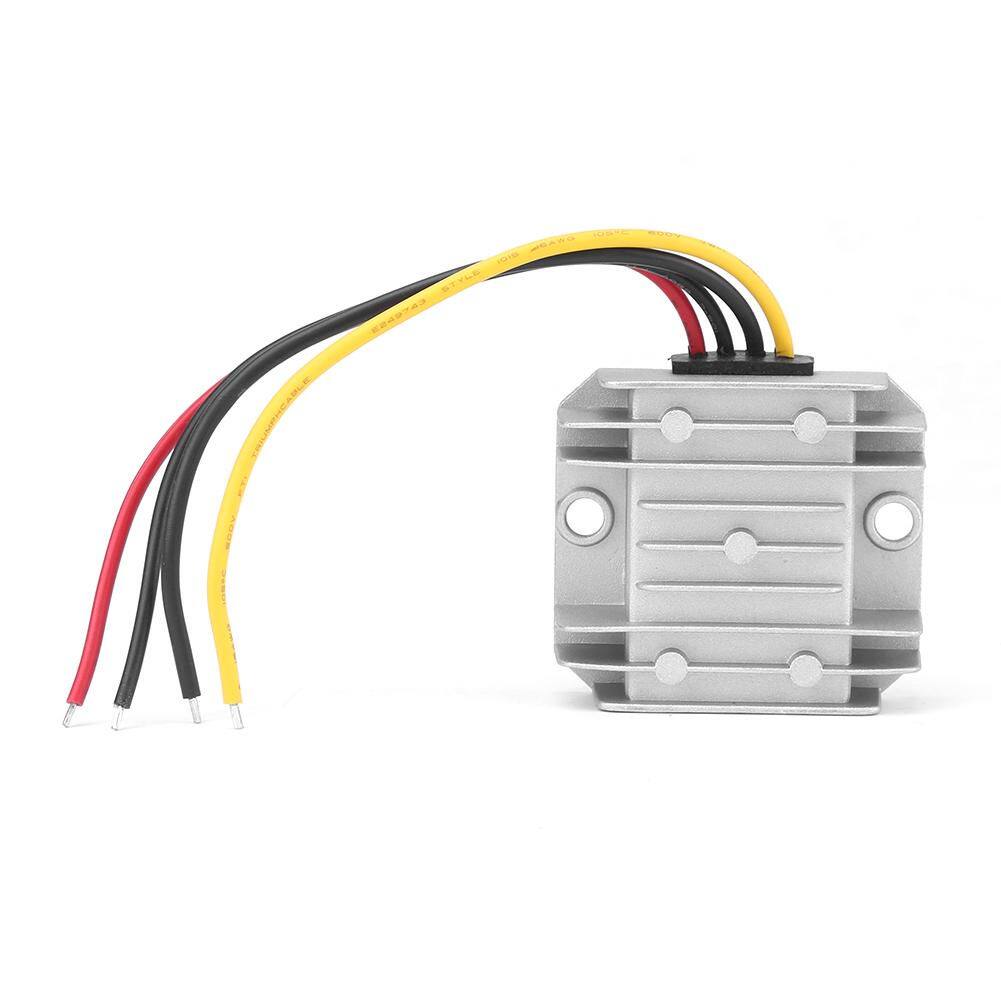

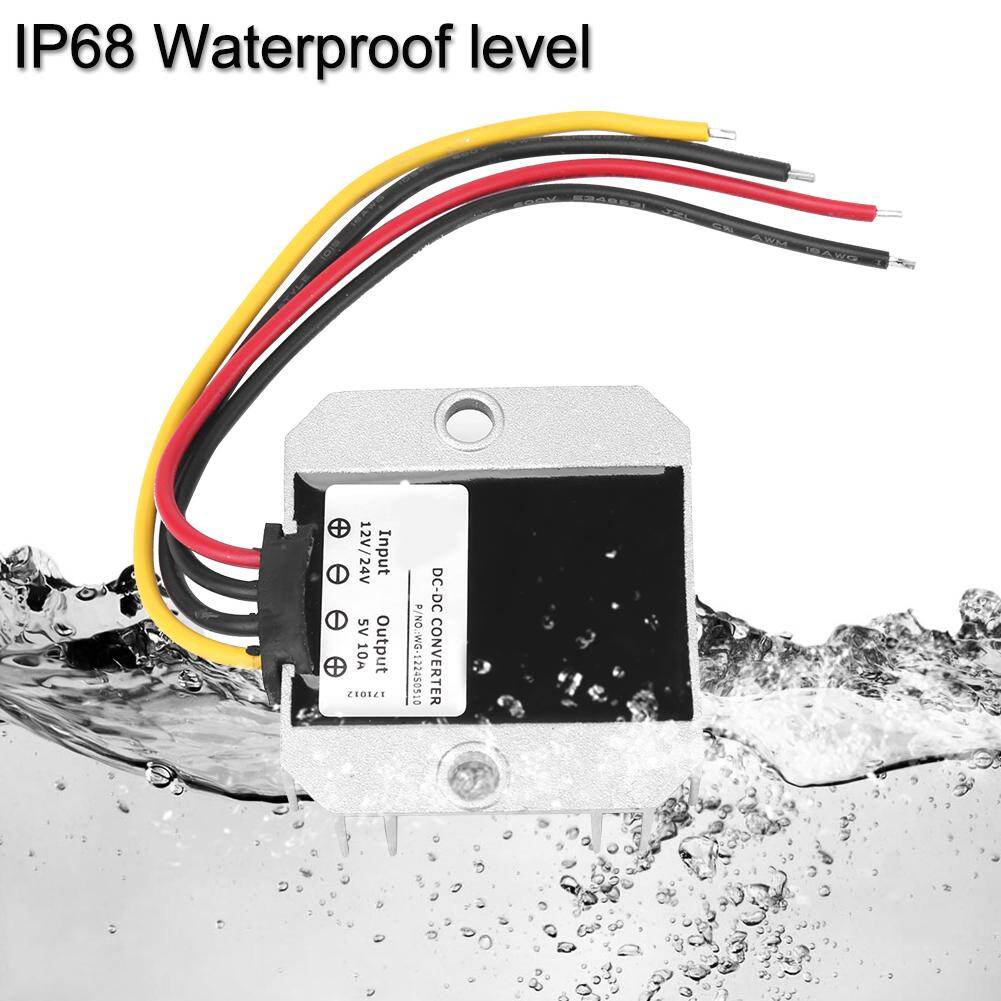

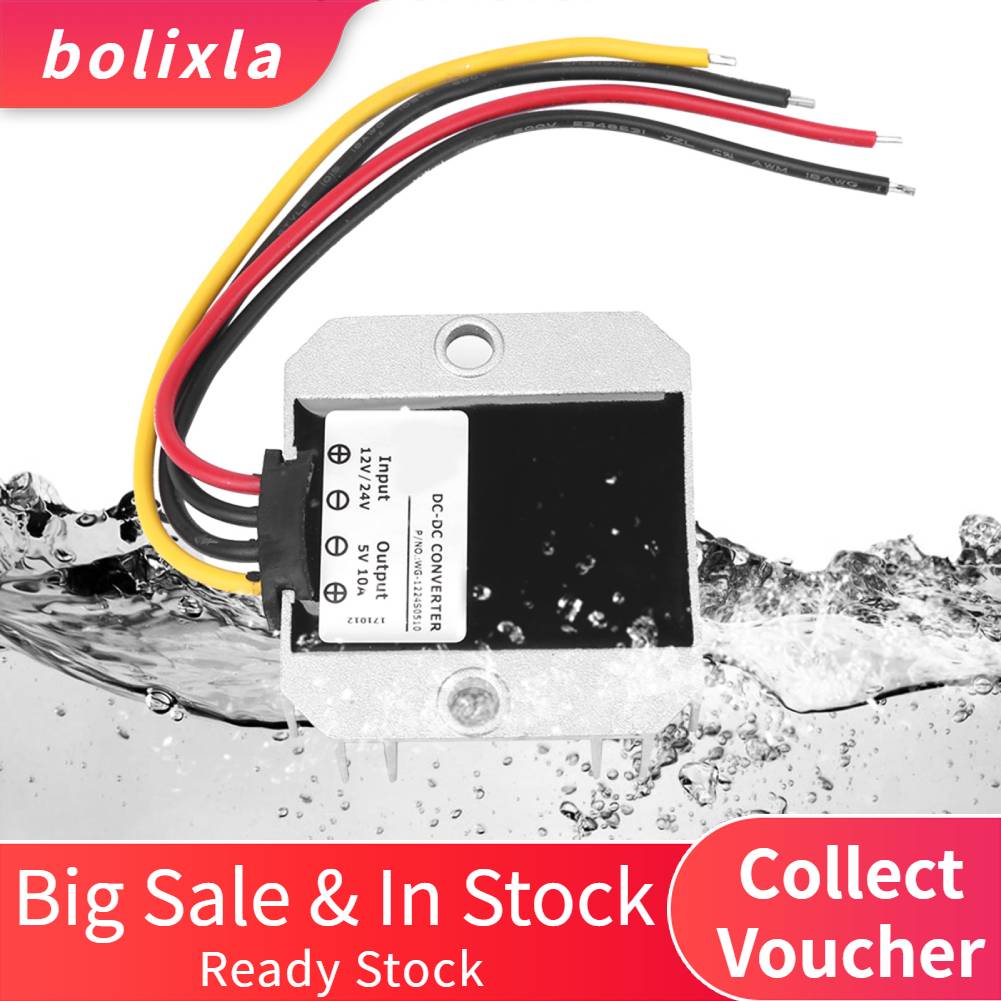

• Aluminum alloy housing is small and easy to mount; sealed with silicone, it is waterproof(IP68), dust and vibration resistant.
• High quality components ensures high conversion efficiency, up to >94%.
• Wide input voltage, it supports over current, over voltage, over temperature and short circuit protection.

Specifications:

Input Voltage	12V/24V DC
Input Voltage Range	8-40V DC
Conversion Efficiency	>94%
Output Voltage	5V
Output Current	10A
Rated Output Power	50W
Peak Output Power	130%
Voltage Regulation	< 1%
Load Regulation	< 2%
No-load Current	< 20mA
Ripple	< 40mV
Operating Temperature	-30℃~+80℃
Ingress Protection Rating	IP68
Over Current Protection	YES
Over Voltage Protection	YES
Over Temperature Protection	YES
Short Circuit Protection	YES

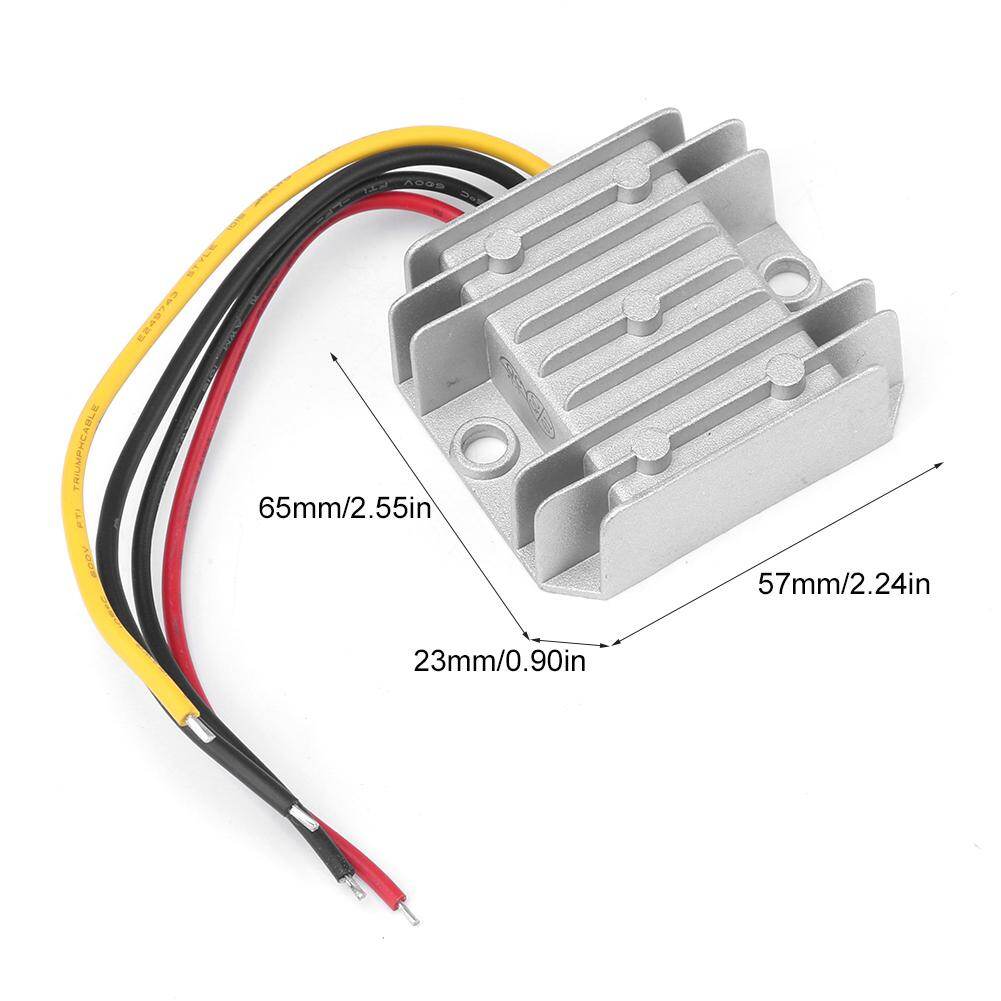

Size	65*57*23mm/2.55*2.24*0.9in

Package Includes:

1 x Voltage Converter

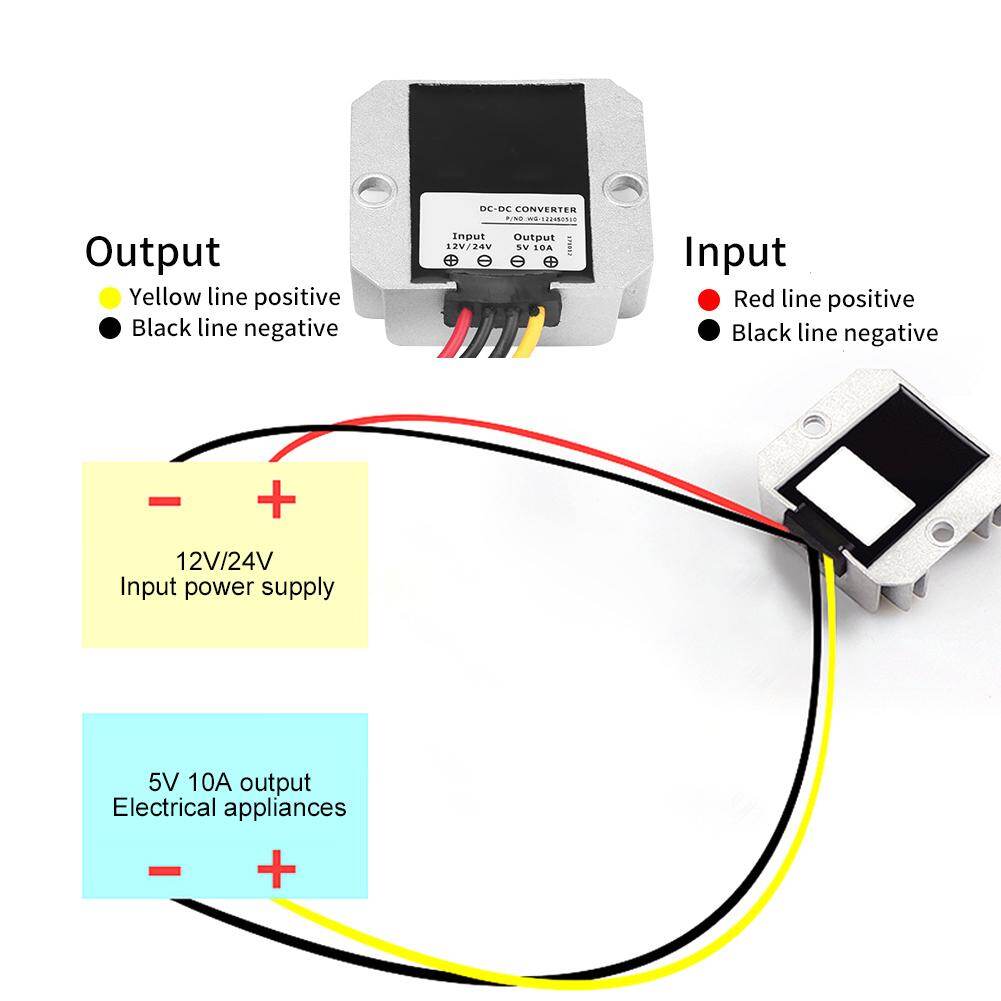

Note: Please be careful and connect wires correctly, otherwise the module will be damaged.
