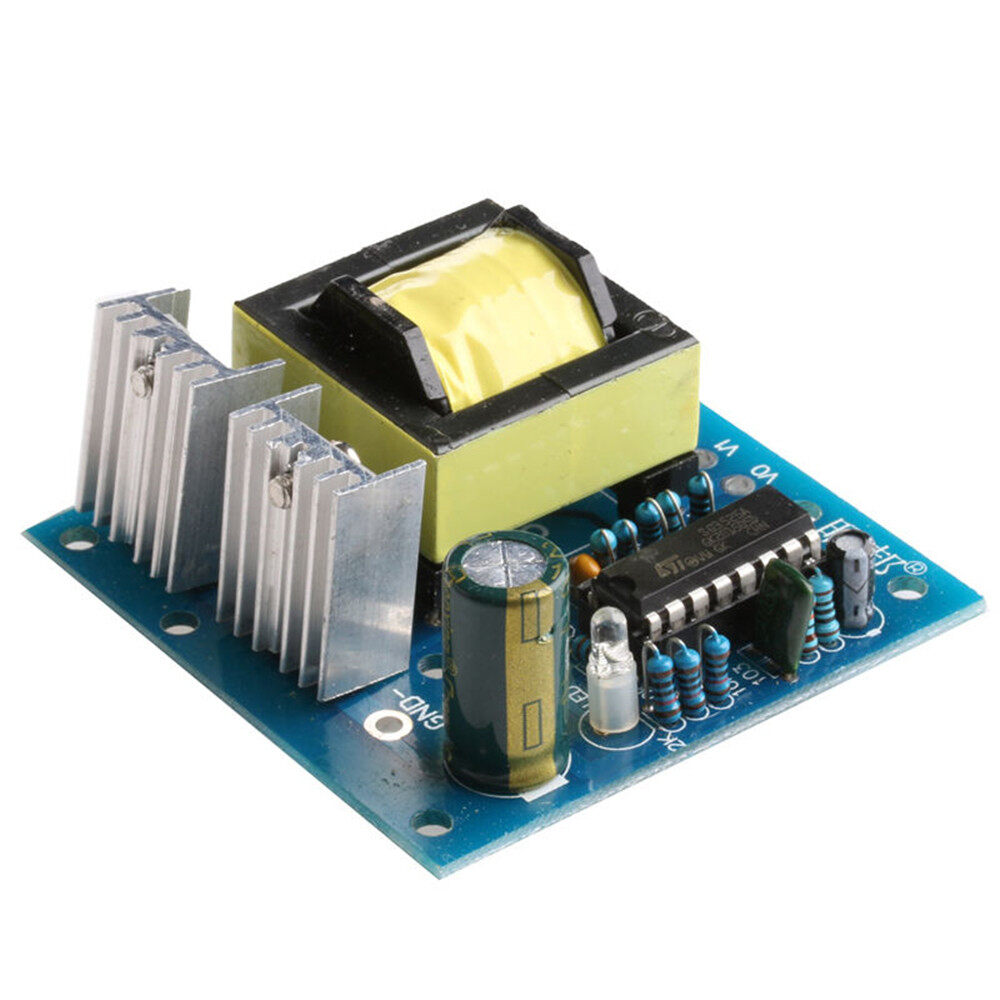

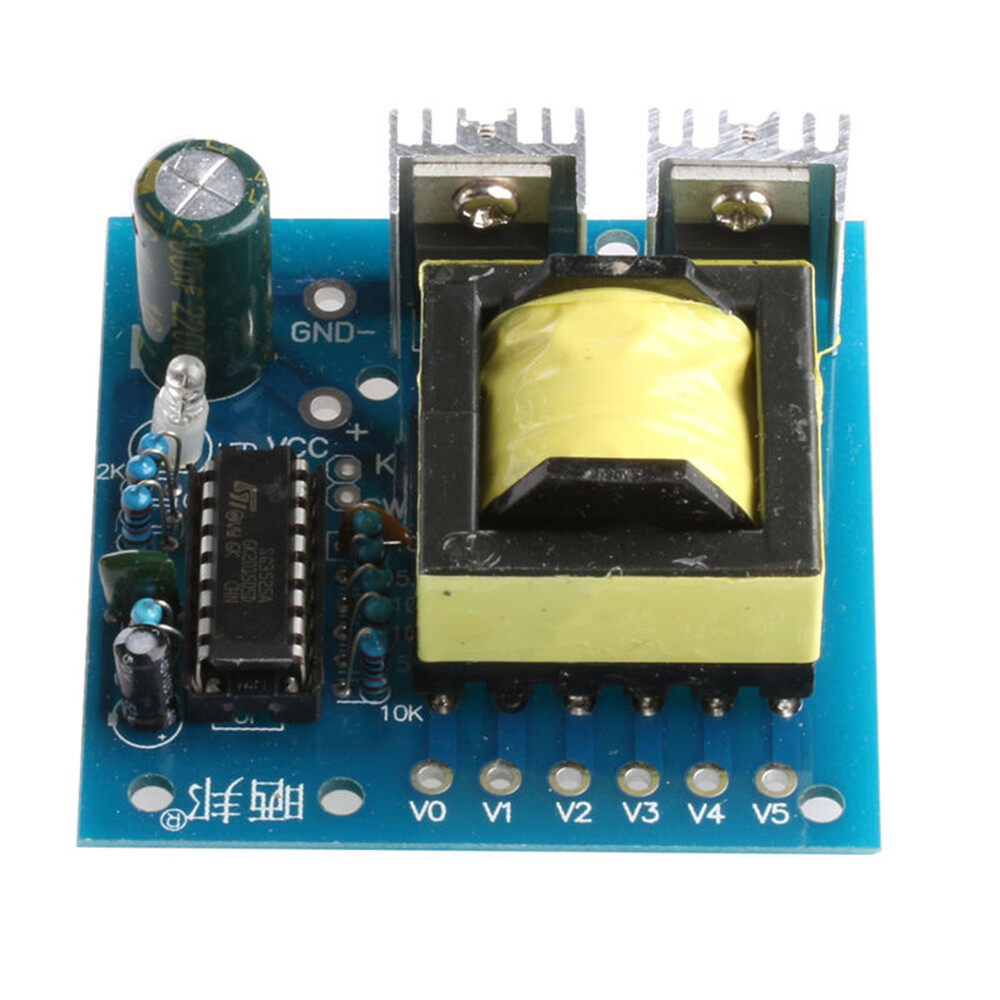

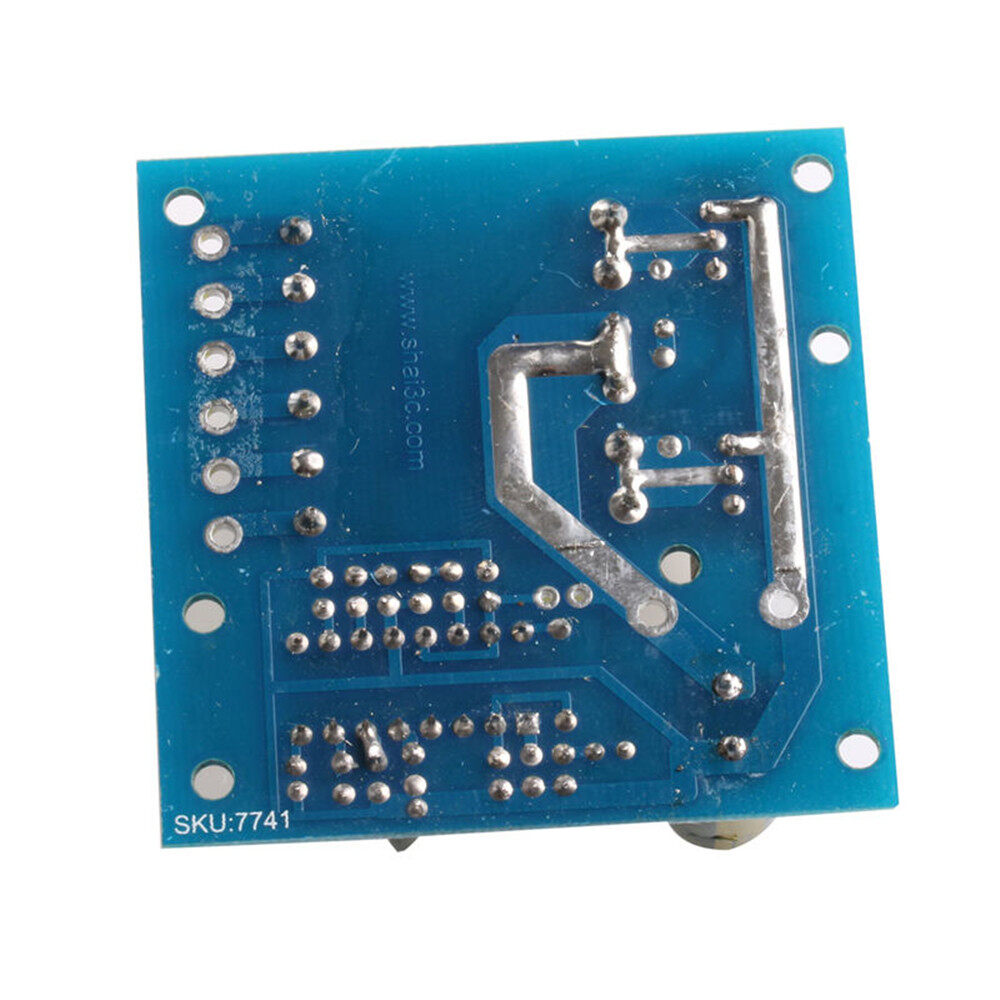

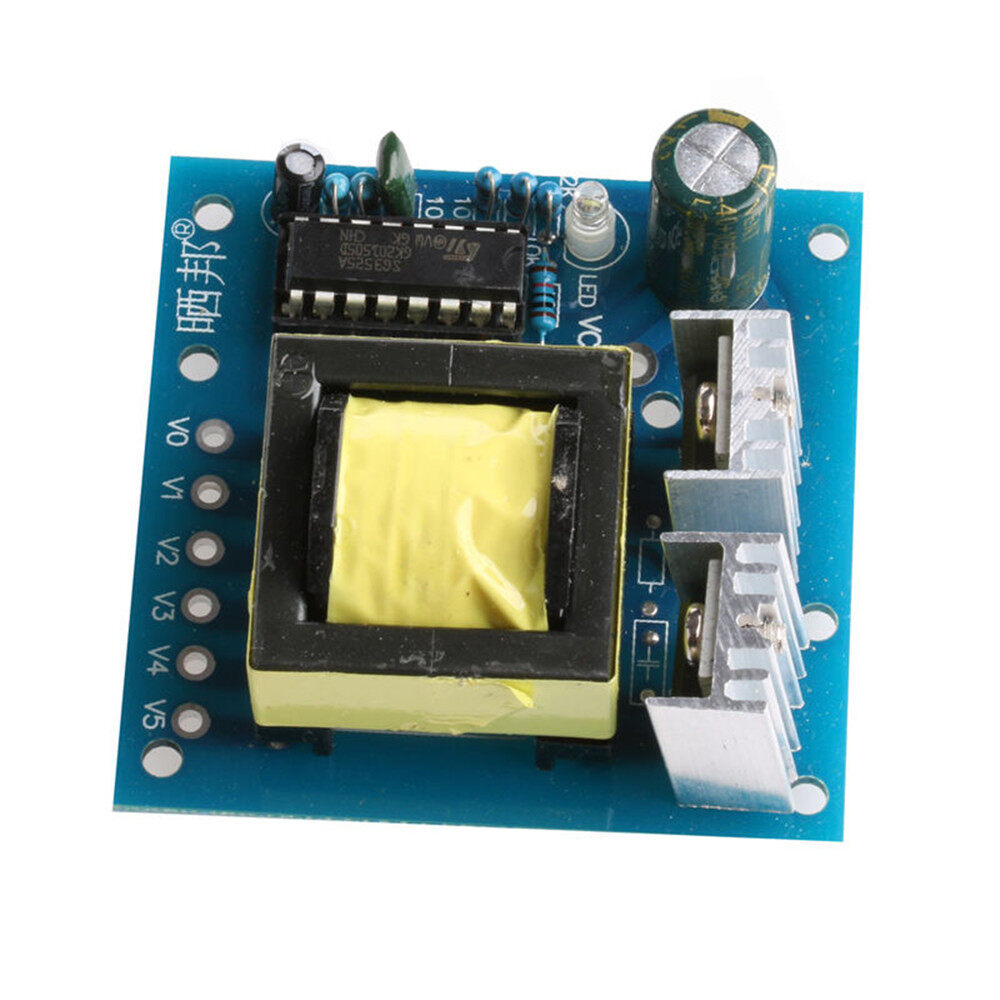

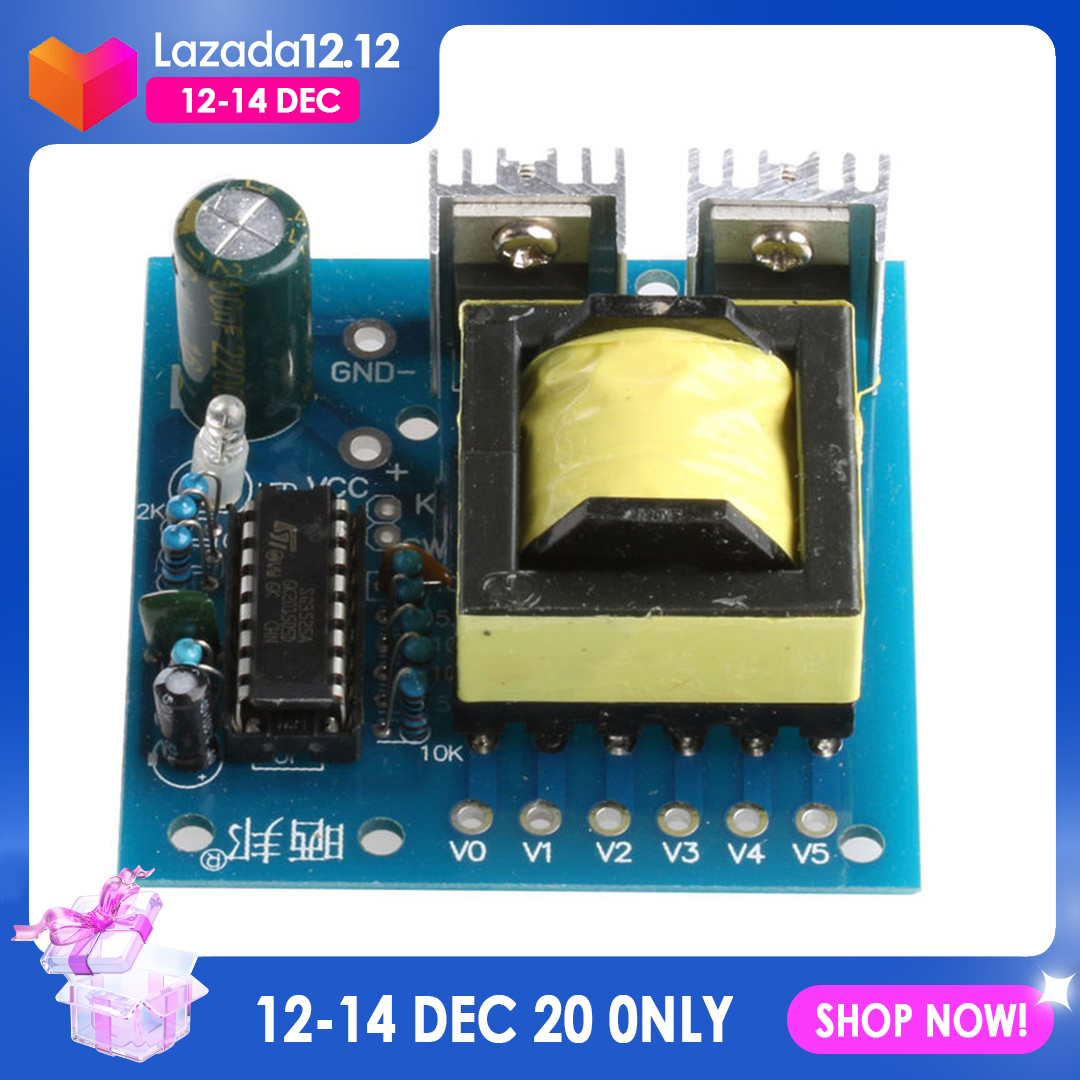

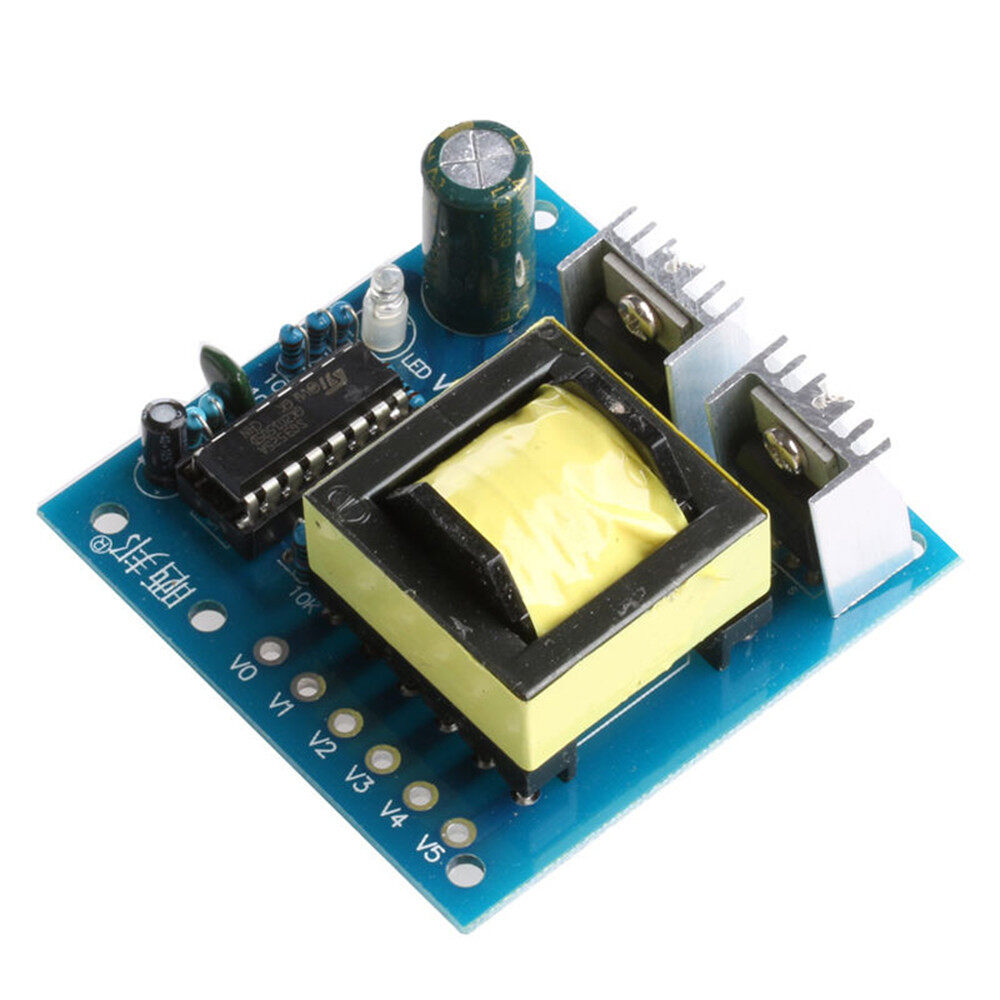

DM Bảng Mạch Tăng Áp DC Sang AC 12V 220V 150W

Descirption:

100% brand new and high quality
Material: electrical components
Color: see picture
feature:
Power: 150W
Input voltage: DC12V
Output voltage: AC 0-110V-172V-200V-220V
Quiescent current: about 0.05A
Output waveform: high frequency square wave
Output frequency: about 20KHZ
Protection: None
caveat:
The board belongs to high frequency square wave AC output; it is not suitable for induction appliances such as motors, fans and coil transformers.
2. Use low-load machines (LED lights, mobile phone chargers and DVD set-top boxes), it is recommended to use low voltage points, such as: 172V / 110V.
3. You should install a large radiator to release long time high load (¡100W) work.
You cannot connect the power supply in reverse. In addition, the power supply and power cord should have sufficient current.
5. Don't overload and short circuit, because there is no protection.
The number measured by the output high-frequency no-load voltmeter will be slightly higher.

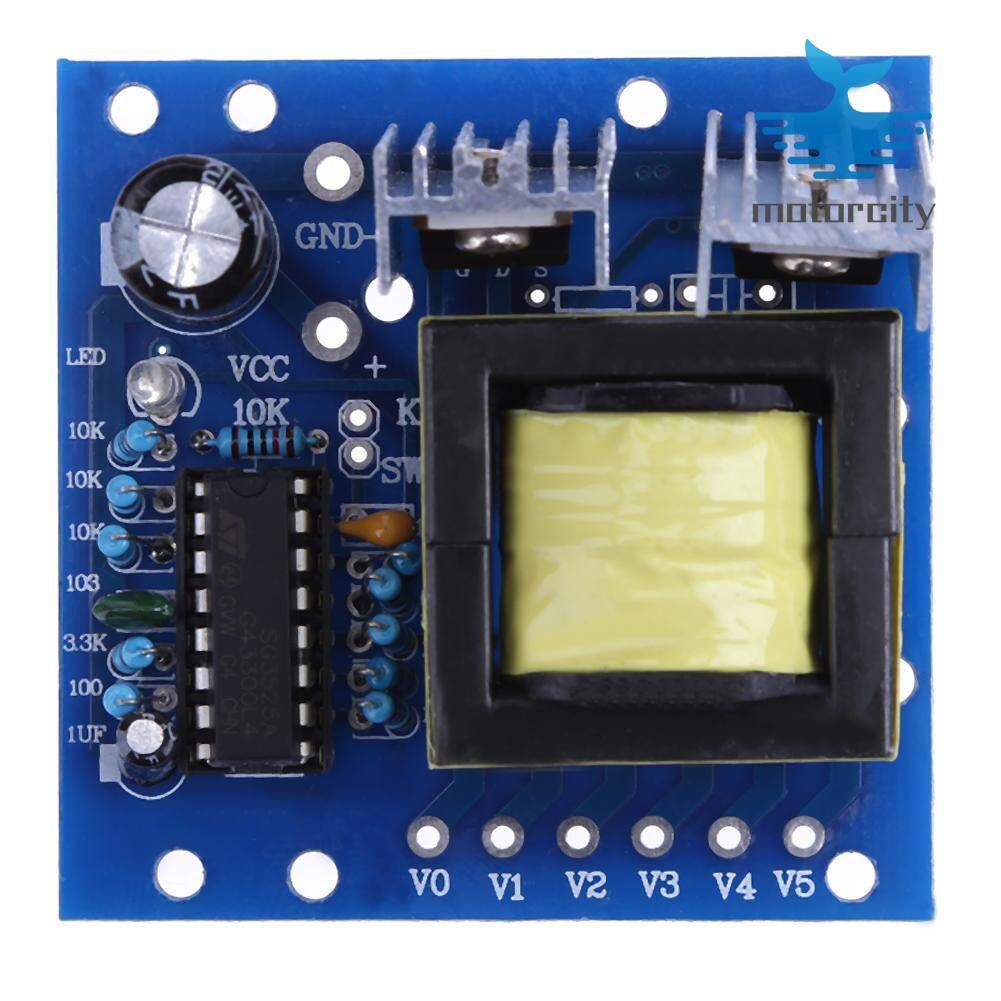

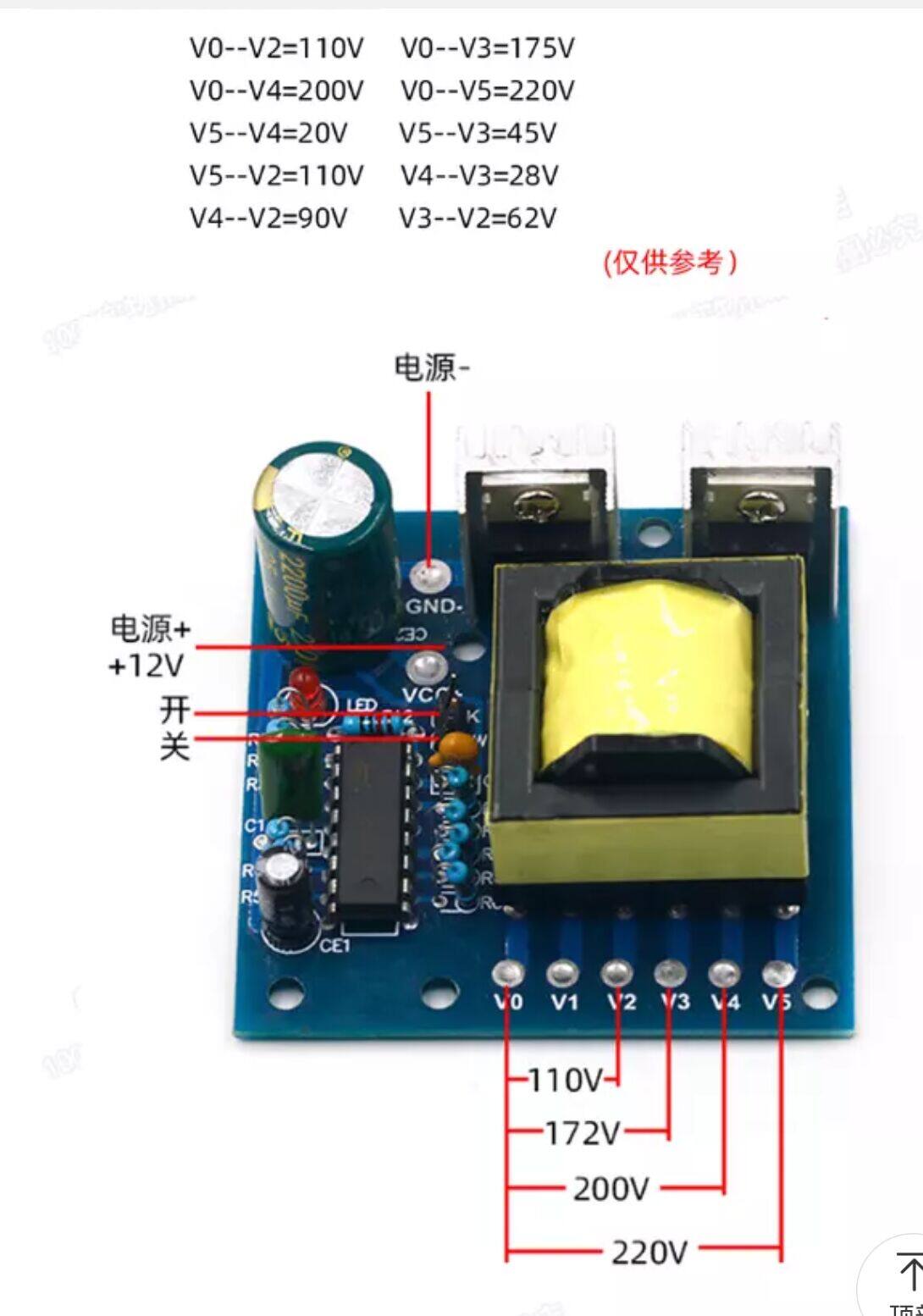

The output wiring voltage is as follows:
V0-V2 = 110V
V0-V3 = 175V
V0-V4 = 200V
V0-V5 = 220V
V5-V4 = 20V
V5-V3 = 45V
V5-V2 = 110V
V4-V3 = 28V
V4-V2 = 90V
V3-V2 = 62V

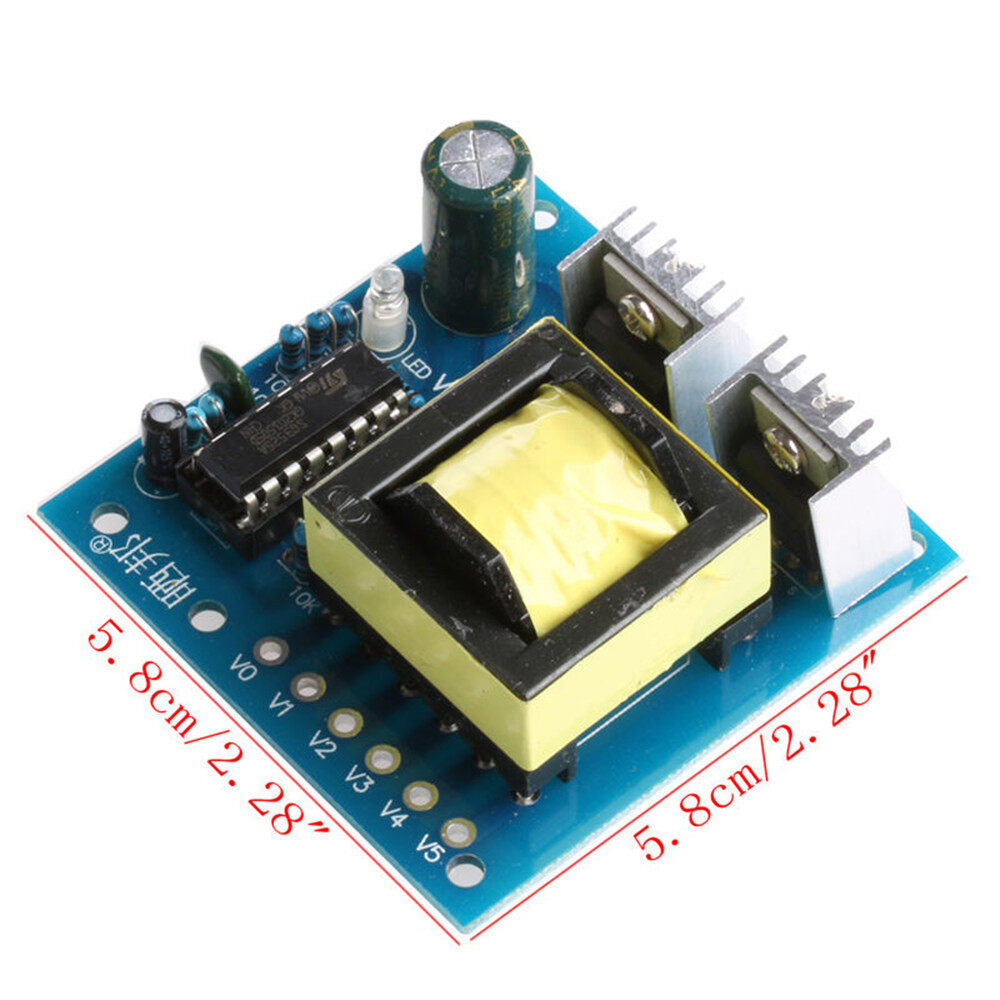

Size: see picture
No retail packaging
Quantity: 1Pc
Note: Due to the difference between different monitors, the image may not reflect the actual color of the item. Thank you! !

Package Included:

1Pc x 150W converter DC 12V to AC 220V inverter booster board transformer power supply
