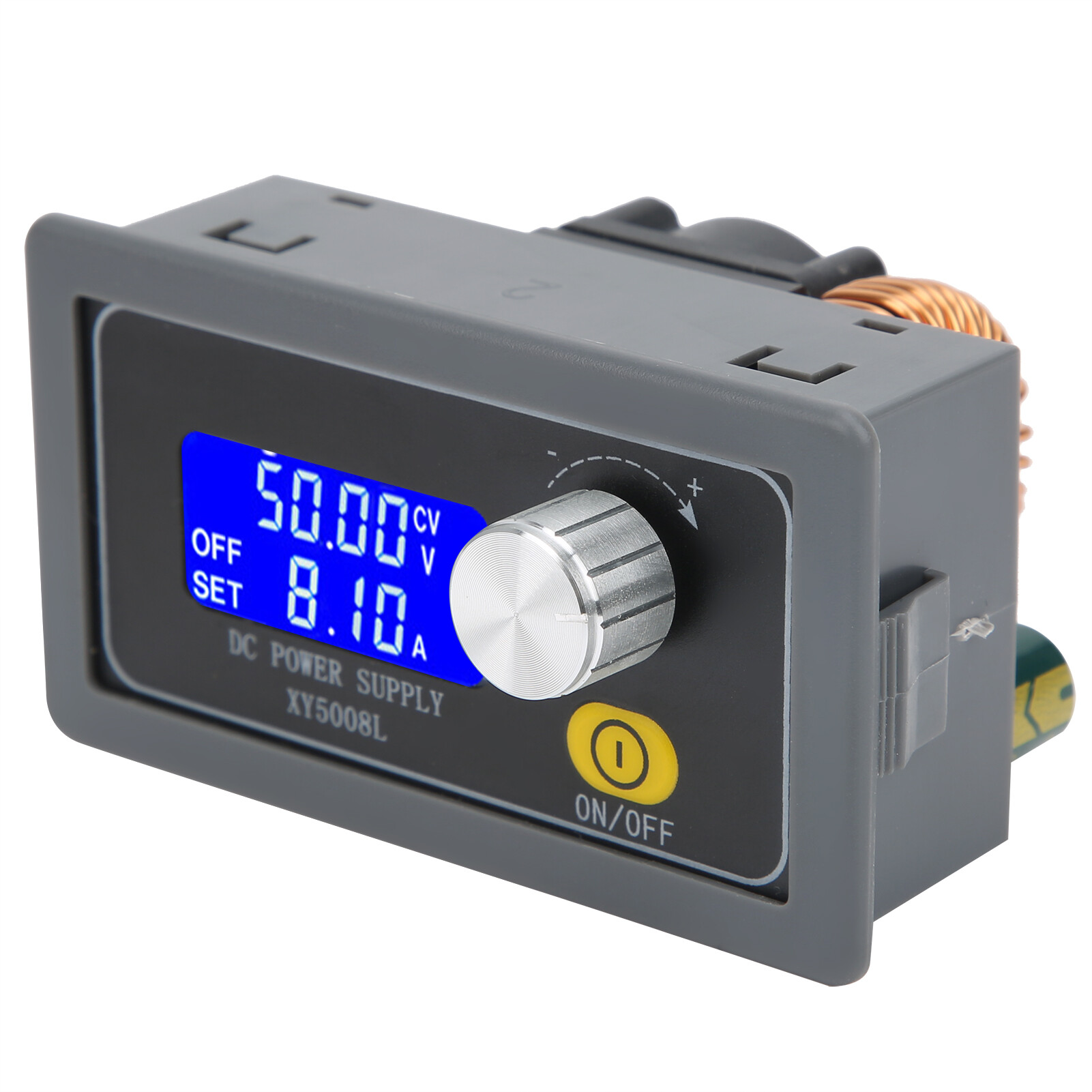

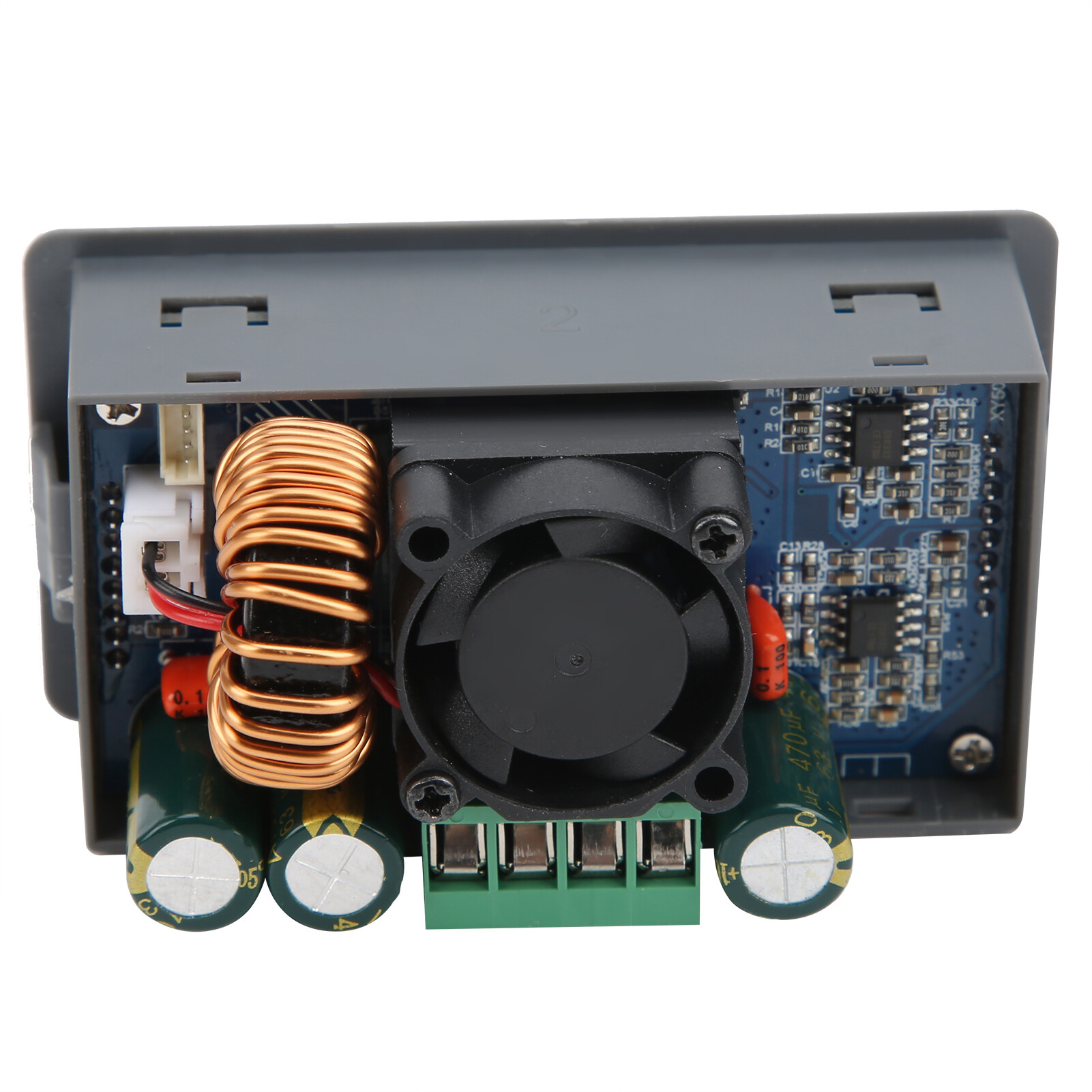

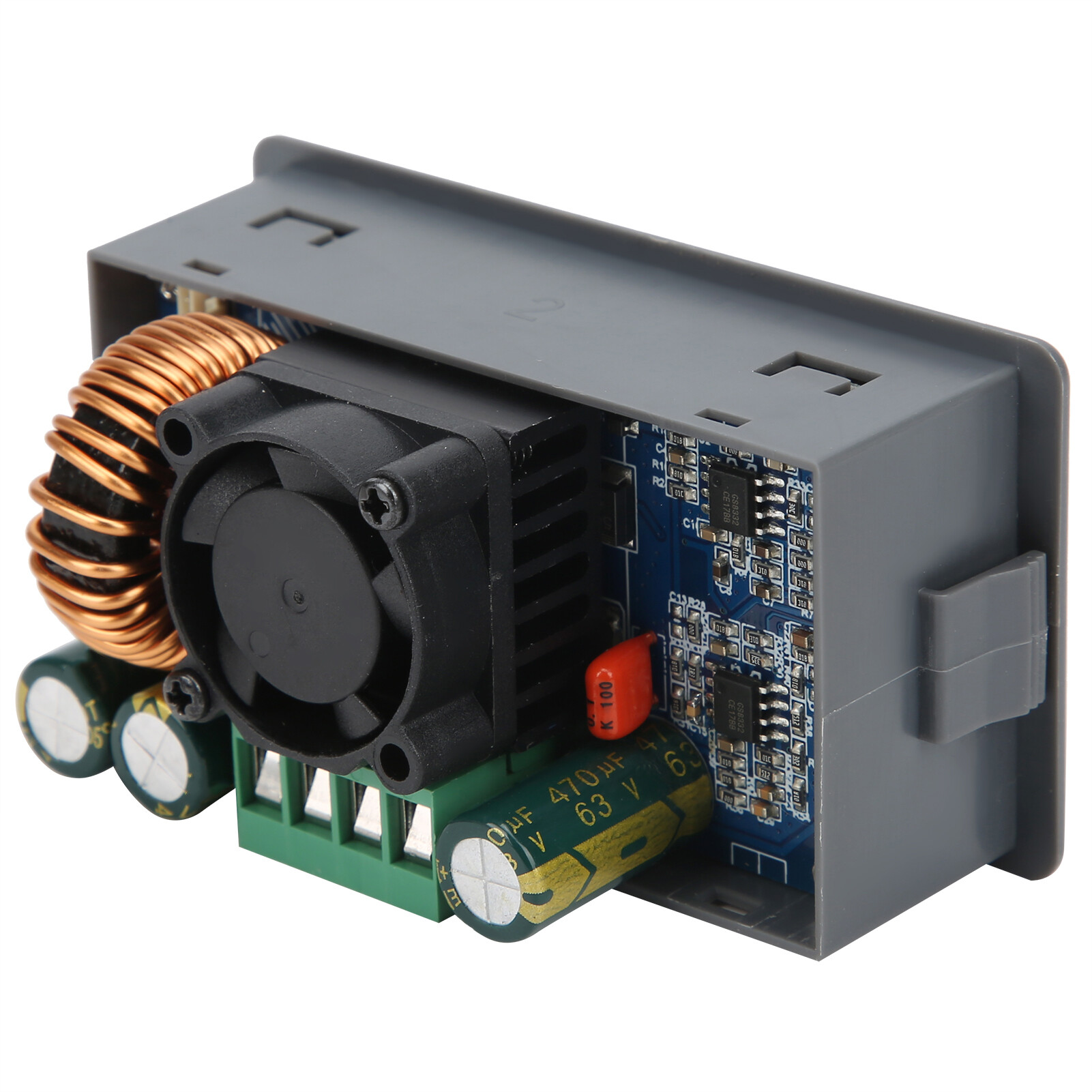

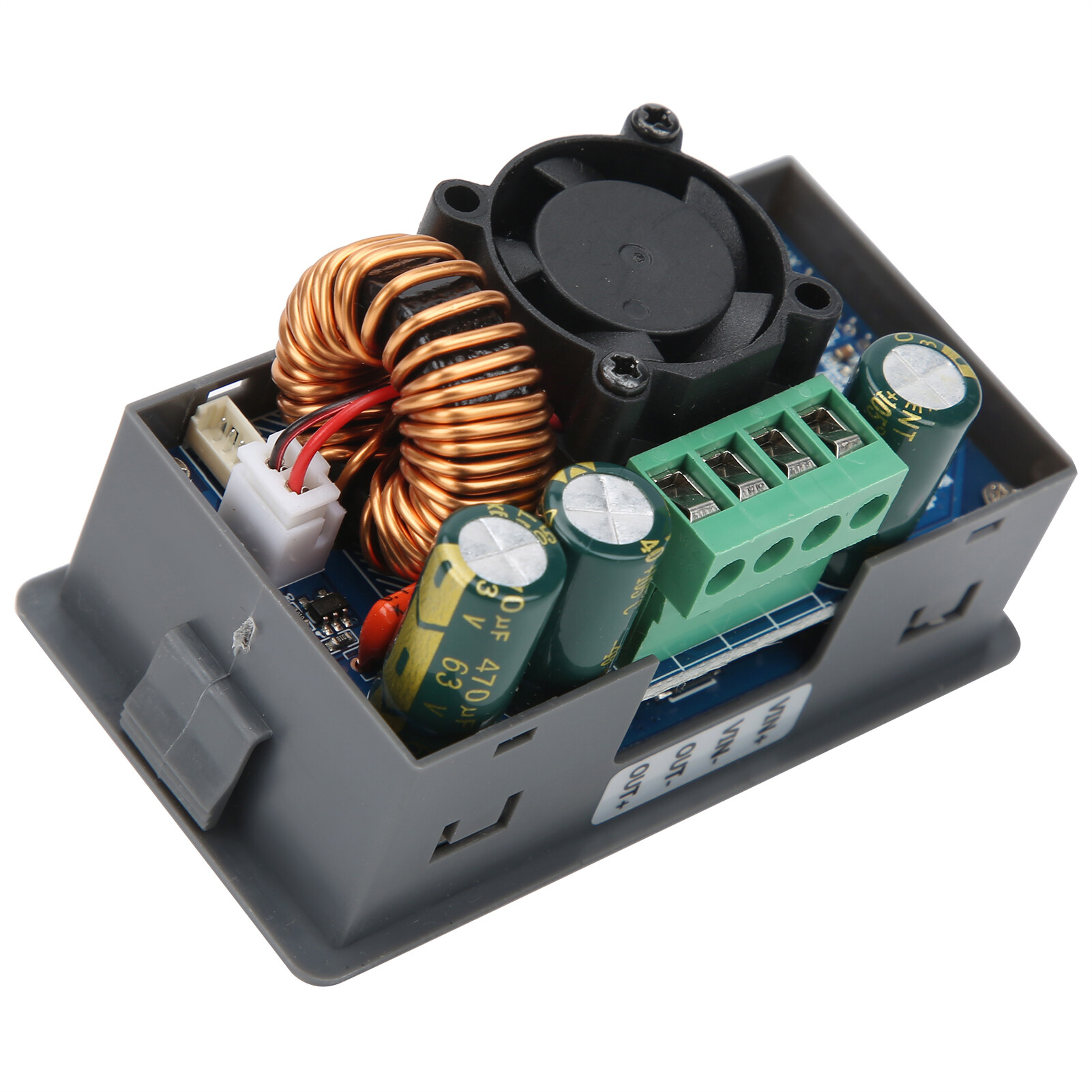

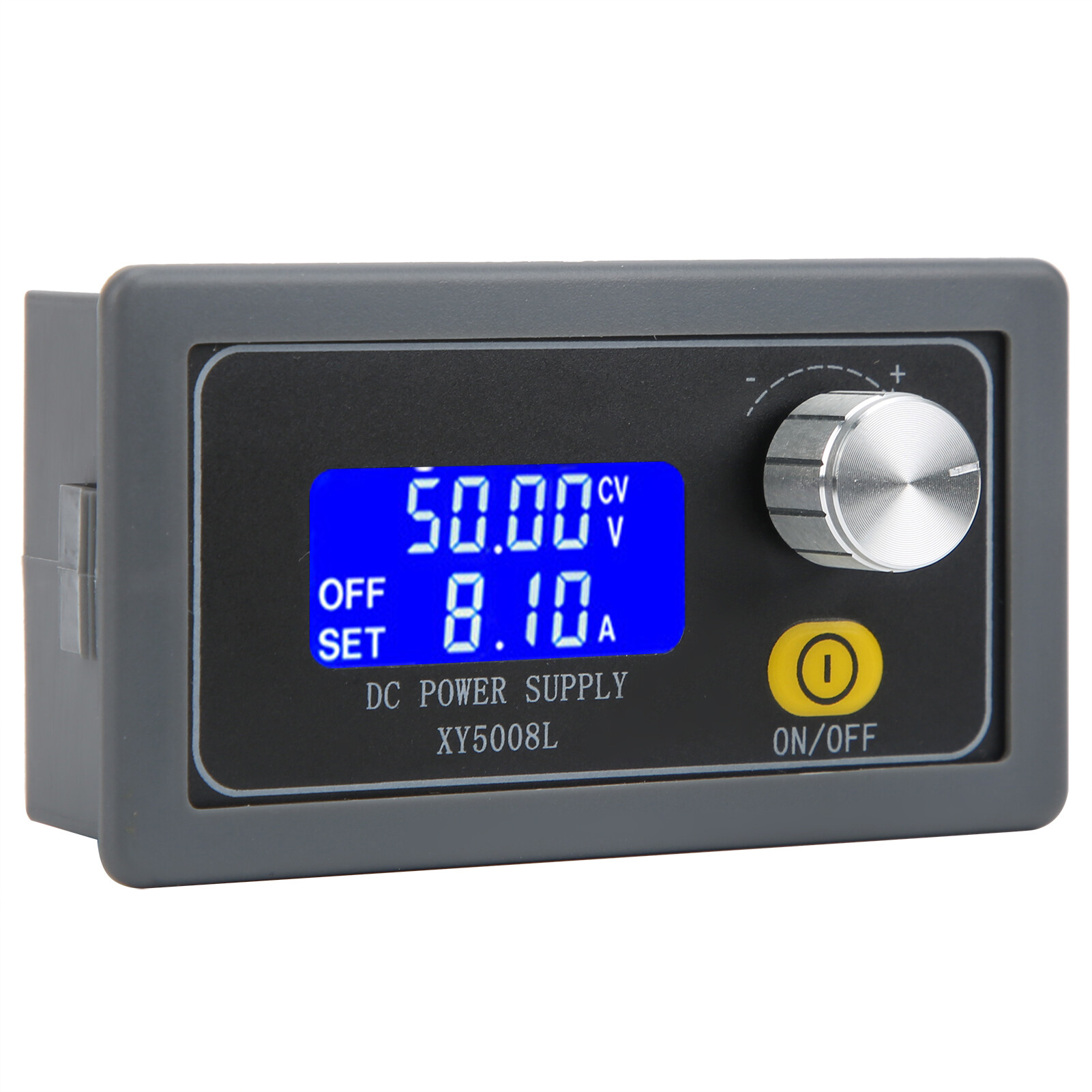

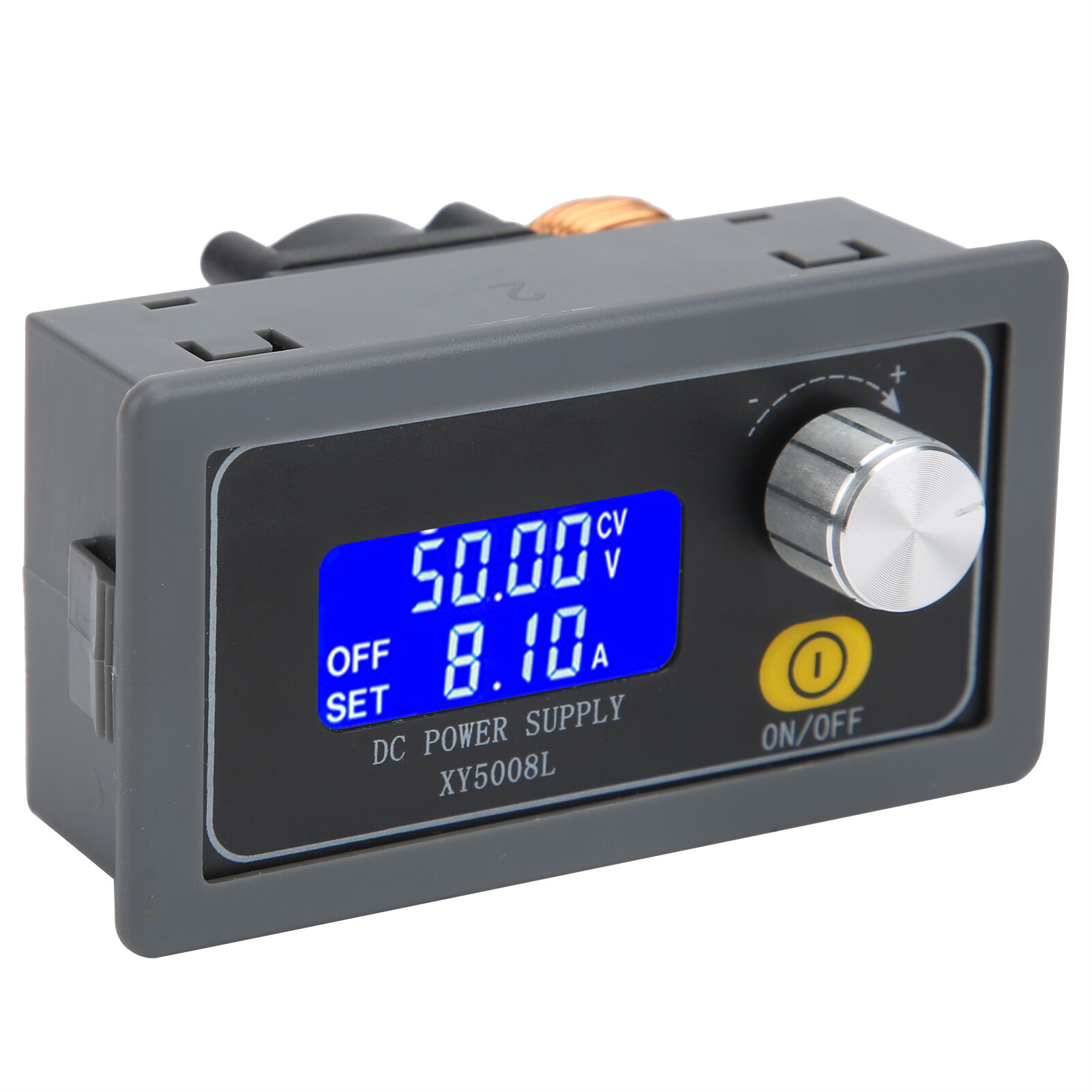

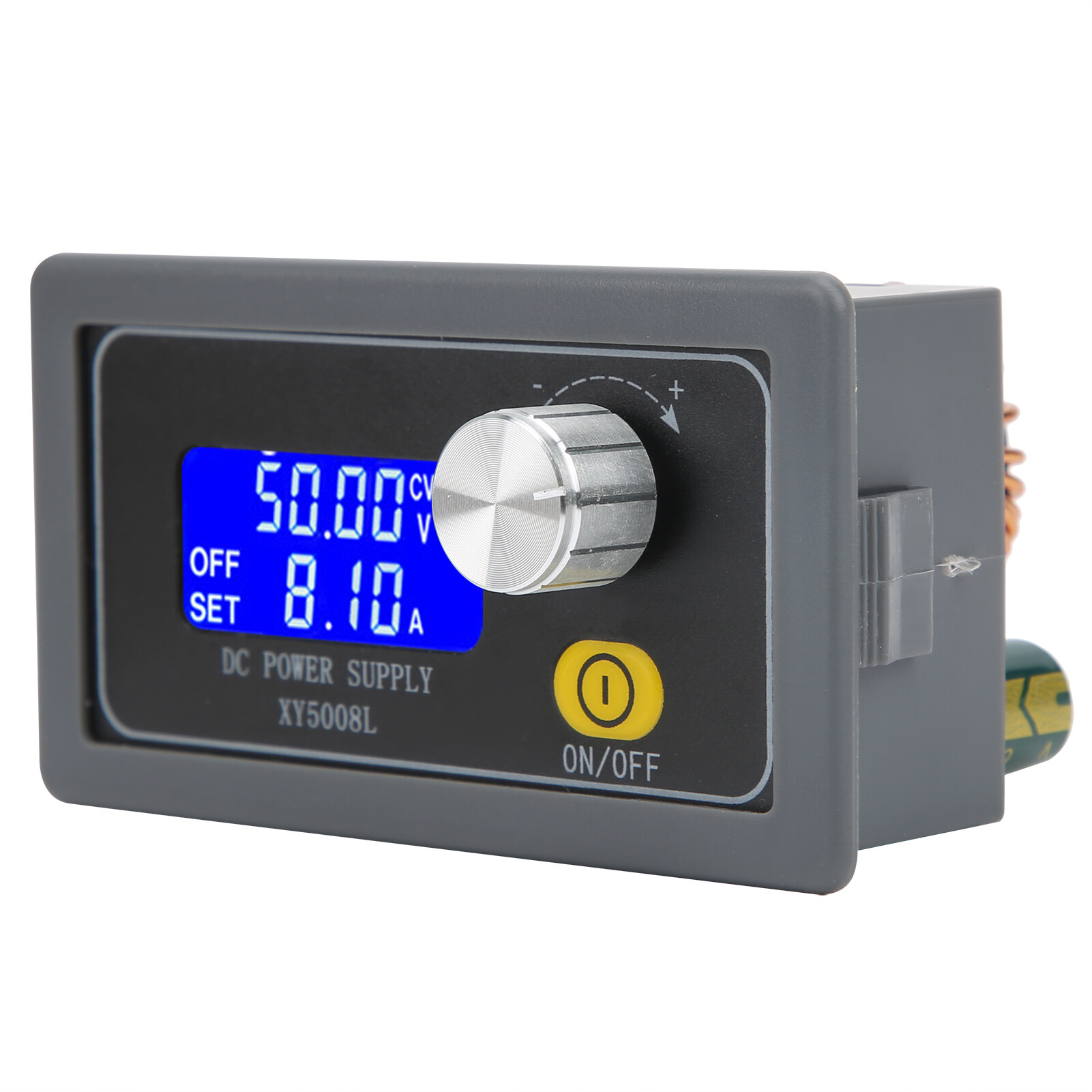

Bộ Điều Chỉnh Dòng Điện Áp Không Đổi Điều Chỉnh CNC Nguồn Điện Một Chiều, 400W XY5008LC

Feature:

1. The product is simple and easy to operate, small in size and convenient to carry
2. With a variety of software protection mechanisms, and the protection threshold is adjustable
3. After the module's working parameters exceed the protection threshold, the output is automatically turned off
4. The LCD can provide input/output voltage, output current/output power/output and capacity/output time
5. Professional design and reasonable structure, the wiring is simple and convenient

Specification:

Item Type: DC Power Supply
Model: XY5008L
Material: Plastic
Purpose: Display power supply voltage rise and fall
Input Voltage: DC6.0-55V (extreme low voltage 5.5V, extreme high voltage 60V)
Output Voltage: DC0V-50V
Output Current: 0A-8.1A
Output Power: 0-400W
Typical Output Ripple: Vpp-150mv
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Voltage Accuracy: ±0.4%+1 digits
Current Accuracy: +0.5%+3 digits
Capacity: 0-999999AH
Energy: 0-999999WH
Time: 0-1000 hours

Product Size: Approx. 79 x 42mm / 3.1 x 1.7in
Setting Interface(how to use):
1. Long press the rotary encoder button for 3 seconds to enter the setting interface
2. Adjust the size of the parameter through the rotary encoder potentiometer, support rapid rotation (rapid increase/decrease), short press the rotary potentiometer button to switch the parameter to be adjusted
3. In the maximum capacity (OAH) / maximum energy (OPH) / maximum operating time (OHP) interface, short press the "ON/OFF" button to select the corresponding function on or off, if it is off, it will display "----"
4. In the maximum capacity (OAH)/maximum energy (OPH) parameter interface, long press the "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah /999.9Ah/9999Ah, 9.999Wh/99.99Wh /999.9Wh/9999Wh )
5. After setting the parameters, press and hold the encoder potentiometer button for 3 seconds to exit the setting interface, and the setting parameters are automatically saved

Package List:

1 x DC Power Supply
