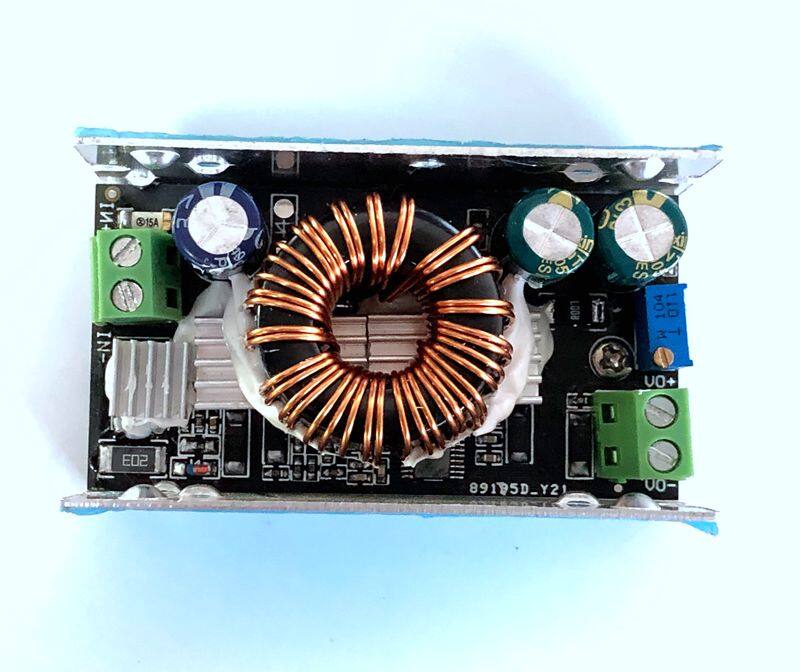

DC-DC Voltage Step Down 90V Input 60V Output 6A Adjustable Step Down Power Supply Module





• Synchronous rectification is a new technology that uses special power MOSFETs with extremely low on-state resistance to replace rectifier diodes to reduce rectification losses. It can greatly improve the efficiency of the DC/DC converter and there is no dead-time voltage caused by the Schottky barrier voltage. Power MOSFET is a voltage-controlled device, and its volt-ampere characteristics are linear when it is turned on. When using a power MOSFET as a rectifier, the gate voltage must be synchronized with the phase of the rectified voltage to complete the rectification function, so it is called synchronous rectification. Synchronous rectification technology greatly reduces the rectification loss at the output end of the switching power supply, thereby improving the conversion efficiency and reducing the heat of the power supply itself.



• Module parameters

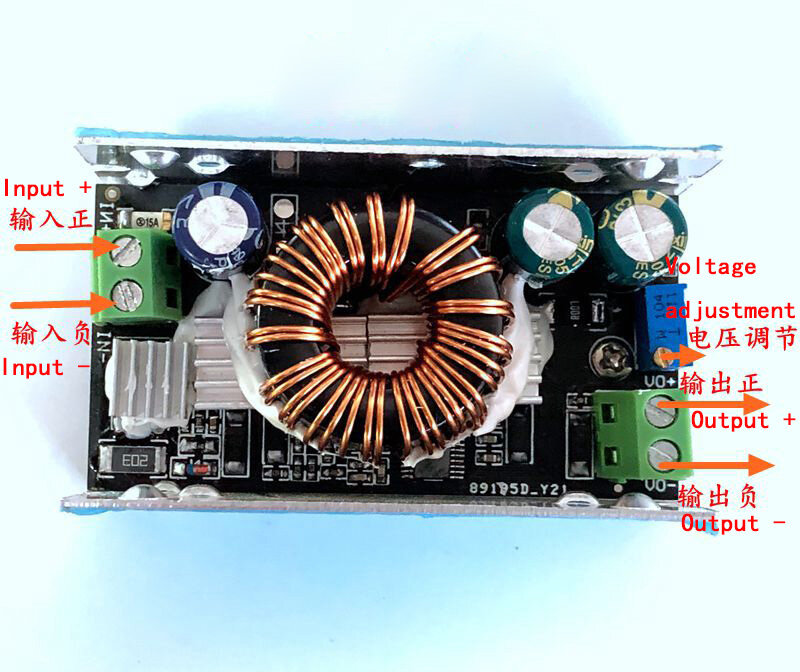

  Module nature: synchronous rectification non-isolated step-down module

  Input voltage: 10-90VDC

  Output voltage: 1.5-60VDC (suitable for applications where the input voltage is higher than the output voltage and cannot be boosted)

  Output current: maximum 6A (please derate when using high voltage output, additional cooling is required when the module temperature exceeds 65 degrees)

  Maximum power: 100W (maximum current 6A at low voltage output. Maximum power 100W at high voltage output)

  Working frequency: 180KHZ

  Conversion efficiency: 97.5% (typ.)

  Input anti-reverse connection: yes

  Aluminum shell size: 70MM*38MM*31MM
