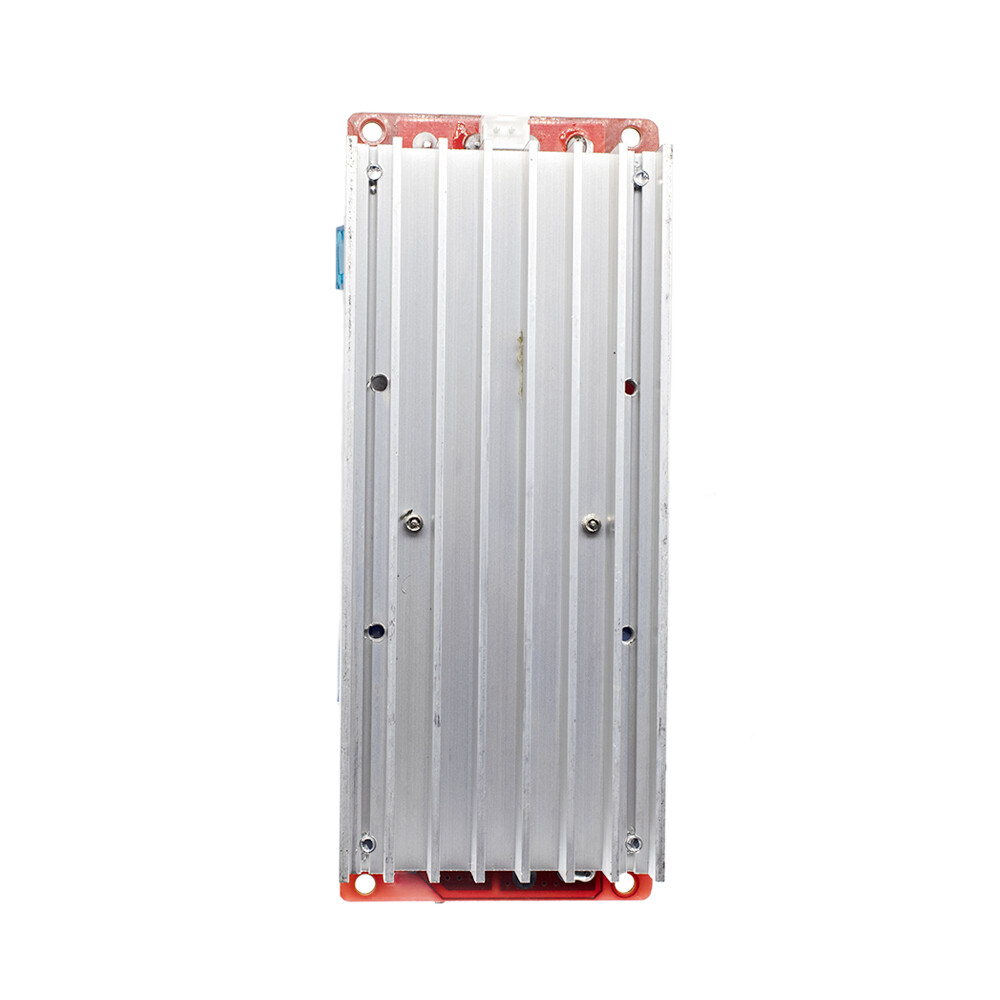

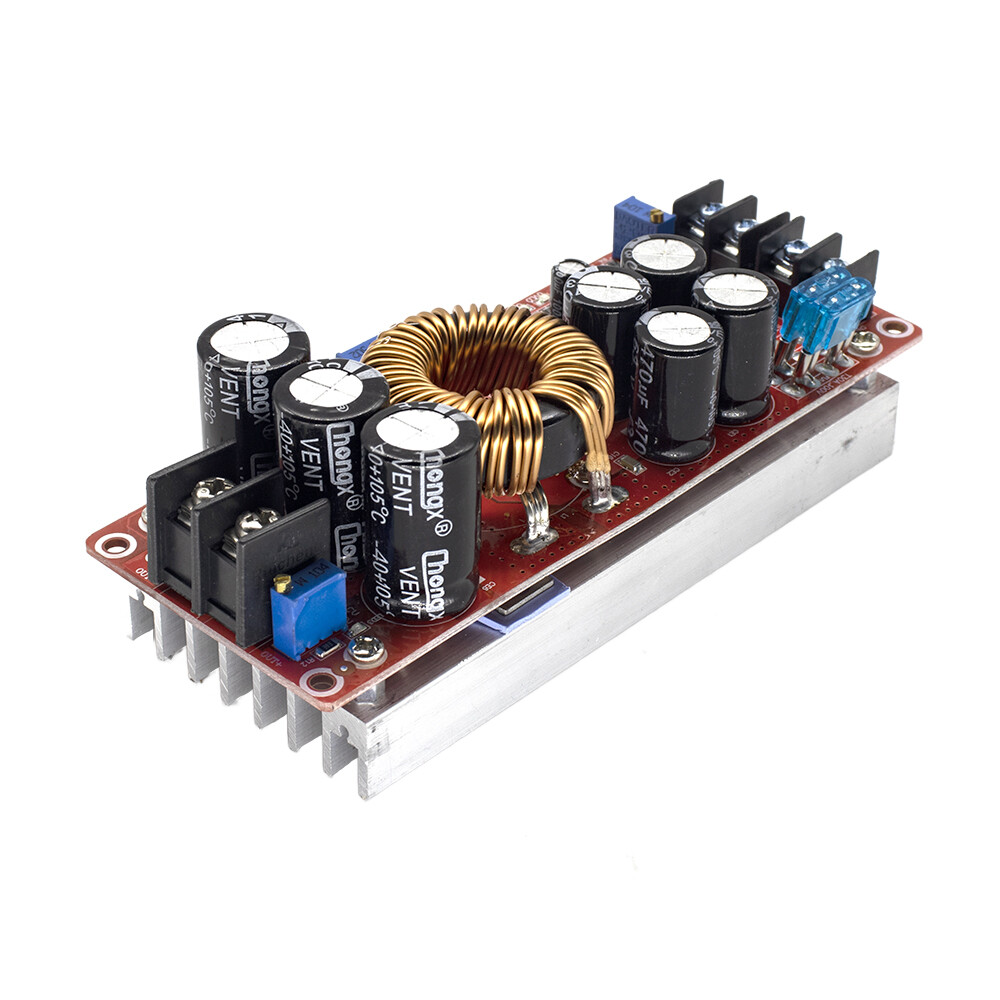

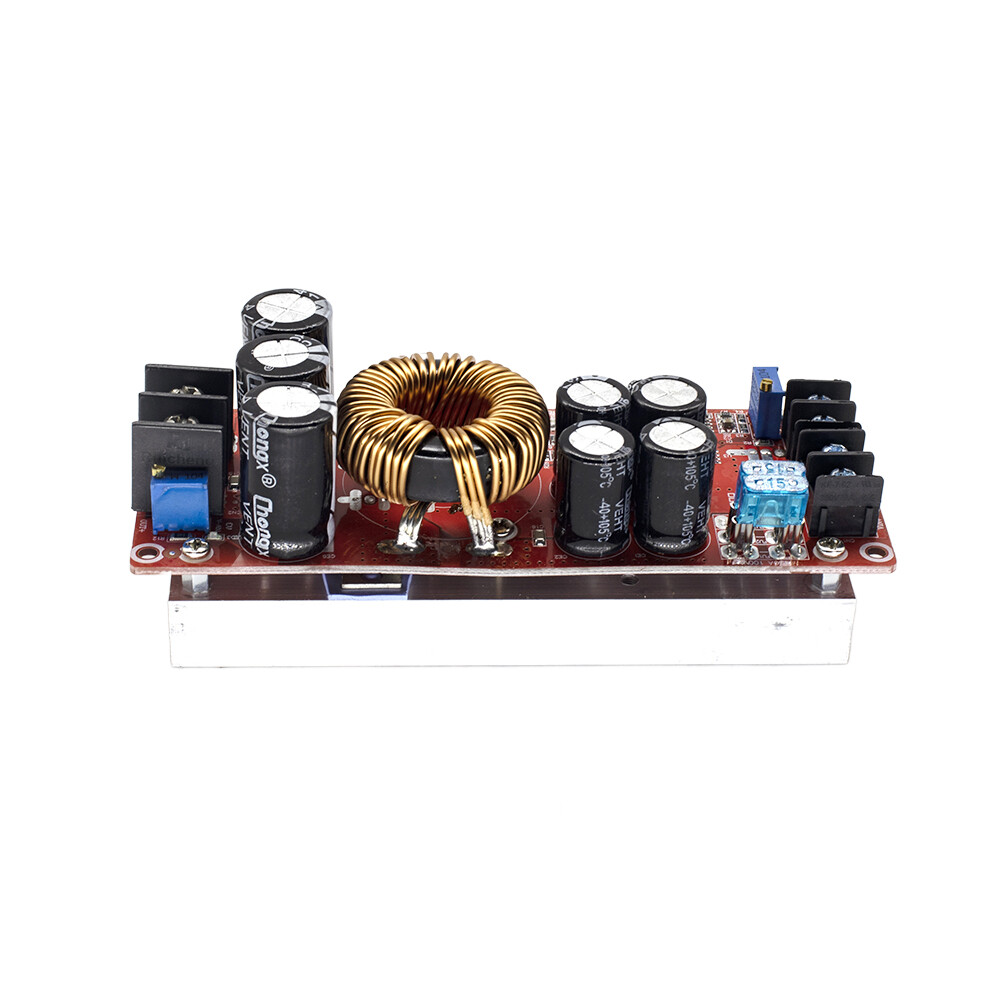

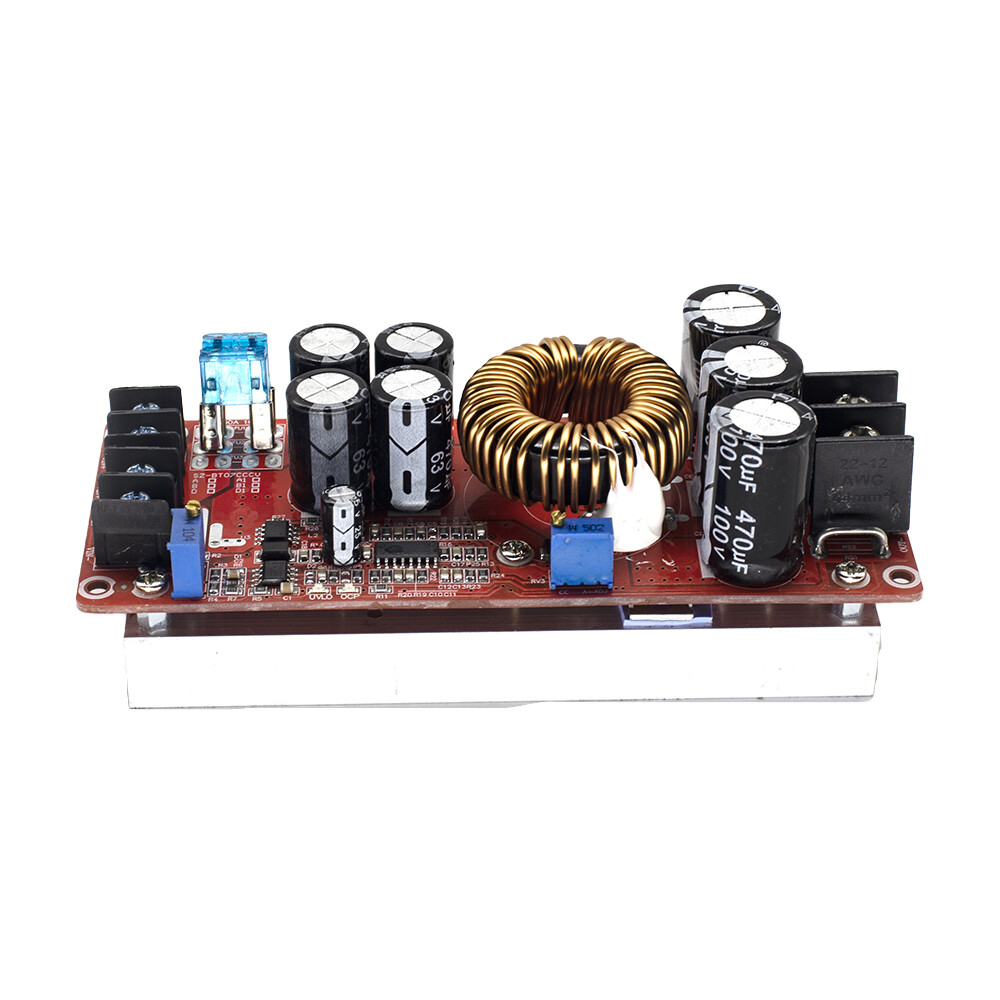

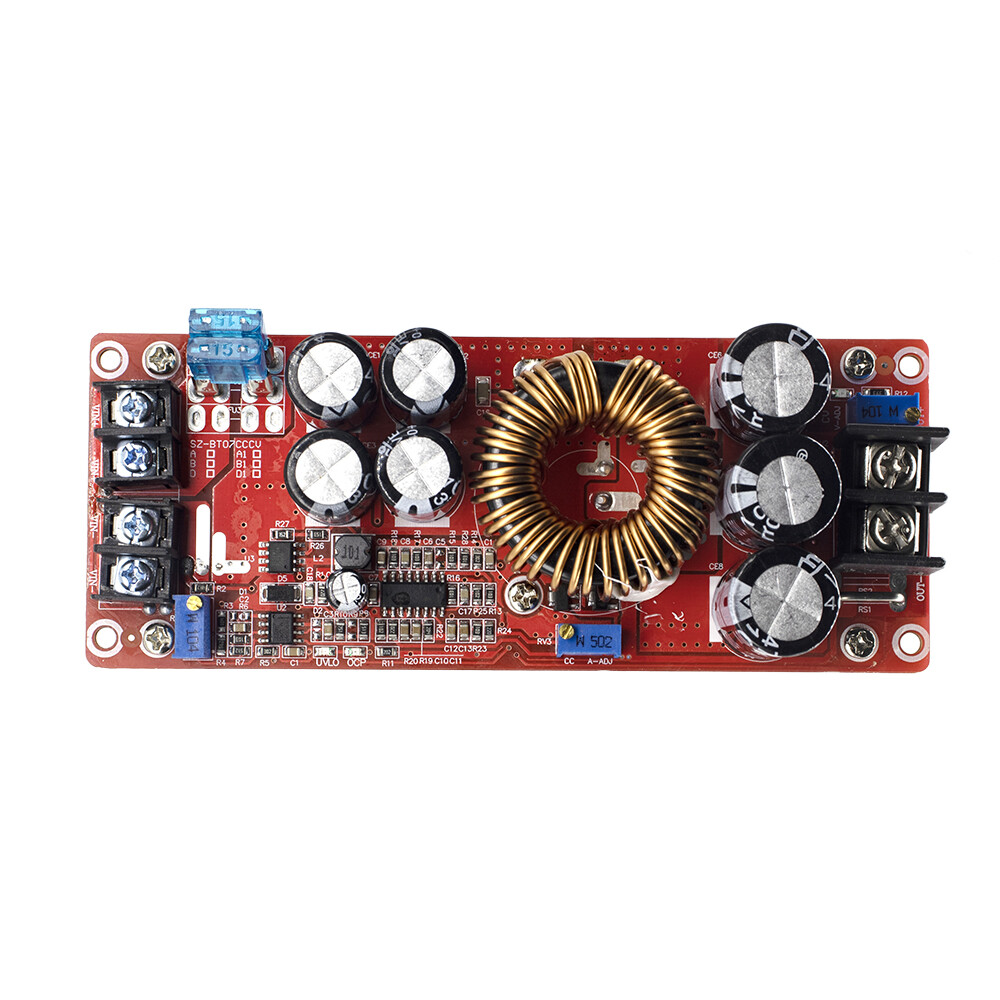

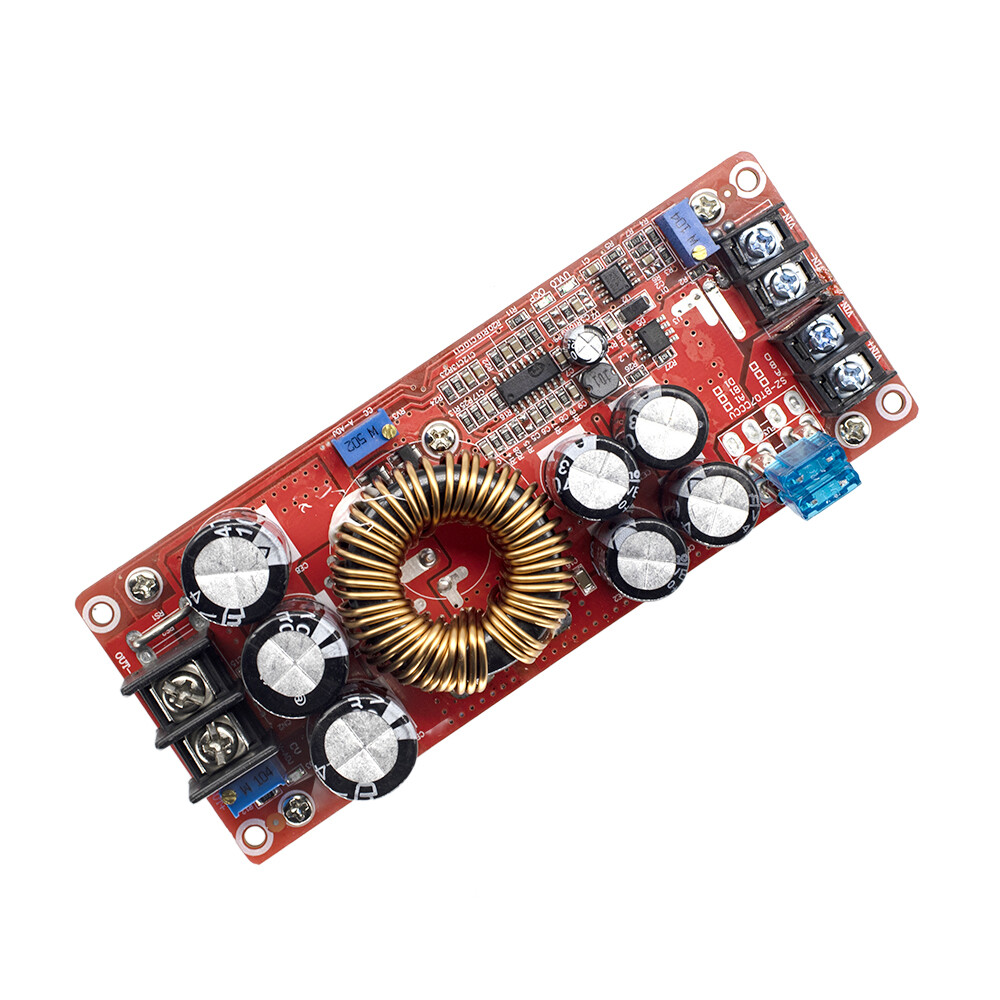

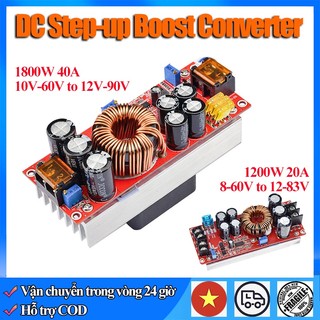

DC-DC Bộ chuyển đổi tăng áp 1800W 40A/1200W 20A Mô đun tăng áp

1800W 40A Specification: Working characteristics: Output power: 1800W Input voltage range: 10V-60V Output voltage range: 12V-90V Input current: 40A Output current: 22A Conversion efficiency: 48V to 60V 8A (98.1 %) 48V to 72V 8A (98.1%) 48V 84V 8A (97.6%) Charge Regulation: 10% to 50% charge (72V output) Temperature coefficient: 50% load Ripple and Noise: 20MHz bandwidth (48V-72V 4A) 100mVp-p Switching frequency: VIN = 48V VO = 72V 4A (110khz) No-load current: VIN = 48V VO = 72V (18mA) Input reverse protection: yes Storage humidity: 95% Operating temperature: -20 65 °C Storage temperature: -40 125 °C Operating Temperature Rise: 48V to 60V 5A (45 °C) Overheating Protection: 60°C Wiring method: input, output (solderless, terminal block). Cooling method: strong air cooling

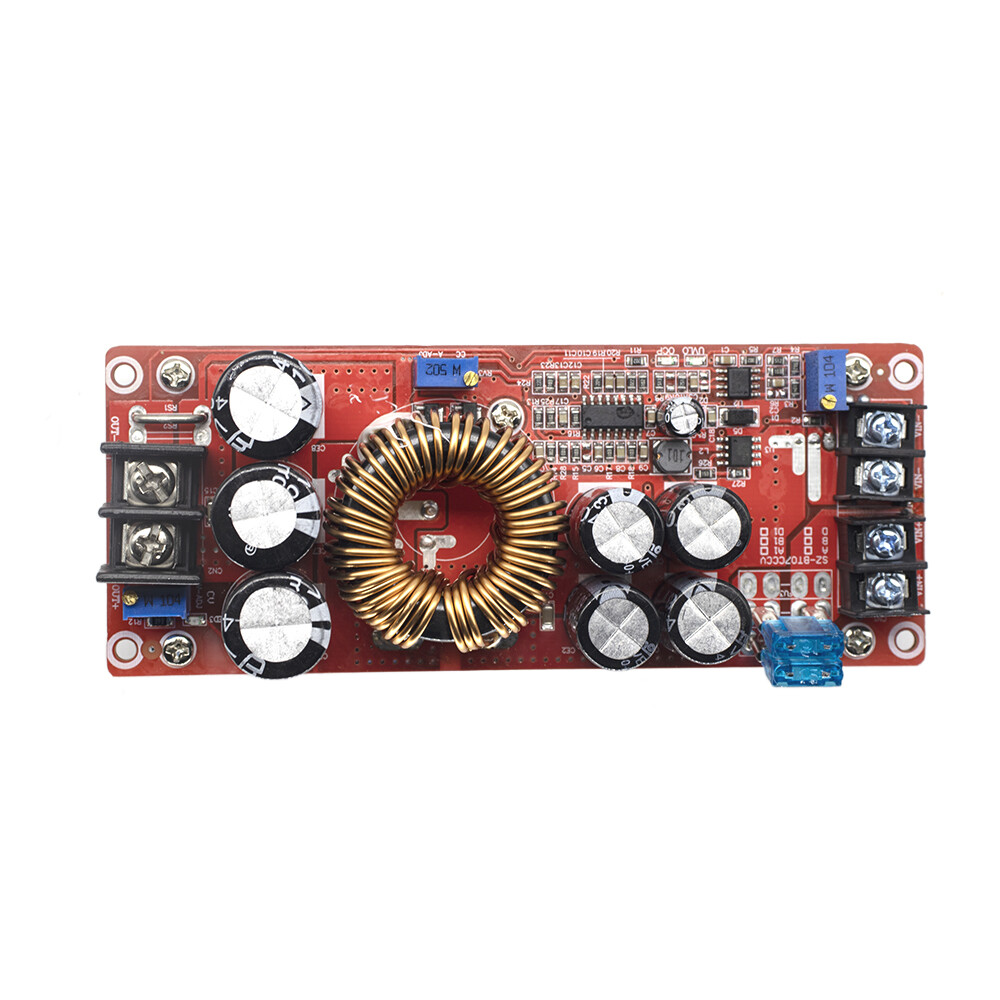

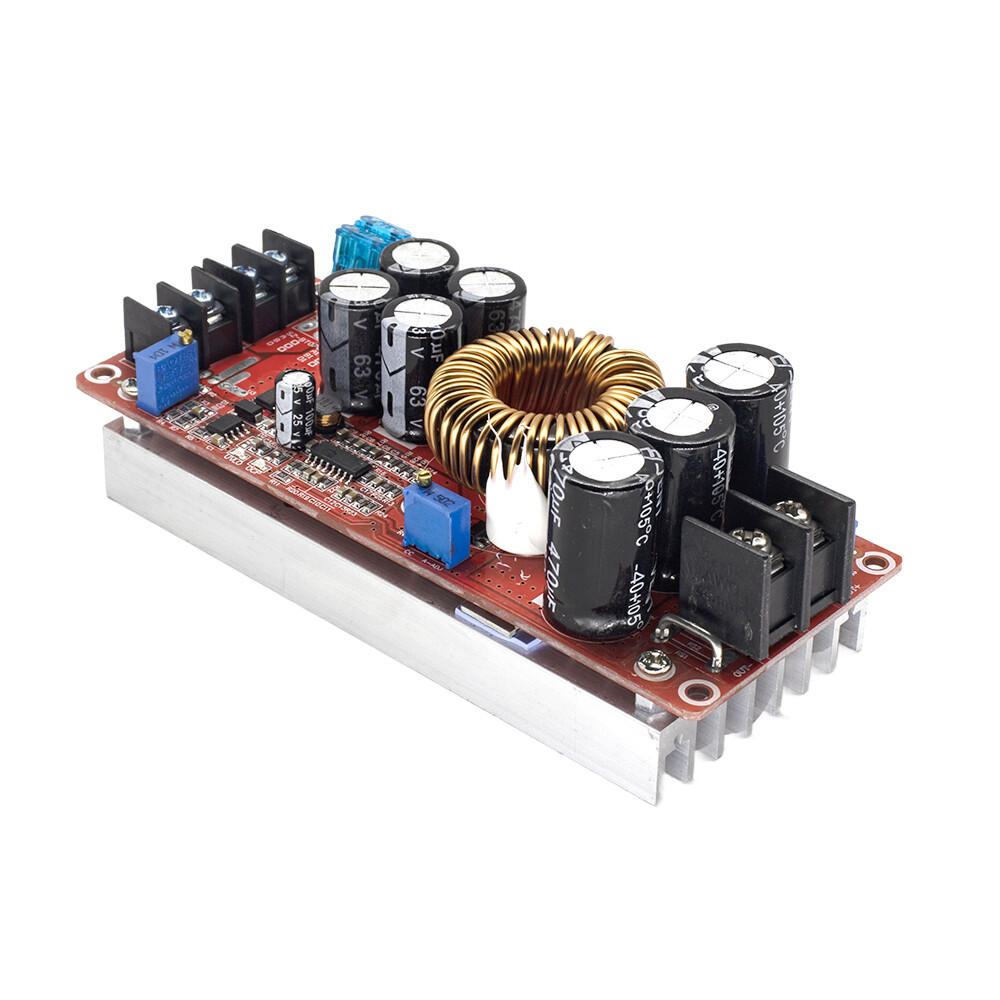

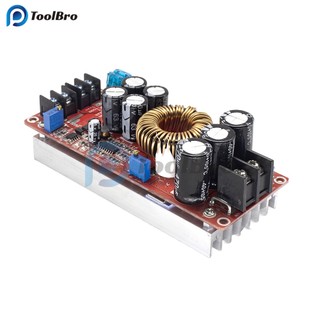

1200W 20A Specifications

Module properties: non isolated boost module (BOOST)

Input voltage: 8-60V

Input current: 20A

Quiescent operating current: 15mA

Output voltage: 12-83V continuous adjustable

Output current: MAX 12A over 20A, please strengthen the cooling (with input and output differential pressure, the greater the pressure difference between the output current is small)

Constant current range: 0.3-20A

Output power: = input voltage *10A

Working temperature: -40~+85 degrees

Working frequency: 150KHz

Conversion efficiency: ≤95% (efficiency and input, output voltage,current, pressure difference)

Installation: 4pcs 3mm column

Connection mode: welding output (please use big current and pure copper wire)
