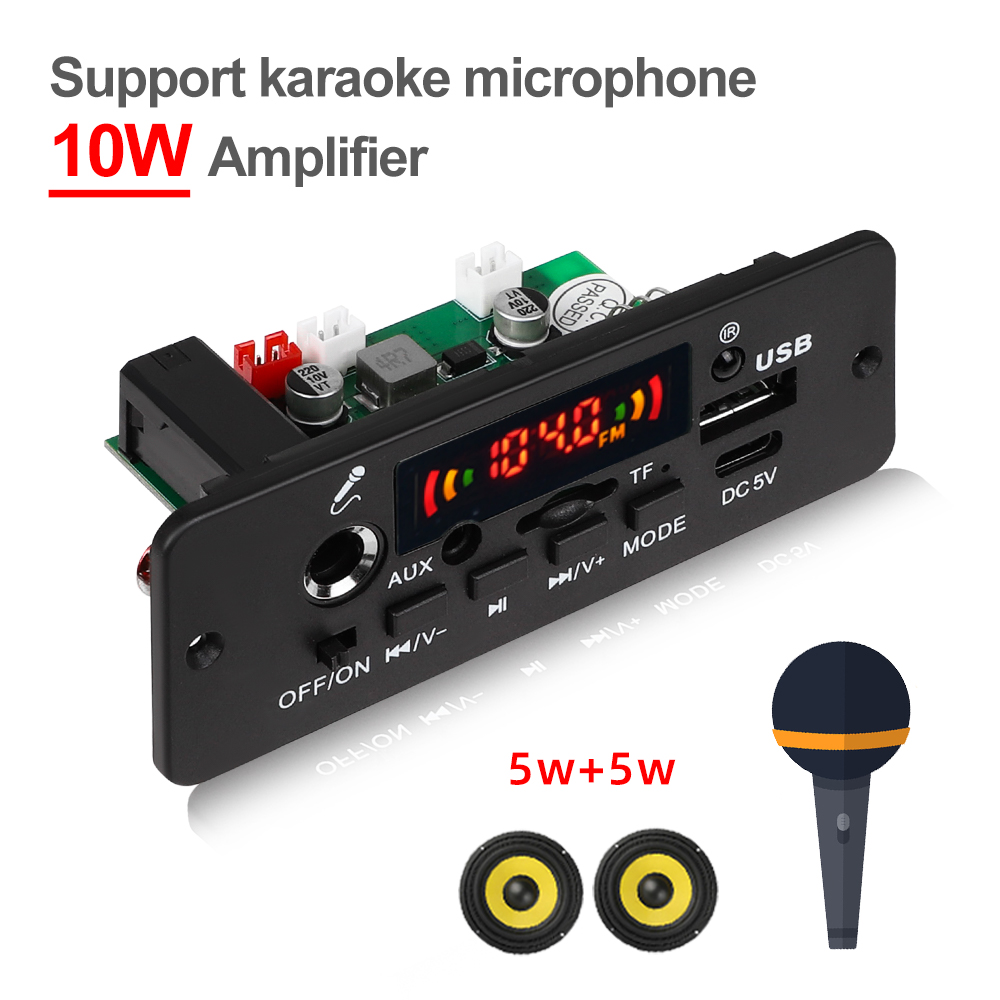

Dc 5V bảng mạch Giải Mã MP3 10W 6W khuếch đại Bluetooth xe MP3 máy nghe nhạc USB Mô-đun ghi âm FM Aux TF Đài phát thanh Hỗ trợ microphone

2*3W

Microphone function

Bluetooth version 5.0

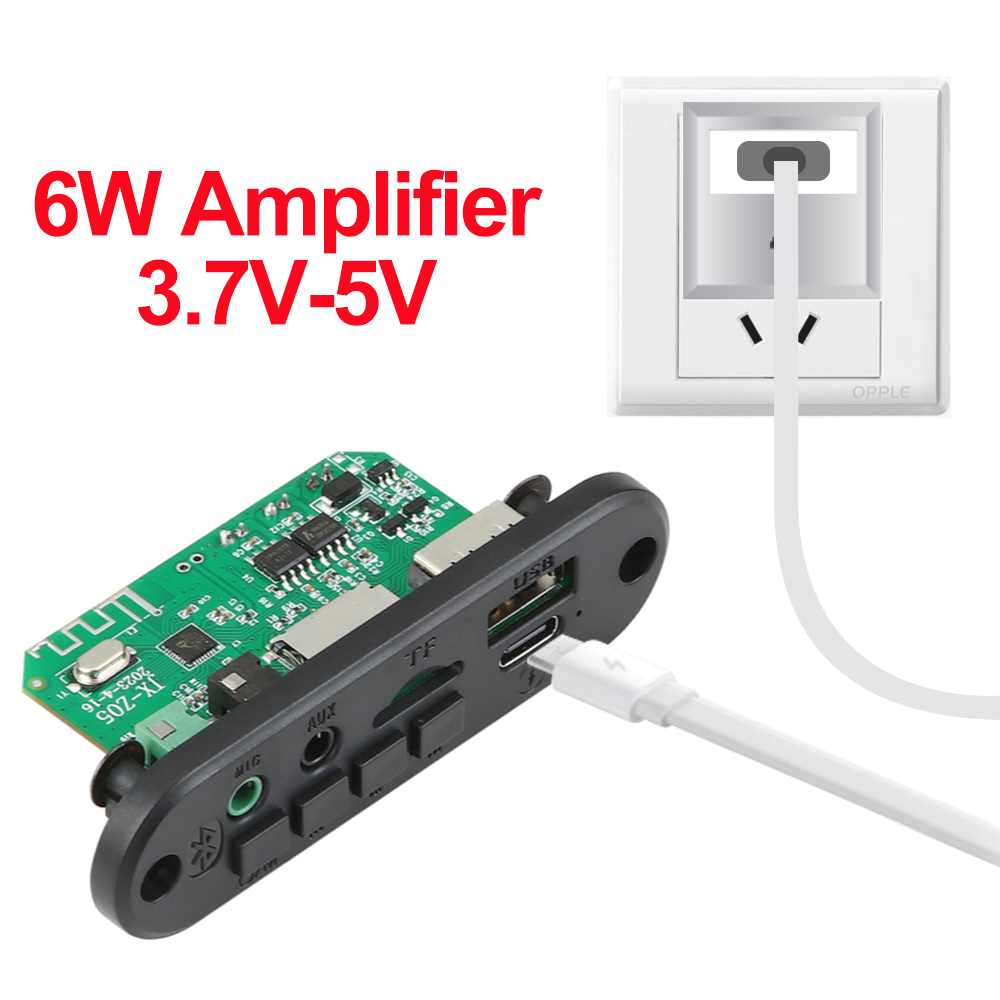

Power supply voltage: 5V (range 3.7V-5V) and current not less than 1A.

Power: 2*3W, and two 3W speakers can be connected at the same time.

Connect the 3.5mm microphone function,

Support calling (long press the pause button to answer the call when there is a call).

Support recording. Recording only supports operation in TF mode or USB mode.

Support power-off memory

Folder switching function

Music format: MP3/WMA/WAV/APE/FLAC lossless music format.

Radio FM frequency: 87.5—107.5mhz.

Introduction of support function: Support MP3/USB/TF/LINE IN/FM/Bluetooth/DC 5V.

Support Type C charging

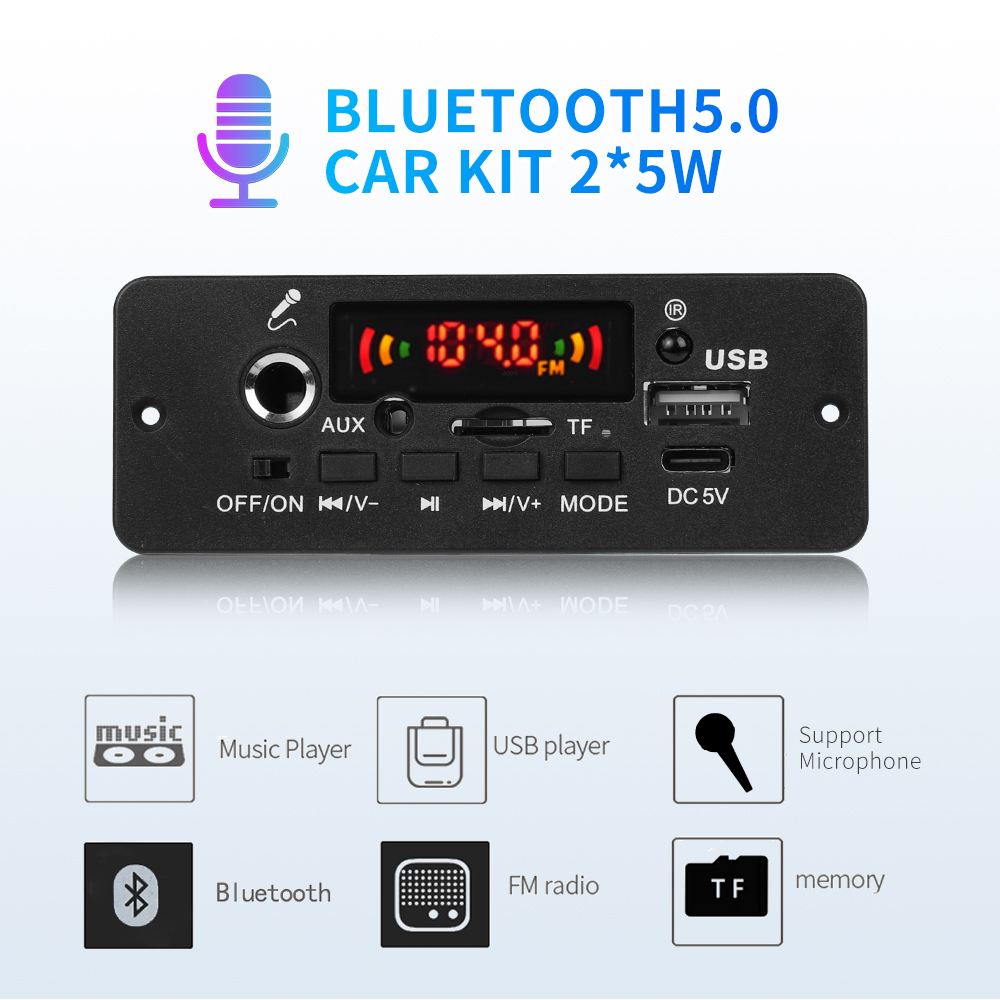

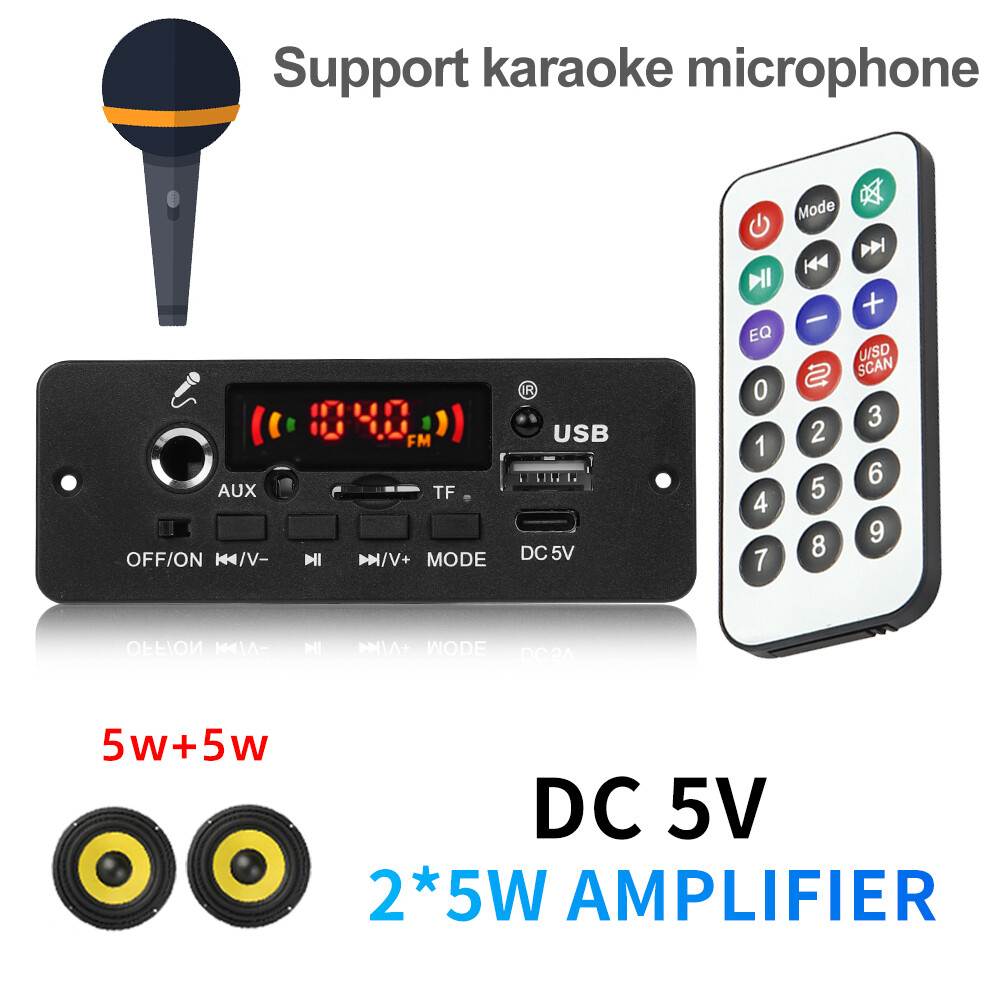

2*5W

Model: JQ-D129BT

Microphone function

Bluetooth version 5.0

Power supply voltage: 5V (range 3.7V-5V) and current not less than 2A.

Power: 2*5W, and two 5W speakers can be connected at the same time.

Connect the microphone function,

Folder switching function

Music format: MP3/WMA/WAV/APE/FLAC lossless music format.

Radio FM frequency: 87.5—107.5mhz.

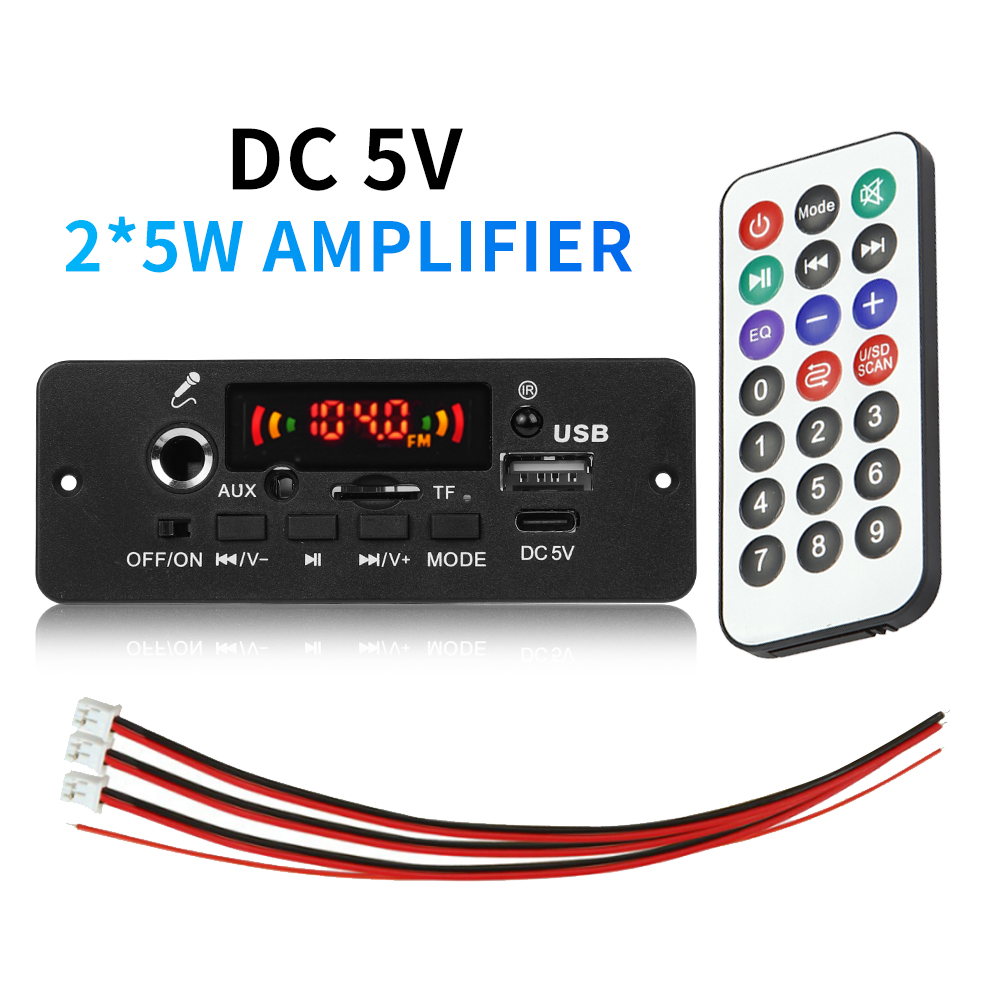

Introduction of support function: Support MP3/USB/TF/LINE IN/FM/Bluetooth/remote control/DC 5V.

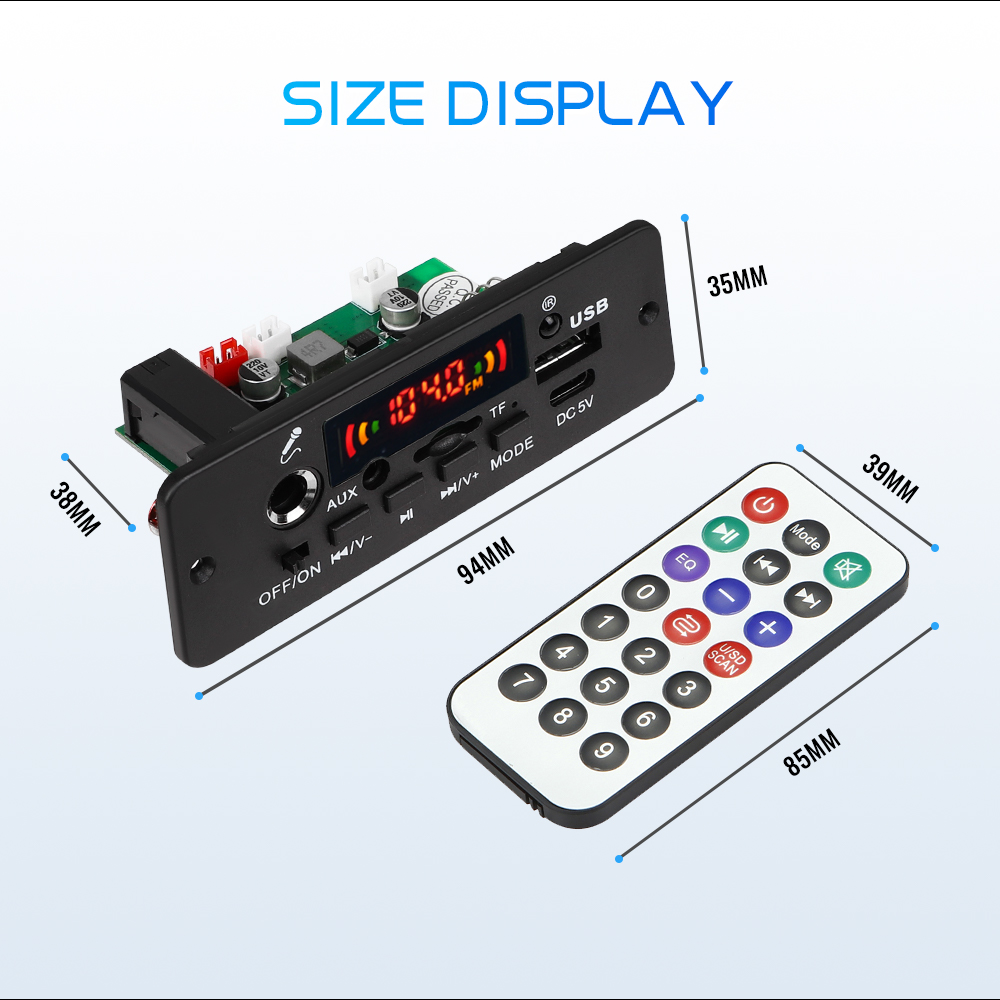

About structure: panel size: 94 * 35 MM, two corners of the panel and the position of screw holes, and the depth of the panel is 38 mm.

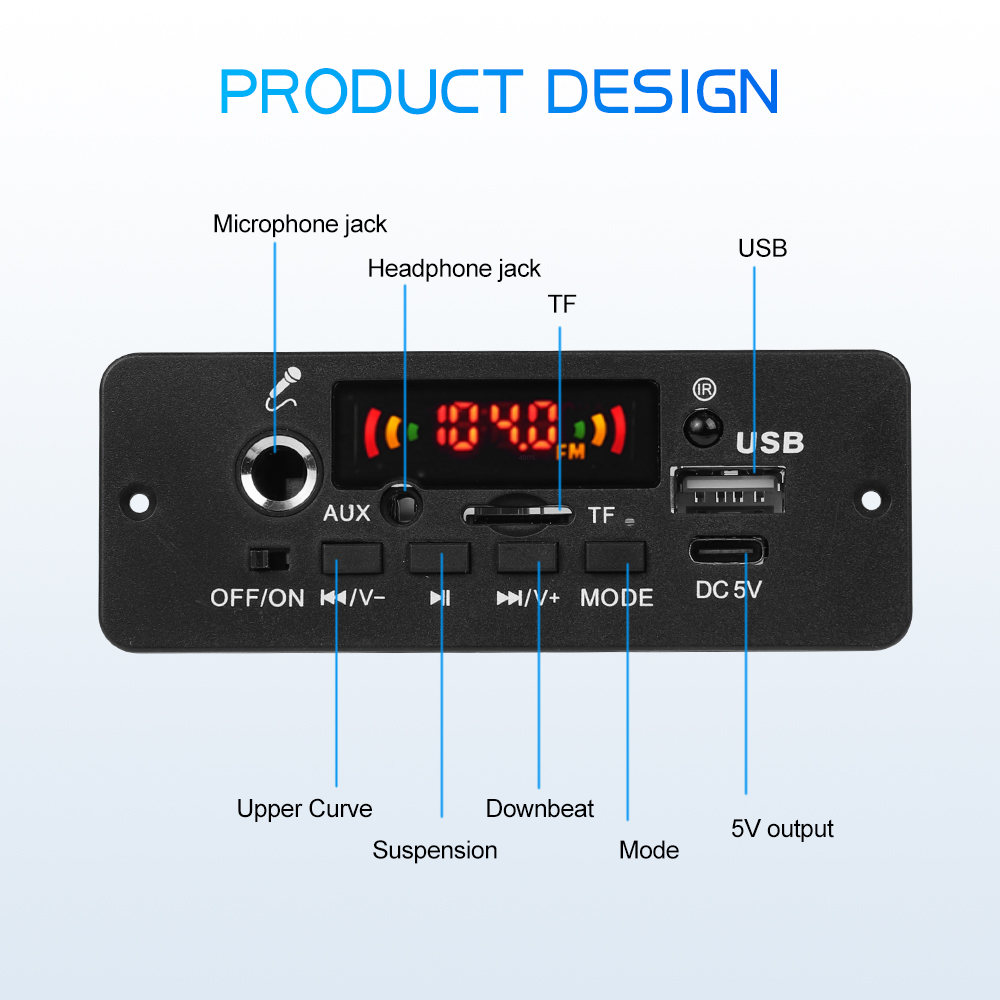

1. Microphone interface;

2. IR: infrared receiving module;

3, LED: color screen display, digital display in red;

4. USB: Connect a U disk (maximum support 32 GB);

5. OFF/ON: power switch;

6, VOL-: short press is to select the previous song; Long press is to reduce the volume; Double-click to switch to the previous folder;

7. AUX: Audio input interface;

8. SCAN: Short press is to switch between pause and play; In FM state, short press is an automatic station;

9. TF card: connect TF memory card (maximum support 32 GB);
