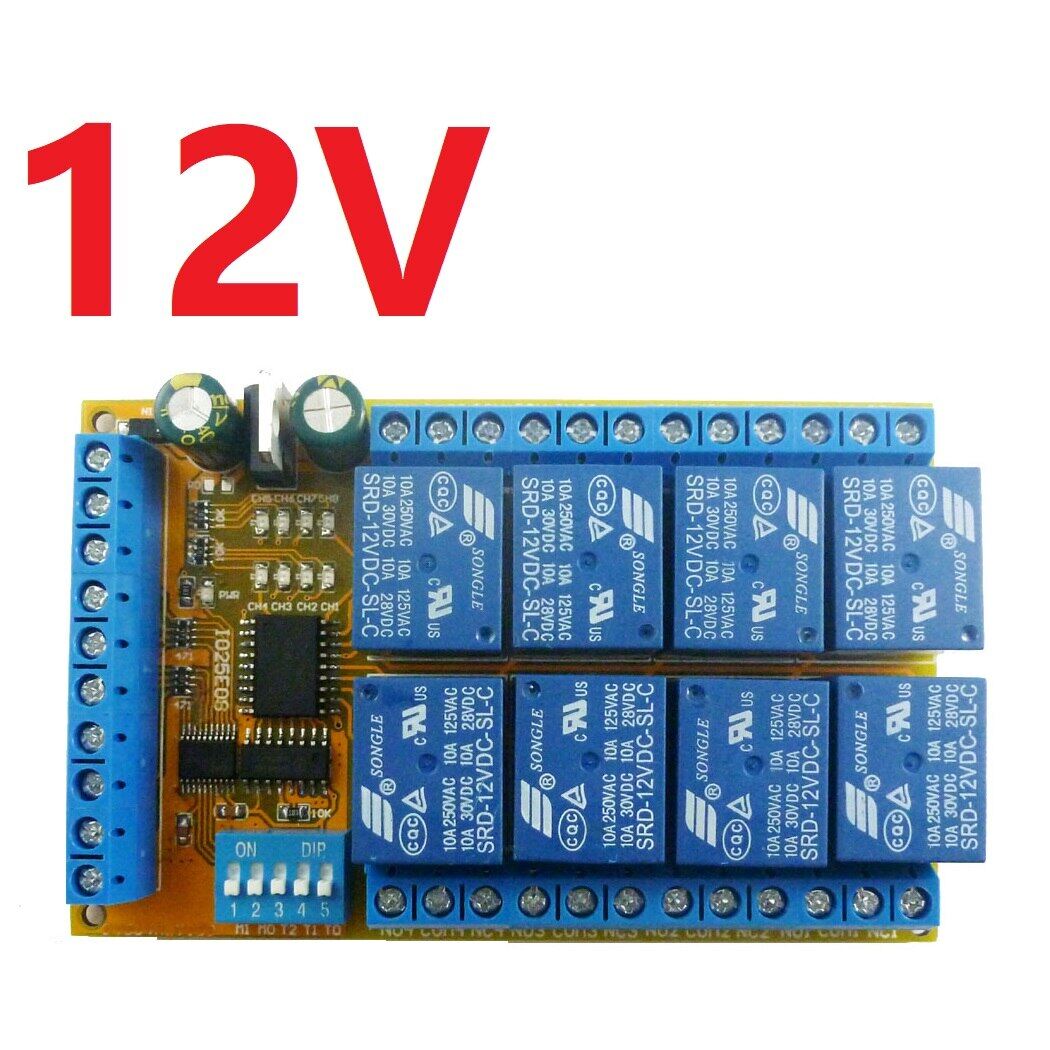

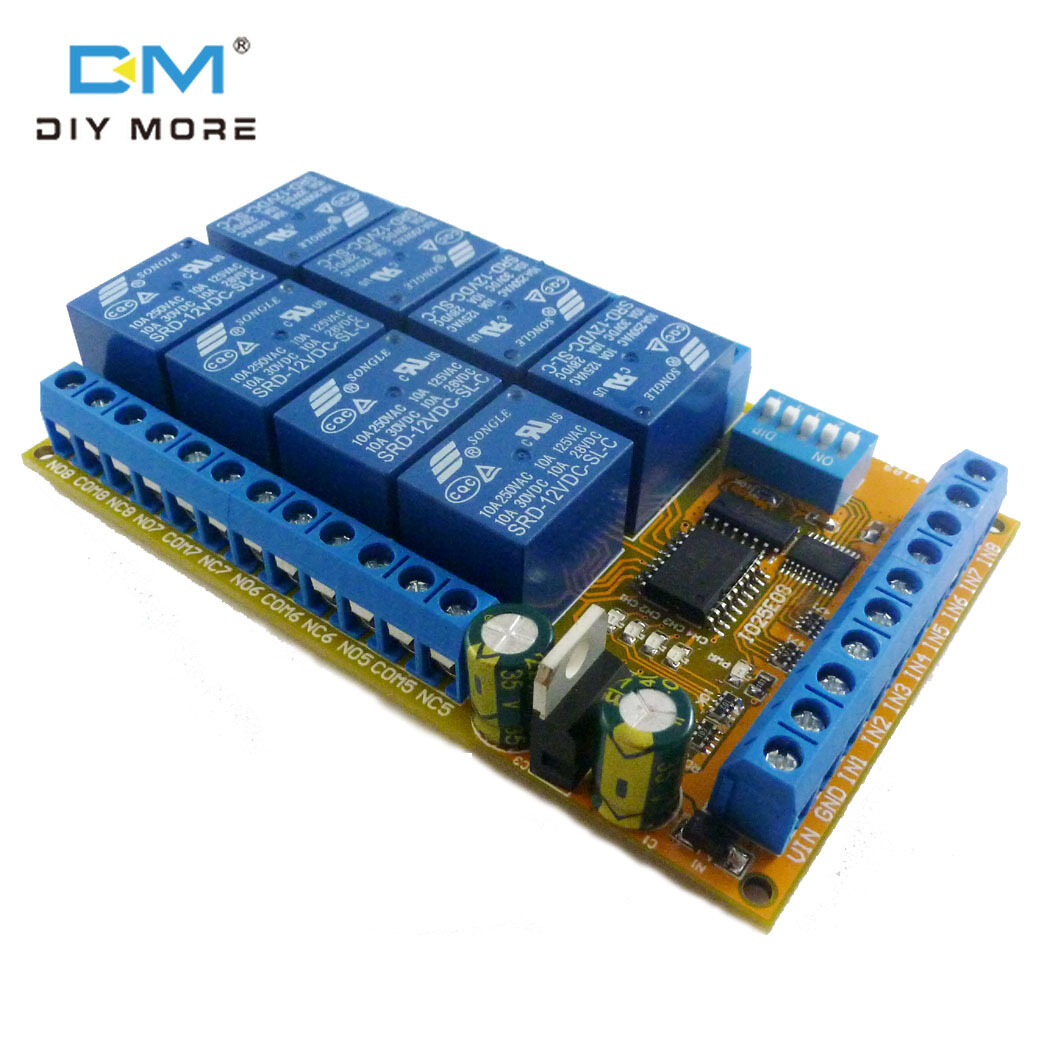

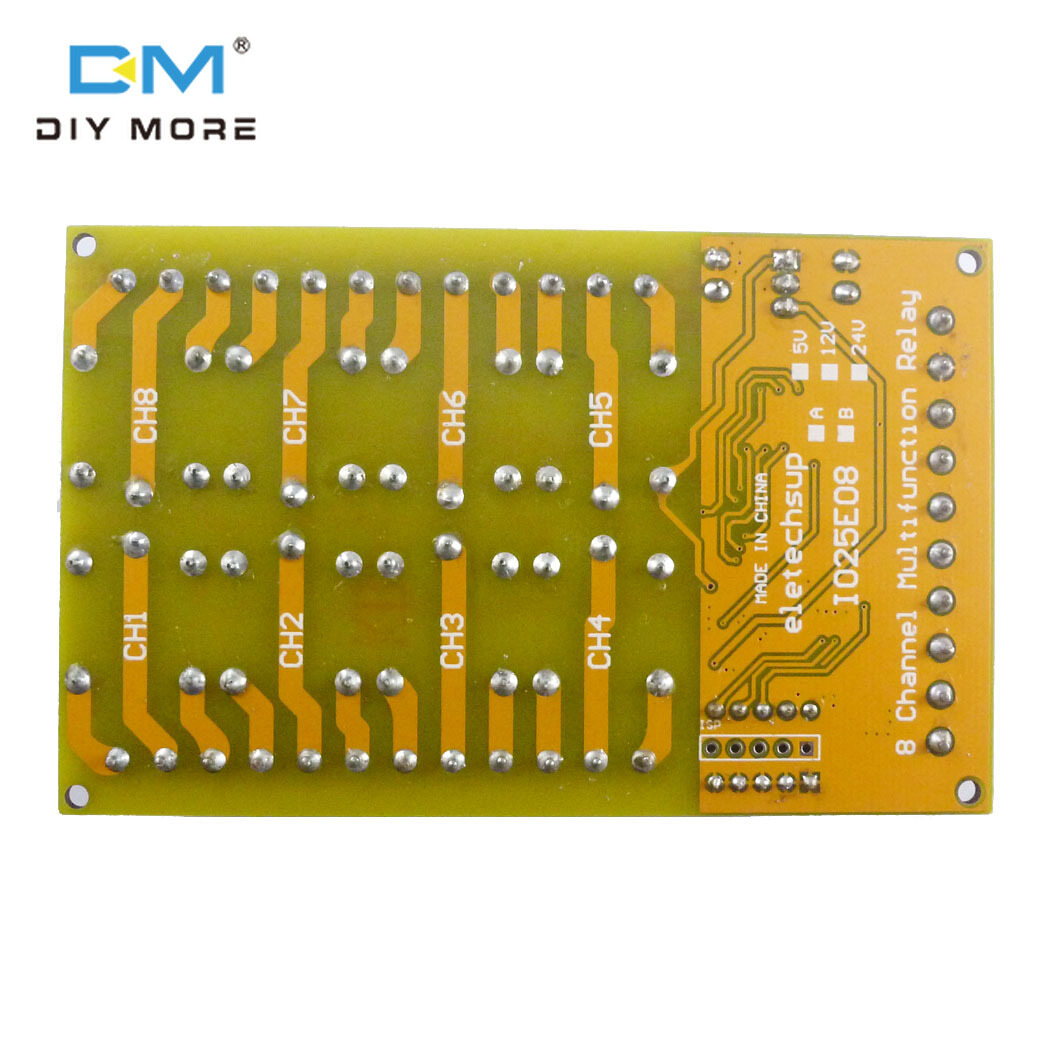

diymore Mô Đun Rơ Le Trễ 8 Kênh DC 5V 12V 24V, Tự-Khóa Ổn Định Kép Latch, Chốt Chốt, Dầu Xả Điện

Product Name: 8ch DC 5V 12V 24V DIP Switch Delay Relay Module, Bistable Latch, Auto Lock Latch, Power Conditioner.


Package included:

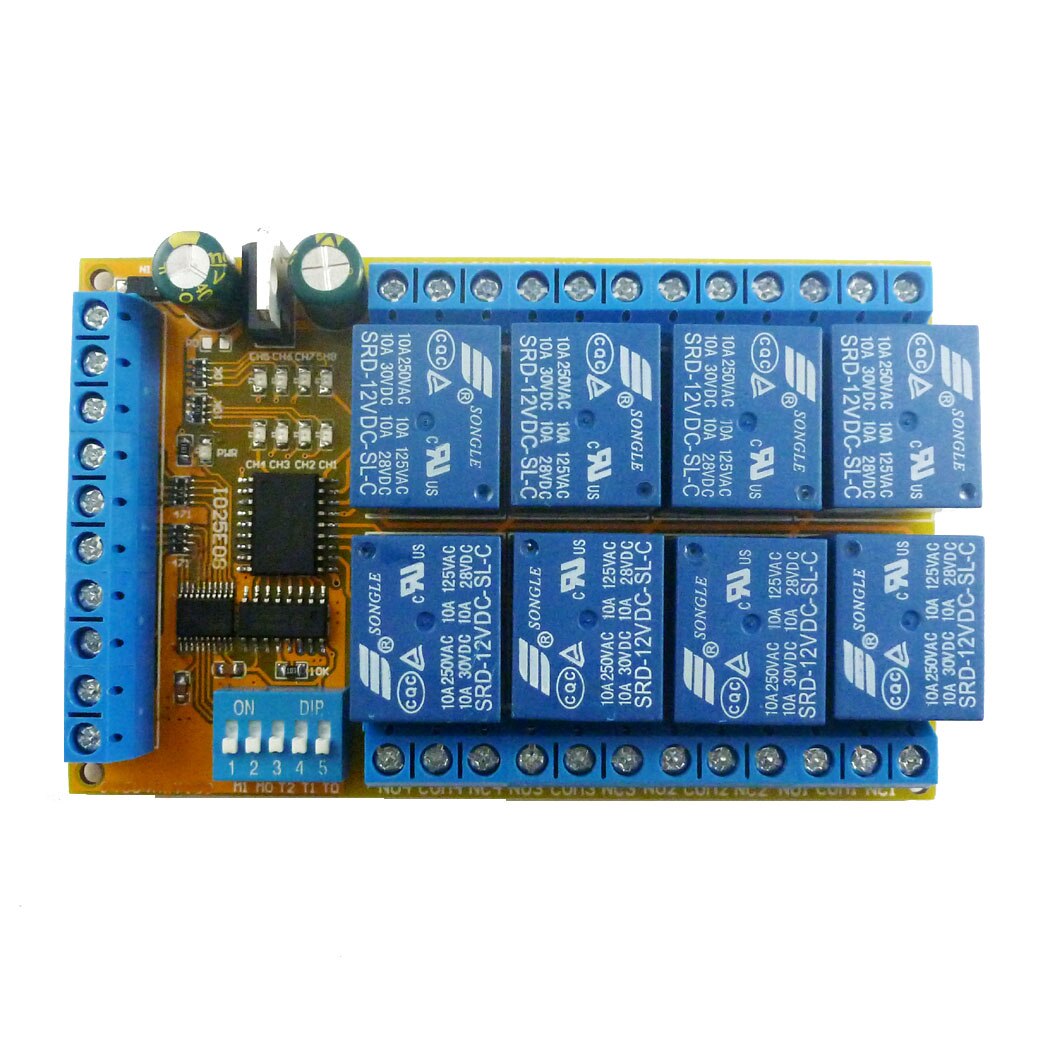

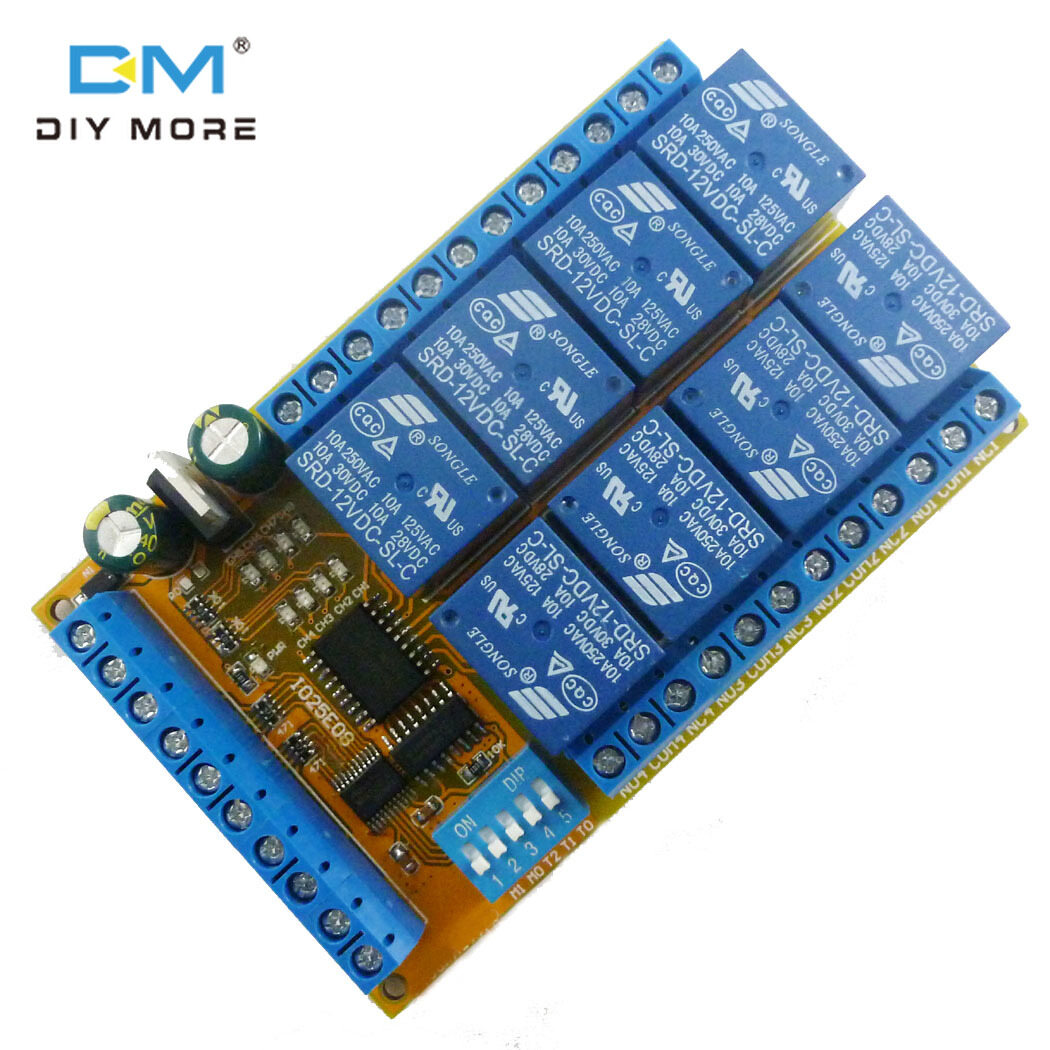

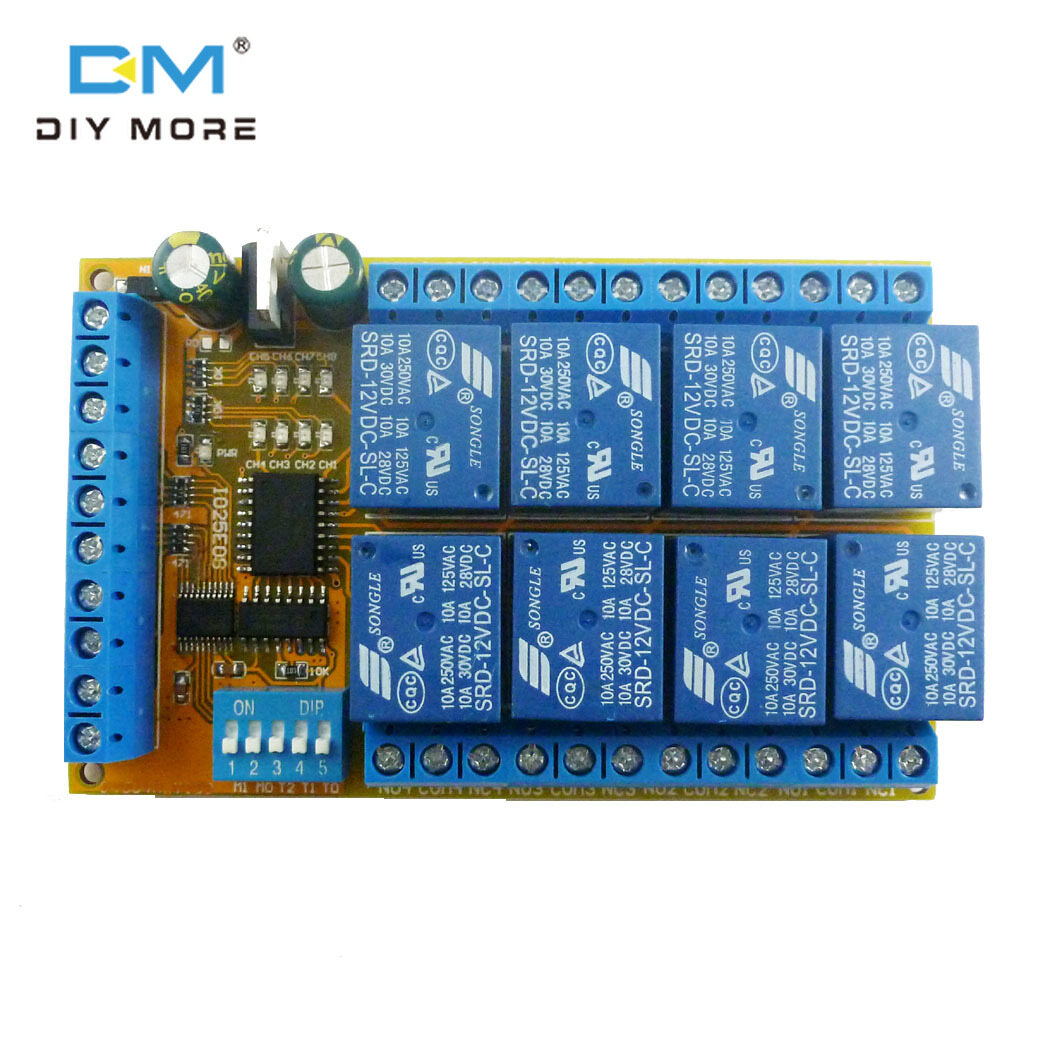

1pcs IO25E08 DC 5V / 12V / 24V 8ch Dip Switch Relay Module

Product specifications:

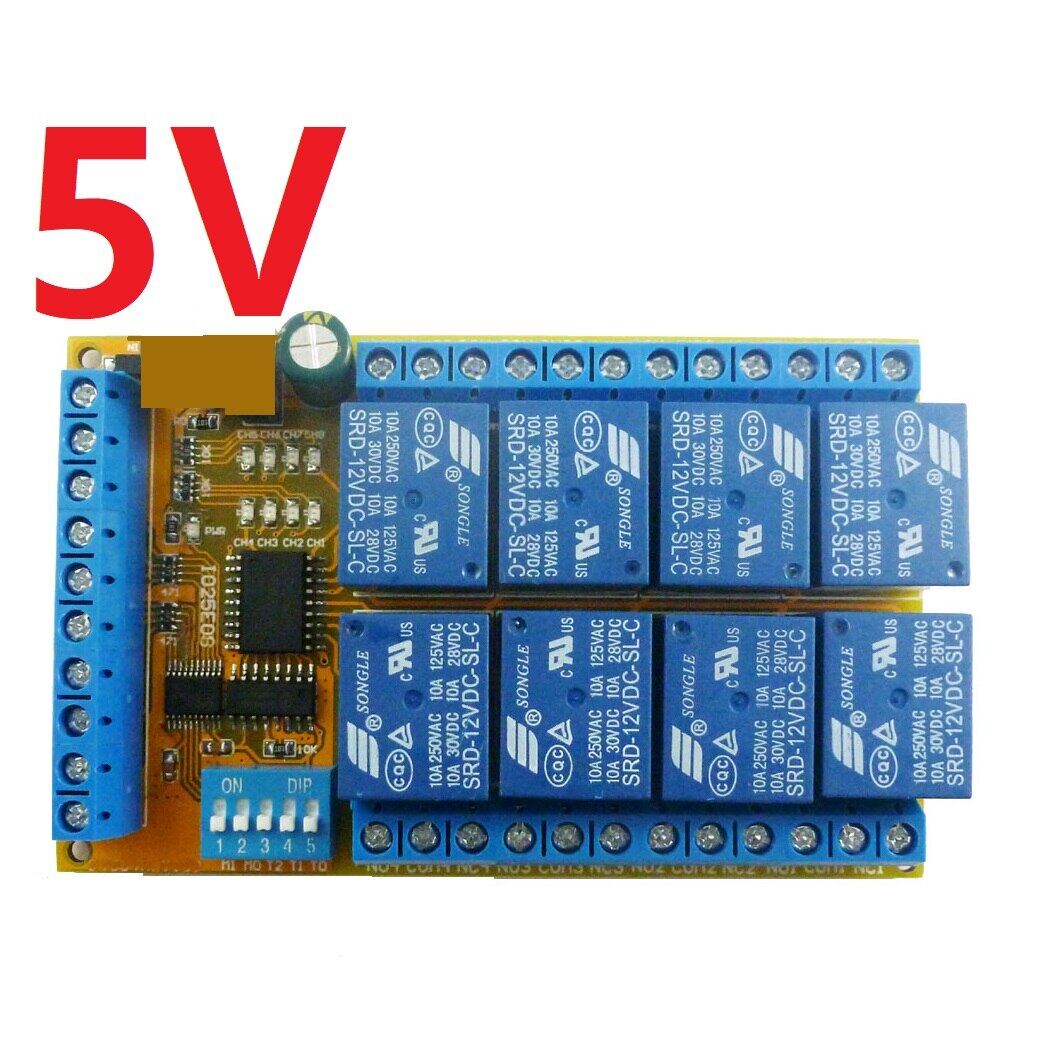

1 working voltage: DC 12V (DC 5V / 24V optional)
2 operating current (DC 12V): standby current 6MA, 1 relay open 35MA, 2 relays open 64MA, 3 relays open 92MA, 4 relays open 120MA, 5 relays open 148MA, 6 relays open 176MA, 7 relays open 204MA, 8 relays open 231MA
Size 3: 99x62x20mm
4 Weight: 120g
5 maximum load capacity of the relay: DC 1-110V / 5A; AC 85-265V / 6A


Product characteristics:
8 channel relay, each channel independently triggered an independent delay, does not interfere with each other.
4 kinds of functional mode: delay / no lock (momentary); Self-locking (lever); Interlock (latch); Power sequencer (relay sequence opens)
Low pulse trigger (connect to GND power supply via fire button or low level control via MCU IO port)

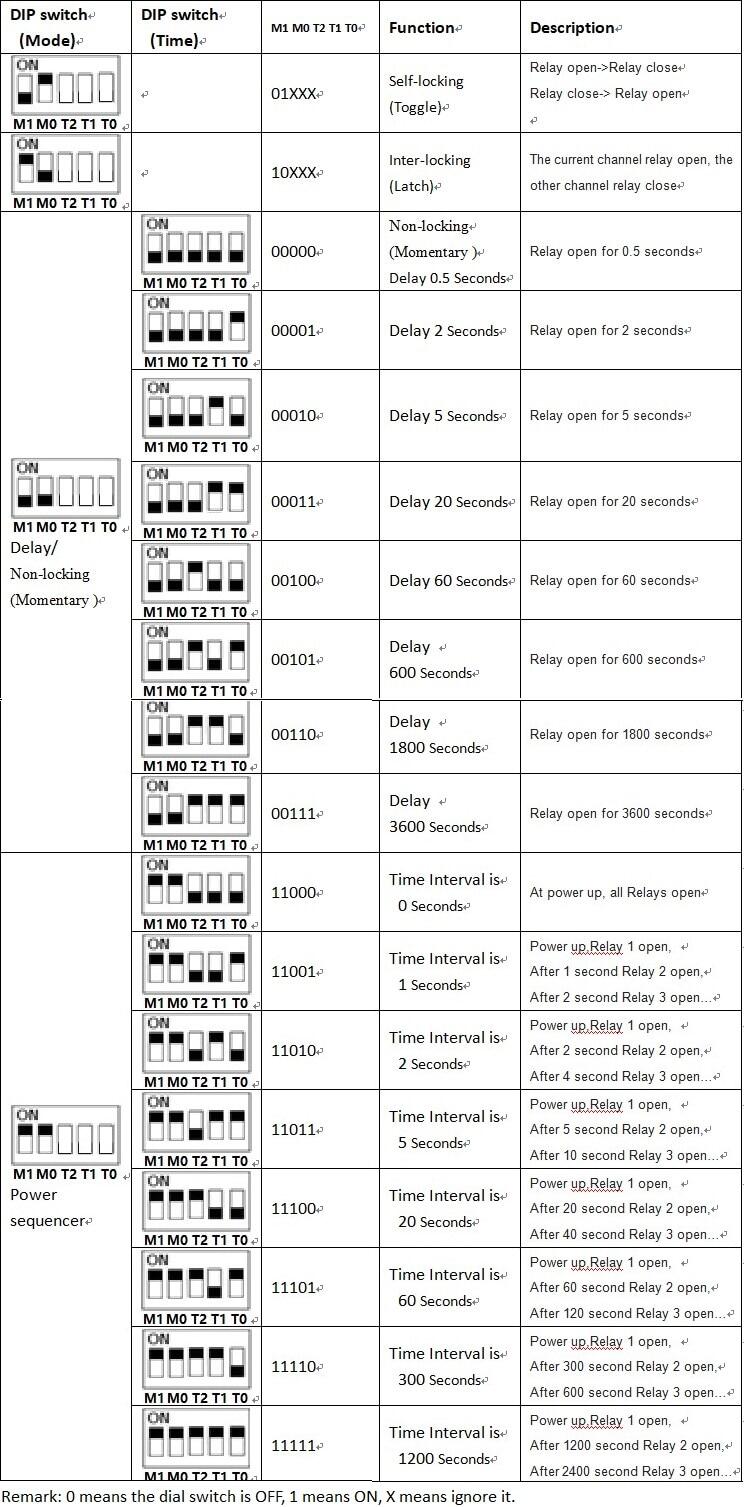

The function mode and the delay time are selected by the DIP switch.

Noun to solve:
NO: Relay normally open contact
COM: Common Contact Relay
NC: Relay normally closed contact
Relay open: n. COM connection no.
Relay closure: n. COM disconnect no.

Typical applications:

Automotive, electronics
AC DC Motor
Audio amplifier power supply.
Power conditioner / sequencer
LED
Smart home
Emergency light
MCU development board
Toy car
ONE MEGA2560
PLC

How to use:

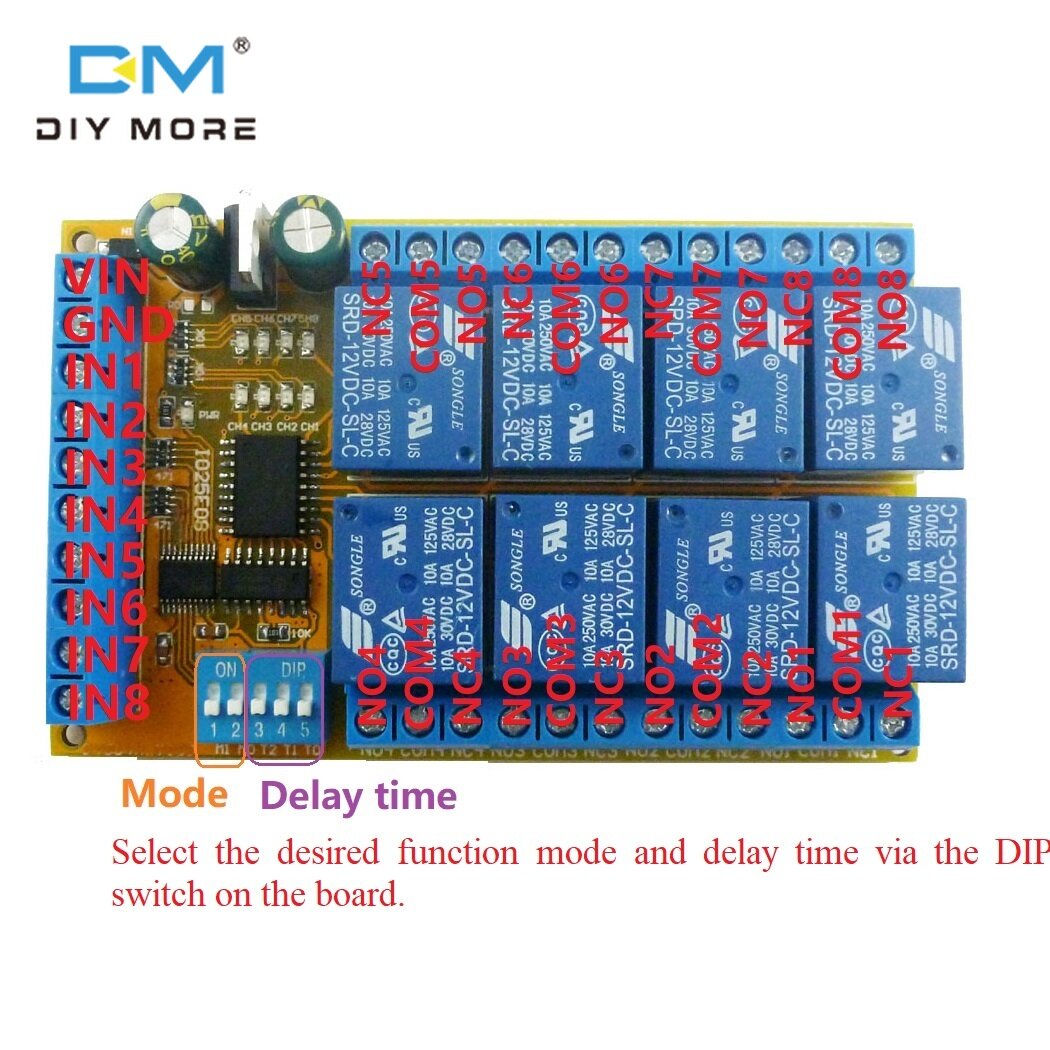

Select the desired function mode and delay time through the DIP switch on the board.
Note: Power back on after changing Dip switch

Diagrama de Cableado:

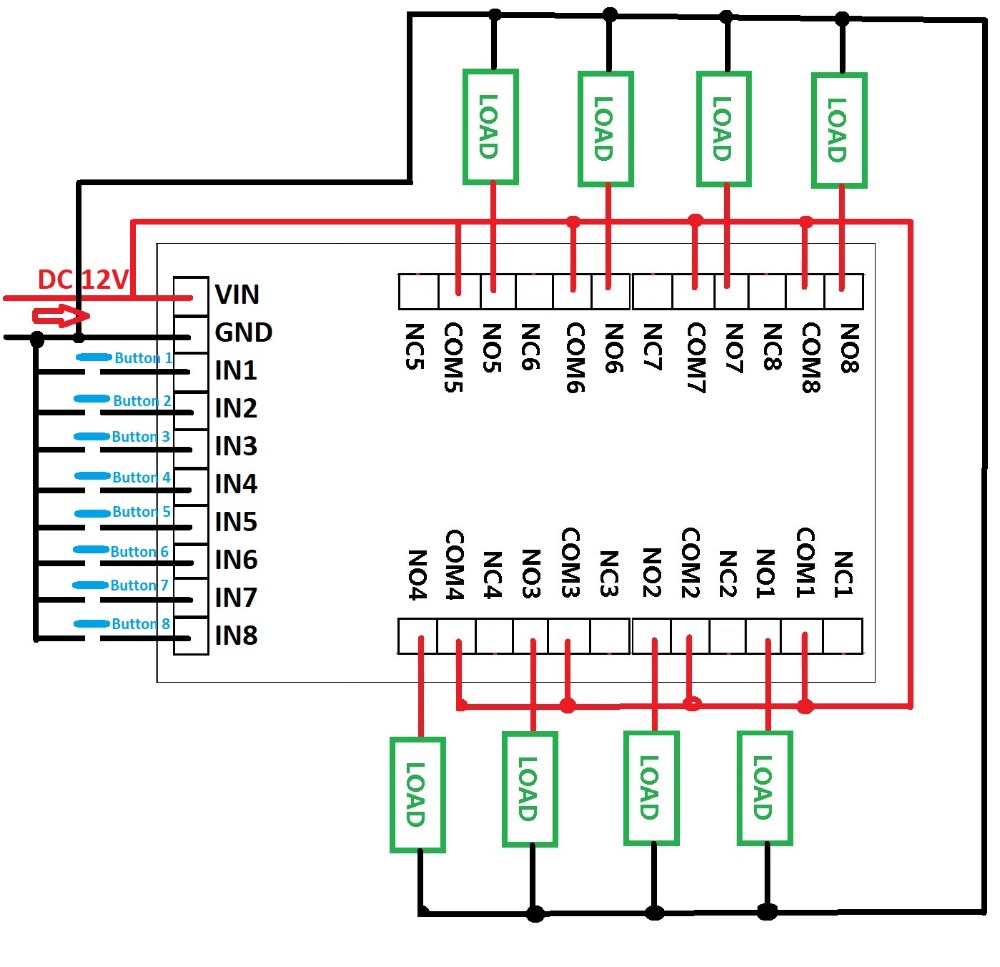

1 circuito de Control DC 12V, diagrama de cableado a continuación. "Carga" puede ser luces LED, ventiladores, coches de juguete y

Otros equipos DC 12V

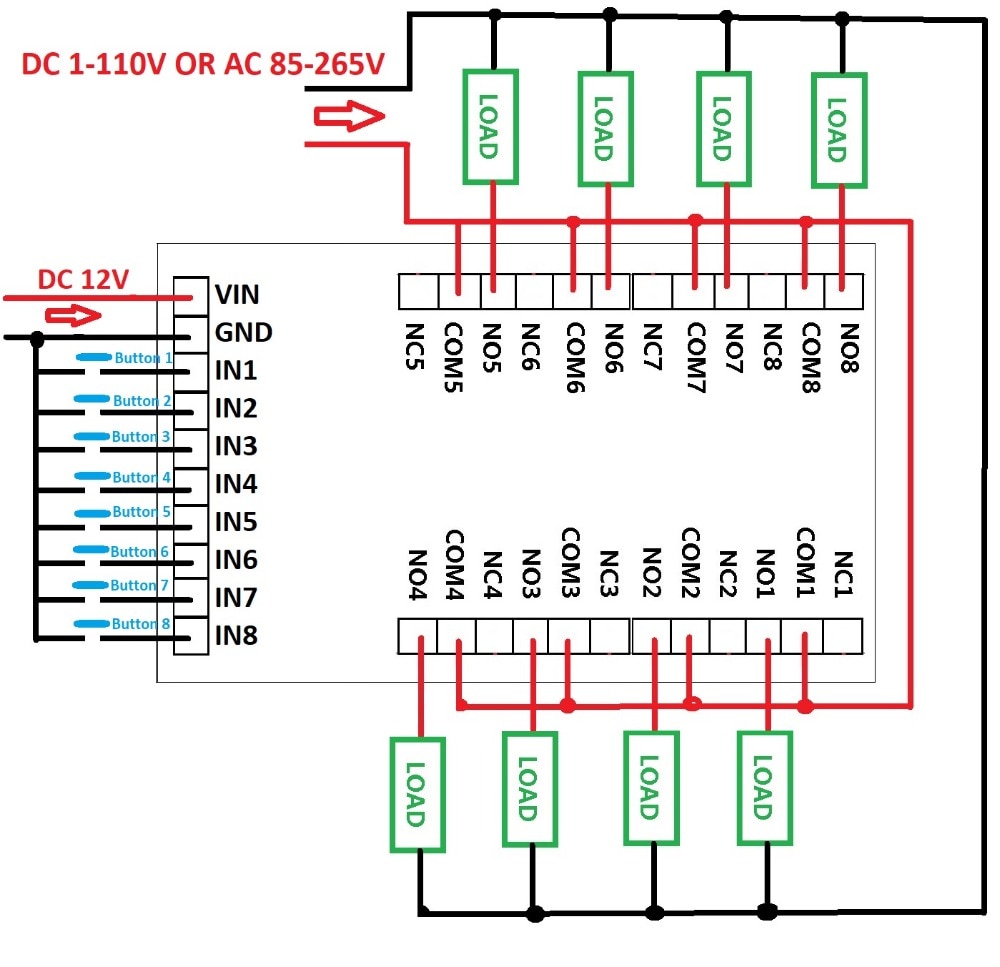

2 circuito de control DC 1-100V o AC 85-265V, diagrama de cableado a continuación. La "carga" puede ser luces LED, ventiladores, motores y otros equipos de CC CA
